Description

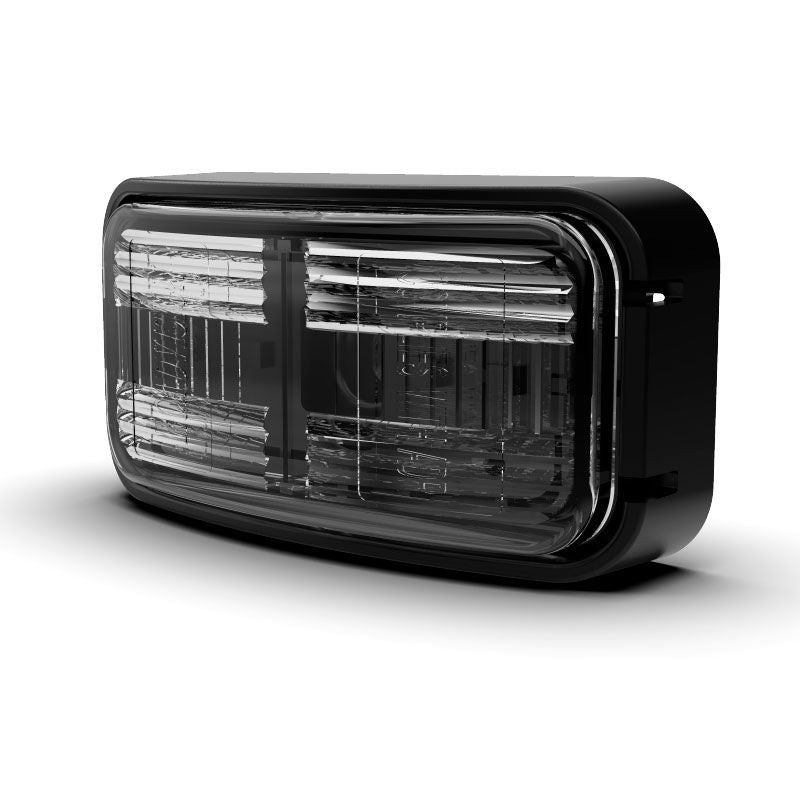

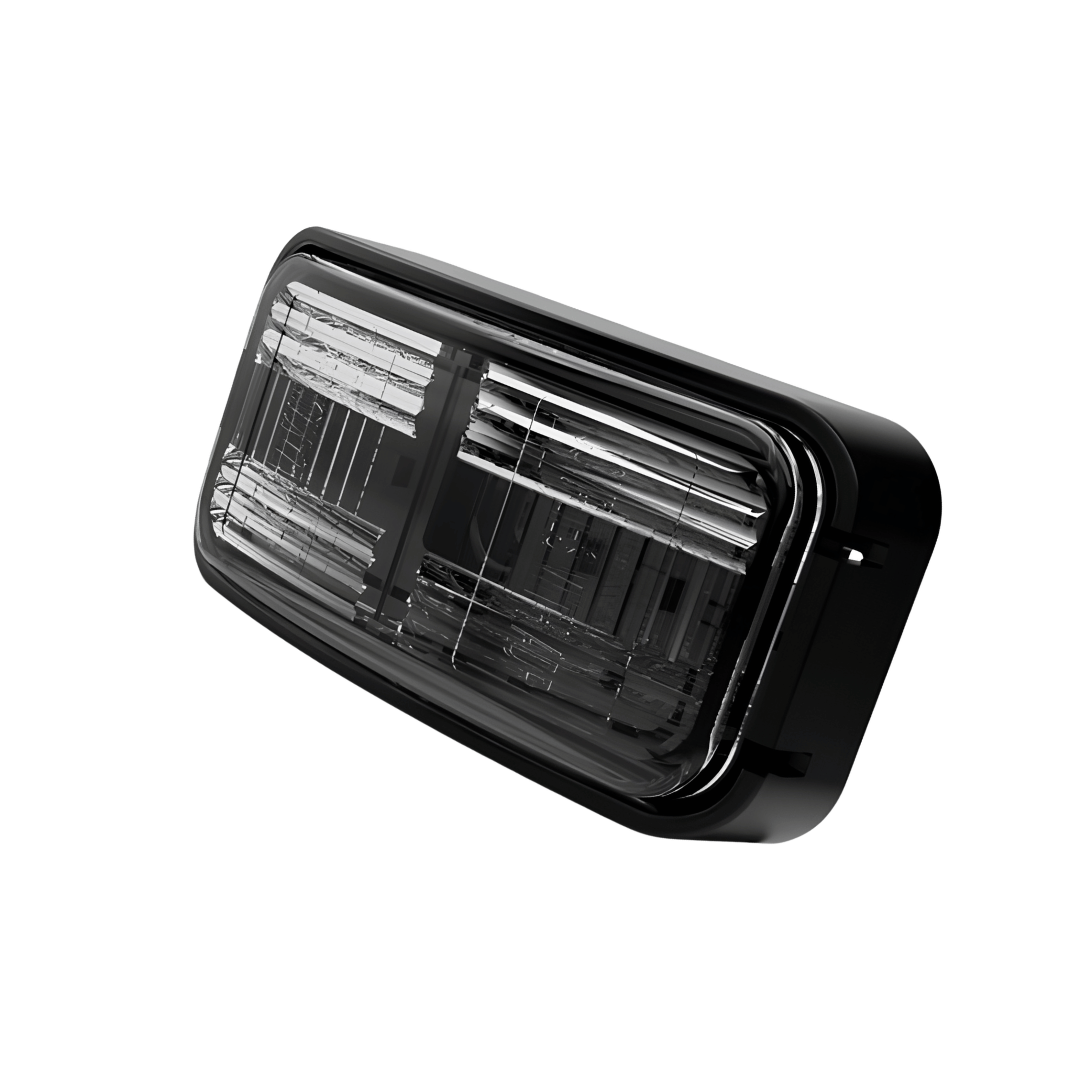

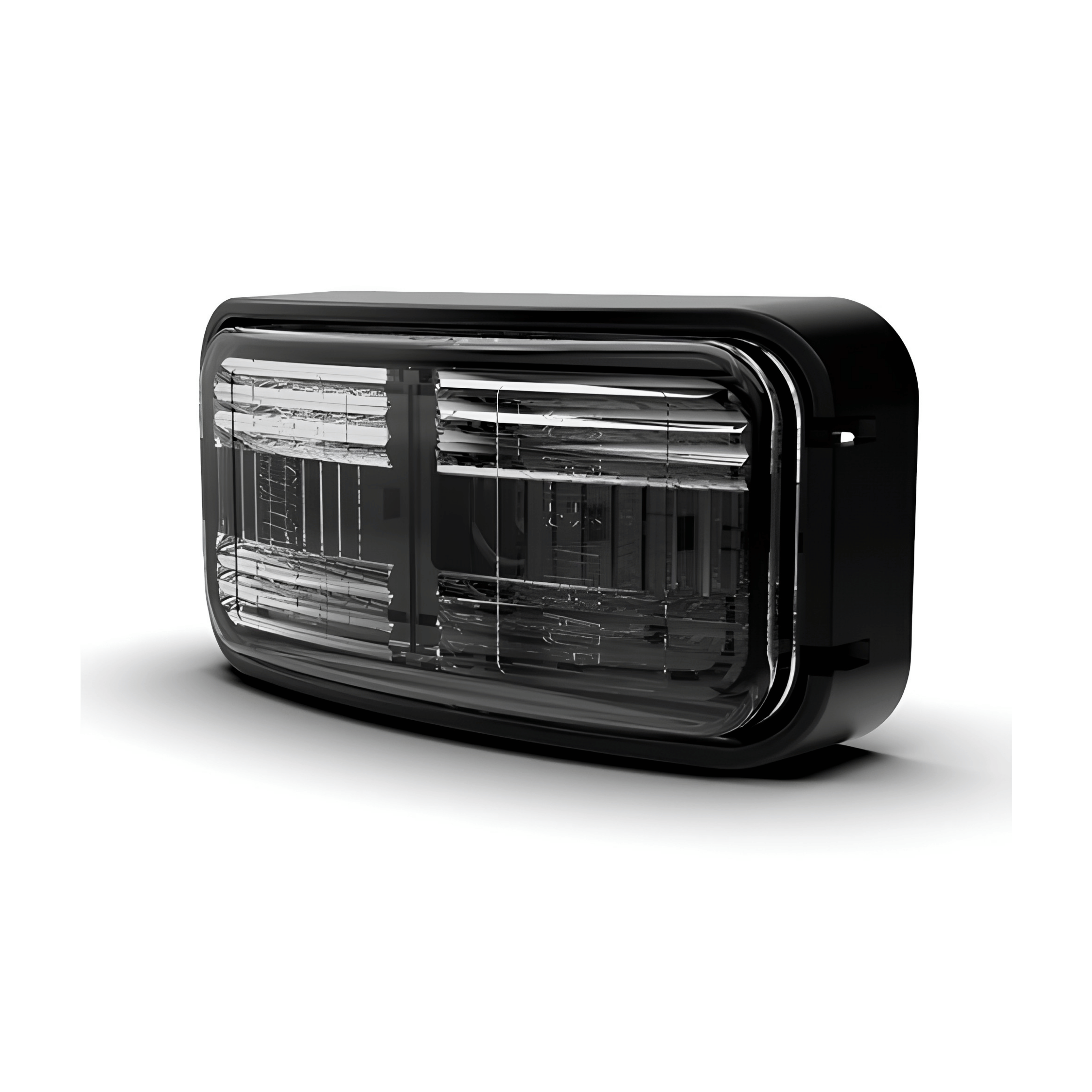

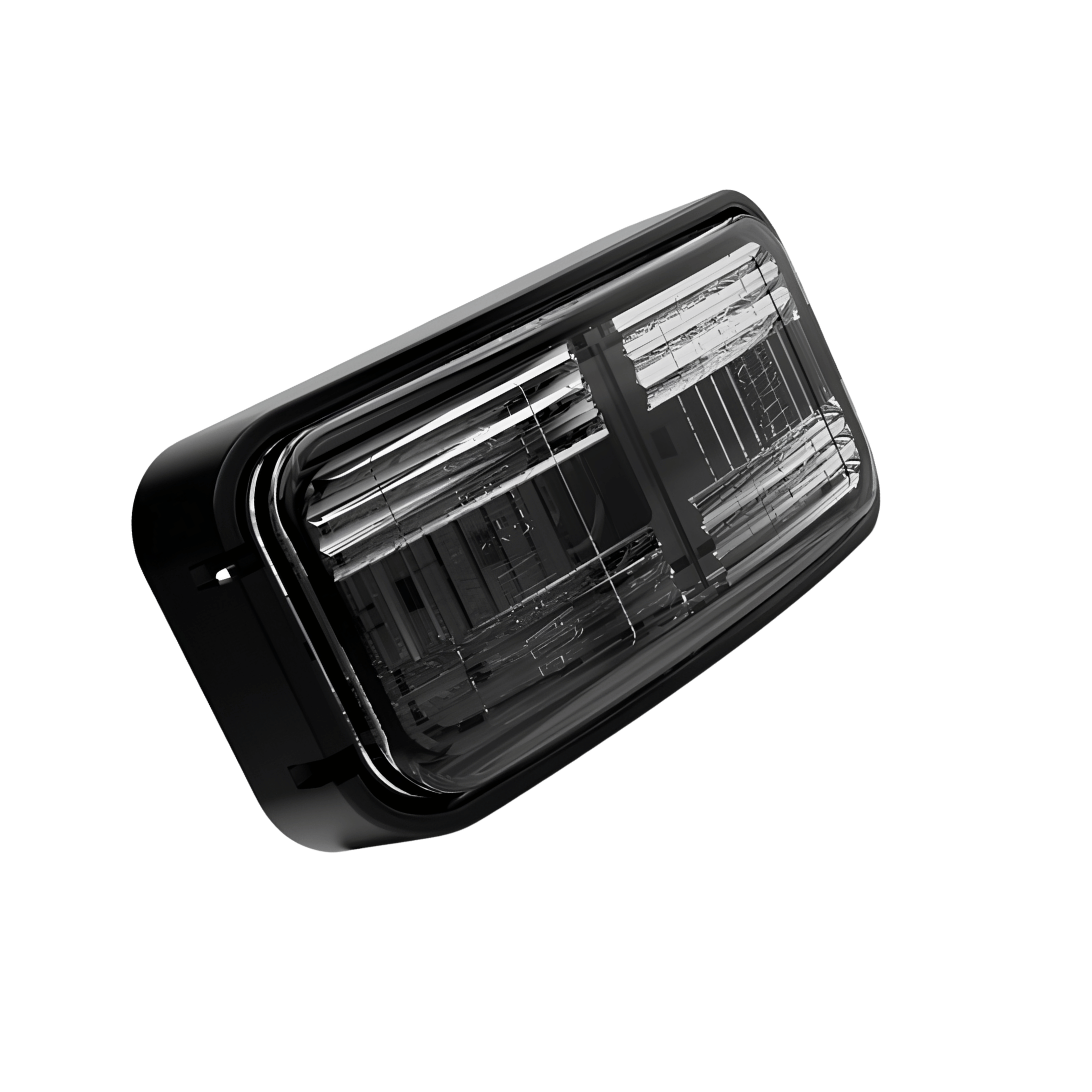

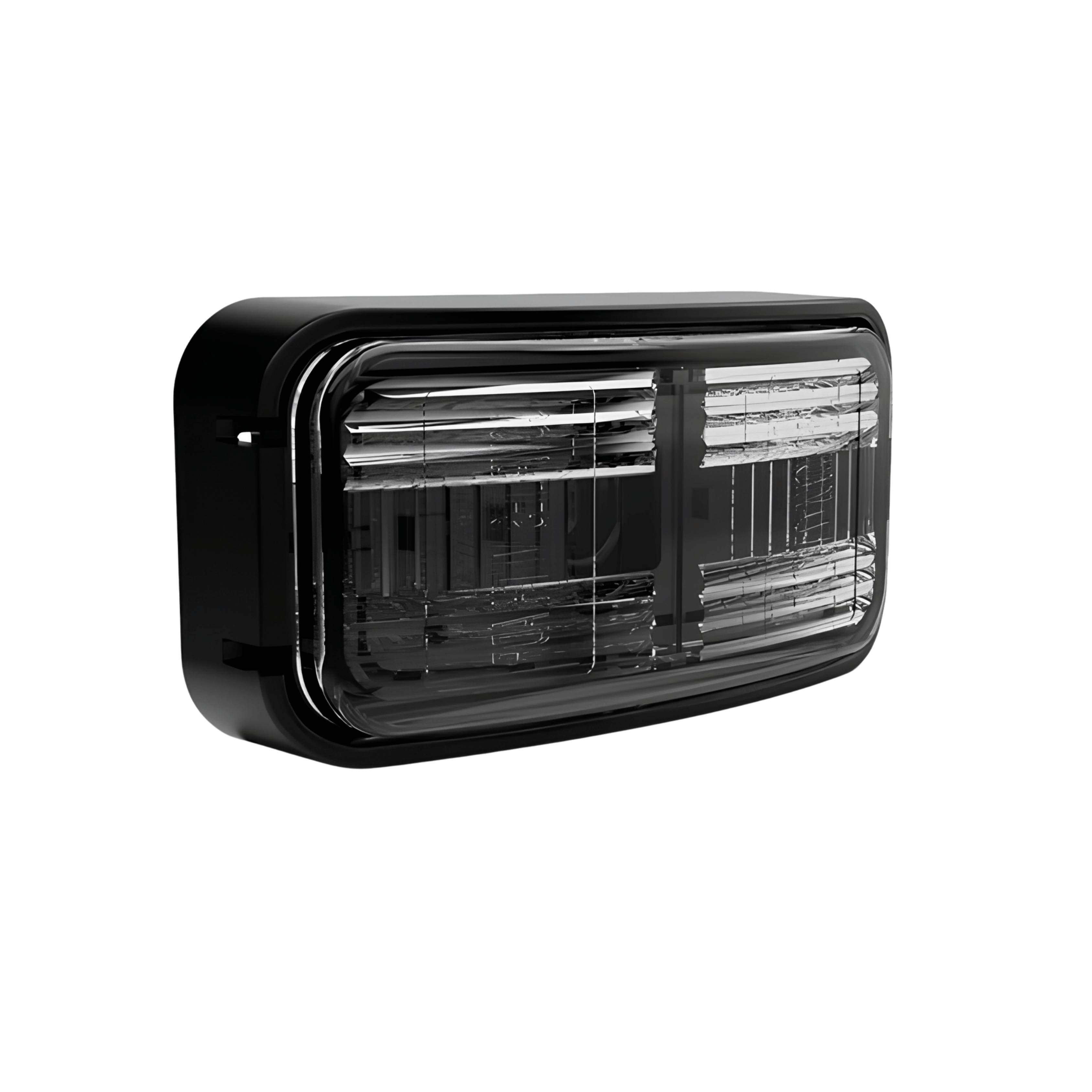

Roadvision BR8W LED Clearance Light White Clear Lens 10-30V
An ADR-approved IP67 LED clearance lamp from the Roadvision BR8 Series, the BR8W features 4 white LEDs with a clear polycarbonate lens and housing, 10-30V DC multi-volt operation, 74x38x22mm rectangle form factor, and a 300mm tinned copper pre-wired cable, backed by a 5-year warranty.
Product Overview
The Roadvision BR8W is a rectangle LED clearance lamp from the BR8 Series with a clear polycarbonate lens and 4 white LEDs, suited to trailer, caravan, truck, and commercial vehicle front clearance lighting applications. IP67 rated, ADR approved, and CTA certified (CTA-062089). Compatible with 10-30V DC systems. Pre-wired with a 300mm tinned copper cable with earth (white) and marker (brown) wires. Rated lifespan of 100,000 hours.
Features & Benefits
ADR Approved and CTA Certified: The BR8W holds ADR approval and CTA certification CTA-062089, confirming compliance with Australian road requirements for clearance lamp applications.
IP67 Waterproof and Dustproof: IP67 rating provides full dust and waterproof protection for exposed trailer and vehicle body mounting locations.
Polycarbonate Clear Lens and Housing: Unbreakable polycarbonate construction on both the clear lens and housing provides long-term durability and impact resistance.
4 White LEDs - 100,000 Hour Rated Lifespan: Four white LEDs through a clear lens deliver bright clearance light output with a rated 100,000 hour lifespan for maintenance-free performance.
Multi-Volt 10-30V DC: Compatible with 12V and 24V vehicle and trailer electrical systems.
300mm Tinned Copper Pre-Wired Cable: Corrosion-resistant tinned copper wiring with earth (white) and marker (brown) wires.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BR8W |
| Brand |
Roadvision |
| Series |
BR8 |
| Description |
Clearance Lamp Rectangle White |
| Function |
Clearance |
| LED Quantity |
4 White LEDs |
| Input Voltage |
10-30V DC |
| Current Draw |
0.05A at 13.8V |

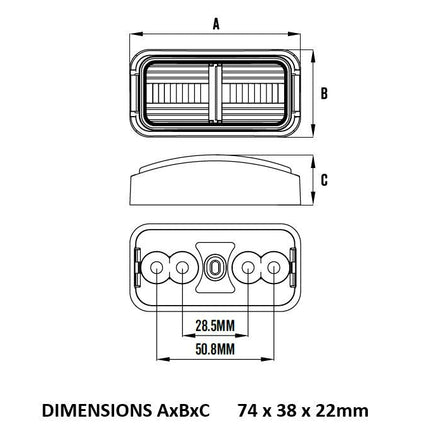

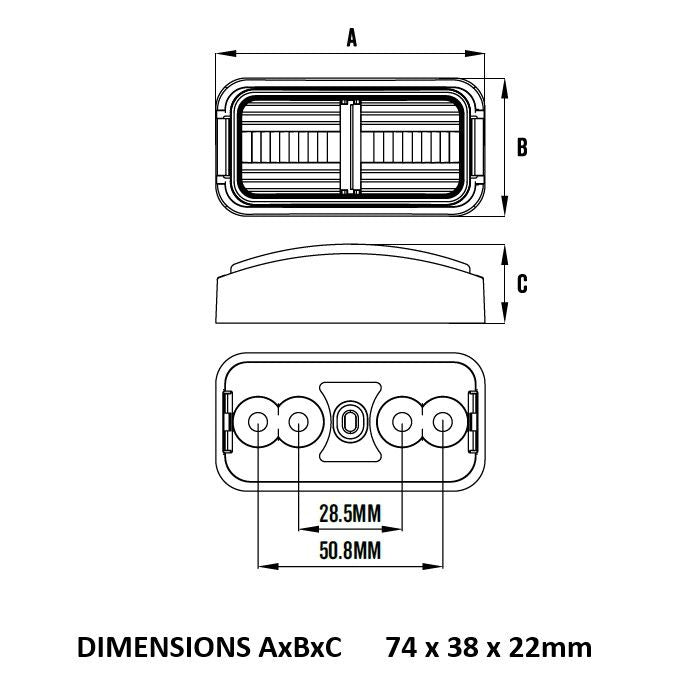

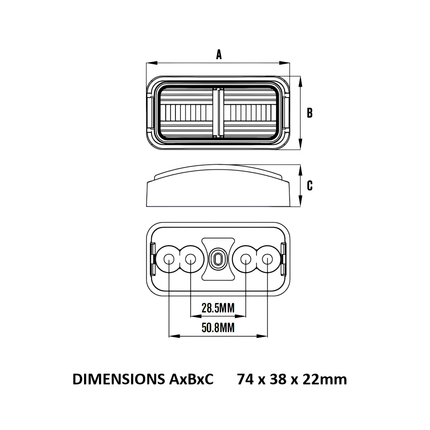

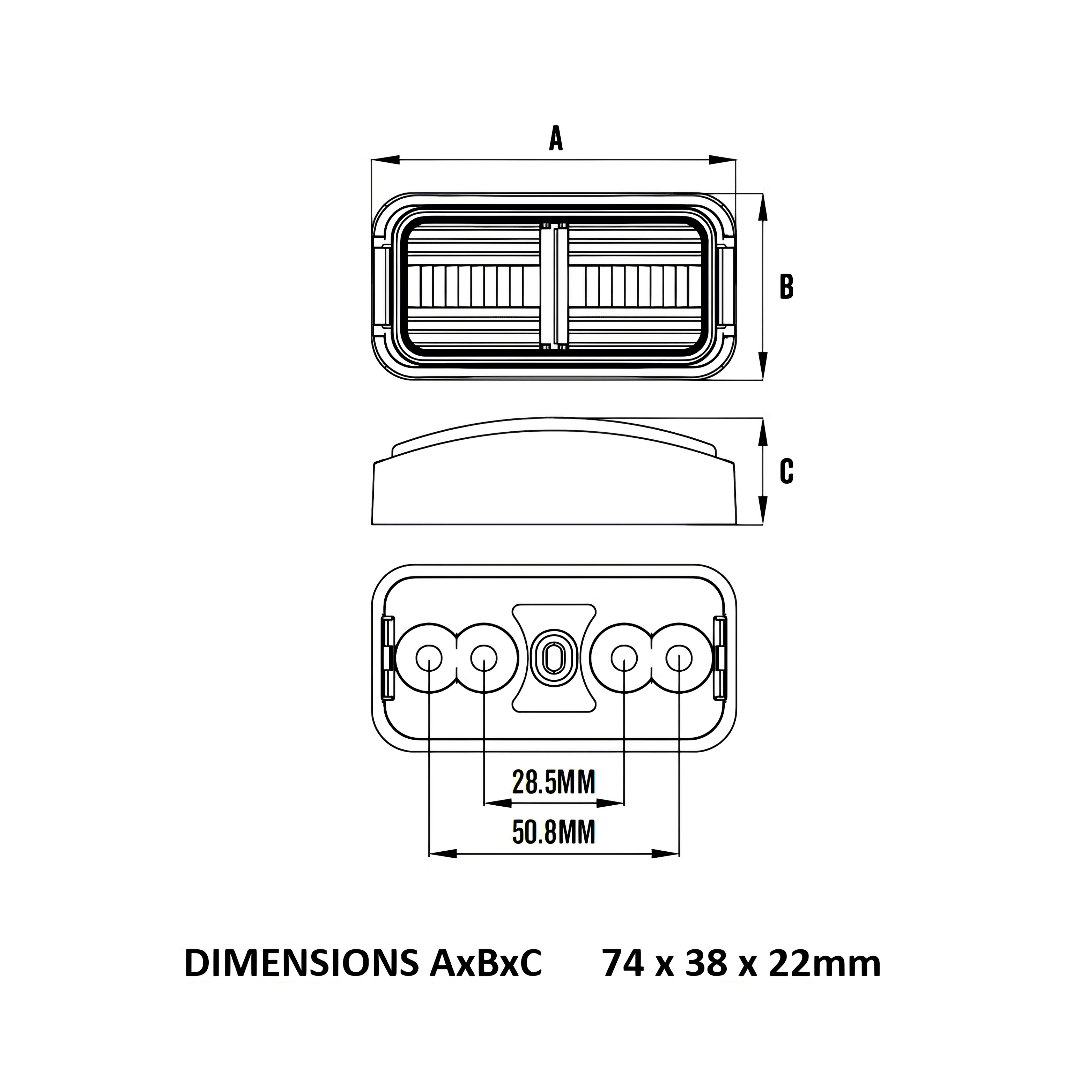

| Dimensions |
74mm x 38mm x 22mm |
| Lens Construction |
Polycarbonate (Clear) |
| Housing Construction |
Polycarbonate |
| Mounting Hole/Cutout |
28.5mm and 50.8mm |
| Cable Length |
300mm Tinned Copper |
| Wiring |
Earth - White, Marker - Brown |
| IP Rating |
IP67 |
| CTA Approval |
CTA-062089 |
| ADR Approved |
Yes |
| Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BR8W is compatible with 10-30V DC trailer and vehicle electrical systems. ADR and CTA approved for on-road use. Confirm mounting cutout dimensions (28.5mm and 50.8mm) before purchase.
Frequently Asked Questions
Is the BR8W ADR approved?
Yes. The BR8W is ADR approved and holds CTA approval CTA-062089 for clearance lamp applications.
Is the BR8W compatible with 24V systems?
Yes. The BR8W operates across 10-30V DC, compatible with both 12V and 24V systems.
What is the difference between the BR8W and the other BR8 Series lamps?
All BR8 Series lamps share the same dimensions, housing, electrical specifications, and ratings. The BR8W has a clear lens with white LEDs for front clearance applications. The BR8R has a red lens, the BR8A has an amber lens with combined indicator and clearance function, and the BR8AR has a red and amber lens.
What are the mounting cutout dimensions for the BR8W?
28.5mm and 50.8mm. Confirm against your specific panel before purchase.
What is the lifespan of the BR8W?
100,000 hours.
