Description
Roadvision BRD281ARR LED Rear Combination Lamp Stop Tail Indicator and Reflector
An ADR-approved LED rear combination lamp from the Roadvision BRD281 Series, the BRD281ARR features stop, tail, indicator, and integrated reflector functions with a sequential indicator, Dynamic Glow Tail start-up effect, polycarbonate lens and housing, 10-30V DC multi-volt input, and 300mm tinned copper pre-wired cable, backed by a 5-year warranty.
Product Overview

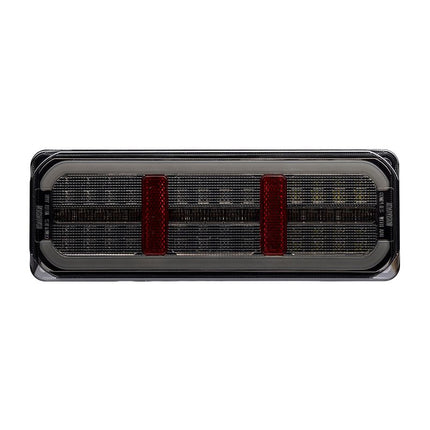

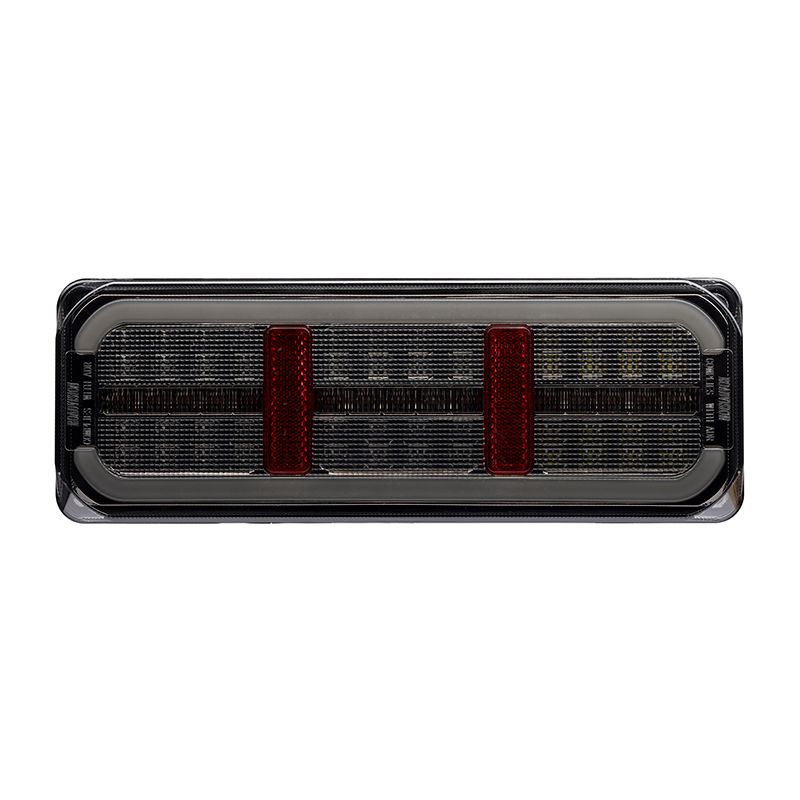

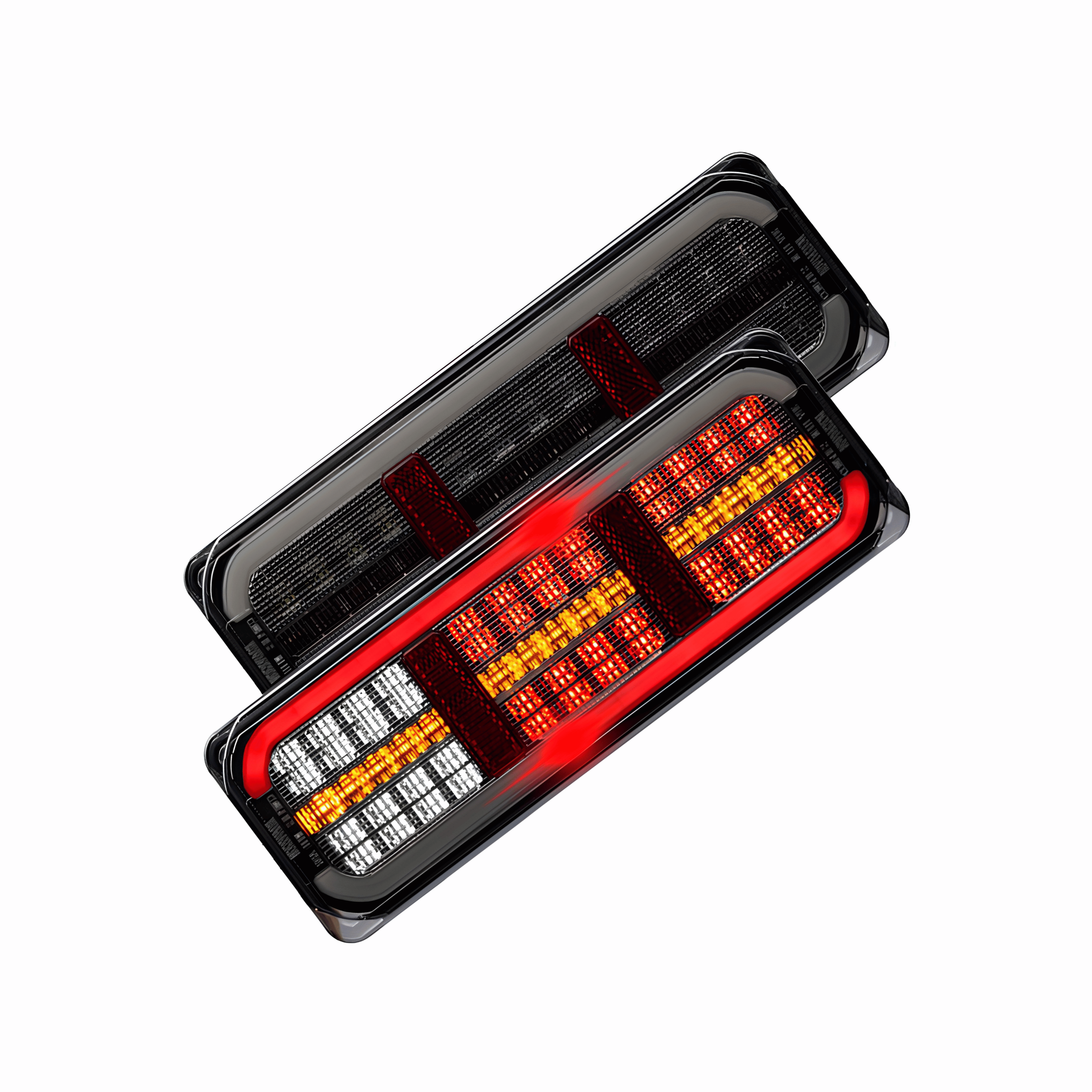

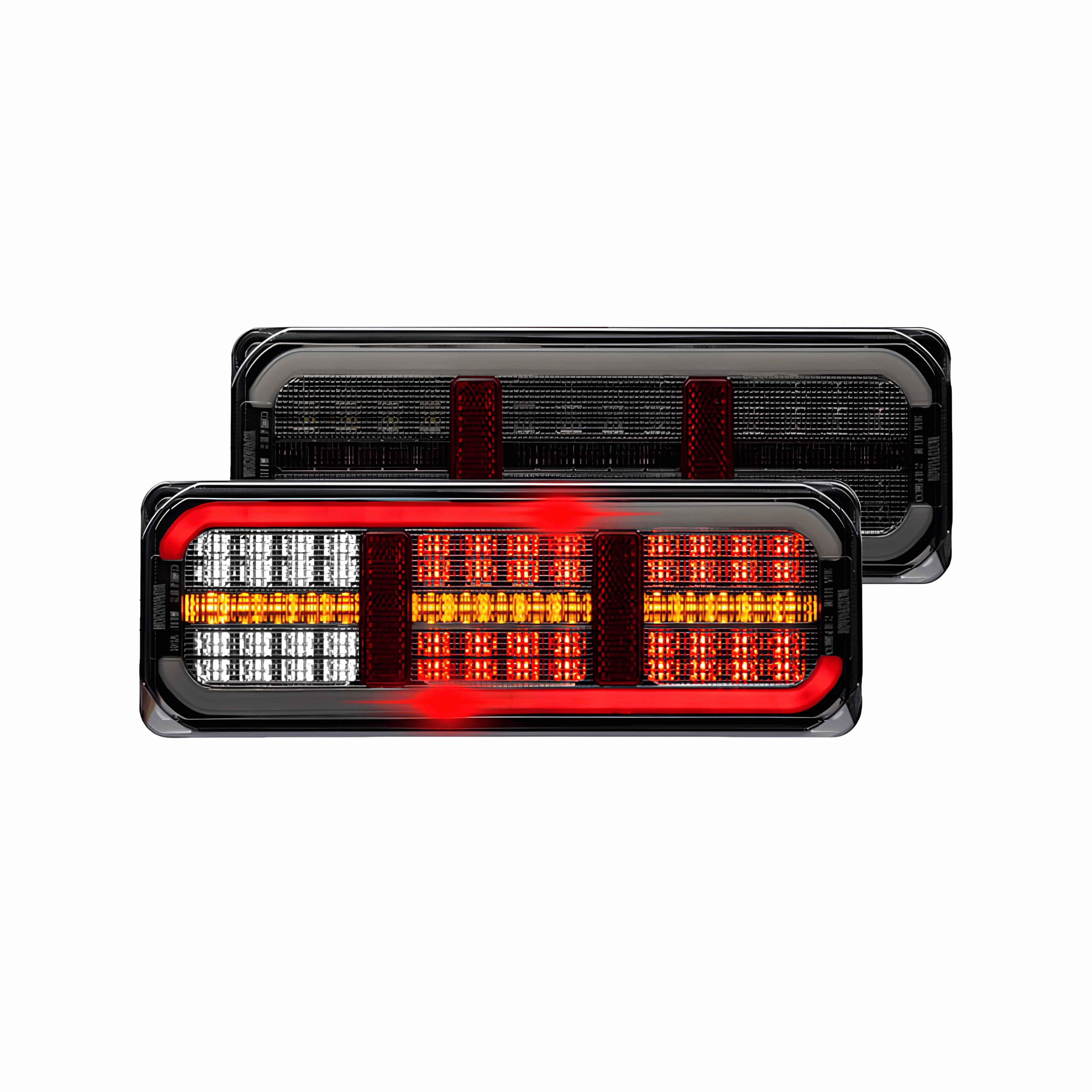

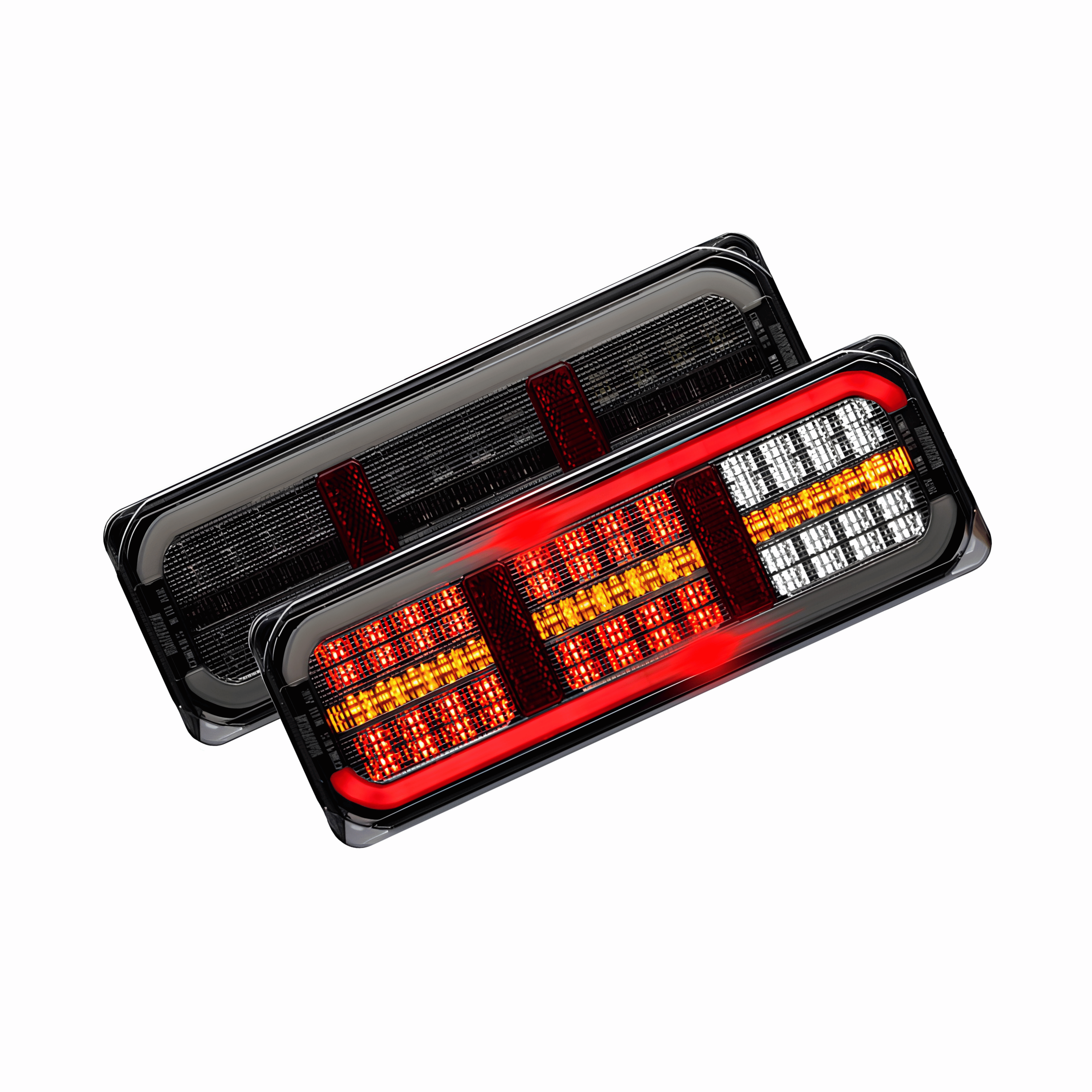

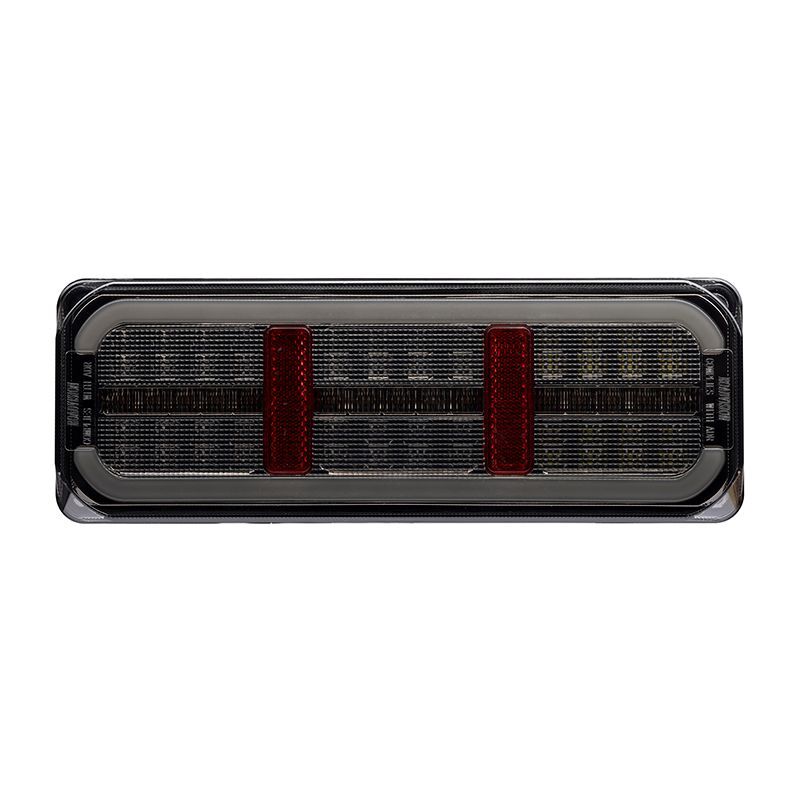

The Roadvision BRD281ARR is a rear combination lamp from the BRD281 Series, providing stop, tail, indicator, and integrated reflector functions in a single 280 x 100 x 37mm surface mount unit. The sequential indicator delivers a modern, sweeping activation sequence for enhanced road presence and visibility. The Dynamic Glow Tail provides a distinctive dynamic start-up effect for the tail light at every power-on. The integrated retro reflector boosts passive visibility. The mild tinted lens and gun metal grey chrome finish provide a premium, contemporary aesthetic.
Ninety-nine LEDs total across stop (48 LEDs), tail (36 LEDs), and indicator (15 LEDs) functions provide high-output illumination across all active lamp functions. Multi-volt 10-30V DC input at respective current draws of 0.33A for stop, 0.14A for tail, and 0.29A for indicator at 13.8V. Polycarbonate lens and housing with 120mm mounting hole centres and 300mm tinned copper pre-wired cable with earth (white), stop (red), tail (brown), and indicator (yellow) wires. ADR approved for all functions. CTA approval CTA-061834. 100,000 hour rated LED lifespan.
Features & Benefits
Sequential Indicator for Enhanced Road Presence: The sequential indicator delivers a sweeping activation sequence rather than a standard flash, providing a distinctive and modern appearance that enhances visibility and road presence.

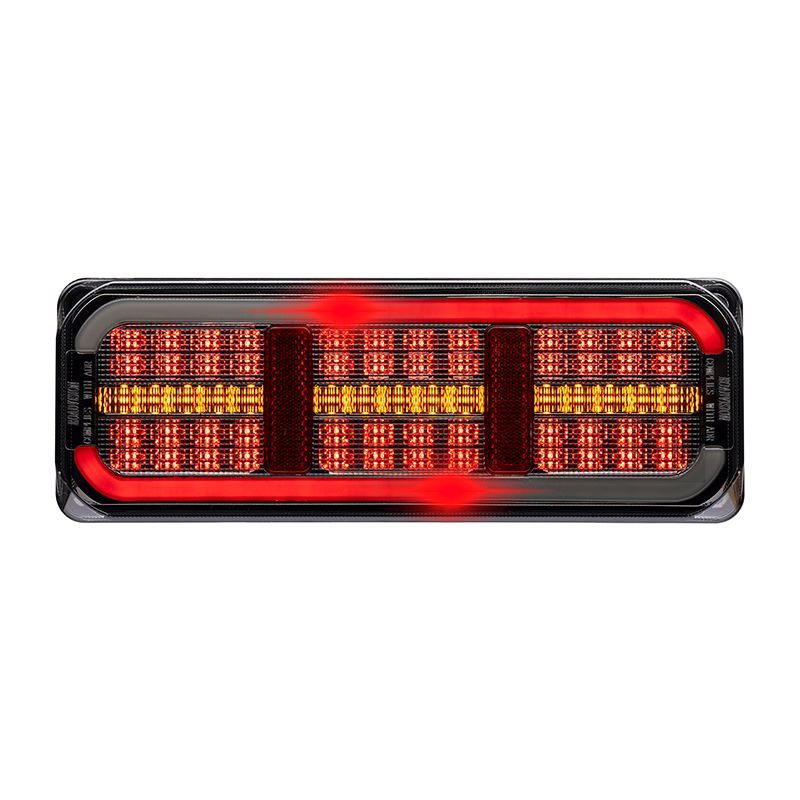

Dynamic Glow Tail Start-Up Effect: The Dynamic Glow Tail provides a dynamic light sequence each time the tail light is powered on, adding a distinctive visual signature to the rear of the vehicle.
Stop, Tail, Indicator, and Integrated Reflector Functions: The BRD281ARR combines stop, tail, indicator, and reflector functions in a single lamp unit, reducing the number of individual lamp assemblies required on the vehicle or trailer.
ADR Approved for All Functions: The BRD281ARR is ADR approved for all functions and holds CTA approval CTA-061834, confirming compliance with Australian road safety requirements for all lamp functions.
Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle and trailer electrical systems.
Polycarbonate Lens and Housing: Lightweight, tough polycarbonate construction on both lens and housing for long-term durability.
Mild Tinted Lens and Gun Metal Grey Chrome Finish: The mild tinted lens and gun metal grey chrome finish provide a premium, contemporary aesthetic suited to modern trailer and vehicle applications.
100,000 Hour LED Lifespan with Solid-State Technology: The 100,000 hour rated LED lifespan provides long-term maintenance-free performance.
300mm Tinned Copper Pre-Wired Cable: Corrosion-resistant tinned copper wiring with earth (white), stop (red), tail (brown), and indicator (yellow) wires.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BRD281ARR |
| Brand |
Roadvision |
| Series |
BRD281 |
| Description |
LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 200x100x37mm Dynamic Glow Tail |
| Functions |
Stop, Tail, Indicator, Reflector |
| Indicator Type |
Sequential |
| Tail Light |
Dynamic Glow Tail |
| LED Quantity - Indicator |
15 LEDs |
| LED Quantity - Stop |
48 LEDs |
| LED Quantity - Tail |
36 LEDs |
| Input Voltage |
10-30V DC |
| Current Draw - Indicator |
0.29A at 13.8V |
| Current Draw - Stop |
0.33A at 13.8V |
| Current Draw - Tail |
0.14A at 13.8V |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Polycarbonate |
| Finish |
Mild Tinted Lens, Gun Metal Grey Chrome |
| Mounting Hole Centres |
120mm |

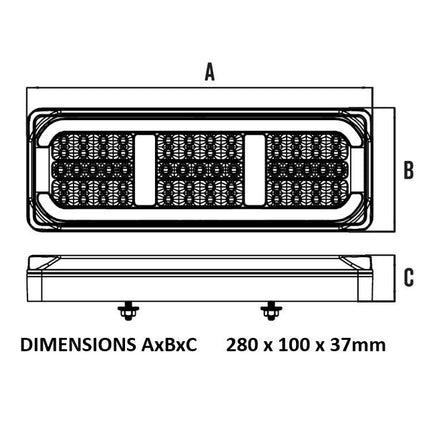

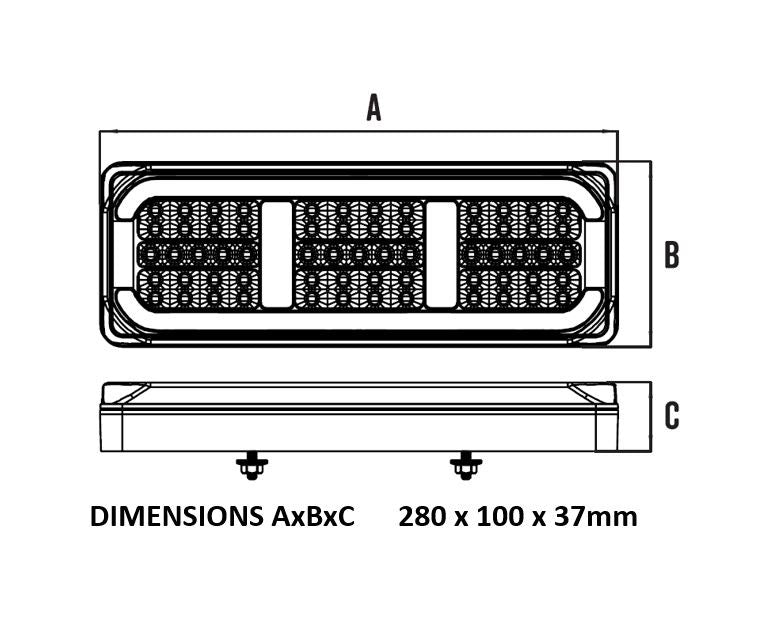

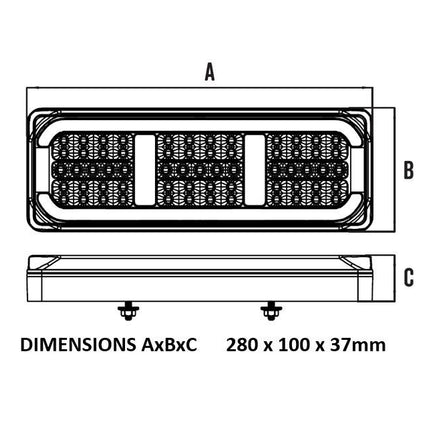

| Overall Dimensions |
280mm x 100mm x 37mm |
| Cable Length |
300mm Tinned Copper |
| Wiring |
Earth - White, Stop - Red, Tail - Brown, Indicator - Yellow |
| CTA Approval |
CTA-061834 |
| ADR Approved |
Yes (all functions) |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BRD281ARR is compatible with 10-30V DC trailer and vehicle electrical systems. ADR approved for all functions. Confirm mounting dimensions and wiring requirements for your specific application before purchase. A version with reverse function is available as the BRD281ARW.
Frequently Asked Questions
Is the BRD281ARR ADR approved?
Yes. The BRD281ARR is ADR approved for all functions and holds CTA approval CTA-061834.
What is the Dynamic Glow Tail on the BRD281ARR?
The Dynamic Glow Tail is a dynamic start-up light sequence that activates each time the tail light powers on, providing a distinctive visual signature and enhanced rear visibility.
What is the sequential indicator on the BRD281ARR?
The sequential indicator delivers a sweeping activation sequence rather than a standard simultaneous flash, providing a modern and distinctive indicator appearance that enhances road presence and visibility.
Is the BRD281ARR compatible with 24V systems?
Yes. The BRD281ARR operates across 10-30V DC, compatible with both 12V and 24V vehicle and trailer electrical systems.
What is the difference between the BRD281ARR and the BRD281ARW?

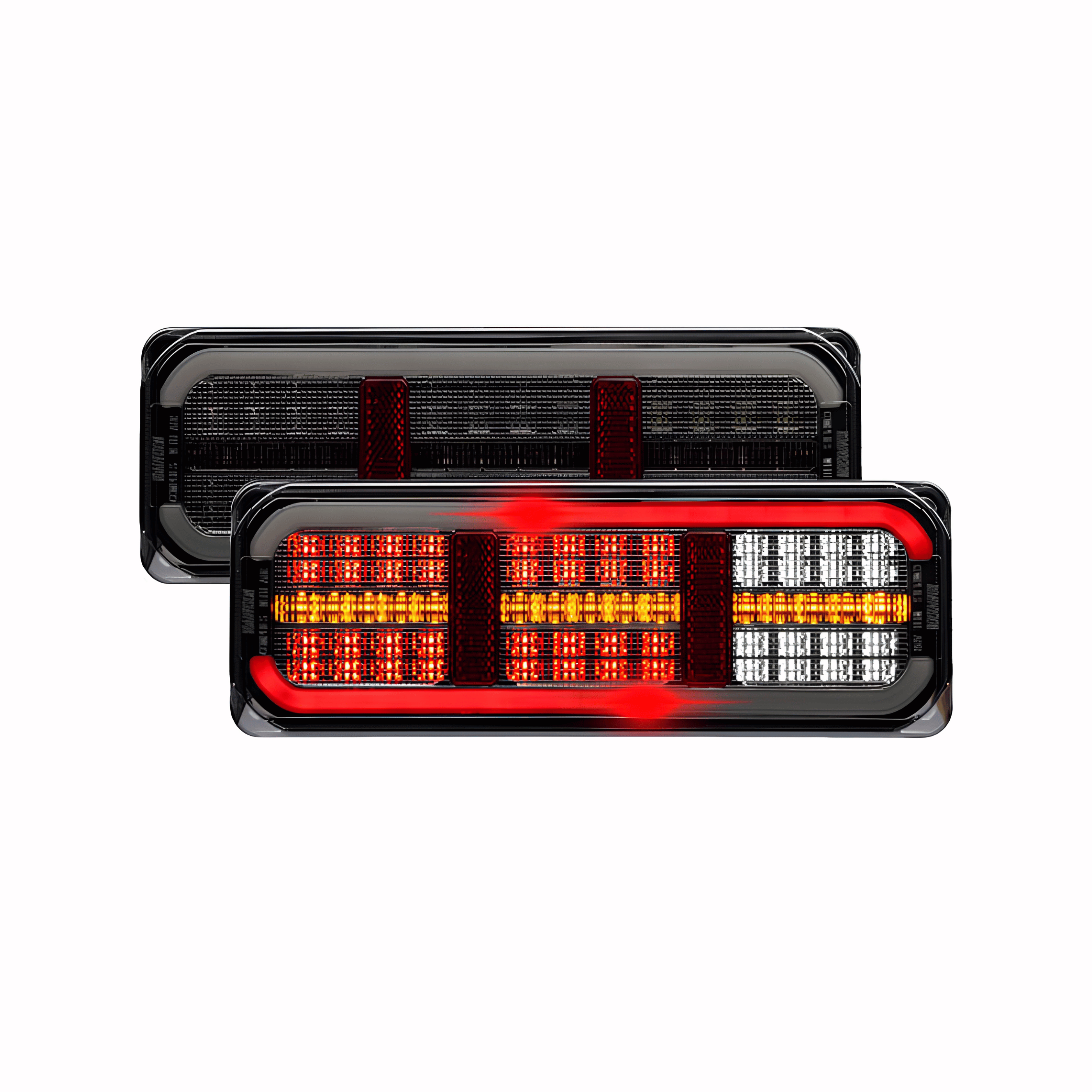

The BRD281ARR provides stop, tail, indicator, and reflector functions. The BRD281ARW adds a reverse function with 16 additional LEDs and a black reverse wire, making it suited to applications requiring an integrated reverse lamp. Both share the same overall dimensions, sequential indicator, Dynamic Glow Tail, polycarbonate construction, and multi-volt input.
