Roadvision BRD281ARW LED Rear Combination Lamp Stop Tail Indicator Reverse and Reflector
An ADR-approved LED rear combination lamp from the Roadvision BRD281 Series, the BRD281ARW features stop, tail, indicator, reverse, and integrated reflector functions with a sequential indicator, Dynamic Glow Tail start-up effect, polycarbonate lens and housing, 10-30V DC multi-volt input, and 300mm tinned copper pre-wired cable, backed by a 5-year warranty.
Product Overview

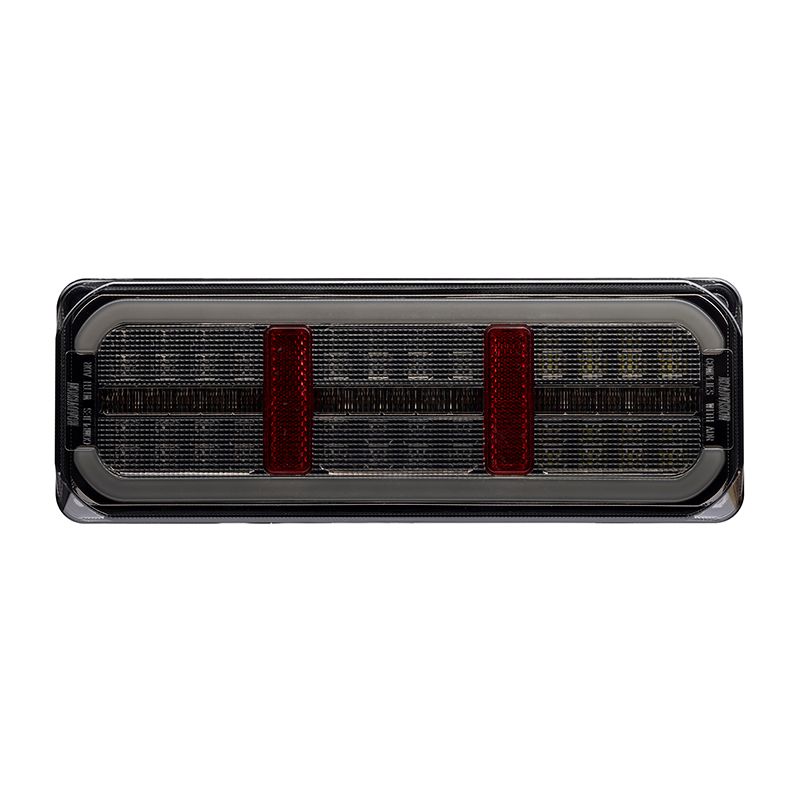

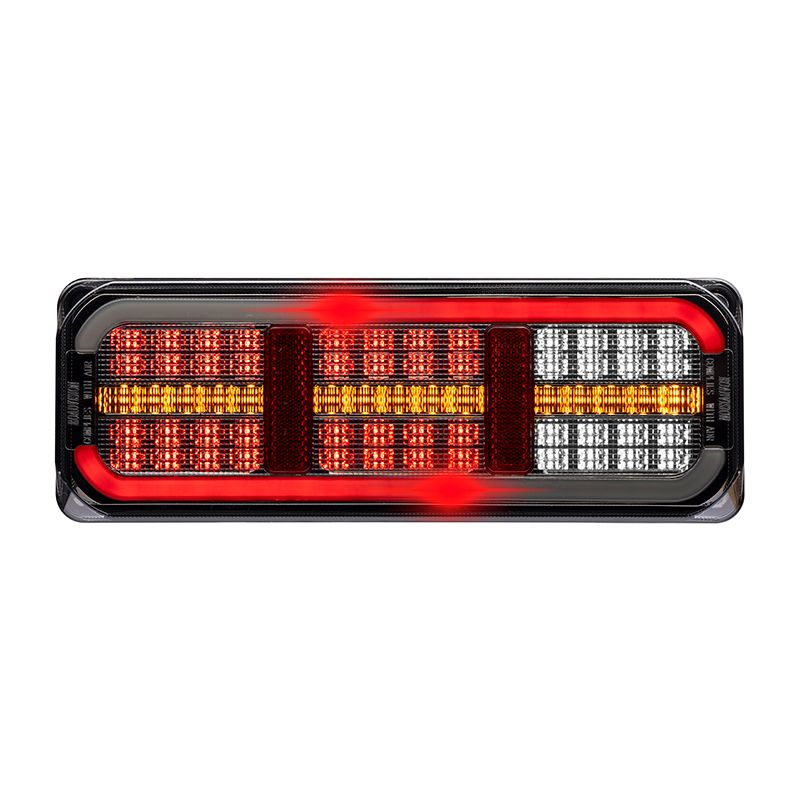

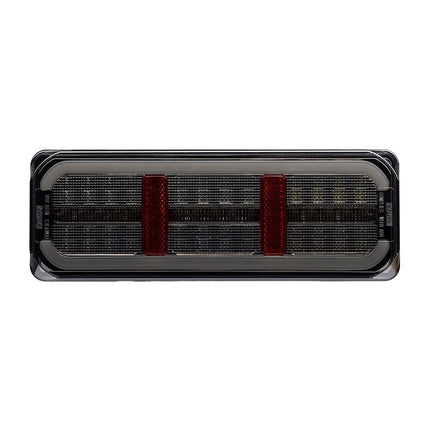

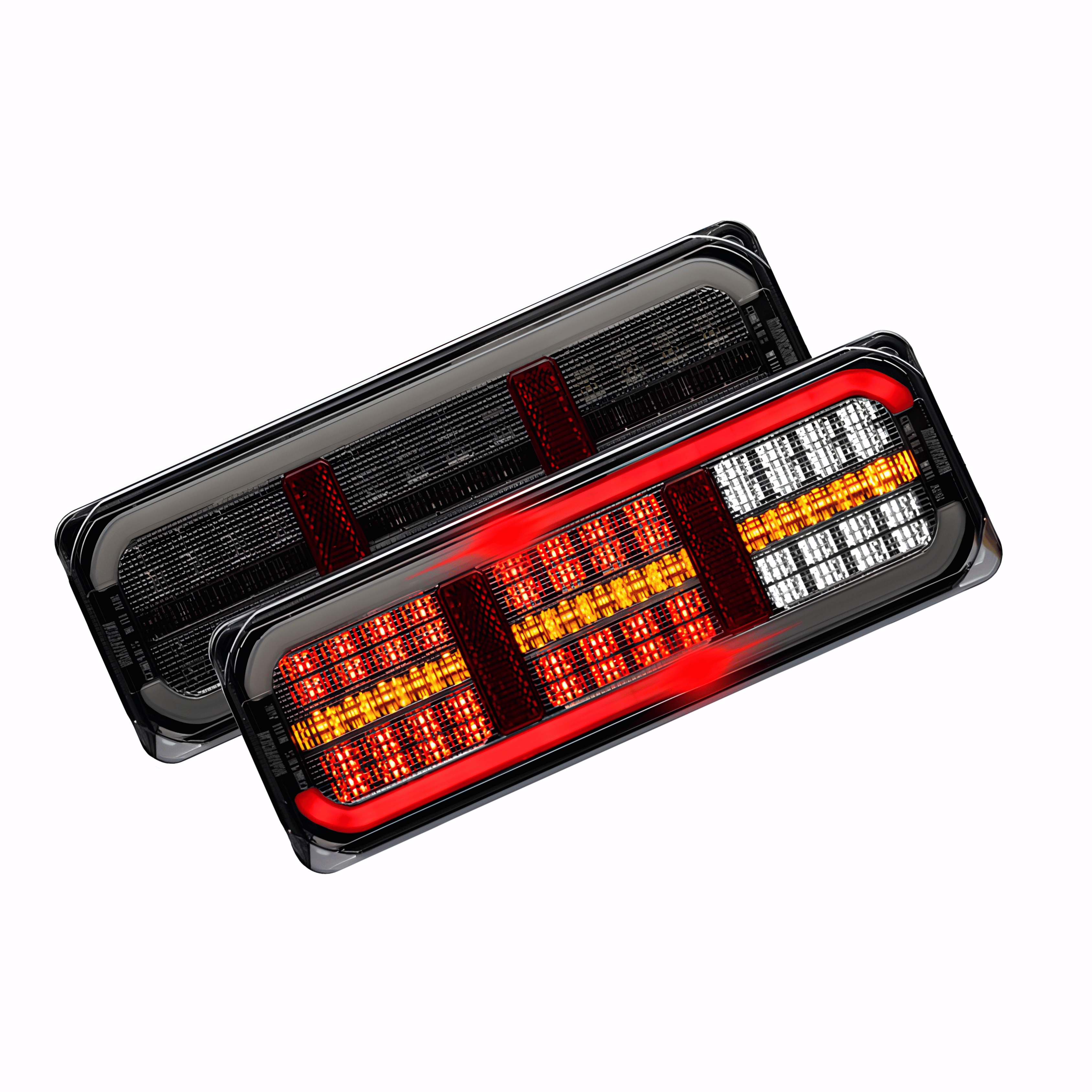

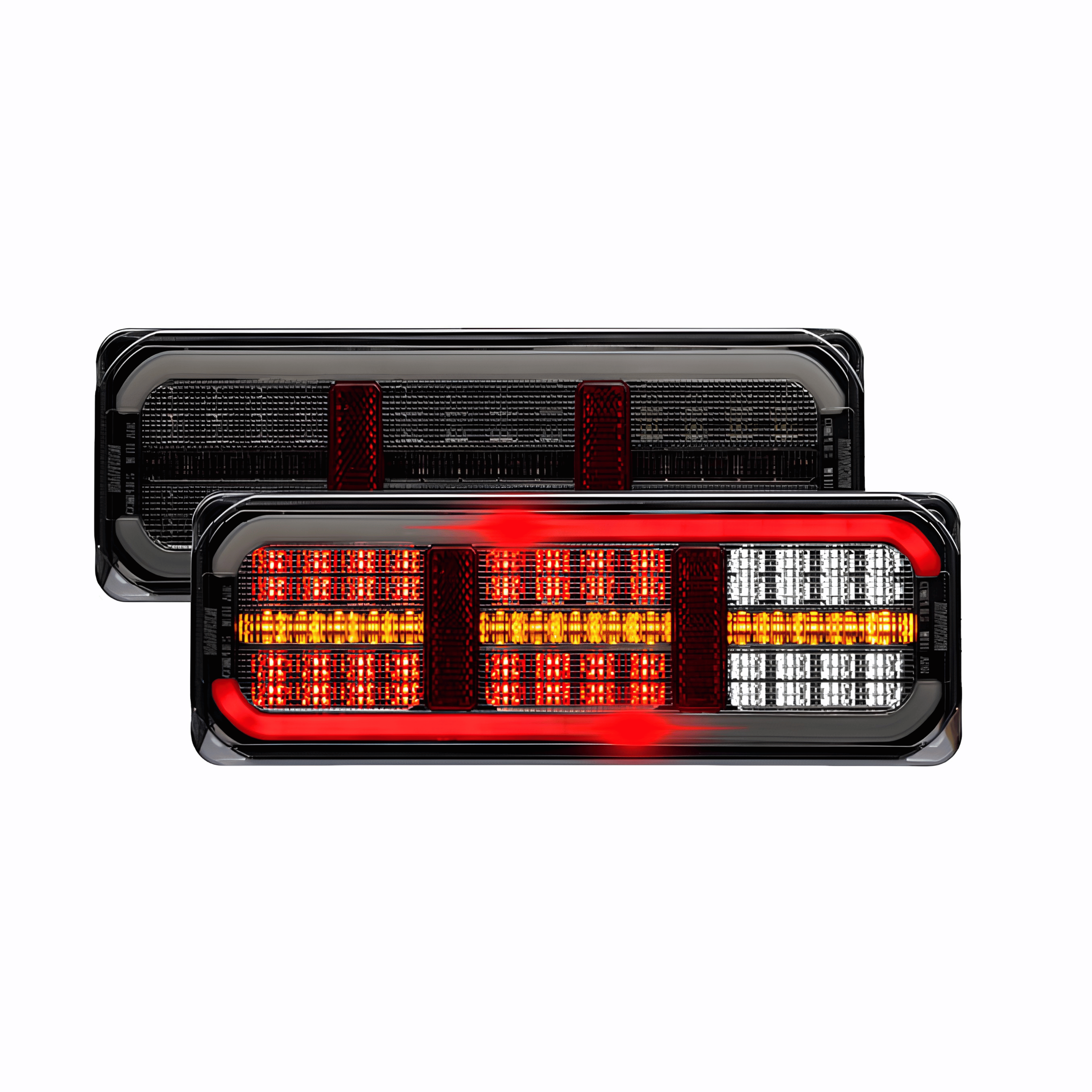

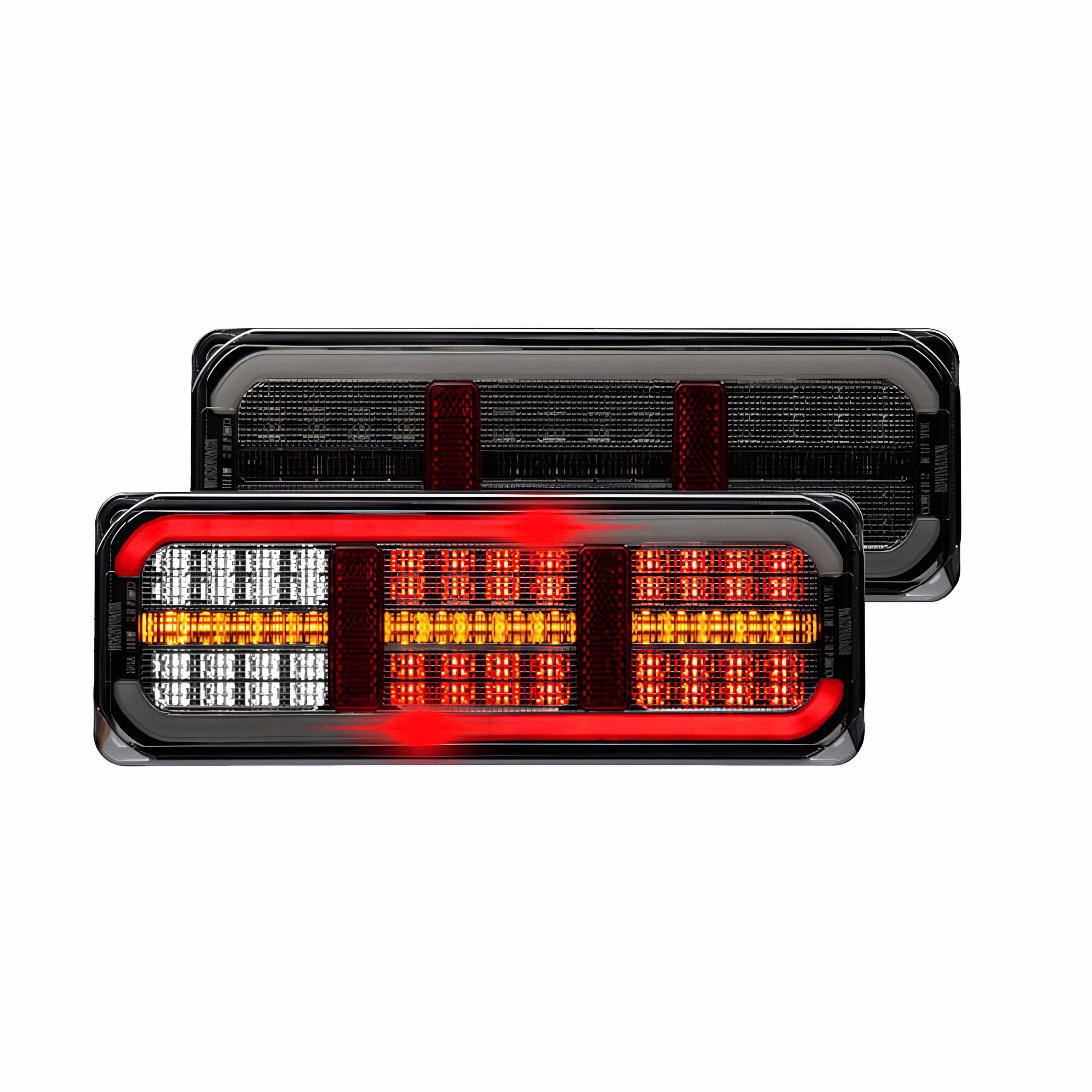

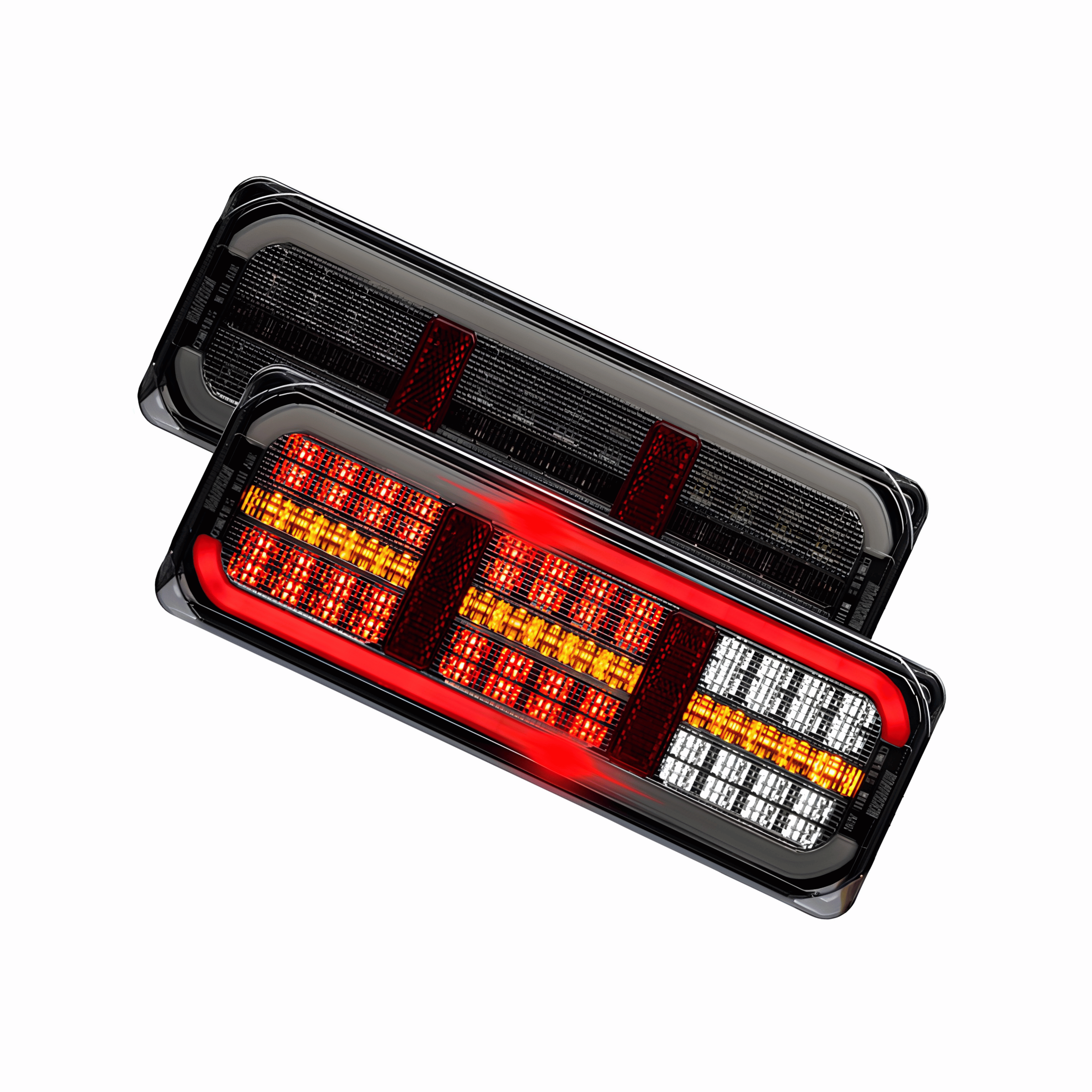

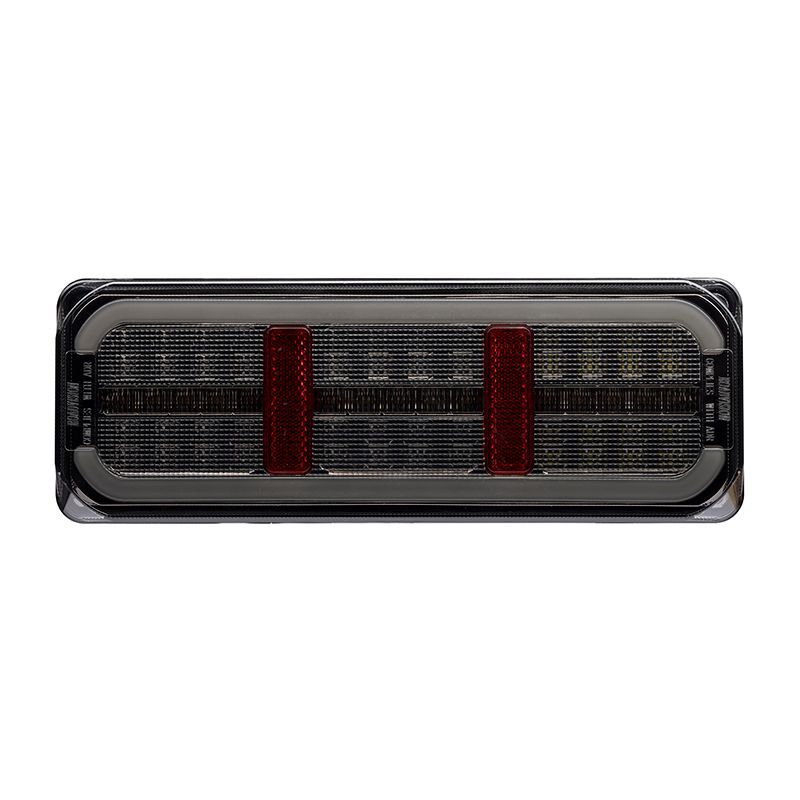

The Roadvision BRD281ARW is a rear combination lamp from the BRD281 Series, providing stop, tail, indicator, reverse, and integrated reflector functions in a single 280 x 100 x 37mm surface mount unit. It is the reverse-function variant of the BRD281ARR, adding 16 reverse LEDs and a dedicated black reverse wire. The sequential indicator delivers a modern, sweeping activation sequence. The Dynamic Glow Tail provides a distinctive dynamic start-up effect. The integrated retro reflector boosts passive visibility. The mild tinted lens and gun metal grey chrome finish provide a premium, contemporary aesthetic.
Total LED count across stop (32 LEDs), tail (36 LEDs), indicator (15 LEDs), and reverse (16 LEDs) functions. Multi-volt 10-30V DC input with current draws of 0.2A for stop, 0.14A for tail, 0.29A for indicator, and 0.26A for reverse at 13.8V. Polycarbonate lens and housing with 120mm mounting hole centres and 300mm tinned copper pre-wired cable with earth (white), stop (red), tail (brown), indicator (yellow), and reverse (black) wires. ADR approved for all functions. CTA approval CTA-061825. 100,000 hour rated LED lifespan.
Features & Benefits
Sequential Indicator for Enhanced Road Presence: The sequential indicator delivers a sweeping activation sequence for a distinctive and modern appearance that enhances visibility and road presence.
Dynamic Glow Tail Start-Up Effect: The Dynamic Glow Tail provides a dynamic light sequence each time the tail light is powered on, adding a distinctive visual signature to the rear of the vehicle.
Stop, Tail, Indicator, Reverse, and Integrated Reflector Functions: The BRD281ARW combines all five functions in a single lamp unit, providing a complete rear combination lamp solution including reverse in a single surface mount assembly.
ADR Approved for All Functions: The BRD281ARW is ADR approved for all functions and holds CTA approval CTA-061825, confirming compliance with Australian road safety requirements for all lamp functions including reverse.
Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle and trailer electrical systems.
Polycarbonate Lens and Housing: Lightweight, tough polycarbonate construction on both lens and housing for long-term durability.
Mild Tinted Lens and Gun Metal Grey Chrome Finish: The mild tinted lens and gun metal grey chrome finish provide a premium, contemporary aesthetic suited to modern trailer and vehicle applications.
100,000 Hour LED Lifespan with Solid-State Technology: The 100,000 hour rated LED lifespan provides long-term maintenance-free performance.
300mm Tinned Copper Pre-Wired Cable: Corrosion-resistant tinned copper wiring with earth (white), stop (red), tail (brown), indicator (yellow), and reverse (black) wires.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
BRD281ARW |
| Brand |
Roadvision |
| Series |
BRD281 |
| Description |
LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref 200x100x37mm Dynamic Glow Tail |
| Functions |
Stop, Tail, Indicator, Reverse, Reflector |
| Indicator Type |
Sequential |
| Tail Light |
Dynamic Glow Tail |
| LED Quantity - Indicator |
15 LEDs |
| LED Quantity - Stop |
32 LEDs |
| LED Quantity - Tail |
36 LEDs |
| LED Quantity - Reverse |
16 LEDs |
| Input Voltage |
10-30V DC |
| Current Draw - Indicator |
0.29A at 13.8V |
| Current Draw - Stop |
0.2A at 13.8V |
| Current Draw - Tail |
0.14A at 13.8V |
| Current Draw - Reverse |
0.26A at 13.8V |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Polycarbonate |
| Finish |
Mild Tinted Lens, Gun Metal Grey Chrome |
| Mounting Hole Centres |
120mm |

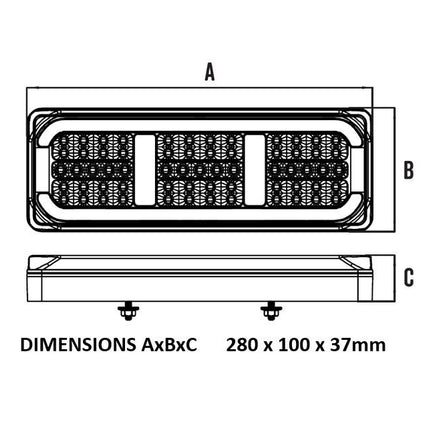

| Overall Dimensions |

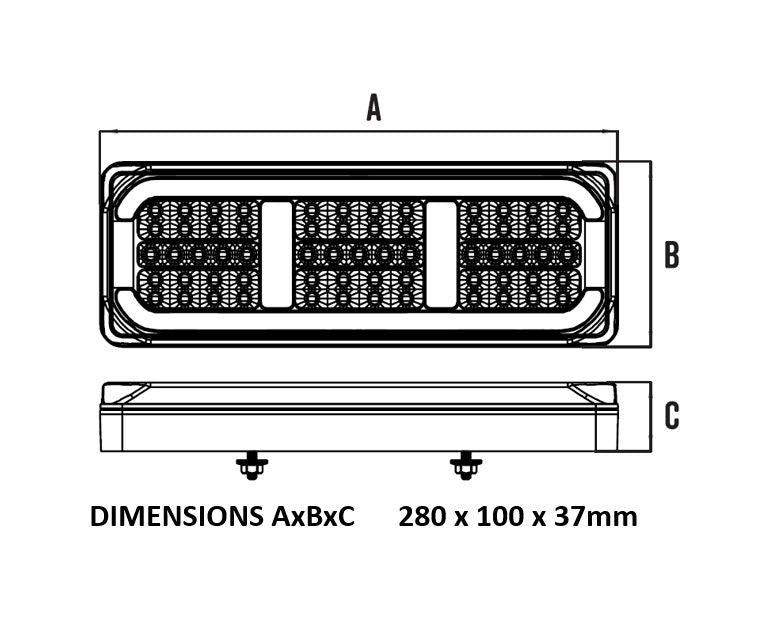

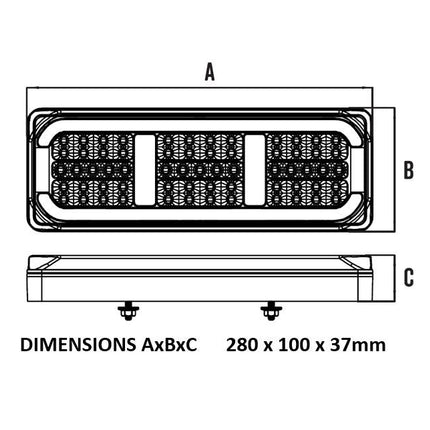

280mm x 100mm x 37mm |
| Cable Length |
300mm Tinned Copper |
| Wiring |
Earth - White, Stop - Red, Tail - Brown, Indicator - Yellow, Reverse - Black |
| CTA Approval |
CTA-061825 |
| ADR Approved |
Yes (all functions) |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The BRD281ARW is compatible with 10-30V DC trailer and vehicle electrical systems. ADR approved for all functions including reverse. Confirm mounting dimensions and wiring requirements for your specific application before purchase. A stop/tail/indicator/reflector version without reverse is available as the BRD281ARR.
Frequently Asked Questions
Is the BRD281ARW ADR approved?
Yes. The BRD281ARW is ADR approved for all functions including reverse and holds CTA approval CTA-061825.
What is the difference between the BRD281ARW and the BRD281ARR?
The BRD281ARW adds a reverse function with 16 LEDs and a dedicated black reverse wire to the stop, tail, indicator, and reflector functions of the BRD281ARR. Both share the same overall dimensions, sequential indicator, Dynamic Glow Tail, polycarbonate construction, and multi-volt input. Choose the BRD281ARW where an integrated reverse lamp is required.
What is the Dynamic Glow Tail on the BRD281ARW?
The Dynamic Glow Tail is a dynamic start-up light sequence that activates each time the tail light powers on, providing a distinctive visual signature and enhanced rear visibility.
Is the BRD281ARW compatible with 24V systems?
Yes. The BRD281ARW operates across 10-30V DC, compatible with both 12V and 24V vehicle and trailer electrical systems.
What wires are included on the BRD281ARW?
The BRD281ARW includes earth (white), stop (red), tail (brown), indicator (yellow), and reverse (black) wires on a 300mm tinned copper cable.
