Description
Roadvision ISLS590MV-AW2 LED Strip Lamp 590mm Amber White Switch

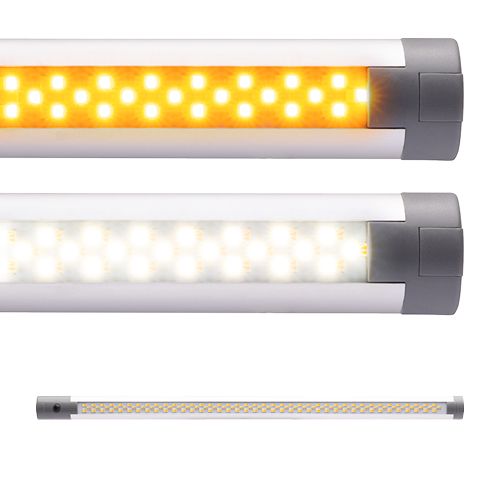

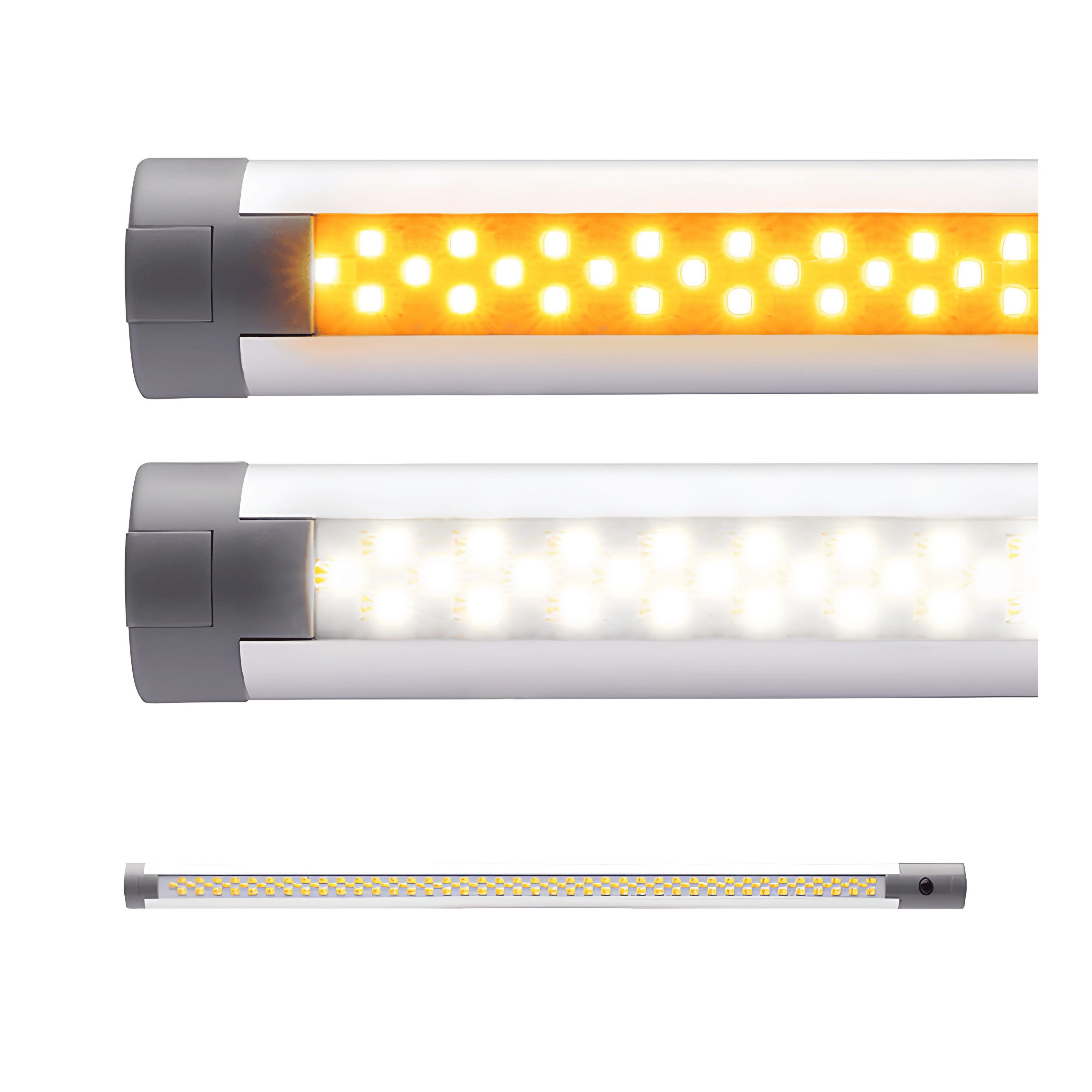

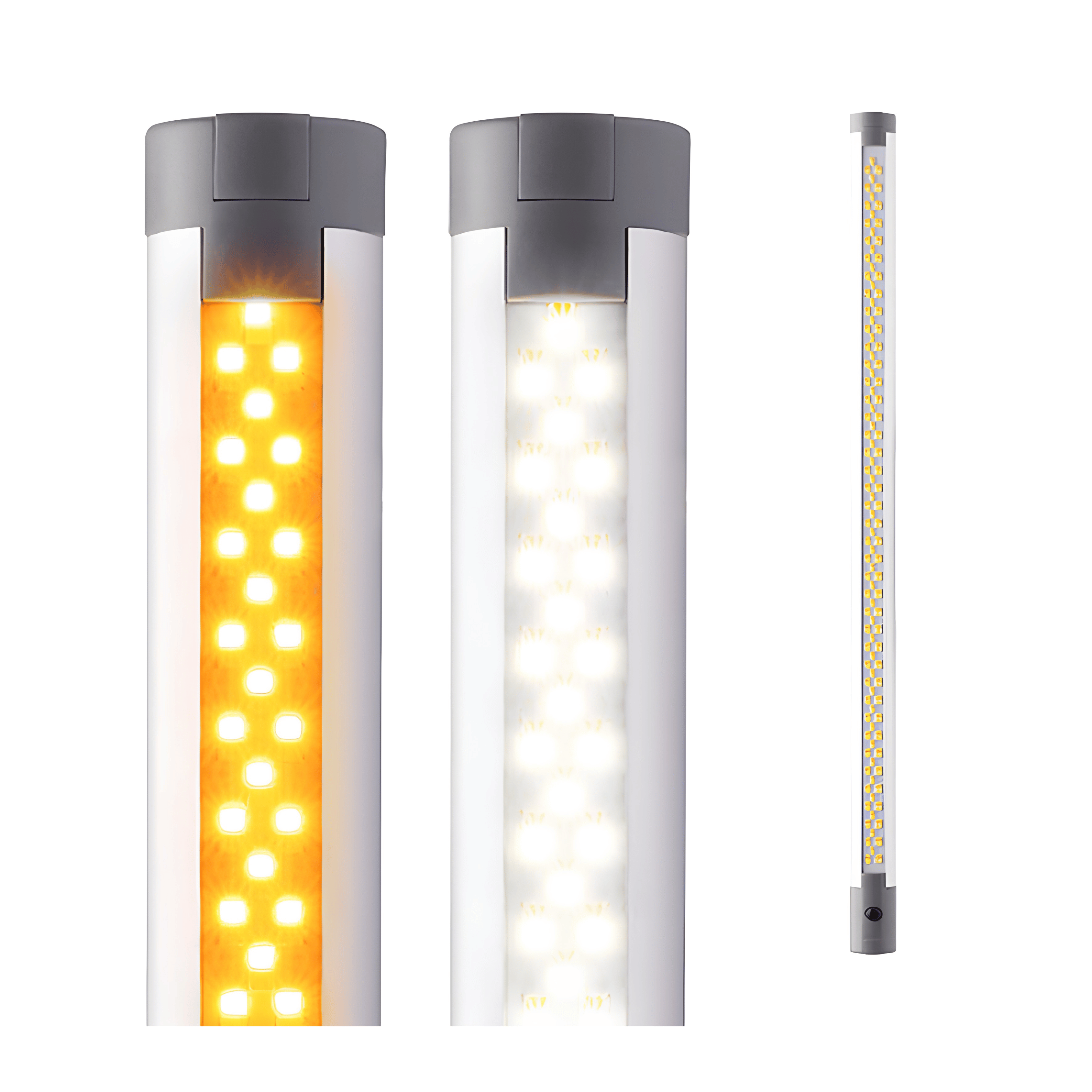

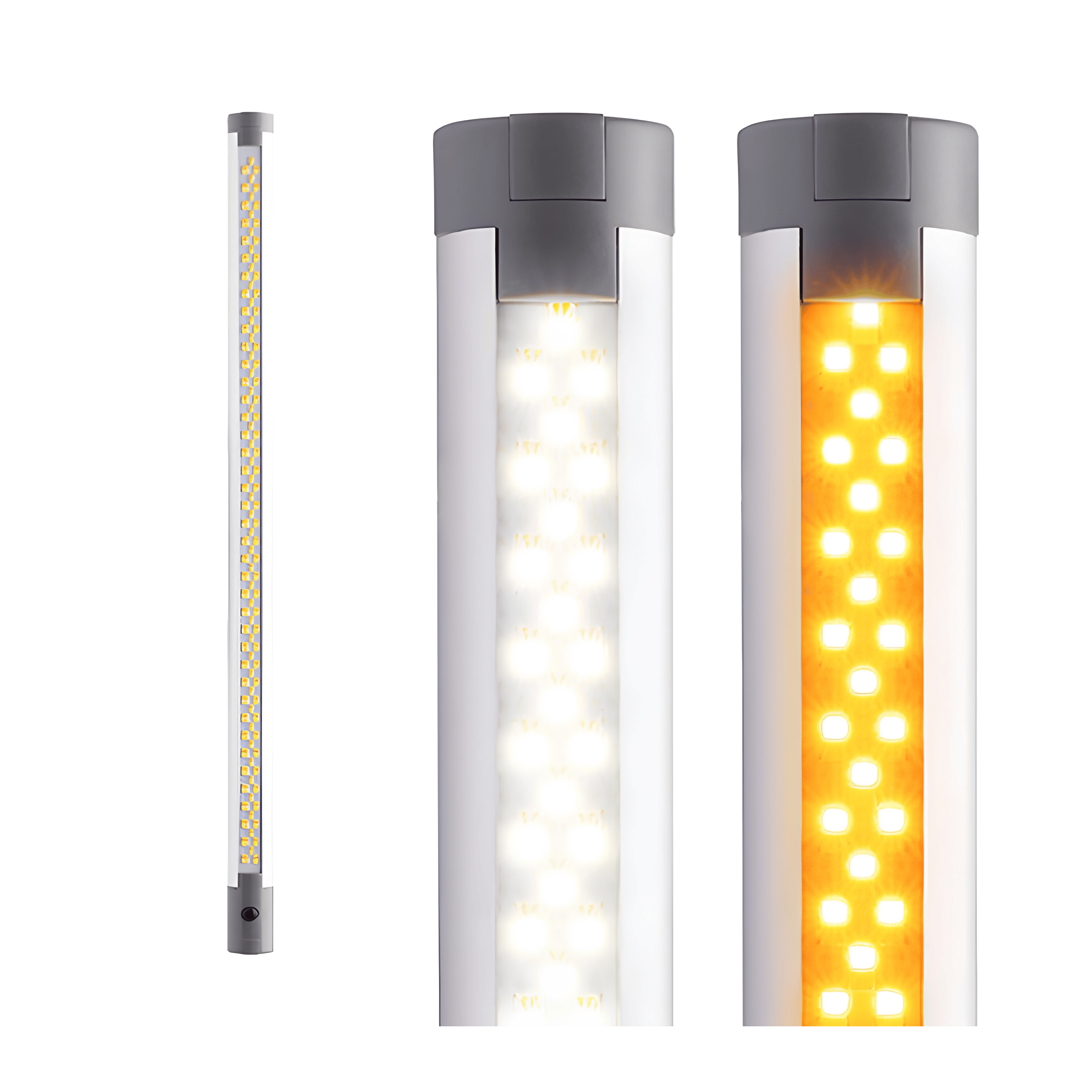

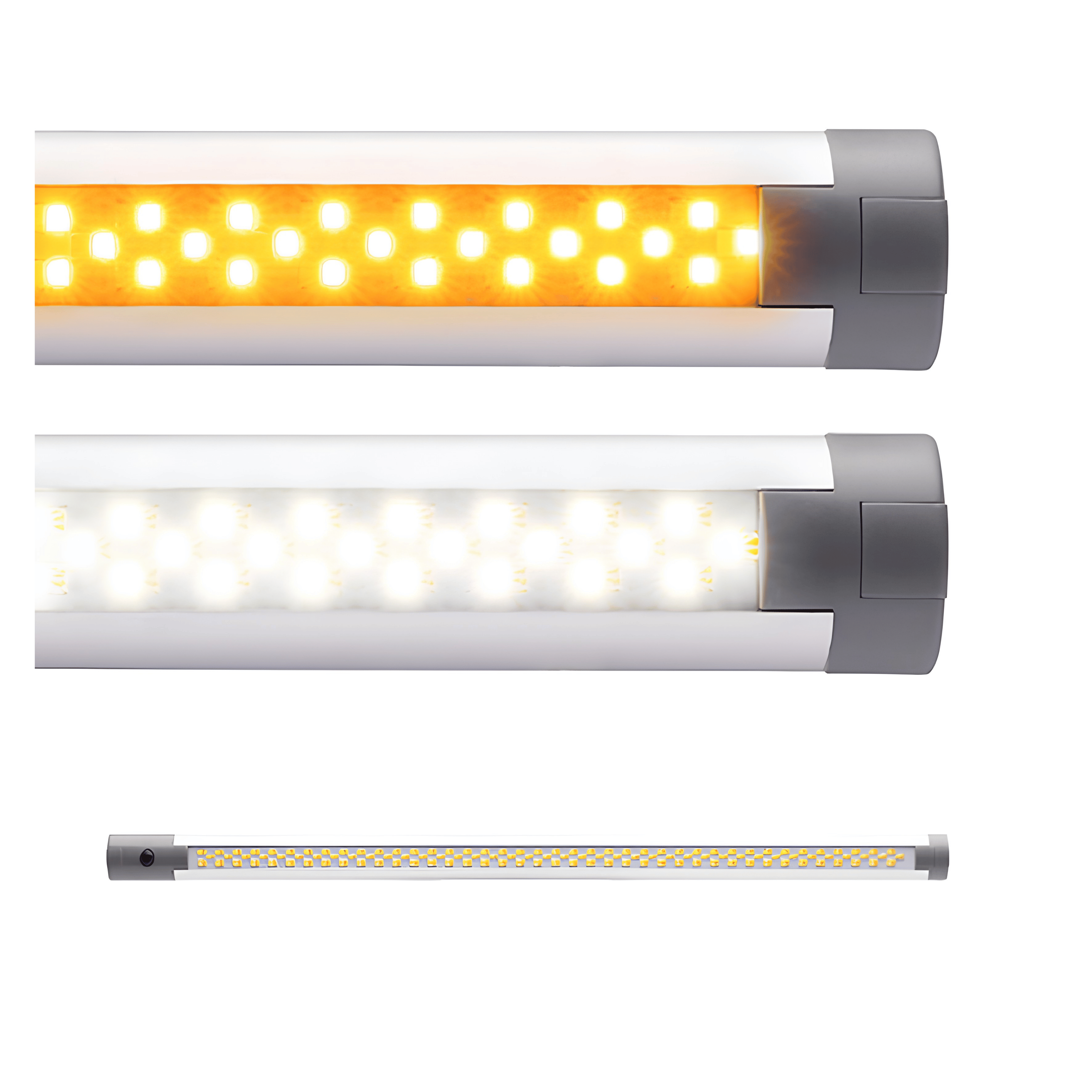

A 590mm dual colour LED interior/exterior strip lamp from the Roadvision ISLS Series, the ISLS590MV-AW2 features 120 white and 120 amber LEDs producing up to 720 effective lumens in white, an integrated switch for on-the-spot colour selection, 10-30V DC multi-volt input, a slim 13mm aluminium body, IP67 water and dust proof rating, and a 5-year warranty.
Product Overview
The Roadvision ISLS590MV-AW2 is the largest lamp in the ISLS Series, a range of LED strip lamps designed to illuminate tight spaces with versatility, brightness, and energy efficiency across cabin, cargo bay, tray, under-cabinet, toolbox, step, and utility applications. The dual colour design offers distinct advantages for different activities: the 4500K white output delivers maximum illumination at up to 720 effective lumens, while the amber output enhances outdoor ambiance and reduces insect attraction, making it ideal for camping. The integrated switch allows on-the-spot selection between amber and white light without additional wiring.
Measuring 590 x 32 x 13mm and weighing just 120g, the shallow 13mm profile and surface mount design with screw caps make installation straightforward in even the tightest spots. The lamp is supplied pre-wired with a 500mm sheathed cable, and the multi-volt 10-30V DC input draws a super low 0.65 amps at 13.8V, suiting both 12V and 24V systems in cars, 4WDs, trucks, caravans, and commercial vehicles. The lightweight, durable aluminium housing is water and dust proof to IP67 for interior or exterior fitment in extreme conditions, with a 100,000 hour rated LED lifespan from solid-state technology.
Features & Benefits
Dual Colour Amber and White Output: The ISLS590MV-AW2 features 120 white and 120 amber LEDs, with the 4500K white delivering maximum illumination for work and the amber enhancing outdoor ambiance while reducing insect attraction around the campsite.
Integrated Switch for On-The-Spot Control: The integrated switch allows selection between amber and white light directly at the lamp without additional wiring, keeping installation simple.
Up to 720 Effective Lumens: In white output, the ISLS590MV-AW2 produces up to 720 effective lumens, the highest output in the ISLS Series, for bright and even coverage of cabins, canopies, trays, and cargo areas.
Slim 13mm Profile for Tight Spaces: The entire lamp body is a shallow 13mm thick, making the ISLS590MV-AW2 a versatile solution for tight areas like steps, under cabinets, toolboxes, and under-bonnet lighting.
IP67 Water and Dust Proof: The ISLS590MV-AW2 is totally dust and water proof to IP67, suitable for interior or exterior fitment in the most extreme applications.
Lightweight Durable Aluminium Housing: The aluminium housing keeps the lamp durable yet lightweight at just 120g, standing up to vehicle and outdoor use.
Multi-Volt 10-30V DC with Super Low Current Draw: The 10-30V DC multi-volt input draws just 0.65 amps at 13.8V, making the ISLS590MV-AW2 compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.
100,000 Hour Rated LED Lifespan: Solid-state LED technology delivers a 100,000 hour rated lifespan for maintenance-free operation over the life of the vehicle.
Easy Surface Mount Installation - Supplied Pre-Wired: The surface mount design with screw caps, 576mm mounting hole centres, and pre-wired 500mm sheathed cable with colour-coded wiring (black negative, red positive) make for a quick, tidy installation.
5-Year Warranty: The ISLS590MV-AW2 is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
ISLS590MV-AW2 |
| Brand |
Roadvision |
| Series |
ISLS |
| Description |
Interior Lamp Amber/White LED 10-30V 9W Strip Lamp 590mm With Switch |
| Input Voltage |
10-30V DC |
| Lumens Light Output (Effective) |
720lm (White Only) |
| Light Source |
120 White LEDs, 120 Amber LEDs |
| Power |
9W |
| Current Draw |
0.65A at 13.8V |
| Switch |
Integrated Switch with Amber/White Selection |

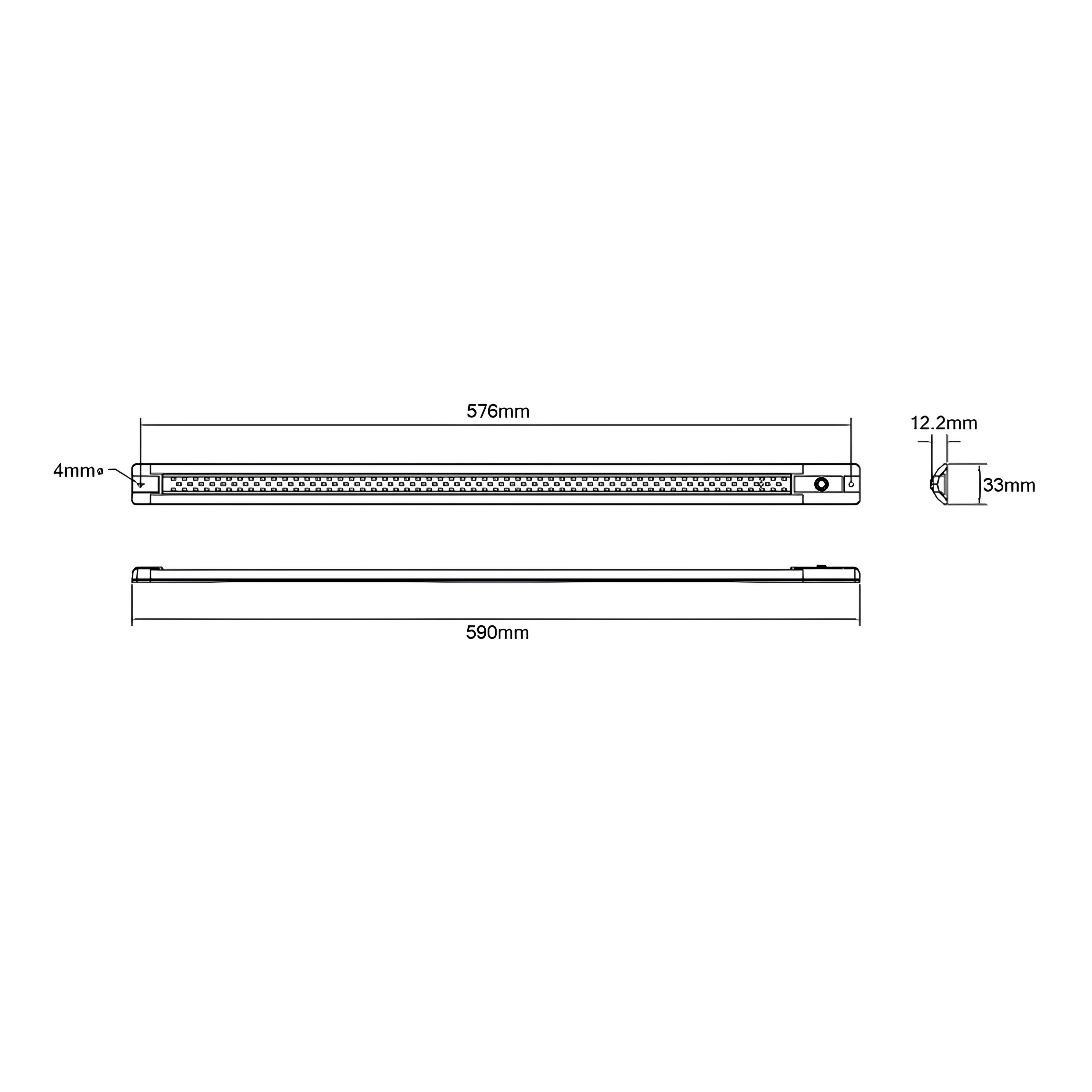

| Dimensions |
590 x 32 x 13mm |
| Mounting Holes |
576mm Centres |
| Mounting Type |
Surface Mount with Screw Caps |
| Cable Length |
500mm Sheathed |
| Wiring |
Negative - Black, Positive - Red |
| Housing |
Aluminium |
| IP Rating |
IP67 |
| Weight |
120g |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The ISLS590MV-AW2 is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles including cars, 4WDs, trucks, caravans, and commercial vehicles, and is suitable for interior or exterior fitment thanks to its IP67 rating. The amber/white ISLS Series is also available in 180mm (ISLS180MV-AW), 290mm (ISLS290MV-AW), and 440mm (ISLS440MV-AW) lengths, with white-only versions available across the same sizes. Confirm the 590mm lamp length and 576mm mounting hole centres fit your intended location before purchase.
Frequently Asked Questions
How do I switch between amber and white light?
The ISLS590MV-AW2 has an integrated switch on the lamp that allows on-the-spot selection between amber and white output without any additional wiring.
How bright is the ISLS590MV-AW2?
The ISLS590MV-AW2 produces up to 720 effective lumens in white output from 120 white LEDs, the highest output in the ISLS Series. The lamp also carries 120 amber LEDs for the amber output mode.
Why choose amber light?
The amber output enhances outdoor ambiance and reduces insect attraction, making it well suited to camping and outdoor use, while the 4500K white output provides maximum illumination for work tasks.
Can the ISLS590MV-AW2 be mounted outside the vehicle?
Yes. The ISLS590MV-AW2 is dust and water proof to IP67, making it suitable for both interior and exterior fitment in extreme conditions.
Is the ISLS590MV-AW2 compatible with 24V vehicles?
Yes. The ISLS590MV-AW2 operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
Is the ISLS590MV-AW2 available in other sizes?
Yes. The amber/white ISLS Series is available in four lengths: 180mm, 290mm, 440mm, and this 590mm version, with mounting hole centres and light output scaling with each size.
