Description

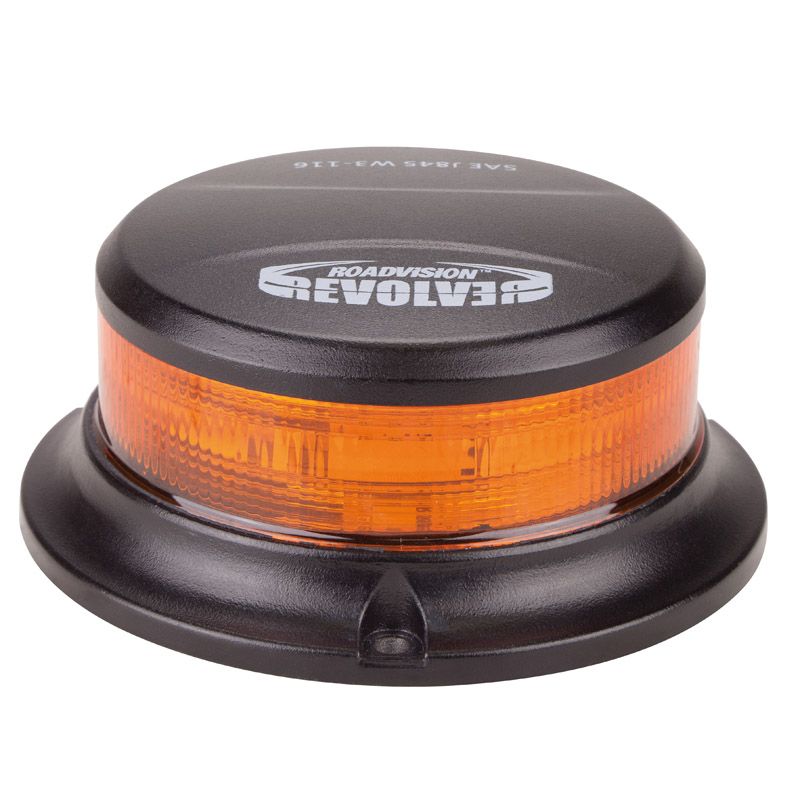

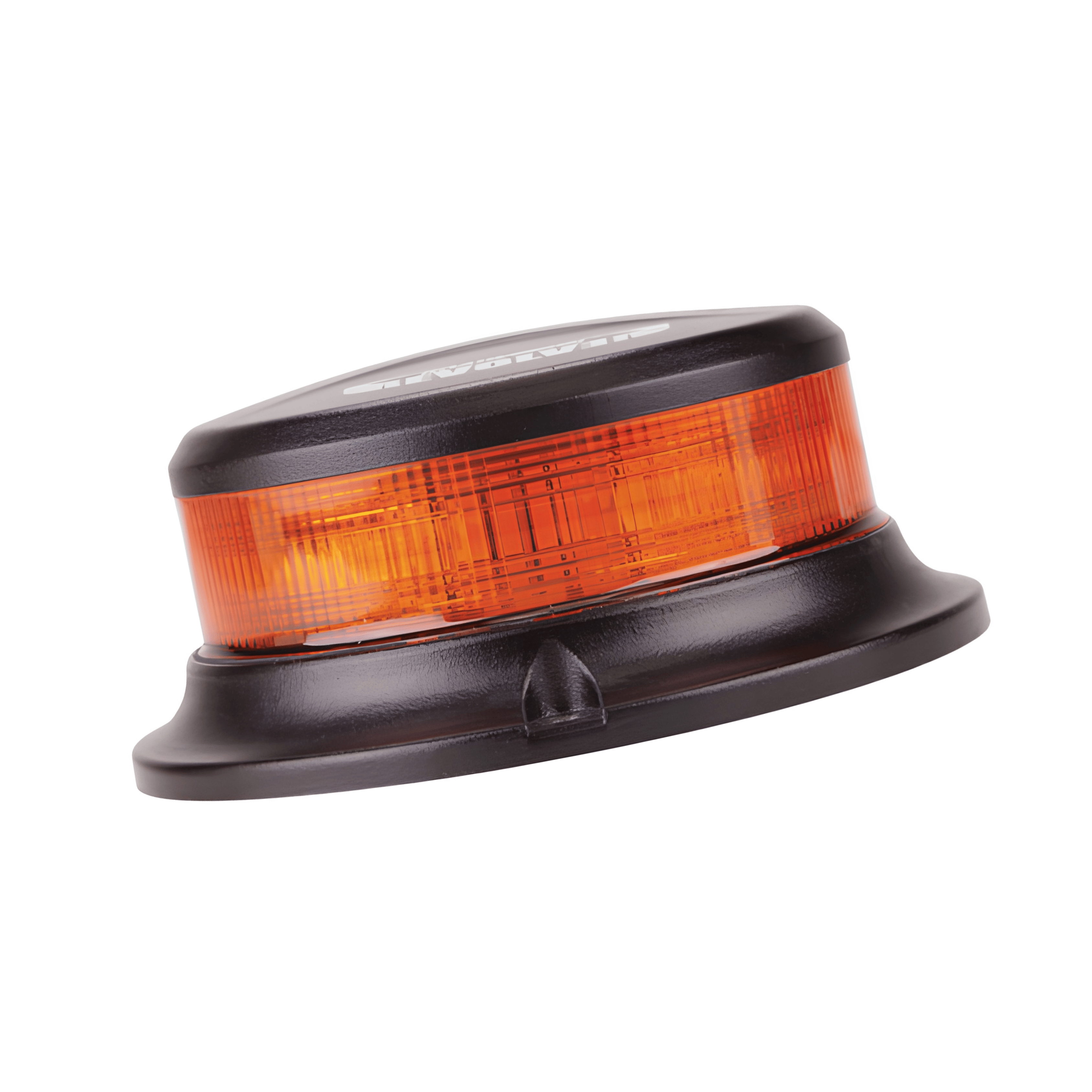

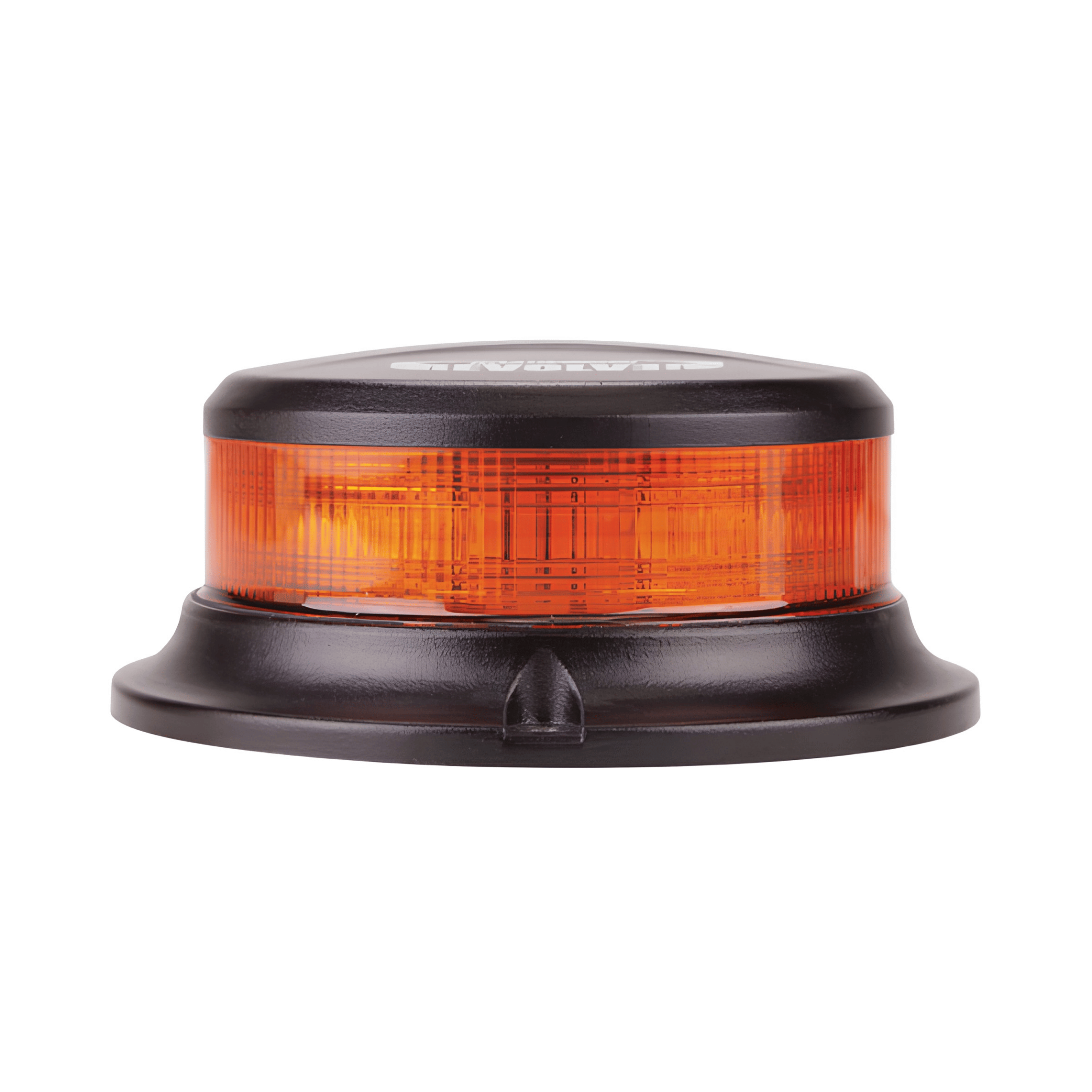

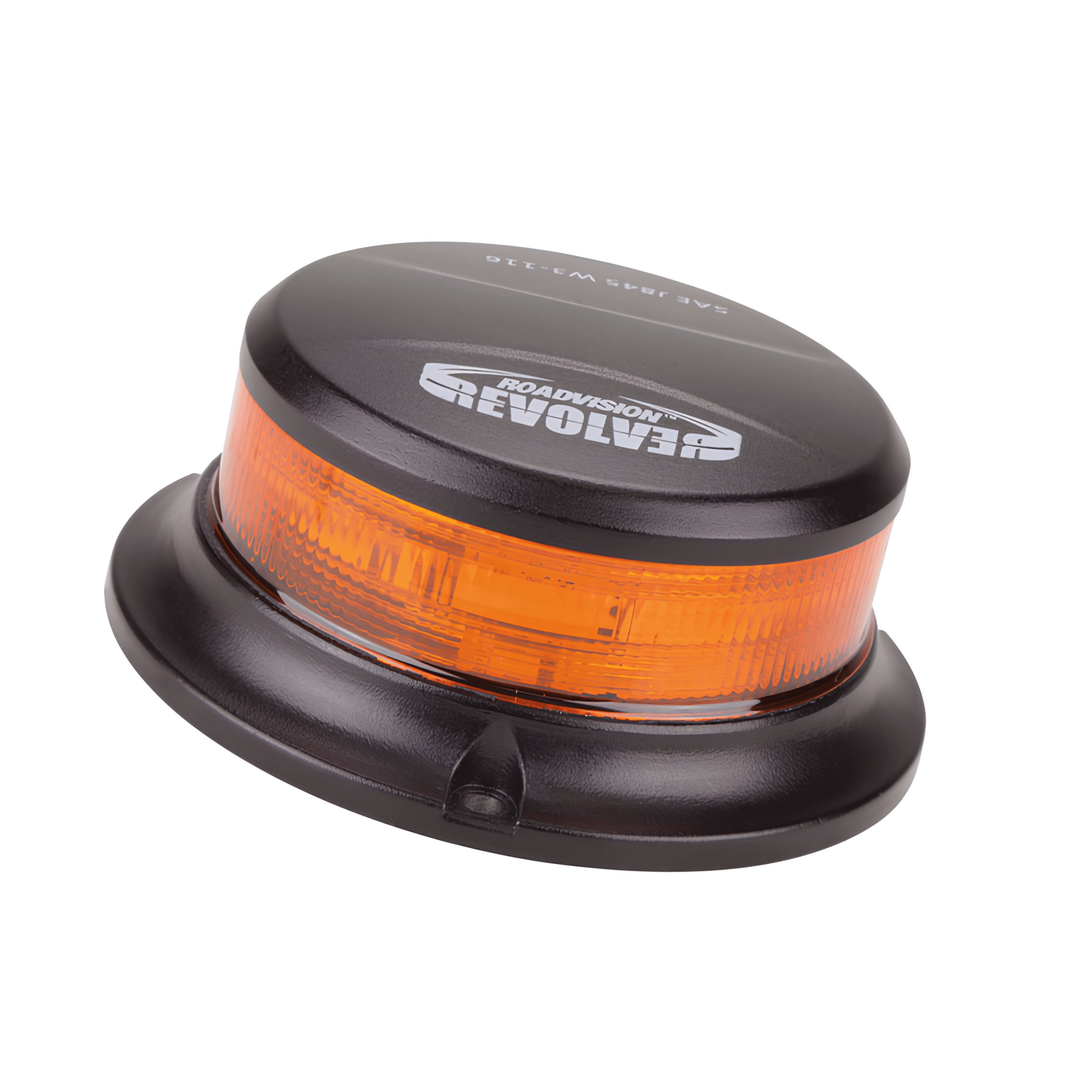

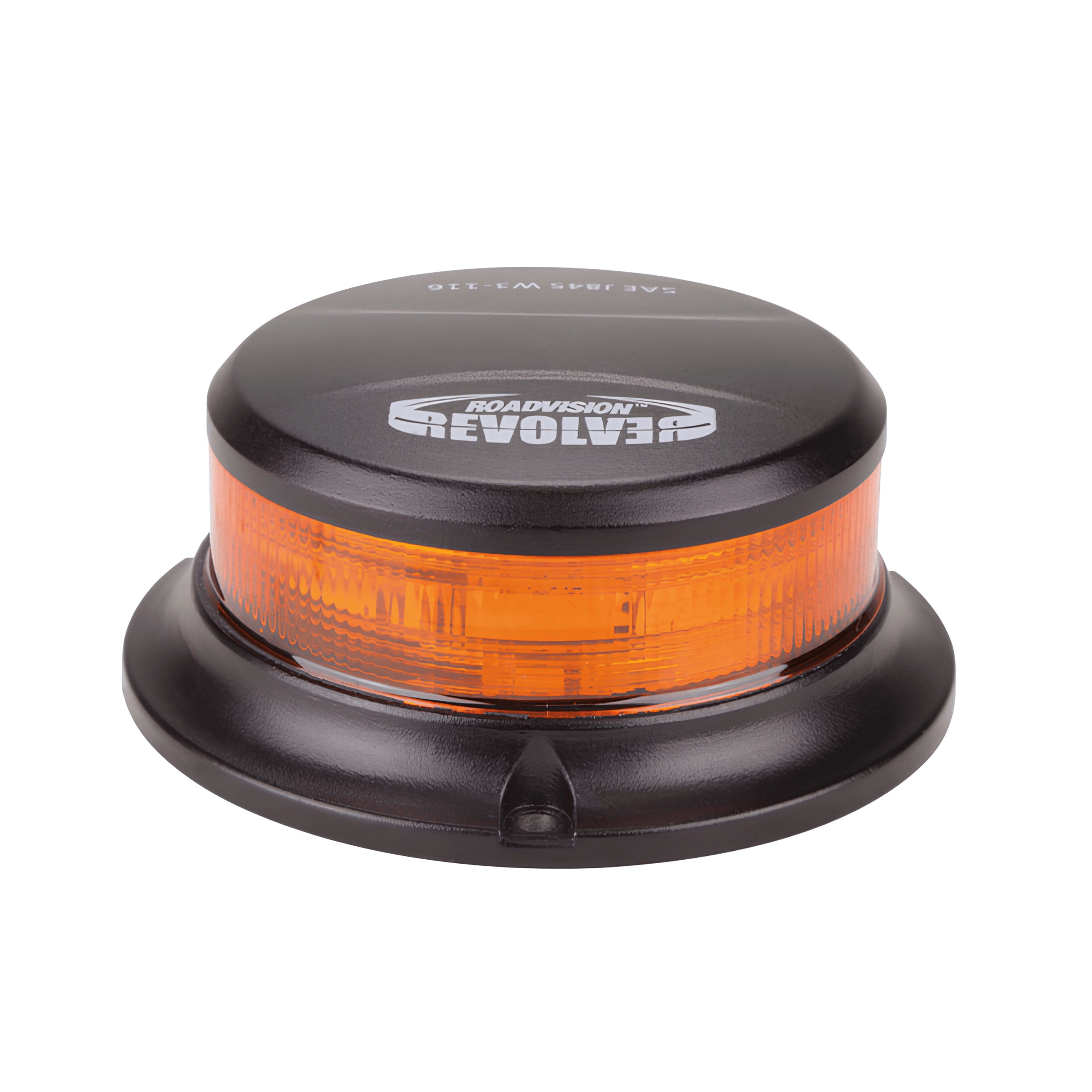

Roadvision RB112MY Revolver Low Profile LED Beacon Amber Magnetic Mount
A compact low-profile 360-degree high-intensity amber LED beacon from the Roadvision Revolver RB112 Series, the RB112MY features 32 SMD LEDs, 10 selectable flash patterns, IP67 waterproof and vibration-proof rating, aluminium housing with polycarbonate lens, 10-30V DC multi-volt operation, and magnetic mount with a 2500mm lead and cigarette plug, backed by a 5-year warranty.
Product Overview
The Roadvision RB112MY is a magnetic mount LED beacon from the Revolver RB112 Series, engineered to meet and exceed Australian and international regulations for emergency and warning lighting. The compact 112 x 48mm low-profile body houses 32 SMD LEDs producing 28W of high-intensity amber light with a 100,000 hour rated lifespan and maintenance-free solid-state technology.
Ten selectable flash patterns include single, double, triple, quad, and simulated rotating sequences across a range of flash rates, covering both ECE/SAE-compliant and rapid-response patterns. The RB112MY holds EMC Cispr25 Class 5 and SAE Class 1 approval. The aluminium housing and impact-resistant polycarbonate lens provide durability in tough industrial and emergency vehicle applications. IP67 rated for waterproof and dustproof protection with vibration-proof construction. The RB112MY is supplied with a 2500mm lead with cigarette plug for quick connect and disconnect from the vehicle power supply, making it suited to temporary and portable warning light applications.
Features & Benefits
Compact 360-Degree High-Intensity LED Beacon: The RB112MY delivers 360-degree high-intensity amber light output from a compact 112 x 48mm low-profile body, providing maximum visibility from all directions without the bulk of larger beacon units.
32 SMD LEDs - 28W Output - 100,000 Hour Lifespan: Thirty-two SMD LEDs produce 28W of output with a rated lifespan of 100,000 hours, delivering maintenance-free performance over the long service life typical of emergency and industrial vehicle applications.
10 Selectable Flash Patterns: Ten selectable flash patterns cover a full range of single, double, triple, quad, and simulated rotating sequences at varying flash rates, allowing the RB112MY to be configured for the specific application and regulatory requirements.
EMC Cispr25 Class 5 and SAE Class 1 Approved: The RB112MY holds EMC Cispr25 Class 5 and SAE Class 1 approvals, confirming compliance with electromagnetic compatibility and emergency vehicle lighting intensity requirements for on-road and industrial use.
Aluminium Housing with Impact-Resistant Polycarbonate Lens: The tough aluminium body and impact-resistant polycarbonate lens provide structural integrity and lens protection in demanding field, construction, and emergency vehicle environments.
IP67 Waterproof and Vibration Proof: IP67 rating provides full dust and waterproof protection, and the vibration-proof construction ensures reliable operation on rough terrain and heavy equipment applications.
Multi-Volt 10-30V DC with Low Current Draw: The 10-30V DC multi-volt input with a current draw of 1.9A at 13.8V makes the RB112MY compatible with both 12V and 24V vehicle electrical systems.
Magnetic Mount for Temporary and Portable Applications: The strong magnetic base allows the RB112MY to be quickly and securely mounted to any ferrous metal vehicle roof or panel surface, making it ideal for temporary and portable warning light applications where permanent mounting is not required.
2500mm Lead with Cigarette Plug: The 2500mm lead with cigarette plug allows the RB112MY to be powered directly from a vehicle cigarette lighter socket, enabling fast deployment without requiring permanent wiring.
5-Year Warranty: The RB112MY is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RB112MY |
| Brand |
Roadvision |
| Series |
Revolver RB112 |
| Description |
Low Profile Beacon LED 10-30V 10 Flash Patterns Amber Magnetic Mount |
| Function |
10 Selectable Flash Patterns |
| Light Source |
32 SMD LEDs |
| Power Output |
28W |
| Flash Patterns |
10 |
| Input Voltage |
10-30V DC |
| Current Draw |
1.9A at 13.8V |
| Dimensions |
112mm x 48mm |
| Mounting Type |
Magnetic Mount |
| Wiring |
2500mm Lead with Cigarette Plug |
| Lens |
Polycarbonate |
| Housing |
Aluminium |
| IP Rating |
IP67 |
| Vibration Proof |
Yes |
| Approvals |
EMC Cispr25 Class 5 and SAE Class 1 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Flash Patterns
| Pattern |
Flash Rate |
| Single (ECE/SAE) |
480ms |
| Single |
800ms |
| Double |
400ms |
| Double |
800ms |
| Triple |
820ms |
| Quad |
820ms |
| Front and Back Half |
400ms |
| Front and Back Half |
800ms |
| Rotated |
800ms |
| Rotated |
400ms |
Compatible With
The RB112MY is compatible with 10-30V DC vehicle electrical systems. The 2500mm cigarette plug lead allows direct connection to a vehicle cigarette lighter socket. EMC Cispr25 Class 5 and SAE Class 1 approved for on-road and industrial use. The RB112 Series is also available in fixed mount (RB112Y) and DIN pole mount (RB112PY) configurations.
Frequently Asked Questions
What is the advantage of the magnetic mount on the RB112MY?
The magnetic base allows the RB112MY to be quickly mounted to and removed from any ferrous metal vehicle roof or panel surface without tools or permanent installation. This makes it ideal for temporary warning light applications, hire fleets, and situations where the beacon needs to be transferred between vehicles.
How long is the lead on the RB112MY?
The RB112MY is supplied with a 2500mm lead with cigarette plug, allowing direct connection to a vehicle cigarette lighter socket for quick deployment.
Is the RB112MY SAE Class 1 approved?
Yes. The RB112MY holds EMC Cispr25 Class 5 and SAE Class 1 approvals for on-road and industrial warning light applications.
Is the RB112MY compatible with 24V vehicles?
Yes. The RB112MY operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
What is the difference between the RB112MY and the RB112Y?

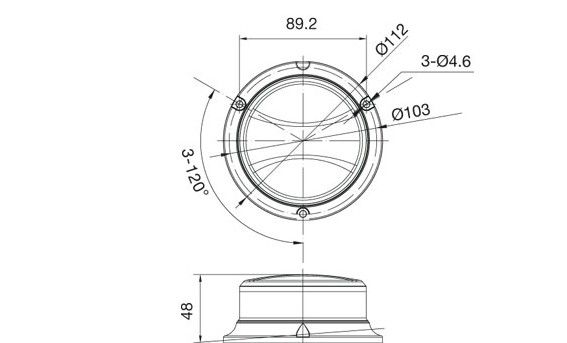

Both are identical in LED configuration, flash patterns, housing, and electrical specifications. The RB112Y uses a 3-hole fixed mount with 103mm centre-to-centre spacing and a 300mm sheathed cable for permanent installation. The RB112MY uses a magnetic mount with a 2500mm cigarette plug lead for temporary or portable applications.
