Description

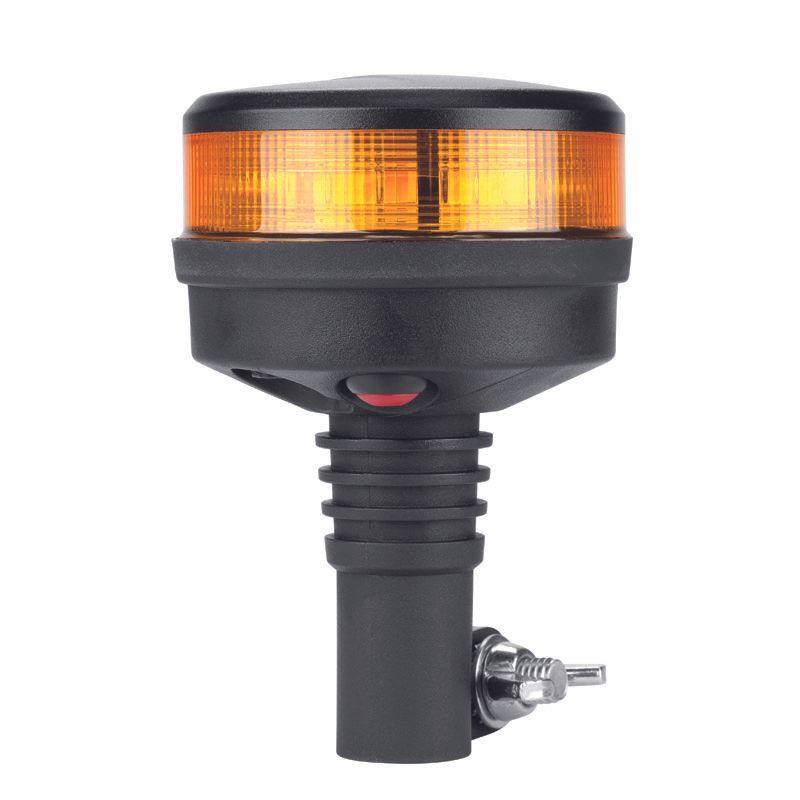

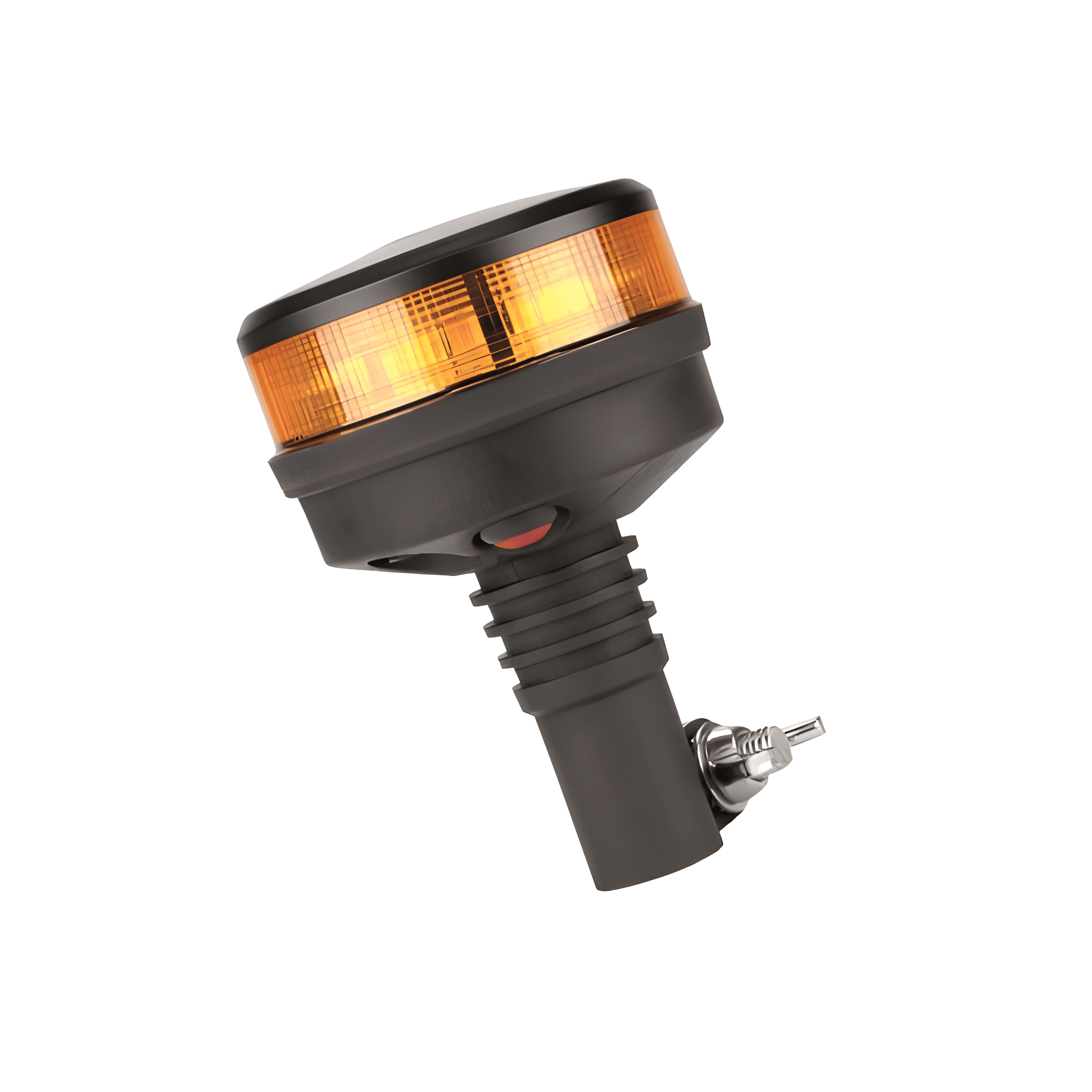

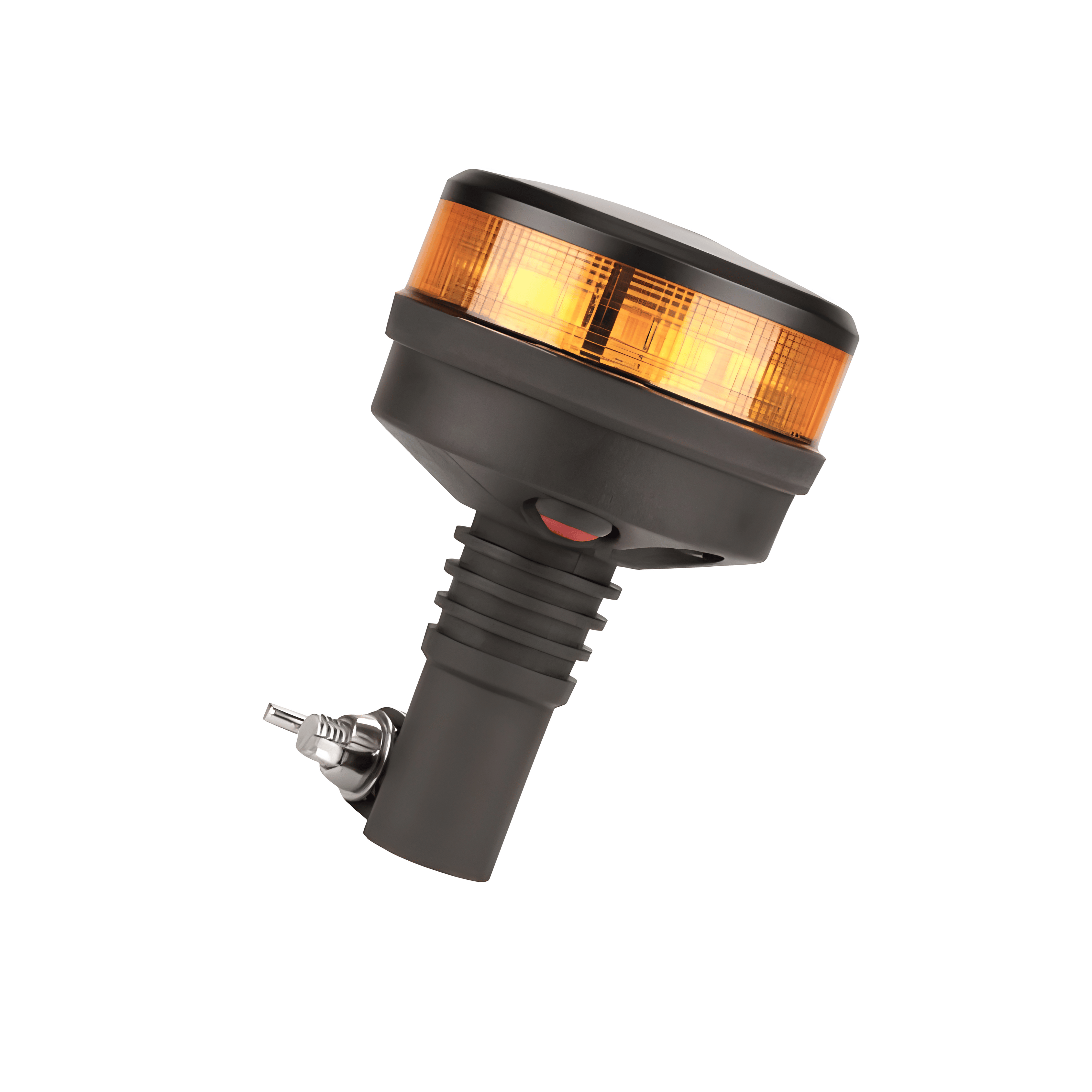

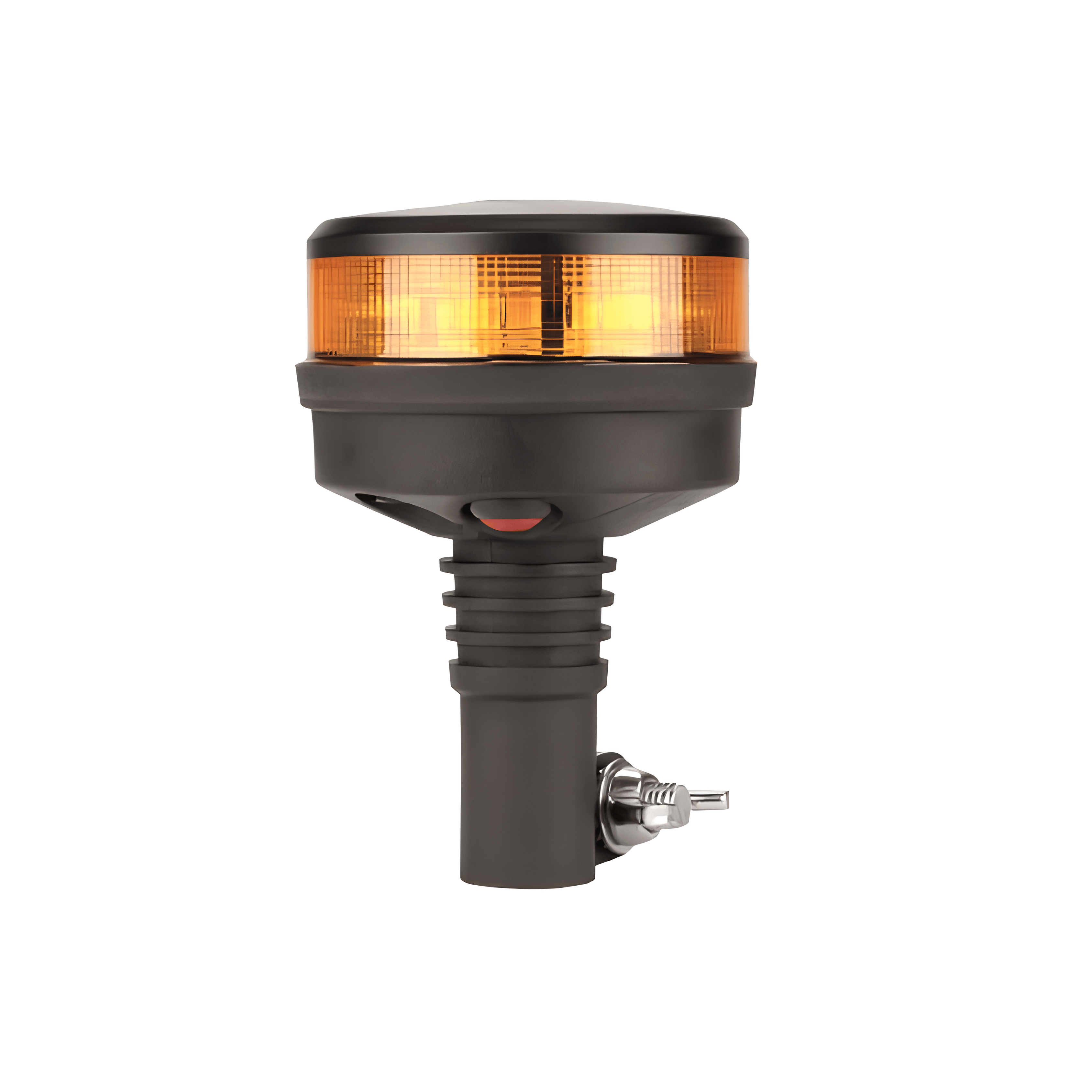

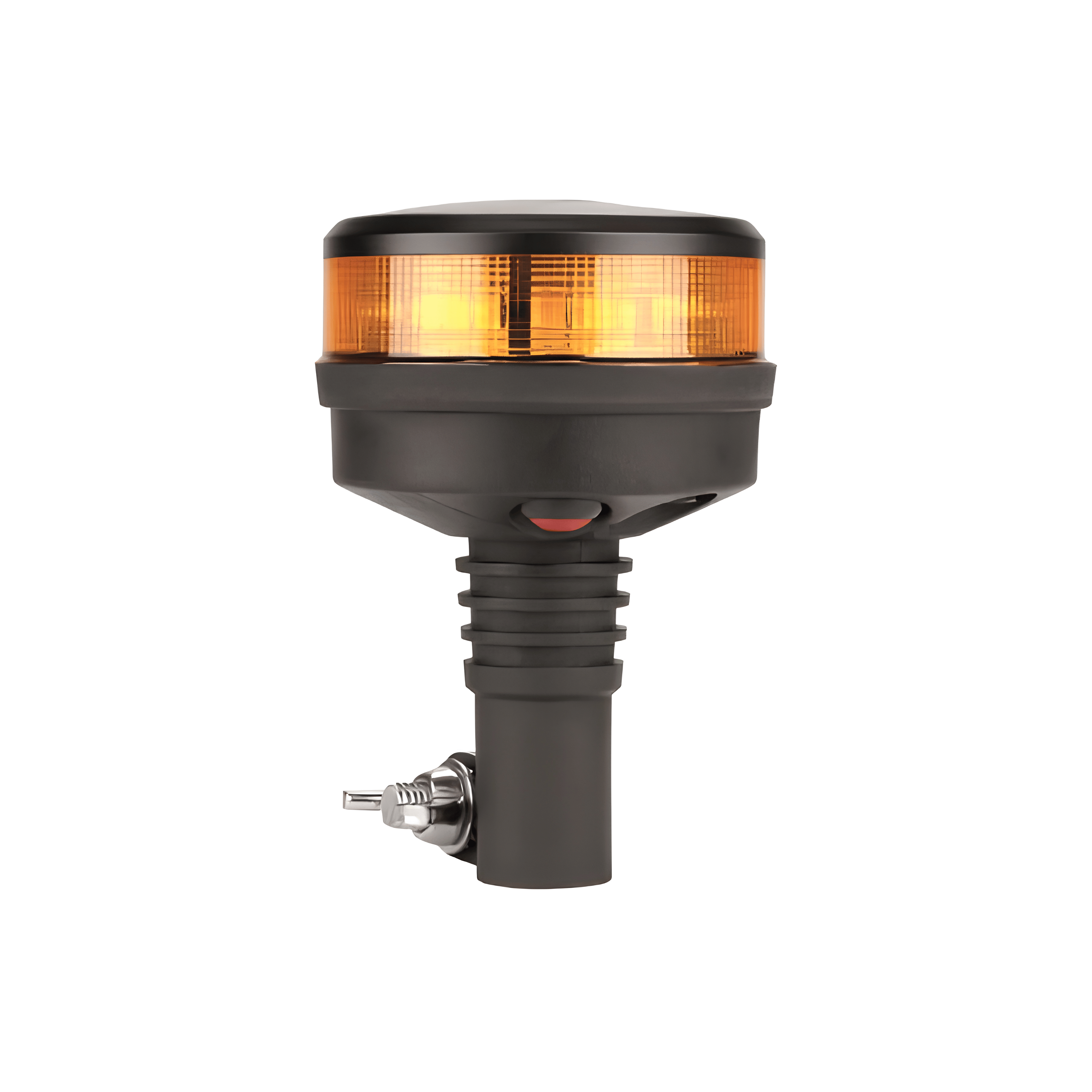

Roadvision RB112PY Revolver Low Profile LED Beacon Amber DIN Pole Mount
A compact low-profile 360-degree high-intensity amber LED beacon from the Roadvision Revolver RB112 Series, the RB112PY features 32 SMD LEDs, 10 selectable flash patterns, IP67 waterproof and vibration-proof rating, aluminium housing with polycarbonate lens, 10-30V DC multi-volt operation, and DIN pole mount with integrated DIN plug, backed by a 5-year warranty.
Product Overview
The Roadvision RB112PY is a DIN pole mount LED beacon from the Revolver RB112 Series, engineered to meet and exceed Australian and international regulations for emergency and warning lighting. The compact 90 x 135mm body houses 32 SMD LEDs producing 28W of high-intensity amber light with a 100,000 hour rated lifespan and maintenance-free solid-state technology.
Ten selectable flash patterns include single, double, triple, quad, and simulated rotating sequences across a range of flash rates, covering both ECE/SAE-compliant and rapid-response patterns. The RB112PY holds EMC Cispr25 Class 5 and SAE Class 1 approval. The aluminium housing and impact-resistant polycarbonate lens provide durability in demanding field and emergency vehicle applications. IP67 rated for waterproof and dustproof protection with vibration-proof construction. The DIN pole mount with integrated DIN plug provides a secure, standardised mounting solution compatible with existing DIN pole mount installations on trucks, forklifts, and industrial vehicles.
Features & Benefits
Compact 360-Degree High-Intensity LED Beacon: The RB112PY delivers 360-degree high-intensity amber light output from a compact low-profile body suited to DIN pole mount applications, providing maximum visibility from all directions.
32 SMD LEDs - 28W Output - 100,000 Hour Lifespan: Thirty-two SMD LEDs produce 28W of output with a rated lifespan of 100,000 hours, delivering maintenance-free performance over the long service life of emergency and industrial vehicle applications.
10 Selectable Flash Patterns: Ten selectable flash patterns cover a full range of single, double, triple, quad, and simulated rotating sequences at varying flash rates, allowing the RB112PY to be configured for the specific application and regulatory requirements.
EMC Cispr25 Class 5 and SAE Class 1 Approved: The RB112PY holds EMC Cispr25 Class 5 and SAE Class 1 approvals, confirming compliance with electromagnetic compatibility and emergency vehicle lighting intensity requirements.
Aluminium Housing with Impact-Resistant Polycarbonate Lens: The tough aluminium body and impact-resistant polycarbonate lens provide structural integrity and lens protection in demanding industrial and emergency vehicle environments.
IP67 Waterproof and Vibration Proof: IP67 rating provides full dust and waterproof protection, and the vibration-proof construction ensures reliable operation on forklifts, heavy equipment, and rough terrain vehicles.
Multi-Volt 10-30V DC with Low Current Draw: The 10-30V DC multi-volt input with a current draw of 1.9A at 13.8V makes the RB112PY compatible with both 12V and 24V vehicle electrical systems.
DIN Pole Mount with Integrated DIN Plug: The DIN pole mount configuration with integrated DIN plug provides a standardised and secure mounting solution compatible with existing DIN pole mount points on trucks, forklifts, and industrial vehicles, enabling direct plug-in connection without additional wiring.
5-Year Warranty: The RB112PY is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RB112PY |
| Brand |
Roadvision |
| Series |
Revolver RB112 |
| Description |
Low Profile Beacon LED 10-30V 10 Flash Patterns Amber DIN Pole Mount |
| Function |
10 Selectable Flash Patterns |
| Light Source |
32 SMD LEDs |
| Power Output |
28W |
| Flash Patterns |
10 |
| Input Voltage |
10-30V DC |
| Current Draw |
1.9A at 13.8V |
| Dimensions |

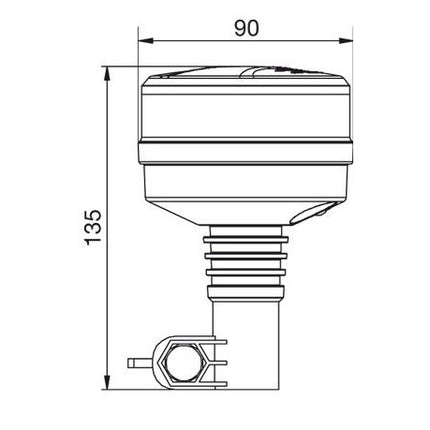

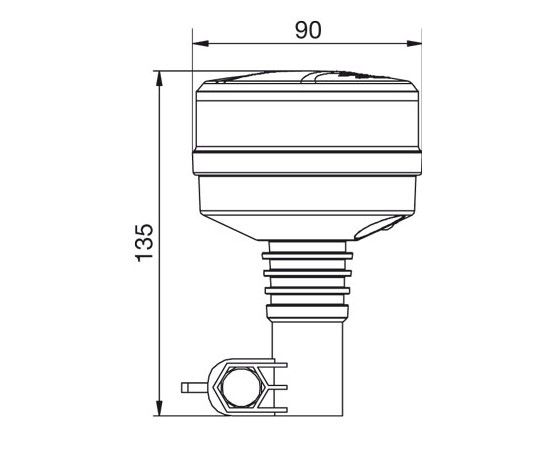

90mm x 135mm |
| Mounting Type |
DIN Pole Mount |
| Wiring |
DIN Plug Included in Pole Mount |
| Lens |
Polycarbonate |
| Housing |
Aluminium |
| IP Rating |
IP67 |
| Vibration Proof |
Yes |
| Approvals |
EMC Cispr25 Class 5 and SAE Class 1 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Flash Patterns
| Pattern |
Flash Rate |
| Single (ECE/SAE) |
480ms |
| Single |
800ms |
| Double |
400ms |
| Double |
800ms |
| Triple |
820ms |
| Quad |
820ms |
| Front and Back Half |
400ms |
| Front and Back Half |
800ms |
| Rotated |
800ms |
| Rotated |
400ms |
Compatible With
The RB112PY is compatible with 10-30V DC vehicle electrical systems and standard DIN pole mount installations. EMC Cispr25 Class 5 and SAE Class 1 approved for on-road and industrial use. The RB112 Series is also available in fixed mount (RB112Y) and magnetic mount (RB112MY) configurations. Confirm DIN pole mount compatibility with your specific vehicle or equipment before purchase.
Frequently Asked Questions
What is a DIN pole mount and where is it used?
A DIN pole mount is a standardised mounting system widely used on trucks, forklifts, and industrial vehicles. The DIN pole provides a secure and vibration-resistant mounting point for warning beacons. The RB112PY includes an integrated DIN plug in the pole mount for direct plug-in connection without additional wiring.
Is the RB112PY SAE Class 1 approved?
Yes. The RB112PY holds EMC Cispr25 Class 5 and SAE Class 1 approvals for on-road and industrial warning light applications.
Is the RB112PY compatible with 24V vehicles?
Yes. The RB112PY operates across 10-30V DC, making it compatible with both 12V and 24V vehicle and equipment electrical systems.
What is the difference between the RB112PY and the RB112Y?
Both share identical LED configuration, flash patterns, and electrical specifications. The RB112Y uses a 3-hole fixed mount with 103mm centre-to-centre spacing and measures 112 x 48mm. The RB112PY uses a DIN pole mount with integrated DIN plug and measures 90 x 135mm including the pole mount assembly. Choose the RB112PY for installations requiring DIN pole mount compatibility.
Does the RB112PY require additional wiring for installation?
No. The RB112PY includes an integrated DIN plug in the pole mount, allowing direct connection to compatible DIN pole mount points without additional wiring.
