Description

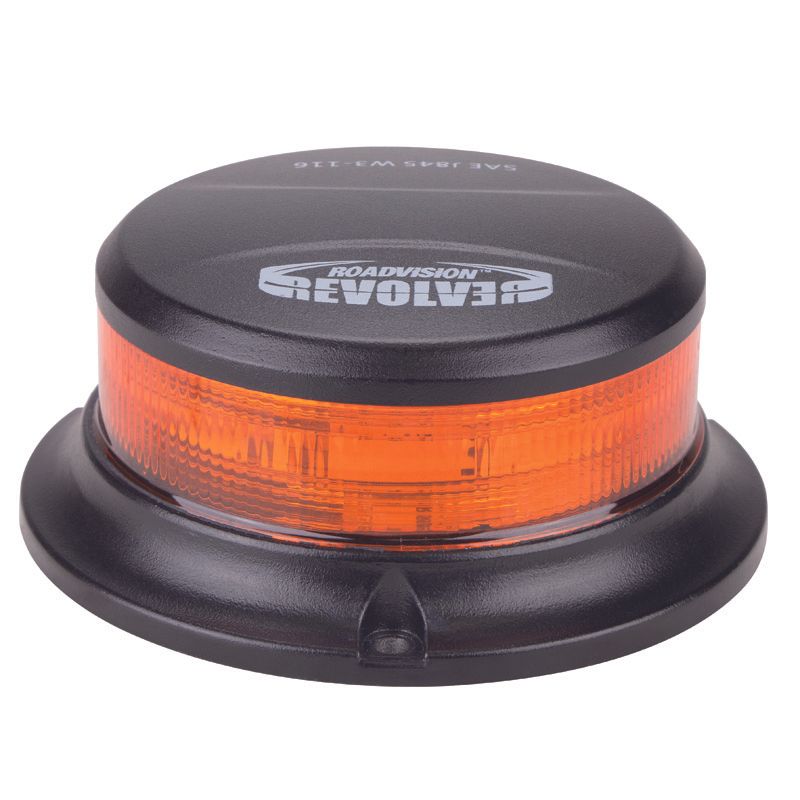

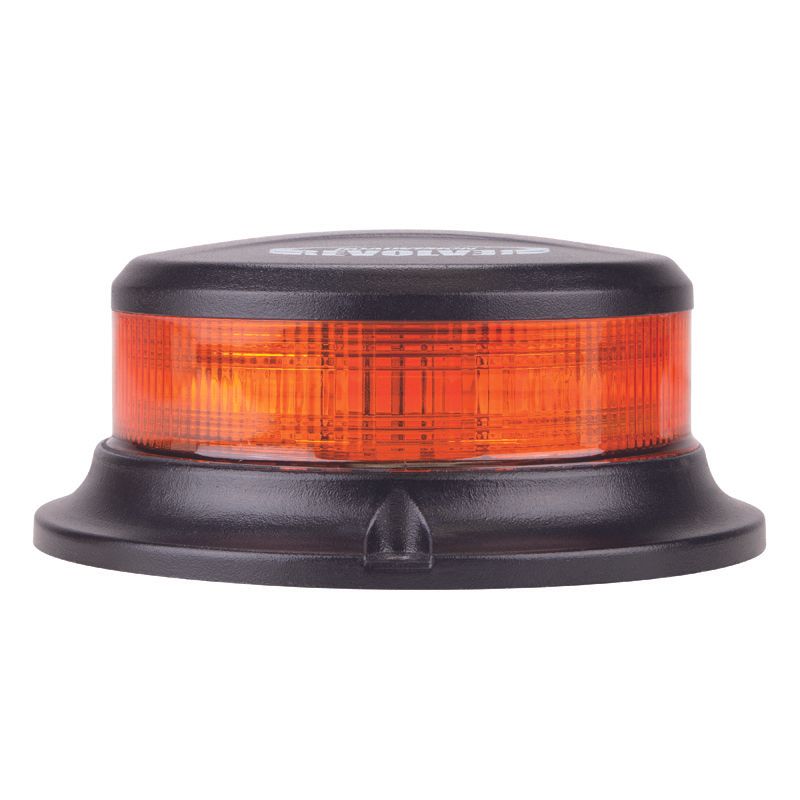

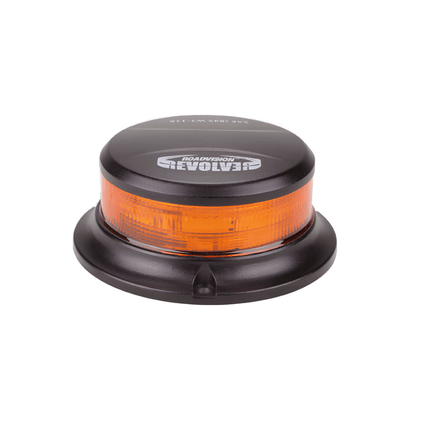

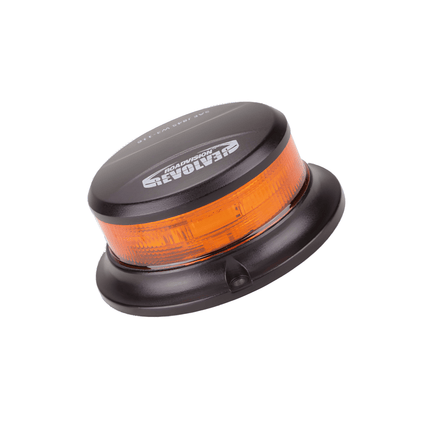

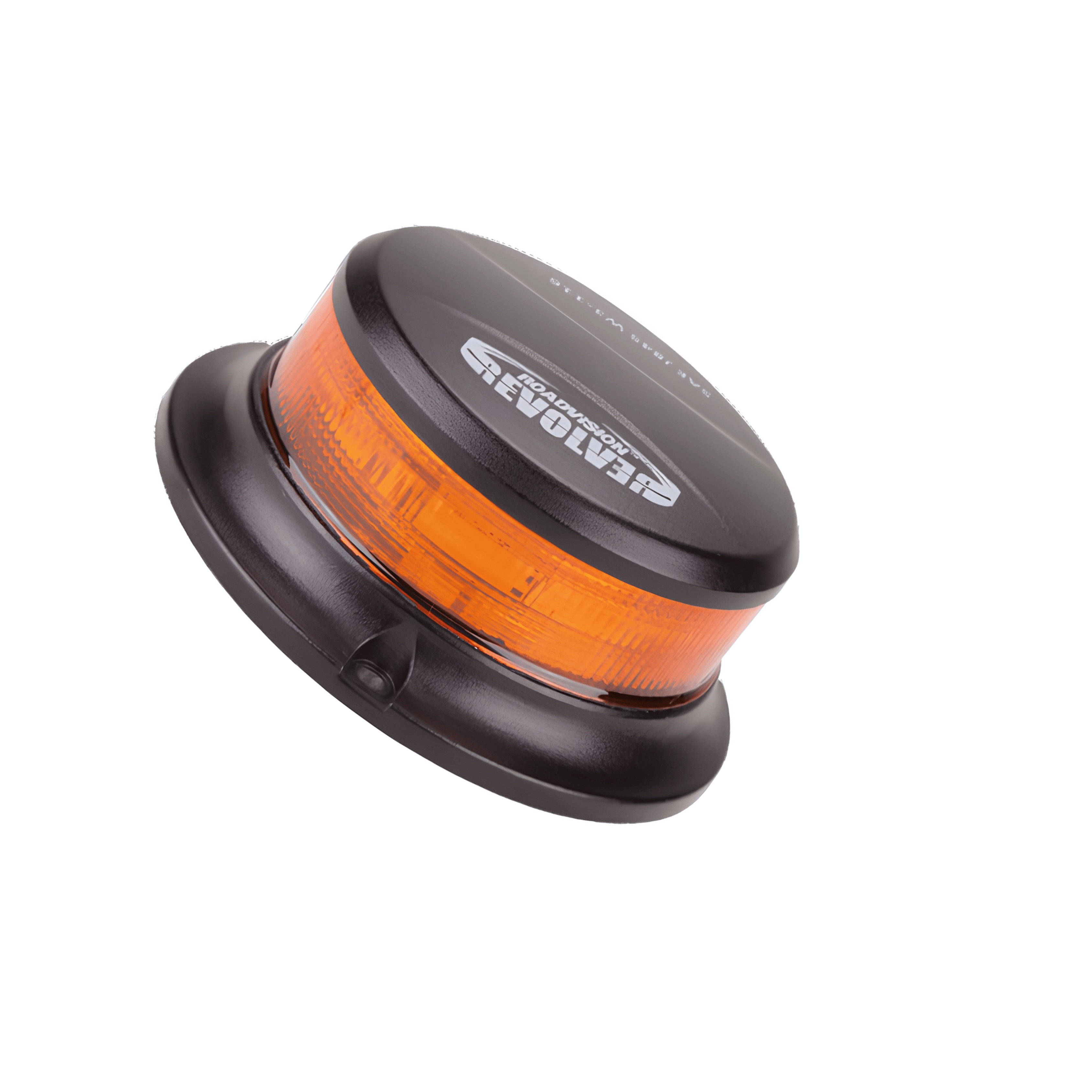

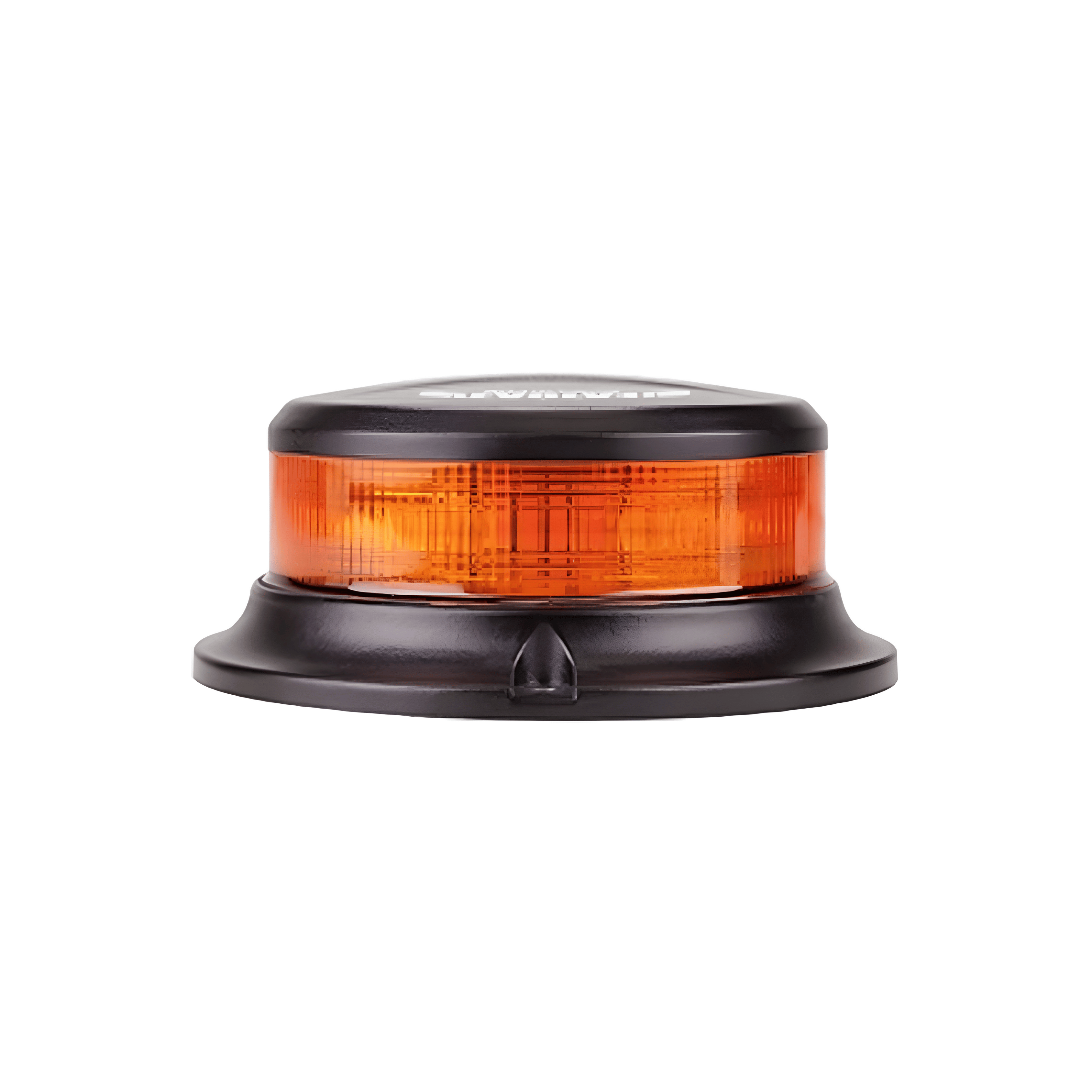

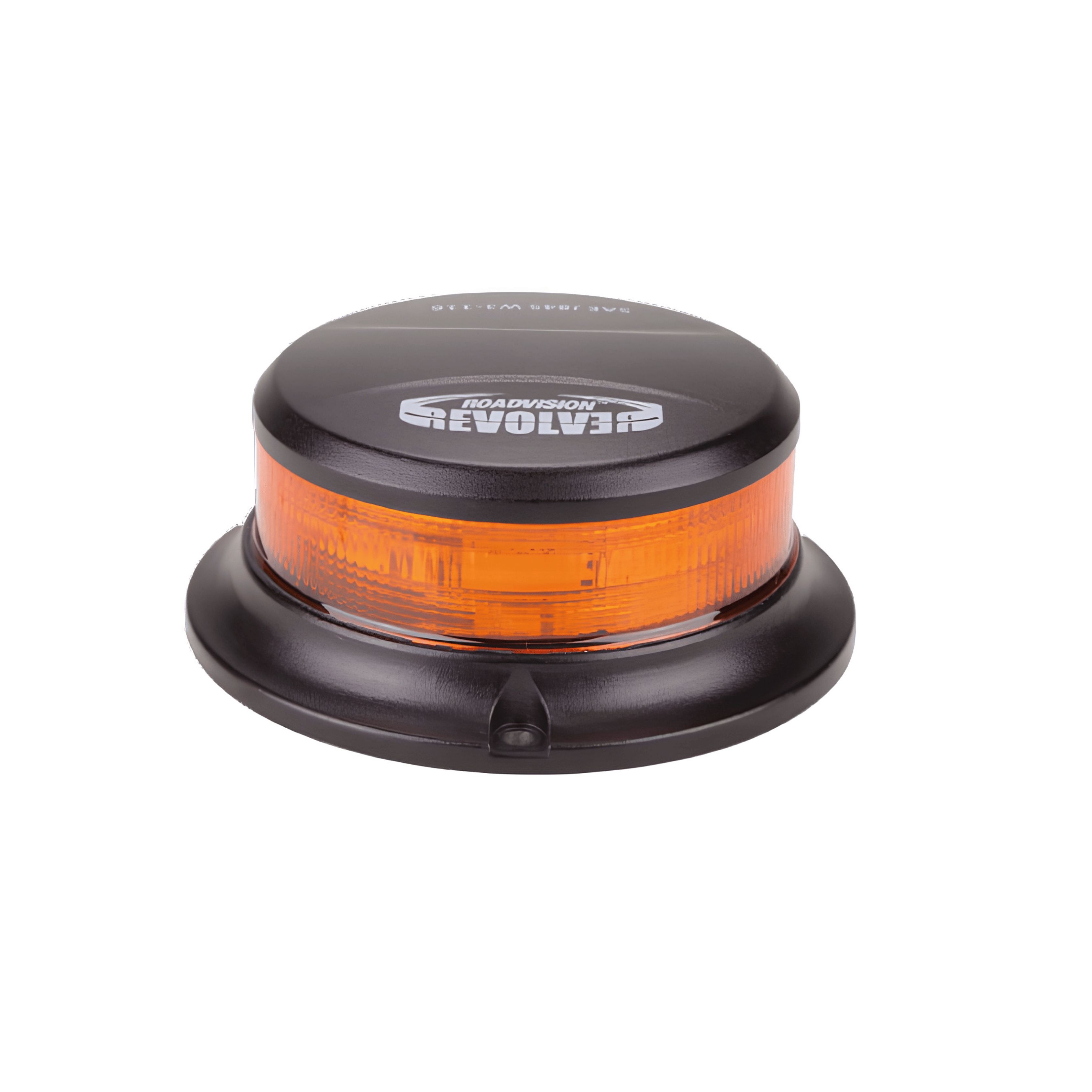

Roadvision RB112Y Revolver Low Profile LED Beacon Amber Fixed Mount
A compact low-profile 360-degree high-intensity amber LED beacon from the Roadvision Revolver RB112 Series, the RB112Y features 32 SMD LEDs, 10 selectable flash patterns, IP67 waterproof and vibration-proof rating, aluminium housing with polycarbonate lens, 10-30V DC multi-volt operation, and 3-hole fixed mount with 103mm centre to centre, backed by a 5-year warranty.
Product Overview
The Roadvision RB112Y is a fixed mount LED beacon from the Revolver RB112 Series, engineered to meet and exceed Australian and international regulations for emergency and warning lighting. The compact 112 x 48mm low-profile body houses 32 SMD LEDs producing 28W of high-intensity amber light with a 100,000 hour rated lifespan and maintenance-free solid-state technology.
Ten selectable flash patterns include single, double, triple, quad, and simulated rotating sequences across a range of flash rates, covering both ECE/SAE-compliant and rapid-response patterns. The RB112Y holds EMC Cispr25 Class 5 and SAE Class 1 approval. The aluminium housing and impact-resistant polycarbonate lens provide durability in tough industrial and emergency vehicle applications. IP67 rated for waterproof and dustproof protection with vibration-proof construction. The RB112Y mounts via a 3-hole fixed mount with 103mm centre-to-centre spacing and is pre-wired with a 300mm sheathed cable.
Features & Benefits
Compact 360-Degree High-Intensity LED Beacon: The RB112Y delivers 360-degree high-intensity amber light output from a compact 112 x 48mm low-profile body, providing maximum visibility from all directions without the bulk of larger beacon units.
32 SMD LEDs - 28W Output - 100,000 Hour Lifespan: Thirty-two SMD LEDs produce 28W of output with a rated lifespan of 100,000 hours, delivering maintenance-free performance over the long service life typical of emergency and industrial vehicle applications.
10 Selectable Flash Patterns: Ten selectable flash patterns cover a full range of single, double, triple, quad, and simulated rotating sequences at varying flash rates, allowing the RB112Y to be configured for the specific application and regulatory requirements.
EMC Cispr25 Class 5 and SAE Class 1 Approved: The RB112Y holds EMC Cispr25 Class 5 and SAE Class 1 approvals, confirming compliance with both electromagnetic compatibility and emergency vehicle lighting intensity requirements for on-road and industrial use.
Aluminium Housing with Impact-Resistant Polycarbonate Lens: The tough aluminium body and impact-resistant polycarbonate lens provide structural integrity and lens protection in demanding field, construction, and emergency vehicle environments.
IP67 Waterproof and Vibration Proof: IP67 rating provides full dust and waterproof protection against temporary immersion, and the vibration-proof construction ensures reliable operation on rough terrain and heavy equipment applications.
Multi-Volt 10-30V DC with Low Current Draw: The 10-30V DC multi-volt input with a current draw of 1.9A at 13.8V makes the RB112Y compatible with both 12V and 24V vehicle electrical systems without requiring a voltage adaptor.

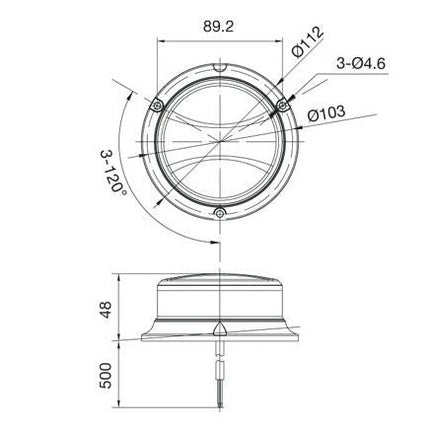

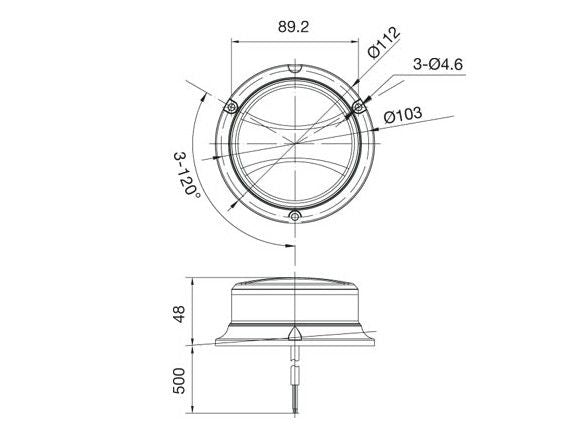

3-Hole Fixed Mount - 103mm Centre to Centre: The RB112Y is mounted via a 3-hole fixed mount pattern with 103mm centre-to-centre spacing, providing a permanent and secure installation to vehicle roof panels, light bars, and mounting brackets.
300mm Sheathed Pre-Wired Cable: The 300mm sheathed pre-wired cable provides a protected and professional wiring connection between the beacon and the vehicle wiring harness.
5-Year Warranty: The RB112Y is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RB112Y |
| Brand |
Roadvision |
| Series |
Revolver RB112 |
| Description |
Low Profile Beacon LED 10-30V 10 Flash Patterns Amber Fixed Mount |
| Function |
10 Selectable Flash Patterns |
| Light Source |
32 SMD LEDs |
| Power Output |
28W |
| Flash Patterns |
10 |
| Input Voltage |
10-30V DC |
| Current Draw |
1.9A at 13.8V |
| Dimensions |
112mm x 48mm |
| Mounting Type |
3-Hole Fixed Mount (103mm Centre to Centre) |
| Wiring |
300mm Sheathed |
| Lens |
Polycarbonate |
| Housing |
Aluminium |
| IP Rating |
IP67 |
| Vibration Proof |
Yes |
| Approvals |
EMC Cispr25 Class 5 and SAE Class 1 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Flash Patterns
| Pattern |
Flash Rate |
| Single (ECE/SAE) |
480ms |
| Single |
800ms |
| Double |
400ms |
| Double |
800ms |
| Triple |
820ms |
| Quad |
820ms |
| Front and Back Half |
400ms |
| Front and Back Half |
800ms |
| Rotated |
800ms |
| Rotated |
400ms |
Compatible With
The RB112Y is compatible with 10-30V DC vehicle electrical systems. EMC Cispr25 Class 5 and SAE Class 1 approved for on-road and industrial use. The RB112 Series is also available in magnetic mount (RB112MY) and DIN pole mount (RB112PY) configurations. Confirm mounting hole dimensions and vehicle roof clearance before purchase.
Frequently Asked Questions
How many flash patterns does the RB112Y have?
The RB112Y has 10 selectable flash patterns including single (ECE/SAE 480ms), single (800ms), double (400ms), double (800ms), triple (820ms), quad (820ms), front and back half (400ms), front and back half (800ms), rotated (800ms), and rotated (400ms).
Is the RB112Y SAE Class 1 approved?
Yes. The RB112Y holds EMC Cispr25 Class 5 and SAE Class 1 approvals, confirming compliance with emergency vehicle lighting intensity requirements for on-road and industrial use.
Is the RB112Y compatible with 24V vehicles?
Yes. The RB112Y operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
What is the mounting configuration of the RB112Y?
The RB112Y uses a 3-hole fixed mount with 103mm centre-to-centre spacing for permanent installation to vehicle roof panels, light bars, and mounting brackets. Magnetic mount (RB112MY) and DIN pole mount (RB112PY) versions are also available.
What is the rated lifespan of the RB112Y LEDs?
The RB112Y has a rated LED lifespan of 100,000 hours, providing long-term maintenance-free performance.
