Description

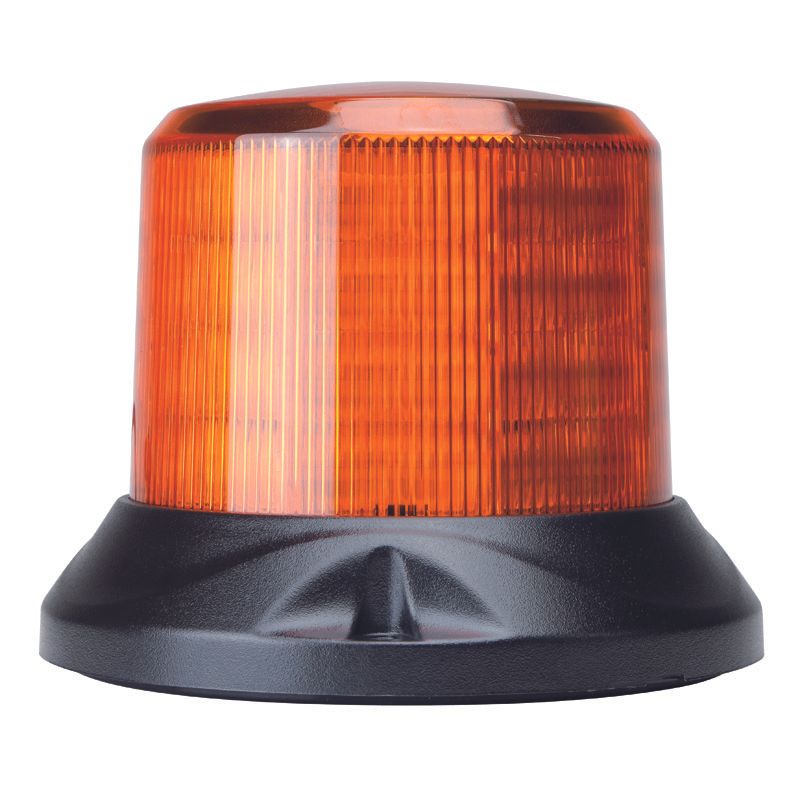

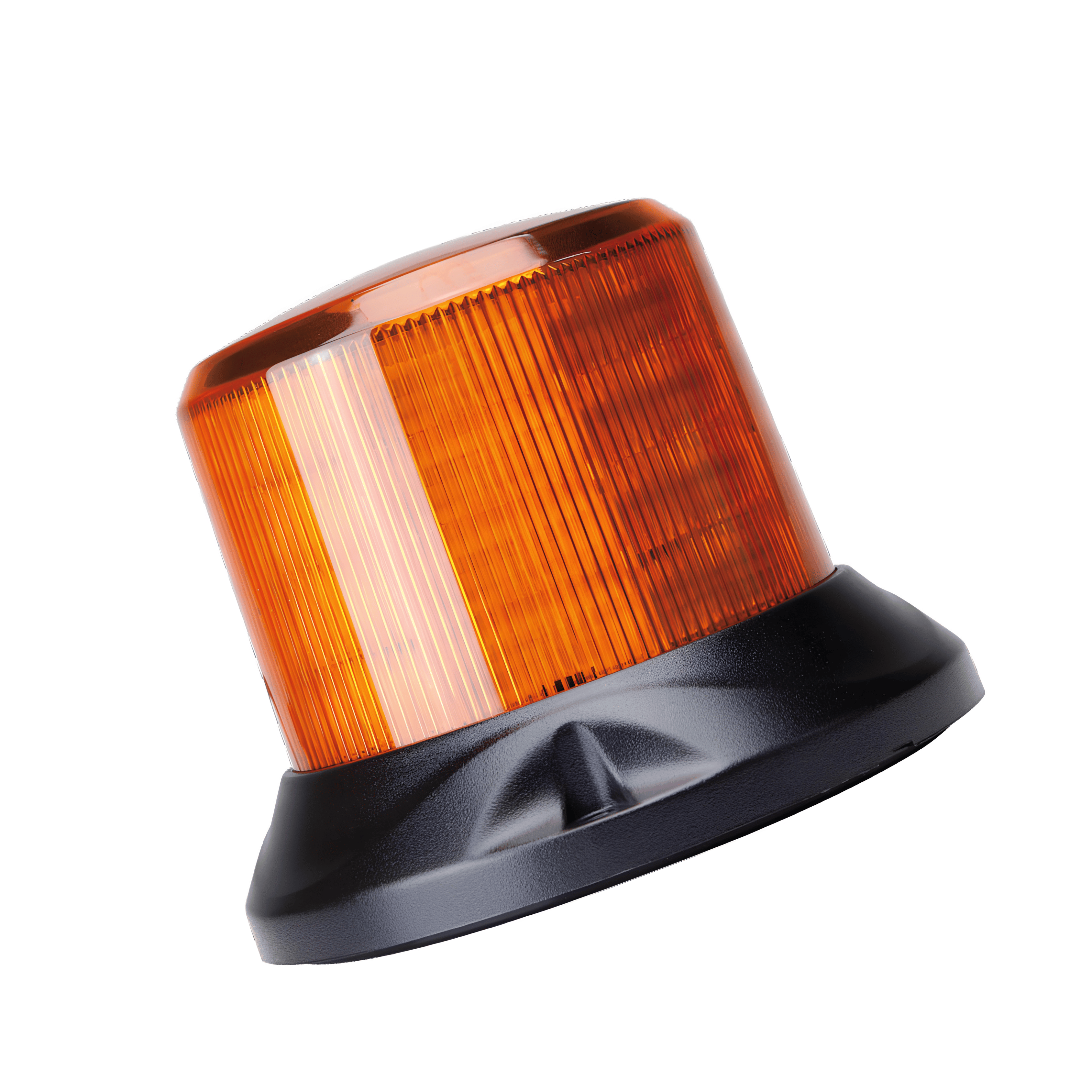

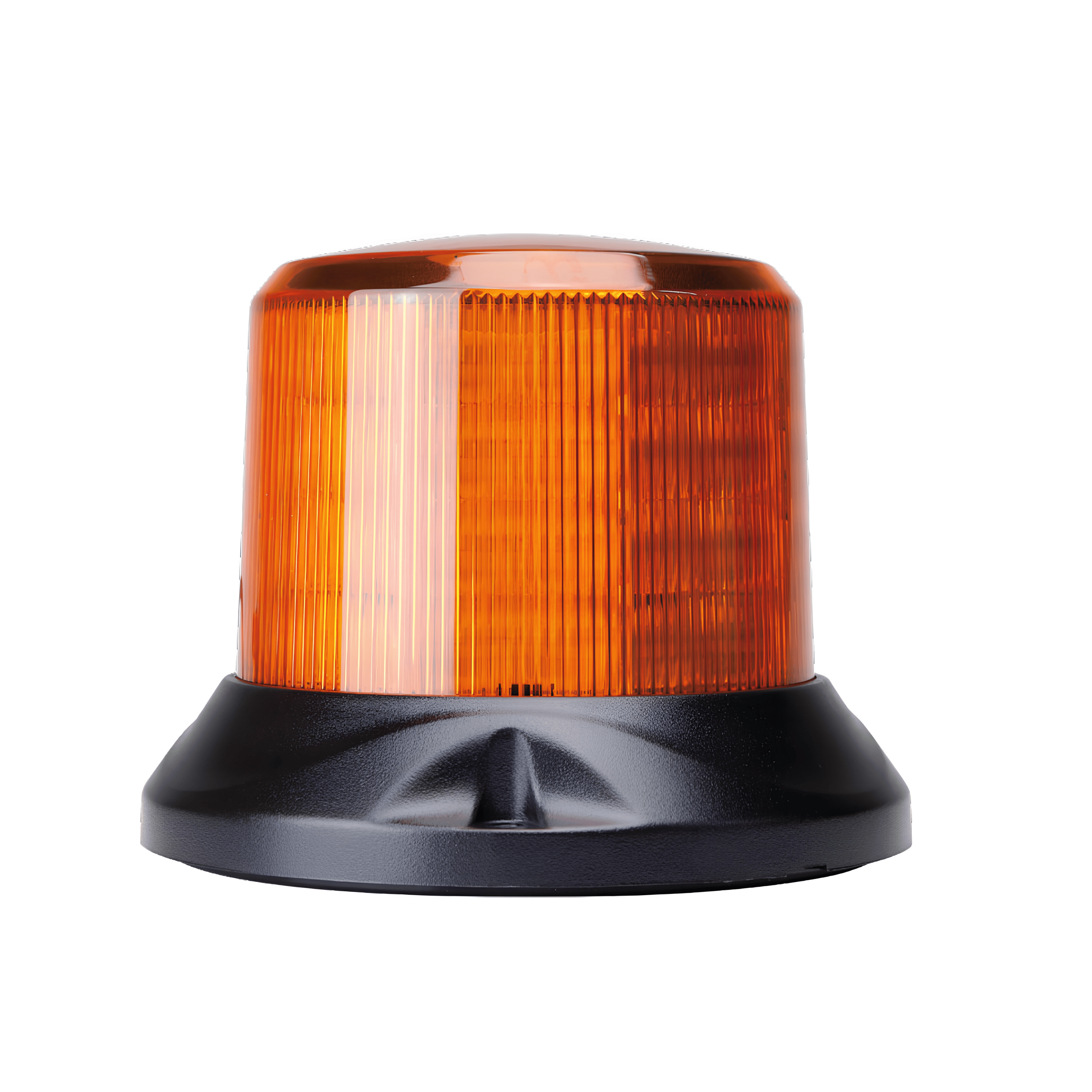

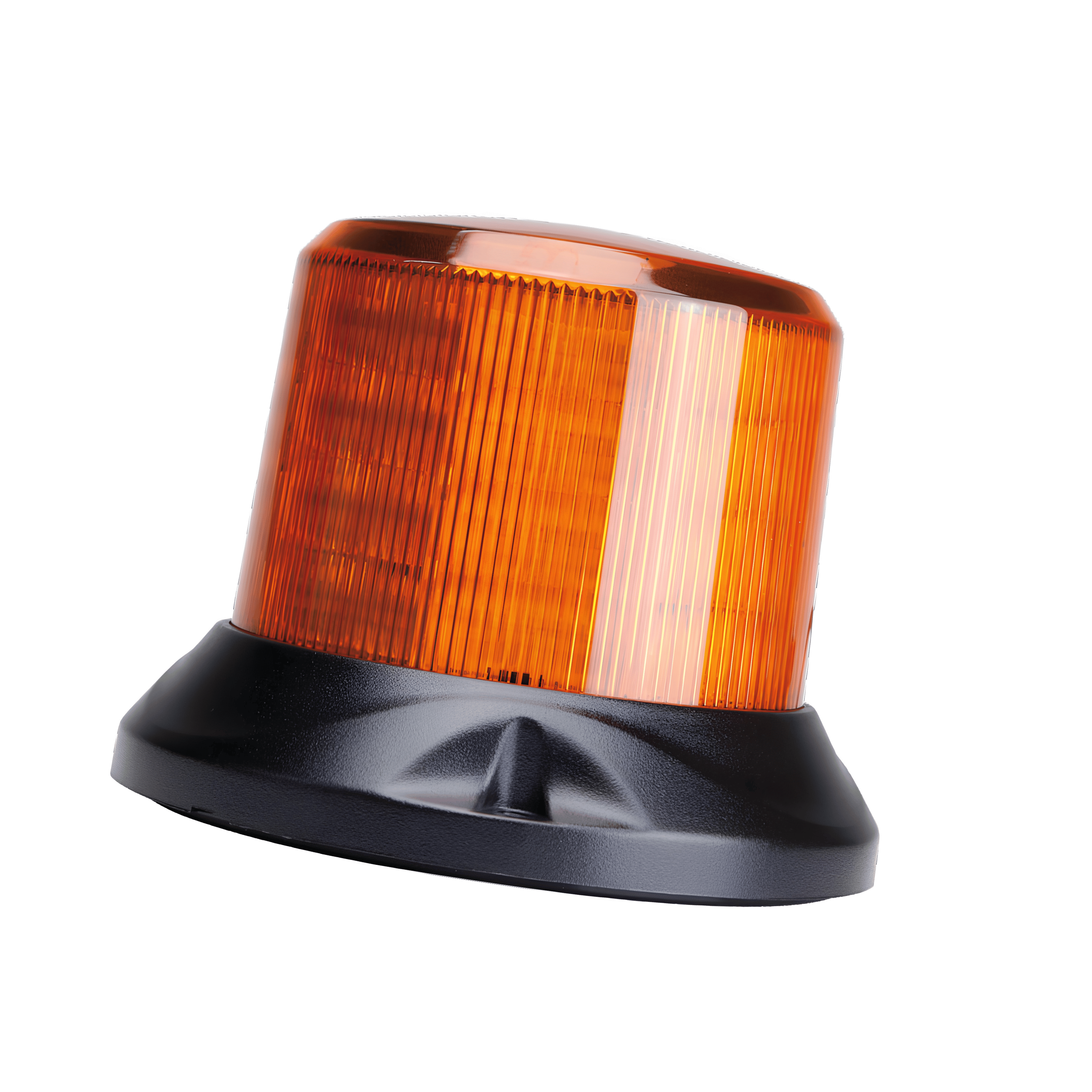

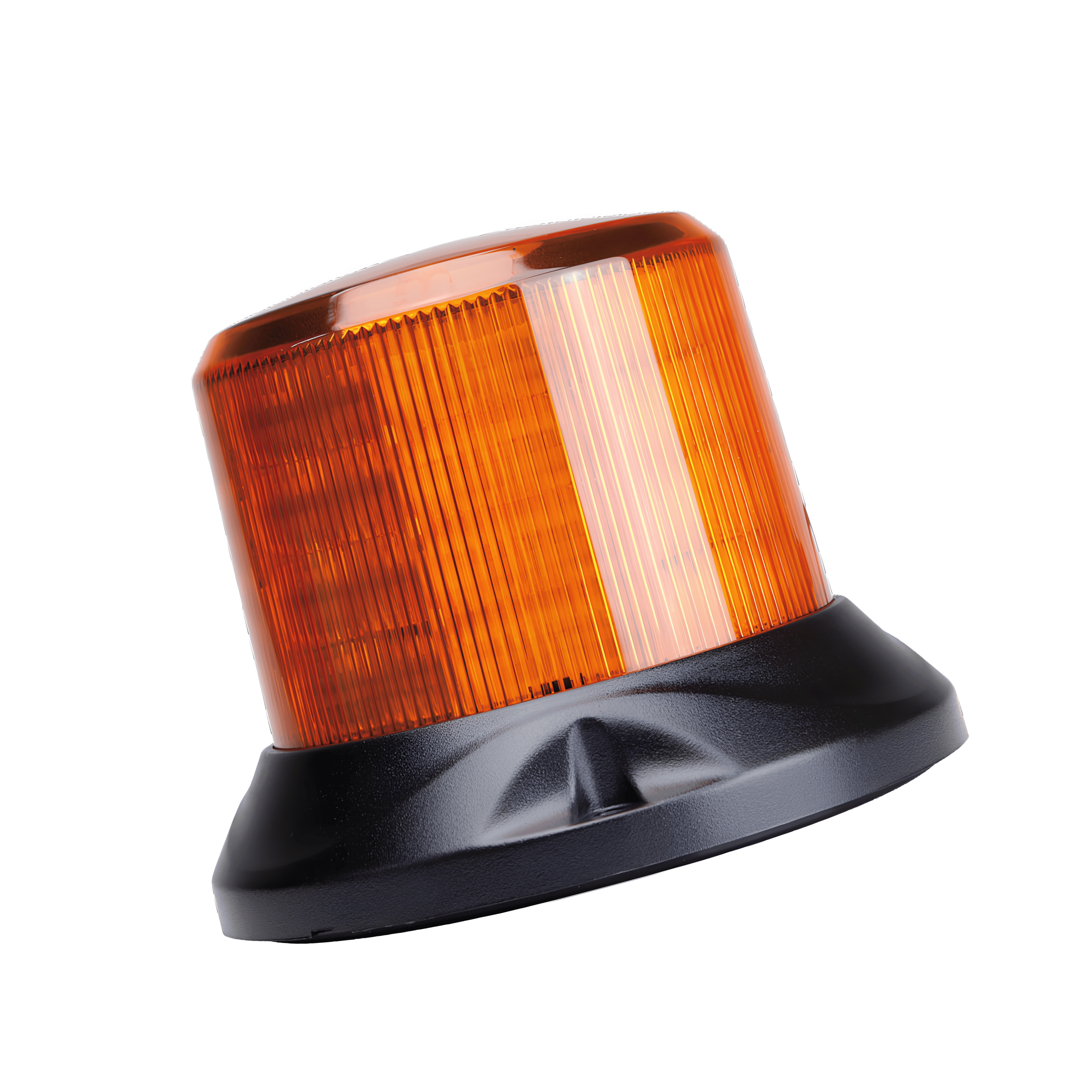

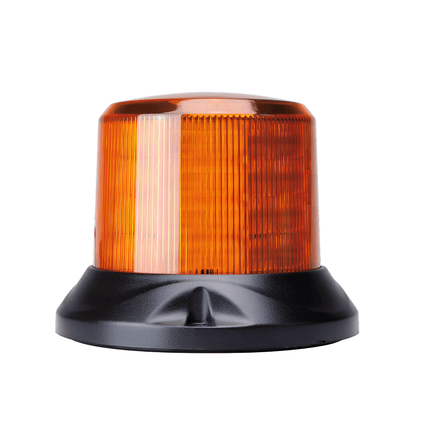

Roadvision RB132Y Revolver Mini LED Beacon Amber 5 Flash Patterns Fixed Mount
A 360-degree high-intensity mini LED beacon from the Roadvision Revolver RB132 Series, the RB132Y features 64 SMD LEDs producing 15W, 5 selectable flash patterns, IP67 waterproof and vibration-proof rating, impact-resistant polycarbonate lens and housing, 10-30V DC multi-volt operation, and a 3-hole fixed mount at 103mm centre to centre, backed by a 5-year warranty.
Product Overview
The Roadvision RB132Y is a fixed mount mini LED beacon from the Revolver RB132 Series, engineered to meet and exceed Australian and international regulations for emergency and warning lighting across industrial applications. The 130 x 102mm compact body houses 64 SMD LEDs producing 15W of high-intensity amber light with a 100,000 hour rated lifespan and maintenance-free solid-state technology.
Five selectable flash patterns include single, double, triple, quad, and simulated rotating at 140rpm. The RB132Y holds EMC, ECE R10, and SAE Class 1 approval for amber lens configurations. The white LED light source enables a simple lens colour change to blue, red, or green by fitting an alternate coloured lens. The impact-resistant polycarbonate lens and housing provide IP67 waterproof and dustproof protection with vibration-proof construction. Multi-volt 10-30V DC input at 1.1A at 13.8V is compatible with 12V and 24V vehicle and equipment systems. Pre-wired with a 500mm sheathed cable. 3-hole fixed mount at 103mm centre to centre.
Features & Benefits
360-Degree Mini High-Intensity LED Beacon: The RB132Y delivers 360-degree high-intensity amber light output from a compact 130 x 102mm mini body, providing maximum visibility from all directions for industrial and on-highway vehicle applications.
64 SMD LEDs - 15W Output - 100,000 Hour Lifespan: Sixty-four SMD LEDs produce 15W of output with a rated lifespan of 100,000 hours and maintenance-free solid-state technology for long-term reliability.
5 Selectable Flash Patterns Including Simulated Rotating: Five selectable flash patterns cover single, double, triple, quad, and simulated rotating at 140rpm, providing flexibility for different application and regulatory requirements.
White LED Light Source for Simple Lens Colour Change: The white LED light source allows the lens colour to be changed to blue, red, or green by fitting an alternate coloured lens, providing multi-application flexibility from a single beacon unit.
EMC, ECE R10, and SAE Class 1 Approved (Amber): The RB132Y holds EMC, ECE R10, and SAE Class 1 approvals for amber lens configurations, confirming compliance with Australian and international emergency lighting standards.
Impact-Resistant Polycarbonate Lens and Housing - IP67 Rated: Impact-resistant polycarbonate construction on both lens and housing provides IP67 waterproof and dustproof protection with vibration-proof construction suited to demanding industrial environments.
3-Hole Fixed Mount - 103mm Centre to Centre: The 3-hole fixed mount provides a 103mm centre-to-centre mounting configuration for secure permanent installation to vehicle roof panels and mounting brackets.
Multi-Volt 10-30V DC with Low Current Draw: Compatible with both 12V and 24V vehicle and equipment electrical systems at 1.1A at 13.8V.
500mm Sheathed Pre-Wired Cable: The 500mm sheathed pre-wired cable provides a protected wiring connection to the vehicle harness.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RB132Y |
| Brand |
Roadvision |
| Series |
Revolver RB132 |
| Description |
Mini Beacon LED 10-30V 5 Flash Patterns Amber Fixed Mount |
| Function |
5 Selectable Flash Patterns |
| Light Source |
64 SMD LEDs |
| Power Output |
15W |
| LED Colour |
White (Amber lens fitted) |
| Flash Patterns |
5 |
| Input Voltage |
10-30V DC |
| Current Draw |
1.1A at 13.8V |

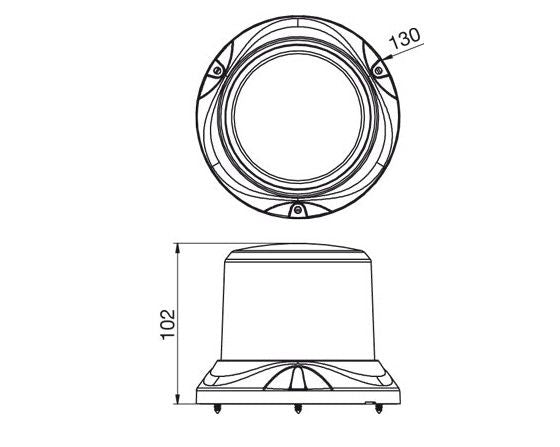

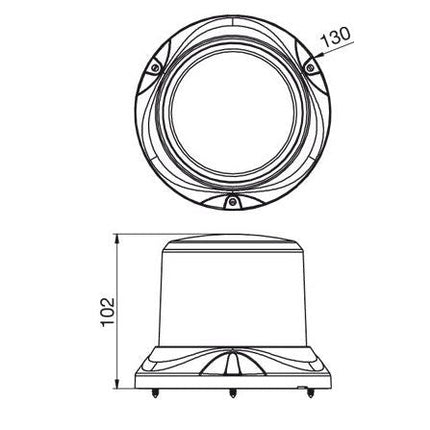

| Dimensions |
130mm x 102mm |
| Mounting Type |
3-Hole Fixed Mount (103mm Centre to Centre) |
| Wiring |
500mm Sheathed |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Polycarbonate |
| IP Rating |
IP67 |
| Vibration Proof |
Yes |
| Approvals |
EMC, ECE R10, SAE Class 1 (Amber) |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Flash Patterns
| Pattern |
| Single |
| Double |
| Triple |
| Quad |
| Simulated Rotating (140rpm) |
Compatible With
The RB132Y is compatible with 10-30V DC vehicle and equipment electrical systems. EMC, ECE R10, and SAE Class 1 approved for amber configurations. Alternate coloured lenses (blue, red, green) can be fitted to the white LED light source for different application requirements. The RB132 Series is also available in magnetic mount (RB132MY) configuration.
Frequently Asked Questions
Can the lens colour on the RB132Y be changed?
Yes. The RB132Y uses a white LED light source, allowing the lens to be replaced with an alternate blue, red, or green coloured lens for different application requirements. Note that the EMC, ECE R10, and SAE Class 1 approvals apply to the amber lens configuration only.
How many flash patterns does the RB132Y have?
The RB132Y has 5 selectable flash patterns: single, double, triple, quad, and simulated rotating at 140rpm.
Is the RB132Y SAE Class 1 approved?
Yes. The RB132Y holds EMC, ECE R10, and SAE Class 1 approvals for amber lens configurations.
Is the RB132Y compatible with 24V vehicles?
Yes. The RB132Y operates across 10-30V DC, compatible with both 12V and 24V vehicle and equipment electrical systems.
What is the difference between the RB132Y and the RB167Y?
Both are from the Revolver Series with identical flash patterns, LED colour, housing material, IP rating, and approvals. The RB132Y is a mini beacon at 130 x 102mm with a 103mm centre-to-centre fixed mount and 500mm cable. The RB167Y is a maxi beacon at 165 x 137mm with 113mm and 130mm centre-to-centre fixed mount options and 500mm cable. Choose the RB132Y for a more compact installation footprint.
