Description

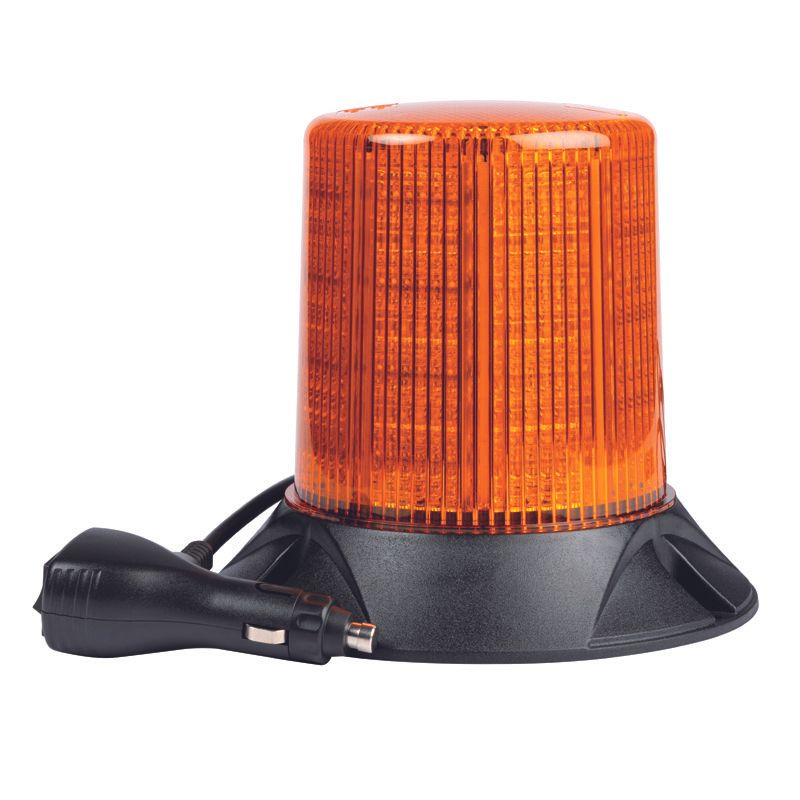

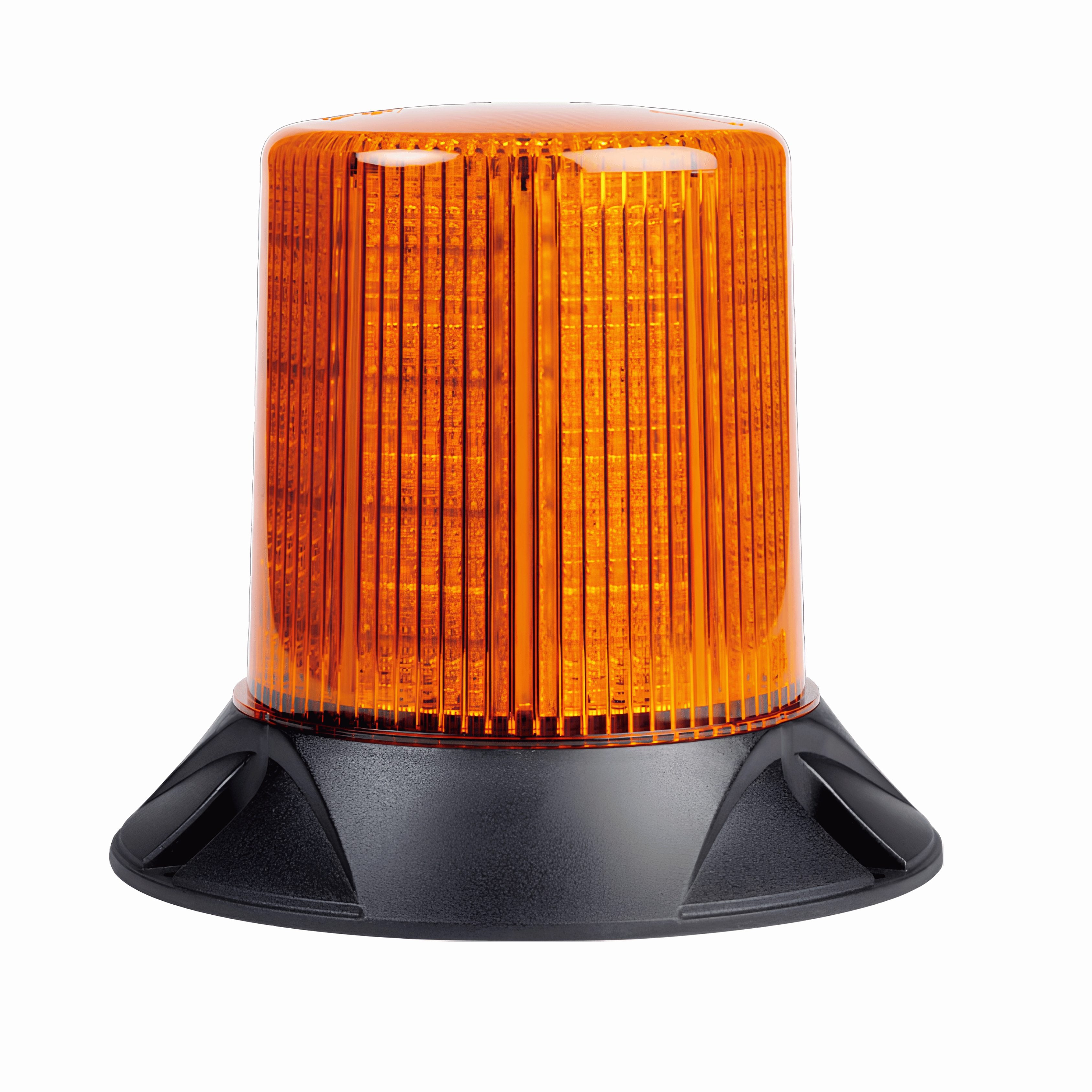

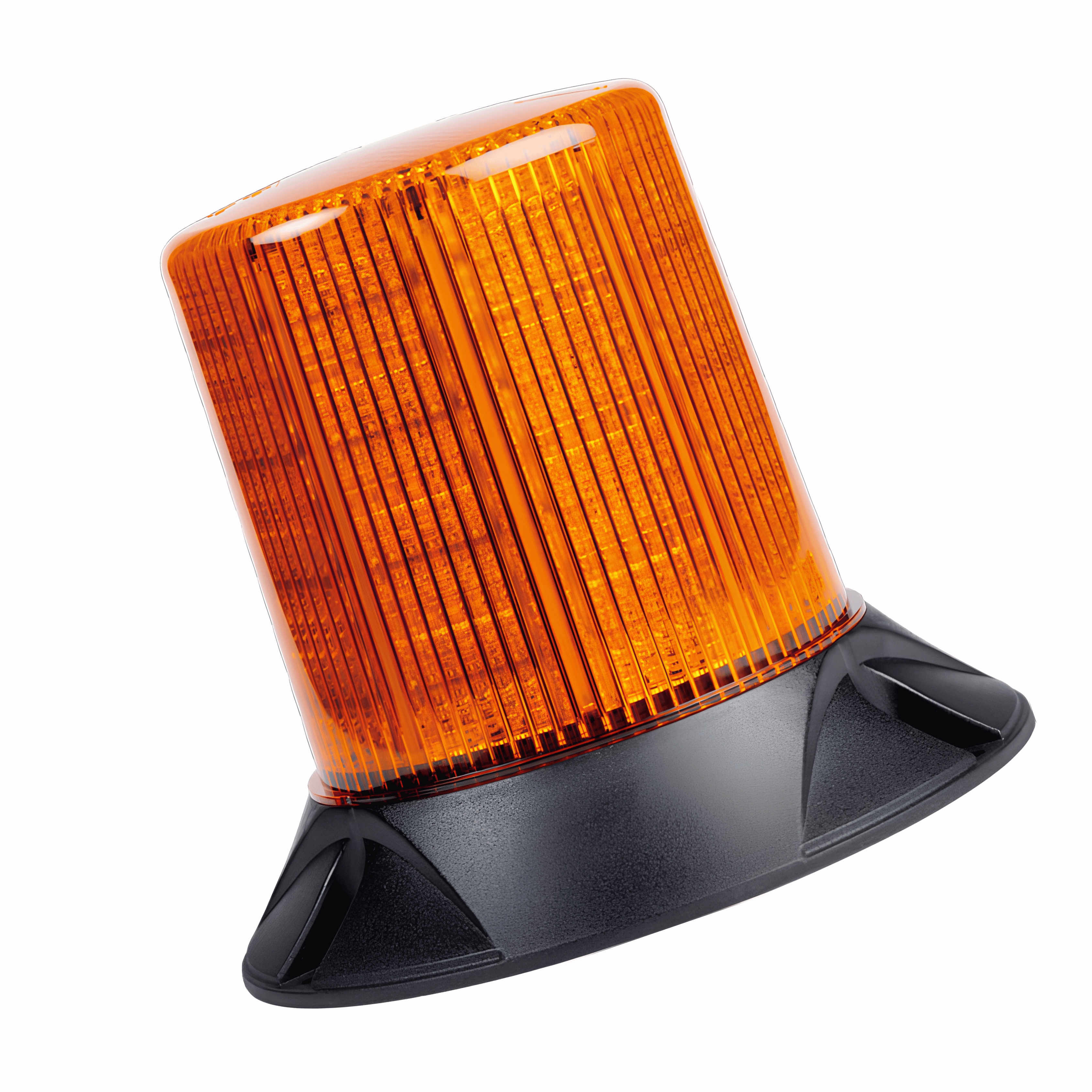

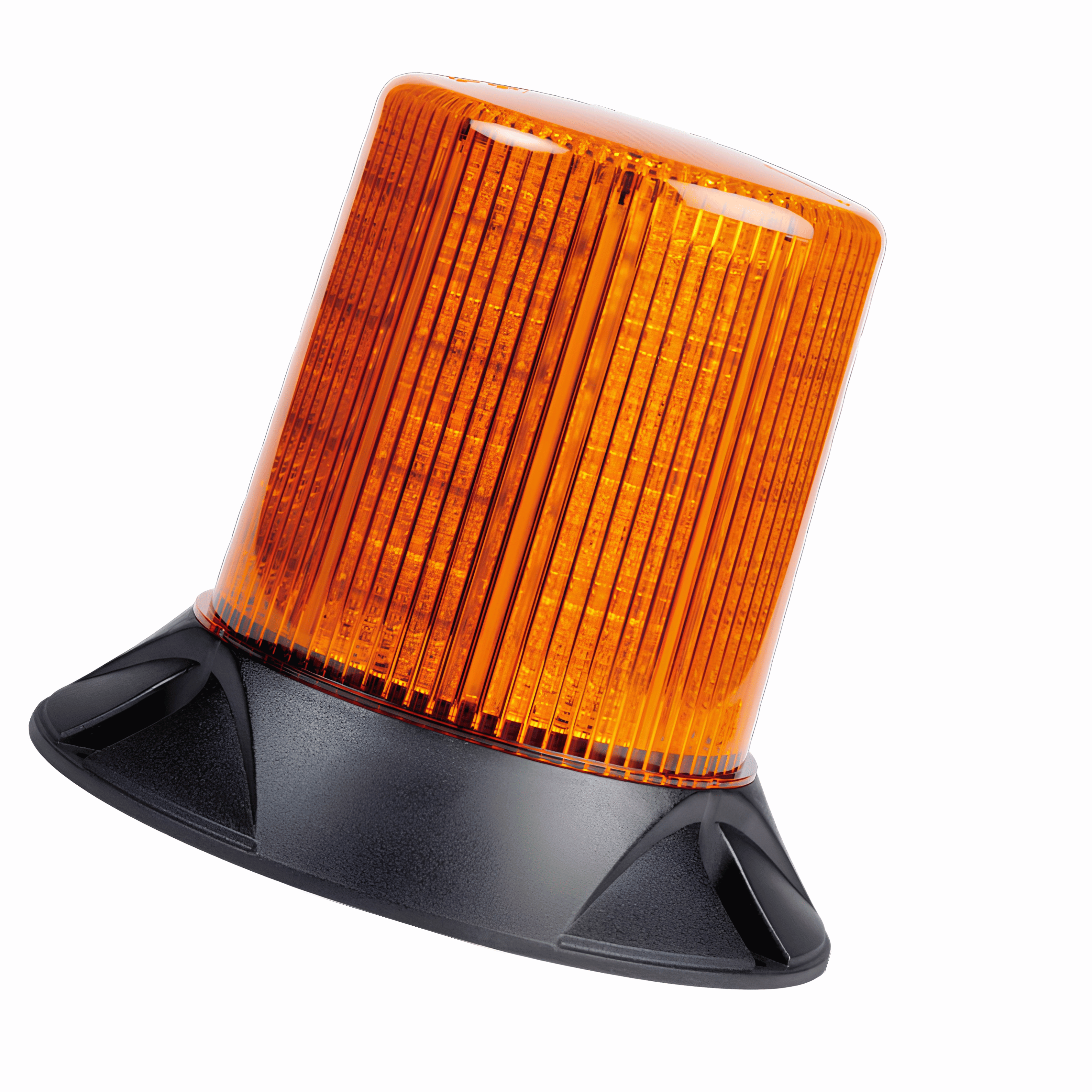

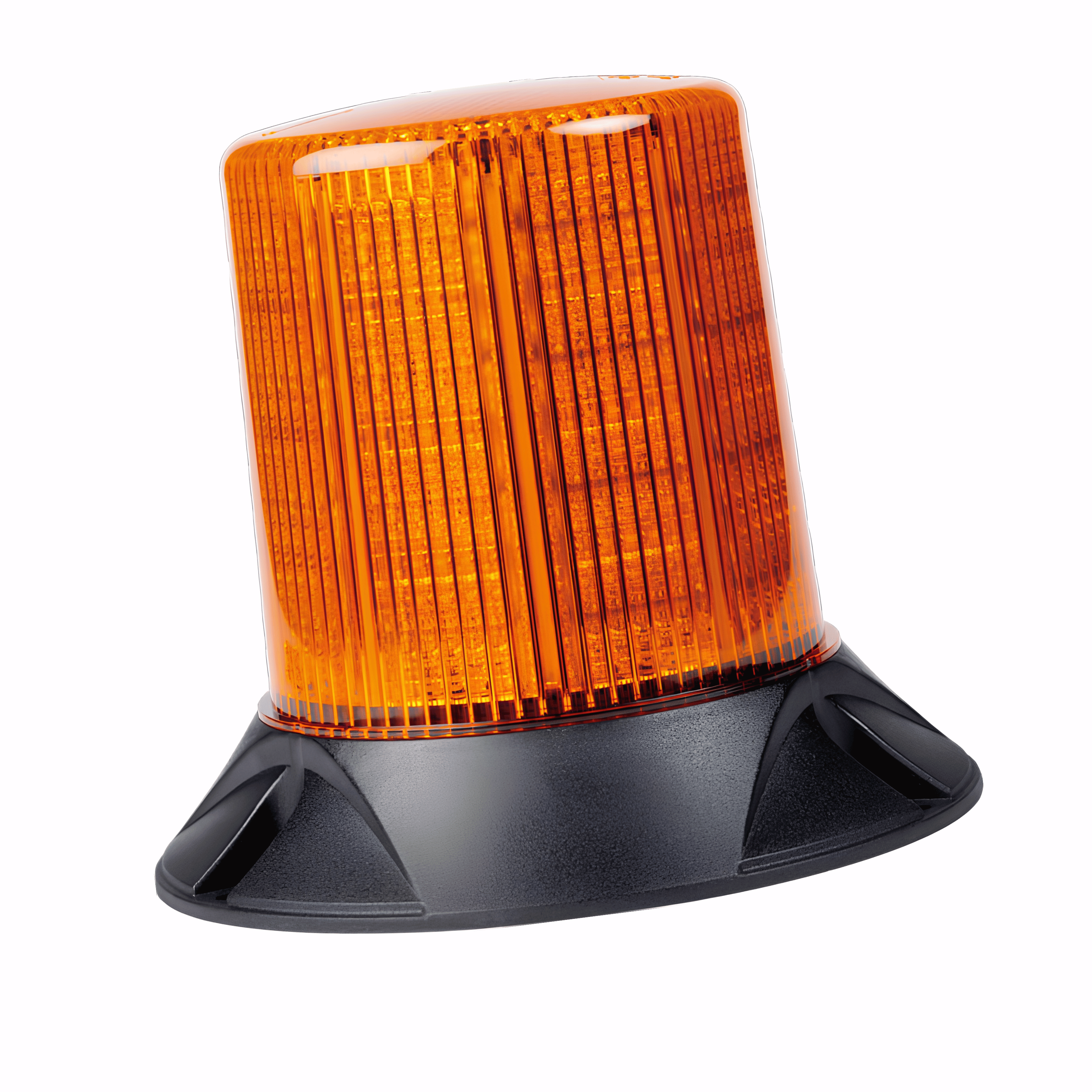

Roadvision RB1552MY Revolver LED Beacon Amber 5 Flash Patterns Magnetic Mount
A 360-degree high-intensity amber LED beacon from the Roadvision Revolver RB1552 Series, the RB1552MY features 32 SMD LEDs producing 28W, 5 selectable flash patterns, IP67 weatherproof and vibration-proof rating, polycarbonate lens and housing, 10-30V DC multi-volt operation, and a magnetic mount with a 2500mm curly cord and cigarette plug, backed by a 5-year warranty.
Product Overview
The Roadvision RB1552MY is a magnetic mount LED beacon from the Revolver RB1552 Series, sharing the same LED array, flash pattern selection, housing construction, and electrical specifications as the fixed mount RB1552Y but with a strong magnetic base and 2500mm curly cord with cigarette plug for quick-deploy temporary and portable warning light applications. The 166 x 150mm body houses 32 SMD LEDs producing 28W of high-intensity amber light with a 100,000 hour rated lifespan. Five selectable flash patterns include single, double, triple, quad, and simulated rotating at 140rpm. IP67 rated, EMC CISPR25 Class 5 and SAE Class 1 approved. Operating temperature -40°C to +65°C.
Features & Benefits
360-Degree High-Intensity LED Beacon: The RB1552MY delivers 360-degree high-intensity amber light output from a compact 166 x 150mm body for on-highway, mining, and industrial vehicle applications.
32 SMD LEDs - 28W Output - 100,000 Hour Lifespan: Thirty-two SMD LEDs produce 28W of output at 2.7A at 13.8V with a rated lifespan of 100,000 hours and maintenance-free solid-state technology.
5 Selectable Flash Patterns Including Simulated Rotating: Single, double, triple, quad, and simulated rotating at 140rpm selectable flash patterns provide flexibility across a wide range of applications.
EMC CISPR25 Class 5 and SAE Class 1 Approved: Confirmed compliance with electromagnetic compatibility and emergency vehicle lighting intensity requirements for on-road and industrial use.
Polycarbonate Lens and Housing - IP67 Rated: High-impact polycarbonate construction on both lens and housing with IP67 weatherproof and vibration-proof protection.
Magnetic Mount for Temporary and Portable Applications: The strong magnetic base allows the RB1552MY to be quickly mounted to and removed from any ferrous metal vehicle roof or panel surface without tools, making it ideal for temporary warning light applications and hire fleets.
2500mm Curly Cord with Cigarette Plug: The 2500mm curly cord with cigarette plug allows direct connection to a vehicle cigarette lighter socket for fast deployment without permanent wiring.
Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle electrical systems.
Wide Operating Temperature Range: Operates reliably from -40°C to +65°C.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RB1552MY |
| Brand |
Roadvision |
| Series |
Revolver RB1552 |
| Description |
Beacon LED 10-30V 5 Flash Patterns Amber Magnetic Mount |
| Function |
5 Selectable Flash Patterns |
| Light Source |
32 SMD LEDs |
| Power Output |
28W |
| Flash Patterns |
5 |
| Input Voltage |
10-30V DC |
| Current Draw |
2.7A at 13.8V |

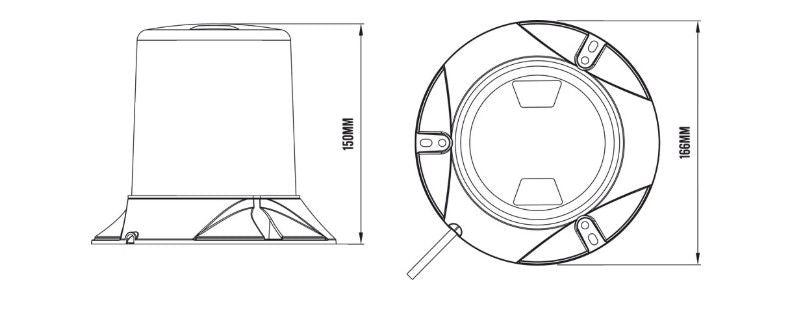

| Dimensions |
166mm x 150mm |
| Mounting Type |
Magnetic Mount |
| Wiring |
2500mm Curly Cord with Cigarette Plug |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Polycarbonate |
| IP Rating |
IP67 |
| Vibration Proof |
Yes |
| Operating Temperature |
-40°C to +65°C |
| Approvals |
EMC CISPR25 Class 5 and SAE Class 1 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Flash Patterns
| Pattern |
| Single |
| Double |
| Triple |
| Quad |
| Simulated Rotating (140rpm) |
Compatible With
The RB1552MY is compatible with 10-30V DC vehicle electrical systems. The 2500mm curly cord with cigarette plug allows direct connection to a vehicle cigarette lighter socket. EMC CISPR25 Class 5 and SAE Class 1 approved. The RB1552 Series is also available in fixed mount (RB1552Y) and DIN pole mount (RB1552PY) configurations.
Frequently Asked Questions
What is the advantage of the magnetic mount on the RB1552MY?
The magnetic base allows the RB1552MY to be quickly mounted to and removed from any ferrous metal vehicle roof or panel surface without tools, making it ideal for temporary warning light applications, hire fleets, and situations where the beacon needs to be transferred between vehicles.
How long is the curly cord on the RB1552MY?
The RB1552MY is supplied with a 2500mm curly cord with cigarette plug for direct connection to a vehicle cigarette lighter socket.
Is the RB1552MY SAE Class 1 approved?
Yes. The RB1552MY holds EMC CISPR25 Class 5 and SAE Class 1 approvals for on-road and industrial warning light applications.
What is the difference between the RB1552MY and the RB1552Y?
Both share identical LED configuration, flash patterns, housing, and electrical specifications. The RB1552Y uses a 3-hole multi-fit fixed mount with 300mm sheathed cable for permanent installation. The RB1552MY uses a magnetic mount with a 2500mm curly cord and cigarette plug for temporary or portable applications.
Is the RB1552MY compatible with 24V vehicles?
Yes. The RB1552MY operates across 10-30V DC, compatible with both 12V and 24V vehicle and equipment electrical systems.
