Description

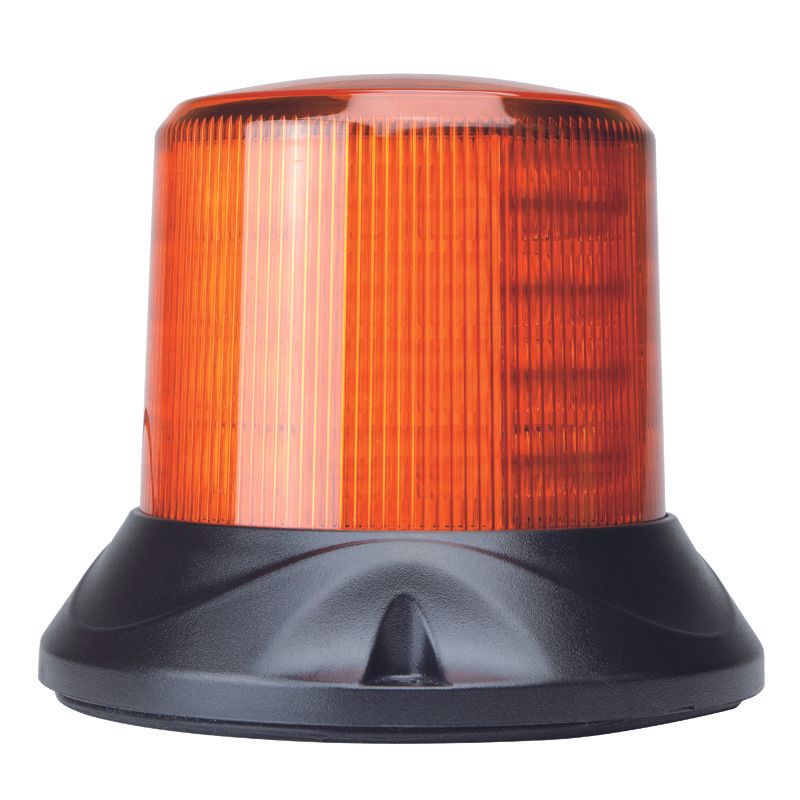

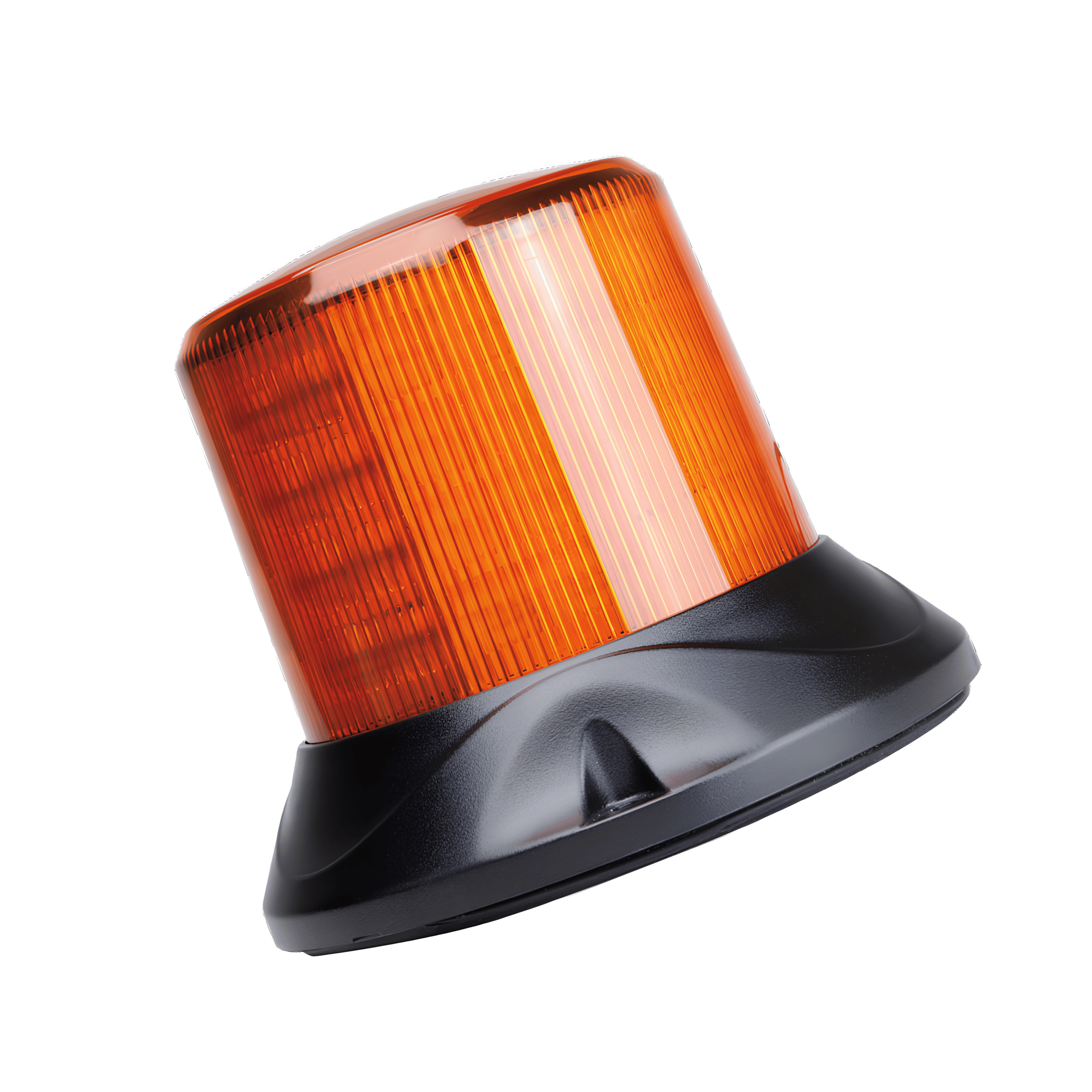

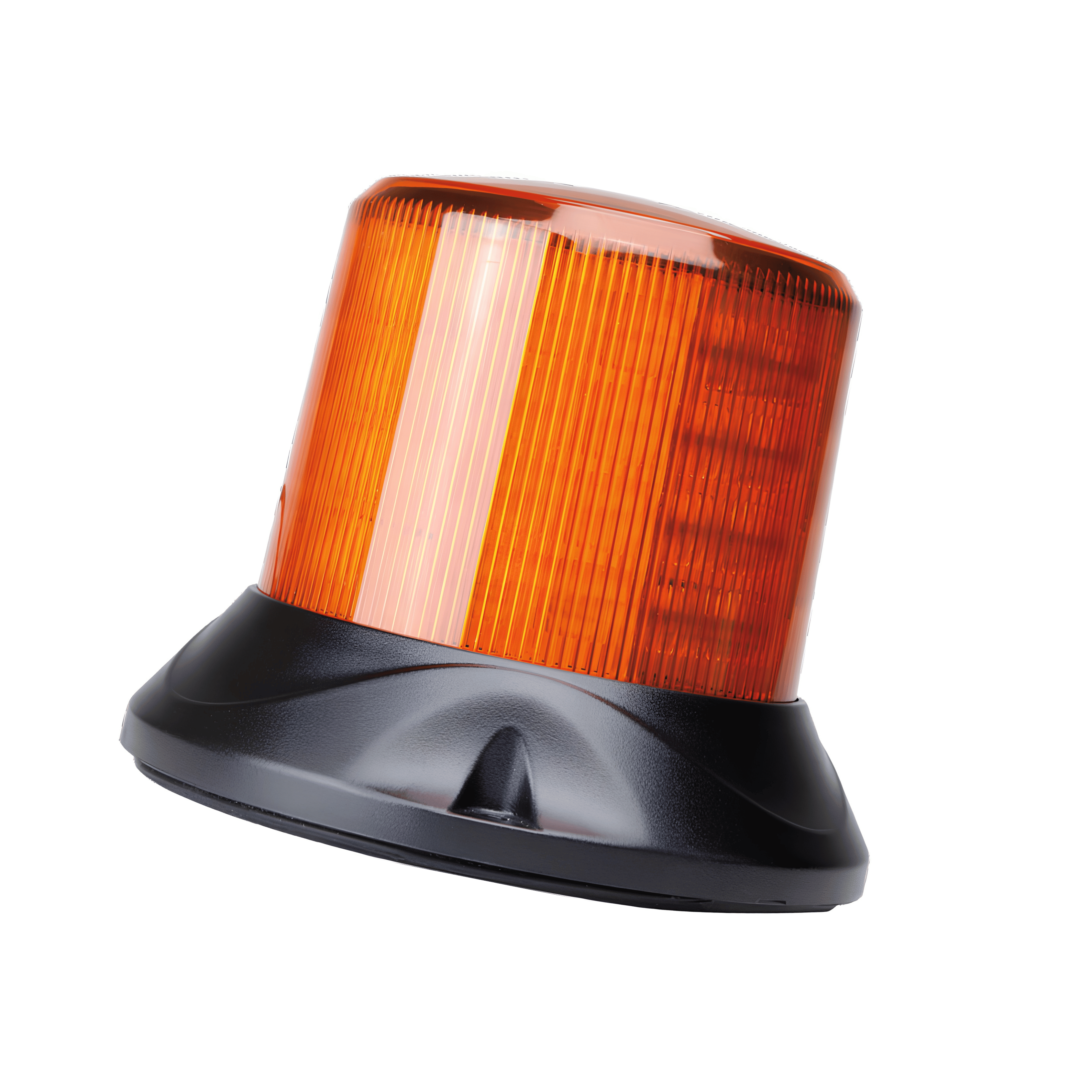

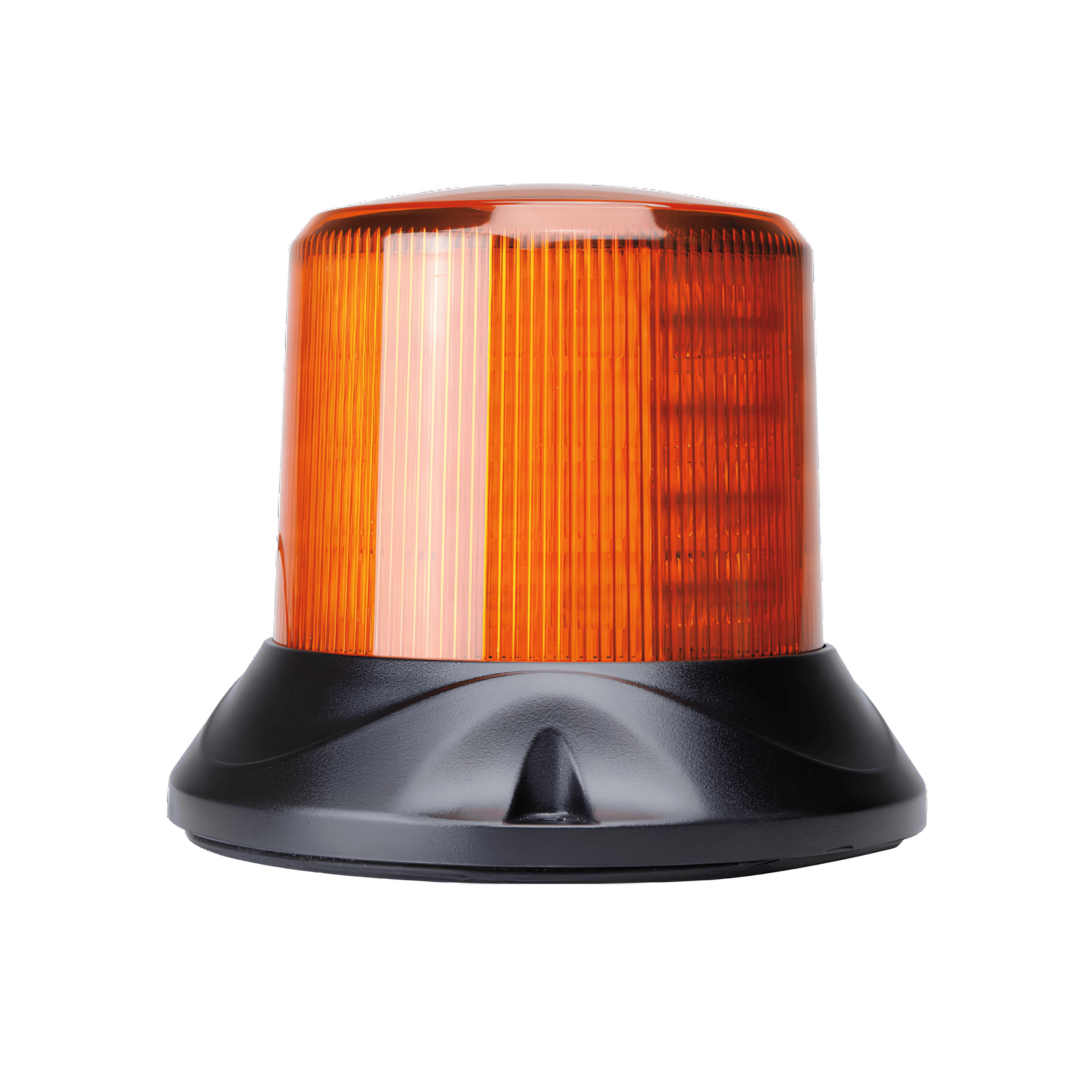

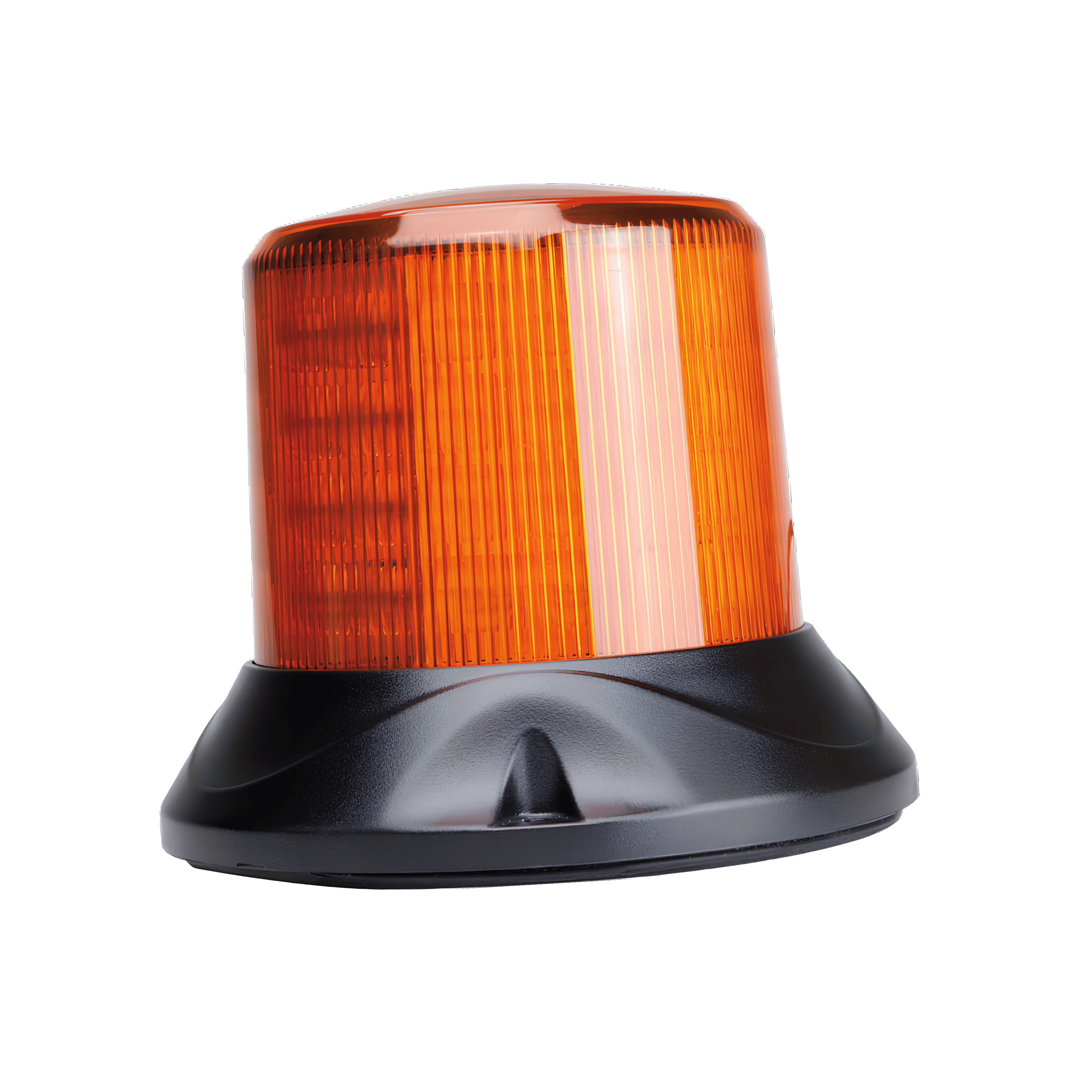

Roadvision RB167MY Revolver Maxi LED Beacon Amber 5 Flash Patterns Magnetic Mount
A 360-degree high-intensity maxi LED beacon from the Roadvision Revolver RB167 Series, the RB167MY features 64 SMD LEDs producing 15W, 5 selectable flash patterns, IP67 waterproof and vibration-proof rating, impact-resistant polycarbonate lens and housing, 10-30V DC multi-volt operation, and a magnetic mount with a 2500mm lead and cigarette plug, backed by a 5-year warranty.
Product Overview
The Roadvision RB167MY is a magnetic mount maxi LED beacon from the Revolver RB167 Series, sharing the same LED array, flash pattern selection, housing construction, and electrical specifications as the fixed mount RB167Y but with a strong magnetic base and 2500mm lead with cigarette plug for quick-deploy temporary and portable warning light applications. The 165 x 139mm body houses 64 SMD LEDs producing 15W of high-intensity amber light with a 100,000 hour rated lifespan. Five selectable flash patterns include single, double, triple, quad, and simulated rotating at 140rpm. The white LED light source allows simple lens colour change to blue, red, or green. IP67 rated, EMC, ECE R10, and SAE Class 1 approved (amber). Multi-volt 10-30V DC at 1.1A at 13.8V.
Features & Benefits
360-Degree Maxi High-Intensity LED Beacon: The RB167MY delivers 360-degree high-intensity amber light output from a 165 x 139mm maxi body for mining and industrial vehicle applications.
64 SMD LEDs - 15W Output - 100,000 Hour Lifespan: Sixty-four SMD LEDs produce 15W of output with a rated lifespan of 100,000 hours and maintenance-free solid-state technology.
5 Selectable Flash Patterns Including Simulated Rotating: Single, double, triple, quad, and simulated rotating at 140rpm selectable flash patterns.
White LED Light Source for Simple Lens Colour Change: The white LED light source allows the lens to be replaced with an alternate blue, red, or green coloured lens for different application requirements.
EMC, ECE R10, and SAE Class 1 Approved (Amber): Confirmed compliance with Australian and international emergency lighting standards for amber lens configurations.
Impact-Resistant Polycarbonate Lens and Housing - IP67 Rated: IP67 waterproof and dustproof protection with vibration-proof construction for demanding mining, construction, and industrial environments.
Magnetic Mount for Temporary and Portable Applications: The strong magnetic base allows the RB167MY to be quickly mounted to and removed from any ferrous metal vehicle roof or panel surface without tools, ideal for temporary warning light applications, hire fleets, and multi-vehicle deployment.
2500mm Lead with Cigarette Plug: The 2500mm lead with cigarette plug allows direct connection to a vehicle cigarette lighter socket for fast deployment without permanent wiring.
Multi-Volt 10-30V DC: Compatible with 12V and 24V vehicle and equipment electrical systems at 1.1A at 13.8V.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RB167MY |
| Brand |
Roadvision |
| Series |
Revolver RB167 |
| Description |
Mini Beacon LED 10-30V 5 Flash Pattern Amber Magnetic Mount |
| Function |
5 Selectable Flash Patterns |
| Light Source |
64 SMD LEDs |
| Power Output |
15W |
| LED Colour |
White (Amber lens fitted) |
| Flash Patterns |
5 |
| Input Voltage |
10-30V DC |
| Current Draw |
1.1A at 13.8V |

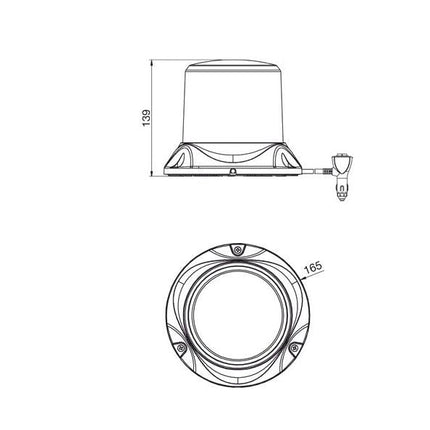

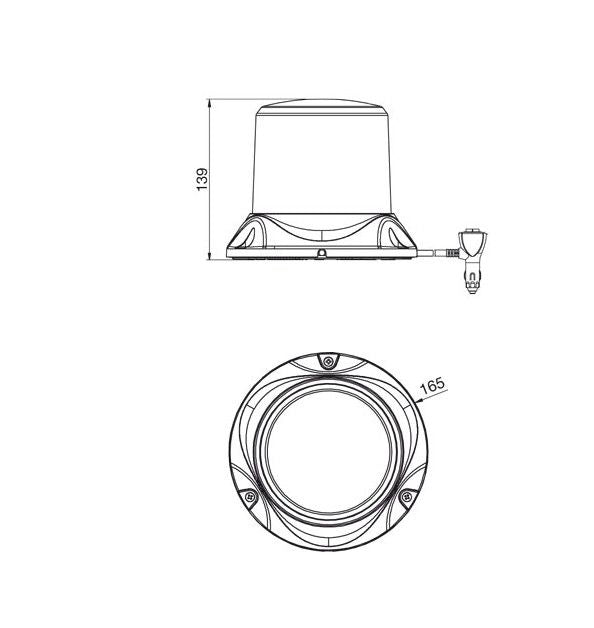

| Dimensions |
165mm x 139mm |
| Mounting Type |
Magnetic Mount |
| Wiring |
2500mm Lead with Cigarette Plug |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Polycarbonate |
| IP Rating |
IP67 |
| Vibration Proof |
Yes |
| Approvals |
EMC, ECE R10, SAE Class 1 (Amber) |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Flash Patterns
| Pattern |
| Single |
| Double |
| Triple |
| Quad |
| Simulated Rotating (140rpm) |
Compatible With
The RB167MY is compatible with 10-30V DC vehicle and equipment electrical systems. The 2500mm lead with cigarette plug allows direct connection to a vehicle cigarette lighter socket. EMC, ECE R10, and SAE Class 1 approved for amber configurations. Alternate coloured lenses (blue, red, green) can be fitted to the white LED light source for different application requirements. The RB167 Series is also available in fixed mount (RB167Y) configuration.
Frequently Asked Questions
What is the advantage of the magnetic mount on the RB167MY?
The magnetic base allows the RB167MY to be quickly mounted to and removed from any ferrous metal vehicle roof or panel surface without tools, making it ideal for temporary warning light applications, hire fleets, and situations where the beacon needs to be transferred between vehicles.
Can the lens colour on the RB167MY be changed?
Yes. The RB167MY uses a white LED light source, allowing the lens to be replaced with an alternate blue, red, or green coloured lens. Note that the EMC, ECE R10, and SAE Class 1 approvals apply to the amber lens configuration only.
How long is the lead on the RB167MY?
The RB167MY is supplied with a 2500mm lead with cigarette plug for direct connection to a vehicle cigarette lighter socket.
What is the difference between the RB167MY and the RB167Y?
Both share identical LED configuration, flash patterns, housing, and electrical specifications. The RB167Y uses a 3-hole fixed mount with a 500mm sheathed cable and measures 165 x 137mm. The RB167MY uses a magnetic mount with a 2500mm cigarette plug lead and measures 165 x 139mm. Choose based on whether permanent or temporary/portable installation is required.
Is the RB167MY SAE Class 1 approved?
Yes. The RB167MY holds EMC, ECE R10, and SAE Class 1 approvals for amber lens configurations.
