Description
High-Output Combo Beam LED Light Bar for 12V and 24V Vehicles
Product Overview

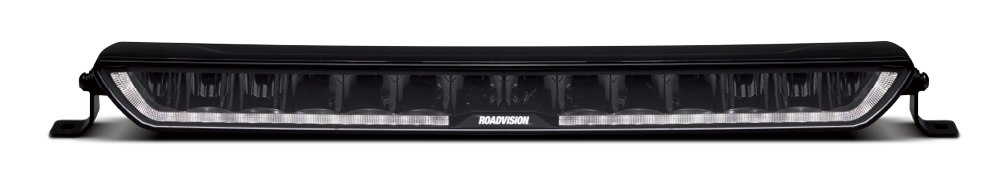

The RoadVision RBL2130C is a 30" combination beam LED light bar delivering 180W of output and 9,800 lumens through 18 x 10W CREE LEDs. The combination beam pattern blends long-range forward throw with wide roadside spread, making it a practical choice for highway driving, off-road tracks, and mixed-use auxiliary lighting applications.
Built into a die-cast aluminium housing with a polycarbonate lens, the RBL2130C measures 686 x 70 x 50mm and connects via a 4-pin Deutsch plug. It operates on a wide 10–30V DC input, drawing 11.4A at 13.8V, and is compatible with most 12V and 24V vehicles.
Features & Benefits
-
18 x 10W CREE LEDs — high-output light source delivering bright, white illumination
-
9,800lm output — substantial lumen count for a 30" single row bar
-
180W rated — strong output suitable for highway and off-road driving conditions
-
Combination beam pattern — balances long-range forward penetration with wide roadside illumination
-
620m beam reach — rated at 620m at 1 lux
-
Die-cast aluminium housing — lightweight and durable construction
-
Polycarbonate lens — impact-resistant lens construction
-
10–30V DC input — compatible with 12V and 24V vehicles
-
4-pin Deutsch plug — industry-standard connector for secure wiring
Technical Specs
| Specification |
Detail |
| Part Number |
RBL2130C |
| Brand |
RoadVision |
| Bar Length |
30" (686mm) |
| Beam Type |
Combination Beam |
| Light Source |
18 x 10W CREE LEDs |
| Maximum Lumens |
9,800lm |
| Maximum Watts |
180W |
| Current Draw |
11.4A @ 13.8V |
| Voltage Input |
10–30V DC |
| Lux @ 10m |
3,850 lux |
| Beam Distance @ 1 lux |
620m |
| Dimensions (L x H x D) |
686 x 70 x 50mm |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Die-Cast Aluminium |
| Wiring Connector |
4-Pin Deutsch Plug |
Compatible With
Suitable for mounting on:
- Utes, SUVs, and 4WDs
- Bull bars, nudge bars, and roof racks
- Trucks and work vehicles
- Any application requiring combo beam auxiliary lighting
Weight
Confirm with supplier.
Frequently Asked Questions
What is a combination beam LED light bar?
A combination beam blends spot (long-range narrow throw) and flood (wide short-range spread) optics in the same bar, providing both forward penetration at range and wider illumination of the road edges. The RBL2130C's combo pattern reaches 620m at 1 lux while also providing roadside spread.
What vehicles is this light bar compatible with?
The 10–30V DC input makes it compatible with most 12V and 24V vehicles including utes, SUVs, 4WDs, and trucks. Confirm fitment for your specific vehicle before purchasing.
What wiring is required?
The RBL2130C uses a 4-pin Deutsch plug. A compatible wiring harness is required for installation — confirm compatible harness options with RoadVision or your auto electrician.
What is the IP rating and warranty for this light bar?
IP rating and warranty details are not specified in the supplier data for this SKU. Confirm with RoadVision before purchasing if these are requirements for your application.
How does this compare to the DCX2 Series bars?
The RBL2130C uses 10W CREE LEDs in a single-row format, while the DCX2 Series uses 3W Osram Hi-Lux LEDs in a dual-row curved housing with soft start, PWM dimming, and advanced thermal management. The DCX2 range also carries a 7-year warranty and IP67 rating. The RBL2130C is a more compact straight-bar option suited to applications where the full dual-row format isn't required.
