Description

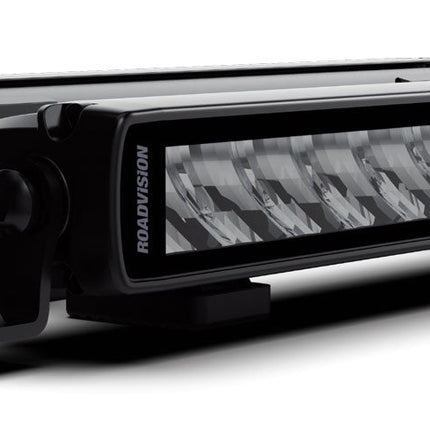

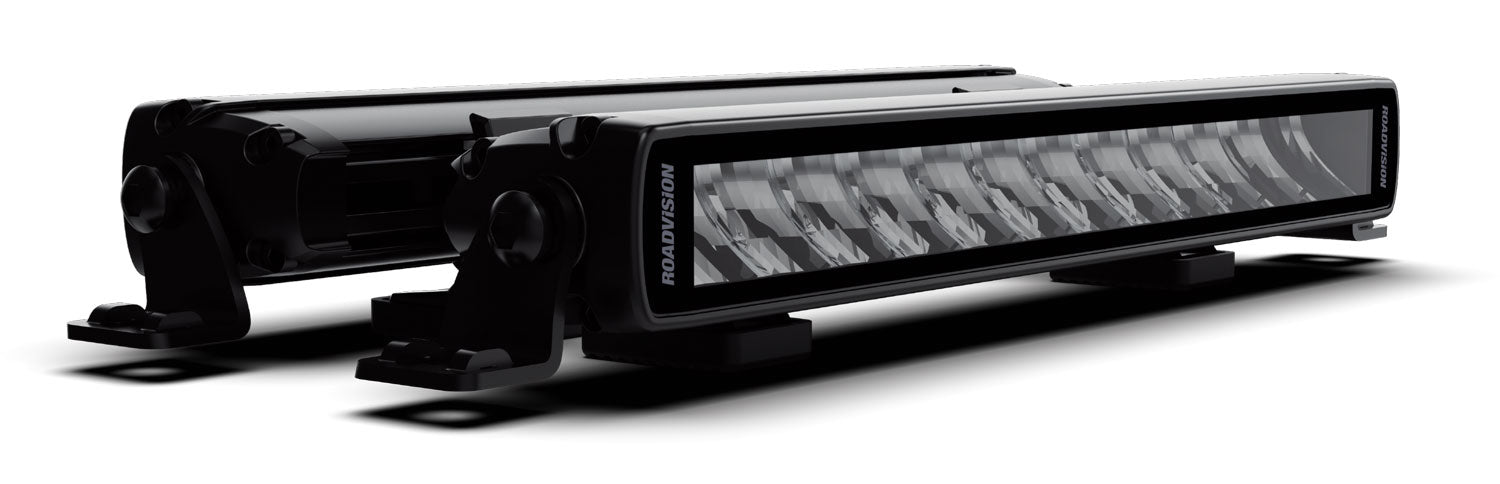

Roadvision S40 Stealth Flood Series 13" LED Bar 49W, 3138lm, 140° Ultra-Wide Flood, 12x3W Osram, IP68 & IP69K, 10–30V.
Product Overview
The Roadvision RBL4013F is the 13" model from the S40 Stealth Flood Series a single-row LED light bar built for wide, close-range illumination with a stealth aesthetic. The smoked-look polycarbonate lens and blackout die-cast aluminium housing deliver a low-profile, stealthy appearance that sets it apart from conventional chrome or gloss finish light bars.
Powered by 12x3W Osram LEDs, the RBL4013F produces 3138lm of flood output across a 140° ultra-wide beam, reaching 72m at 1 lux and 52lx at 10m ideal for close-range off-road work, camp lighting, reversing, or wide-coverage applications where a tight spot or combo beam isn't needed. Current draw is 3.57A at 13.8V from a 10–30V DC multivolt input. Wiring is via 2-pin Deutsch plug. IP68 and IP69K protection, Roadvision's Thermal Management Technology, over/under voltage and reverse polarity protection, EMI/EMC radio interference approved, and a 7-year warranty.
Dimensions: 315mm x 55mm x 40mm.
Key Specifications
- LEDs: 12 x 3W Osram
- Maximum lumens: 3138lm
- Beam pattern: 140° ultra-wide flood
- Metres at 1 lux: 72m
- Maximum lux at 10m: 52lx
- Wattage: 49W
- Current draw: 3.57A @ 13.8V
- Voltage: 10–30V DC (multivolt)
- Colour temperature: 5700K
- Lens: Polycarbonate (smoked)
- Housing: Die-cast aluminium
- Wiring: 2-pin Deutsch plug
- Dimensions: 315mm x 55mm x 40mm
- IP rating: IP68 & IP69K
- Warranty: 7 years
- SKU: RBL4013F
- Brand: Roadvision
Features & Benefits
-
140° ultra-wide flood beam: Maximum width illumination for work lighting, reversing, camp lighting, and close-range off-road applications
-
Stealth smoked lens and blackout hardware: Low-profile, subtle appearance no chrome or gloss finish to attract attention
-
12x3W Osram LEDs:Â Premium Osram LEDs deliver 5700K super white light output at 3138lm
-
Thermal Management Technology:Â Roadvision's TMT maximises light output while protecting long-term LED performance
-
IP68 & IP69K: Sealed against continuous immersion and high-pressure water jets suitable for demanding off-road and work environments
-
2-pin Deutsch connector:Â Industry-standard heavy-duty automotive connector for reliable, vibration-resistant electrical connection
-
Multivolt 10–30V DC: Suits 12V and 24V vehicle electrical systems
-
Over/under voltage & reverse polarity protection:Â Built-in electrical protections
-
EMI/EMC radio interference approved:Â No radio frequency interference
-
50,000 hour LED lifespan:Â Solid-state technology for a long service life
-
7-year warranty:Â Backed by Roadvision's 7-year warranty
Technical Specs
| Specification |
Detail |
| SKU |
RBL4013F |
| Brand |
Roadvision |
| Series |
S40 Stealth Flood Series |
| LED Count |
12 x 3W Osram |
| Maximum Lumens |
3138lm |
| Beam Pattern |
140° Ultra-Wide Flood |
| Metres at 1 Lux |
72m |
| Max Lux at 10m |
52lx |
| Wattage |
49W |
| Current Draw |
3.57A @ 13.8V |
| Input Voltage |
10–30V DC |
| Colour Temperature |
5700K |
| Lens |
Polycarbonate (smoked) |
| Housing |
Die-cast aluminium |
| Wiring |
2-pin Deutsch plug |
| Dimensions |
315mm x 55mm x 40mm |
| IP Rating |
IP68 & IP69K |
| Warranty |
7 Years |
S40 Stealth Flood Series Variant Comparison
| Model |
Size |
LEDs |
Lumens |
Wattage |
Dimensions |
| RBL4013F |
13" |
12 x 3W |
3138lm |
49W |
315 x 55 x 40mm |
| RBL4021F |
21" |
21 x 3W |
5252lm |
94W |
522 x 55 x 40mm |
Installation Notes
2-pin Deutsch plug Roadvision standard wiring harnesses are sold separately. Simple 2-wire installation. Adjustable side mounts and low-profile slide mounts included.
Frequently Asked Questions
What is the lumen output of the 13" RBL4013F?
3138lm confirmed from the official Roadvision RBL4013F spec table. Note: 5252lm is the range maximum belonging to the 21" RBL4021F, not the 13" model.
What beam pattern does this light bar use?
140° ultra-wide flood designed for close-range wide coverage. Not a spot or combo beam.
What connector does this light bar use?
2-pin Deutsch plug a heavy-duty industry-standard automotive connector. Wiring harnesses are sold separately.
What is the IP rating?
IP68 and IP69K sealed against continuous immersion and high-pressure, high-temperature water jets.
What is the return policy for this product?
Return eligibility is subject to the retailer's policy. Contact the seller before ordering if you have any questions.
