Description

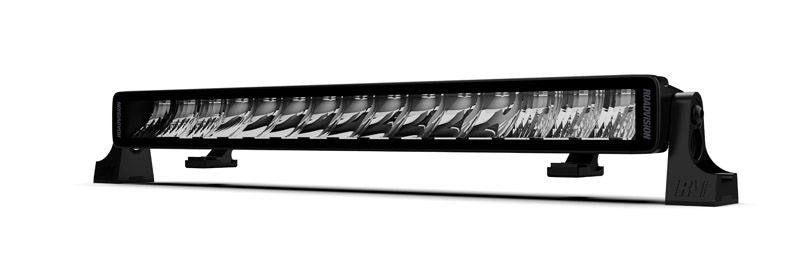

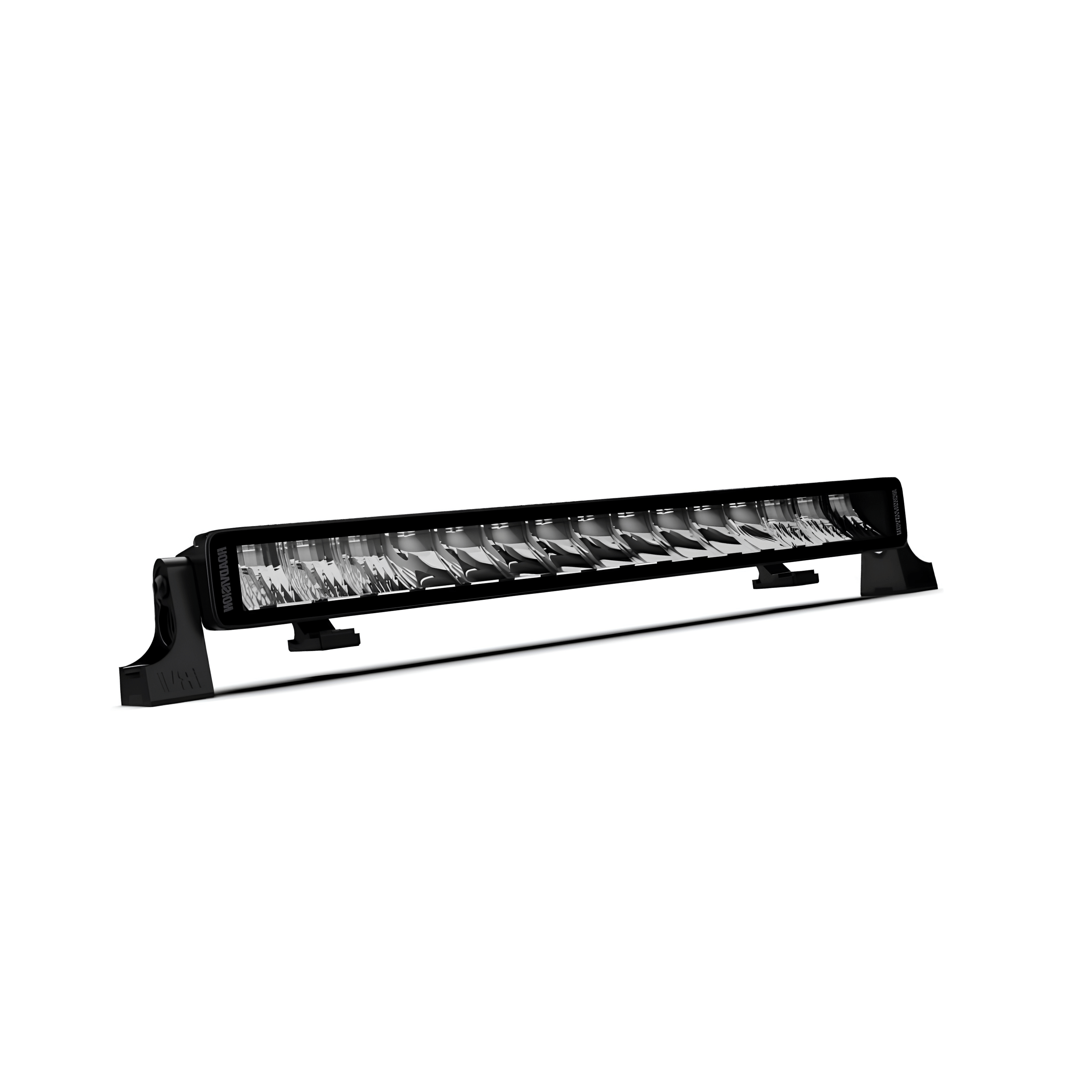

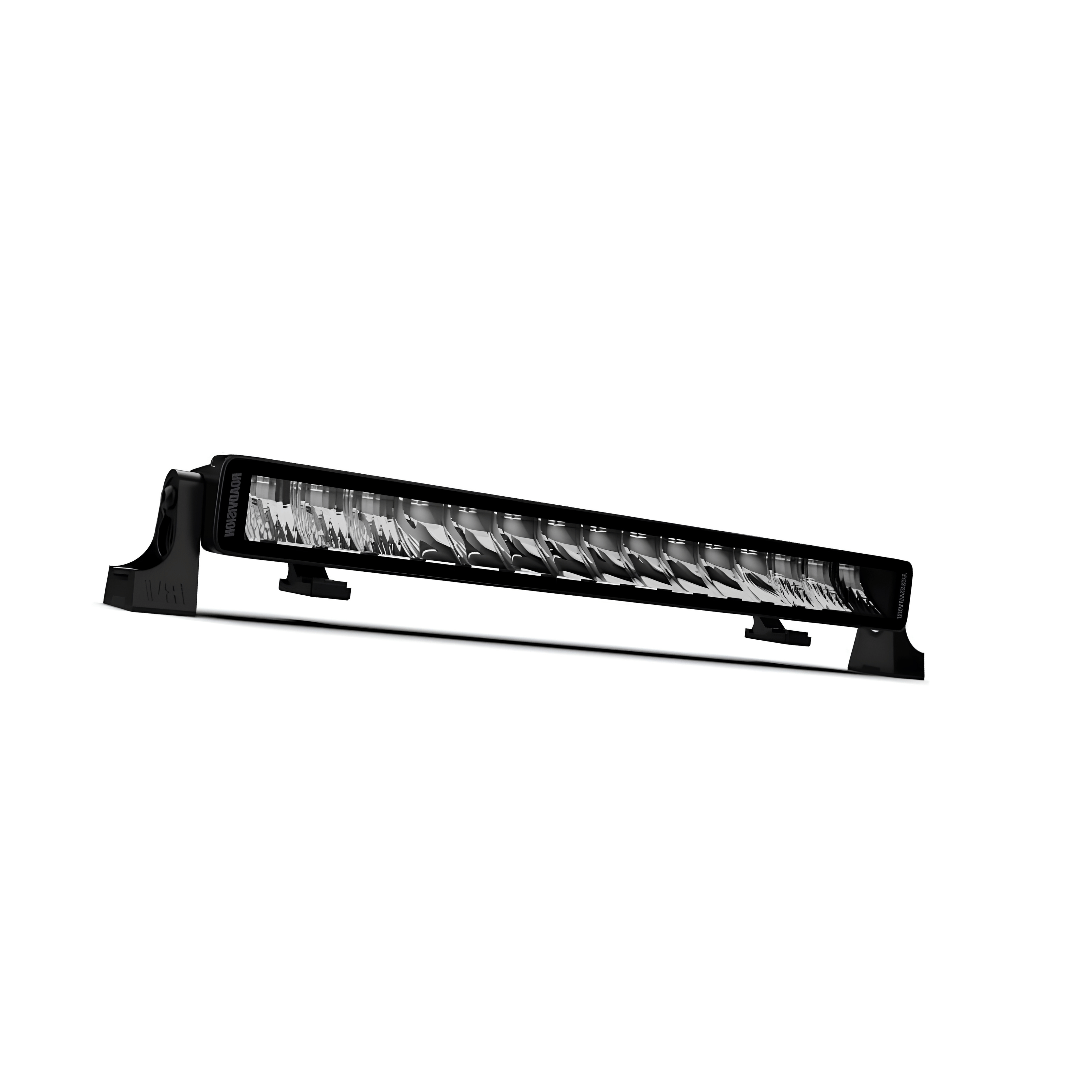

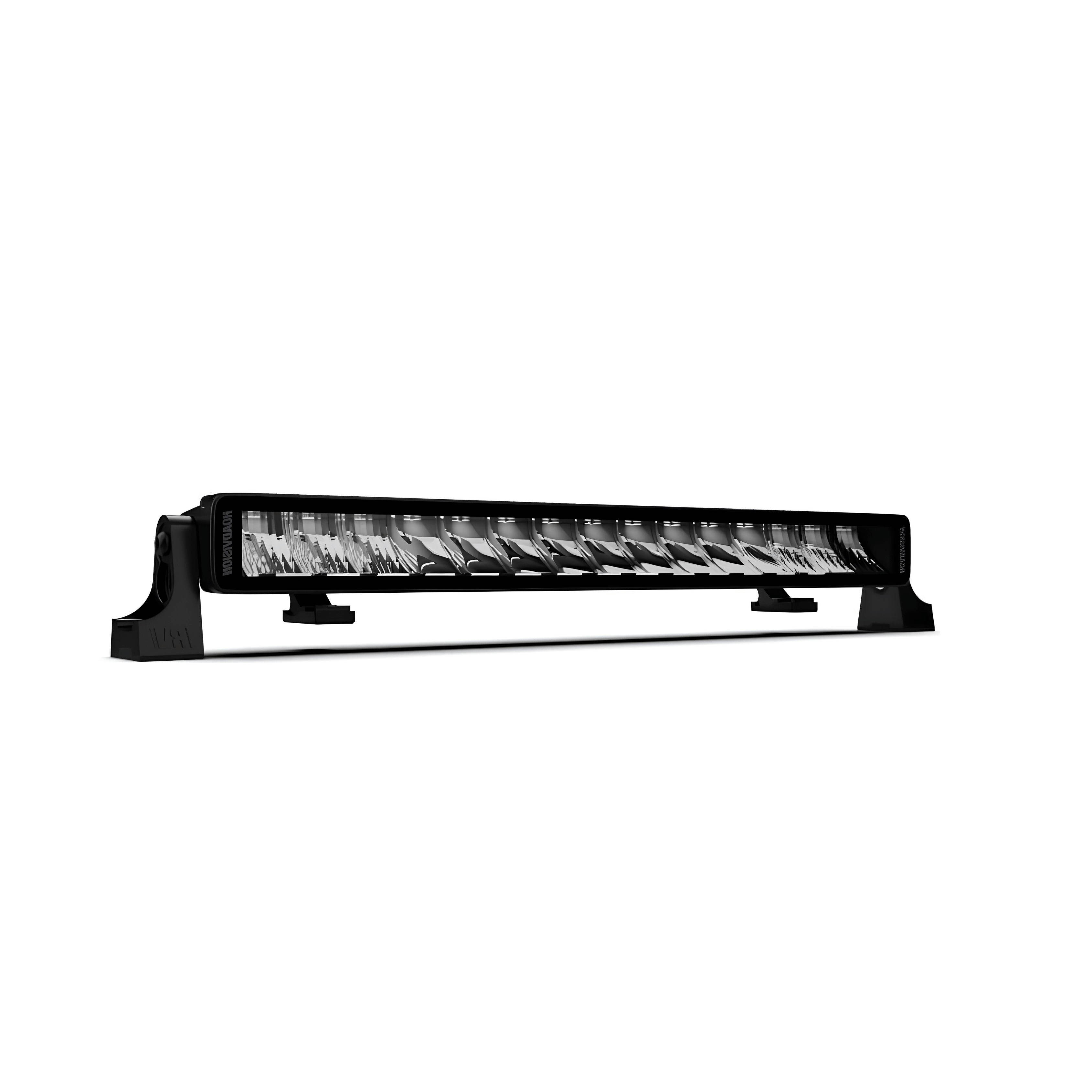

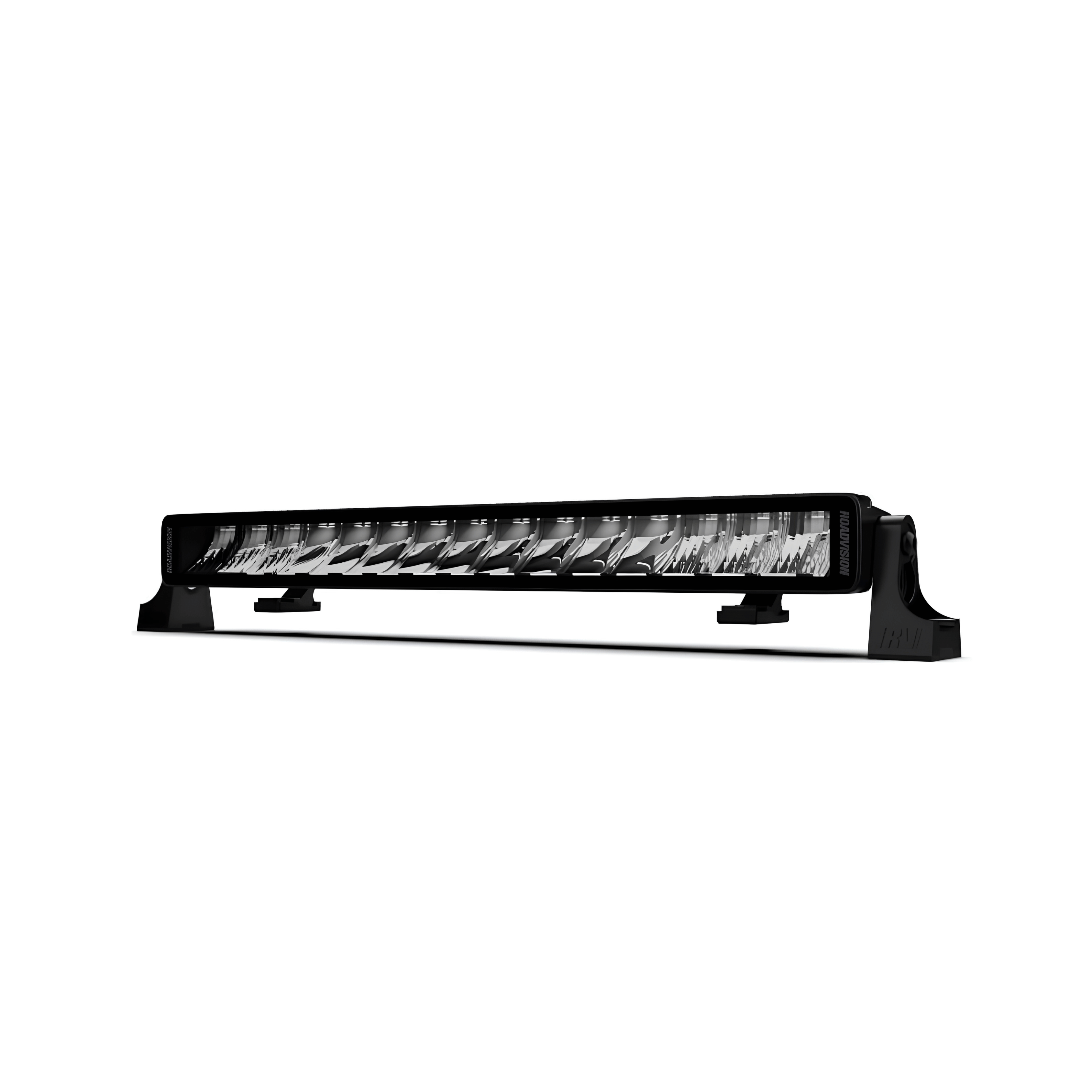

Roadvision RBL5221SC Stealth S52 Series 21" LED Light Bar 127W Projector Combo Beam
A 21" 127W projector combo beam LED light bar from the Roadvision Stealth S52 Series, the RBL5221SC delivers 9560 lumens with a beam distance of 1088 metres at 0.5 lux and 544 metres at 1 lux, powered by 15 x 10W Osram LEDs, featuring a smoked lens, blackout mounting hardware, Thermal Management Technology, IP68 and IP69K protection, and a 7-year warranty.
Product Overview
The Roadvision RBL5221SC is a 21" single row LED light bar from the Stealth S52 Series. Fifteen 10W Osram LEDs produce 127W in a projector combo beam combining 9 driving and 6 spot projectors, delivering 9560 lumens with 2964 lux at 10 metres, 544 metres at 1 lux, and 1088 metres at 0.5 lux. The smoked lens and blackout mounting hardware maintain the stealth aesthetic. Roadvision's Thermal Management Technology, IP68 and IP69K dual protection, multi-volt 10-30V DC at 6.2-10.6A at 13.8V, over/under voltage and reverse polarity protection, EMI/EMC radio interference approval, 2-pin ATP plug, 50,000 hour LED lifespan, and 7-year warranty.
Features & Benefits
9560 Lumens - 1088 Metres at 0.5 Lux: Delivers 9560lm with 2964 lux at 10 metres, 544m at 1 lux, and 1088m at 0.5 lux for strong mid-range output suited to bull bar and roof rack applications.
Projector Combo Beam - 9 Driving and 6 Spot Projectors: Combines 9 driving and 6 spot projectors for both lateral coverage and extended long-range penetration.
15 x 10W Osram LEDs - 127W Super White Output: Fifteen 10W Osram LEDs produce super-white daylight-close output.
Smoked Lens and Blackout Mounting Hardware: Low-profile stealth appearance on the vehicle.
Roadvision Thermal Management Technology: Consistent output and long-term reliability across all operating environments.
IP68 and IP69K Dual Protection: Full protection against sustained immersion and high-pressure wash-down.
Die-Cast Aluminium Housing with Polycarbonate Lens: Lightweight, tough construction for demanding applications.
50,000 Hour LED Lifespan: Long-term maintenance-free reliability.
Multi-Volt 10-30V DC with Electronic Protection: Compatible with 12V and 24V systems with full protection.
2-Pin ATP Plug: Secure, weatherproof, vibration-resistant connection.
EMI/EMC Radio Interference Approved: Compatible with vehicle electronic systems.
7-Year Warranty: Backed by a 7-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RBL5221SC |
| Brand |
Roadvision |
| Series |
Stealth S52 |
| Description |
S52 Series 21" LED Light Bar |
| Beam Type |
Projector Combo (9 Driving / 6 Spot) |
| Maximum Lumens |
9560lm |
| Maximum Lux at 10m |
2964lx |
| Beam Distance at 1 Lux |
544m |
| Beam Distance at 0.5 Lux |
1088m |
| Maximum Watts |
127W |
| LED Quantity |
15 x 10W Osram |
| Current Draw |
6.2-10.6A at 13.8V |
| Input Voltage |
10-30V DC |
| Bar Length |
21" (524mm) |

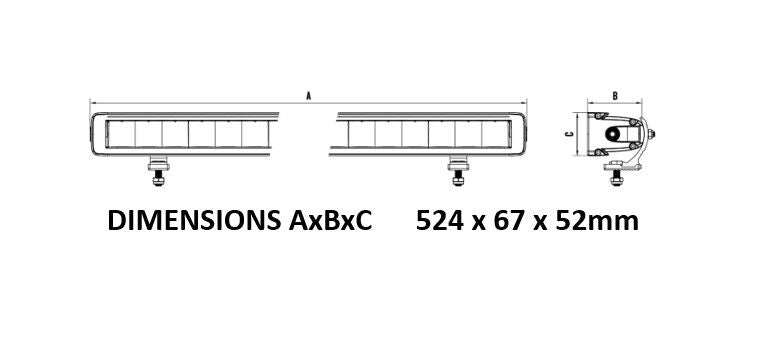

| Dimensions |
524mm x 67mm x 52mm |
| Wiring |
2-Pin ATP Plug |
| IP Rating |
IP68 and IP69K |
| LED Lifespan |
50,000 Hours |
| Protection |
Over/Under Voltage, Reverse Polarity |
| EMI/EMC |
Radio Interference Approved |
| Warranty |
7 Years |
Compatible With
The RBL5221SC is compatible with 10-30V DC vehicle electrical systems. The 2-pin ATP plug provides a secure weatherproof connection. Suited to bull bar, nudge bar, and roof rack mounting on trucks, 4WDs, SUVs, and agricultural and industrial vehicles. The S52 Series is available in 13" (RBL5213SC), 30" (RBL5230SC), 40" (RBL5240SC), and 50" (RBL5250SC) lengths.
Frequently Asked Questions
Is the RBL5221SC compatible with 24V vehicles?
Yes. The RBL5221SC operates across 10-30V DC, compatible with both 12V and 24V vehicle electrical systems.
What connector does the RBL5221SC use?
The RBL5221SC uses a 2-pin ATP plug for a secure, weatherproof, and vibration-resistant wiring connection.
What is the IP rating of the RBL5221SC?
IP68 and IP69K, confirming full protection against dust, sustained immersion, and high-pressure, high-temperature water jet exposure.
How does the 21" compare to other S52 Series lengths?
The RBL5221SC delivers 9560lm at 127W. For lower output see the RBL5213SC (13"). For higher output see the RBL5230SC (30"), RBL5240SC (40"), or RBL5250SC (50").
What mounting options suit the RBL5221SC?
The RBL5221SC is suited to bull bar, nudge bar, and roof rack mounting on trucks, 4WDs, SUVs, and agricultural and industrial vehicles using the included end mount system and slide mounts.
