Description

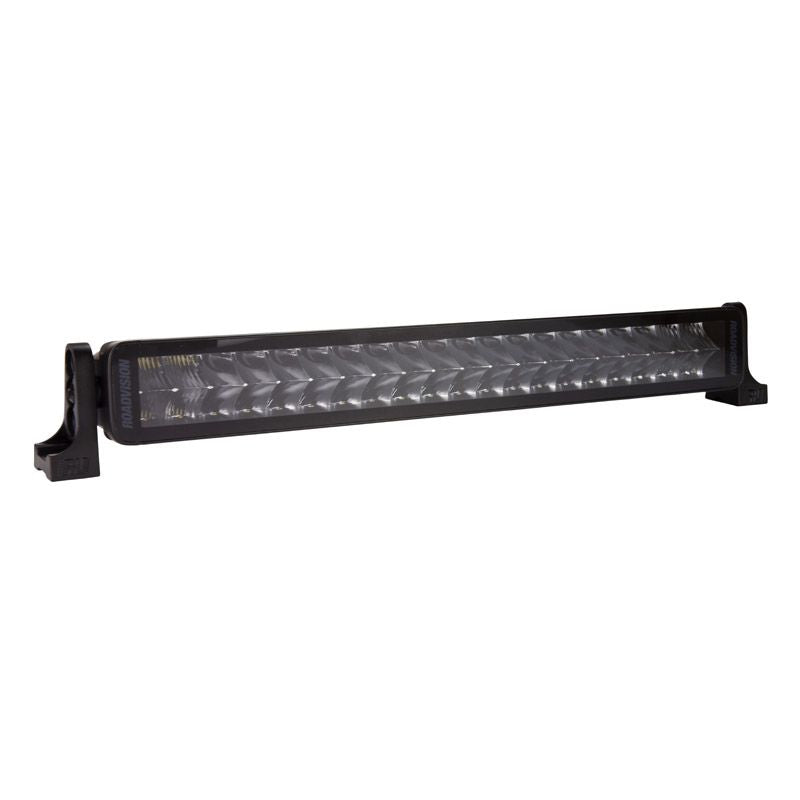

Roadvision RBL7021SC Stealth S70 Series 21" LED Light Bar 176W Projector Combo Beam
A 21" 176W projector combo beam LED light bar from the Roadvision Stealth S70 Series, the RBL7021SC delivers 11000 lumens with a beam distance of 1608 metres at 0.5 lux and 804 metres at 1 lux, powered by 40 x 3W Osram LEDs, featuring a smoked lens, blackout mounting hardware, Thermal Management Technology, IP68 and IP69K protection, and a 7-year warranty.
Product Overview
The Roadvision RBL7021SC is a 21" single row LED light bar from the Stealth S70 Series. Forty 3W Osram LEDs produce 176W in a projector combo beam combining 8 driving and 32 spot projectors, delivering 11000 lumens with 6461 lux at 10 metres, 804 metres at 1 lux, and 1608 metres at 0.5 lux. Smoked lens and blackout mounting hardware. Roadvision's Thermal Management Technology, IP68 and IP69K dual protection, multi-volt 10-30V DC at 7.7-16.8A at 13.8V, over/under voltage and reverse polarity protection, EMI/EMC radio interference approval, 2-pin ATP plug, 50,000 hour LED lifespan, and 7-year warranty.
Features & Benefits
11000 Lumens - 1608 Metres at 0.5 Lux: Delivers 11000lm with 6461 lux at 10 metres, 804m at 1 lux, and 1608m at 0.5 lux for outstanding intensity and long-range beam penetration from a 21" bar.
Projector Combo Beam - 8 Driving and 32 Spot Projectors: Combines 8 driving and 32 spot projectors for high-intensity output and exceptional long-range penetration.
40 x 3W Osram LEDs - 176W Super White Output: Forty 3W Osram LEDs for strong output performance.
Smoked Lens and Blackout Mounting Hardware: Low-profile stealth appearance.
Roadvision Thermal Management Technology: Consistent output and reliability.
IP68 and IP69K Dual Protection: Full ingress protection.
Die-Cast Aluminium Housing with Polycarbonate Lens: Tough, lightweight construction.
50,000 Hour LED Lifespan: Maintenance-free reliability.
Multi-Volt 10-30V DC with Electronic Protection: 12V and 24V compatible.
2-Pin ATP Plug: Secure, weatherproof connection.
7-Year Warranty: Backed by a 7-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RBL7021SC |
| Brand |
Roadvision |
| Series |
Stealth S70 |
| Description |
S70 Series 21" LED Light Bar |
| Beam Type |
Projector Combo (8 Driving / 32 Spot) |
| Maximum Lumens |
11000lm |
| Maximum Lux at 10m |
6461lx |
| Beam Distance at 1 Lux |
804m |
| Beam Distance at 0.5 Lux |
1608m |
| Maximum Watts |
176W |
| LED Quantity |
40 x 3W Osram |
| Current Draw |
7.7-16.8A at 13.8V |
| Input Voltage |
10-30V DC |
| Bar Length |
21" (561mm) |

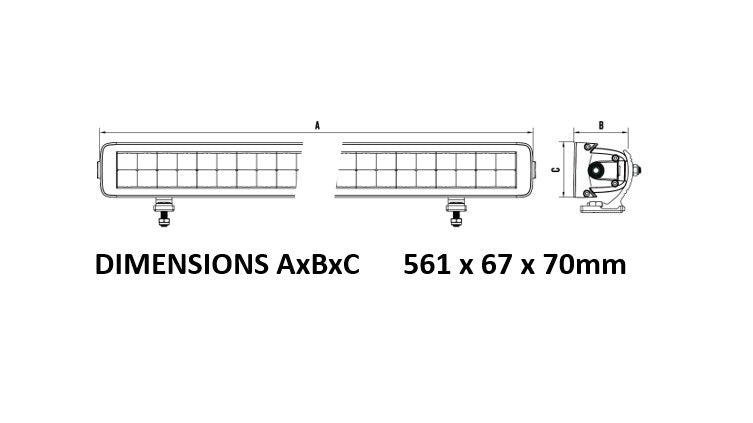

| Dimensions |
561mm x 67mm x 70mm |
| Wiring |
2-Pin ATP Plug |
| IP Rating |
IP68 and IP69K |
| LED Lifespan |
50,000 Hours |
| Protection |
Over/Under Voltage, Reverse Polarity |
| EMI/EMC |
Radio Interference Approved |
| Warranty |
7 Years |
Compatible With
The RBL7021SC is compatible with 10-30V DC vehicle electrical systems. Suited to bull bar and roof rack mounting. The S70 Series is available in 7" (RBL7007SC), 13" (RBL7013SC), 30" (RBL7030SC), 40" (RBL7040SC), and 52" (RBL7052SC) lengths.
Frequently Asked Questions
Is the RBL7021SC compatible with 24V vehicles?
Yes. The RBL7021SC operates across 10-30V DC.
What connector does the RBL7021SC use?
2-pin ATP plug.
What is the IP rating of the RBL7021SC?
IP68 and IP69K.
How does the 21" S70 compare to the 21" S52?
The RBL7021SC (S70) uses 40 x 3W LEDs at 176W with 11000lm and 804m at 1 lux. The RBL5221SC (S52) uses 15 x 10W LEDs at 127W with 9560lm and 544m at 1 lux. The S70 delivers greater lumen output and beam reach.
How does the 21" compare to longer S70 Series bars?
The RBL7021SC delivers 11000lm at 176W. For higher output see RBL7030SC, RBL7040SC, and RBL7052SC.
