Description
Roadvision RBLW3220C SRE Essentials 22in LED Light Bar Combo Beam
A 22 inch single row LED bar light from the Roadvision Essentials SRE Series, the RBLW3220C produces up to 8400 lumens from 20 x 5W Osram LEDs through a combination beam reaching 523 metres at 1 lux, with Thermal Management Technology, 11-32V DC multi-volt input, IP68 rating, die-cast aluminium housing, polycarbonate lens, and a 3-year warranty.
Product Overview
The Roadvision RBLW3220C is the 22 inch model in the Essentials SRE Series, the ideal choice for those chasing value for money without compromising on quality. Twenty high performing 5W Osram LEDs produce up to 8400 lumens of instant super white light close to daylight, with the perfect combination of spot and driving optics producing a combination style beam pattern rated at 3738 lux at 10 metres, 523 metres at 1 lux, and a maximum beam distance of 740 metres at 0.5 lux.
Equipped with Thermal Management Technology and packaged in an IP68 rated lightweight, tough die-cast aluminium housing shielded behind a polycarbonate lens, the RBLW3220C is built to endure the toughest conditions. The 601 x 63 x 62mm bar mounts via low profile slide and end mounts, and the multi-volt 11-32V DC input draws 6.0 to 7.2 amps at 13.8V with a 50,000 hour LED lifespan from solid-state technology. Installation is a simple 2-wire connection via the 2-pin Deutsch plug, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.
Features & Benefits
22 Inch Combination Beam - Up to 8400 Lumens: The RBLW3220C produces up to 8400 lumens through a combination beam rated at 3738 lux at 10 metres and reaching 523 metres at 1 lux, balancing long distance punch with spread for the track ahead.
20 x 5W Osram LEDs: Twenty high performing 5W Osram LEDs produce super white light close to daylight, improving visibility and reducing eye strain during night driving.
Genuine Value Without Compromise: The Essentials SRE Series is Roadvision's entry level bar light range, delivering quality Osram componentry, Thermal Management Technology, and an IP68 rating at a value price point.
Thermal Management Technology: Built-in Thermal Management Technology protects the bar and maintains light performance in demanding operating conditions.
IP68 Water and Dust Proof: The IP68 rating provides protection against water and dust for reliable performance in the toughest conditions.
Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight, tough die-cast aluminium housing and polycarbonate lens stand up to corrugations, stone strikes, and harsh off-road use.
Multi-Volt 11-32V DC Input: The 11-32V DC multi-volt input makes the RBLW3220C compatible with both 12V and 24V vehicle electrical systems, drawing 6.0 to 7.2 amps at 13.8V.
50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the life of the vehicle.
Low Profile Slide and End Mounts: Low profile slide and end mounts provide flexible, secure fitment to bull bars, roof racks, and brackets while keeping the installation tidy.
Simple 2-Wire Installation with Deutsch Plug: The 2-pin Deutsch plug and simple 2-wire installation make for a quick, professional connection, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.
3-Year Warranty: The RBLW3220C is backed by a 3-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RBLW3220C |
| Brand |
Roadvision |
| Series |
Essentials SRE |
| Description |
SRE Series 22" Bar 20 LED |
| Beam Pattern |
Combination |
| Maximum Lumens |
8400lm |
| Maximum Lux at 10m |
3738lx |
| Maximum Beam Distance at 1 Lux |
523m |
| Maximum Beam Distance at 0.5 Lux |
740m |
| Maximum Watts |
100W |
| Light Source |
20 x 5W Osram LEDs |
| Input Voltage |
11-32V DC |
| Current Draw |
6.0-7.2A at 13.8V |
| Lens |
Polycarbonate |
| Housing |
Die-Cast Aluminium |
| IP Rating |
IP68 |
| Mounting |
Low Profile Slide and End Mounts |
| Wiring |
2 Pin Deutsch Plug |
| Dimensions |
601 x 63 x 62mm |
| LED Lifespan |
50,000 Hours |
| Warranty |
3 Years |
Compatible With
The RBLW3220C is compatible with 11-32V DC vehicle electrical systems, covering both 12V and 24V vehicles. The Essentials SRE Series is also available in 12 inch (RBLW3120C, 4200 lumens) and 32 inch (RBLW3320C, 12600 lumens) models. Roadvision's standard wiring harnesses and RBHDWK heavy duty bar light wiring kits are the recommended accessories. Confirm the 601mm bar length and mounting positions fit your bull bar, roof rack, or brackets before purchase.
Frequently Asked Questions
How far does the RBLW3220C project light?
The RBLW3220C reaches 523 metres at 1 lux and a maximum of 740 metres at 0.5 lux, producing up to 8400 lumens and 3738 lux at 10 metres through its combination beam.
What makes the SRE Series an entry level range?
The Essentials SRE Series is priced as Roadvision's value bar light range while keeping quality 5W Osram LEDs, Thermal Management Technology, an IP68 rated die-cast aluminium housing, and a polycarbonate lens.
Is the RBLW3220C compatible with 24V vehicles?
Yes. The RBLW3220C operates across 11-32V DC, making it compatible with both 12V and 24V vehicle electrical systems.
How does the RBLW3220C mount and connect?
The bar mounts via low profile slide and end mounts and connects with a simple 2-wire installation through the 2-pin Deutsch plug, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in. Roadvision's standard wiring harnesses are the recommended accessory.
What other sizes are available in the SRE Series?

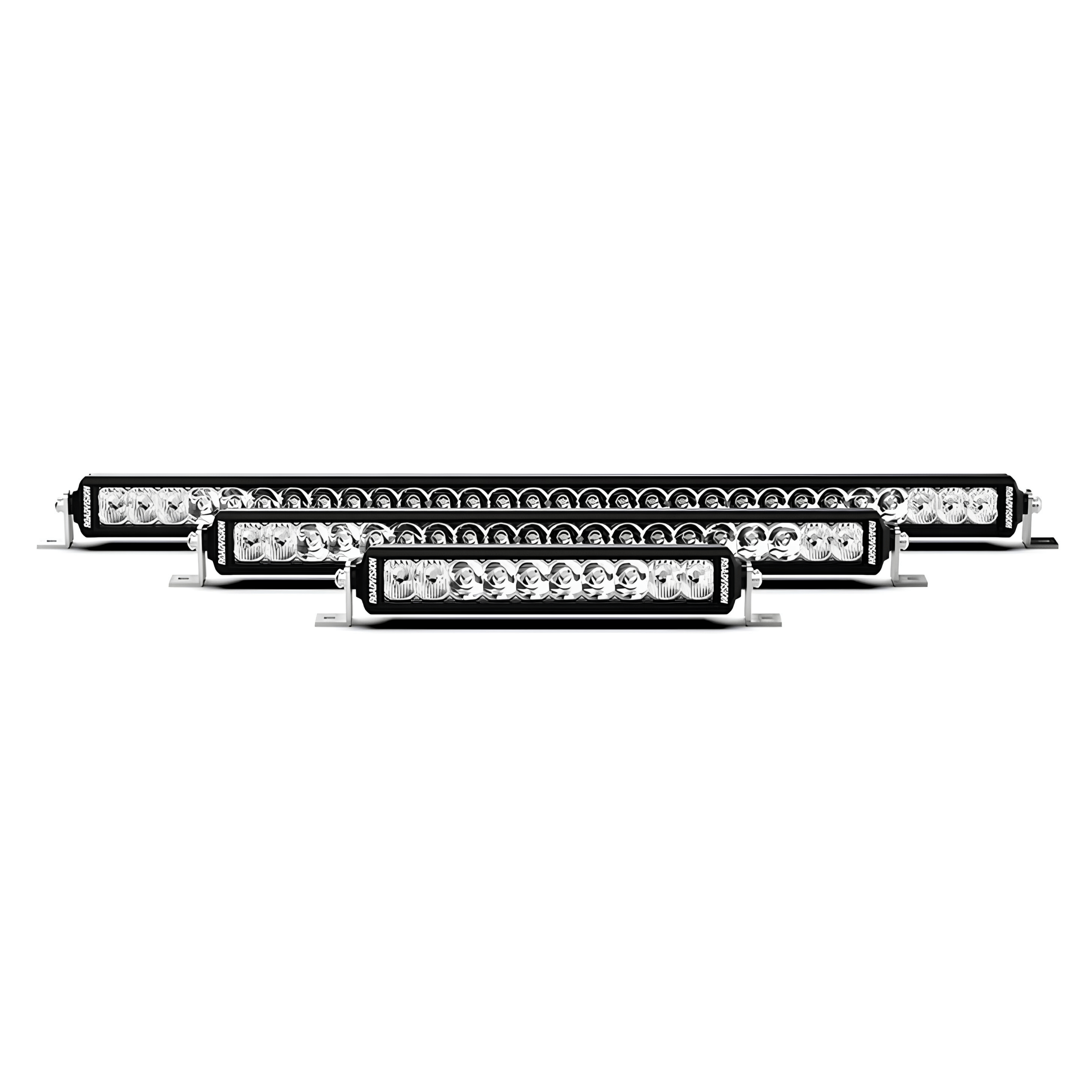

The SRE Series is available in 12 inch (RBLW3120C, 4200 lumens, 50W), this 22 inch (RBLW3220C, 8400 lumens, 100W), and 32 inch (RBLW3320C, 12600 lumens, 150W) models, all with the same combination beam and IP68 construction.
