Description

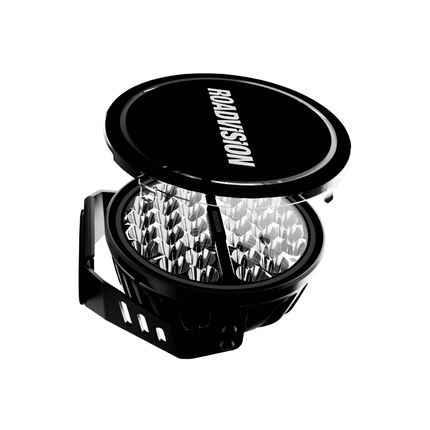

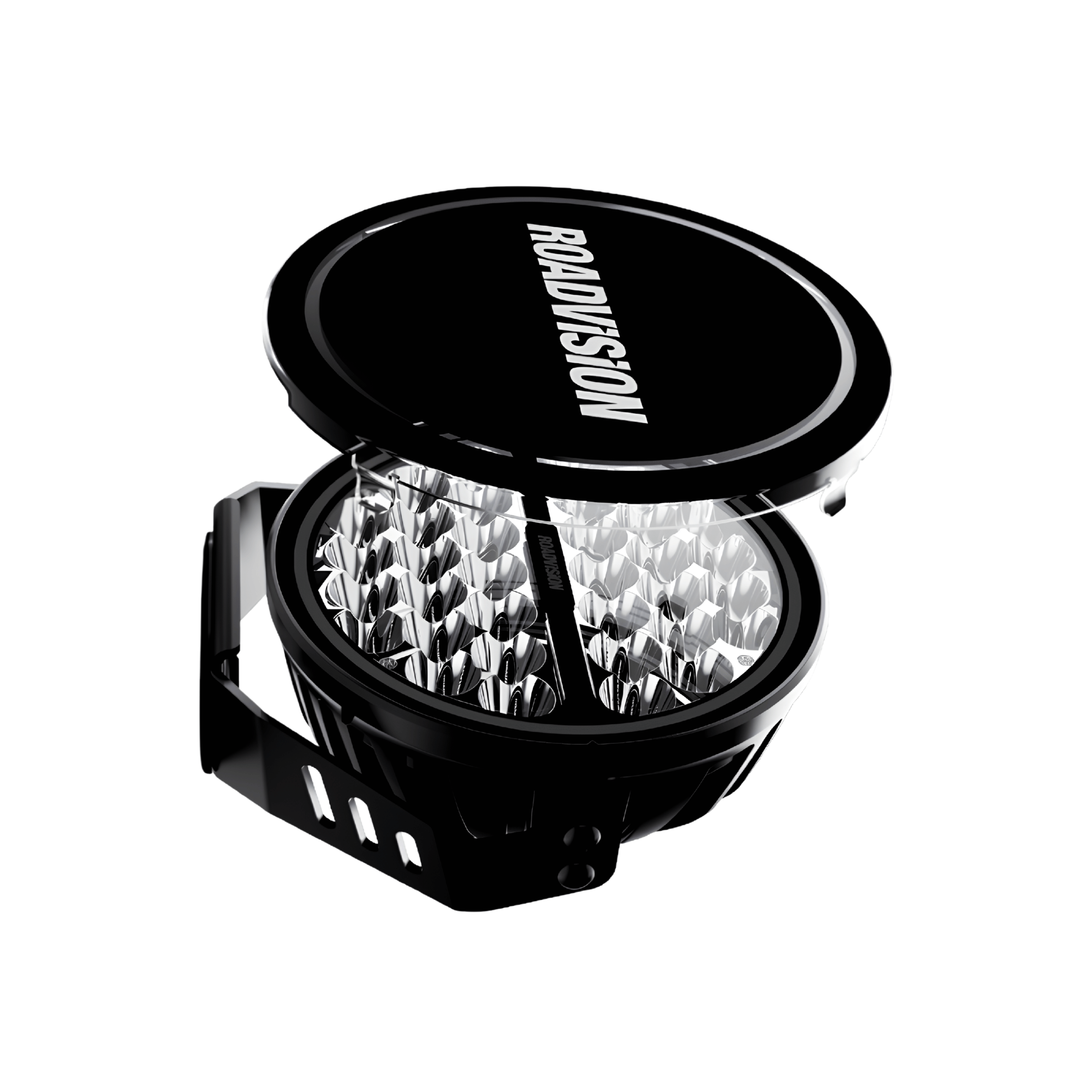

Roadvision RDL6901SD Stealth PRO 9" LED Driving Light 143W Spot Beam
A 9" 143W spot beam LED driving light from the Roadvision Stealth PRO Series, the RDL6901SD delivers 10,485 lumens per light (20,970lm per pair) with a beam distance of 912 metres at 1 lux per light (1,289m per pair), powered by 34 x 3W Osram LEDs in a die-cast aluminium housing with polycarbonate lens, featuring dynamic start-up DRL, IP68 and IP69K protection, and a 7-year warranty.
Product Overview

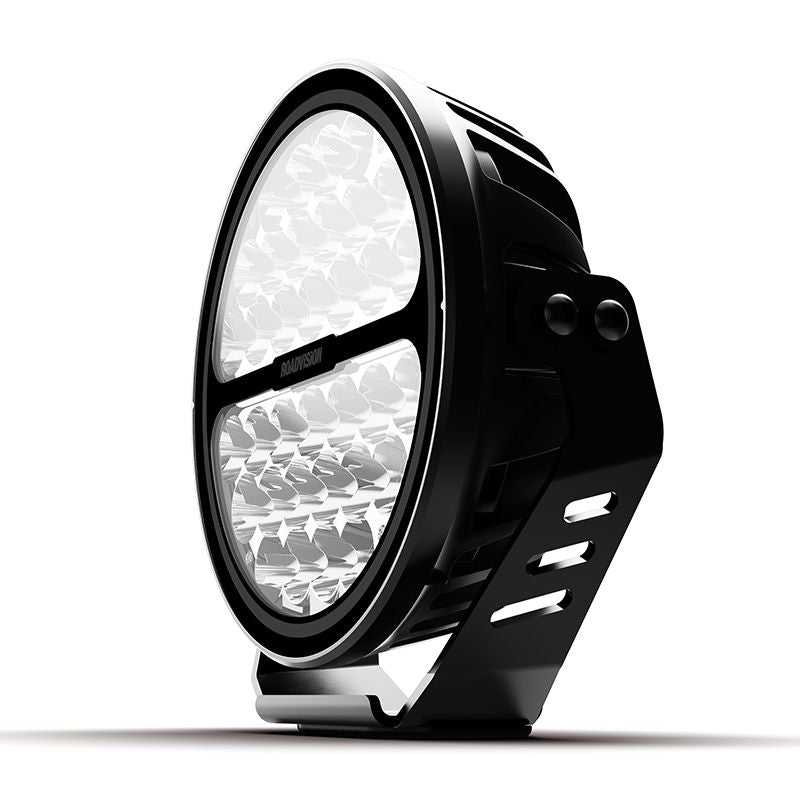

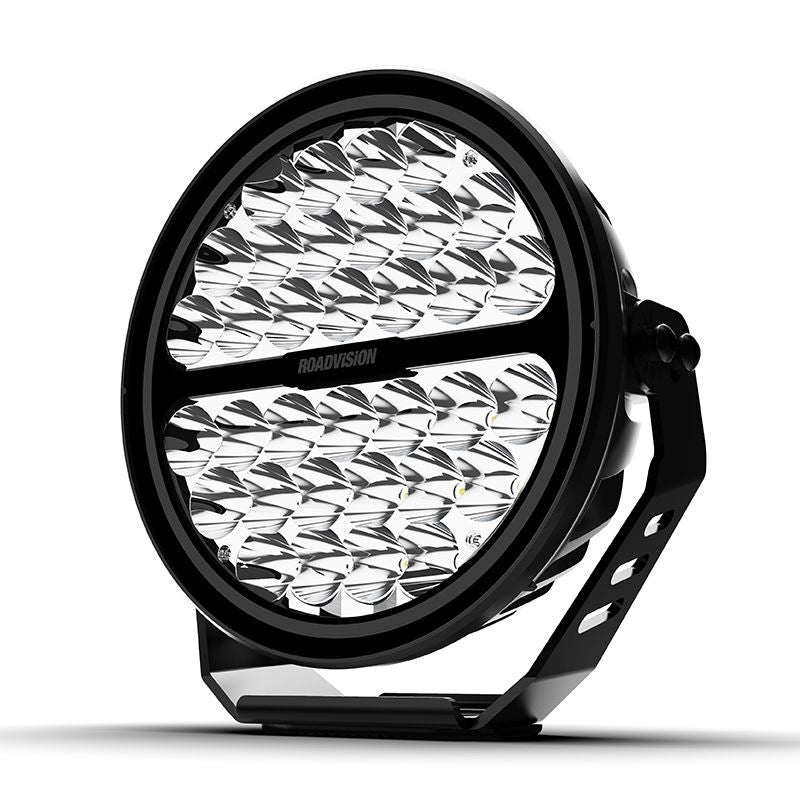

The Roadvision RDL6901SD is a 9" round spot beam driving light from the Stealth PRO Series, featuring the same contemporary bezel-less design as the RDL6701SD with a black cover and dedicated DRL window housing a dynamic start-up Daytime Running Light. The DRL seamlessly darkens when not illuminated for a clean, understated appearance when the driving lights are off. Blackout mounting hardware maintains the stealth aesthetic.
Thirty-four 3W Osram LEDs produce 143W of super-white light close to daylight with a 50,000 hour LED lifespan via solid-state technology. The RDL6901SD is the larger and more powerful sibling to the RDL6701SD, delivering an impressive 10,485lm per light and up to 912 metres of beam penetration at 1 lux per light, making it one of the most capable driving lights in the Stealth PRO range. Roadvision's Thermal Management Technology ensures superior performance and durability across all operating environments. IP68 and IP69K protection, multi-volt 10-30V DC input with over/under voltage and reverse polarity protection, simple 2-wire installation via 2-pin Deutsch plug, and EMI/EMC radio interference approval.
Features & Benefits
10,485 Lumens per Light - 912 Metre Beam at 1 Lux: The RDL6901SD delivers 10,485lm per light (20,970lm per pair) with a maximum beam distance of 912 metres at 1 lux per light (1,289m per pair), providing exceptional long-range illumination capability for remote area and high-speed night driving.
34 x 3W Osram LEDs - 143W Output: Thirty-four 3W Osram LEDs produce 143W of super-white output close to daylight colour temperature, delivering natural and accurate colour rendering across the full beam throw.

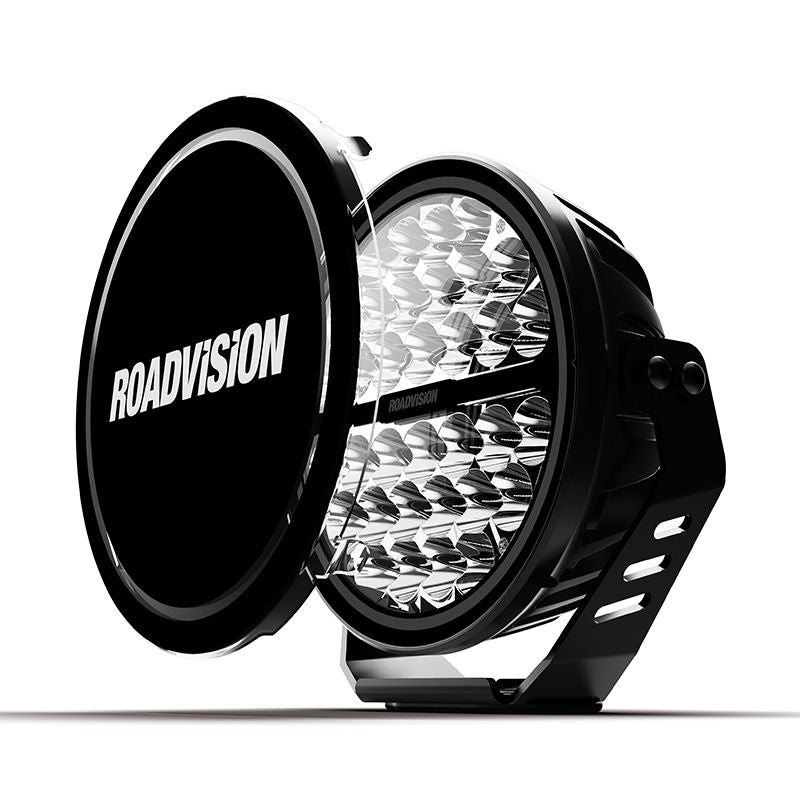

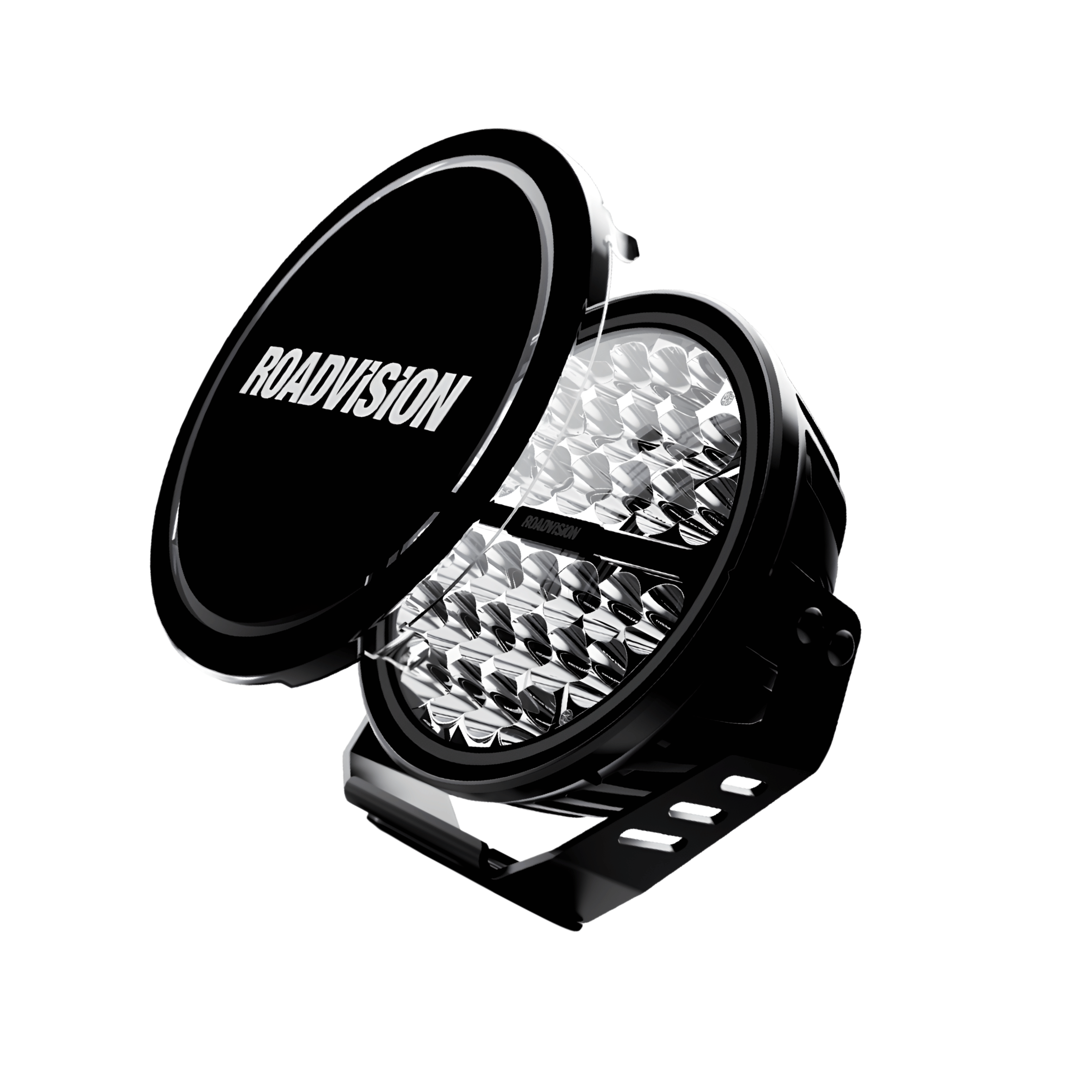

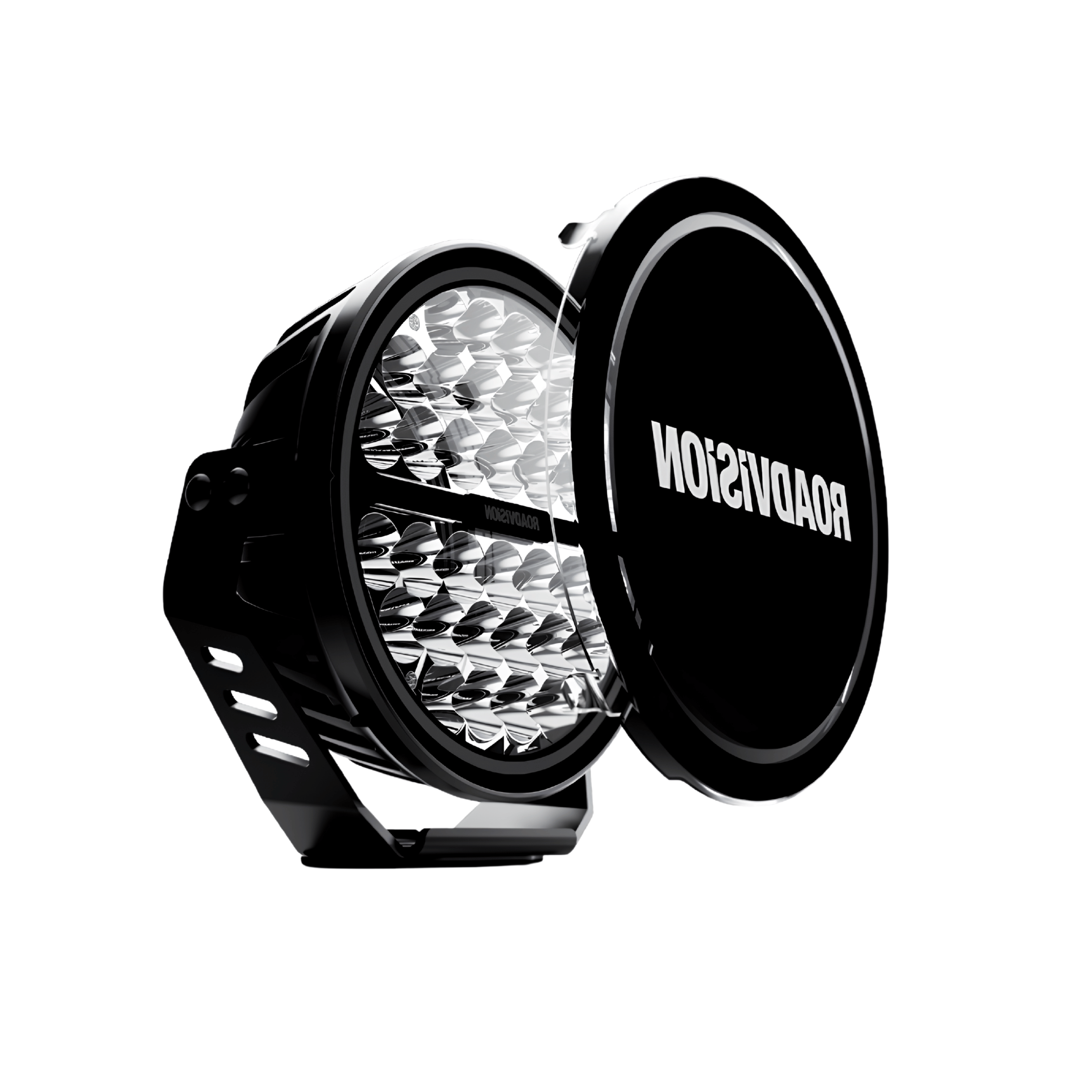

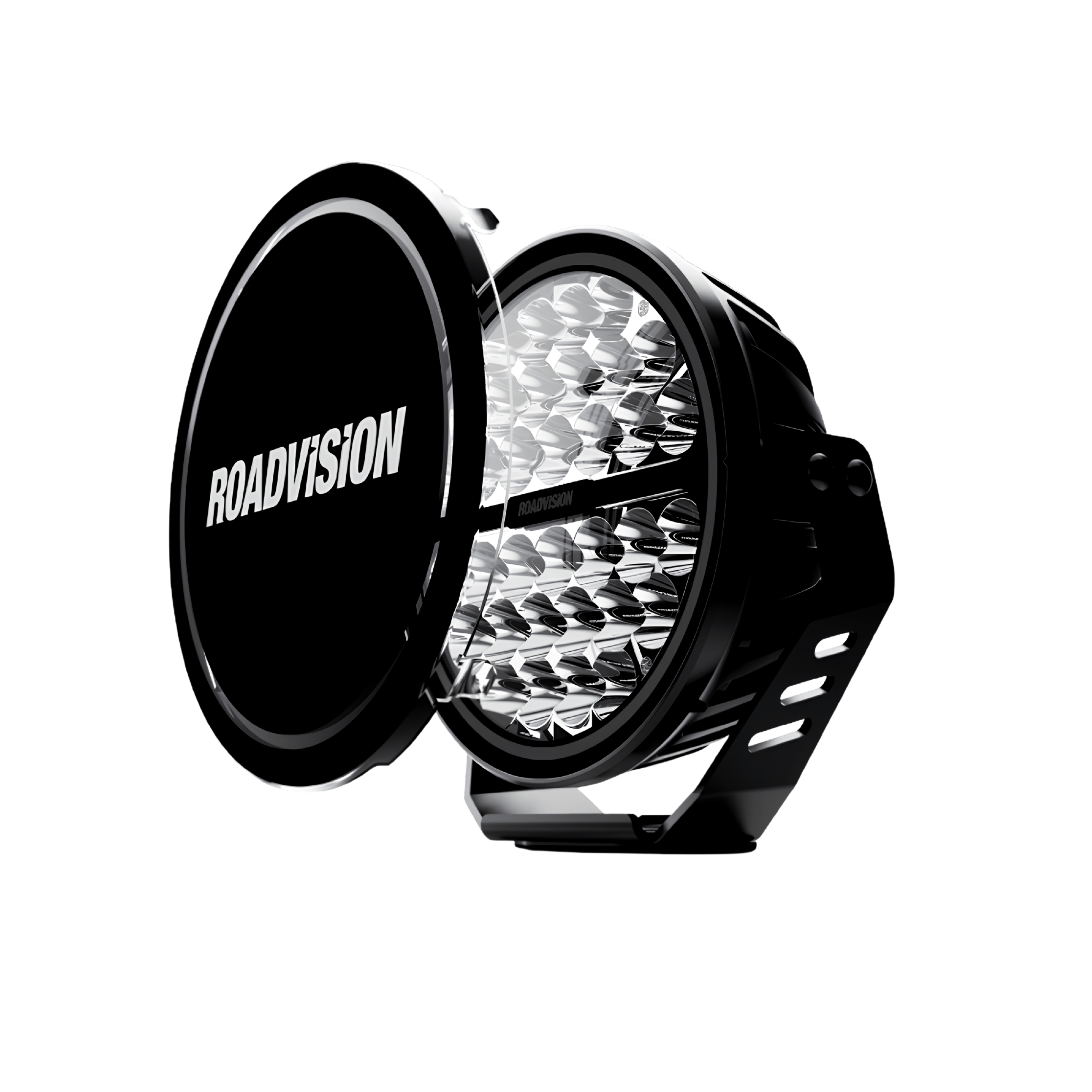

Dynamic Start-Up DRL with Black Cover and DRL Window: The Stealth PRO Series dynamic start-up DRL provides an animated activation sequence via the dedicated DRL window in the black cover, with the DRL seamlessly darkening when not in use to maintain the bezel-less stealth appearance.
Blackout Mounting Hardware: All mounting hardware is finished in black for a professional, factory-consistent appearance on the vehicle.
Roadvision Thermal Management Technology: The integrated Thermal Management Technology manages heat dissipation from the 34-LED array and driver electronics at 143W sustained output, ensuring consistent performance and long-term reliability.
IP68 and IP69K Protection: Both IP68 and IP69K protection ratings confirm full resistance to sustained submersion and high-pressure, high-temperature water jet exposure for off-road, agricultural, and marine vehicle applications.
Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight die-cast aluminium housing provides structural rigidity and efficient heat transfer at the elevated 143W output, while the polycarbonate lens resists impact and UV degradation.
50,000 Hour LED Lifespan with Solid-State Technology: The 50,000 hour rated LED lifespan provides long-term maintenance-free reliability.
Multi-Volt 10-30V DC with Over/Under Voltage and Reverse Polarity Protection: Compatible with 12V and 24V vehicle electrical systems with full electronic protection for the LED driver against voltage anomalies and wiring errors.
Simple 2-Wire Installation via 2-Pin Deutsch Plug: The 2-pin Deutsch plug provides a secure, weatherproof connection with red (positive) and black (negative) wires for the driving light circuit. DRL halo connects via the separate green wire positive.
EMI/EMC Radio Interference Approved: Confirmed compatible with vehicle communication, navigation, and electronic systems without interference.
7-Year Warranty: The RDL6901SD is backed by a 7-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RDL6901SD |
| Brand |
Roadvision |
| Series |
Stealth PRO |
| Description |
9" LED Driving Light 10-30V Round 143W Spot Beam |
| Beam Pattern |
Spot |
| Maximum Lumens per Light |
10,485lm |
| Maximum Lumens per Pair |
20,970lm |
| Maximum Lux at 10m per Light |
8,311lx |
| Maximum Lux at 10m per Pair |
16,622lx |
| Maximum Beam Distance at 1lx per Light |
912m |
| Maximum Beam Distance at 1lx per Pair |
1,289m |
| Input Voltage |
10-30V DC |
| Maximum Watts |
143W |
| LED Quantity |
34 x 3W Osram |
| Current Draw |
10.34A at 13.8V |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Die-Cast Aluminium |
| Wiring - Driving Light |
2-Pin Deutsch Plug (Red +Ve, Black -Ve) |
| Wiring - DRL Halo |
Green Wire +Ve |

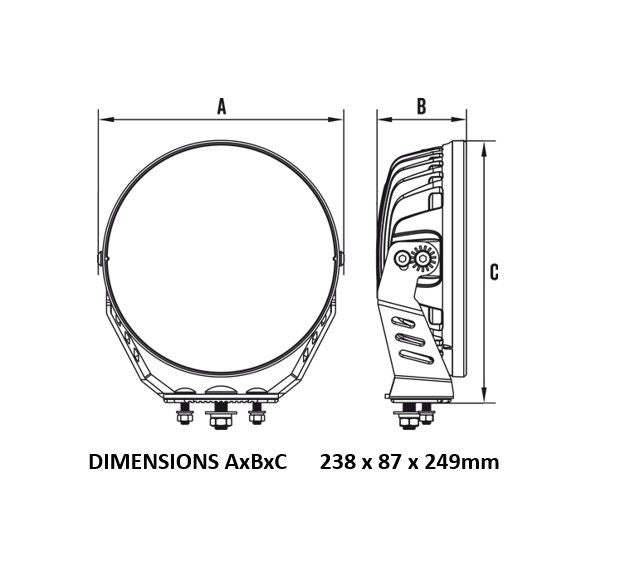

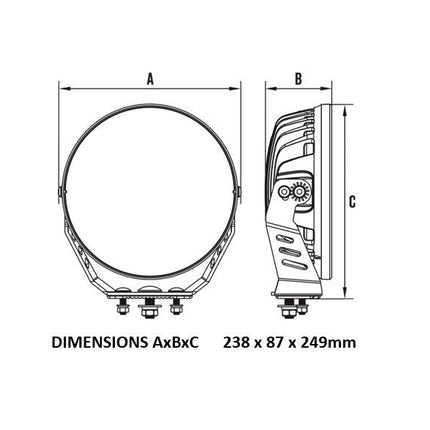

| Dimensions |
238mm x 87mm x 249mm |
| IP Rating |
IP68 and IP69K |
| LED Lifespan |
50,000 Hours |
| Protection |
Over/Under Voltage, Reverse Polarity |
| EMI/EMC |
Radio Interference Approved |
| Warranty |
7 Years |
Compatible With
The RDL6901SD is compatible with 10-30V DC vehicle electrical systems including 12V and 24V platforms. The 2-pin Deutsch plug provides a secure weatherproof connection for the driving light circuit. The DRL halo connects separately via the green wire positive. Confirm mounting clearance and wiring loom compatibility for your specific vehicle before purchase. Sold individually; pair pricing refers to two units.
Frequently Asked Questions
Are the RDL6901SD driving lights sold individually or as a pair?
The RDL6901SD is sold individually. Lumen, lux, and beam distance figures in brackets refer to a pair of two lights. Confirm the quantity required for your installation before purchase.
What is the difference between the RDL6901SD and the RDL6701SD?
Both are from the Stealth PRO Series and share the same design, DRL, mounting hardware, IP ratings, protection features, and warranty. The RDL6901SD is a 9" unit producing 143W from 34 x 3W Osram LEDs with 10,485lm per light and 912m beam distance at 1 lux. The RDL6701SD is a 7" unit producing 68W from 16 x 3W Osram LEDs with 5,130lm per light and 631m beam distance at 1 lux. Choose the RDL6901SD for maximum output and beam throw in demanding remote area and high-speed driving applications.
Is the RDL6901SD compatible with 24V vehicles?
Yes. The RDL6901SD operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
What does IP68 and IP69K mean for the RDL6901SD?
IP68 confirms protection against sustained water submersion beyond 1 metre depth. IP69K confirms protection against high-pressure, high-temperature water jet exposure from all angles. Together these provide the highest available ingress protection rating for off-road, agricultural, and marine vehicle applications including vehicle wash-down.
What wiring connection does the RDL6901SD use?
The driving light circuit uses a 2-pin Deutsch plug with red (positive) and black (negative) wires. The DRL halo connects separately via a green positive wire.
