Roadvision RDL8800C Stealth S8 8" LED Driving Light 132W Combination Beam
An 8" 132W combination beam LED driving light from the Roadvision Stealth S8 Series, the RDL8800C delivers 7,937 lumens per light (15,874lm per pair) with a beam distance of 1,086 metres at 0.5 lux per light (1,536m per pair), powered by 24 x 6W Cree LEDs, featuring amber or white HALO DRL, Thermal Management Technology, IP68 and IP69K protection, and a 7-year warranty.
Product Overview

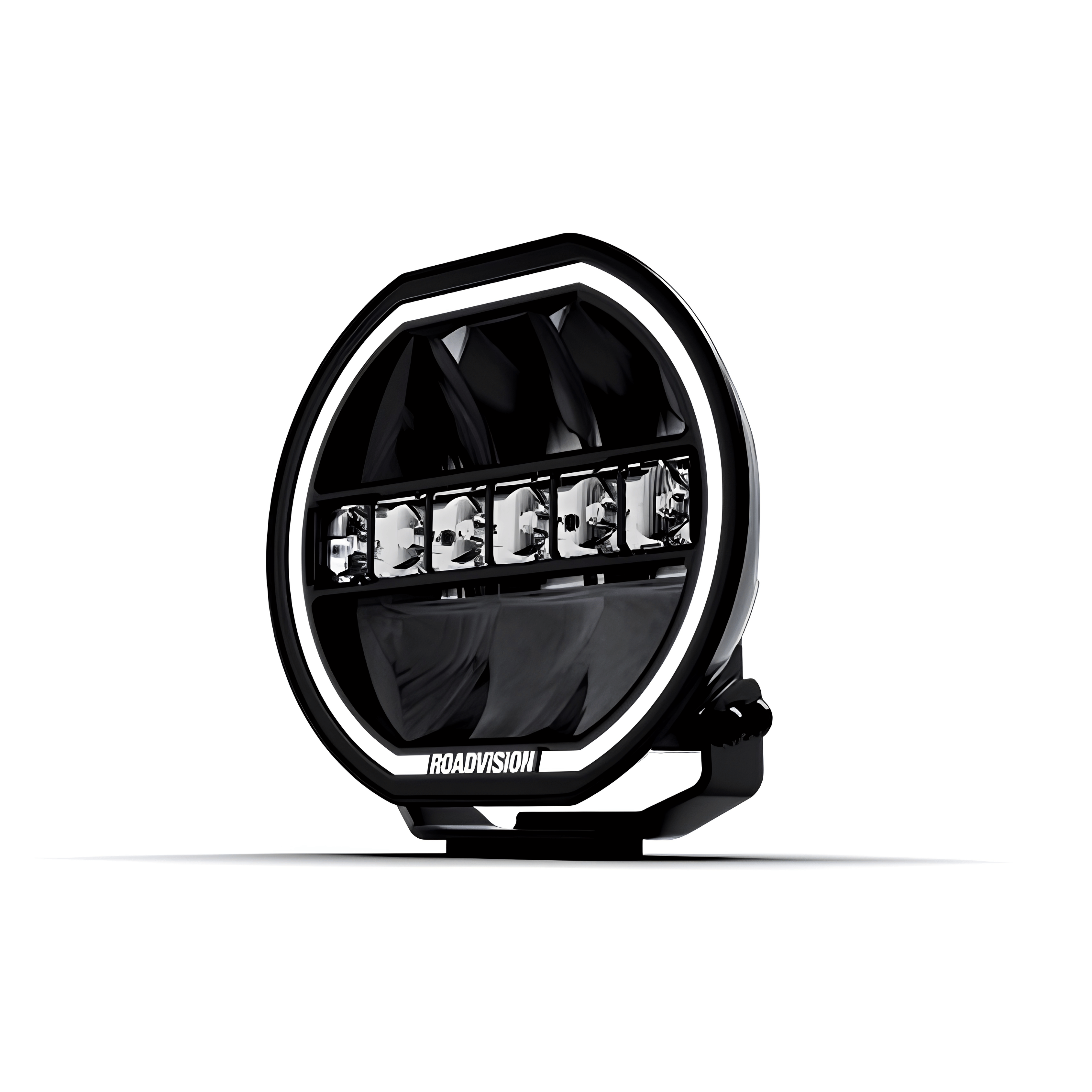

The Roadvision RDL8800C is an 8" combination beam driving light from the Stealth S8 Series, designed for larger 4WDs and trucks. The contemporary bezel-less design with black mounting hardware and innovative dual-colour HALO DRL provides both a modern aesthetic and functional daytime running light capability switchable between amber and white. Twenty-four 6W Cree LEDs produce 132W at a super-white daylight-close colour temperature, delivering 7,937lm per light with 5,900 lux at 10 metres per light and a beam reach of 1,086 metres at 0.5 lux per light (1,536m per pair) and 768 metres at 1 lux per light (1,086m per pair).
Roadvision's Thermal Management Technology manages heat dissipation across the 132W LED array for consistent output and long-term reliability. IP68 and IP69K dual protection ratings confirm suitability for sustained immersion and high-pressure wash-down applications. Multi-volt 10-30V DC input with over/under voltage and reverse polarity protection. CISPR25 approved. The 2-pin Deutsch plug provides driving light power connection (red positive, black negative), with separate DRL halo connections via blue (amber position light positive) and white (white position light positive) wires. A black protective cover with DRL halo window is included. Backed by a 7-year warranty.
Features & Benefits
7,937 Lumens per Light - 1,086 Metre Beam at 0.5 Lux: The RDL8800C delivers 7,937lm per light (15,874lm per pair) with a beam distance of 1,086 metres at 0.5 lux per light (1,536m per pair) and 768 metres at 1 lux per light (1,086m per pair), providing exceptional long-range illumination for larger 4WDs and trucks on remote and high-speed routes.
24 x 6W Cree LEDs - 132W Super White Output: Twenty-four 6W Cree LEDs produce 132W of super-white output close to daylight colour temperature for natural colour rendering and clear road surface visibility.
Combination Beam Pattern: The combination beam delivers both long-range spot-style throw and broader flood-style lateral coverage from a single light unit for comprehensive road and verge illumination.

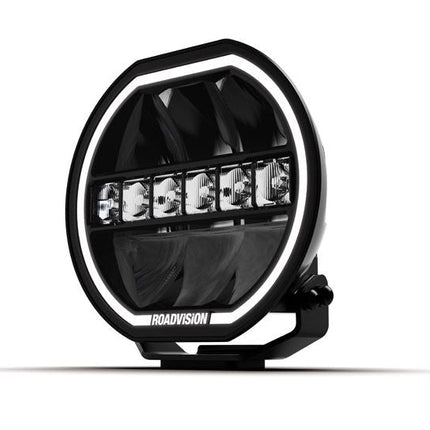

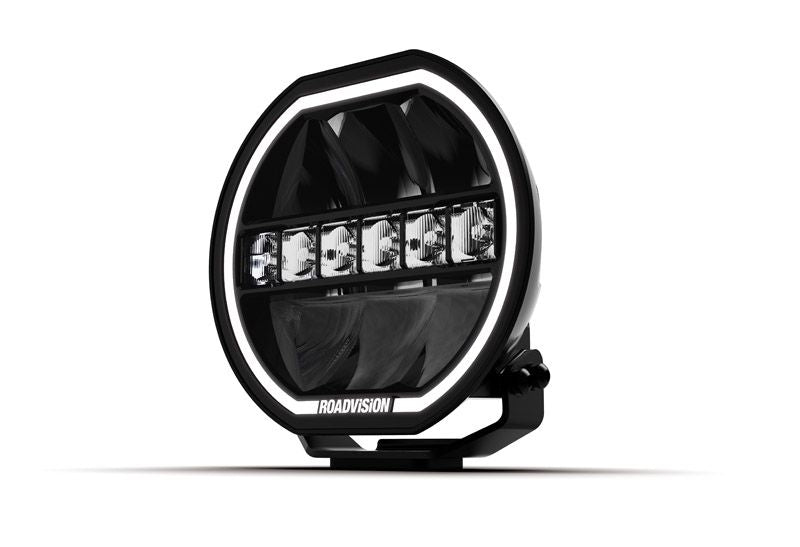

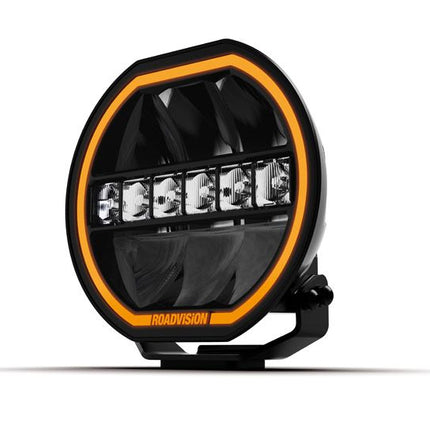

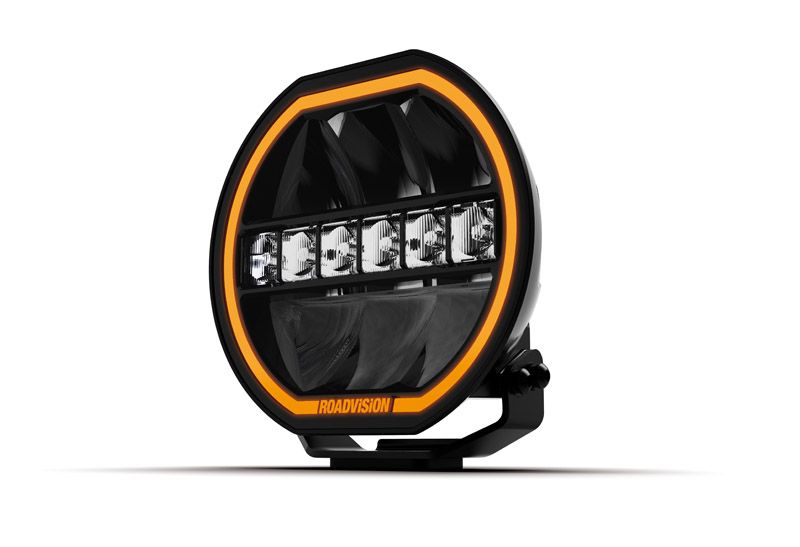

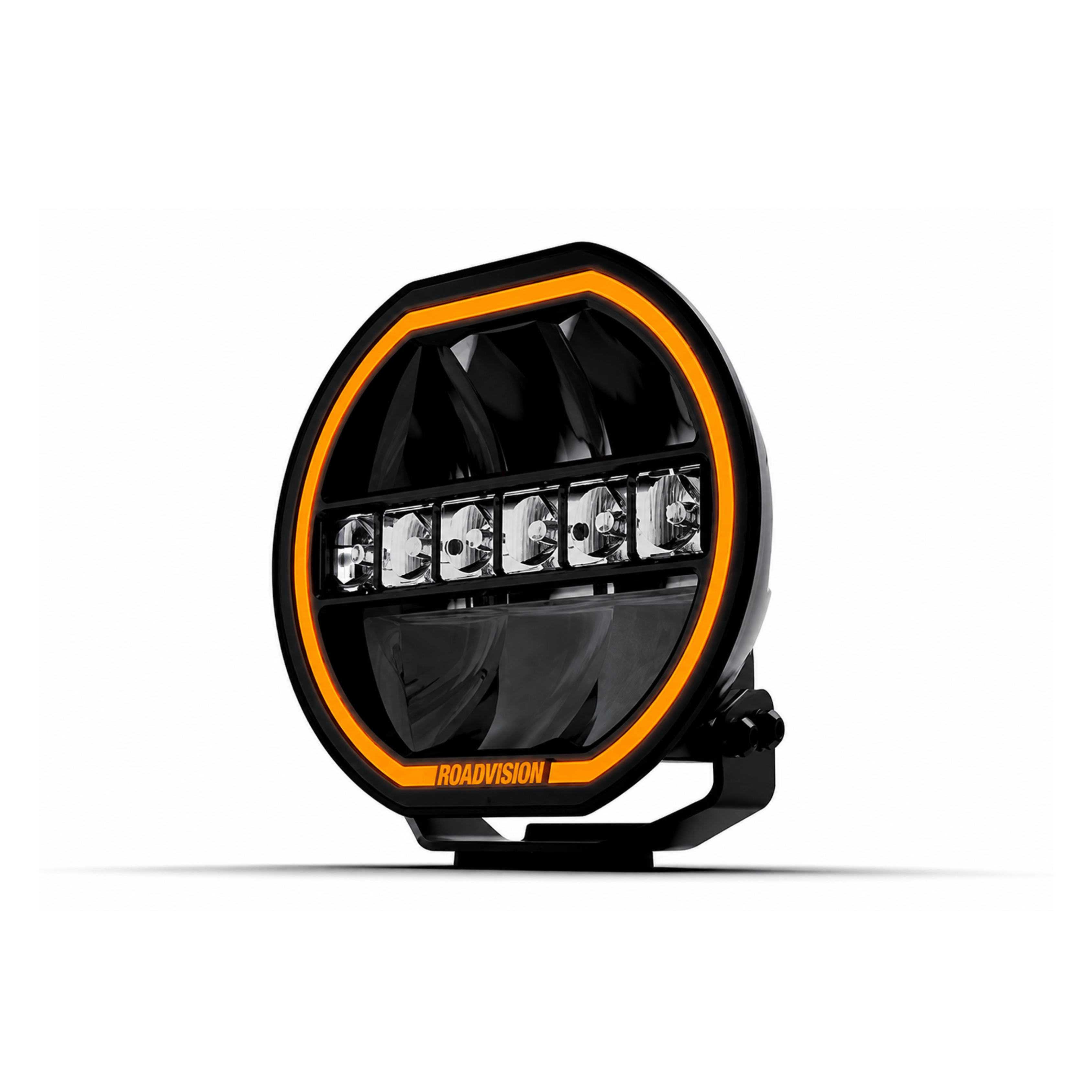

Dual-Colour HALO DRL - Amber and White: The innovative dual-colour HALO DRL is switchable between amber and white position light modes via the dedicated DRL wires, providing a choice of DRL colour to suit the vehicle's aesthetic. The HALO is housed in a dedicated window in the included black protective cover and seamlessly darkens when not in use.
Blackout Mounting Hardware: All mounting hardware is finished in black, complementing the bezel-less stealth aesthetic and providing a modern, factory-consistent appearance on the vehicle.
Roadvision Thermal Management Technology: Integrated Thermal Management Technology monitors and manages heat dissipation across the 24-LED, 132W array, ensuring consistent output and long-term reliability across all operating environments and ambient temperatures.
IP68 and IP69K Protection: Both IP68 and IP69K protection ratings confirm full resistance to sustained submersion and high-pressure, high-temperature water jet exposure, suited to off-road, agricultural, and vehicle wash-down applications.
Low-Profile Bracket for Bull Bar Applications: The 8" light with low-profile bracket is designed to optimise bull bar space, delivering the output of a 9" light in a more compact and rugged mounting configuration.
Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight die-cast aluminium housing provides structural rigidity and efficient heat dissipation, while the polycarbonate lens resists impact and UV degradation.
50,000 Hour LED Lifespan with Solid-State Technology: The 50,000 hour rated LED lifespan provides long-term maintenance-free reliability.
Multi-Volt 10-30V DC with Over/Under Voltage and Reverse Polarity Protection: Compatible with 12V and 24V vehicle electrical systems with full electronic protection for the LED driver.
CISPR25 Approved and Class 3 Approved: The RDL8800C holds CISPR25 and Class 3 approvals, confirming electromagnetic compatibility compliance for on-road and 4WD applications.
2-Pin Deutsch Plug with Separate DRL Halo Wiring: The 2-pin Deutsch plug provides secure, weatherproof driving light power connection. Separate blue (amber DRL positive) and white (white DRL positive) wires provide independent DRL halo colour selection.

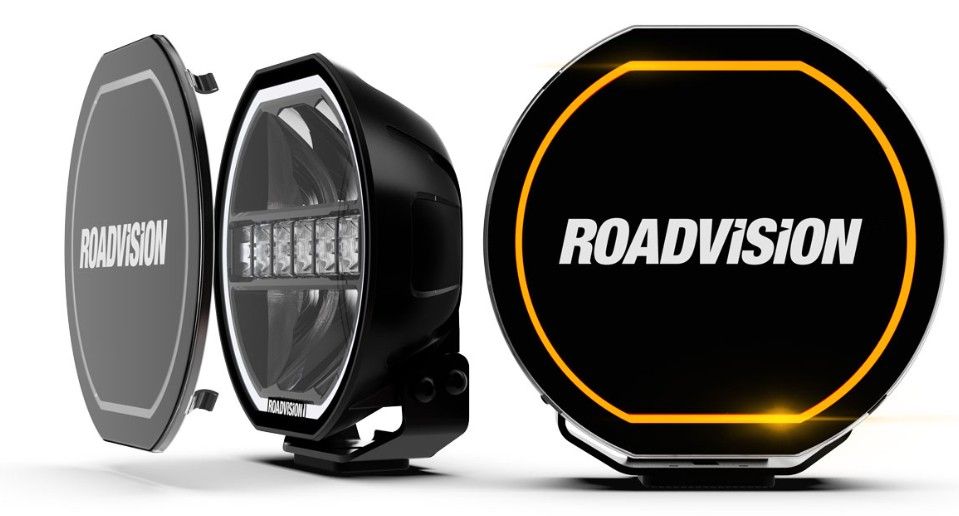

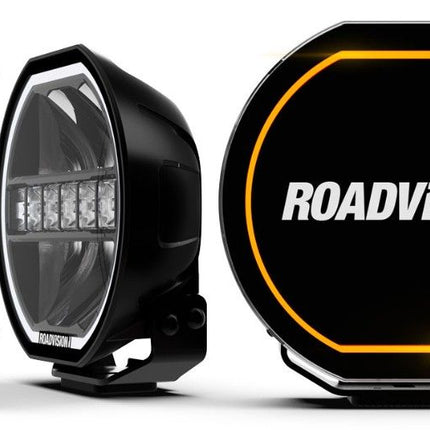

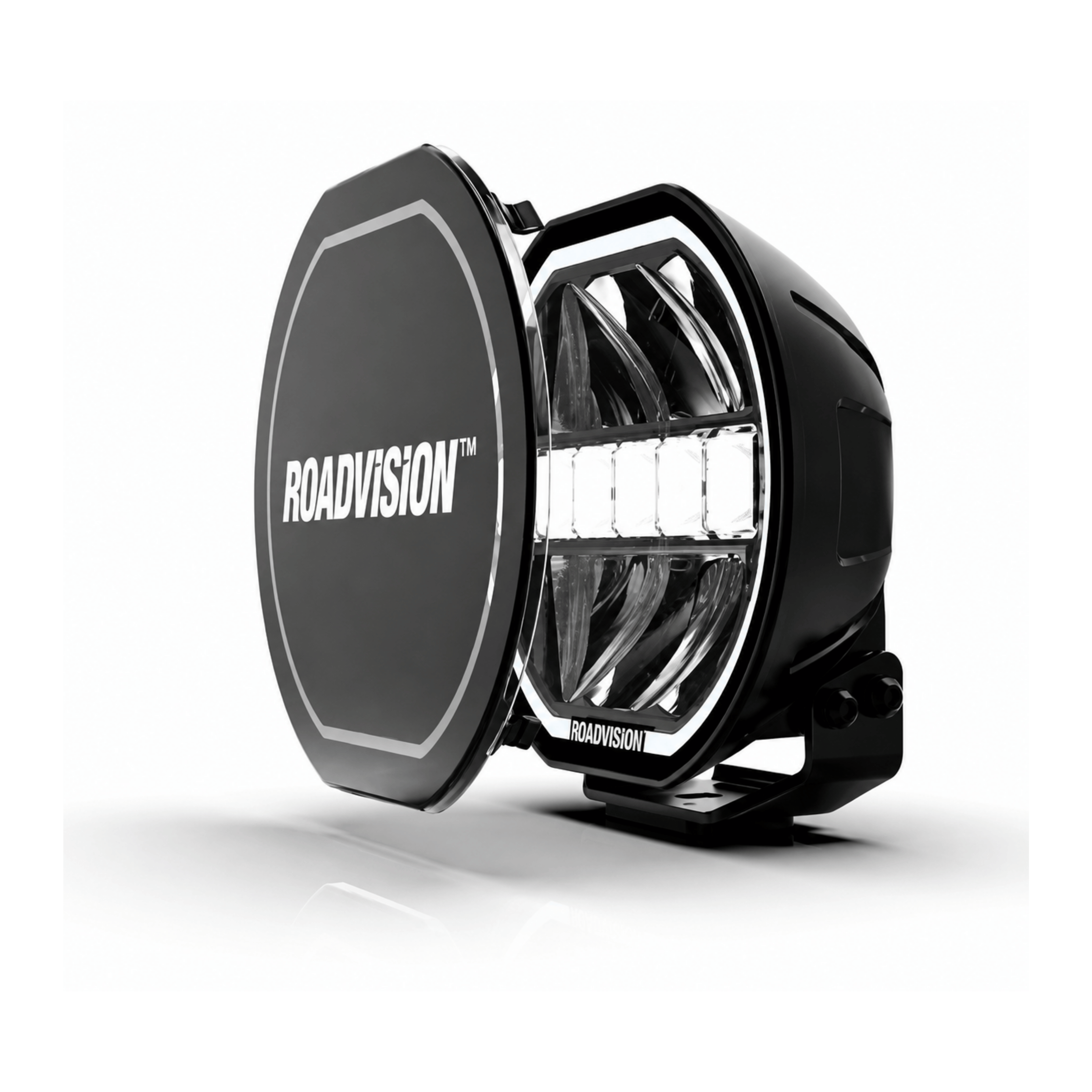

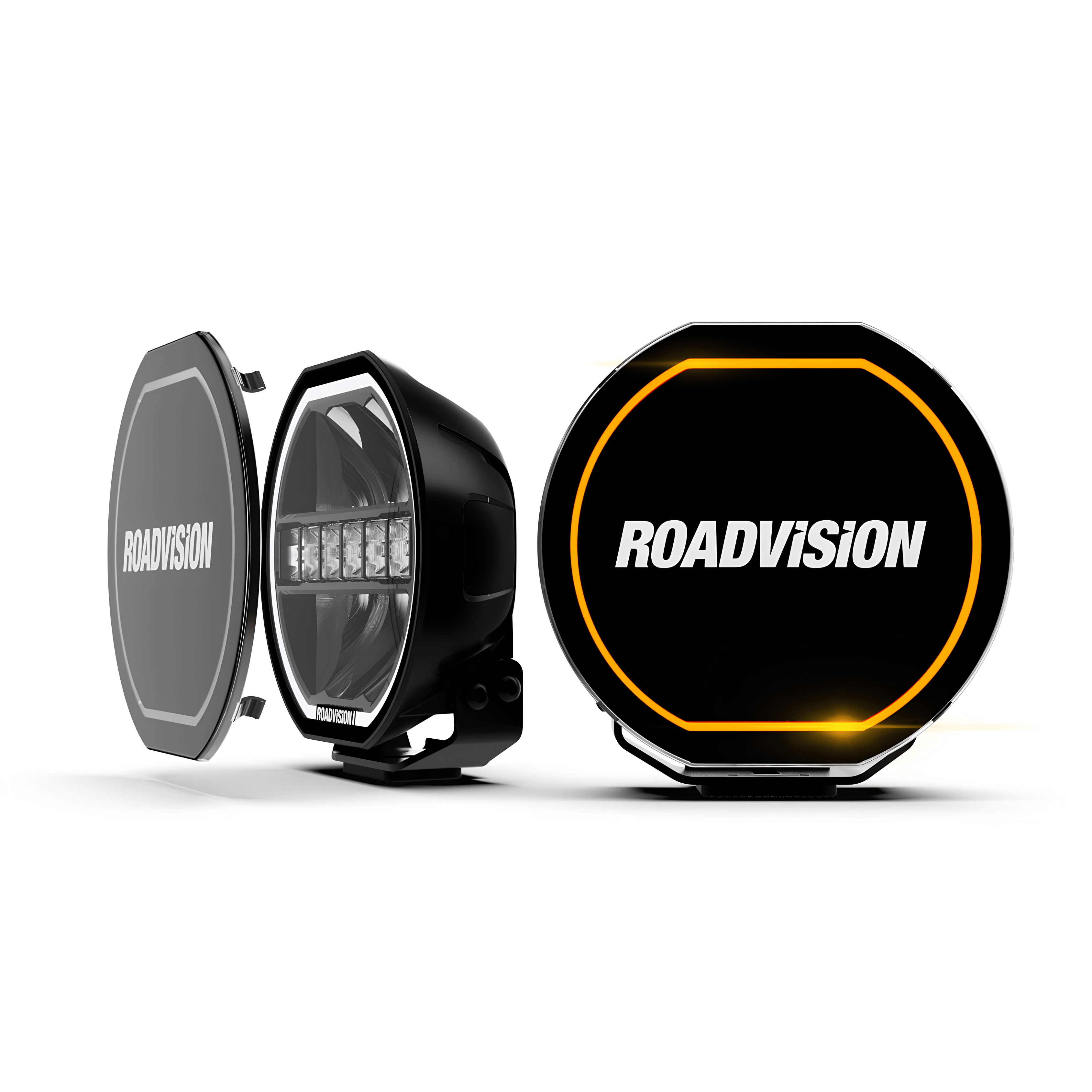

Includes Protective Cover with DRL Halo Window: A black protective cover with DRL halo window is included, providing additional lens protection when the driving lights are not in use while maintaining DRL functionality.
7-Year Warranty: The RDL8800C is backed by a 7-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RDL8800C |
| Brand |
Roadvision |
| Series |
Stealth S8 |
| Description |
8" LED Driving Light 10-30V 132W Combination Beam |
| Beam Pattern |
Combination |
| Maximum Lumens per Light |
7,937lm |
| Maximum Lumens per Pair |
15,874lm |
| Lux at 10m per Light |
5,900lx |
| Lux at 10m per Pair |
11,800lx |
| Beam Distance at 1lx per Light |
768m |
| Beam Distance at 1lx per Pair |
1,086m |
| Beam Distance at 0.5lx per Light |
1,086m |
| Beam Distance at 0.5lx per Pair |
1,536m |
| Input Voltage |
10-30V DC |
| Maximum Watts |
132W |
| LED Quantity |
24 x 6W Cree |
| Current Draw |
9.6A at 13.8V |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Die-Cast Aluminium |
| Wiring - Driving Light |
2-Pin Deutsch Plug (Red +Ve, Black -Ve) |
| Wiring - DRL Halo |
Blue - Amber Position Light +Ve, White - White Position Light +Ve |

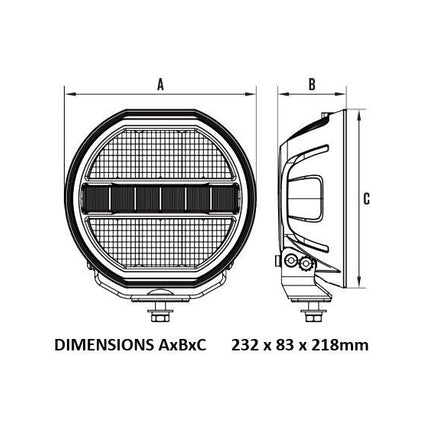

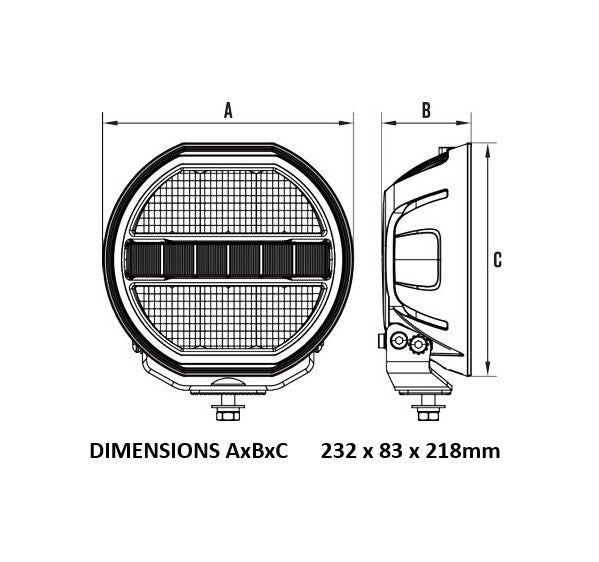

| Dimensions |
232mm x 83mm x 218mm |
| IP Rating |
IP68 and IP69K |
| LED Lifespan |
50,000 Hours |
| Protection |
Over/Under Voltage, Reverse Polarity |
| Approvals |
CISPR25, Class 3 |
| Includes |
Black Protective Cover with DRL Halo Window |
| Warranty |
7 Years |
Compatible With
The RDL8800C is compatible with 10-30V DC vehicle electrical systems including 12V and 24V platforms. The 2-pin Deutsch plug provides driving light power connection. Separate blue and white wires provide amber and white DRL halo selection respectively. Confirm mounting clearance and wiring loom compatibility for your specific vehicle before purchase. Sold individually; pair figures refer to two units.
Frequently Asked Questions
Are the RDL8800C driving lights sold individually or as a pair?
The RDL8800C is sold individually. Lumen, lux, and beam distance figures in brackets refer to a pair of two lights. Confirm the quantity required for your installation before purchase.
How do I select between amber and white DRL on the RDL8800C?
The amber position light DRL is activated via the blue wire positive and the white position light DRL is activated via the white wire positive. Connect the appropriate wire to activate the preferred DRL halo colour.
Is the RDL8800C suitable for bull bar mounting?
Yes. The S8 Stealth Series features a low-profile bracket specifically designed to optimise bull bar mounting space, delivering the output of a 9" light in a more compact and rugged 8" mounting configuration.
What is the difference between the RDL8800C and the RDL7800C?
Both are Roadvision 8" combination beam driving lights with dual DRL capability. The RDL8800C is from the Stealth S8 Series using 24 x 6W Cree LEDs at 132W, delivering 7,937lm per light and 1,086m beam reach at 0.5 lux per light, with amber/white HALO DRL and IP68/IP69K rating. The RDL7800C is from the Dynamilux Series using 18 x 10W Osram LEDs at 180W, delivering 9,900lm per light and 834m beam reach at 0.5 lux per light, with amber/white dynamic start-up DRL and IP67 rating. Both carry a 7-year warranty.
Is the RDL8800C compatible with 24V vehicles?
Yes. The RDL8800C operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
