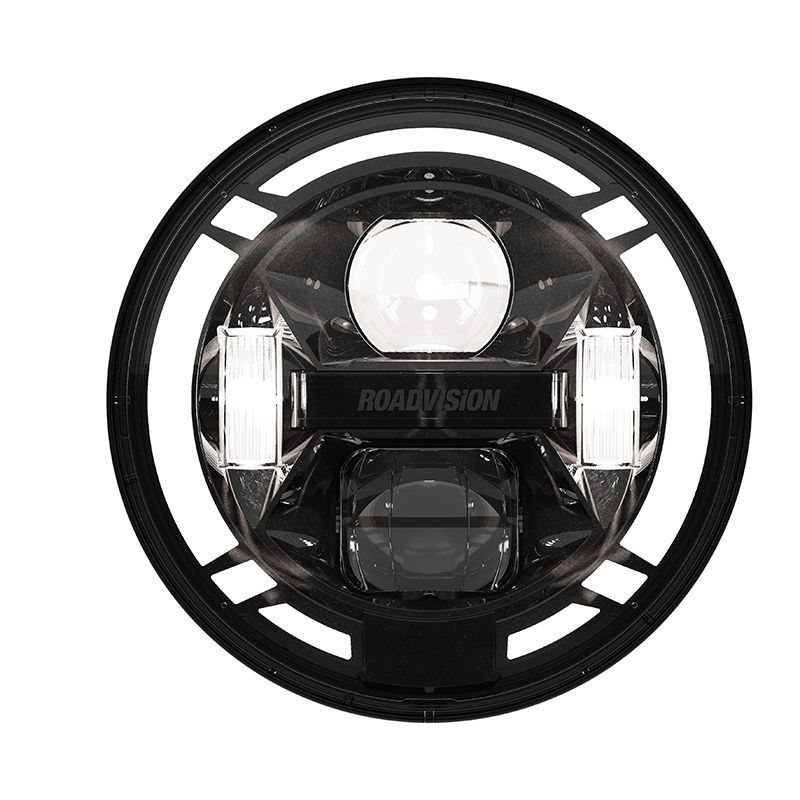

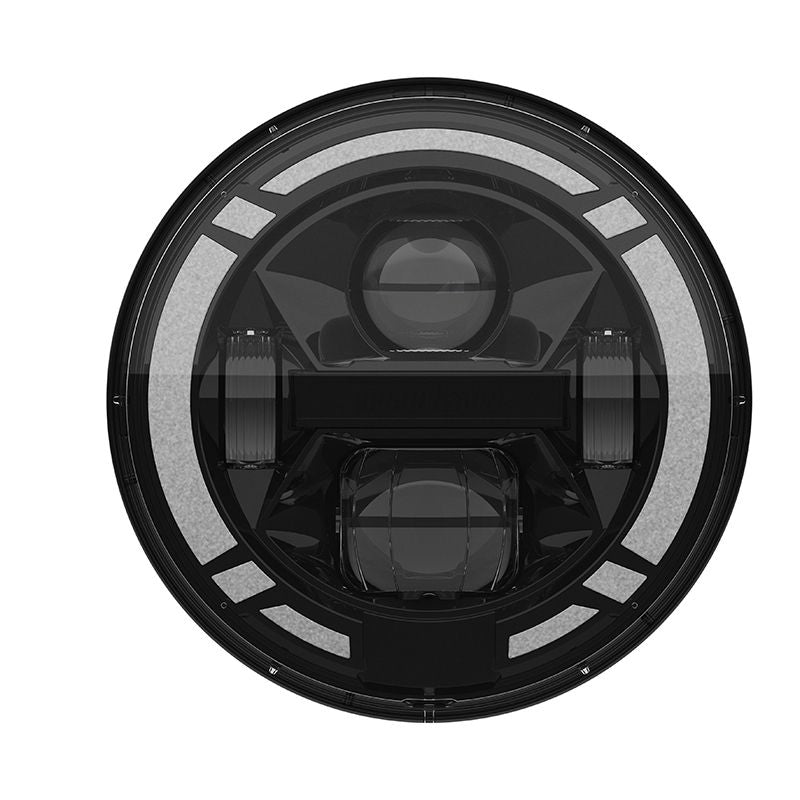

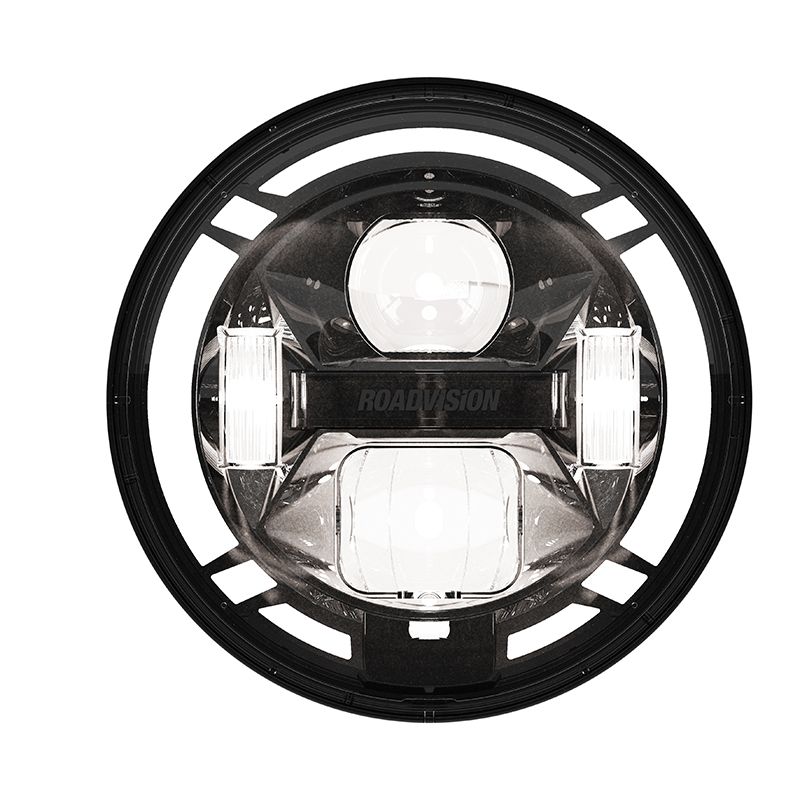

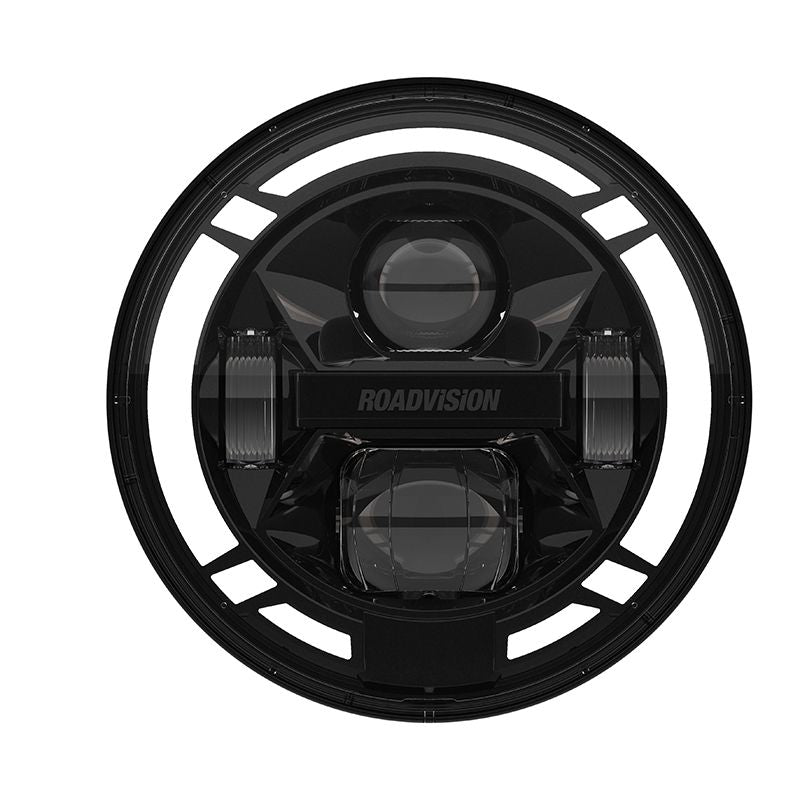

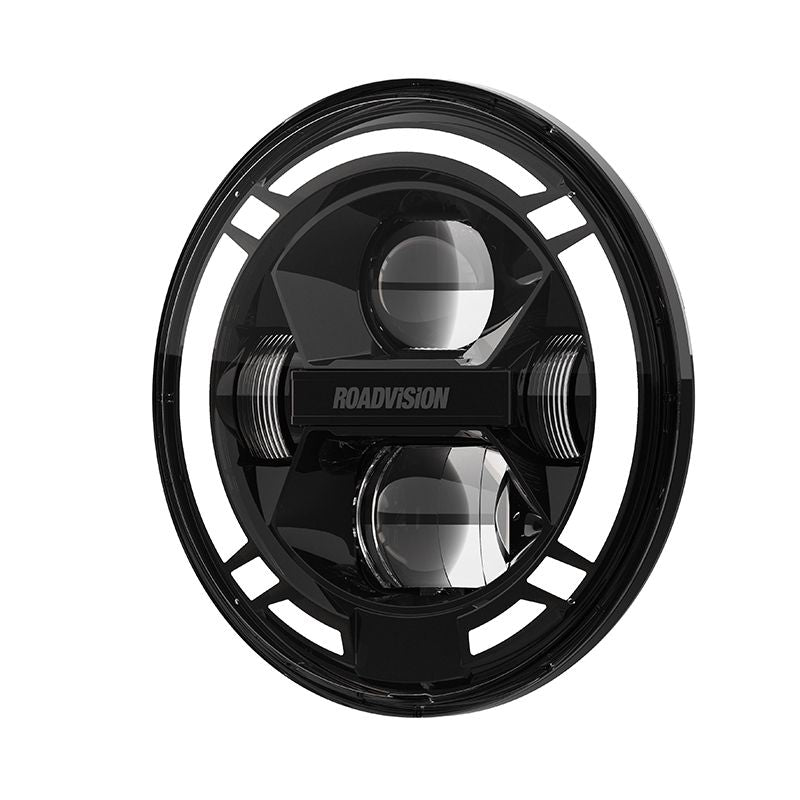

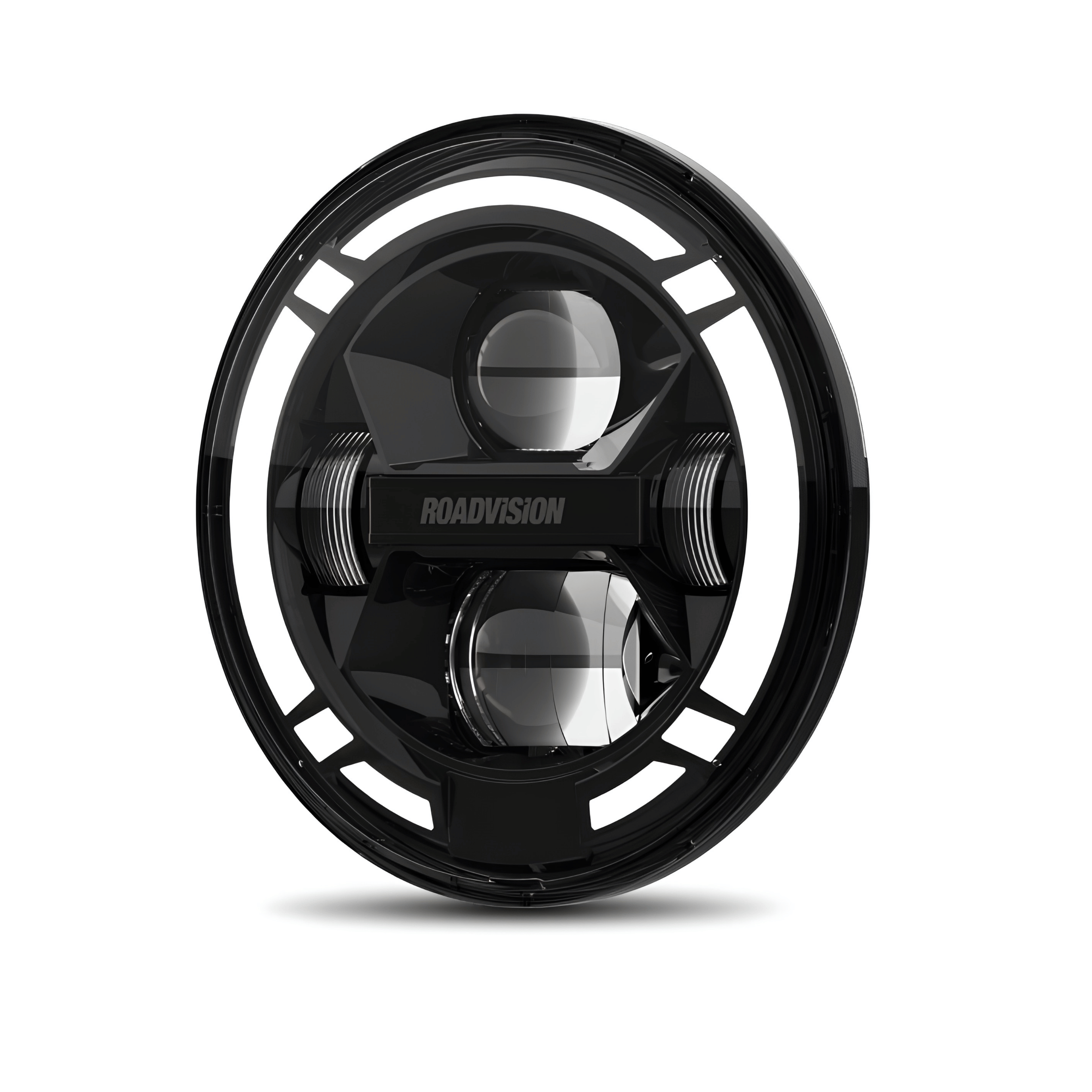

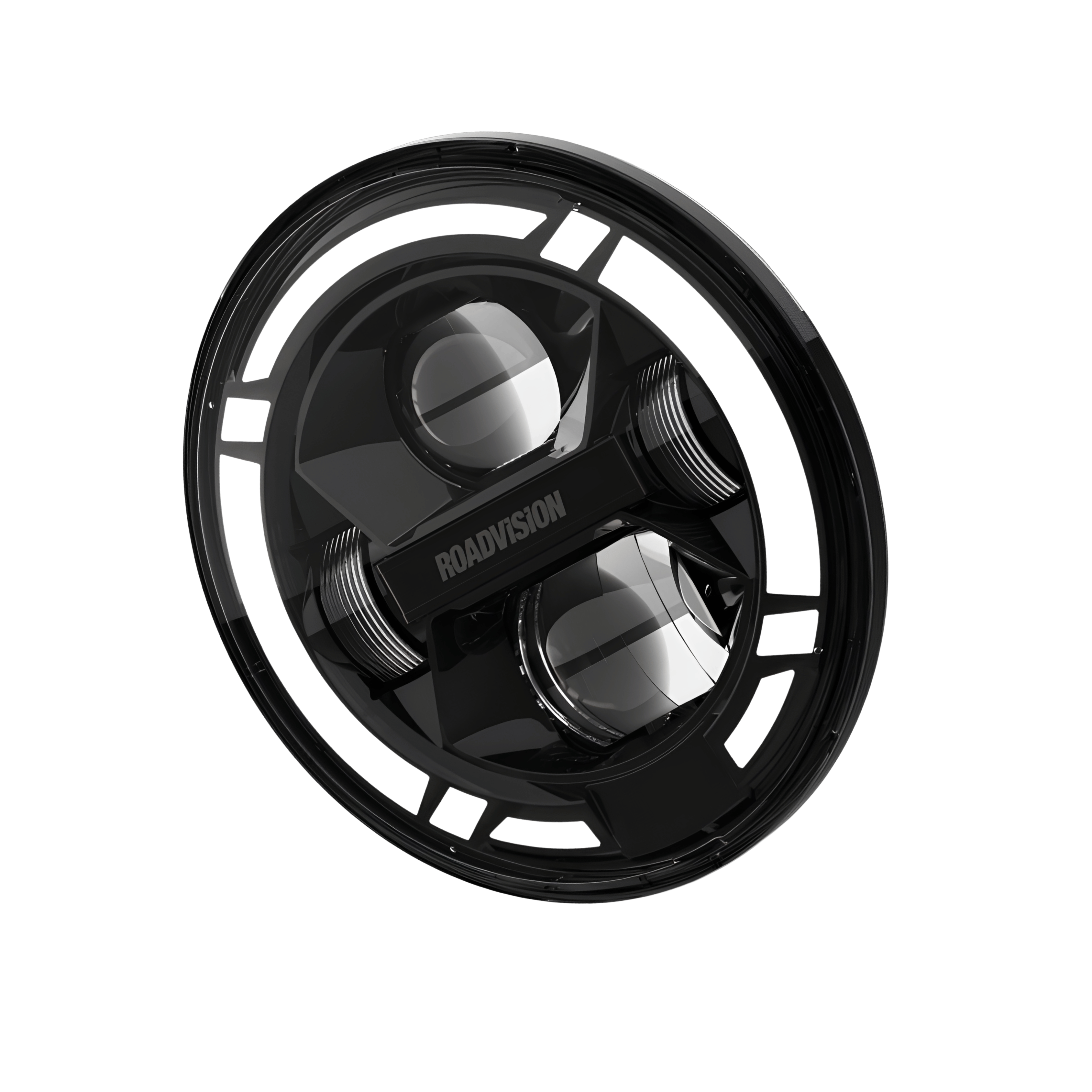

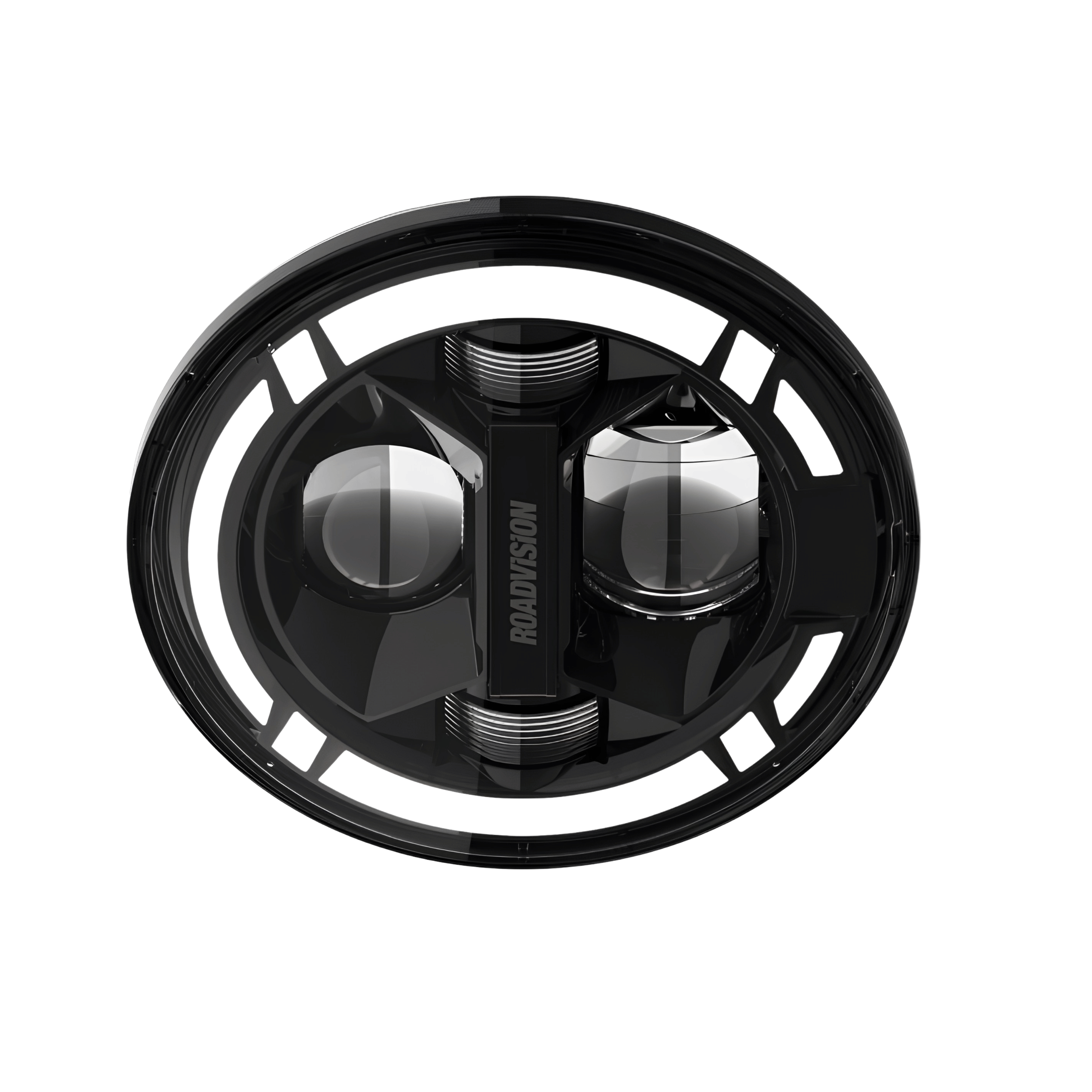

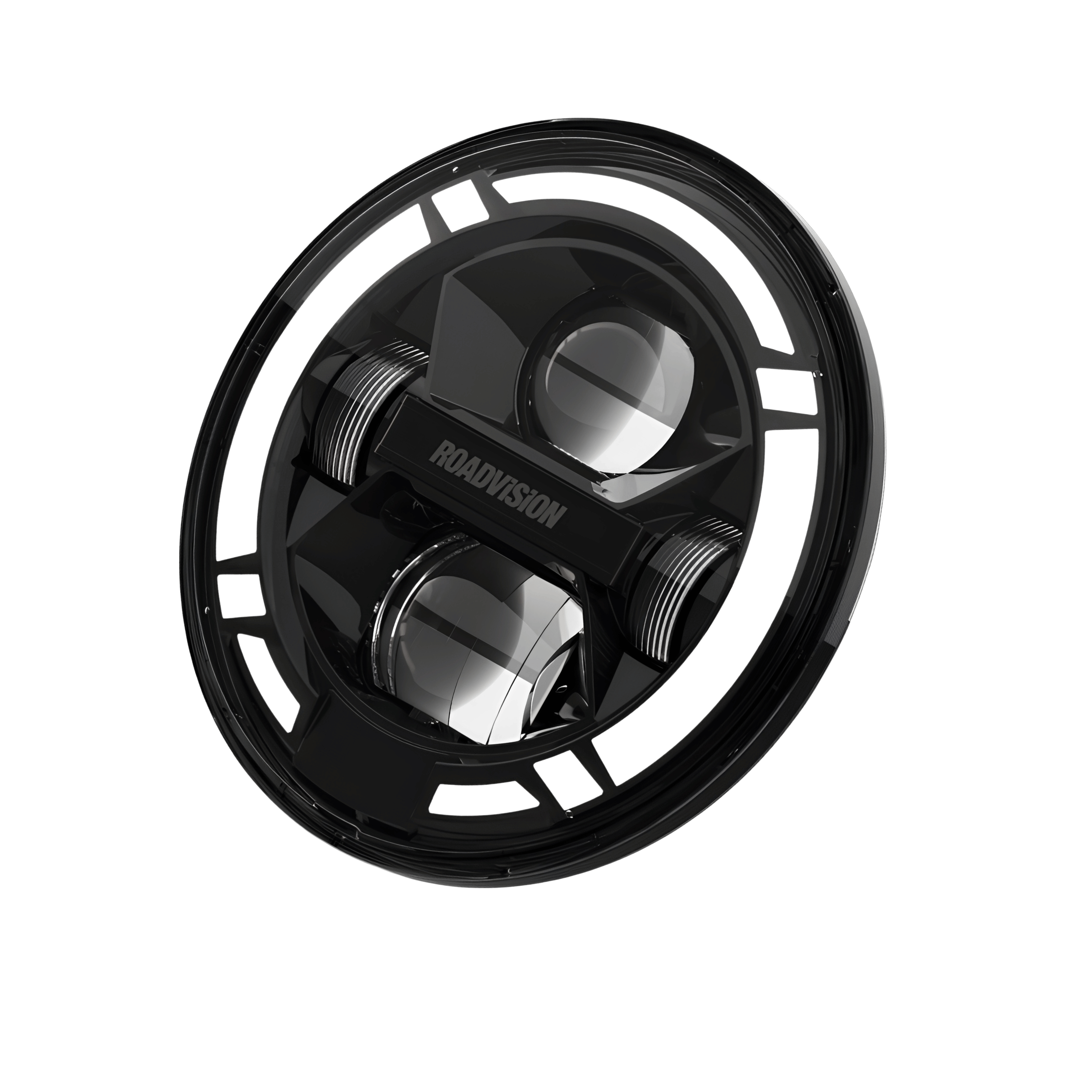

Roadvision RHL07HB 7" LED Headlamp Insert High Beam and Parking 5700K
A 7" LED headlamp insert with high beam and parking functions from Roadvision, the RHL07HB delivers 1800 lumens on high beam at 252 metres at 1 lux with 5700K output, aluminium housing, polycarbonate lens, IP67 and IP69K protection, 500mm pre-wired H4 connector, ADR approved (CTA-062225), and a 5-year warranty.
Product Overview
The Roadvision RHL07HB is a 7" LED headlamp insert designed to replace existing 7" headlight units in vehicles with a 7" round headlamp aperture. It provides high beam and parking functions, delivering 1800 lumens on high beam at 252 metres at 1 lux and 4W parking light output from 33 park LEDs. The crisp 5700K white output provides a modern, bold appearance on the road. The lightweight die-cast aluminium housing with unbreakable polycarbonate lens and IP67 and IP69K dual protection rating ensures durability in all environments including high-pressure wash-down. Multi-volt 10-30V DC input at 1.6A for high beam and 0.3A for parking at 13.8V. Pre-wired with a 500mm sheath cable and H4 connector for simple, reliable installation. ADR approved, CTA-062225. 100,000 hour rated LED lifespan. Backed by a 5-year warranty.
Features & Benefits
1800 Lumens High Beam - 252 Metres at 1 Lux: The RHL07HB delivers 1800 lumens on high beam with a beam reach of 252 metres at 1 lux, providing strong high-beam illumination for improved visibility on dark roads.
5700K Crisp White Output: The 5700K colour temperature produces a crisp white output close to daylight for a modern, bold appearance and natural colour rendering on the road surface.
Integrated Parking Light - 33 Park LEDs at 4W: The integrated 33 LED parking light provides 4W park light output for a complete headlamp insert solution with both high beam and park functions in a single unit.
Replaces Existing 7" Headlight Units: The RHL07HB is designed as a direct replacement for existing 7" round headlamp units, simplifying the upgrade process without requiring housing modification.
Sleek Modern Black Design: The black housing provides a contemporary appearance that complements modern vehicle styling.
Lightweight Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight die-cast aluminium housing provides structural rigidity and effective heat dissipation, while the unbreakable polycarbonate lens resists impact and UV degradation.
IP67 and IP69K Dual Protection: Both IP67 and IP69K ratings confirm full protection against dust, temporary immersion, and high-pressure, high-temperature water jet exposure, providing maximum durability in all environments.
100,000 Hour LED Lifespan with Solid-State Technology: The 100,000 hour rated LED lifespan provides long-term maintenance-free reliability with virtually zero maintenance requirements.
Multi-Volt 10-30V DC: Compatible with both 12V and 24V vehicle electrical systems.
Pre-Wired 500mm H4 Connector: The 500mm sheath cable with H4 connector provides simple, reliable plug-in installation into existing 7" headlamp wiring.
ADR Approved - CTA-062225: The RHL07HB is ADR approved and holds CTA approval CTA-062225, confirming compliance with Australian road requirements for headlamp applications.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RHL07HB |
| Brand |
Roadvision |
| Series |
RHL07 |
| Description |
7" LED Headlamp Insert High Beam |
| Functions |
High Beam, Parking |
| High Beam Lumens |
1800lm |
| High Beam Distance at 1 Lux |
252m |
| Maximum Watts - High Beam |
21W |
| Maximum Watts - Parking |
4W |
| LED Quantity - High Beam |
4 LEDs |
| LED Quantity - Parking |
33 LEDs |
| Input Voltage |
10-30V DC |
| Current Draw - High Beam |
1.6A at 13.8V |
| Current Draw - Parking |
0.3A at 13.8V |
| Colour Temperature |
5700K |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Aluminium |
| IP Rating |
IP67 and IP69K |

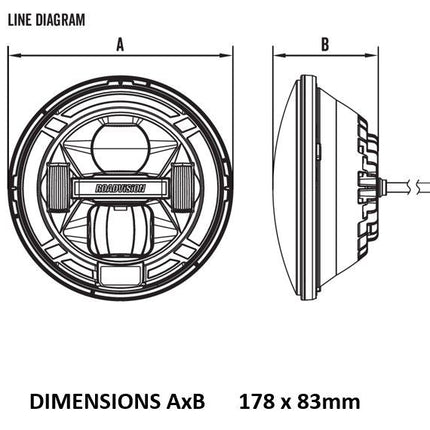

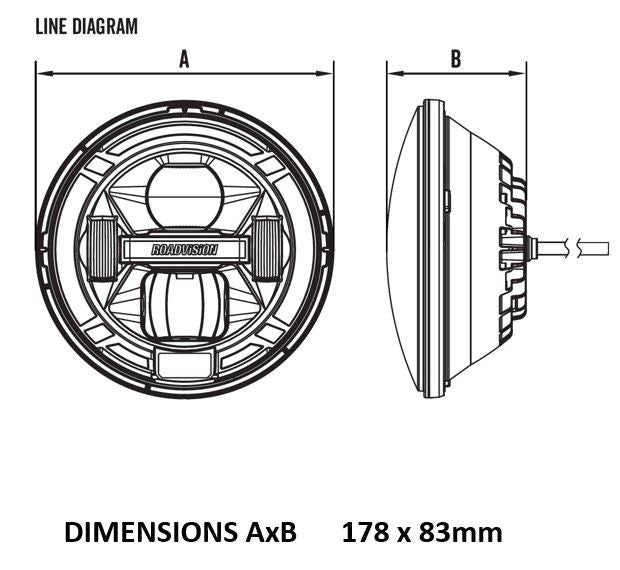

| Dimensions |
178mm x 83mm |
| Wiring |
500mm Sheath Cable with H4 Connector |
| ADR Approval |
CTA-062225 |
| LED Lifespan |
100,000 Hours |
| Warranty |
5 Years |
Compatible With
The RHL07HB is designed to replace existing 7" round headlamp units. The 500mm sheath cable with H4 connector provides direct plug-in installation into existing 7" headlamp wiring. Compatible with 10-30V DC vehicle electrical systems. ADR approved for on-road use in Australia. A high/low beam version is available as the RHL07HLB.
Frequently Asked Questions
Is the RHL07HB ADR approved for on-road use?
Yes. The RHL07HB is ADR approved and holds CTA approval CTA-062225, confirming compliance with Australian road requirements for headlamp applications.
Does the RHL07HB have a low beam function?
No. The RHL07HB is a dedicated high beam and parking insert. For a version with high beam, low beam, and parking functions, refer to the RHL07HLB.
What connector does the RHL07HB use?
The RHL07HB is pre-wired with a 500mm sheath cable and H4 connector for direct plug-in installation into existing 7" headlamp wiring.
Is the RHL07HB compatible with 24V vehicles?
Yes. The RHL07HB operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
What is the IP rating of the RHL07HB?
The RHL07HB holds both IP67 and IP69K ratings, confirming full protection against dust, temporary immersion, and high-pressure, high-temperature water jet exposure.
