Description
Roadvision RSM0606W LED Strobe Module - 10-30V Rectangle Surface Mount 18W White
High-output super low-profile LED strobe module delivering 18W of intense white warning light with 10 selectable flash patterns, multi-unit synchronisation, and maintenance-free LED technology for demanding safety applications.
Product Overview

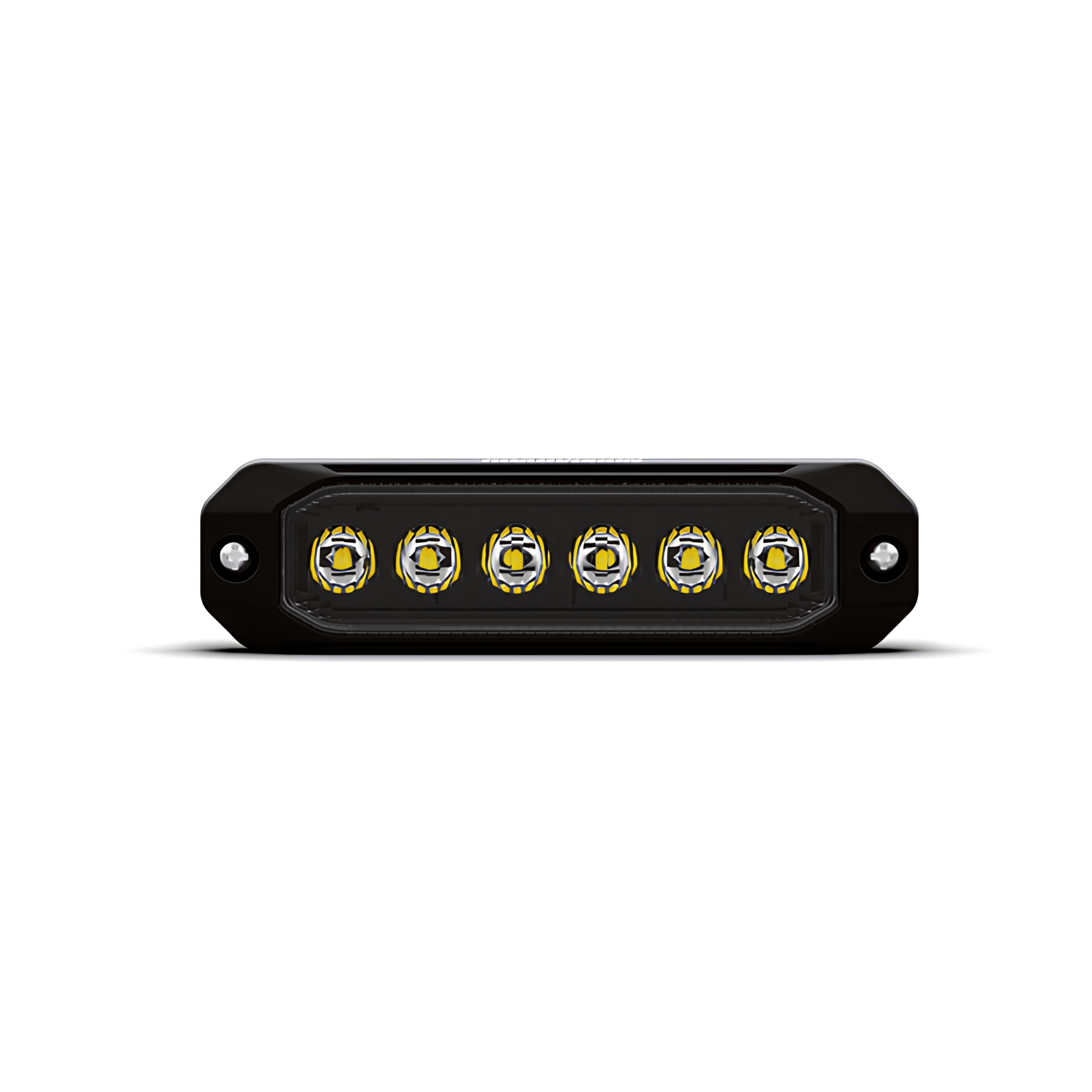

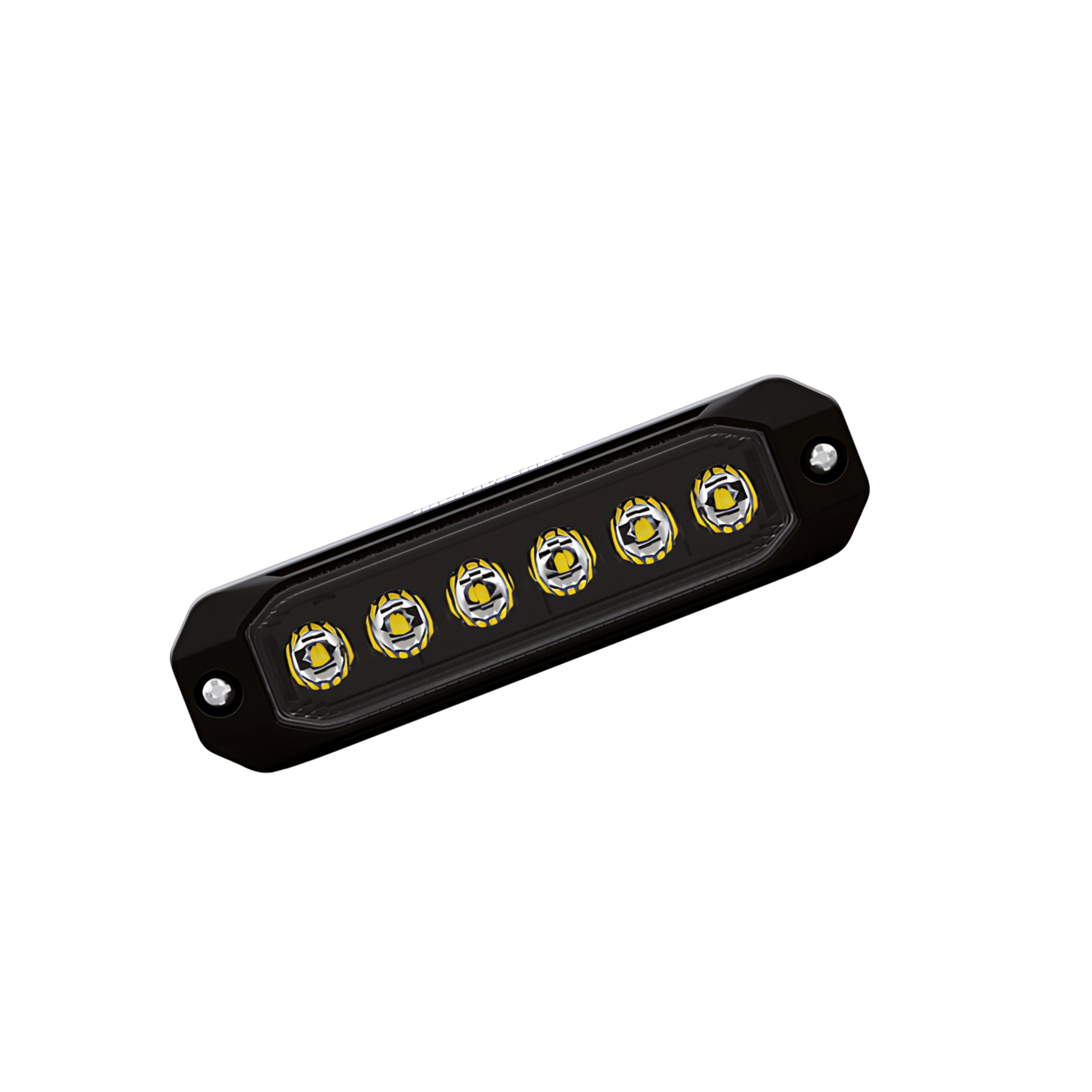

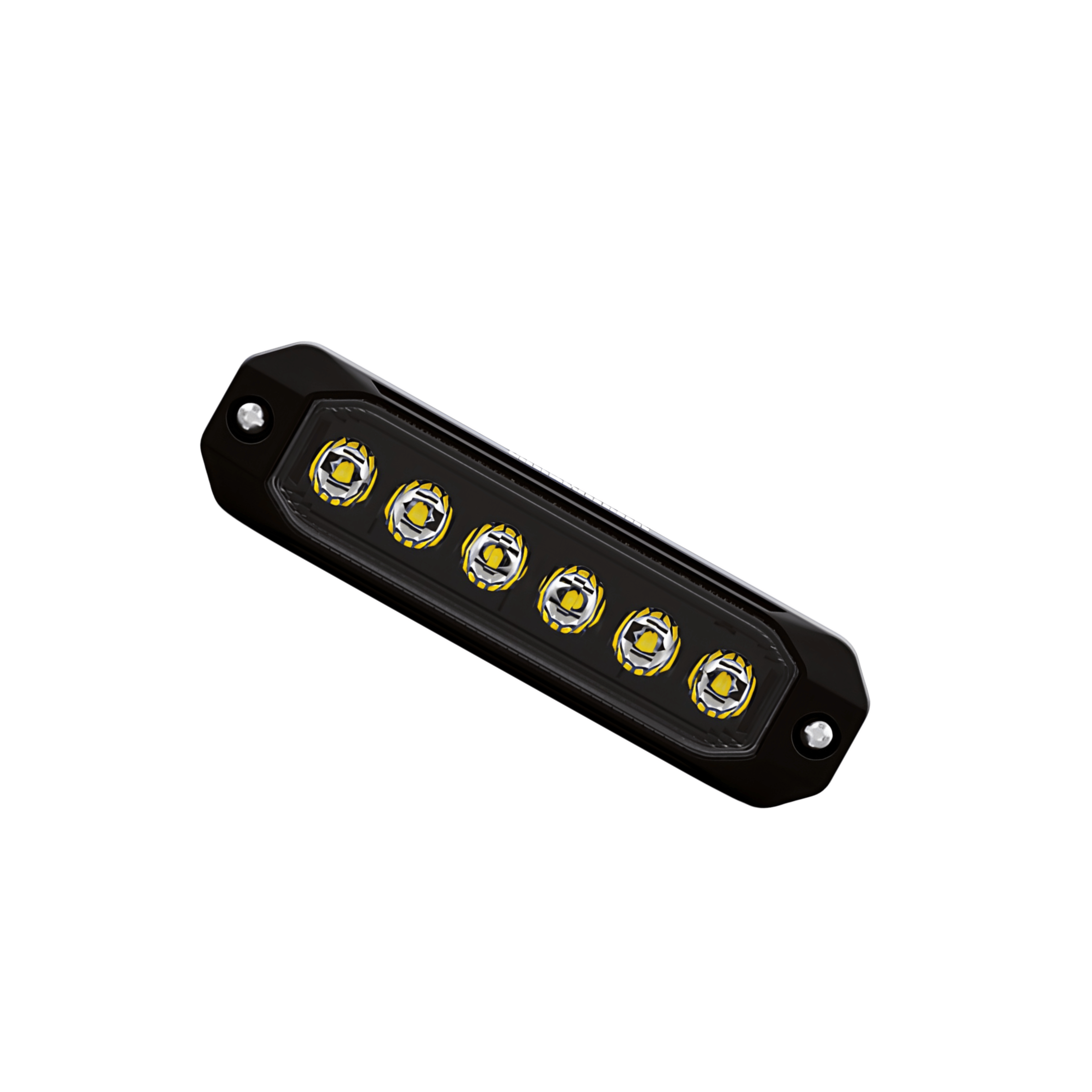

The Roadvision RSM0606W LED Strobe Module delivers high-output warning illumination in a super low-profile design perfect for demanding safety applications. This advanced strobe module provides the durability of maintenance-free LED technology with 6x 3W white LEDs delivering intense, attention-grabbing warning illumination that enhances visibility in automotive, industrial, and agricultural applications. Featuring 10 selectable flash patterns including single, double, triple, quadruple, quintuple, sextuple, and split variations, the RSM0606W allows you to customize the warning pattern to suit specific requirements. The built-in pattern memory recall ensures the module returns to your selected pattern after power cycling. Multi-unit synchronisation capability enables multiple modules to flash simultaneously or in alternating patterns, creating coordinated warning light displays for maximum visibility. Measuring 120mm x 32mm x 11mm with a super low-profile design, the RSM0606W installs discretely on vehicles, equipment, and structures while delivering powerful 18W warning illumination for applications requiring enhanced output. The multi-volt 10-30V DC input ensures compatibility with both 12V and 24V electrical systems, drawing 1.5 amps at 13.8V for high-output operation. Built with rugged aluminium housing and virtually unbreakable polycarbonate lens, the RSM0606W is weatherproof, vibration resistant, and fully sealed against dust and water ingress for reliable operation in demanding environments. Rated to an impressive 100,000-hour LED lifespan with solid-state technology, this maintenance-free module eliminates bulb replacements and reduces downtime. The simple surface-mount design with 108mm mounting centres and color-coded wiring allows straightforward installation. Class 1 approved for professional safety applications and backed by Roadvision's comprehensive 5-year warranty, the RSM0606W simply takes safety lighting to another level with enhanced power output.
Features & Benefits
High-Output 18W Performance: 6x 3W white LEDs deliver 50% more output than 12W models, providing intense warning illumination for demanding applications requiring maximum visibility in challenging conditions and longer detection distances.
Super Low-Profile Discrete Design: Measures just 120mm x 32mm x 11mm for discrete installation on vehicles, equipment, and structures where low-profile mounting is essential, providing powerful 18W warning illumination without adding significant height.
10 Selectable Flash Patterns: Built-in flash pattern selection includes single, double, triple, quadruple, quintuple, sextuple, and split variations with last pattern memory recall, allowing customization to suit specific safety requirements and regulatory compliance.
Multi-Unit Synchronisation: Enables multiple modules to flash simultaneously or in alternating patterns for coordinated warning light displays, creating enhanced visibility and professional-looking safety installations with synchronized operation.
Intense White LED Output: 6x 3W white LEDs deliver bright, attention-grabbing warning illumination with superior visibility in daylight and nighttime conditions while drawing 1.5 amps at 13.8V for high-output efficient operation.
Multi-Volt Compatibility: 10-30V DC input voltage range ensures compatibility with both 12V and 24V electrical systems, making this module suitable for cars, 4WDs, trucks, agricultural equipment, and industrial machinery without modifications.
Rugged Weatherproof Construction & Class 1 Approved: Aluminium housing and virtually unbreakable polycarbonate lens provide weatherproof, vibration-resistant performance. Solid-state LED technology with 100,000-hour lifespan, Class 1 approved, backed by 5-year warranty.
Technical Specifications
| Specification |
Details |
| Model Number |
RSM0606W |
| Product Name |
LED Strobe Module 10-30V Rectangle Surface Mount 18W White |
| Series |
RSM06 Super Low-Profile LED Strobe Module Series |
| LED Color |
White |
| Power Rating |
18W |
| Number of LEDs |
6 x 3W |
| Input Voltage |
10-30 VDC |
| Current Draw @ 13.8V |
1.5 Amp |
| Flash Patterns |
10 Selectable (Single, Double, Triple, Quadruple, Quintuple, Sextuple, Split variations) |
| Synchronisation |
Simultaneous & Alternate |
| Pattern Memory |
Last Pattern Memory Recall |
| LED Lifespan |
100,000 hours |
| Lens Construction |
Polycarbonate (Virtually Unbreakable) |
| Housing Construction |
Aluminium |
| Mounting Type |
Surface Mount |
| Mounting Centres |
108mm |

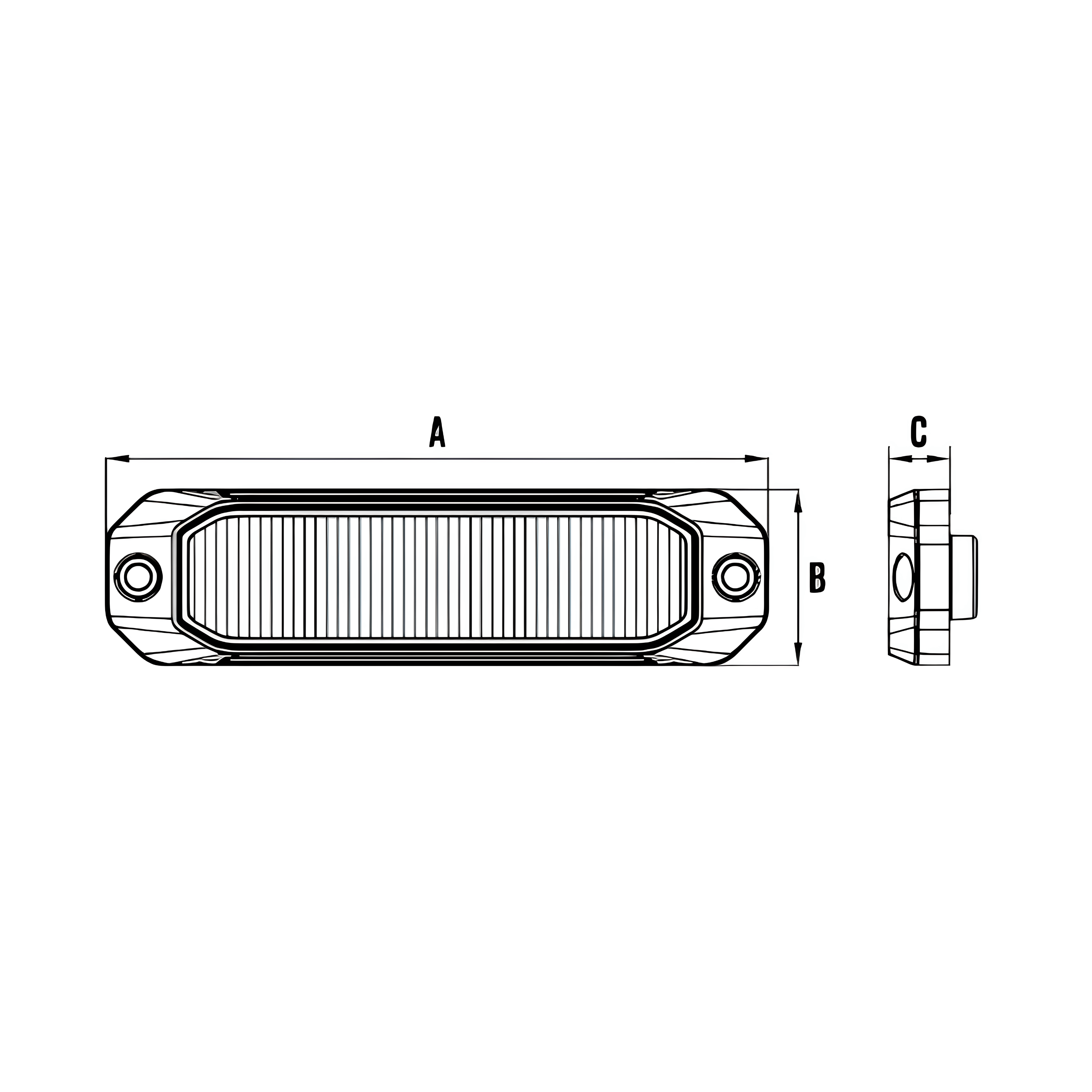

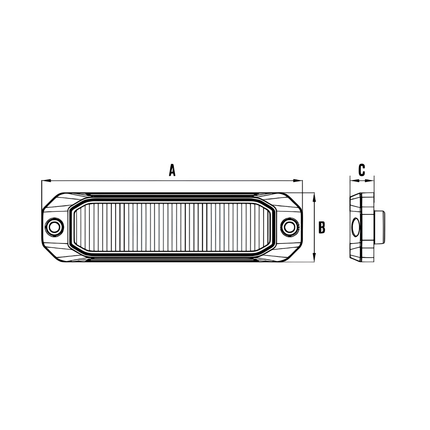

| Dimensions (L × W × H) |
120mm × 32mm × 11mm |
| Wiring Color Code |
Red: Positive, Black: Negative, Yellow: Flash Select & Sync, White: Alternate Flash |
| Ingress Protection |
Weatherproof & Dust Proof |
| Approval |
Class 1 Approved |
| Warranty |
5 Years |
Compatible With
The Roadvision RSM0606W LED Strobe Module is compatible with all vehicles and equipment operating on 10-30V DC electrical systems including cars, 4WDs, SUVs, utes, trucks, trailers, caravans, agricultural machinery, tractors, construction equipment, industrial machinery, emergency vehicles, tow trucks, service vehicles, mining equipment, and any application requiring discrete high-output white warning/safety lighting. Multiple RSM0606W modules can be synchronized together for coordinated warning light displays. Can be paired with other RSM06 Series modules (RSM0604A, RSM0604W, RSM0606A) for multi-color warning light systems. Ideal for automotive, industrial, agricultural, construction, emergency services, roadside assistance, and safety applications requiring Class 1 approved high-output warning lights.
Frequently Asked Questions
What is the difference between the 12W (RSM0604W) and 18W (RSM0606W) white models? The RSM0606W delivers 50% more output with 6x 3W LEDs (18W total) compared to the RSM0604W's 4x 3W LEDs (12W total), providing enhanced visibility for demanding applications. The RSM0606W is slightly longer (120mm vs 101mm) but maintains the same 11mm super low-profile height.
How do I synchronize multiple modules? Multiple RSM0606W modules can be synchronized using the yellow (Flash Select & Sync) wire and white (Alternate Flash) wire. Connect these wires between modules to achieve simultaneous or alternating flash patterns for coordinated warning light displays with enhanced visibility.
Can this module be used on both 12V and 24V vehicles? Yes, the RSM0606W features multi-volt 10-30V DC input, making it compatible with both 12-volt cars, 4WDs, and light equipment and 24-volt trucks, heavy equipment, and industrial machinery without any modifications required.
What applications benefit most from the 18W output? The RSM0606W's 18W output is ideal for larger vehicles, construction equipment, agricultural machinery, emergency vehicles, work lighting applications, or any application requiring maximum warning visibility over longer distances or in challenging conditions where enhanced output is essential.
Is this module weatherproof for outdoor use? Yes, the RSM0606W features aluminium housing and virtually unbreakable polycarbonate lens that is fully weatherproof and dust proof. The module is vibration resistant and sealed against dust and water ingress for reliable operation in demanding outdoor environments.
