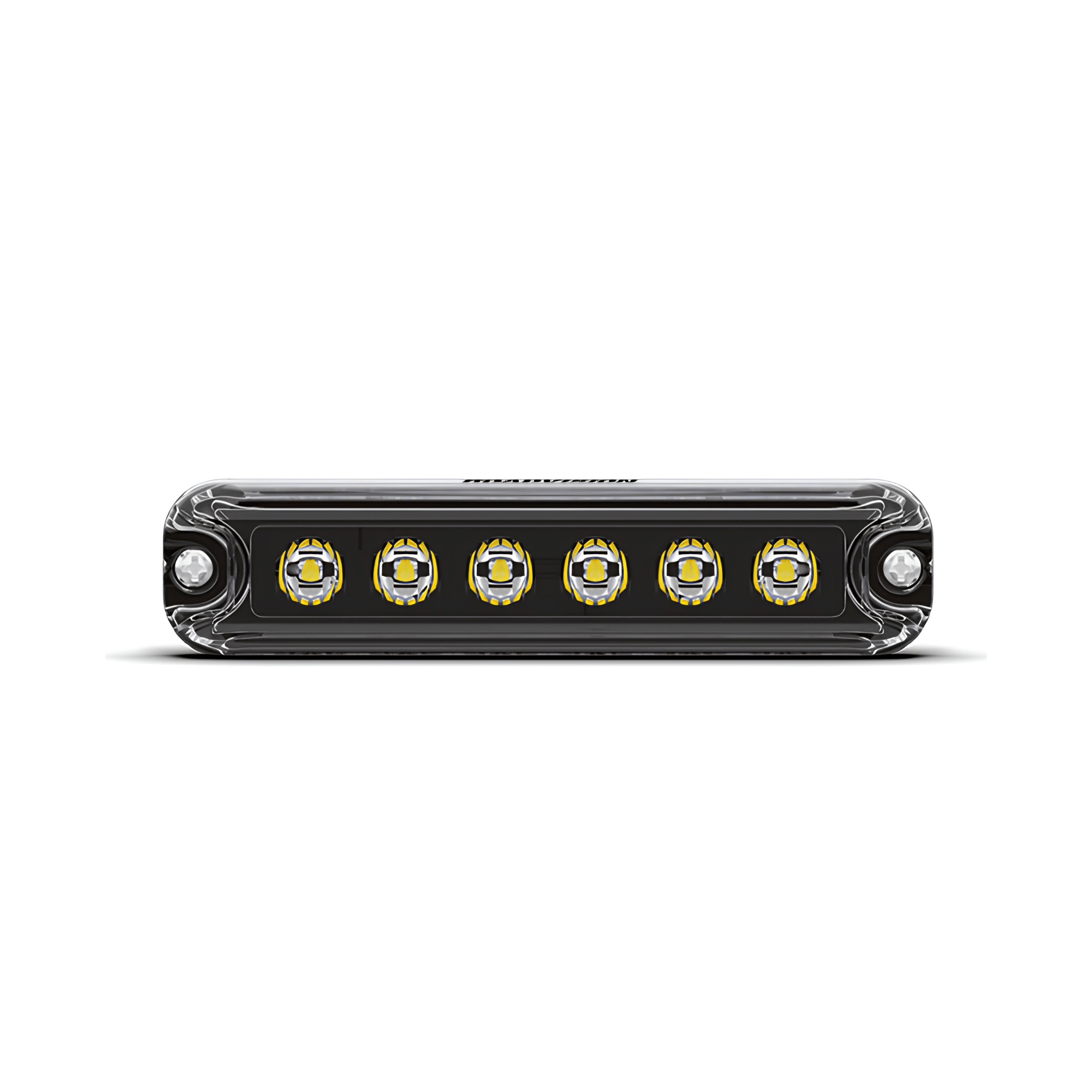

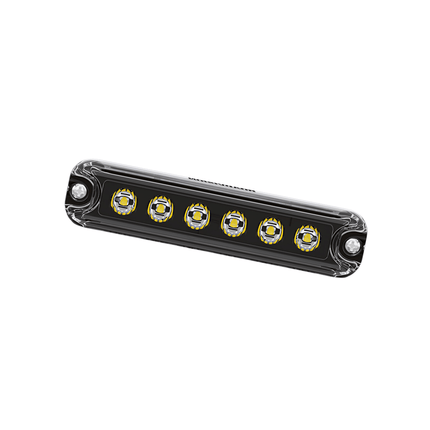

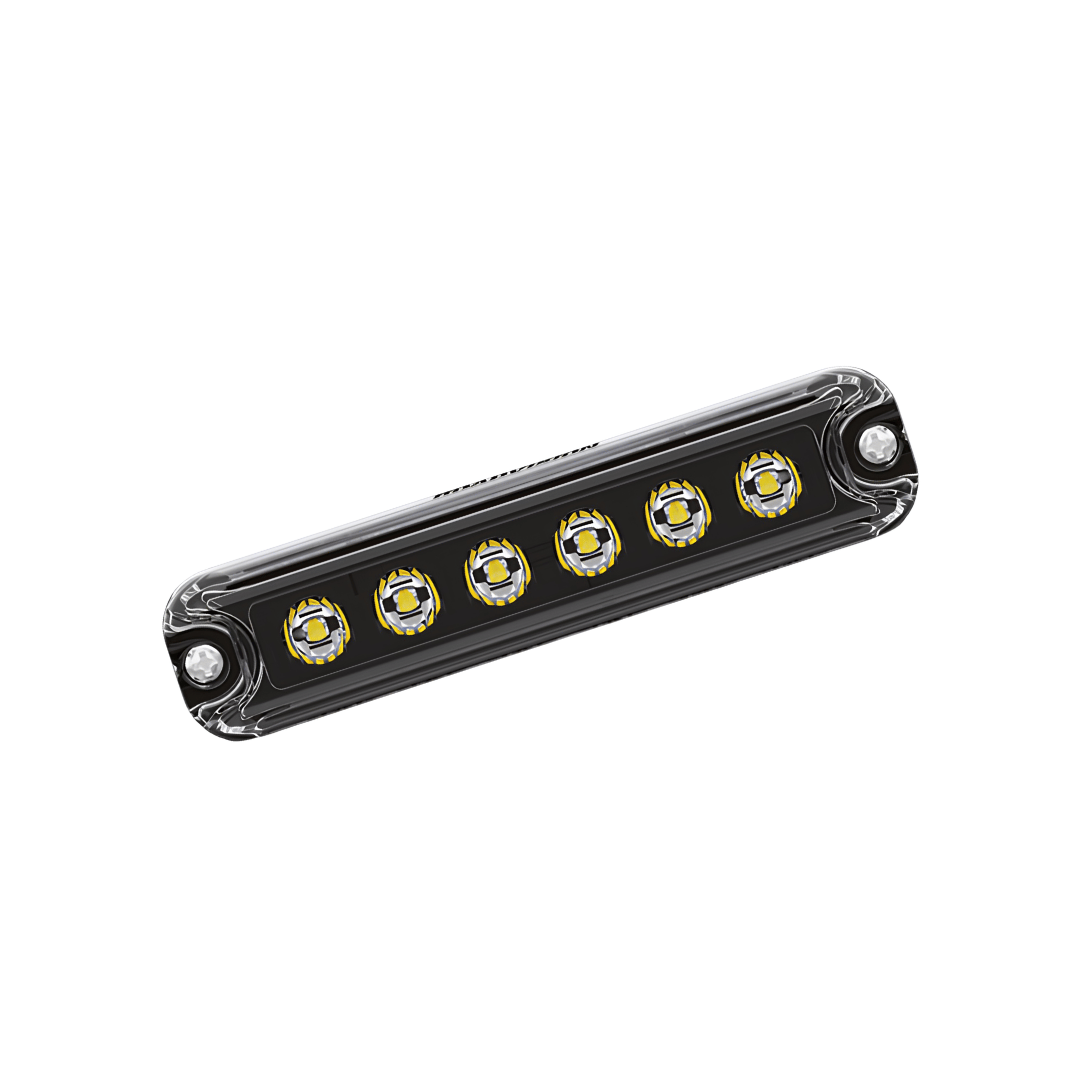

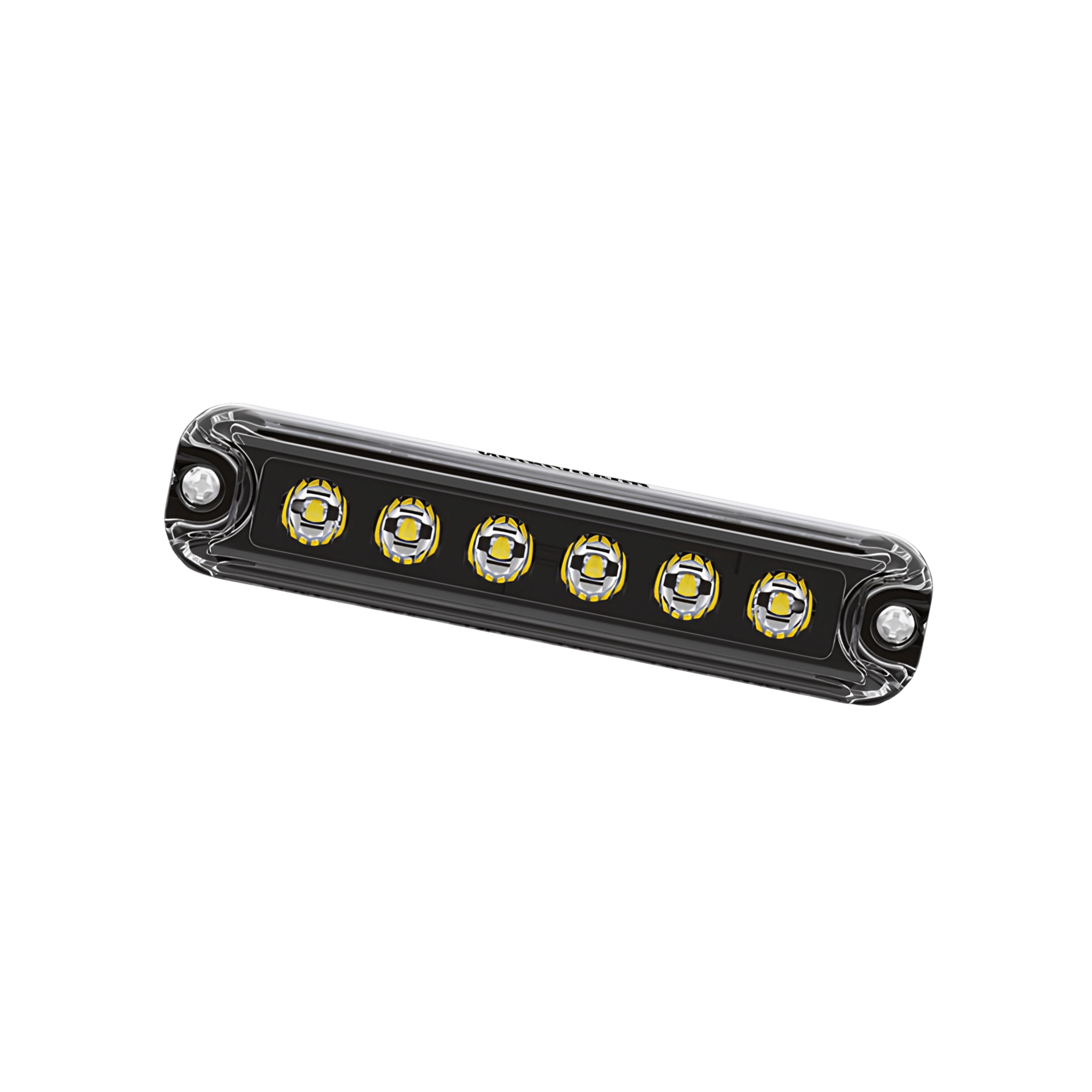

Roadvision RSM0706A LED Strobe Module - 10-30V Rectangle Surface Mount 18W Amber
High-output ultra low-profile LED strobe module delivering 18W of intense amber warning light with 18 selectable flash patterns, multi-unit synchronisation, and maintenance-free LED technology for demanding safety applications.
Product Overview
The Roadvision RSM0706A LED Strobe Module delivers high-output warning illumination in an ultra low-profile design perfect for demanding safety applications. This advanced strobe module provides the durability of maintenance-free LED technology with 6x 3W amber LEDs delivering intense, attention-grabbing warning illumination that enhances visibility in automotive, industrial, and agricultural applications. Featuring 18 selectable flash patterns including OFF, single, double (fast/slow), quadruple (fast/slow), quintuple, sextuple, split variations, and specialized patterns like LHS/RHS double with half bright, the RSM0706A allows extensive customization of warning patterns to suit specific requirements. The built-in pattern memory recall ensures the module returns to your selected pattern after power cycling. Multi-unit synchronisation capability enables multiple modules to flash simultaneously or in alternating patterns, creating coordinated warning light displays for maximum visibility. Measuring 130mm x 30mm x 10mm with an ultra low-profile design, the RSM0706A installs discretely on vehicles, equipment, and structures while delivering powerful 18W warning illumination for applications requiring enhanced output. The multi-volt 10-30V DC input ensures compatibility with both 12V and 24V electrical systems, drawing 1.5 amps at 13.8V for high-output operation. Built with rugged aluminium housing and virtually unbreakable polycarbonate lens, the RSM0706A is weatherproof, vibration resistant, and fully sealed against dust and water ingress for reliable operation in demanding environments. Rated to an impressive 100,000-hour LED lifespan with solid-state technology, this maintenance-free module eliminates bulb replacements and reduces downtime. The simple surface-mount design with 119mm mounting centres and color-coded wiring allows straightforward installation. Class 1 approved for professional safety applications and backed by Roadvision's comprehensive 5-year warranty, the RSM0706A simply takes safety lighting to another level with enhanced power output.
Features & Benefits
High-Output 18W Performance: 6x 3W amber LEDs deliver 50% more output than 12W models, providing intense warning illumination for demanding applications requiring maximum visibility in challenging conditions and longer detection distances.
Ultra Low-Profile Discrete Design: Measures just 130mm x 30mm x 10mm for ultra-discreet installation on vehicles, equipment, and structures where minimal profile is essential, providing powerful 18W warning illumination while maintaining the lowest possible height.
18 Selectable Flash Patterns: Extensive flash pattern selection includes OFF, single, double (fast/slow), quadruple (fast/slow), quintuple, sextuple, split variations, interval patterns, and specialized LHS/RHS patterns with last pattern memory recall for comprehensive customization.
Multi-Unit Synchronisation: Enables multiple modules to flash simultaneously or in alternating patterns for coordinated warning light displays, creating enhanced visibility and professional-looking safety installations with synchronized operation.
Intense Amber LED Output: 6x 3W amber LEDs deliver bright, attention-grabbing warning illumination with superior visibility in daylight and nighttime conditions while drawing 1.5 amps at 13.8V for high-output efficient operation.
Multi-Volt Compatibility: 10-30V DC input voltage range ensures compatibility with both 12V and 24V electrical systems, making this module suitable for cars, 4WDs, trucks, agricultural equipment, and industrial machinery without modifications.
Rugged Weatherproof Construction & Class 1 Approved: Aluminium housing and virtually unbreakable polycarbonate lens provide weatherproof, vibration-resistant performance. Solid-state LED technology with 100,000-hour lifespan, Class 1 approved, backed by 5-year warranty.
Technical Specifications
| Specification |
Details |
| Model Number |
RSM0706A |
| Product Name |
LED Strobe Module 10-30V Rectangle Surface Mount 18W Amber |
| Series |
RSM07 Ultra Low-Profile LED Strobe Module Series |
| LED Color |
Amber |
| Power Rating |
18W |
| Number of LEDs |
6 x 3W |
| Input Voltage |
10-30 VDC |
| Current Draw @ 13.8V |
1.5 Amp |
| Flash Patterns |
18 Selectable (OFF, Single, Double Fast/Slow, Quadruple Fast/Slow, Quintuple, Sextuple, Split variations, LHS/RHS patterns) |
| Synchronisation |
Simultaneous & Alternate |
| Pattern Memory |
Last Pattern Memory Recall |
| LED Lifespan |
100,000 hours |
| Lens Construction |
Polycarbonate (Virtually Unbreakable) |
| Housing Construction |
Aluminium |
| Mounting Type |
Surface Mount |
| Mounting Centres |
119mm |

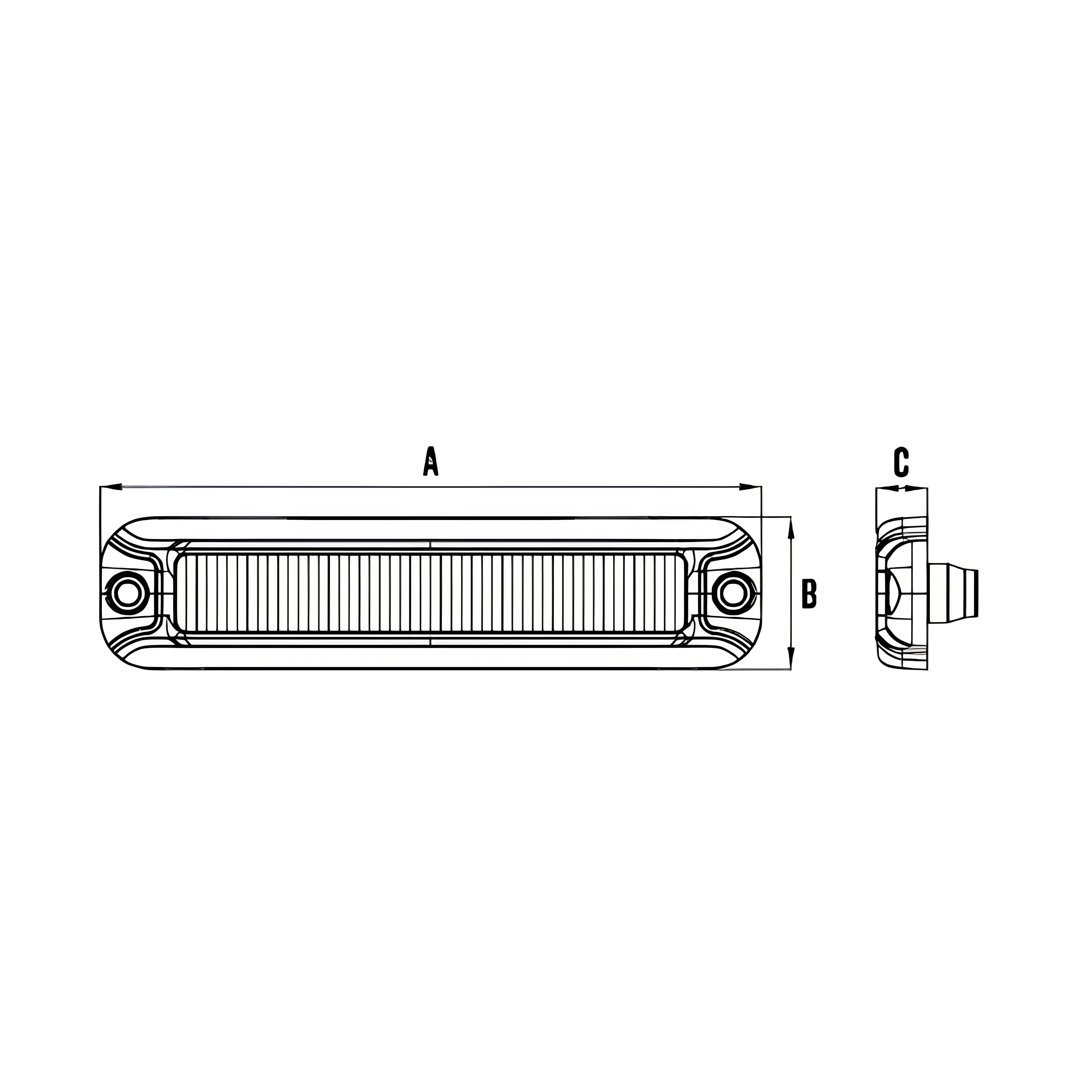

| Dimensions (L × W × H) |
130mm × 30mm × 10mm |
| Wiring Color Code |
Red: Positive, Black: Negative, Yellow: Flash Select & Sync, White: Alternate Flash |
| Ingress Protection |
Weatherproof & Dust Proof |
| Approval |
Class 1 Approved |
| Warranty |
5 Years |
Compatible With
The Roadvision RSM0706A LED Strobe Module is compatible with all vehicles and equipment operating on 10-30V DC electrical systems including cars, 4WDs, SUVs, utes, trucks, trailers, caravans, agricultural machinery, tractors, construction equipment, industrial machinery, emergency vehicles, tow trucks, service vehicles, mining equipment, and any application requiring discrete high-output amber warning/safety lighting. Multiple RSM0706A modules can be synchronized together for coordinated warning light displays. Can be paired with other RSM07 Series modules (RSM0704A, RSM0704W, RSM0706W) for multi-color warning light systems. Ideal for automotive, industrial, agricultural, construction, emergency services, roadside assistance, and safety applications requiring Class 1 approved high-output warning lights with ultra low-profile design.
Frequently Asked Questions
What is the difference between the 12W (RSM0704A) and 18W (RSM0706A) amber models? The RSM0706A delivers 50% more output with 6x 3W LEDs (18W total) compared to the RSM0704A's 4x 3W LEDs (12W total), providing enhanced visibility for demanding applications. The RSM0706A is slightly longer (130mm vs 98mm) but maintains the same ultra low-profile 10mm height.
How do I synchronize multiple modules? Multiple RSM0706A modules can be synchronized using the yellow (Flash Select & Sync) wire and white (Alternate Flash) wire. Connect these wires between modules to achieve simultaneous or alternating flash patterns for coordinated warning light displays with enhanced visibility.
What is the difference between RSM06 and RSM07 Series? The RSM07 Series features an ultra low-profile design at just 10mm height (vs 11mm for RSM06) and includes 18 selectable flash patterns (vs 10 for RSM06), providing more customization options and an even more discrete installation profile.
Can this module be used on both 12V and 24V vehicles? Yes, the RSM0706A features multi-volt 10-30V DC input, making it compatible with both 12-volt cars, 4WDs, and light equipment and 24-volt trucks, heavy equipment, and industrial machinery without any modifications required.
What applications benefit most from the 18W output? The RSM0706A's 18W output is ideal for larger vehicles, construction equipment, agricultural machinery, emergency vehicles, or any application requiring maximum warning visibility over longer distances or in challenging conditions where enhanced output is essential.
