Description
Roadvision RWL1120FFM LED Work Light 20W Flood Beam Flush Mount 526lm 9-36V
A compact 20W flood beam flush mount LED work light from the Roadvision RWL1120 Series, the RWL1120FFM delivers 526 lumens from 2 x 10W LEDs with a beam distance of 60 metres at 1 lux, in a lightweight die-cast aluminium housing with polycarbonate lens, 9-36V DC multi-volt input, 2-pin Deutsch plug, and a 72 x 50mm panel cutout for flush installation, backed by a 5-year warranty.
Product Overview
The Roadvision RWL1120FFM is a rectangle flush mount LED work light from the RWL1120 Series, sharing the same LED array, output, beam pattern, and electrical specifications as the surface mount RWL1120F but designed for flush panel installation via a 72 x 50mm cutout. Two 10W LEDs produce 526 lumens of super-white flood beam light close to daylight colour temperature, with 29 lux at 6 metres and a beam reach of 60 metres at 1 lux. The 109 x 59 x 55mm die-cast aluminium housing with polycarbonate lens provides durability and effective heat management. Multi-volt 9-36V DC input at 1.4A at 13.8V, over/under voltage and reverse polarity protection, EMI/EMC radio interference approval, and 2-pin Deutsch plug for simple 2-wire installation. Backed by a 5-year warranty.
Features & Benefits
526 Lumens Flood Beam - 60 Metres at 1 Lux: The RWL1120FFM delivers 526 lumens of flood beam output with 29 lux at 6 metres and a beam reach of 60 metres at 1 lux, providing broad area illumination suited to flush-mounted work lighting applications.
2 x 10W LEDs - Super White Daylight-Close Output: Two 10W LEDs produce a super-white output close to daylight colour temperature for accurate colour rendering and clear visibility during work operations.
Flush Mount Design with 72 x 50mm Panel Cutout: The RWL1120FFM is designed for flush panel installation via a 72 x 50mm cutout, providing a clean, recessed appearance suited to toolboxes, service bodies, and vehicle panels where a flush finish is preferred.
Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight die-cast aluminium housing at 109 x 59 x 55mm provides structural rigidity and effective heat dissipation, while the polycarbonate lens resists impact and UV degradation.
50,000 Hour LED Lifespan with Solid-State Technology: The 50,000 hour rated lifespan with maintenance-free solid-state technology provides long-term reliability.
Multi-Volt 9-36V DC with Low Current Draw: Compatible with 12V, 24V, and 36V electrical systems at 1.4A at 13.8V.
Over/Under Voltage and Reverse Polarity Protection: Electronic protection safeguards the LED driver from voltage fluctuations and wiring errors.
EMI/EMC Radio Interference Approved: Confirmed compatible with vehicle communication and electronic systems without interference.
2-Pin Deutsch Plug for Simple 2-Wire Installation: Secure, weatherproof, and vibration-resistant 2-wire connection.
5-Year Warranty: Backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RWL1120FFM |
| Brand |
Roadvision |
| Series |
RWL1120 |
| Description |
LED Work Light 9-36V Rectangle 20W Flood Beam Flush Mount |
| Beam Type |
Flood Beam |
| Maximum Lumens |
526lm |
| Total Watts |
20W |
| Light Source |
2 x 10W LEDs |
| Input Voltage |
9-36V DC |
| Current Draw |
1.4A at 13.8V DC |
| Lux at 6m |
29 Lux |
| Beam Distance at 1 Lux |
60m |

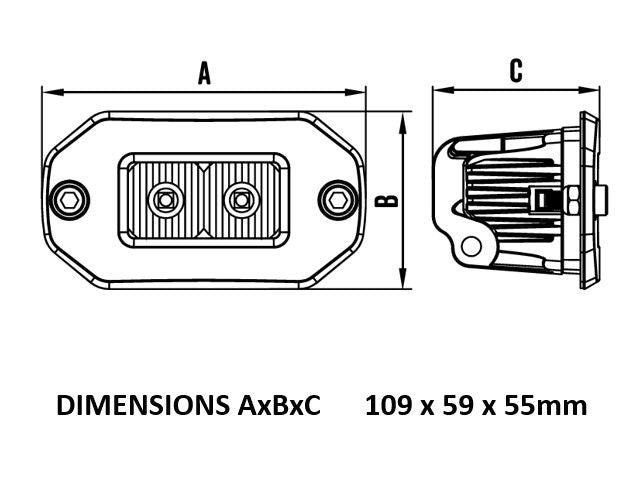

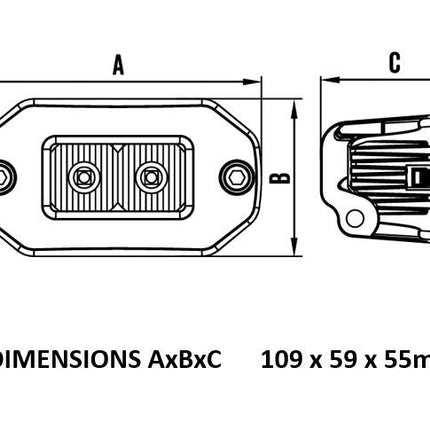

| Dimensions |
109mm x 59mm x 55mm |
| Mount Type |
Flush Mount |
| Cutout Required |
72mm x 50mm |
| Wiring |
2-Pin Deutsch Plug |
| Lens Construction |
Polycarbonate |
| Housing Construction |
Die-Cast Aluminium |
| Protection |
Over/Under Voltage, Reverse Polarity |
| EMI/EMC |
Radio Interference Approved |
| LED Lifespan |
50,000 Hours |
| Warranty |
5 Years |
Compatible With
The RWL1120FFM is compatible with 9-36V DC electrical systems including 12V, 24V, and 36V vehicle and equipment platforms. Requires a 72 x 50mm panel cutout for flush installation. The 2-pin Deutsch plug provides a secure weatherproof 2-wire connection. A surface mount version without cutout requirement is available as the RWL1120F.
Frequently Asked Questions
What size panel cutout does the RWL1120FFM require?
The RWL1120FFM requires a 72 x 50mm panel cutout for flush installation. Confirm the cutout dimensions are achievable in your specific panel or surface before purchase.
What is the difference between the RWL1120FFM and the RWL1120F?
Both share identical LED configuration, output, beam pattern, and electrical specifications. The RWL1120F is a surface mount unit measuring 71 x 62 x 55mm requiring no cutout. The RWL1120FFM is a flush mount unit measuring 109 x 59 x 55mm requiring a 72 x 50mm panel cutout for a recessed installation finish. Choose based on the installation surface and preferred mounting style.
Is the RWL1120FFM compatible with 24V vehicles?
Yes. The RWL1120FFM operates across 9-36V DC, making it compatible with 12V, 24V, and 36V electrical systems.
What is the beam pattern of the RWL1120FFM?
The RWL1120FFM produces a flood beam pattern delivering 526 lumens with 29 lux at 6 metres and a beam reach of 60 metres at 1 lux.
What is the rated LED lifespan of the RWL1120FFM?
The RWL1120FFM has a rated LED lifespan of 50,000 hours with maintenance-free solid-state technology.
