Description

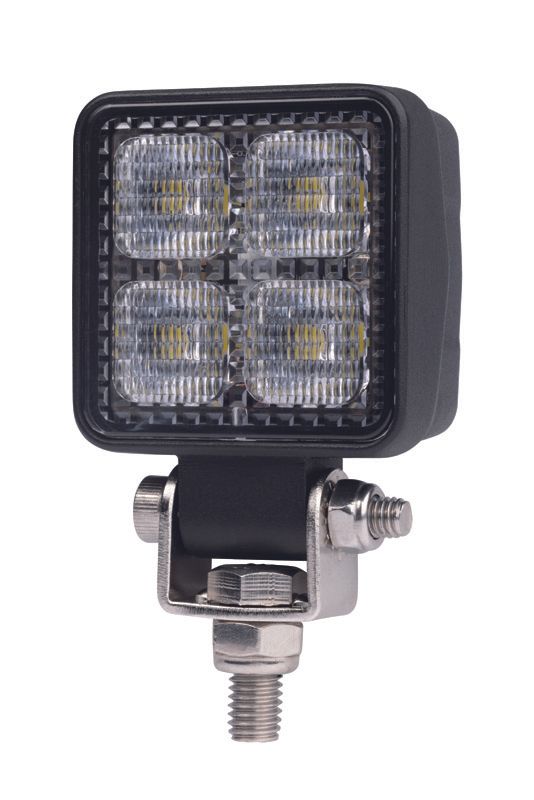

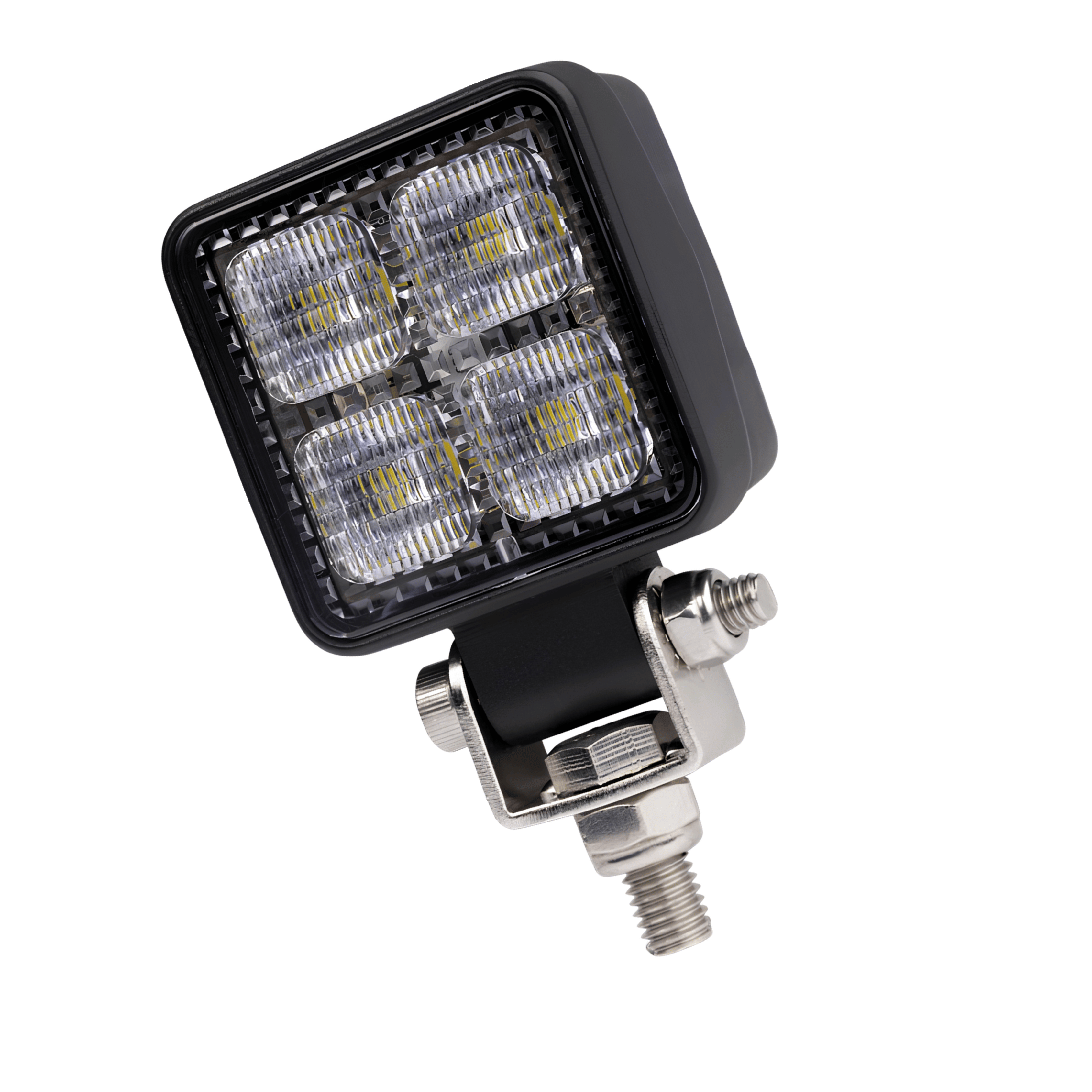

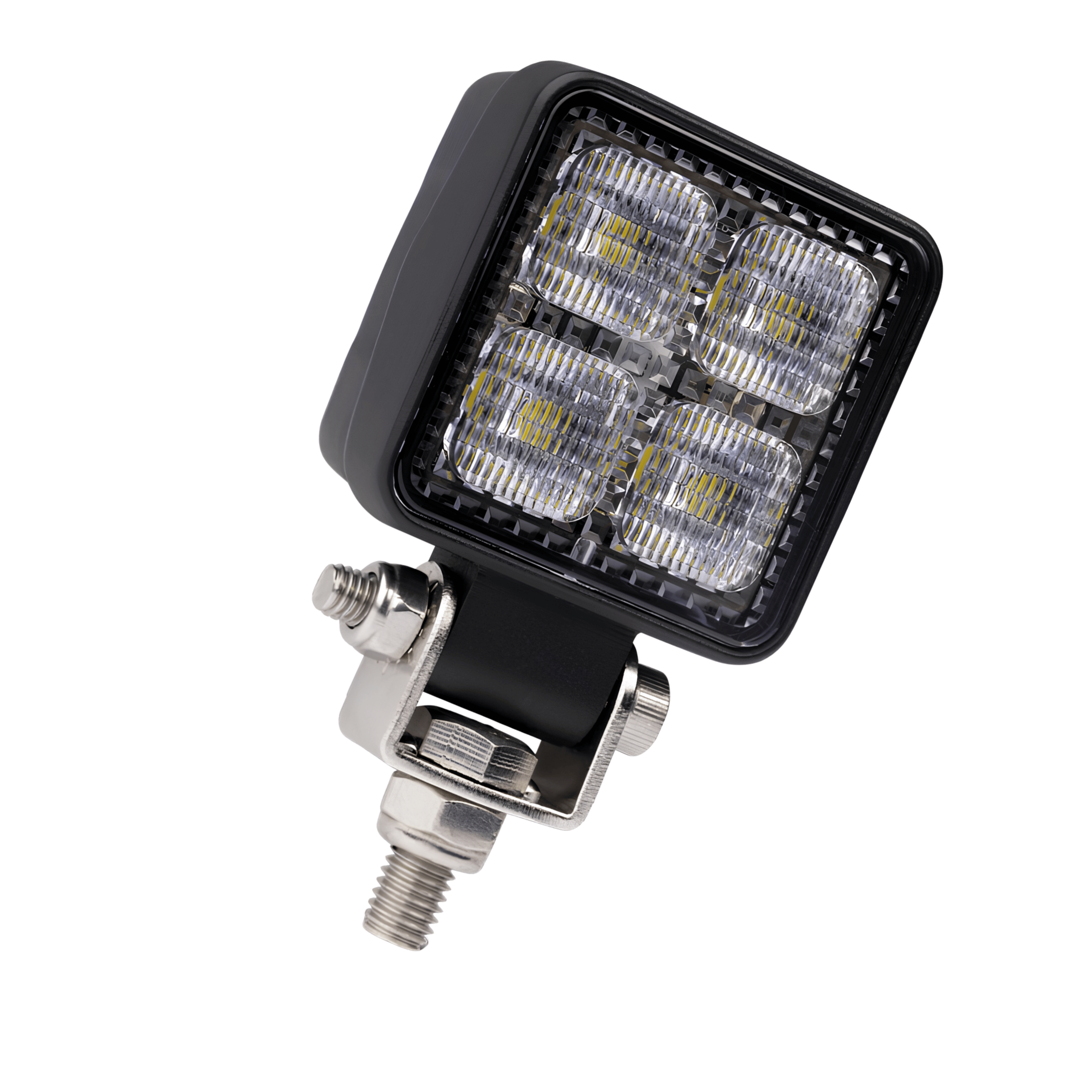

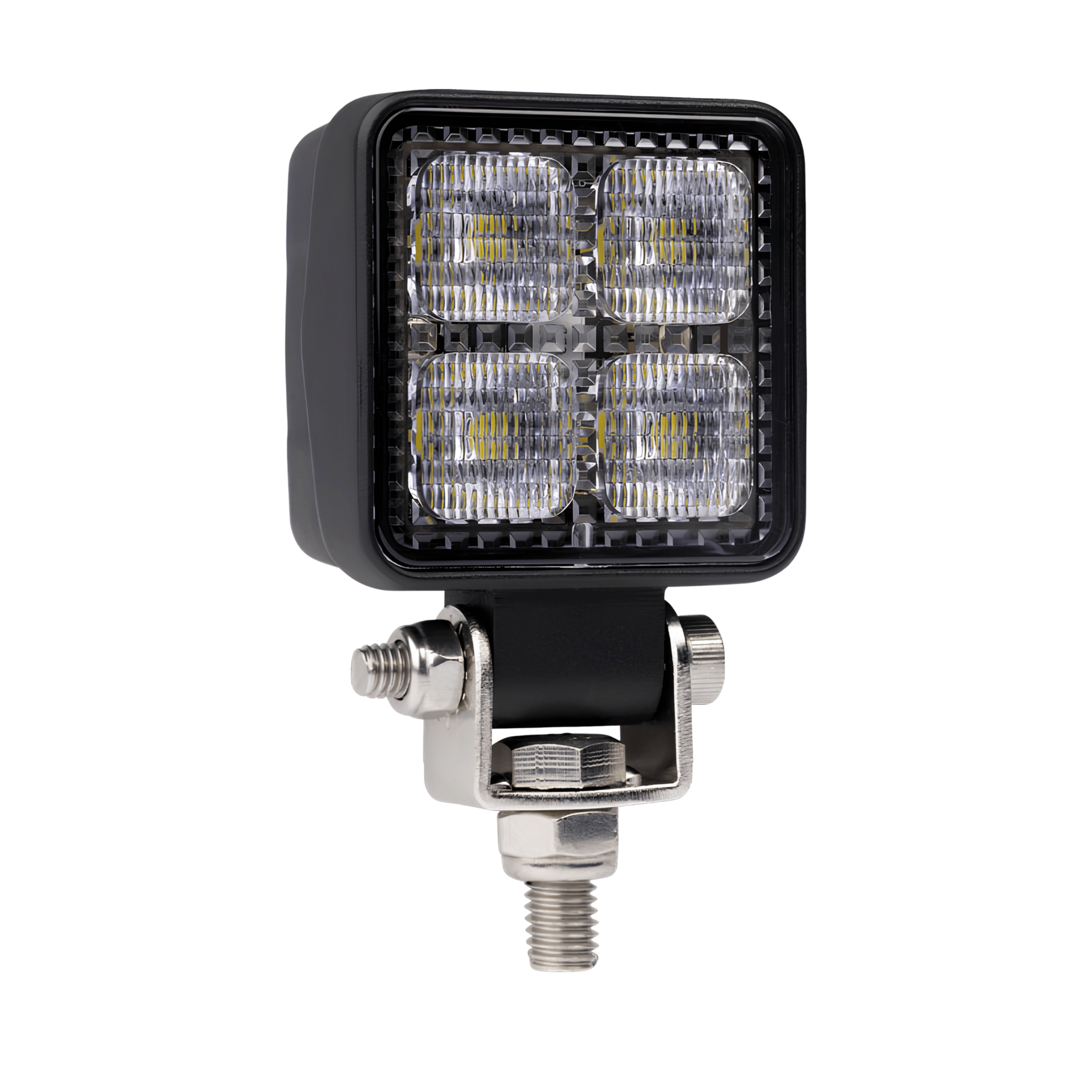

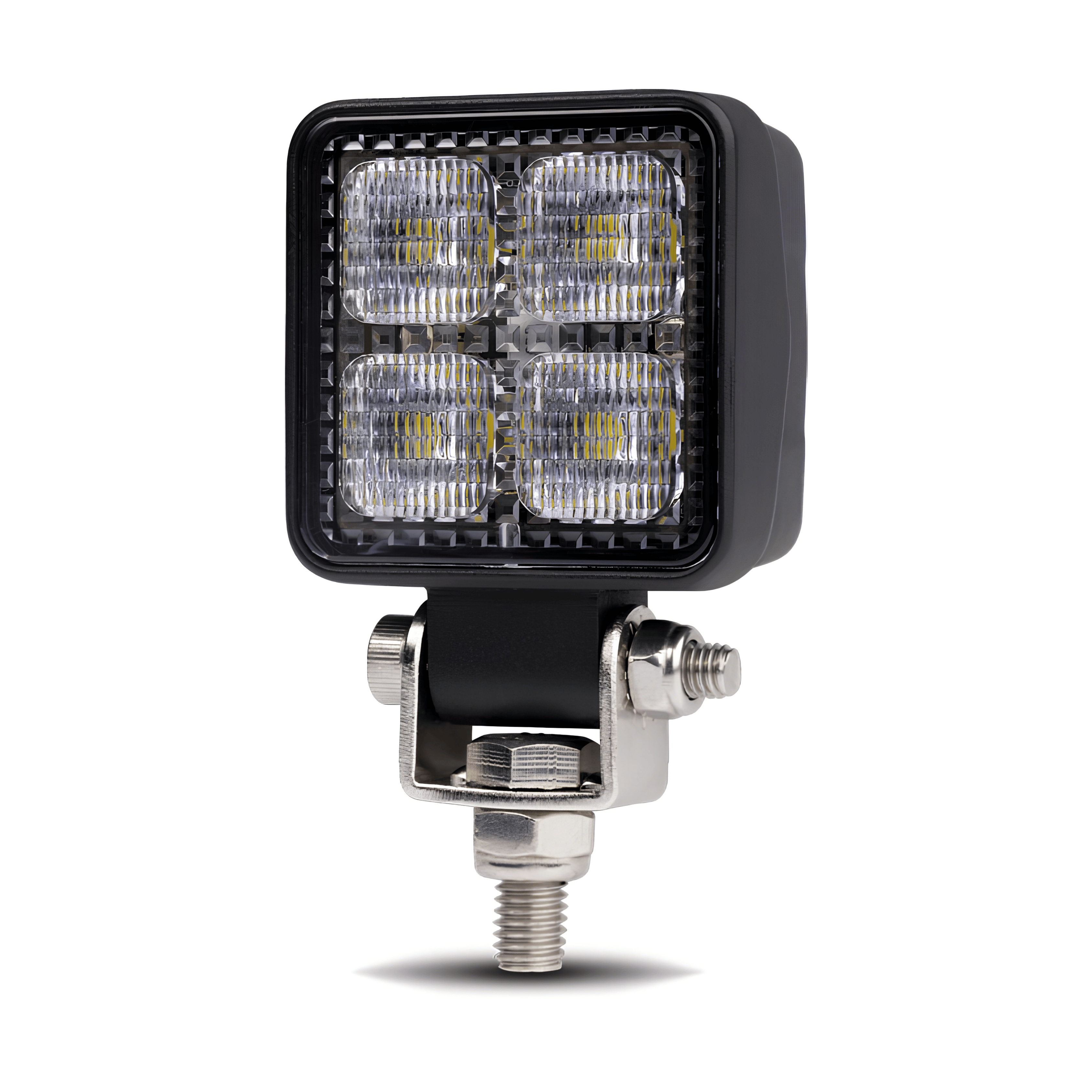

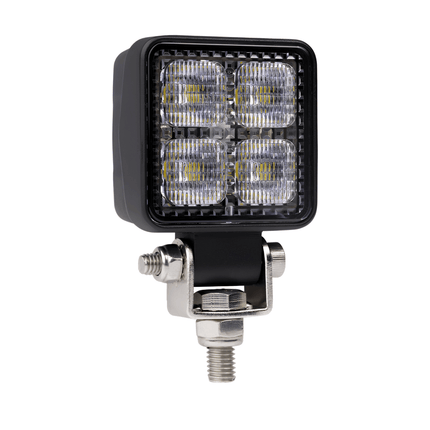

Roadvision RWL1252F Mid-Size LED Work Light 12W Flood Beam IP67
A mid-size 12W LED work lamp from the Roadvision RWL1252 Series, the RWL1252F produces up to 900 lumens of instant light from 8 x 1.5W LEDs through a flood beam, with 10-30V DC multi-volt input, IP67 water and dust proof rating, die-cast aluminium housing, polycarbonate lens, CTA approval for reverse function, and a 5-year warranty.
Product Overview
The Roadvision RWL1252F is a versatile mid-size work lamp offering uncompromised performance and energy efficiency in an easy to install package. Small enough at 52 x 32 x 75mm to fit most applications yet big enough to pack a punch, it produces up to 900 lumens of instant light from eight 1.5W LEDs that deliver super white light close to daylight, spread across a flood beam pattern rated at 13 lux at 10 metres and 36 metres at 1 lux.
The super durable, lightweight die-cast aluminium housing and polycarbonate lens are water and dust proof to IP67 for worry-free operation in even the toughest conditions. The multi-volt 10-30V DC input draws a super low 0.75 amps at 13.8V, and solid-state technology delivers a 50,000 hour LED lifespan. Installation is a simple 2-wire connection via the 450mm lead, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in. The RWL1252F also carries CTA approval for reverse function.
Features & Benefits
Mid-Size 12W Flood Beam Work Light: The RWL1252F produces up to 900 lumens of instant light output through a flood beam pattern, delivering 13 lux at 10 metres and 36 metres at 1 lux for even coverage of the immediate work area.
8 x 1.5W LEDs: Eight 1.5W LEDs produce super white light close to daylight, improving visibility and reducing eye strain during night work compared to warmer light sources.
Compact Fit-Anywhere Body: At just 52 x 32 x 75mm, the RWL1252F is small enough to fit most applications, from utes and 4WDs to trailers, machinery, and tight mounting spots.
CTA Approved Reverse Function: The RWL1252F carries CTA approval CTA-062223 for reverse function, allowing it to double as a reverse lamp.
50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the long service life typical of work vehicle and machinery applications.
IP67 Water and Dust Proof: The RWL1252F is water and dust proof to IP67, allowing worry-free operation in wet, muddy, and dusty conditions.
Die-Cast Aluminium Housing with Polycarbonate Lens: The super durable, lightweight die-cast aluminium housing and polycarbonate lens provide reliability in even the toughest conditions.
Multi-Volt 10-30V DC with Super Low Current Draw: The 10-30V DC multi-volt input draws just 0.75 amps at 13.8V, making the RWL1252F compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.
Simple 2-Wire Installation: The 450mm 2-wire lead makes for a quick, straightforward connection, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.
5-Year Warranty: The RWL1252F is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RWL1252F |
| Brand |
Roadvision |
| Series |
RWL1252 |
| Description |
LED Work Lamp Flood Beam 10-30V 8 x 1.5W LEDs 12W IP67 |
| Beam Type |
Flood Beam |
| Maximum Lumens |
900lm |
| Maximum Watts |
12W |
| Light Source |
8 x 1.5W LEDs |
| Input Voltage |
10-30V DC |
| Current Draw |
0.75A at 13.8V |
| Lux at 10m |
13LX |
| Distance at 1 Lux |
36m |
| Lens |
Polycarbonate |
| Housing |
Die-Cast Aluminium |
| IP Rating |
IP67 |
| Wiring |
2 Wire, 450mm Long |

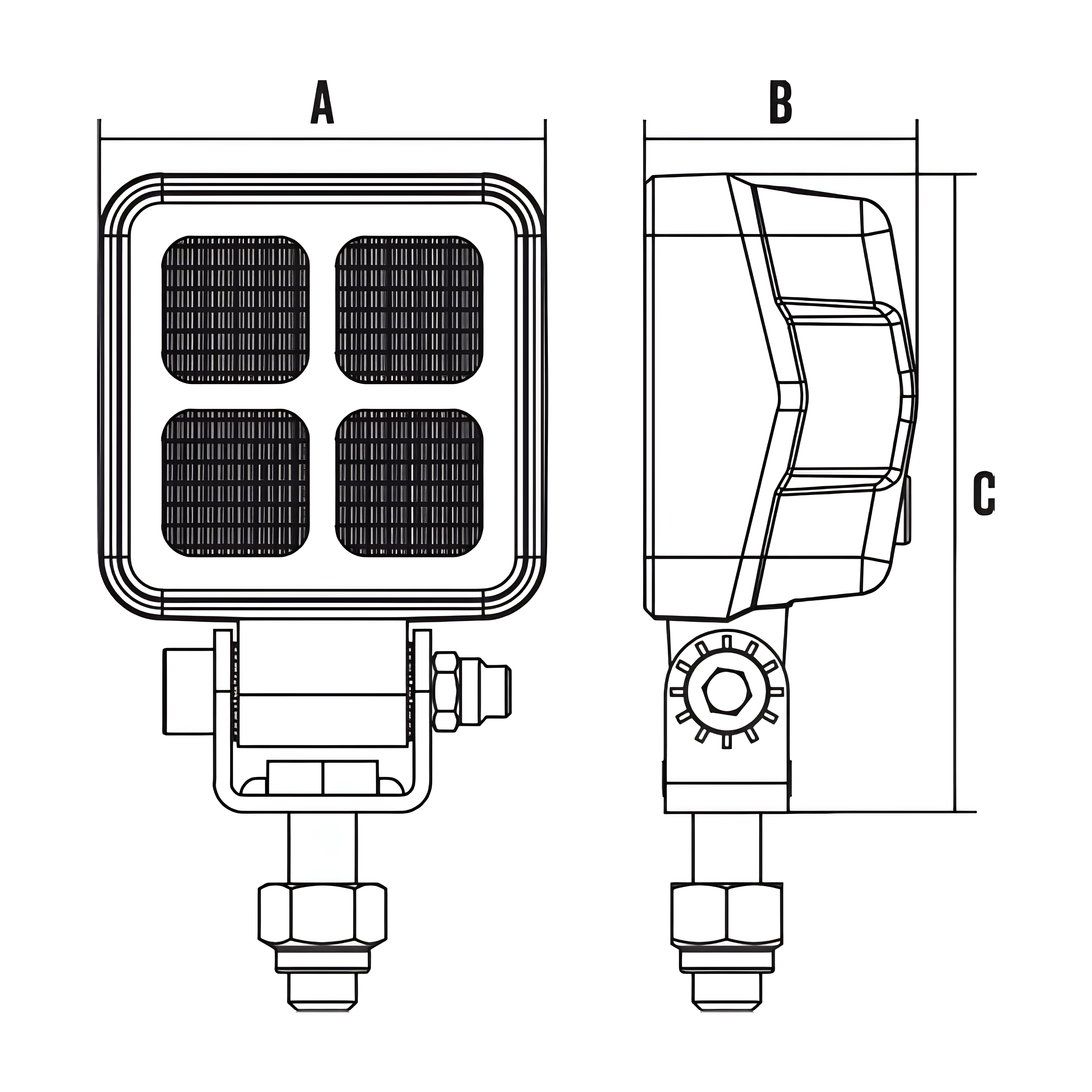

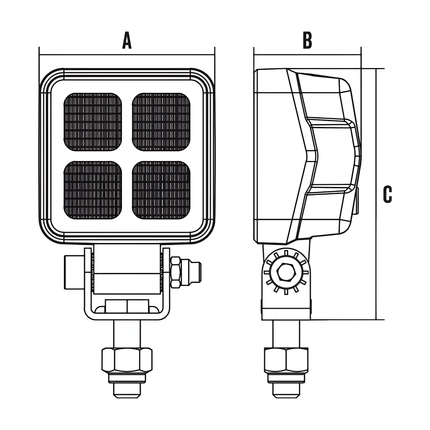

| Dimensions |
52 x 32 x 75mm |
| CTA Approval |
Reverse Function - CTA-062223 |
| LED Lifespan |
50,000 Hours |
| Warranty |
5 Years |
Compatible With
The RWL1252F is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles, and carries CTA approval CTA-062223 for use as a reverse lamp. Confirm mounting space and wiring access before purchase.
Frequently Asked Questions
How bright is the RWL1252F?
The RWL1252F produces up to 900 lumens of instant light from 8 x 1.5W LEDs, delivering 13 lux at 10 metres and 36 metres at 1 lux through a flood beam pattern.
Can the RWL1252F be used as a reverse light?
Yes. The RWL1252F carries CTA approval CTA-062223 for reverse function, allowing it to be installed as a reverse lamp.
Is the RWL1252F compatible with 24V vehicles?
Yes. The RWL1252F operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
Is the RWL1252F waterproof?
Yes. The RWL1252F is water and dust proof to IP67, with a die-cast aluminium housing and polycarbonate lens built for worry-free operation in tough conditions.
How does the RWL1252F connect to the vehicle?
The RWL1252F uses a simple 2-wire installation with a 450mm lead, and includes over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval.
