Description

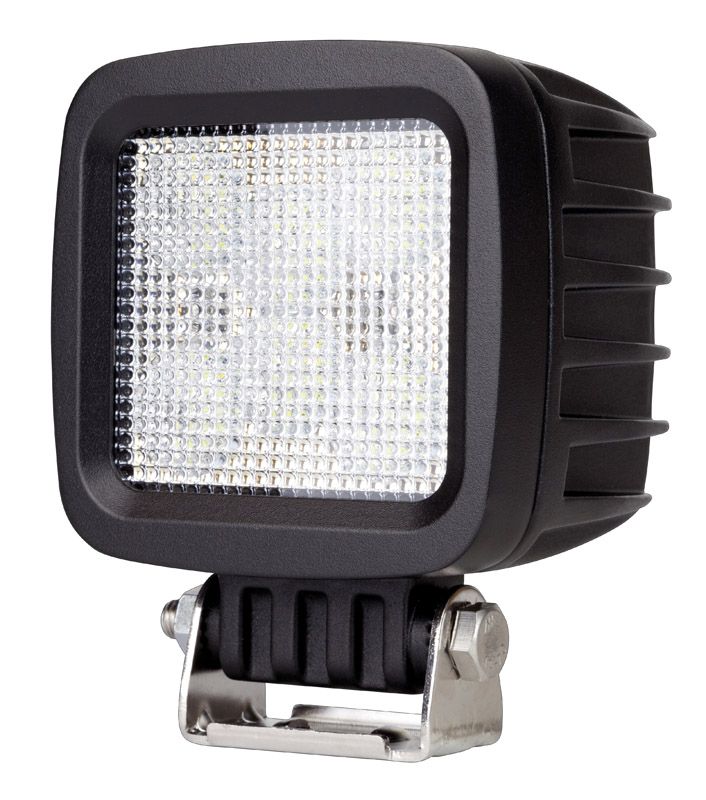

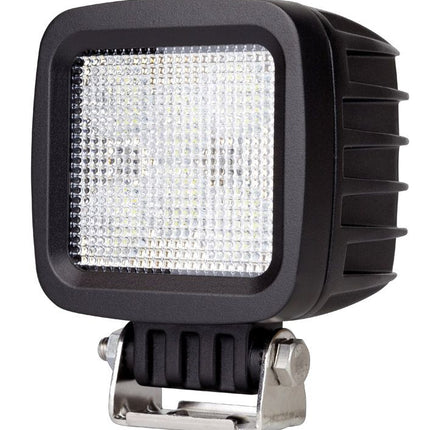

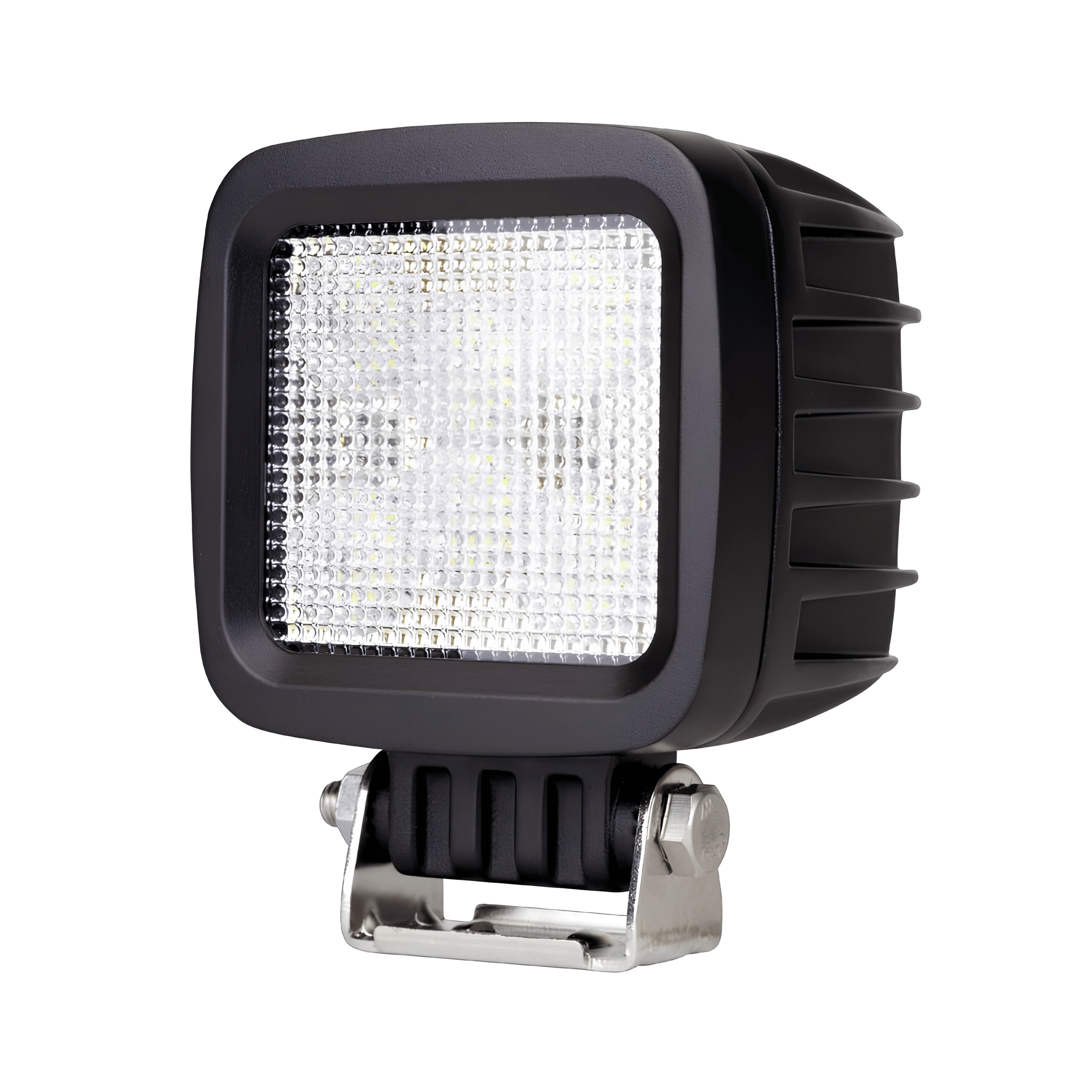

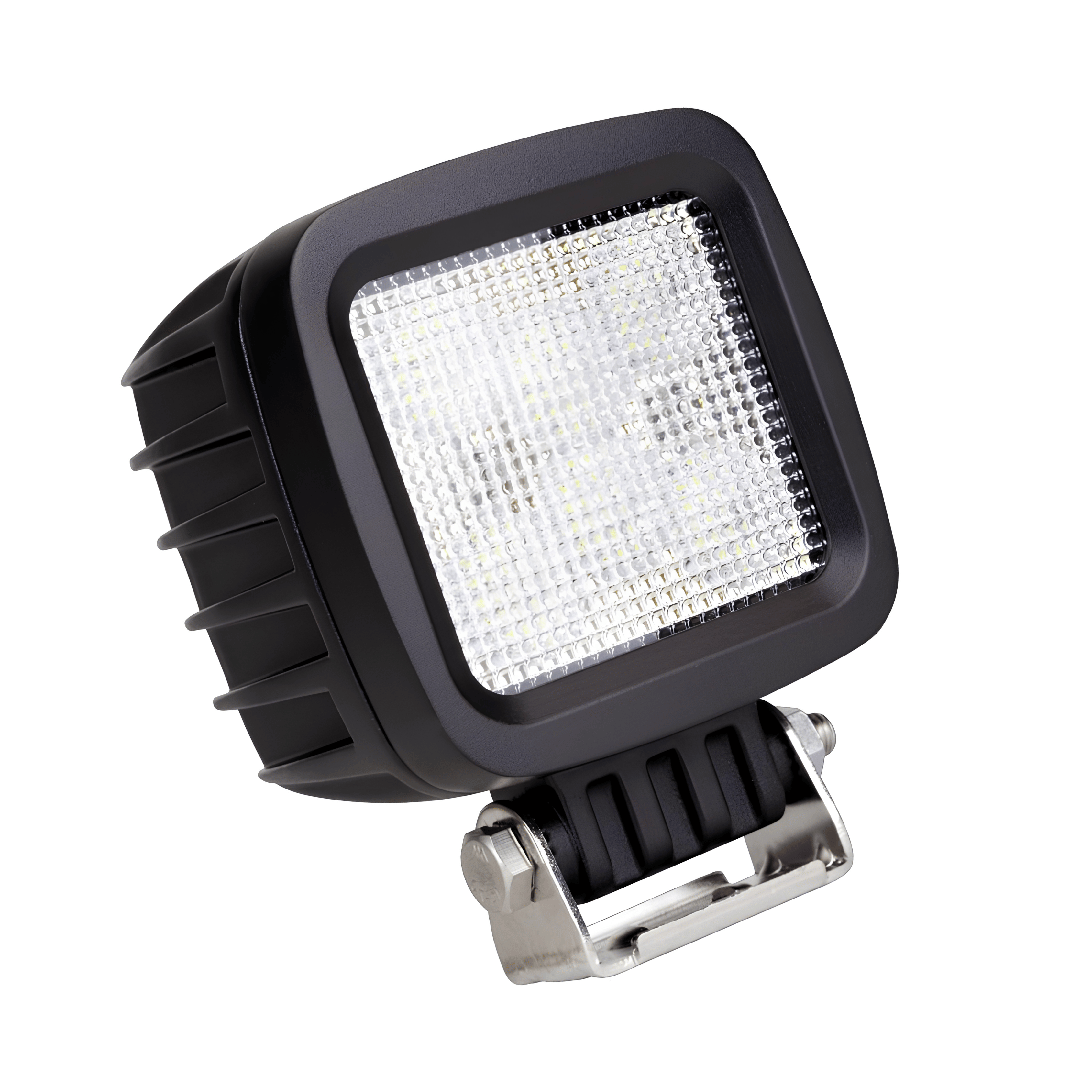

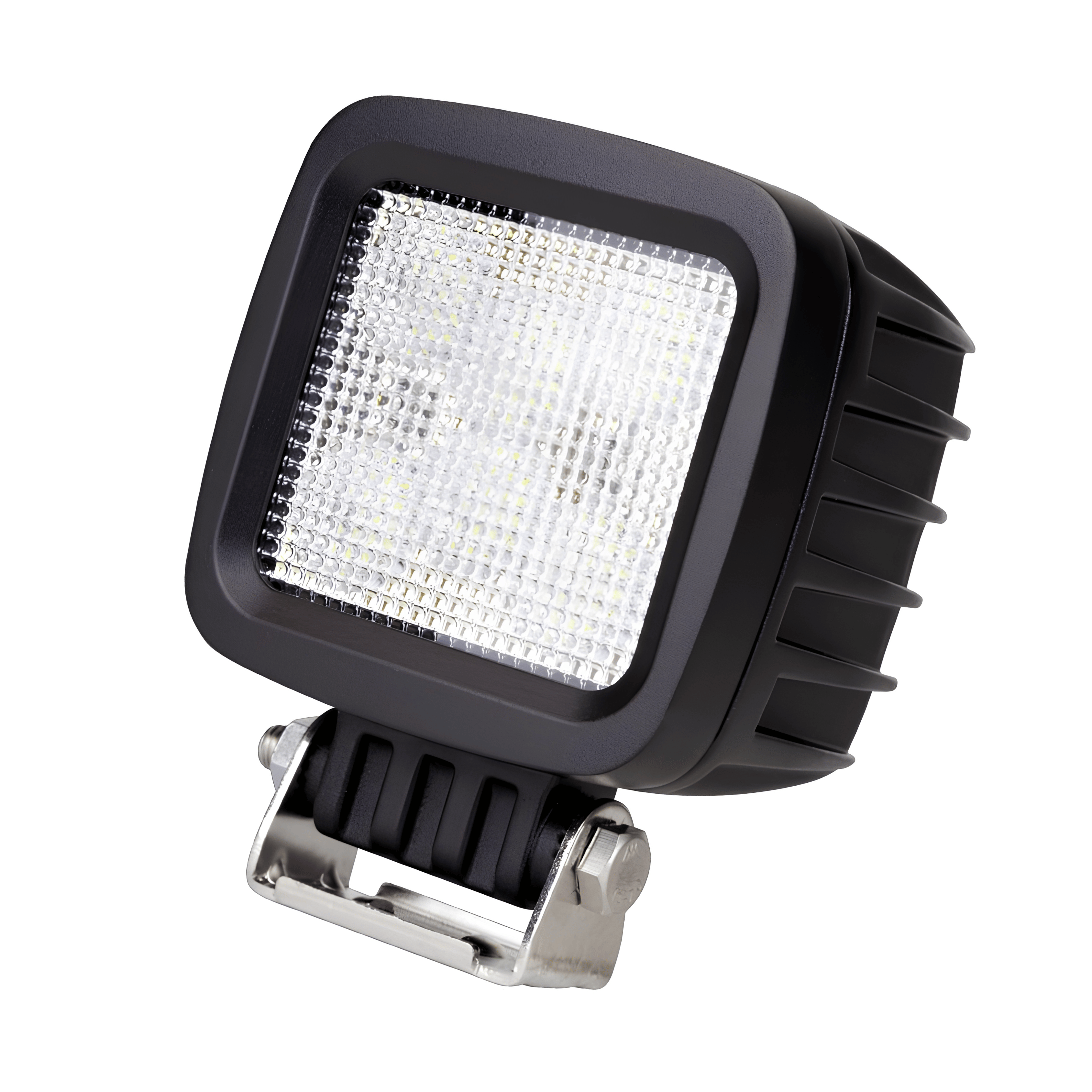

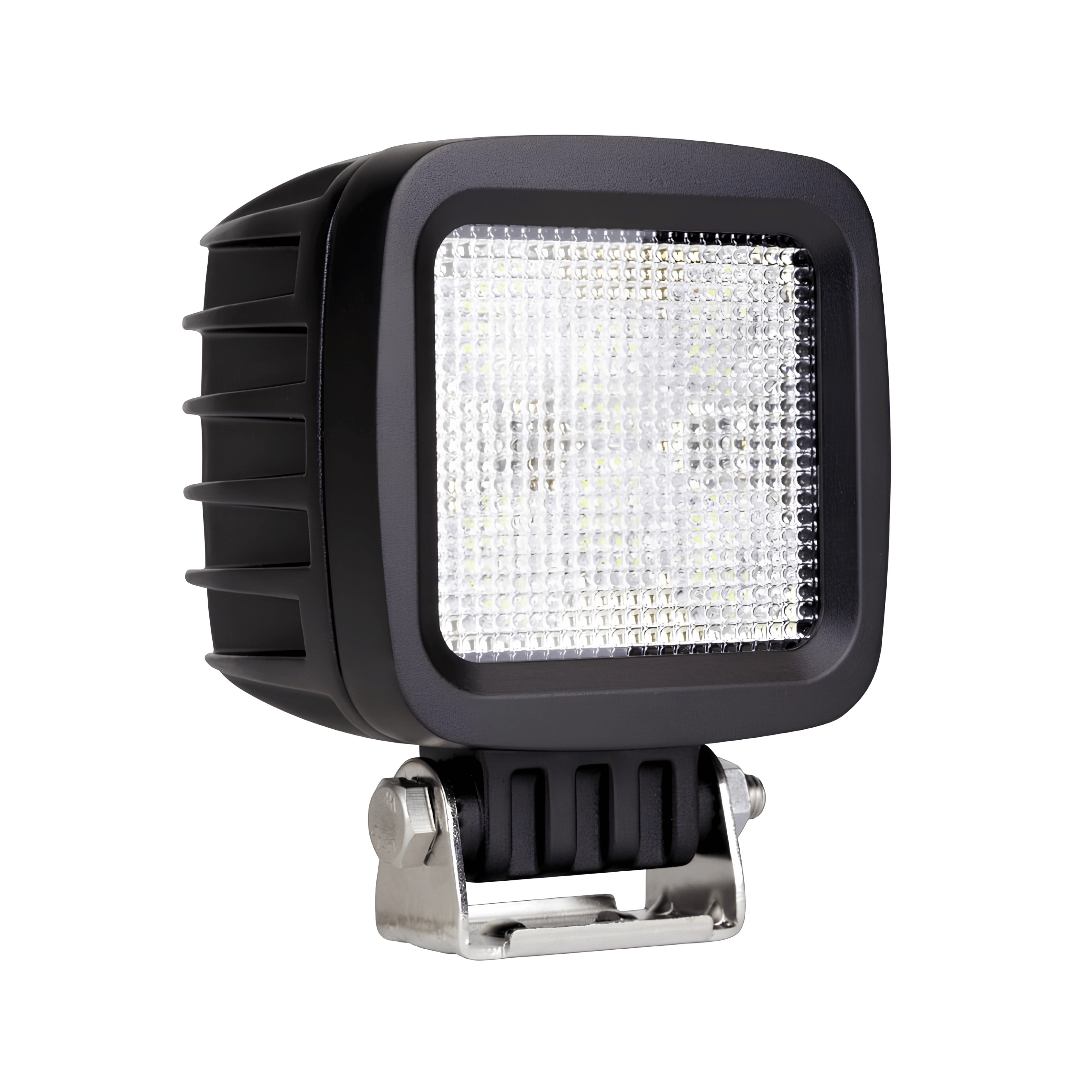

Roadvision RWL530F Heavy Duty LED Work Light 30W Flood Beam
A heavy duty 30W LED work light from the Roadvision RWL500 Series, the RWL530F produces 2700 effective lumens from 6 x 5W Cree LEDs through a flood beam pattern, with 10-30V DC multi-volt input, IP67 water and dust proof rating, die-cast aluminium housing, polycarbonate lens, 2-pin Deutsch plug wiring, and a 5-year warranty.
Product Overview
The Roadvision RWL530F is a heavy duty LED work lamp from the RWL500 Series, designed to withstand the vibration and harshness of Australia's toughest environments. Six 5W Cree LEDs produce 2700 effective lumens of super white light close to daylight, spread across a flood beam pattern that delivers 5 lux at 10 metres, 22 metres at 1 lux, and a 45 metre beam distance at 0.5 lux for broad work area coverage.
The 100 x 82 x 128mm body pairs a lightweight, tough die-cast aluminium housing with a polycarbonate lens, and is water and dust proof to IP67. The multi-volt 10-30V DC input draws a super low 2.2 amps at 13.8V, and solid-state technology delivers a 50,000 hour LED lifespan. Installation is a simple 2-wire connection via the 2-pin Deutsch plug, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.
Features & Benefits
Heavy Duty 30W Flood Beam Work Light: The RWL530F is built to withstand the vibration and harshness of Australia's toughest environments, producing 2700 effective lumens through a flood beam pattern for broad, even work area coverage.
6 x 5W Cree LEDs: Six high performance 5W Cree LEDs produce super white light close to daylight, improving visibility and reducing eye strain during night work compared to warmer light sources.
Instant Light Output with Measured Performance: The flood beam delivers 5 lux at 10 metres, 22 metres at 1 lux, and a 45 metre beam distance at 0.5 lux, providing dependable illumination across the immediate work area.
50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the long service life typical of trucks, machinery, agricultural, and 4WD applications.
IP67 Water and Dust Proof: The RWL530F is water and dust proof to IP67, allowing reliable operation in wet, muddy, and dusty conditions.
Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight, tough die-cast aluminium housing and polycarbonate lens provide durability in demanding industrial and off-road environments.
Multi-Volt 10-30V DC with Super Low Current Draw: The 10-30V DC multi-volt input draws just 2.2 amps at 13.8V, making the RWL530F compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.
Simple 2-Wire Installation with Deutsch Plug: The 2-pin Deutsch plug and simple 2-wire installation make for a quick, professional connection to the vehicle wiring.
Built-In Circuit Protection: Over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval protect both the lamp and the vehicle's electrical and communication equipment.
5-Year Warranty: The RWL530F is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RWL530F |
| Brand |
Roadvision |
| Series |
RWL500 Heavy Duty |
| Description |
5 Series LED Work Lamp 30W Flood |
| Beam Type |
Flood Beam |
| Lumens Light Output (Effective) |
2700lm |
| Total Watts |
30W |
| Light Source |
6 x 5W Cree LEDs |
| Input Voltage |
10-30V DC |
| Current Draw |
2.2A at 13.8V DC |
| Lux at 10m |
5 Lux |
| Metres at 1 Lux |
22m |
| Metres at 0.5 Lux |
45m |
| Beam Distance |
45m |
| Lens |
Polycarbonate |
| Housing |
Die-Cast Aluminium |
| IP Rating |
IP67 |
| Wiring |
2 Pin Deutsch Plug |
| Dimensions |
100 x 82 x 128mm |
| LED Lifespan |
50,000 Hours |
| Warranty |
5 Years |
Compatible With
The RWL530F is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles. The RWL500 Series is also available as a 90W spot beam (RWL590S) for long distance illumination. Confirm mounting space and wiring access before purchase.
Frequently Asked Questions
How bright is the RWL530F?
The RWL530F produces 2700 effective lumens from 6 x 5W Cree LEDs, delivering 5 lux at 10 metres, 22 metres at 1 lux, and a 45 metre beam distance at 0.5 lux through a flood beam pattern.
Is the RWL530F compatible with 24V vehicles?
Yes. The RWL530F operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
Is the RWL530F waterproof?
Yes. The RWL530F is water and dust proof to IP67, with a die-cast aluminium housing and polycarbonate lens built for reliable operation in tough conditions.
How does the RWL530F connect to the vehicle?
The RWL530F uses a 2-pin Deutsch plug with simple 2-wire installation, and includes over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval.
What is the difference between the RWL530F and RWL590S?
The RWL530F is the 30W flood beam model producing 2700 effective lumens for wide work area coverage, while the RWL590S is the 90W spot beam model producing 7200 effective lumens with a 438 metre beam distance for long range illumination.
