Description

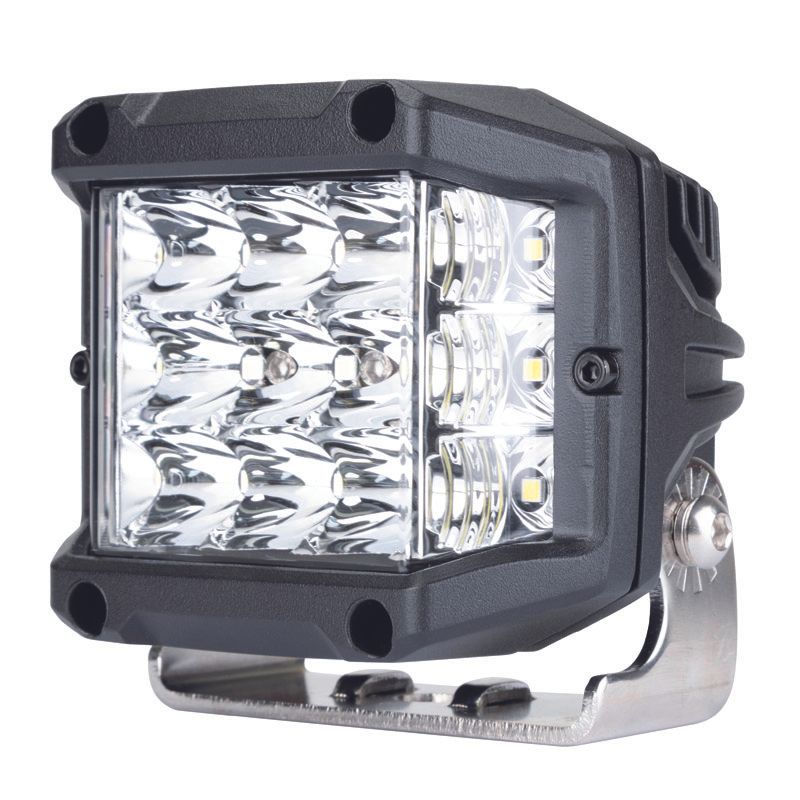

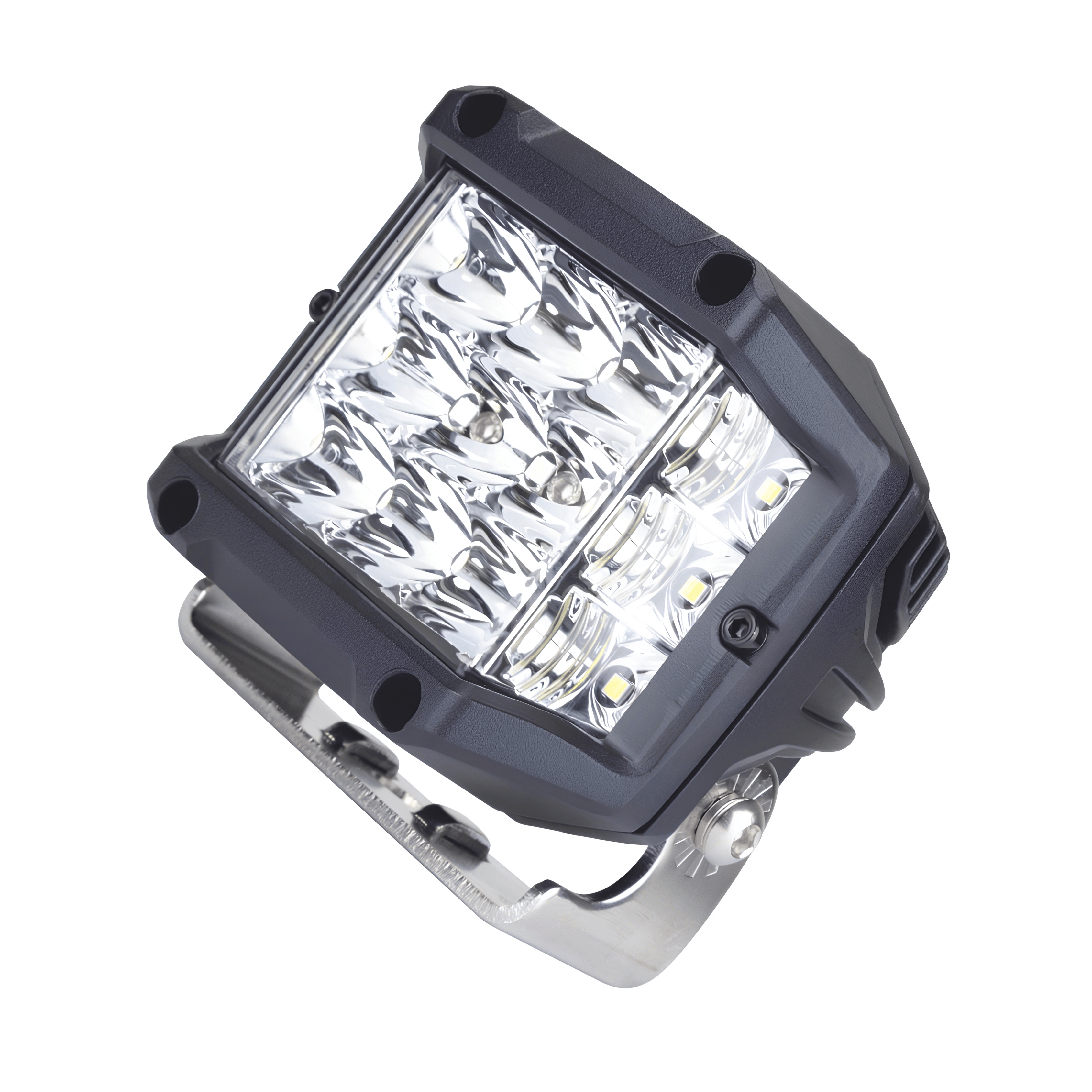

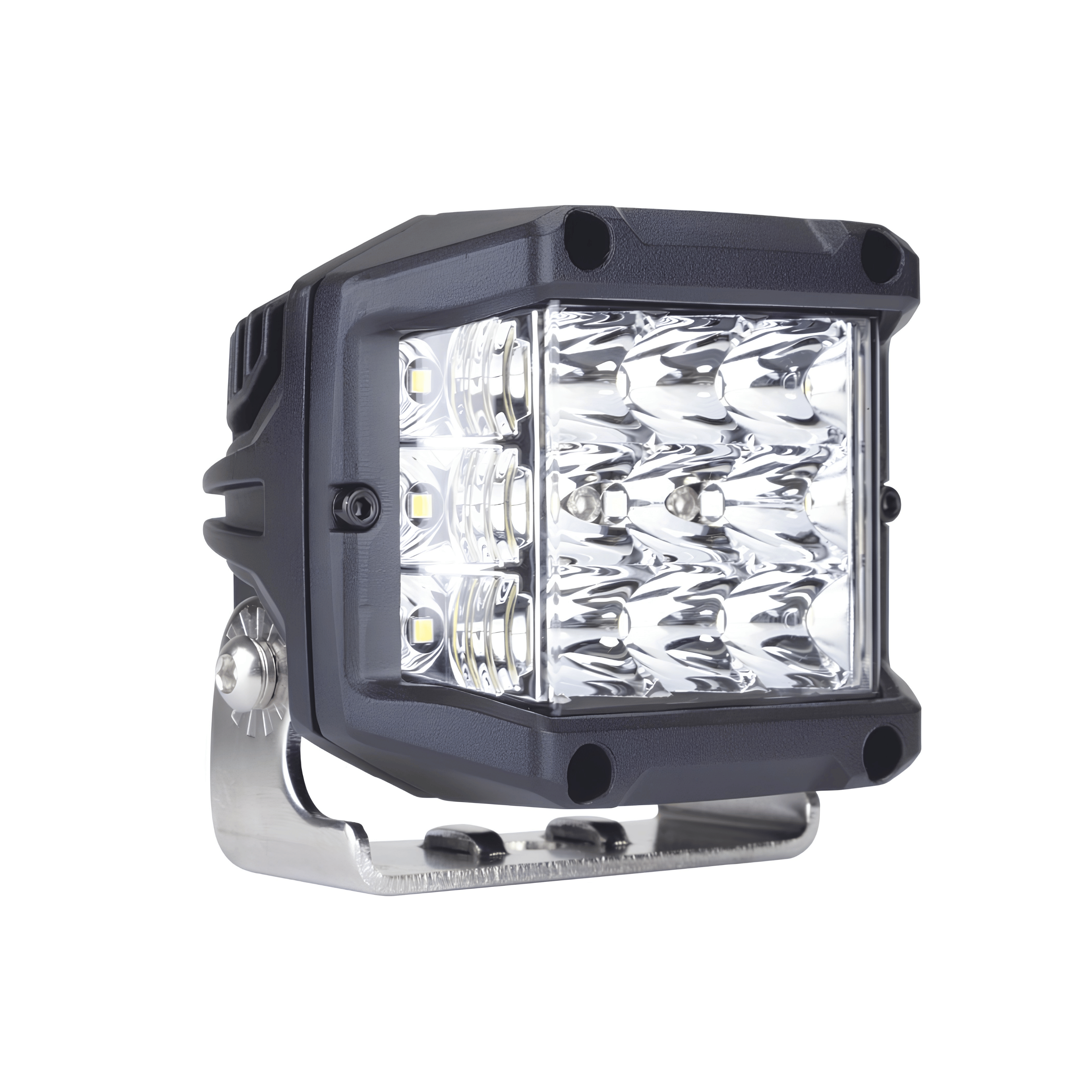

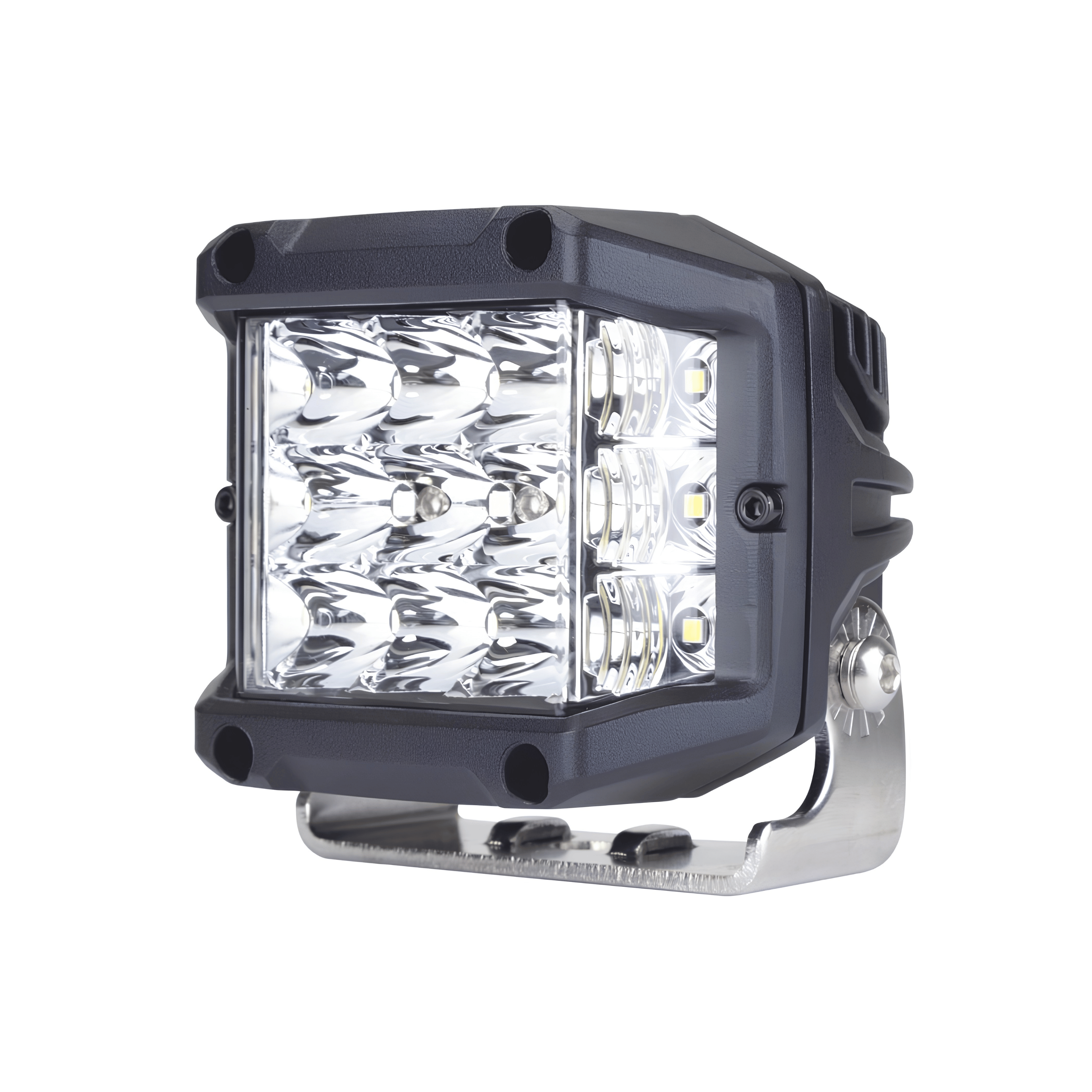

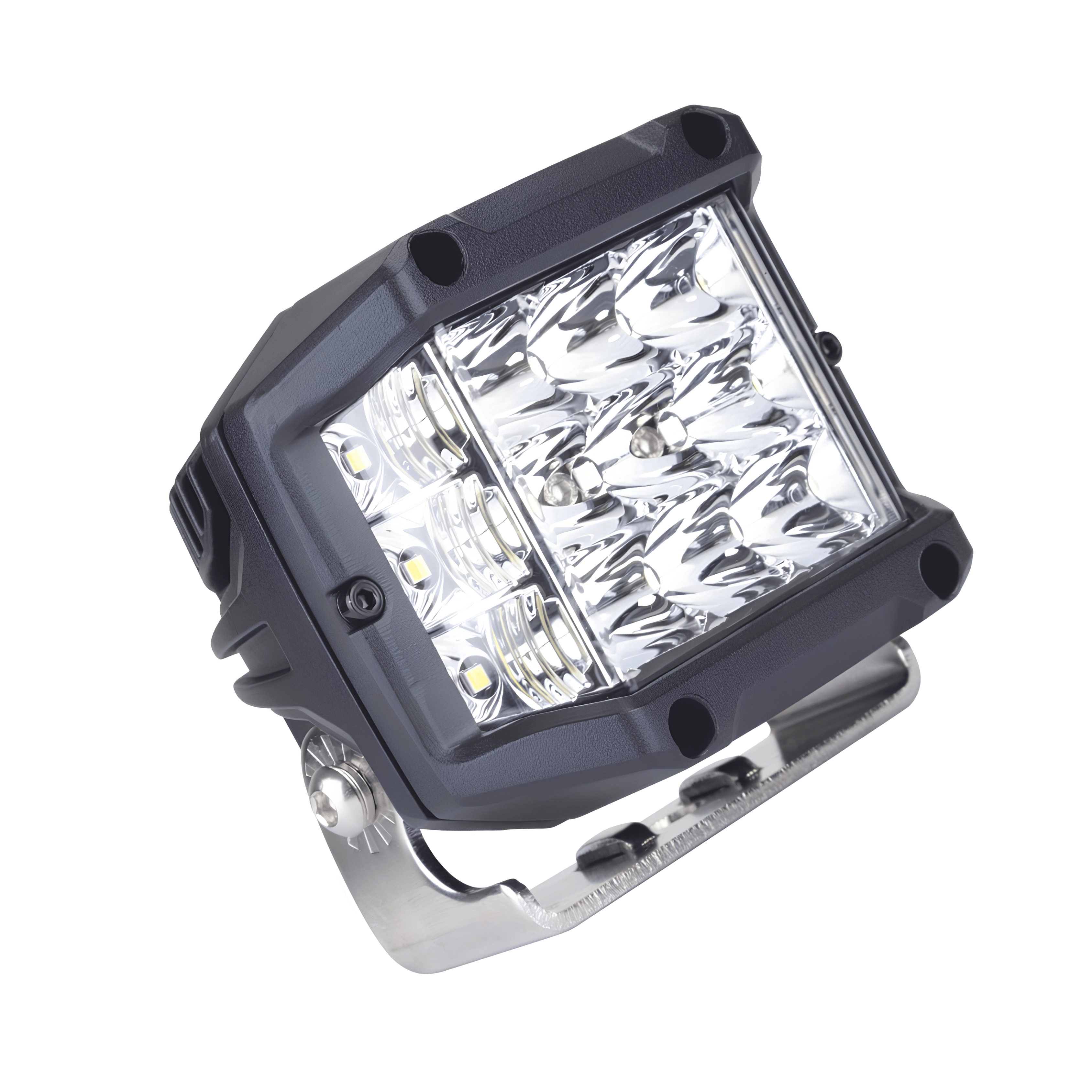

Roadvision RWL7924C Sidewinder LED Work Light 24W Combo Beam
A square 24W combo beam LED work lamp from the Roadvision Sidewinder RWL7 Series, the RWL7924C combines 9 x 1.6W Osram spot LEDs with 6 side angled 1.6W Osram Sidewinder LEDs for a 115-degree spread beam, producing 1500 effective lumens with 10-30V DC multi-volt input, IP67 rating, die-cast aluminium housing, polycarbonate lens, 2-pin Deutsch plug wiring, and a 5-year warranty.
Product Overview
The Roadvision RWL7924C is a Sidewinder combo LED work lamp offering uncompromised spot and spread performance from a single lamp. Nine 1.6W Osram long range spot LEDs are paired with six unique side angled 1.6W Osram Sidewinder LEDs delivering a 115-degree spread beam, resulting in the perfect combination of spot and flood without the need to install two separate lamps. The combo beam produces 1500 effective lumens rated at 122 lux at 10 metres from a compact 97 x 73 x 89mm square body.
Water and dust proof to IP67, the RWL7924C features a super durable, lightweight die-cast aluminium housing and polycarbonate lens, allowing for worry-free operation in even the toughest conditions. The multi-volt 10-30V DC input draws a super low 1.8 amps at 13.8V, and solid-state technology delivers a 50,000 hour LED lifespan. Installation is a simple 2-wire connection via the 2-pin Deutsch plug, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.
Features & Benefits
Spot and Flood from One Lamp: The Sidewinder design pairs long range spot LEDs with side angled flood LEDs, delivering the perfect combination of spot and spread without installing two separate lamps.
9 x 1.6W Osram Spot LEDs: Nine 1.6W Osram LEDs provide the long range spot element of the combo beam, rated at 122 lux at 10 metres.
6 Side Angled Sidewinder LEDs - 115-Degree Spread: Six unique side angled 1.6W Osram LEDs deliver a 115-degree spread beam, filling the periphery around the spot for complete work area coverage.
1500 Effective Lumens of Instant Light: The RWL7924C produces 1500 effective lumens of instant light output for its compact 24W package.
50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the long service life typical of 4WD, work vehicle, and machinery applications.
IP67 Water and Dust Proof: The RWL7924C is water and dust proof to IP67, allowing worry-free operation in wet, muddy, and dusty conditions.
Die-Cast Aluminium Housing with Polycarbonate Lens: The super durable, lightweight die-cast aluminium housing and polycarbonate lens provide reliability in even the toughest conditions.
Multi-Volt 10-30V DC with Super Low Current Draw: The 10-30V DC multi-volt input draws just 1.8 amps at 13.8V, making the RWL7924C compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.
Simple 2-Wire Installation with Deutsch Plug: The 2-pin Deutsch plug and simple 2-wire installation make for a quick, professional connection, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.
5-Year Warranty: The RWL7924C is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RWL7924C |
| Brand |
Roadvision |
| Series |
Sidewinder RWL7 |
| Description |
Sidewinder Work Lamp LED 24W Square |
| Beam Type |
Combo Beam (Spot with 115° Spread) |
| Lumens Light Output (Effective) |
1500lm |
| Power |
24W |
| Light Source |
9 x 1.6W Osram Spot LEDs plus 6 x 1.6W Osram Side Angled LEDs |
| Lux at 10m |
122 Lux |
| Input Voltage |
10-30V DC |
| Current Draw |
1.8A at 13.8V DC |
| Lens |
Polycarbonate |
| Housing |
Die-Cast Aluminium |
| IP Rating |
IP67 |
| Wiring |
2 Pin Deutsch Plug |

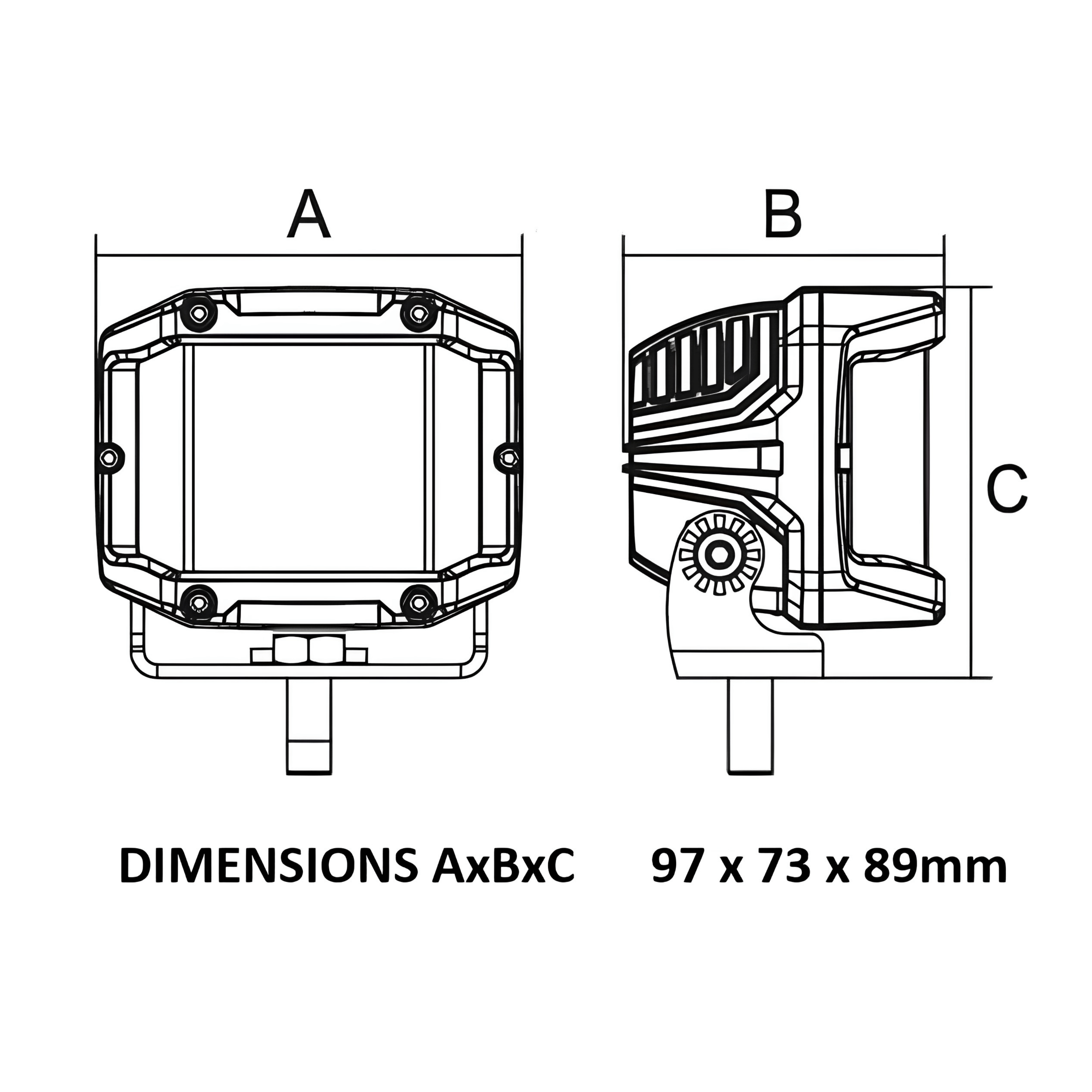

| Dimensions |
97 x 73 x 89mm |
| LED Lifespan |
50,000 Hours |
| Warranty |
5 Years |
Compatible With
The RWL7924C is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles. The Sidewinder RWL7 Series is also available as the 29W RWL7429C with 4 x 5W Osram P8 spot LEDs, and the 55W RWL7955C with 9 x 5W Osram LEDs and Thermal Management Technology. Confirm mounting space and wiring access before purchase.
Frequently Asked Questions
What makes the Sidewinder design different from a standard work light?
The RWL7924C pairs 9 long range spot LEDs with 6 unique side angled LEDs delivering a 115-degree spread beam, giving spot and flood performance from a single lamp without installing two separate lights.
How bright is the RWL7924C?
The RWL7924C produces 1500 effective lumens of instant light output, rated at 122 lux at 10 metres through its combo beam.
Is the RWL7924C compatible with 24V vehicles?
Yes. The RWL7924C operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
Is the RWL7924C waterproof?
Yes. The RWL7924C is water and dust proof to IP67, with a die-cast aluminium housing and polycarbonate lens built for worry-free operation in tough conditions.
What is the difference between the RWL7924C and RWL7429C?
Both share the same 97 x 73 x 89mm body and 6 side angled Sidewinder LEDs. The RWL7924C runs 9 x 1.6W Osram spot LEDs at 24W producing 1500 lumens and 122 lux at 10 metres, while the RWL7429C runs 4 x 5W Osram P8 spot LEDs at 29W producing 2100 lumens and 490 lux at 10 metres for more long range punch.
