Description

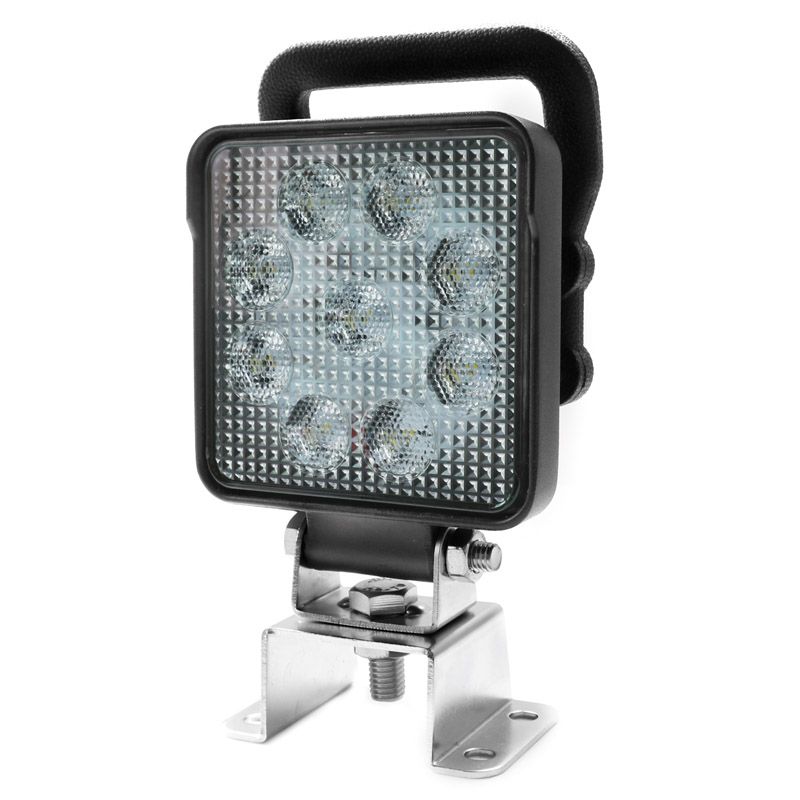

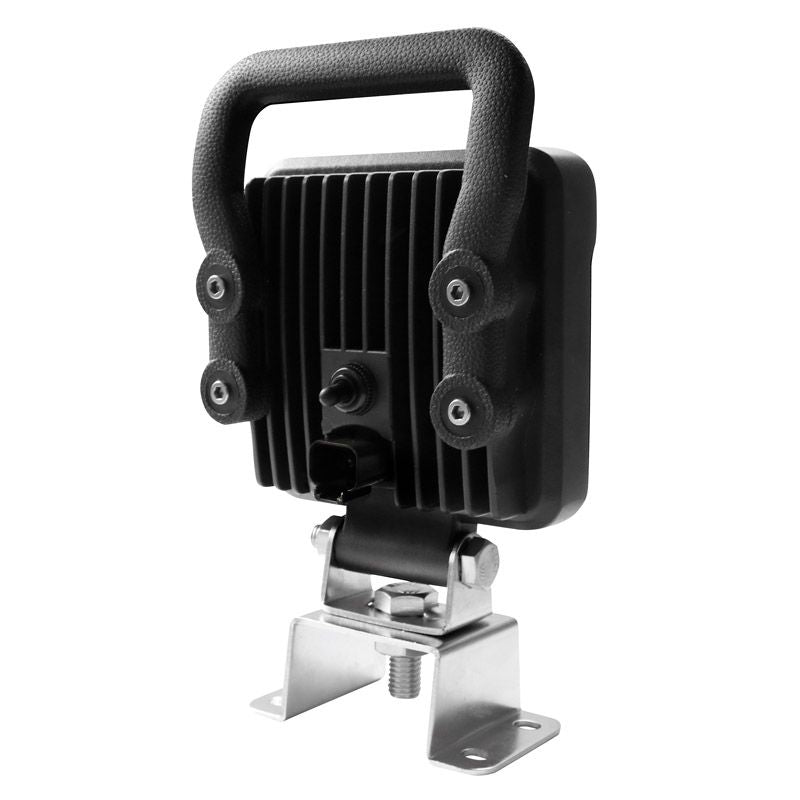

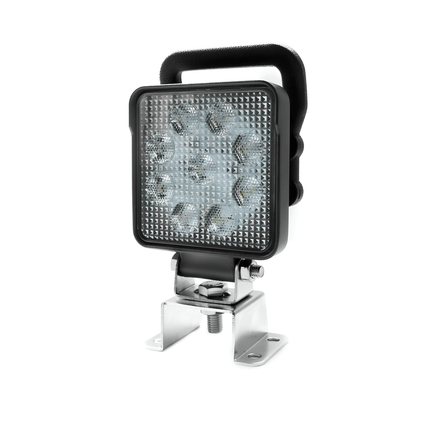

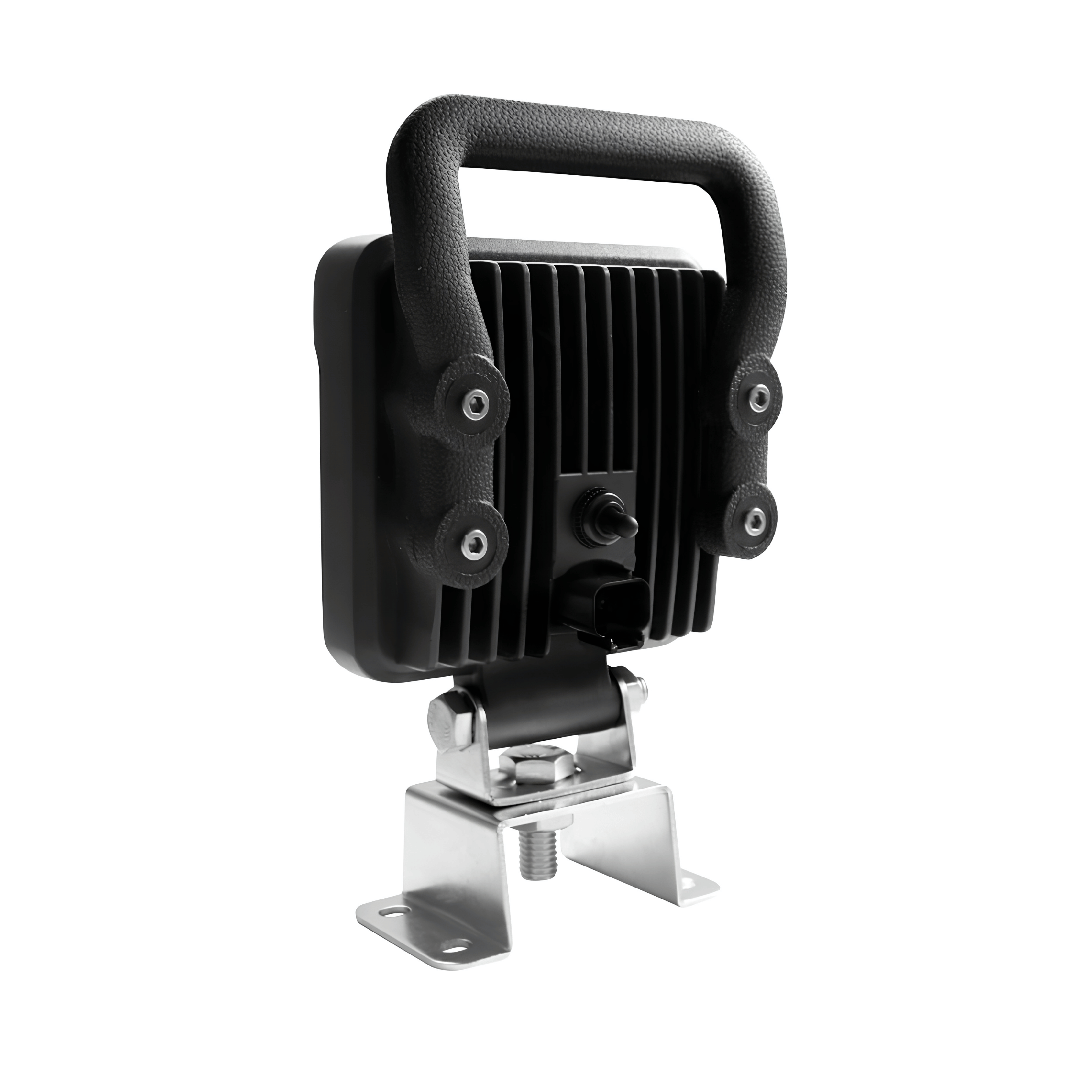

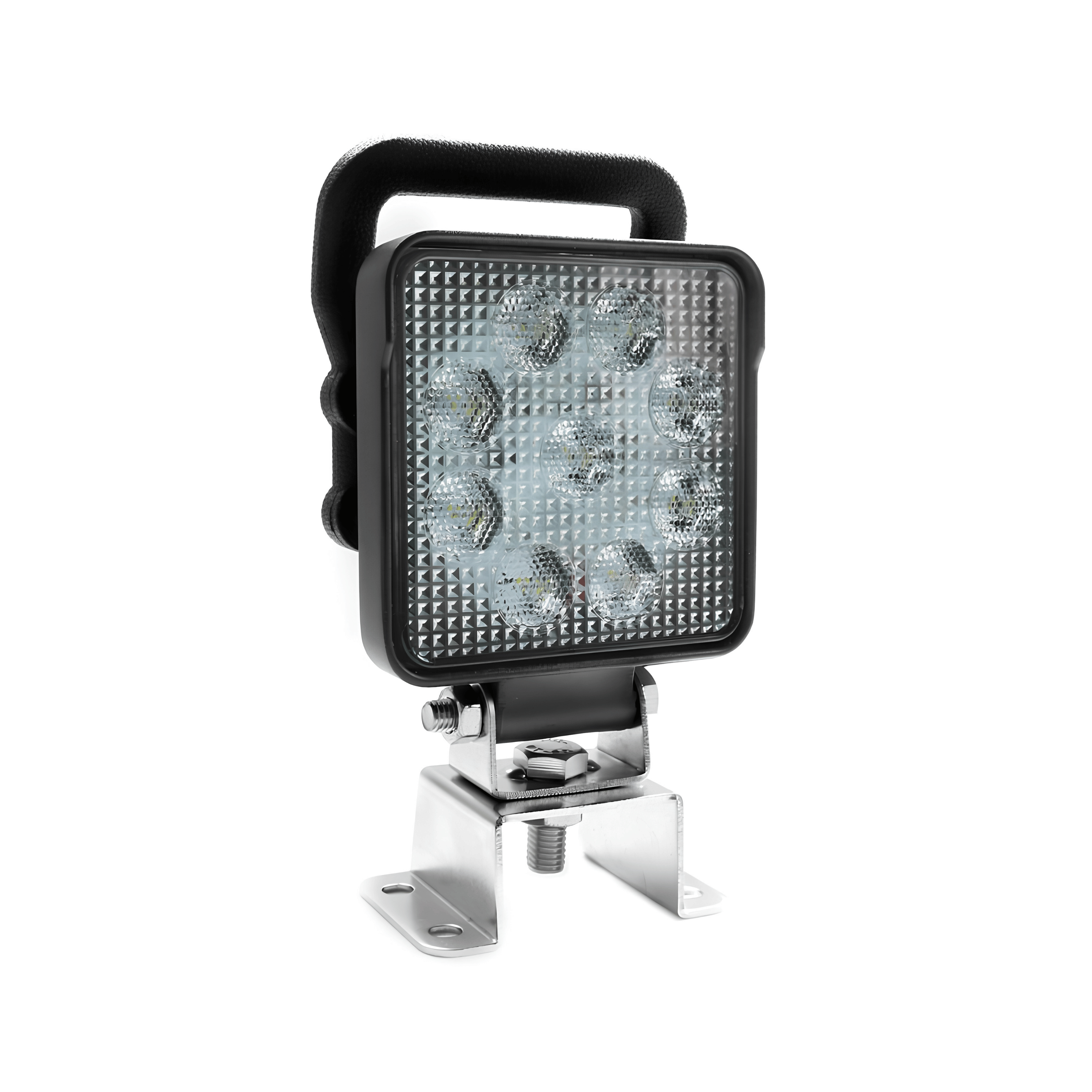

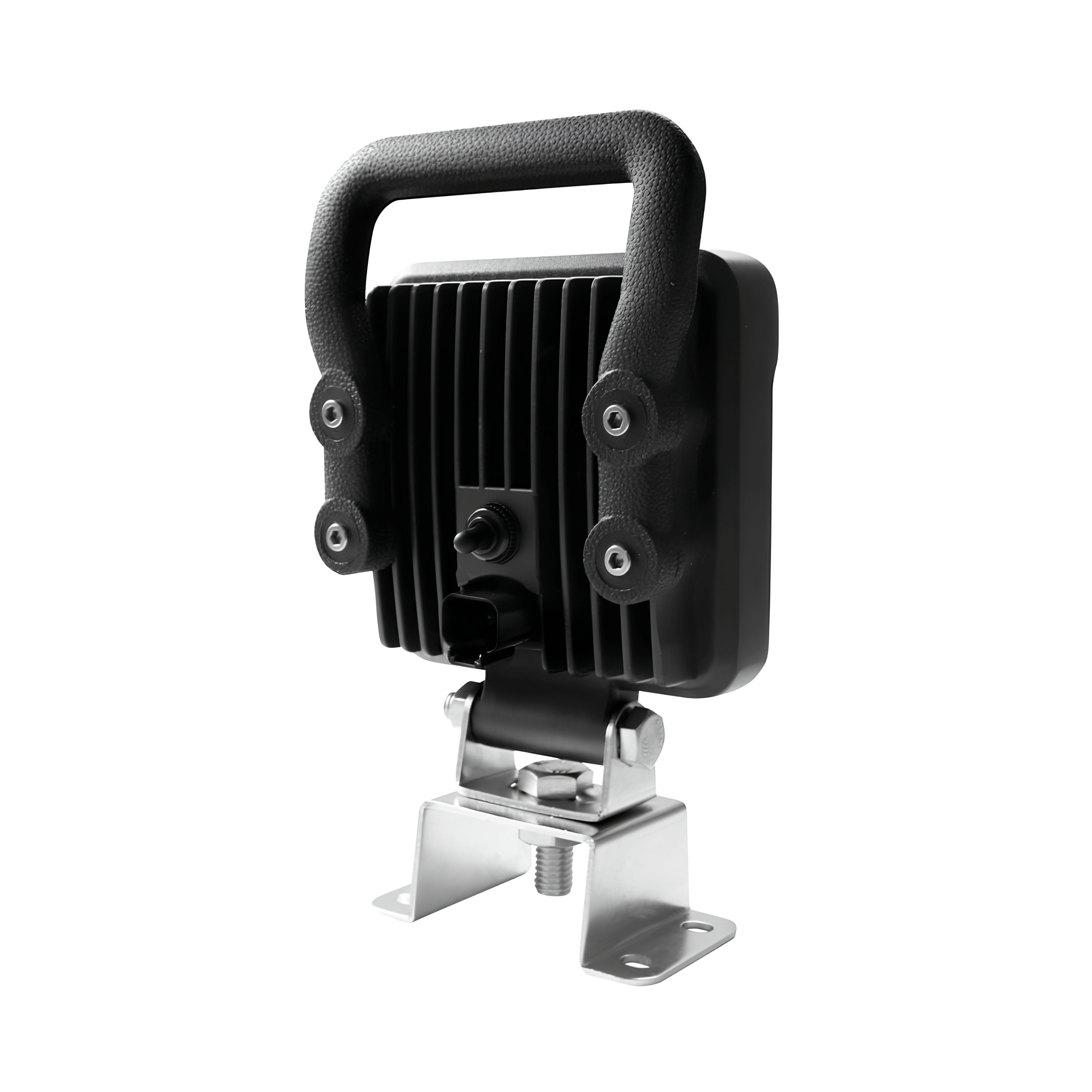

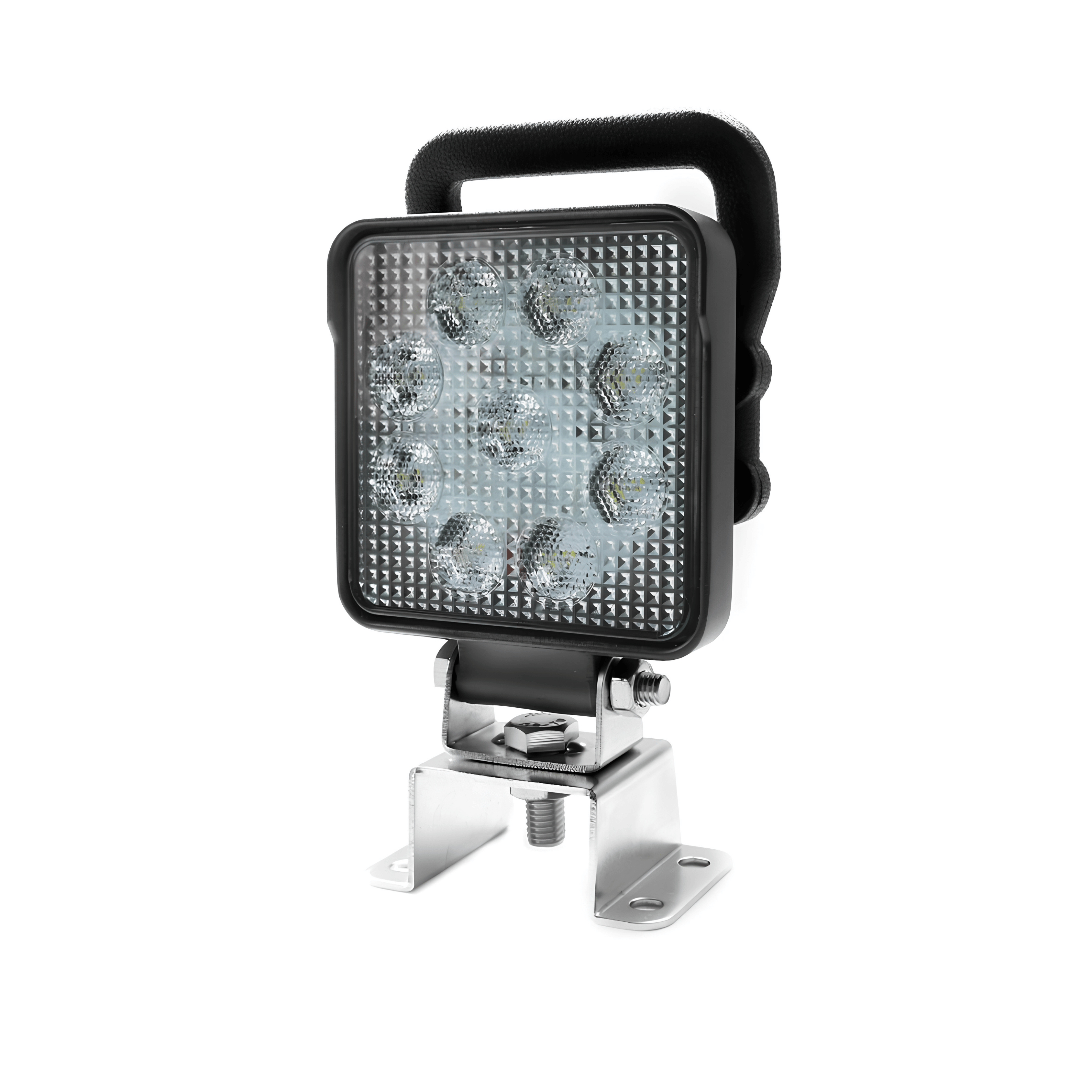

Roadvision RWL814FHS LED Work Light 14W Flood Handle and Switch
A feature packed 14W LED work lamp from the Roadvision RWL814FH Series, the RWL814FHS combines an integrated handle, switch, and DT connector with 9 x 1.5W Osram LEDs producing 1210 effective lumens through a flood beam, fully adjustable mounting, 10-30V DC multi-volt input, IP67 rating, die-cast aluminium housing, polycarbonate lens, and a 5-year warranty.
Product Overview
The Roadvision RWL814FHS is one of the most versatile lamps in the Roadvision range, packaging high performing 1.5W Osram LEDs behind a polycarbonate lens in an IP67 rated housing with an integrated handle, switch, and DT connector. Fully adjustable, it allows you to take full control of where and when you need the light, with the on-lamp switch meaning the light can be operated directly without a separate dash switch. Nine 1.5W Osram LEDs produce 1210 effective lumens of super white light close to daylight, spread across a flood beam rated at 35 lux at 10 metres, 59 metres at 1 lux, and a 118 metre beam distance at 0.25 lux.
The 100 x 57 x 185mm upright body pairs a lightweight, tough die-cast aluminium housing with a polycarbonate lens, water and dust proof to IP67 for worry-free operation in even the toughest conditions. The multi-volt 10-30V DC input draws a super low 1.2 amps at 13.8V, and solid-state technology delivers a 50,000 hour LED lifespan. Installation is a simple 2-wire connection via the integrated 2-pin Deutsch plug, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.
Features & Benefits
Integrated Handle, Switch and DT Connector: The built-in carry handle, on-lamp switch, and DT connector make the RWL814FHS a grab-and-go work light that can be operated directly at the lamp without wiring in a separate switch.
Fully Adjustable Mounting: The fully adjustable design lets you take full control of where and when you need the light, angling the beam exactly where the job requires.
14W Flood Beam - 1210 Effective Lumens: The RWL814FHS produces 1210 effective lumens of instant light, rated at 35 lux at 10 metres, 59 metres at 1 lux, and a 118 metre beam distance at 0.25 lux.
9 x 1.5W Osram LEDs: Nine 1.5W Osram LEDs produce super white light close to daylight, improving visibility and reducing eye strain during night work compared to warmer light sources.
50,000 Hour LED Lifespan: Solid-state technology delivers a 50,000 hour LED lifespan for maintenance-free performance over the long service life typical of work vehicle, camping, and machinery applications.
IP67 Water and Dust Proof: The RWL814FHS is water and dust proof to IP67, allowing worry-free operation in wet, muddy, and dusty conditions.
Die-Cast Aluminium Housing with Polycarbonate Lens: The lightweight, tough die-cast aluminium housing and polycarbonate lens provide reliability in even the toughest conditions.
Multi-Volt 10-30V DC with Super Low Current Draw: The 10-30V DC multi-volt input draws just 1.2 amps at 13.8V, making the RWL814FHS compatible with both 12V and 24V vehicle electrical systems without a voltage adaptor.
Simple 2-Wire Installation with Integrated Deutsch Plug: The integrated 2-pin Deutsch plug and simple 2-wire installation make for a quick, professional connection, with over/under voltage protection, reverse polarity protection, and EMI/EMC radio interference approval built in.
5-Year Warranty: The RWL814FHS is backed by a 5-year Roadvision warranty.
Technical Specs
| Specification |
Detail |
| SKU |
RWL814FHS |
| Brand |
Roadvision |
| Series |
RWL814FH |
| Description |
8 Series LED Work Lamp 14W Flood with Switch and Handle |
| Beam Type |
Flood Beam |
| Lumens Light Output (Effective) |
1210lm |
| Total Watts |
14W |
| Light Source |
9 x 1.5W Osram LEDs |
| Input Voltage |
10-30V DC |
| Current Draw |
1.2A at 13.8V DC |
| Lux at 10m |
35 Lux |
| Metres at 1 Lux |
59m |
| Metres at 0.25 Lux |
118m |
| Beam Distance |
118m |
| Switch |
Integrated On-Lamp Switch |
| Handle |
Integrated Handle |
| Lens |
Polycarbonate |
| Housing |
Die-Cast Aluminium |
| IP Rating |
IP67 |
| Wiring |
2 Pin Deutsch Plug |
| Dimensions |
100 x 57 x 185mm |
| LED Lifespan |
50,000 Hours |
| Warranty |
5 Years |
Compatible With
The RWL814FHS is compatible with 10-30V DC vehicle electrical systems, covering both 12V and 24V vehicles. The RWL814FH Series is also available as the RWL814FHR, the horizontal rectangle version with the same 14W output and integrated handle and switch. Confirm mounting space and wiring access before purchase.
Frequently Asked Questions
Does the RWL814FHS have its own switch?
Yes. The RWL814FHS has an integrated on-lamp switch, so the light can be turned on and off directly at the lamp without wiring in a separate dash switch.
How bright is the RWL814FHS?
The RWL814FHS produces 1210 effective lumens from 9 x 1.5W Osram LEDs, rated at 35 lux at 10 metres, 59 metres at 1 lux, and a 118 metre beam distance at 0.25 lux through a flood beam.
Is the RWL814FHS compatible with 24V vehicles?
Yes. The RWL814FHS operates across 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.
Is the RWL814FHS waterproof?
Yes. The RWL814FHS is water and dust proof to IP67, with a die-cast aluminium housing and polycarbonate lens built for worry-free operation in tough conditions.
What is the difference between the RWL814FHS and RWL814FHR?
Both share the same 14W output, 9 x 1.5W Osram LEDs, integrated handle and switch, and 2-pin Deutsch plug. The RWL814FHS is the upright version at 100 x 57 x 185mm producing 1210 lumens, while the RWL814FHR is the horizontal rectangle version at 187 x 63 x 107mm producing 1250 lumens.
