Description

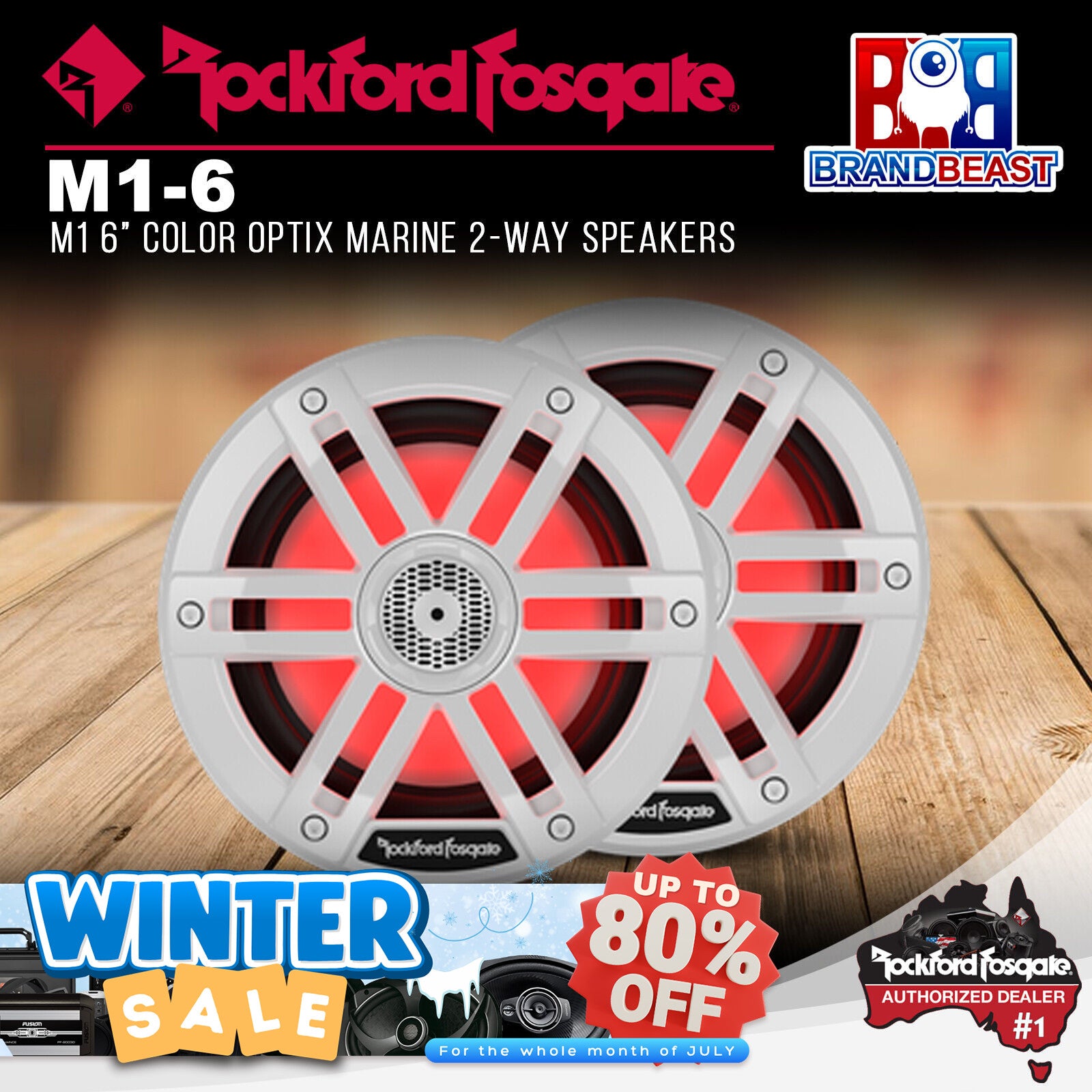

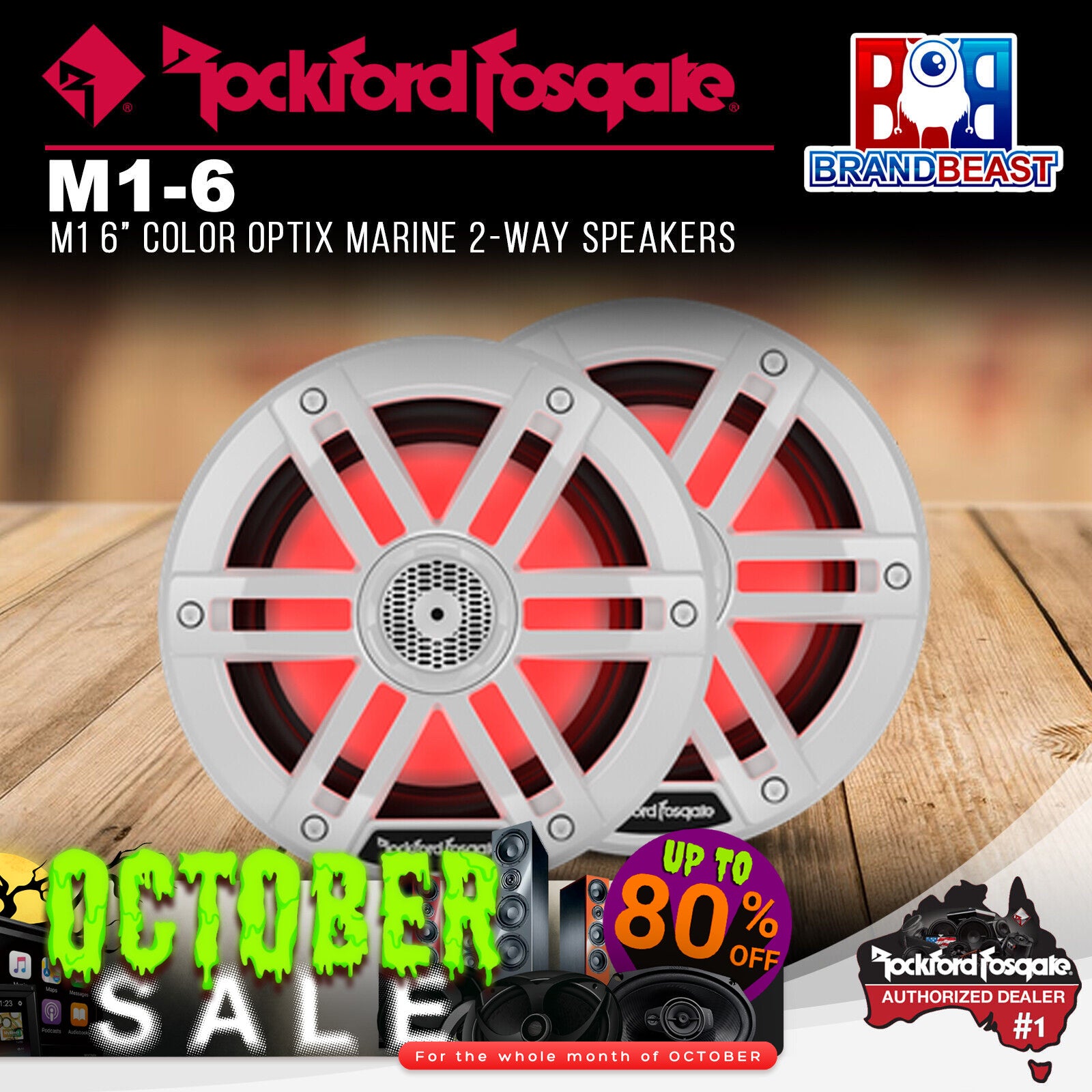

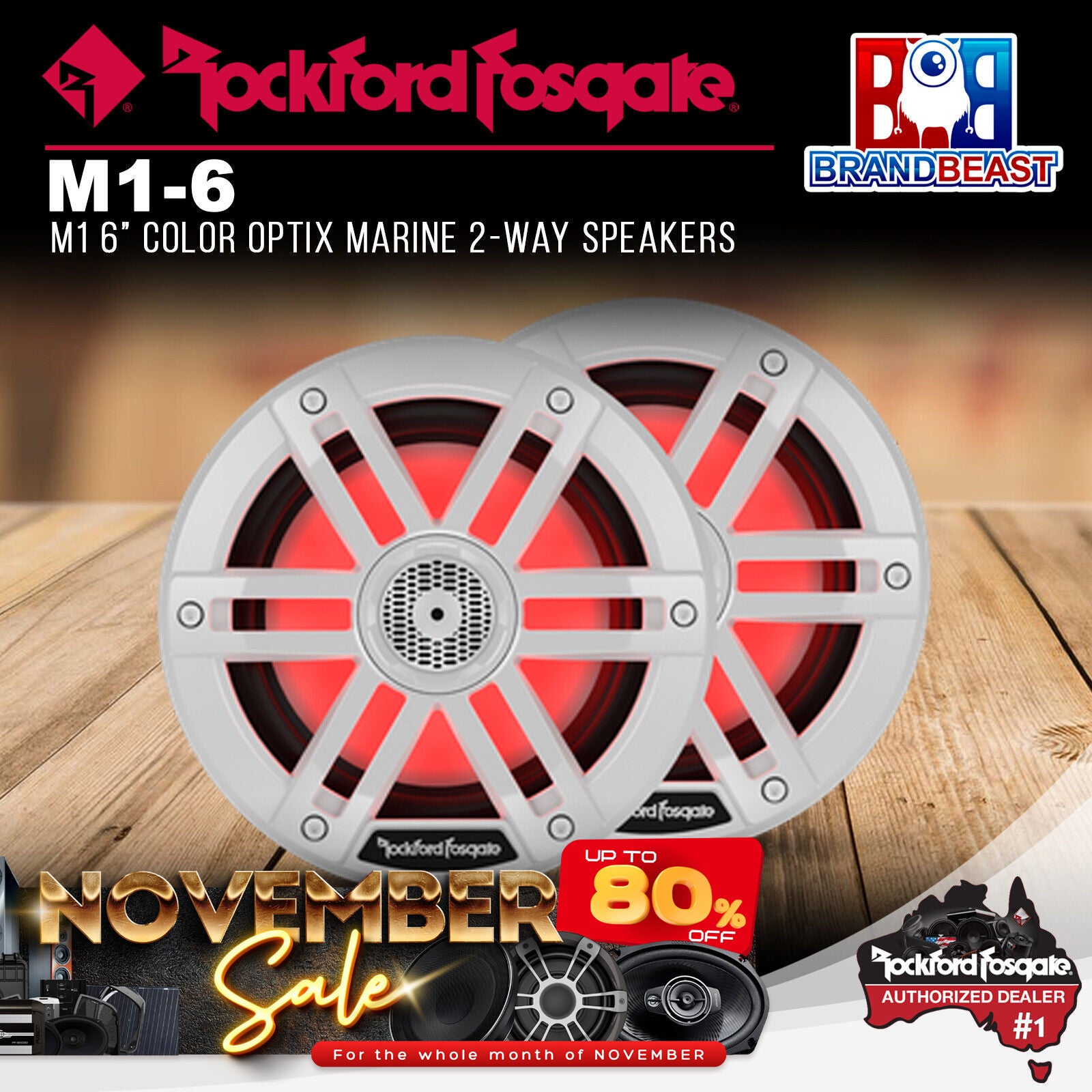

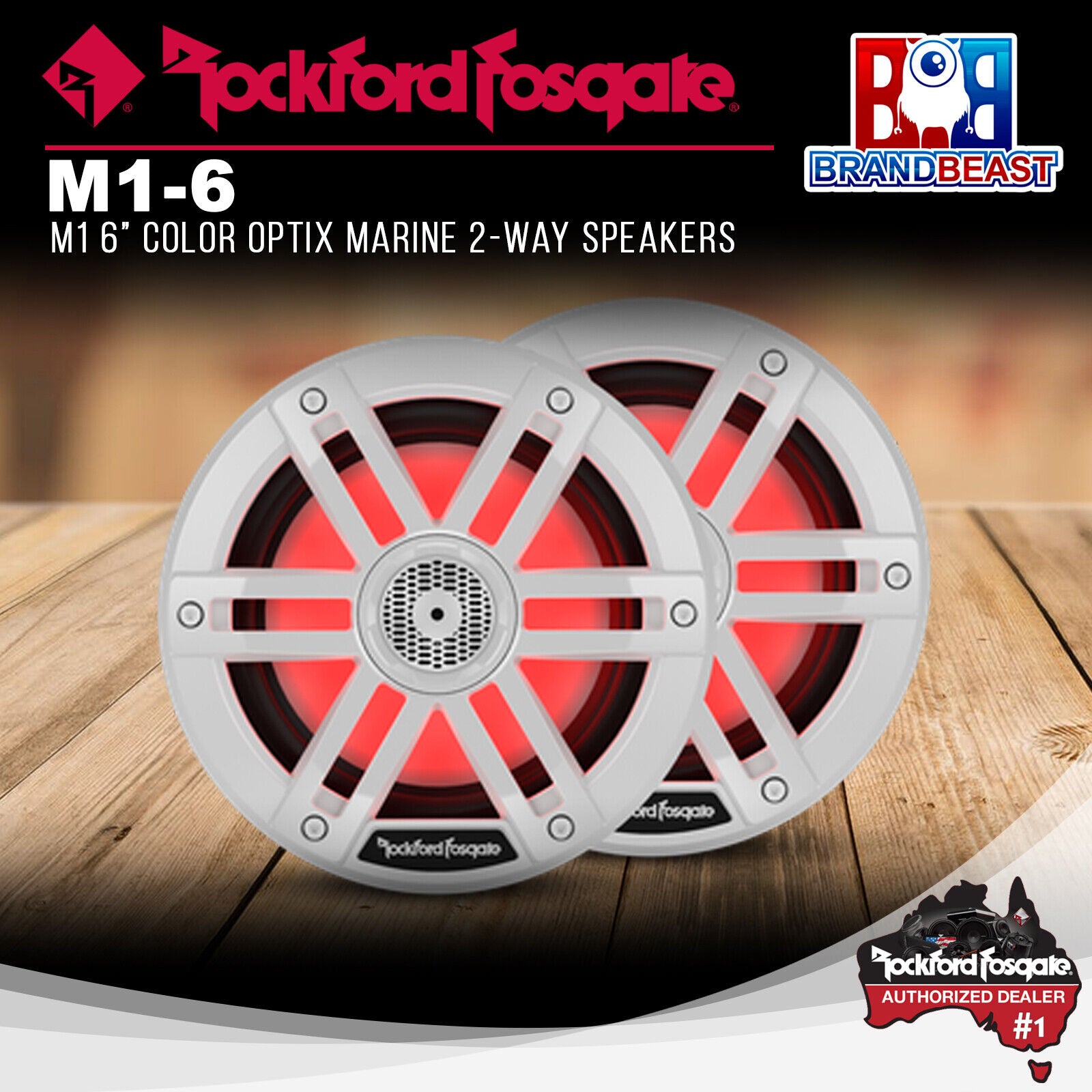

Rockford Fosgate M1-6 M1 Series 6 Inch 2-Way Color Optix Marine Speakers in White - Pair
A pair of marine grade 6 inch 2-way coaxial speakers in white with Color Optix RGB LED lighting, 75W RMS handling, and 89dB sensitivity. Features a Santoprene VAST surround, co-moulded mineral-filled polypropylene cone, grille-integrated 1 inch LCP balanced dome tweeter, fully sealed 6dB/octave ICC crossover, and integrated Deutsch/Amphenol plug-and-play connectors. IPX6 rated and ASTM B117 and G154 tested. Sold as a pair. Backed by a 2 year warranty.
Product Overview
The Rockford Fosgate M1-6 is a pair of M1 series 6 inch 2-way coaxial marine speakers in white, featuring Color Optix RGB LED illumination controllable via the PMX-RGB controller and RF Connect app (available on iOS and Android, sold separately). The M1 series sits between the M0 entry-level range and the premium M2 series, adding Color Optix lighting, Deutsch/Amphenol integrated connectors, and ASTM and ISO-tested marine construction in Rockford Fosgate's most compact full-range marine speaker format.
Bass and midrange reproduction is handled by an injection-moulded mineral-filled polypropylene cone body with a co-moulded Santoprene VAST surround. Rockford Fosgate's patented VAST (Vertical Attach Surround Technique) increases the effective radiating cone area by up to 25%, delivering more output from the same 6 inch footprint. A linear synthetic fiber blend spider provides consistent excursion control. The fully sealed ICC (Integrated Concealed Crossover) 6dB/octave high-pass network is hidden inside the basket, crossing over to a grille-integrated 1 inch (25.4mm) LCP balanced dome tweeter for high-frequency response up to 22kHz. The sealed motor design protects the motor assembly from water and debris.
Integrated Deutsch RGB and speaker receptacles combine Color Optix lighting and audio signal into a single plug-and-play connection. Optically clear UV stable RGB lighting encapsulation protects the LED PCB. Ultra-bright wide-angle tri-colour surface mount LEDs with flat mould lenses deliver the Color Optix illumination. The frame is constructed from 100% UV stable ASA plastic and tested to ASTM B117 (500-hour salt/fog), ASTM G154 (500-hour accelerated UV), and ISO60068-2-64 vibration standards. IPX6 water intrusion rating and zinc nickel-plated marine grade brass connection terminals complete the marine-grade build. Stainless steel mounting hardware is included. Klippel Verified certification is applied throughout.
Features & Benefits
Color Optix RGB LED Lighting - App Controlled: Ultra-bright wide-angle tri-colour surface mount LEDs with flat mould lenses are protected by optically clear UV stable RGB encapsulation and driven via a multiplexed RGB input. Lighting is controllable via the PMX-RGB controller and RF Connect app on iOS and Android. The PMX-RGB controller is sold separately.
Santoprene VAST Surround - UV and Salt-Fog Resistant: The Santoprene VAST surround is co-moulded to the mineral-filled polypropylene cone body and attaches vertically using Rockford Fosgate's patented VAST technique, increasing the effective radiating cone area by up to 25% for more low and midrange output from the same 6 inch driver.
Grille-Integrated 1 Inch LCP Balanced Dome Tweeter: The 1 inch (25.4mm) LCP balanced dome tweeter is integrated directly into the grille for a clean, pod-free appearance, delivering high-frequency response across the 42Hz-22kHz range with smooth roll-off characteristics.
Fully Sealed ICC 6dB/Octave Crossover: The Integrated Concealed Crossover is fully sealed and hidden inside the basket, simplifying installation and protecting the crossover components from environmental exposure.
Integrated Deutsch/Amphenol Connectors - True Marine Ecosystem: Integrated Deutsch RGB and speaker receptacles provide error-proof plug-and-play connectivity for both the audio signal and Color Optix lighting through a single connection point, compatible with the Rockford Fosgate True Marine Ecosystem.
ASTM and ISO Tested - Marine Environment Compliance: Tested to ASTM B117 (500-hour salt/fog), ASTM G154 (500-hour accelerated UV), and ISO60068-2-64 vibration standards. IPX6 water intrusion rating confirms protection against powerful jets of water from any direction.
Compact 6 Inch Format - Suited to Space-Constrained Positions: The M1-6 is Rockford Fosgate's most compact M1 series marine speaker, with a 6 inch cone and 2.52 inch mounting depth, making it well suited to smaller vessels and mounting positions where the M1-65 or M1-8 cannot physically fit.
Technical Specs
| Specification |
Detail |
| SKU |
M1-6 |
| Speaker Type |
2-Way Coaxial |
| Speaker Size |
6 inch |
| Colour |
White |
| Nominal Impedance |
4 Ohm |
| Power Handling |
75W RMS / 300W Peak |
| Sensitivity |
89 dB (1W/1m) / 89.5 dB (2.83V/1m) |
| Frequency Response |
42 Hz - 22 kHz |
| Tweeter |
1 inch (25.4mm) LCP Balanced Dome (Grille-Integrated) |
| Woofer Voice Coil Former |
1 inch (25mm) High Temp Kapton |
| Cone |
Co-Moulded Mineral-Filled Polypropylene |
| Surround |
Santoprene VAST (UV and Salt-Fog Resistant) |
| Spider |
Linear Synthetic Fiber Blend |
| Motor Design |
Sealed |
| Frame |
100% UV Stable ASA Plastic |
| Crossover |
ICC 6dB/Octave High-Pass (Fully Sealed) |
| Surround Technology |
VAST |
| LED Type |
Ultra-Bright Wide-Angle Tri-Colour SMD with Flat Mould Lenses |
| LED Encapsulation |
Optically Clear UV Stable |
| RGB Input |
Multiplexed |
| Speaker Connector |
Integrated Deutsch/Amphenol + Zinc Nickel-Plated Brass Spade Terminals |
| Lighting Control |
Color Optix via PMX-RGB + RF Connect App |
| Mounting Hardware |
Stainless Steel (included) |
| Grille / Trim Ring |
Included |
| Midrange Mounting Depth |
2.52 inch (63.9mm) |
| Water Intrusion Rating |
IPX6 |
| Salt/Fog Testing |
ASTM B117 (500 hours) |
| UV Testing |
ASTM G154 (500 hours) |
| Vibration Testing |
ISO60068-2-64 |
| Sold As |
Pair (2 each) |
| Certifications |
Klippel Verified |
| Shipping Weight |
1.05kg (pair) |
| Warranty |
2 Years |
Compatible With / Goes Well With
The M1-6 is suited to marine watercraft, pontoon boats, ski boats, and any vessel requiring a compact 6 inch marine speaker with Color Optix lighting. Its 2.52 inch mounting depth and smaller 6 inch footprint make it the best-fit choice for tight mounting positions where the M1-65 or M1-8 may not suit.
Goes Well With:
-
PMX-RGB - Rockford Fosgate Color Optix RGB controller required to access full Color Optix lighting control and RF Connect app integration
-
M2-300X4 - M2 series 300W 4-channel marine amplifier for powering the M1-6 pair at higher output levels
-
M2-200X2 - M2 series 200W 2-channel marine amplifier for compact 2-channel builds
-
PMX-1 - Rockford Fosgate Punch marine media receiver for direct-drive installations at 25W x 4
-
M1-65 - Larger M1 series 6.5 inch white marine speaker for installations with more panel space available
-
M1-8 - Larger M1 series 8 inch white marine speaker for installations requiring a bigger driver format
Frequently Asked Questions
What is the difference between the M1-6 and the M1-65?
Both are white M1 series Color Optix marine speakers with identical construction, ASTM testing, Deutsch connectors, and 6dB/octave ICC crossover. The M1-6 is a 6 inch driver with a 42Hz-22kHz frequency response and 89dB sensitivity, while the M1-65 is a 6.5 inch driver with a slightly wider 38Hz-22kHz frequency response and marginally higher 90dB sensitivity. The M1-6 is the better choice where the smaller 6 inch cutout or shallower mounting position is the deciding factor; the M1-65 delivers slightly more bass extension and output efficiency where space permits.
Does the Color Optix lighting require a separate controller?
Yes. Color Optix RGB lighting requires the PMX-RGB controller and the RF Connect app (available on iOS and Android) to access full colour control, effects, and brightness adjustment. The PMX-RGB controller is sold separately and is not included. The speakers can operate without the controller at a fixed default colour setting straight out of the box.
Is the M1-6 suitable for saltwater marine environments?
Yes. The M1-6 is tested to ASTM B117 (500-hour salt/fog) and ASTM G154 (500-hour accelerated UV) standards, with IPX6 water intrusion rating, UV stable ASA frame, sealed motor design, and zinc nickel-plated marine grade brass terminals. It is designed for both freshwater and saltwater marine environments.
What is the mounting depth required for the M1-6?
The M1-6 requires a mounting depth of 2.52 inches (63.9mm). Measure the available depth behind the mounting surface before purchasing to confirm the speaker will fit without interference from hull structure or wiring.
What is the difference between the M1-6 and the M0-65?
The M0-65 is the entry-level white 6.5 inch marine speaker without Color Optix lighting, without Deutsch/Amphenol connectors, and without ASTM and ISO test certifications. The M1-6 adds Color Optix RGB illumination, Deutsch/Amphenol plug-and-play connectivity, and full ASTM and ISO-tested marine compliance in a slightly smaller 6 inch format. Choose the M0-65 for a no-frills 6.5 inch marine speaker at a lower price point; choose the M1-6 for Color Optix lighting and True Marine Ecosystem integration in a compact 6 inch size.
