Description

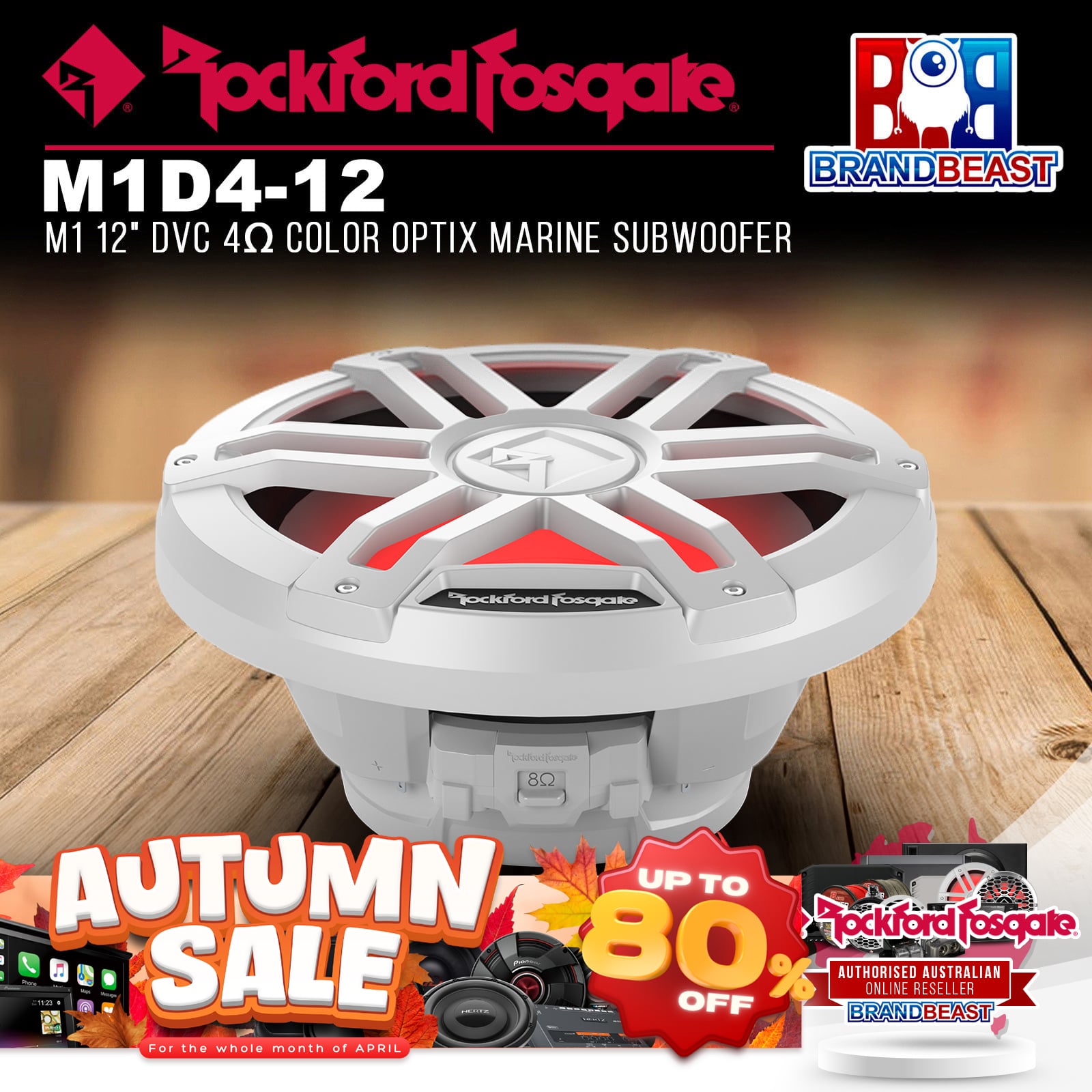

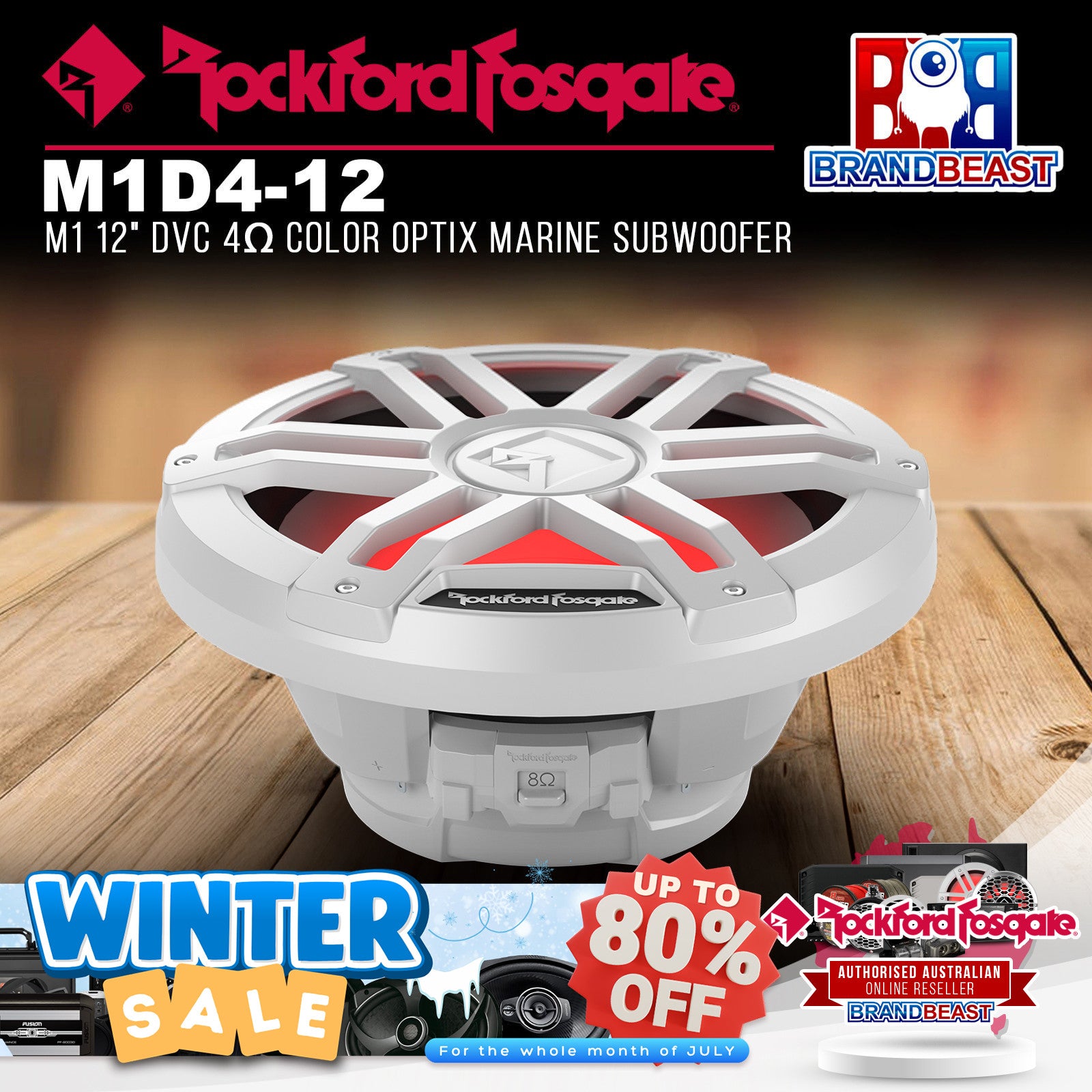

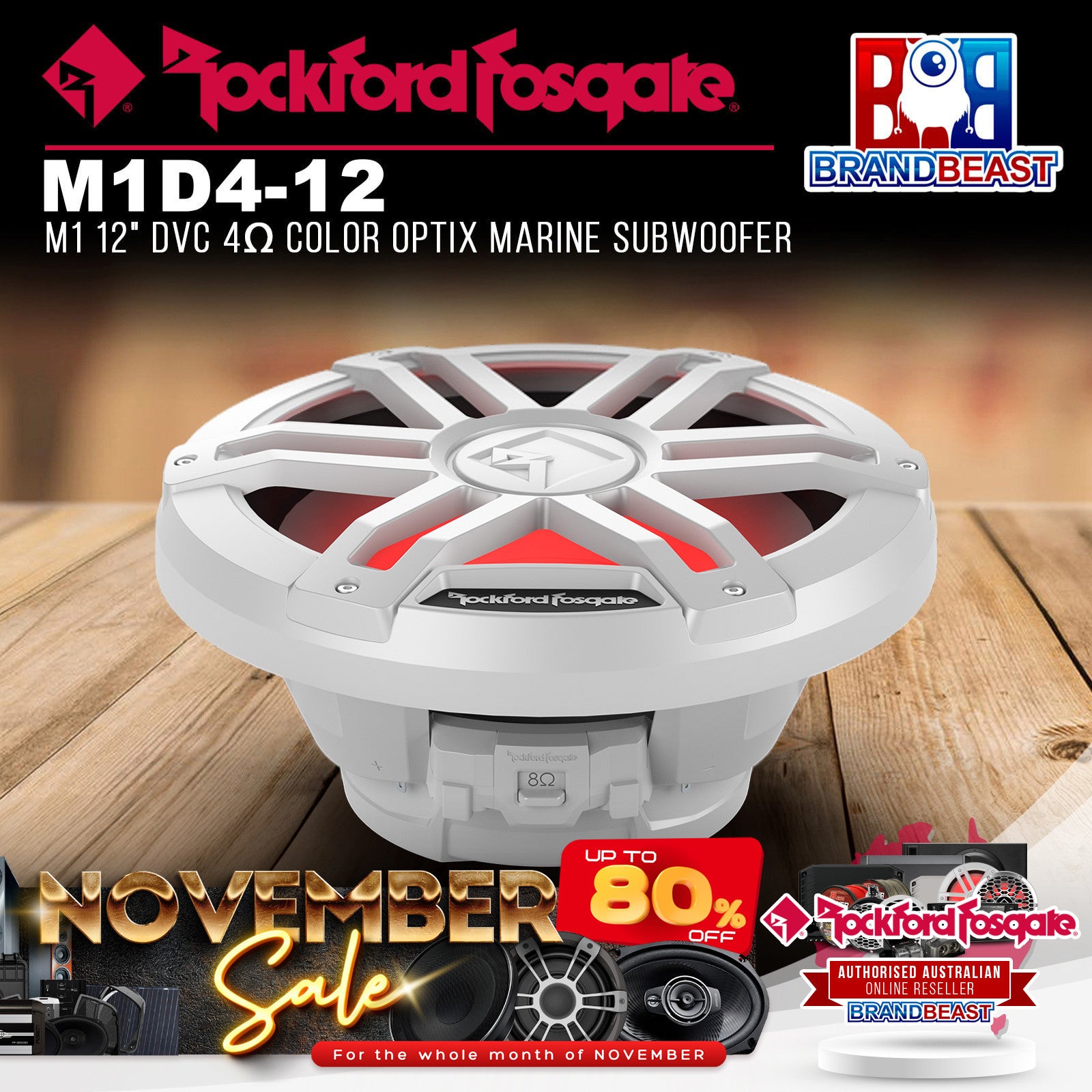

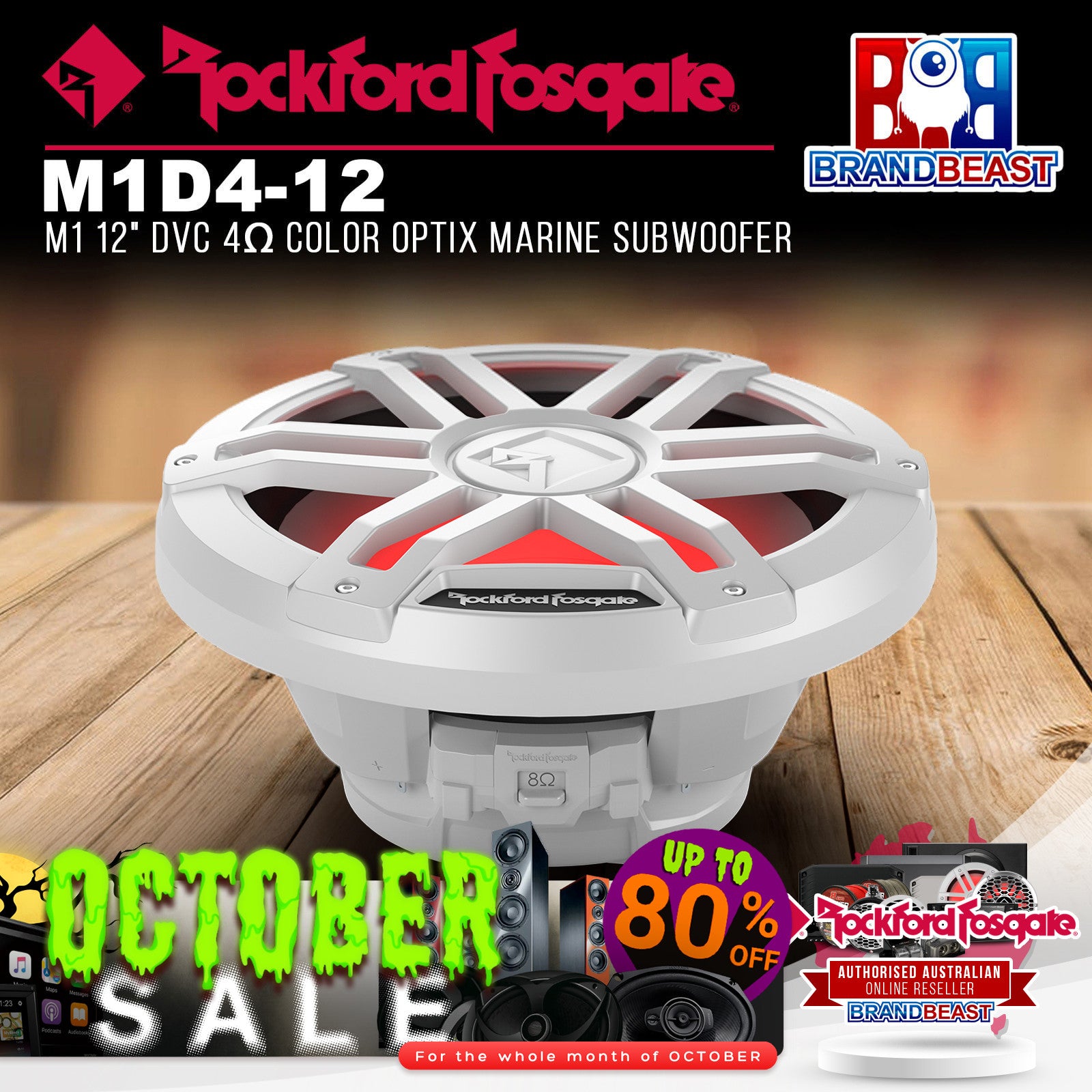

Rockford Fosgate M1 12" DVC 4Ω Color Optix Marine Subwoofer: Delivers Loud, Clear, Accurate Bass, and Lights the Way for Your Journey!
The M1D4-12 Color Optix™ 12‚Äù DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IP67 certification make them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential. The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification makes these speakers Element Ready™ and truly purpose-built for marine applications. To complement the plug-and-play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch. Color Optix™ Experience Experience the Color Optix™ speaker and subwoofer line from Rockford Fosgate. Designed for watercraft of all kinds, they are Element Ready to withstand water, salt, and UV rays.
Features: - Optically clear UV stable RGB Lighting Encapsulation
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Vented motor design with water-repelling nano-coated mesh screen
- 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
- Fully insulated silicone tinsel leads
- 100% UV Stable ASA plastic frame & grille design stands up to the harsh marine environment
- Zinc Nickel-plated marine-grade brass connection terminals
- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error-proof
- Linear Synthetic Fiber Blend Spiders
- Santoprene VAST Surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Co-molded surround and mineral-filled polypropylene cone body
- Injection molded mineral-filled polypropylene cone body with UV inhibitors
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
Specifications: - Size 12"
- Nominal Impedance (Ohms) 2-Ohm or 8-Ohm Switchable
- Power Handling (Watts RMS) 300 Watts RMS / 1200 Watts PEAK
- Voice Coil Diameter 2" (50 mm)
- Voice Coil Type Dual Voice Coil
- Magnet Weight (oz) 39.75 oz. (1.13 Kg)
- Frequency Response 20 Hz - 750 Hz
- Fs (Hz) 27
- Re (Ohms) 7.6
- Le (mH) 3.40
- Sd (cm2) 585.4
- Qms 8.20
- Vented Box Volume (Vb) 2.45 cu. ft. (69.38 Liters)
- Sealed Box Volume (Vb) 1.65 cu. ft. (46.72 Liters)
- Qes 0.63
- Qts 0.59
- Vas 113.1
- SPL (dB @ 1w/1m) 92
- Xmax (mm) 6.0
- Woofer Displacement 3.49 (0.12 Liters)
- Speaker Connector Deutsch™
- Cutout Diameter 10.85" (275.6 mm)
- Mounting Depth 6.65" (169.1 mm)
- Shipping Weight 9 Lbs. (4.1 Kg.)
