Description

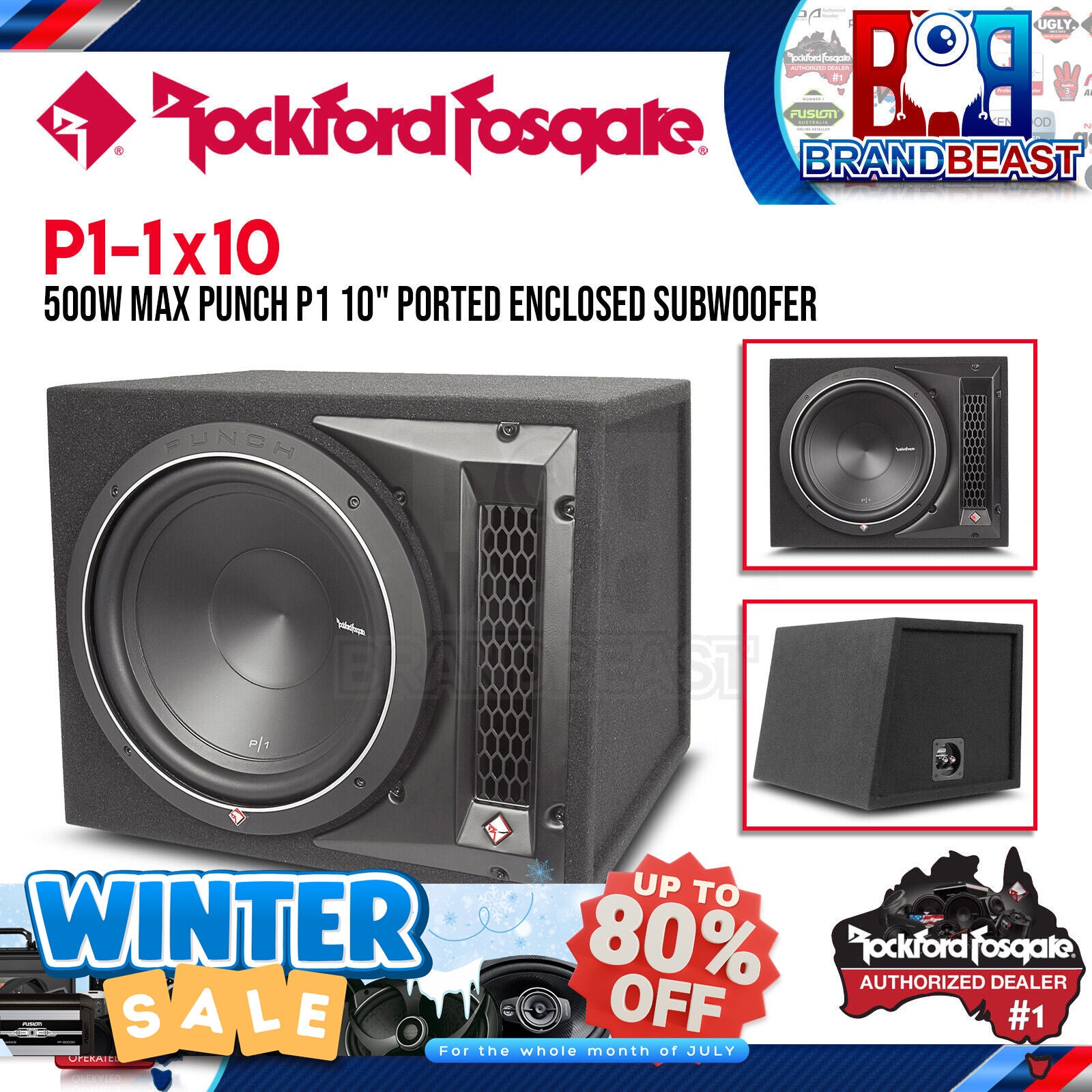

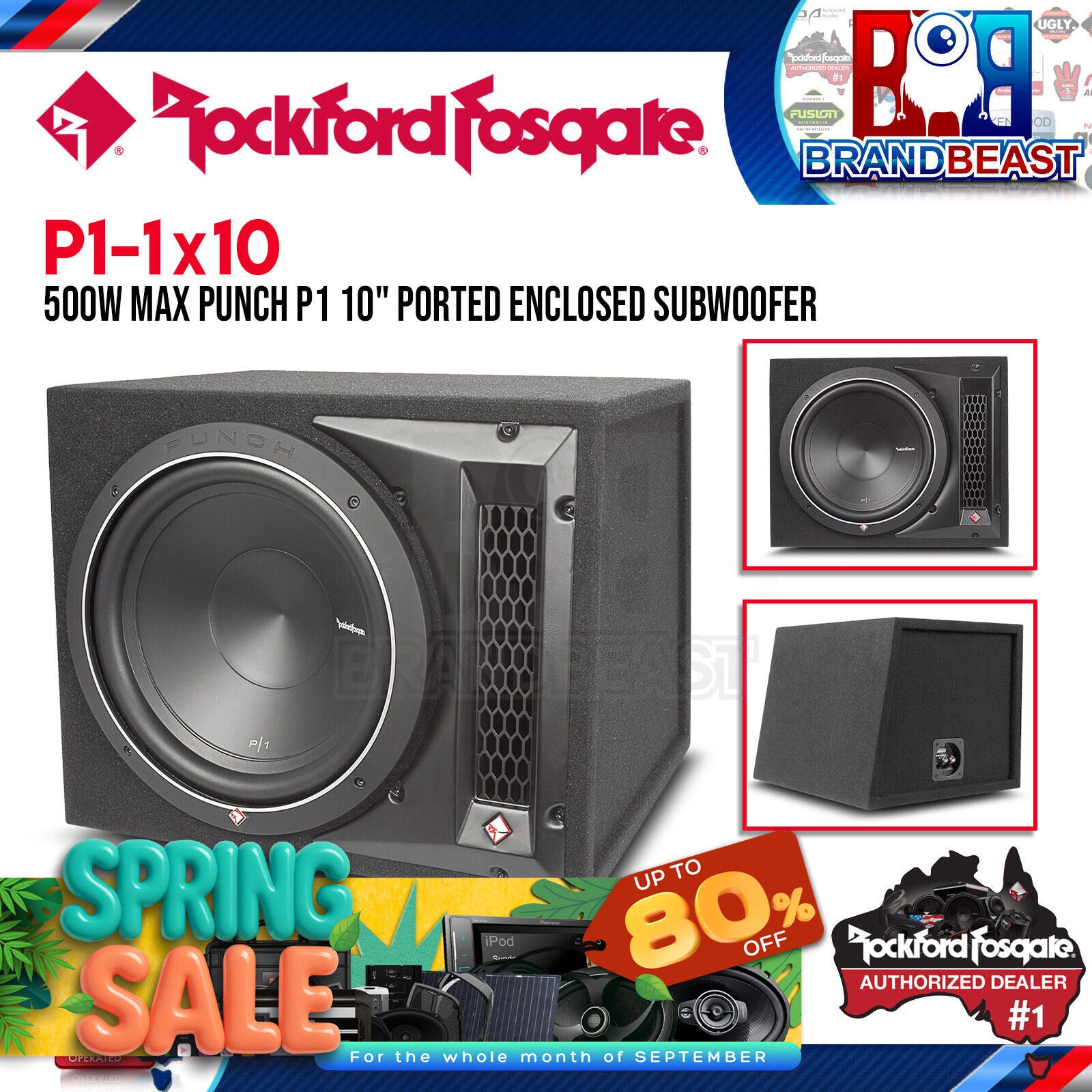

Rockford Fosgate P1-1X10 Punch Single P1 10" Vented Loaded Enclosure Compact Bass, Genuine Punch Performance
Product Overview
The Rockford Fosgate P1-1X10 is a single 10" vented loaded enclosure housing a genuine Punch P1 subwoofer, rated at 250 Watts RMS and pre-wired to a 4-ohm load. The most compact single-driver option in the Punch P1 vented loaded enclosure range, it is designed for Australian vehicle owners who need genuine Punch bass performance in a tighter footprint than a single 12" enclosure allows without sacrificing the quality and factory-tuned accuracy of the Punch loaded range.
Like the P1-1X12, the P1-1X10 presents a universal 4-ohm load, making it compatible with virtually any mono or bridged stereo amplifier rated at 250W RMS at 4 ohms the lowest barrier to entry for amplifier pairing in the Punch loaded enclosure catalogue. The same genuine Punch P1 10" woofer available separately is factory-loaded here in a computer-aided design tuned vented enclosure, with a proprietary high-flow, low-noise port, 5/8" MDF construction, high-density carpet finish, and high-current compression binding posts ready to install in any vehicle with available boot or cargo space.
Key Specifications
- Subwoofer: Single 10" Rockford Fosgate Punch P1
- Power handling: 250W RMS
- Pre-wired impedance: 4 ohm (internally wired)
- Enclosure type: Vented
- Construction: 5/8" MDF
- Finish: High-density carpet
- Port: Proprietary high-flow, low-noise
- Input terminals: High-current compression binding posts
- Enclosure design: Computer-aided design tuned
- Dimensions: Confirm with supplier
- Shipping weight: Confirm with supplier
Features & Benefits
-
Single 10" Punch P1 driver: The same genuine Punch P1 10" woofer available as a standalone driver, factory-loaded and tuned in a single vented enclosure. Consistent P1 tonal performance straight out of the box without the need to build a custom enclosure or source components separately.
-
250W RMS power handling: Accessible power requirements compatible with a wide range of entry-level and mid-range mono amplifiers. An ideal starting point for a first bass upgrade or a secondary zone system in Australian hatchbacks, sedans, and compact SUVs.
-
More compact than the P1-1X12: The 10" driver configuration produces a smaller enclosure footprint than the single 12" P1-1X12, fitting into tighter boot spaces, under-seat locations, and compact cargo areas where a 12" enclosure simply won't fit while delivering the same 250W RMS power handling.
-
Pre-wired to 4 ohms universally compatible impedance: Like the P1-1X12, the P1-1X10 presents a 4-ohm load, making it compatible with virtually any mono amplifier and many bridged stereo amplifiers. No impedance matching complexity the most straightforward amplifier pairing option in the entire Punch loaded enclosure catalogue.
-
Vented enclosure for impactful bass output: The vented design produces higher output at the tuning frequency than a sealed enclosure, delivering the impactful bass response preferred for single 10" high-output systems in vehicle boot and cargo spaces.
-
Proprietary high-flow, low-noise port: Purpose-engineered to minimise air turbulence and port chuffing at high excursion levels. Maintains clean, articulate bass output at sustained high-volume use consistent with the port quality standard across the entire Punch loaded enclosure range.
-
Computer-aided design tuning: Enclosure volume and port dimensions are calculated specifically for the P1 10" driver, ensuring the vented alignment is optimised for the intended tuning frequency rather than approximated.
-
Lightest and most portable option in the Punch P1 vented loaded range: The P1 loaded range is noted by Rockford Fosgate for lighter weight and easier handling than P2 and P3 equivalents. The single 10" configuration is the most manageable of all Punch vented loaded enclosures, suited to owners who frequently move or transfer their subwoofer setup.
-
5/8" MDF construction: Rigid enclosure walls minimise panel flex and resonance at sustained 250W RMS input levels.
-
High-density carpet finish: Durable, professional appearance suited to daily boot and cargo area use in Australian vehicles.
-
High-current compression binding posts: Secure, reliable connections appropriate for the current demands of a 250W RMS, 4-ohm system.
Technical Specs
| Specification |
Detail |
| SKU |
P1-1X10 |
| Brand |
Rockford Fosgate |
| Subwoofer Driver |
10" Rockford Fosgate Punch P1 |
| Woofer Quantity |
1 |
| Power Handling |
250W RMS |
| Pre-Wired Impedance |
4 ohm (internally wired) |
| Enclosure Type |
Vented |
| Port Type |
Proprietary high-flow, low-noise |
| Construction Material |
5/8" MDF |
| Finish |
High-density carpet |
| Input Terminals |
High-current compression binding posts |
| Enclosure Design |
Computer-aided design tuned |
| Dimensions |
Confirm with supplier |
| Shipping Weight |
Confirm with supplier |
| Warranty |
Confirm with supplier |
Compatible With
- Mono amplifiers stable at 4 ohms, rated at or near 250W RMS at 4 ohms
- Stereo amplifiers with a 4-ohm stable channel bridged to mono
- Rockford Fosgate Punch and Prime series mono amplifiers
- Entry-level and mid-range aftermarket head units with preamp outputs
- Factory system integrations via line output converter and 4-ohm stable amplifier
- Compact sedans, hatchbacks, and small SUVs where single 12" enclosure depth or width is too large
- Under-seat and shallow boot floor installations where 10" footprint is the maximum available space
- Rockford Fosgate wiring kits for 4-ohm mono amplifier installation
- Rockford Fosgate RCA cables and signal accessories
Frequently Asked Questions
What amplifier does the P1-1X10 require? The P1-1X10 is pre-wired to 4 ohms and handles 250W RMS. Any mono amplifier stable at 4 ohms and rated at or near 250W RMS at 4 ohms is suitable or a stereo amplifier bridged to mono into 4 ohms. The 4-ohm load makes it compatible with virtually any amplifier in the Punch and Prime range.
What is the difference between the P1-1X10 and P1-1X12? Both enclosures handle 250W RMS and are pre-wired to 4 ohms. The P1-1X10 uses a 10" P1 driver in a more compact enclosure, while the P1-1X12 uses a 12" driver in a larger enclosure. Choose the P1-1X10 when boot or cargo space rules out a single 12" footprint but single-driver vented bass performance is still the goal.
Are the drivers in the P1-1X10 the same as the standalone P1 subwoofers? Yes. The P1-1X10 is loaded with a genuine Rockford Fosgate Punch P1 10" driver the same woofer available separately in the Punch P1 range factory-loaded and tuned in a computer-optimised vented enclosure.
Why choose a vented P1-1X10 over a sealed single 10" enclosure? A vented enclosure produces higher output at the tuning frequency than a sealed enclosure of equivalent driver and amplifier power, making it the preferred choice for maximum bass impact and volume. A sealed enclosure offers tighter, more accurate bass at lower output levels choose vented for impact, sealed for accuracy and control.
Is the P1-1X10 a good choice for a compact vehicle or first subwoofer system? Yes. The single 10" footprint, 4-ohm pre-wiring, 250W RMS power handling, and plug-and-play loaded enclosure format make the P1-1X10 one of the most accessible and space-efficient entry points in the Punch loaded range ideal for compact Australian vehicles and first-time subwoofer installations.
