Description

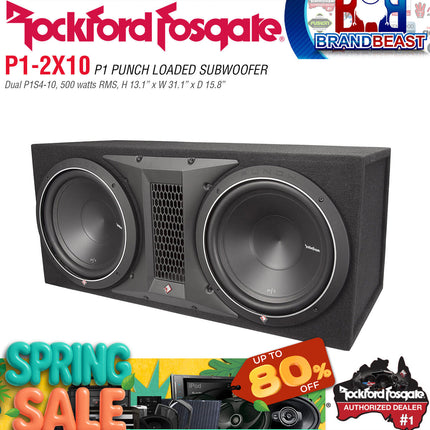

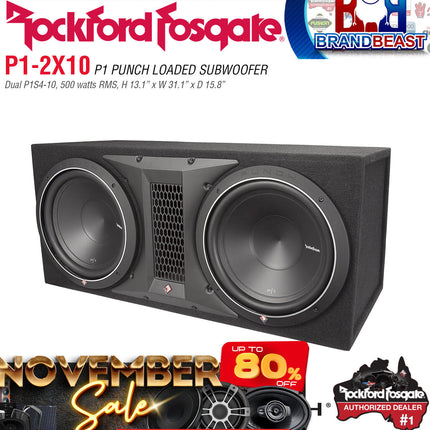

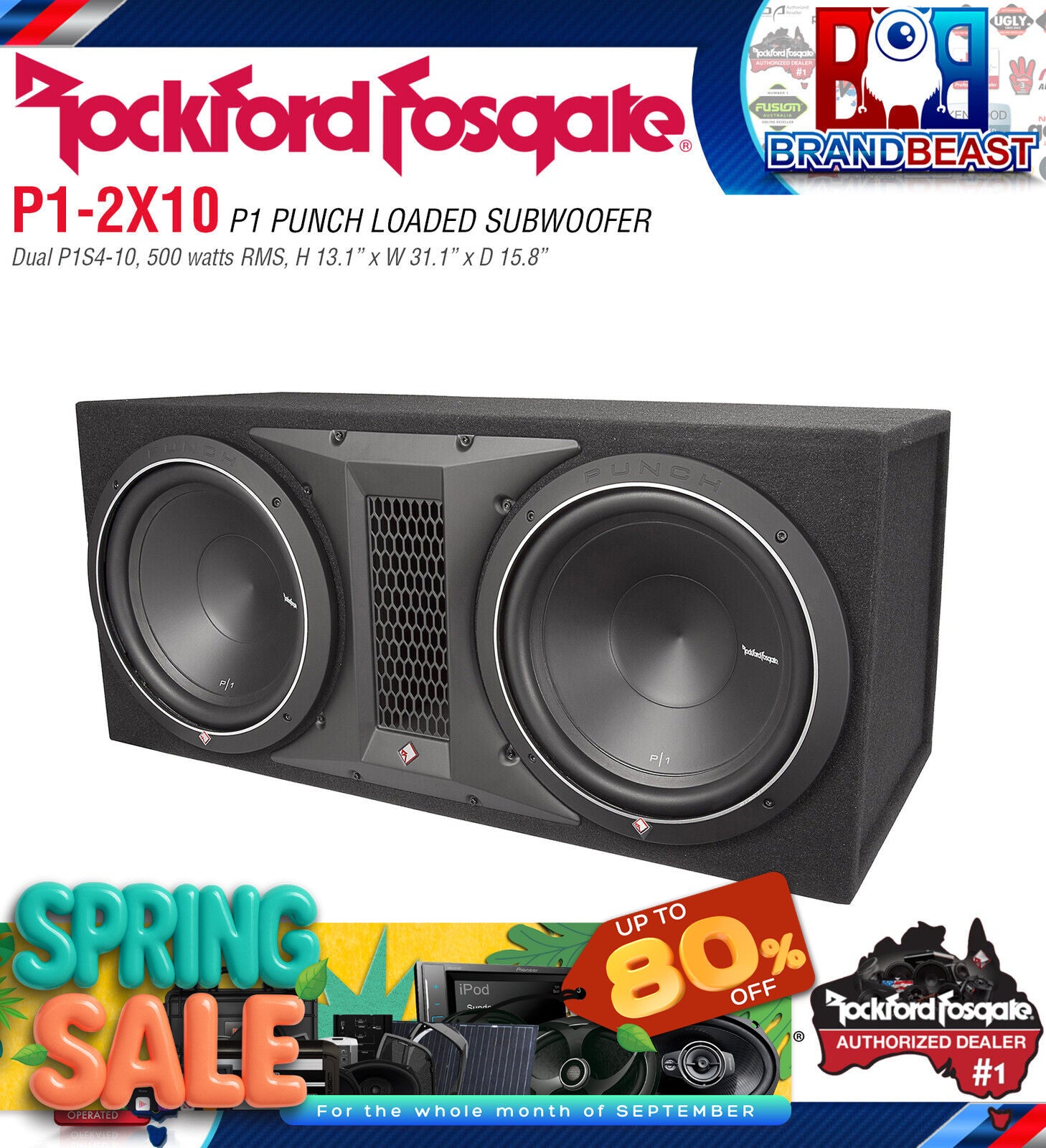

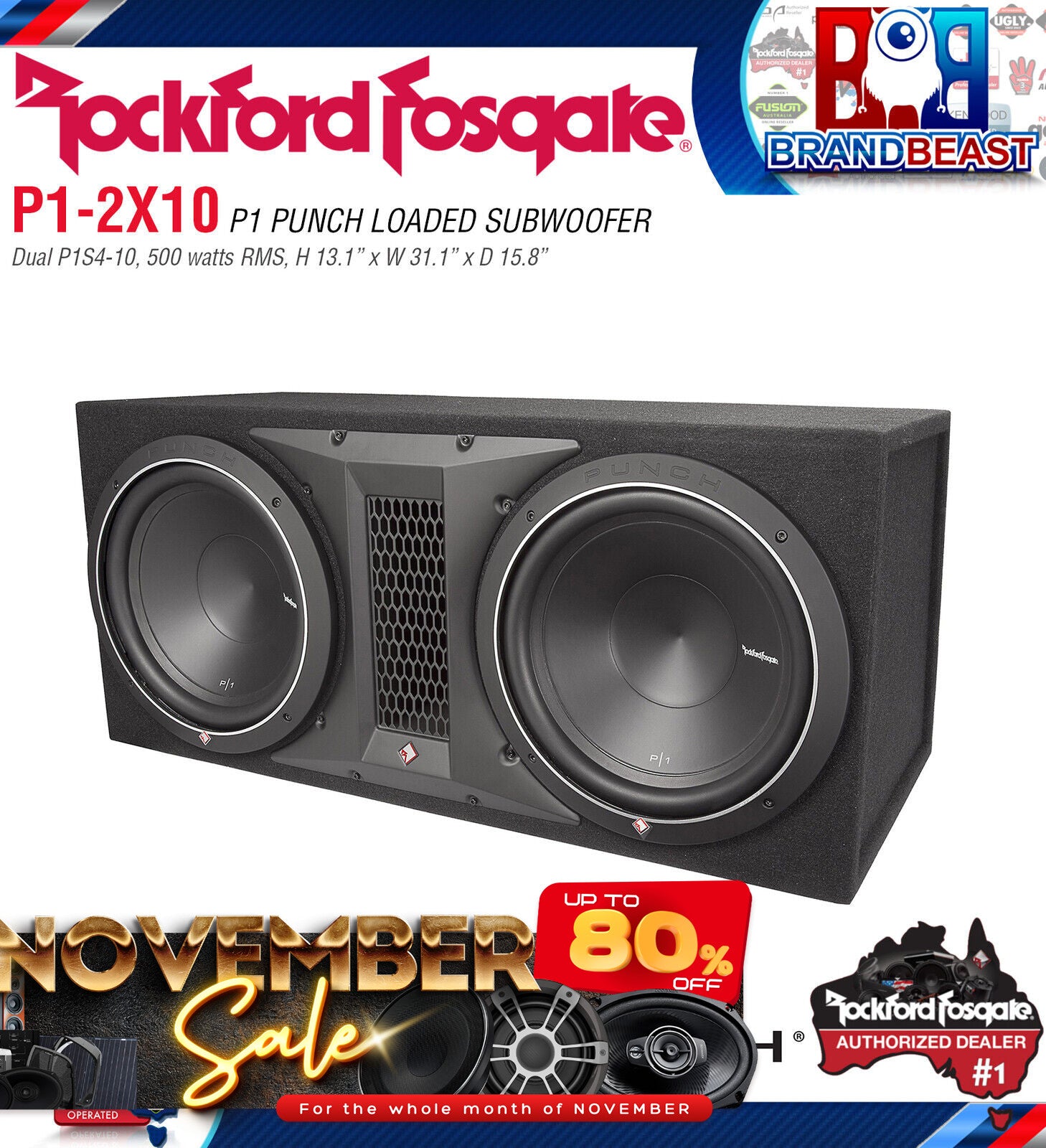

Rockford Fosgate P1-2X10 Punch Dual P1 10" Vented Loaded Enclosure Dual 10s, Genuine Punch Performance
Product Overview
The Rockford Fosgate P1-2X10 is a dual 10" vented loaded enclosure housing two genuine Punch P1 subwoofers, delivering 500 Watts RMS combined power handling in a single factory-built, computer-tuned enclosure. Pre-wired internally to a 2-ohm load, it offers the dual-driver bass impact of the Punch P1 loaded range in a more compact width than the dual 12" P1-2X12 making it the practical choice for Australian vehicles where boot width is a constraint but dual-driver bass output is still the priority.
Like all Punch loaded enclosures, the P1-2X10 uses the same genuine Punch P1 woofers available separately, factory-loaded and tuned in a vented enclosure built from 5/8" MDF with a proprietary high-flow, low-noise port, high-density carpet finish, and high-current compression binding posts. The P1 loaded range is specifically noted for its lighter weight and easier handling compared to P2 and P3 equivalents a practical advantage for Australian owners who regularly move or transfer their subwoofer setup between vehicles.
Key Specifications
- Subwoofers: Dual 10" Rockford Fosgate Punch P1
- Power handling: 500W RMS
- Pre-wired impedance: 2 ohm (internally wired)
- Enclosure type: Vented
- Construction: 5/8" MDF
- Finish: High-density carpet
- Port: Proprietary high-flow, low-noise
- Input terminals: High-current compression binding posts
- Enclosure design: Computer-aided design tuned
- Dimensions: Confirm with supplier
- Shipping weight: Confirm with supplier
Features & Benefits
-
Dual 10" Punch P1 drivers: The same genuine Punch P1 woofers available as standalone drivers, factory-loaded and tuned as a matched pair in a single vented enclosure. Identical P1 tonal performance to a custom dual 10" build without the time and cost of sourcing components separately.
-
500W RMS combined power handling: Pre-wired to 2 ohms for straightforward amplifier matching. Delivers dual-driver bass impact from a mid-range mono amplifier the same power handling as the dual 12" P1-2X12 in a more compact dual 10" footprint.
-
More compact than the P1-2X12: The dual 10" configuration produces a narrower enclosure than the dual 12" P1-2X12, fitting into boot spaces where 12" driver width is a constraint while still delivering the impact of a dual-driver vented system.
-
Pre-wired to 2 ohms: Factory internal wiring presents a 2-ohm load to the amplifier, consistent with the P1-2X12. Confirm your mono amplifier's 2-ohm power rating before purchase this differs from the 1-ohm pre-wiring of the P2 and P3 loaded enclosures in this catalogue.
-
Vented enclosure for high-output bass: The vented design produces higher output at the tuning frequency than a sealed enclosure, delivering the loud, impactful bass response preferred for dual-driver high-output systems in vehicle boot and cargo spaces.
-
Proprietary high-flow, low-noise port: Purpose-engineered to minimise air turbulence and port chuffing at high excursion levels. Maintains clean, articulate bass at sustained high-volume use consistent with the port quality standard across the entire Punch loaded enclosure range.
-
Computer-aided design tuning: Enclosure volume and port dimensions are calculated specifically for the P1 10" driver pair, ensuring the vented alignment is optimised for the intended tuning frequency rather than approximated.
-
Lighter and easier to handle than P2 and P3 equivalents: The P1 loaded range is specifically noted by Rockford Fosgate for being easier to move in and out of vehicles than P2 and P3 enclosures a practical benefit for Australian owners who regularly remove or reposition their subwoofer system.
-
5/8" MDF construction: Rigid enclosure walls minimise panel flex and resonance at sustained 500W RMS combined input levels, ensuring accurate bass reproduction at the output levels this enclosure is designed to handle.
-
High-density carpet finish: Durable, professional appearance suited to daily boot and cargo area use in Australian vehicles.
-
High-current compression binding posts: Secure, reliable connections appropriate for the current demands of a 500W RMS, 2-ohm system.
Technical Specs
| Specification |
Detail |
| SKU |
P1-2X10 |
| Brand |
Rockford Fosgate |
| Subwoofer Drivers |
2 x 10" Rockford Fosgate Punch P1 |
| Woofer Quantity |
2 |
| Power Handling |
500W RMS |
| Pre-Wired Impedance |
2 ohm (internally wired) |
| Enclosure Type |
Vented |
| Port Type |
Proprietary high-flow, low-noise |
| Construction Material |
5/8" MDF |
| Finish |
High-density carpet |
| Input Terminals |
High-current compression binding posts |
| Enclosure Design |
Computer-aided design tuned |
| Dimensions |
Confirm with supplier |
| Shipping Weight |
Confirm with supplier |
| Warranty |
Confirm with supplier |
Compatible With
- Mono amplifiers stable at 2 ohms, rated at or near 500W RMS at 2 ohms
- Rockford Fosgate Power and Punch series mono amplifiers rated at 2 ohms
- Sedans, hatchbacks, SUVs, and utes with boot or cargo area space where dual 12" enclosure width is impractical
- Vehicles requiring a dual-driver vented bass solution in a more compact width than the P1-2X12
- Rockford Fosgate wiring kits for 2-ohm mono amplifier installation
- Rockford Fosgate RCA cables and signal accessories
Frequently Asked Questions
What amplifier does the P1-2X10 require? The P1-2X10 is pre-wired to 2 ohms and handles 500W RMS combined. A mono amplifier stable at 2 ohms and rated at or near 500W RMS at 2 ohms is recommended. Confirm your amplifier's 2-ohm rating before purchase this enclosure presents a 2-ohm load, not 1 ohm.
What is the difference between the P1-2X10 and P1-2X12? Both enclosures handle 500W RMS combined and are pre-wired to 2 ohms. The P1-2X10 uses dual 10" P1 drivers in a more compact enclosure width, while the P1-2X12 uses dual 12" P1 drivers in a wider enclosure (86.0 cm). Choose the P1-2X10 when boot width rules out the dual 12" footprint but dual-driver output is still the goal.
Are the drivers in the P1-2X10 the same as the standalone P1 subwoofers? Yes. The P1-2X10 is loaded with genuine Rockford Fosgate Punch P1 10" drivers the same woofers available separately in the Punch P1 range factory-loaded and tuned in a computer-optimised vented enclosure.
Why is the P1-2X10 pre-wired to 2 ohms instead of 1 ohm? The Punch P1 drivers used in this enclosure are single voice coil 4-ohm drivers. Wiring two in parallel produces a 2-ohm load the lowest achievable impedance with this driver configuration. The P2 and P3 loaded enclosures use dual voice coil drivers, allowing 1-ohm wiring. Confirm your amplifier's 2-ohm stability before connecting.
Is the P1-2X10 easier to handle than the P2 and P3 dual enclosures? Yes. The P1 loaded range is specifically noted by Rockford Fosgate for lighter weight and easier handling compared to P2 and P3 equivalents. Confirm the exact shipping weight with your supplier, as this data was not available at time of publishing.
