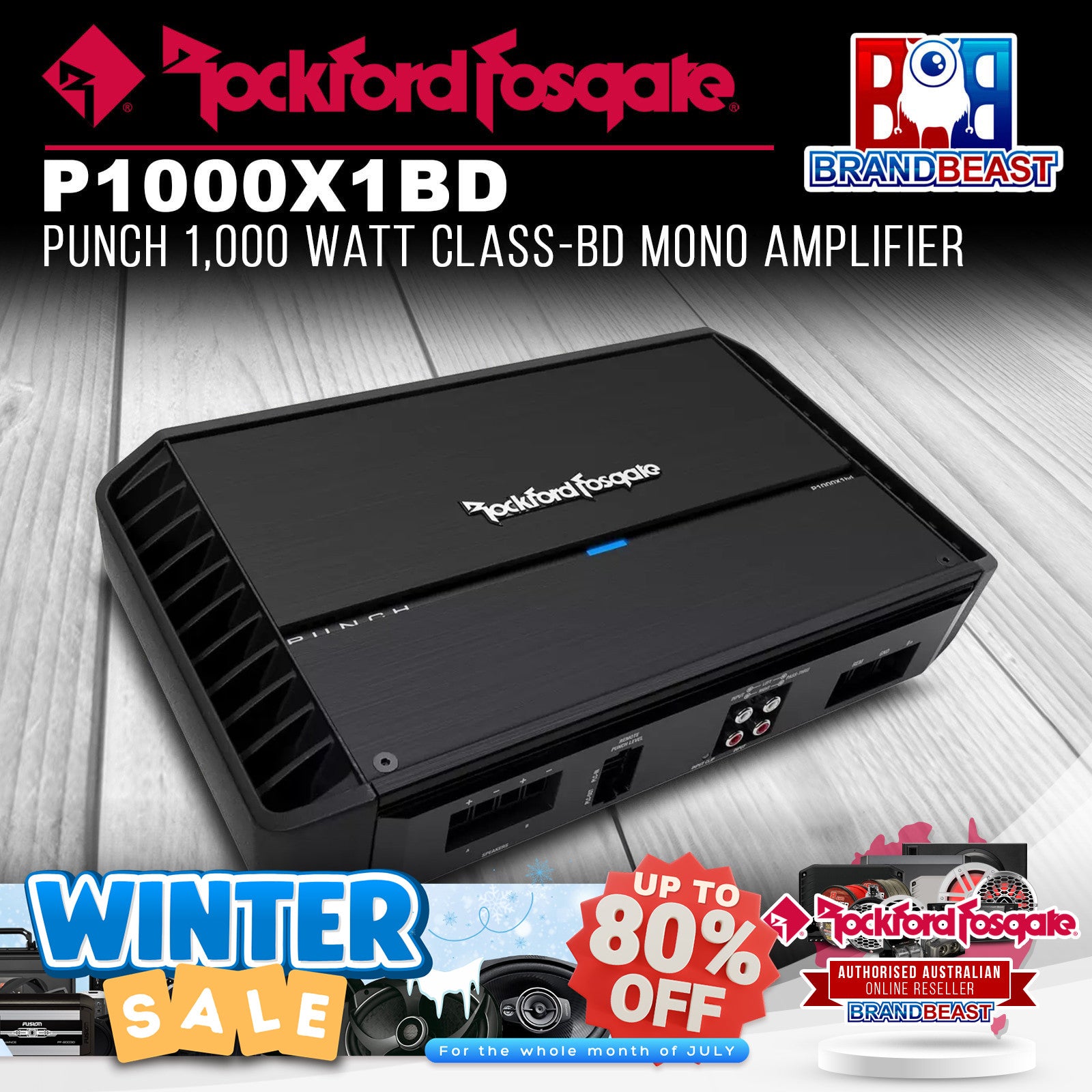

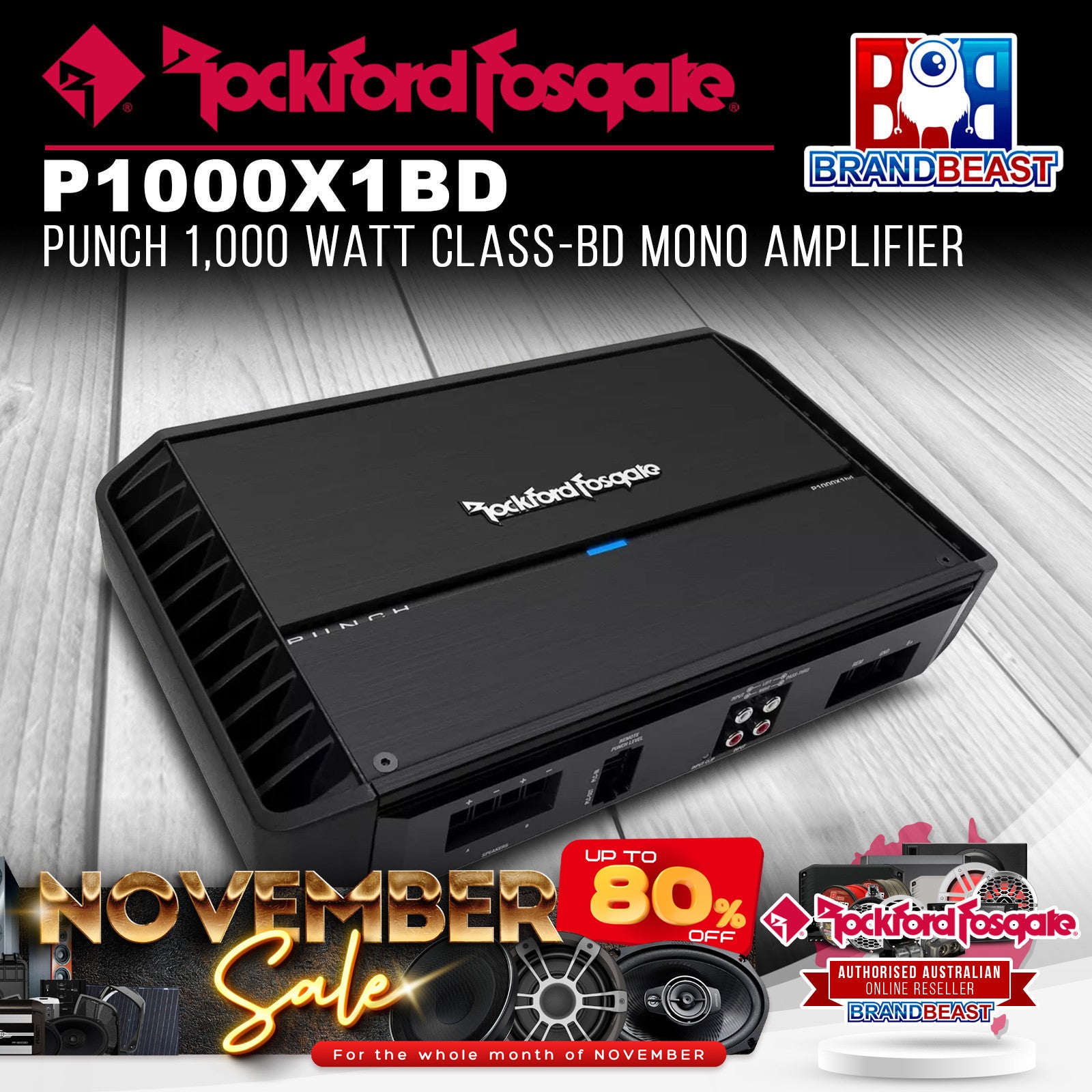

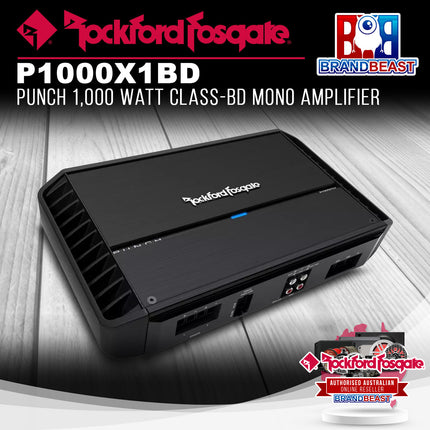

Rockford Fosgate P1000X1bd Punch 1,000 Watt Class-bd Mono Amplifier

Description

With Its Super-Efficient Class-BD Circuit Topology, the P1000x1bd Assures Maximum Boom for Your Buck!

The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers. With its super efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease. Features:
  • High level input capable with Auto Turn-On circuit
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • RCA pass-thru outputs
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Infrasonic filter
Specifications:
  • CEA-2006 Compliant
  • Number of Channels 1
  • Total Power (Sum of Rated Power) 1000 Watts
  • Rated Power (RMS Continuous Power) 300 Watts x 1 @ 4-Ohm, 500 Watts x 1 @ 2-Ohm, 1000 Watts x 1 @ 1-Ohm
  • Dynamic Power (PVC/PowerCube¬Æ) 491 Watts x 1 @ 4-Ohms, 874 Watts x 1 @ 2-Ohms, 1,430 Watts x 1 @ 1-Ohm
  • Bridgeable No
  • Frequency Response 20Hz to 250Hz +/- 1.0dB
  • Input Sensitivity 150 mV - 12 V
  • Circuit Topology Class Class BD
  • Efficiency (average) 86% @ 4-Ohm
  • Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%, 2-Ohm: <1.0%, 1-Ohm: <1.0%
  • Signal Input Hi/Low level: 1 RCA pair
  • Signal Output Hi/Low level: 1 RCA pair
  • Tone Controls Punch EQ2 Bass: 0dB to +18dB @ 45Hz
  • Remote Controls Optional Punch Level Control (PLC2) Ready
  • Visual Indicators Power/Protect/Thermal LED Input Clip LED3, Output Clip LED1,2,3/LED Color Legend: 1BLUE: <0.5% THD, 2VIOLET: 1% THD, 3RED: 10%+ THD
  • Power Wire Gauge 4 AWG
  • Power Input Connector Captive C-Clamp
  • Speaker Wire Gauge 8 AWG to 18 AWG
  • Speaker Output Connector Captive C-Clamp
  • Cooling Convection
  • Operating Voltage 9 - 16 VDC
  • Recommended Fuse (not included) 140 A
  • Average Current Draw (13.8V Music) 65 A
  • Max. Current Draw (13.8V Sinewave) 130 A
  • Suggested Alternator 100 A
  • Dimensions (H x W x D) 2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm)
  • Shipping Weight 12.9 lbs. (5.85 Kg.)

Legendary Products & Support From Authorized Dealers

When you choose Rockford Fosgate, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Rockford Fosgate dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Rockford Fosgate's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Rockford Fosgate dealer today!

Rockford Fosgate P1000X1bd Punch 1,000 Watt Class-bd Mono Amplifier

Product form

With Its Super-Efficient Class-BD Circuit Topology, the P1000x1bd Assures Maximum Boom for Your Buck! The Punch P1000X1bd mono amplifier pumps... Read more

SKU: P1000X1bd

  • In Stock

$1,029.00 Incl. VAT

    Description

    With Its Super-Efficient Class-BD Circuit Topology, the P1000x1bd Assures Maximum Boom for Your Buck!

    The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers. With its super efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease. Features:
    • High level input capable with Auto Turn-On circuit
    • Features C.L.E.A.N. Set-up
    • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
    • 12dB/octave Butterworth crossover
    • RCA pass-thru outputs
    • On-board Punch EQ with +18dB boost @ 45Hz
    • Muted turn on
    • Stealth top mounted control panel
    • Cast aluminum heatsink
    • Short circuit protection
    • Over current protection
    • Infrasonic filter
    Specifications:
    • CEA-2006 Compliant
    • Number of Channels 1
    • Total Power (Sum of Rated Power) 1000 Watts
    • Rated Power (RMS Continuous Power) 300 Watts x 1 @ 4-Ohm, 500 Watts x 1 @ 2-Ohm, 1000 Watts x 1 @ 1-Ohm
    • Dynamic Power (PVC/PowerCube¬Æ) 491 Watts x 1 @ 4-Ohms, 874 Watts x 1 @ 2-Ohms, 1,430 Watts x 1 @ 1-Ohm
    • Bridgeable No
    • Frequency Response 20Hz to 250Hz +/- 1.0dB
    • Input Sensitivity 150 mV - 12 V
    • Circuit Topology Class Class BD
    • Efficiency (average) 86% @ 4-Ohm
    • Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%, 2-Ohm: <1.0%, 1-Ohm: <1.0%
    • Signal Input Hi/Low level: 1 RCA pair
    • Signal Output Hi/Low level: 1 RCA pair
    • Tone Controls Punch EQ2 Bass: 0dB to +18dB @ 45Hz
    • Remote Controls Optional Punch Level Control (PLC2) Ready
    • Visual Indicators Power/Protect/Thermal LED Input Clip LED3, Output Clip LED1,2,3/LED Color Legend: 1BLUE: <0.5% THD, 2VIOLET: 1% THD, 3RED: 10%+ THD
    • Power Wire Gauge 4 AWG
    • Power Input Connector Captive C-Clamp
    • Speaker Wire Gauge 8 AWG to 18 AWG
    • Speaker Output Connector Captive C-Clamp
    • Cooling Convection
    • Operating Voltage 9 - 16 VDC
    • Recommended Fuse (not included) 140 A
    • Average Current Draw (13.8V Music) 65 A
    • Max. Current Draw (13.8V Sinewave) 130 A
    • Suggested Alternator 100 A
    • Dimensions (H x W x D) 2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm)
    • Shipping Weight 12.9 lbs. (5.85 Kg.)

    Legendary Products & Support From Authorized Dealers

    When you choose Rockford Fosgate, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

    • ▸ Expert Knowledge & Training

      Only authorized Rockford Fosgate dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

    • ▸ Authorized Warranty Protection:

      We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

    • ▸ Reliable Customer Support:

      If you ever run into an issue, you're backed by Rockford Fosgate's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

    • ▸ Protect Your Investment:

      Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

    Choose wisely. Buy from an authorized Rockford Fosgate dealer today!
