3.5" 2-Way Punch Series Coaxial 20W RMS, FlexFit Basket, PEI Dome Tweeter, 85dB Sensitivity. Factory Replacement with OEM Adapter.
Product Overview

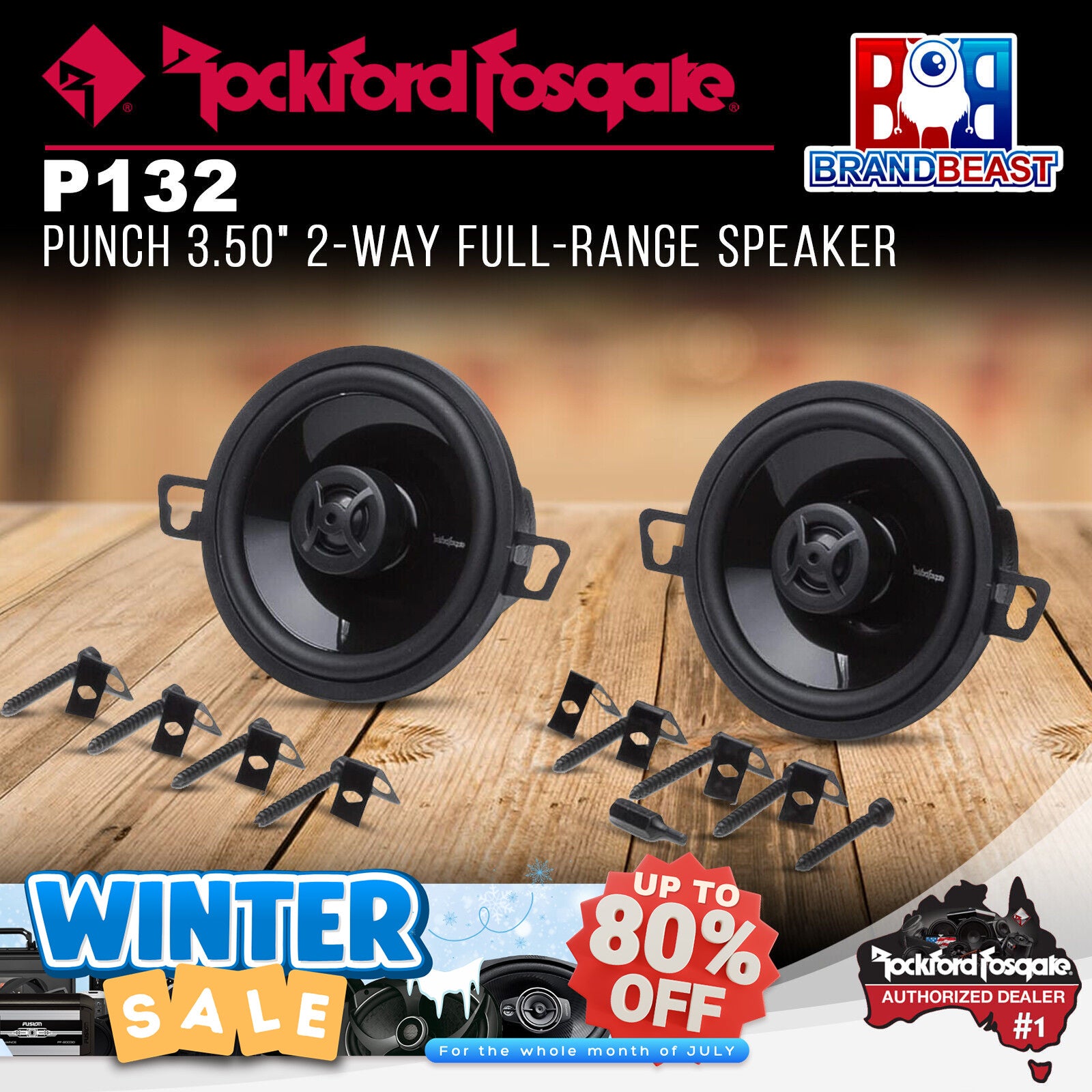

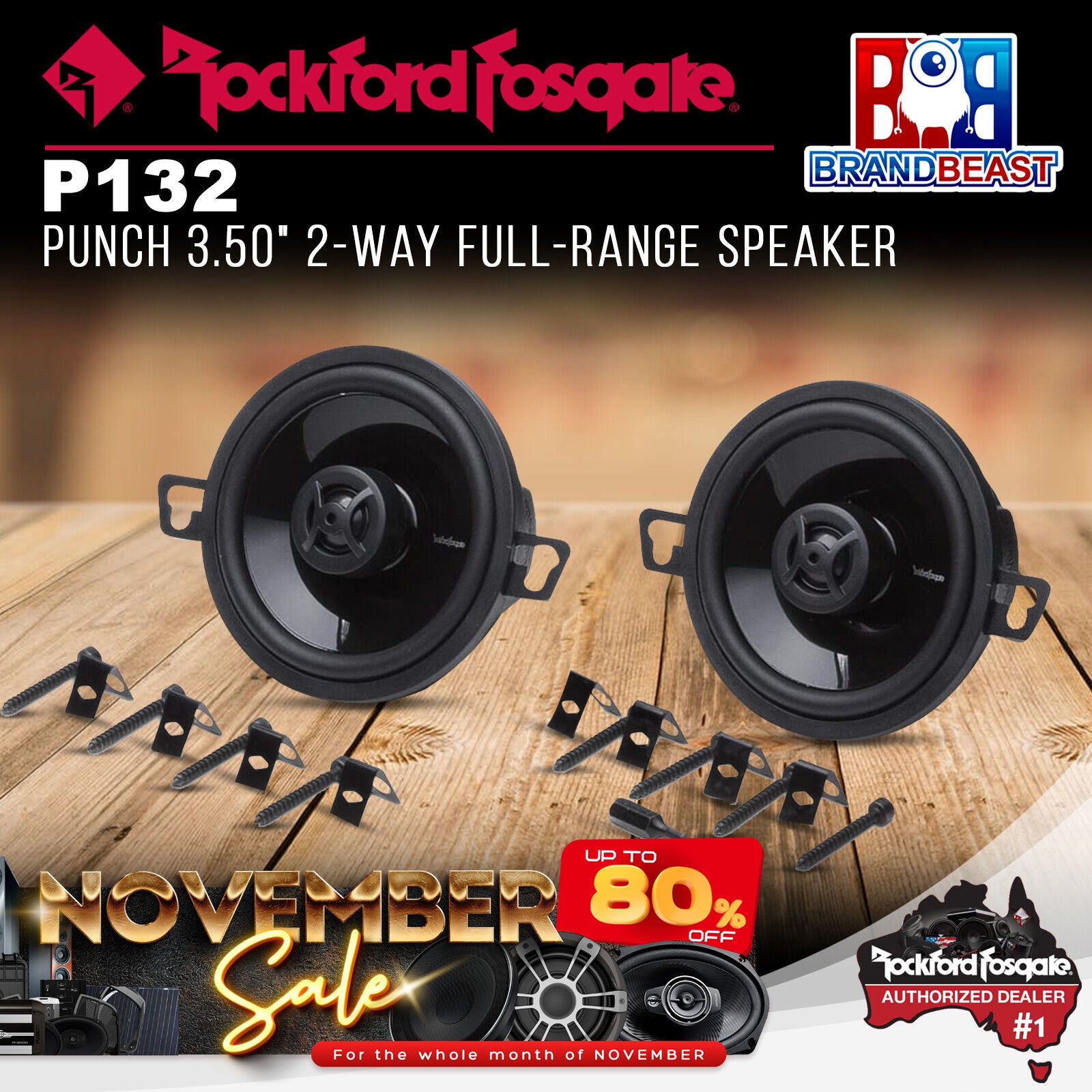

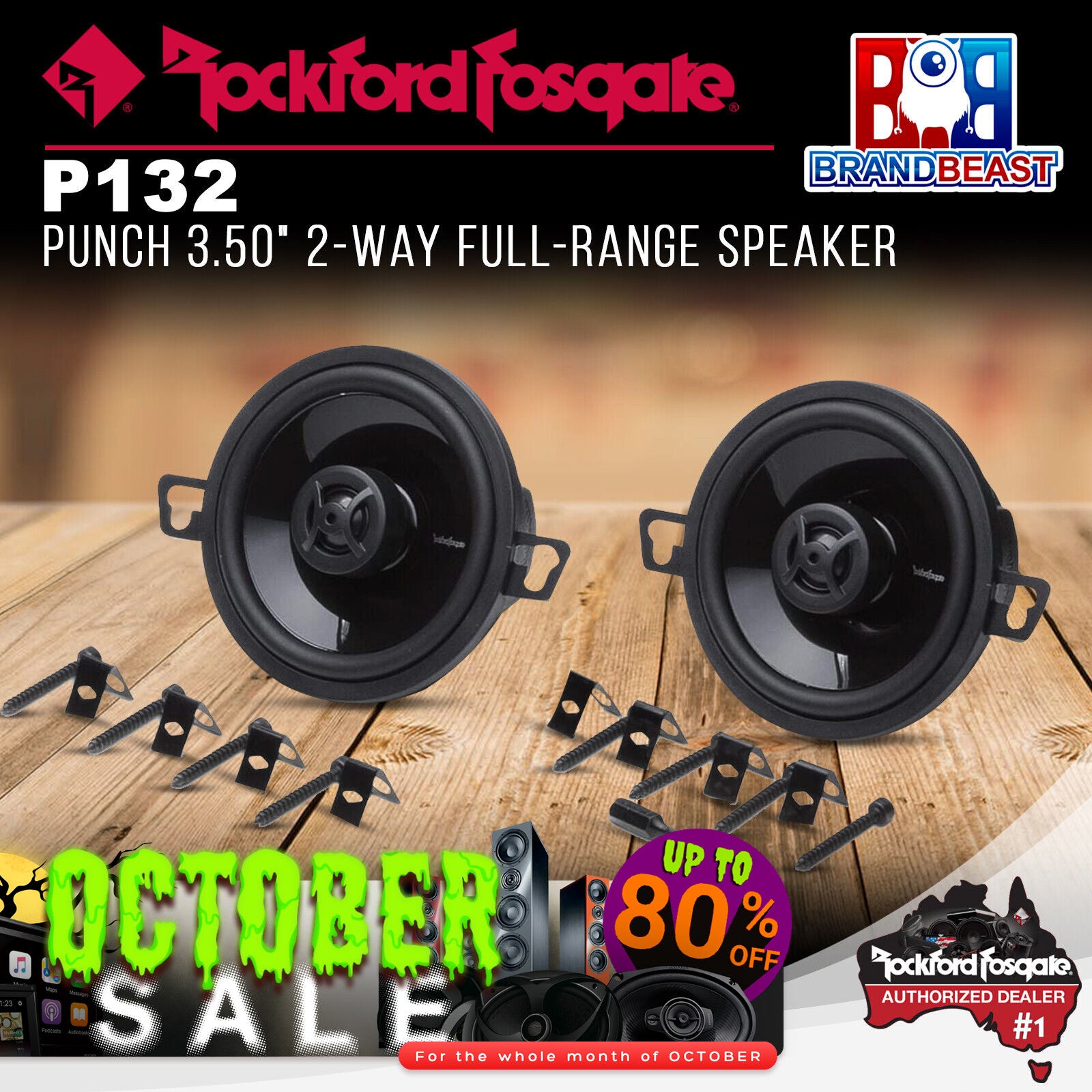

The Rockford Fosgate Punch P132 is a pair of 3.5" 2-way coaxial speakers rated at 20W RMS (40W peak) designed as a quality factory replacement driver for small-format speaker positions. At 4Ω impedance and 85dB sensitivity, the P132 is engineered for direct OEM system compatibility, including the OEM adapter plate supplied in the kit for compatibility with odd-shaped factory speaker locations.
The Punch series sits above the Prime range in Rockford Fosgate's speaker hierarchy, introducing construction improvements including a mineral-filled polypropylene cone, butyl rubber surround, and a PEI dome tweeter with an Integrated Concealed Crossover (ICC) built directly into the tweeter assembly eliminating any external crossover component from the installation. The FlexFit basket is purpose-designed to accommodate the non-standard mounting geometries found in OEM speaker positions where a standard round basket would not fit cleanly. Grilles are not included.
Key Specifications
- Speaker size: 3.5 inch (nominal diameter)
- Configuration: 2-way coaxial
- Power handling (RMS): 20W per speaker
- Power handling (peak): 40W per speaker
- Impedance: 4Ω
- Sensitivity: 85dB @ 1W/1M
- Frequency response: 120Hz – 22kHz
- Mounting depth: 1.38" (35mm)
- Tweeter: PEI dome, 0.5" (12.7mm)
- Crossover: Integrated Concealed Crossover (ICC) — built into tweeter
- Cone: Injection-moulded mineral-filled polypropylene
- Surround: Butyl rubber
- Basket: FlexFit
- OEM adapter plate: Included
- Mounting hardware: Included
- Grilles: Not included
- Sold as: Pair (2 speakers)
- Shipping weight: 2.1 lbs (0.95 kg) per pair
- Warranty: Not specified — confirm with Rockford Fosgate
Features & Benefits
-
FlexFit Basket — A Rockford Fosgate proprietary basket geometry designed to fit into the non-standard mounting profiles found in many OEM factory speaker locations — where a conventional circular basket would require modification or would not seat correctly. The FlexFit basket accommodates odd-shaped factory cavities that are common across European and Japanese vehicle models.
-
OEM Adapter Plate Included — An additional adapter plate is included to further assist compatibility with factory speaker positions — fitting between the speaker and the vehicle's mounting surface where the OEM speaker size does not directly match the P132's footprint.
-
Integrated Concealed Crossover (ICC) — The crossover circuitry is built directly into the PEI dome tweeter assembly — entirely hidden from view and requiring no external crossover box, black box, or additional mounting hardware. The ICC is the Punch series' clean installation solution over conventional in-line or box crossovers.
-
PEI Dome Tweeter — 0.5" (12.7mm) — Polyetherimide (PEI) is a rigid engineering thermoplastic with low mass and high stiffness — producing an extended, detailed high-frequency response above the 120Hz lower crossover limit of the P132 system. PEI domes are known for precise, clear treble reproduction.
-
Injection-Moulded Mineral-Filled Polypropylene Cone — Mineral filling adds stiffness and damping to the polypropylene cone — a step above standard polypropylene, producing lower resonance colouration and more accurate midrange reproduction in the 120Hz–22kHz working range.
-
Butyl Rubber Surround — Butyl rubber is a synthetic rubber compound with superior UV resistance, chemical resistance, and temperature stability compared to standard natural rubber or foam surrounds — providing excellent long-term durability in Australian vehicle environments across both summer heat and UV exposure.
-
20W RMS / 40W Peak — Conservative RMS rating matched to the 3.5" driver size — suitable for direct connection to most factory and aftermarket head units without amplification. The 4Ω impedance is standard for OEM system compatibility.
-
85dB Sensitivity — At 85dB, the P132 is less efficient than the R165X3's 91dB — requiring more power to achieve equivalent output. Head unit compatibility is still practical at this size, but note that amplification will produce a more noticeable improvement in volume and dynamics on this speaker than on higher-sensitivity alternatives.
-
120Hz – 22kHz Frequency Response — The lower limit of 120Hz reflects the constraints of a 3.5" driver in its working range. Below 120Hz, a subwoofer or larger door speaker would be required for full bass reproduction. The 22kHz upper limit confirms extended high-frequency coverage from the PEI dome tweeter.
Technical Specs
| Specification |
Detail |
| Brand |
Rockford Fosgate |
| Part Number |
P132 |
| Series |
Punch |
| Speaker Size |
3.5 inch |
| Configuration |
2-Way Coaxial |
| Power Handling (RMS) |
20W per speaker ✓ |
| Power Handling (Peak) |
40W per speaker ✓ |
| Impedance |
4Ω ✓ |
| Sensitivity |
85dB @ 1W/1M ✓ |
| Frequency Response |
120Hz – 22kHz ✓ |
| Mounting Depth |
1.38" (35mm) ✓ |
| Tweeter |
PEI Dome, 0.5" (12.7mm) ✓ |
| Crossover |
Integrated Concealed (ICC, in tweeter) ✓ |
| Cone |
Injection-Moulded Mineral-Filled Polypropylene |
| Surround |
Butyl Rubber |
| Basket |
FlexFit |
| OEM Adapter Plate |
Included ✓ |
| Mounting Hardware |
Included ✓ |
| Grilles |
Not Included ✓ |
| Sold As |
Pair (2 speakers) ✓ |
| Shipping Weight |
2.1 lbs / 0.95 kg per pair ✓ |
| Cutout Diameter |
Not specified — confirm with Rockford Fosgate |
| Warranty |
Not specified — confirm with Rockford Fosgate |
Compatible With / Goes Well With
Suitable installation positions:
- Factory 3.5" speaker positions — common in dash speaker, rear side panel, and small door positions
- OEM speaker locations with non-standard mounting profiles (FlexFit basket + adapter plate)
Pairs well with:
- Rockford Fosgate T400-4 or T600-4 4-channel amplifiers — amplification will improve the P132's output noticeably given its 85dB sensitivity
- A dedicated subwoofer system for bass below 120Hz — the P132's frequency response starts at 120Hz, so low-frequency extension requires a separate sub
Weight
0.95 kg per pair (shipping weight).
Frequently Asked Questions
What is the FlexFit basket and why does it matter for OEM replacement?
The FlexFit basket uses a non-standard geometry designed to fit into the irregularly shaped mounting cavities found in many factory speaker positions — where a standard circular basket would not seat correctly or would require modification. Combined with the included OEM adapter plate, the P132 accommodates a wider range of factory mounting positions than a standard coaxial speaker.
What is a PEI dome tweeter?
PEI (Polyetherimide) is a rigid engineering thermoplastic with low mass and high stiffness — producing a tweeter diaphragm that maintains its shape at high frequencies for precise, extended treble reproduction. PEI domes are known for detailed, clear high-frequency output — different in character from the softer presentation of a silk dome or the bright/forward tone of a Mylar dome.
What does 85dB sensitivity mean for my installation?
Sensitivity measures how much sound pressure a speaker produces from 1 watt of input at 1 metre distance. At 85dB, the P132 is moderately sensitive. In practical terms, an amplifier will produce a more noticeable volume increase on these speakers than on a higher-sensitivity driver such as the R165X3 (91dB). For factory head unit use, output will be adequate for comfortable listening levels.
Why does the frequency response start at 120Hz?
The 3.5" cone diameter limits how low the speaker can efficiently reproduce bass frequencies. Below 120Hz, a dedicated woofer or subwoofer is required for accurate low-frequency reproduction. The P132 works well as a mid-high frequency speaker in a system with a subwoofer to handle the bass — this is a common configuration in small OEM speaker position vehicles.
Are grilles included with the P132?
No — grilles are not included with the P132. The kit includes two speakers, two OEM adapter plates, and mounting hardware only.
