Description
4" 2-Way Punch Series Coaxial 30W RMS, 86.5dB, 100Hz–22kHz, FlexFit Basket, 4"×6" and 6"×8" Adapter Plates Included.
Product Overview

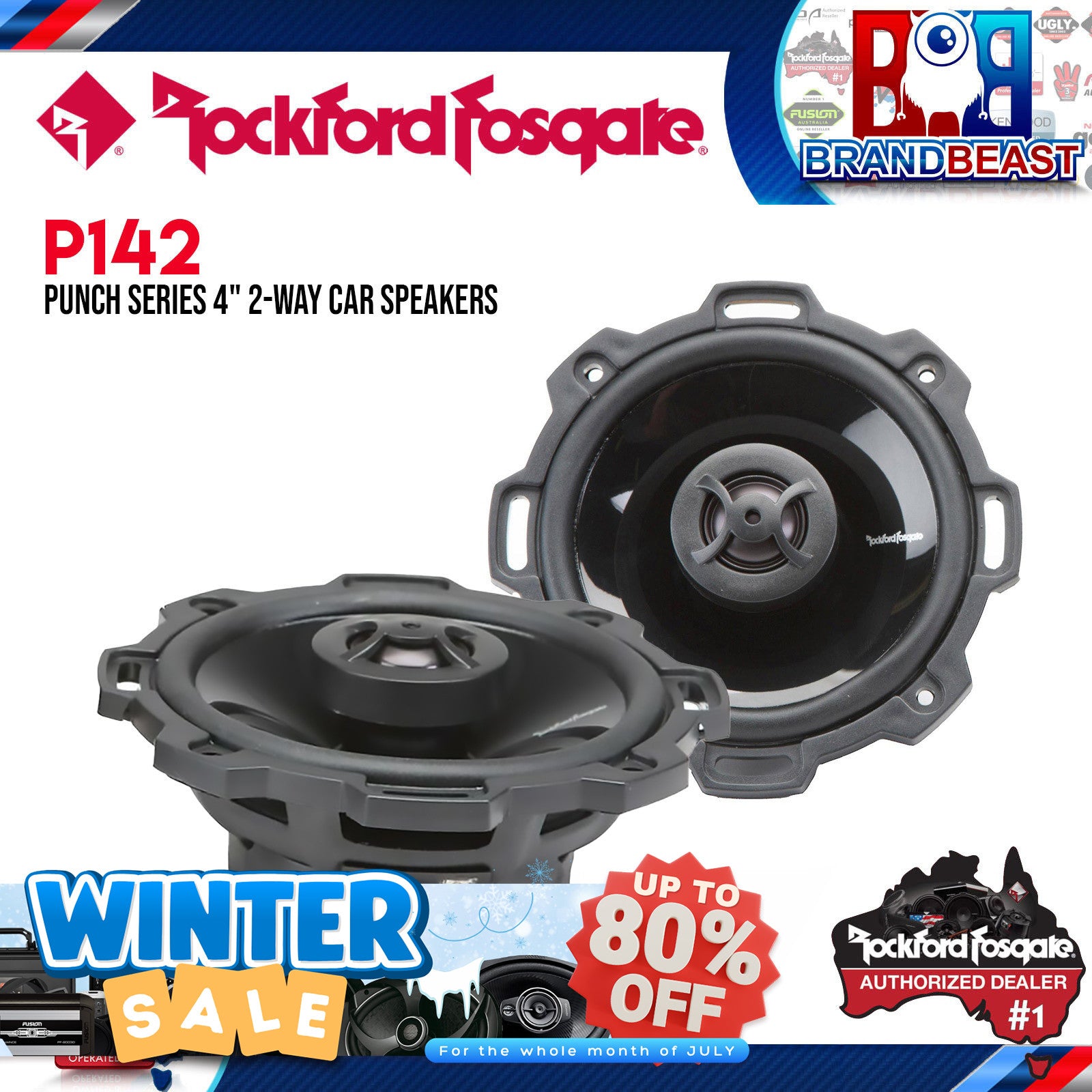

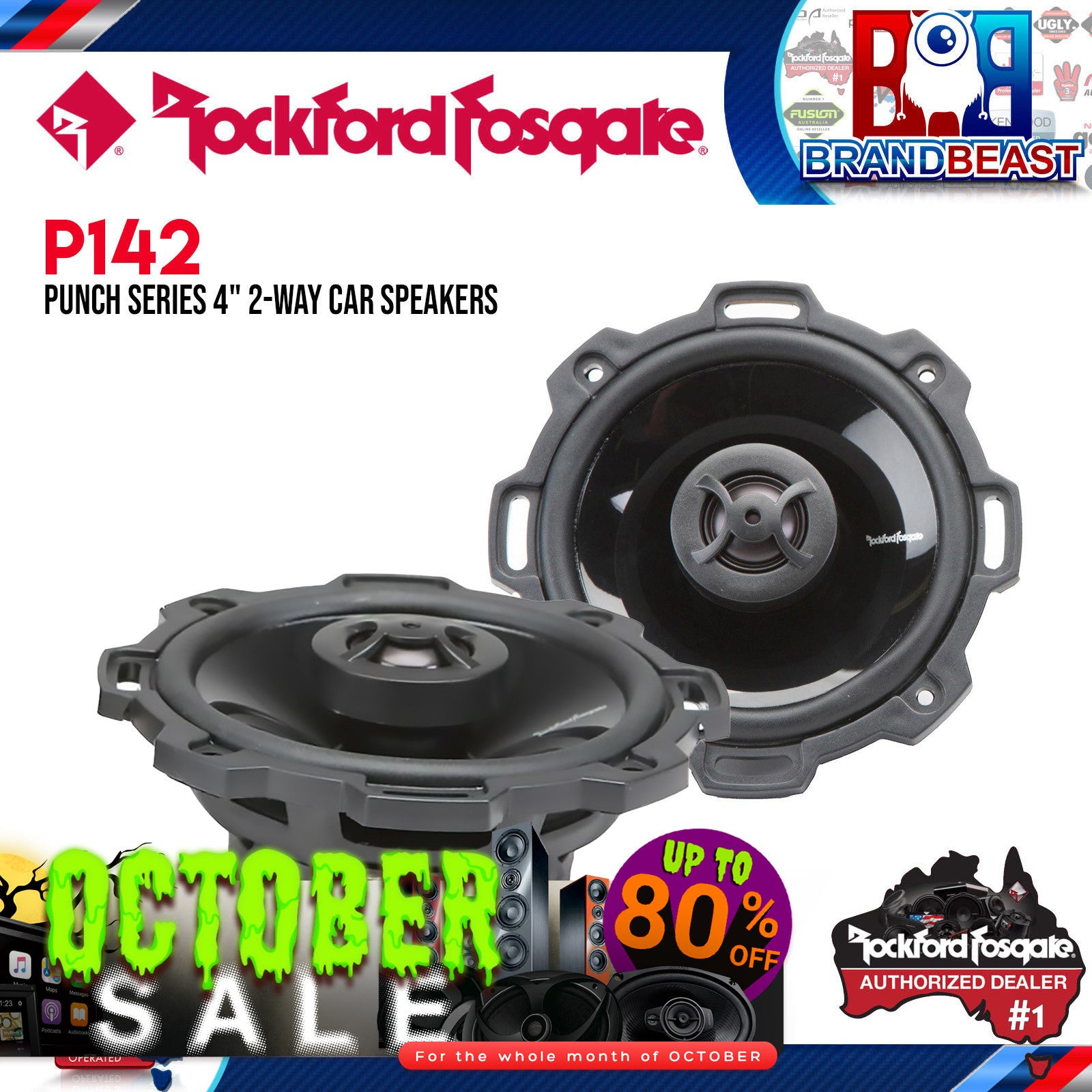

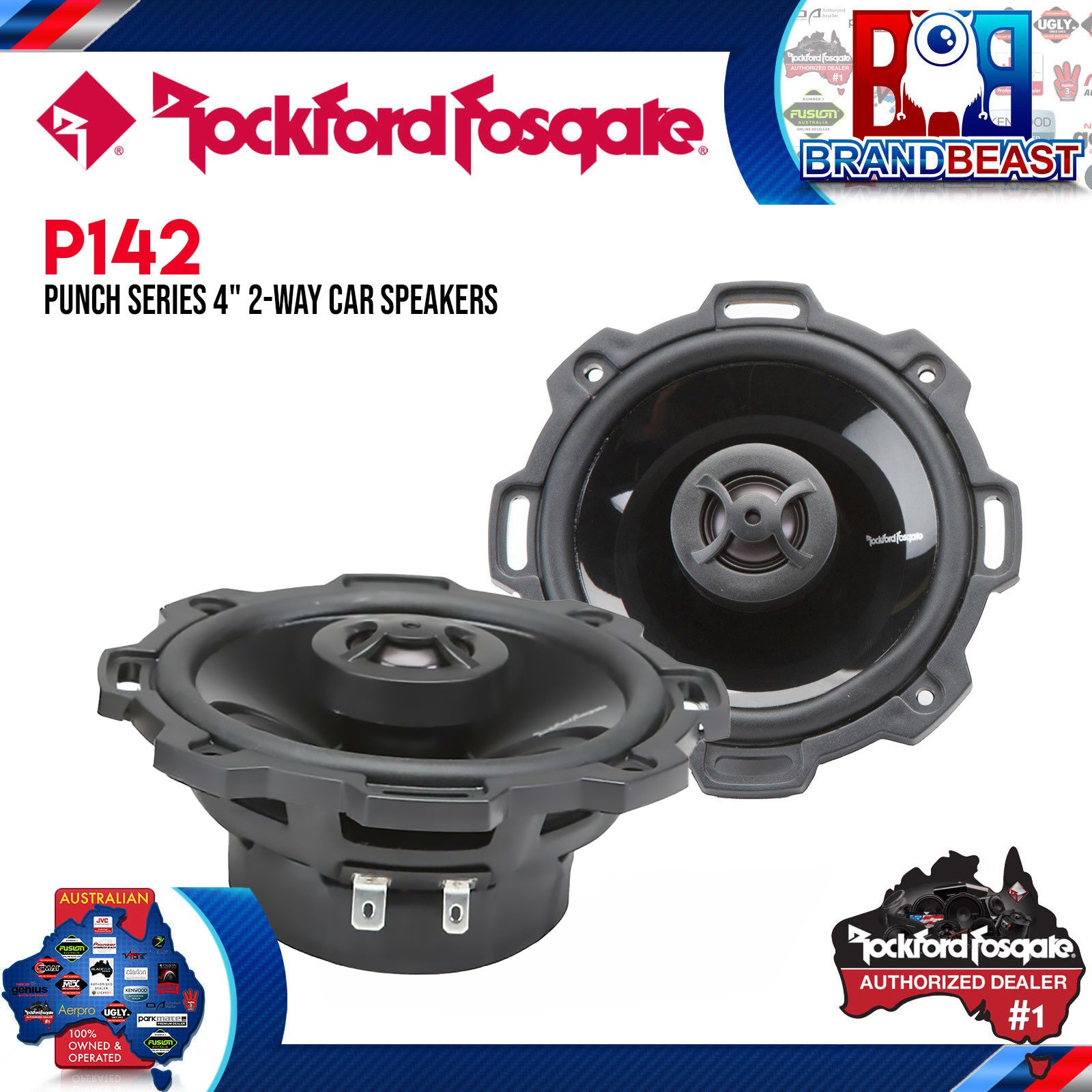

The Rockford Fosgate Punch P142 is a pair of 4" 2-way coaxial speakers rated at 30W RMS (60W peak) the 4" step up from the 3.5" P132 in the Punch series. Confirmed specifications include 4Ω impedance, 86.5dB sensitivity at 1W/1M, and a frequency response of 100Hz to 22kHz extending 20Hz lower than the P132 for slightly improved lower-midrange reproduction from the larger 4" cone.
The P142 broadens the adapter plate coverage in the Punch series kit: both a 4"×6" and a 6"×8" oval adapter plate are included alongside the standard mounting hardware, allowing the P142 to be fitted into oval speaker positions as well as standard round 4" locations. CEA-2031 compliant power handling confirms the 30W RMS rating is measured to industry standards. FlexFit basket, PEI dome tweeter with Integrated Concealed Crossover (ICC), injection-moulded mineral-filled polypropylene cone, and butyl rubber surround are consistent with the P132 platform. Grilles are not included.
Key Specifications
- Speaker size: 4.0 inch (nominal diameter)
- Configuration: 2-way coaxial
- Power handling (RMS): 30W per speaker (CEA-2031 compliant)
- Power handling (peak): 60W per speaker
- Impedance: 4Ω
- Sensitivity: 86.5dB @ 1W/1M
- Frequency response: 100Hz – 22kHz
- Mounting depth: 1.69" (43mm)
- Tweeter: PEI dome (size not specified — confirm with Rockford Fosgate)
- Crossover: Integrated Concealed Crossover (ICC) — built into tweeter
- Cone: Injection-moulded mineral-filled polypropylene
- Surround: Butyl rubber
- Basket: FlexFit
- OEM adapter plates: 4"×6" and 6"×8" (both included)
- Mounting hardware: Included
- Grilles: Not included
- Sold as: Pair (2 speakers)
- CEA-2031 compliant: Yes
- Shipping weight: 3.2 lbs (1.45 kg) per pair
- Cutout diameter: Not specified — confirm with Rockford Fosgate
- Warranty: Not specified — confirm with Rockford Fosgate
Features & Benefits
-
Dual OEM Adapter Plates — 4"×6" and 6"×8" — The P142 kit is unusually versatile in its adapter plate coverage: both a 4"×6" oval and a 6"×8" oval adapter plate are included alongside the standard mounting hardware. This extends the P142's fitment range across three speaker position formats — standard 4" round, 4"×6" oval, and 6"×8" oval — from a single purchase.
-
CEA-2031 Compliant Power Handling — The 30W RMS figure is measured in compliance with CEA-2031, the industry standard for amplifier and speaker power measurement. CEA-2031 compliance confirms the RMS figure is a sustained, industry-validated measurement rather than a marketing peak figure — an important distinction when comparing speakers from different manufacturers.
-
100Hz – 22kHz Frequency Response — Extending 20Hz lower than the P132 (120Hz), the 4" P142 reproduces down to 100Hz — covering more of the low-midrange and upper bass region from the door speaker itself, reducing the gap between the speaker's lower limit and the subwoofer's upper range.
-
86.5dB Sensitivity — 1.5dB more sensitive than the P132 (85dB) — a measurable improvement in output per watt. At 86.5dB, the P142 produces slightly more volume from equivalent head unit or amplifier power.
-
FlexFit Basket — Rockford Fosgate's non-standard basket geometry for compatibility with OEM speaker cavities that do not accept a standard circular basket — the same design as the P132, scaled to 4".
-
PEI Dome Tweeter with ICC — Polyetherimide dome tweeter with the Integrated Concealed Crossover built into the tweeter assembly — no external crossover component required, no black box to mount, clean concealed installation.
-
Injection-Moulded Mineral-Filled Polypropylene Cone — Mineral filling adds stiffness and damping to the polypropylene matrix — reducing resonance colouration in the midrange for more accurate reproduction between 100Hz and the tweeter's crossover point.
-
Butyl Rubber Surround — Superior durability versus foam surrounds — resistant to UV, heat, and chemical exposure. Appropriate for Australian vehicle environments where dashboard and door panel temperatures can be significant.
Technical Specs
| Specification |
Detail |
| Brand |
Rockford Fosgate |
| Part Number |
P142 |
| Series |
Punch |
| Speaker Size |
4.0 inch |
| Configuration |
2-Way Coaxial |
| Power Handling (RMS) |
30W per speaker ✓ (CEA-2031) |
| Power Handling (Peak) |
60W per speaker ✓ |
| Impedance |
4Ω ✓ |
| Sensitivity |
86.5dB @ 1W/1M ✓ |
| Frequency Response |
100Hz – 22kHz ✓ |
| Mounting Depth |
1.69" (43mm) ✓ |
| Tweeter |
PEI Dome (size TBC) |
| Crossover |
ICC (Integrated Concealed, in tweeter) ✓ |
| Cone |
Injection-Moulded Mineral-Filled Polypropylene |
| Surround |
Butyl Rubber |
| Basket |
FlexFit |
| CEA-2031 Compliant |
Yes ✓ |
| OEM Adapter Plates |
4"×6" and 6"×8" (both included) ✓ |
| Mounting Hardware |
Included ✓ |
| Grilles |
Not Included ✓ |
| Sold As |
Pair (2 speakers) ✓ |
| Shipping Weight |
3.2 lbs / 1.45 kg per pair ✓ |
| Cutout Diameter |
Not specified — confirm with Rockford Fosgate |
| Warranty |
Not specified — confirm with Rockford Fosgate |
Compatible With / Goes Well With
Suitable installation positions (with included adapters):
- Standard round 4" speaker positions
- 4"×6" oval speaker positions (adapter included)
- 6"×8" oval speaker positions (adapter included)
Punch series comparison — P132 vs P142:
| Feature |
P132 (3.5") |
P142 (4") |
| RMS |
20W ✓ |
30W ✓ |
| Sensitivity |
85dB ✓ |
86.5dB ✓ |
| Freq. Response |
120Hz–22kHz ✓ |
100Hz–22kHz ✓ |
| Mounting Depth |
35mm ✓ |
43mm ✓ |
| Adapter Plates |
1 × OEM |
4"×6" + 6"×8" ✓ |
| CEA-2031 |
Not stated |
Yes ✓ |
| Weight (pair) |
0.95 kg ✓ |
1.45 kg ✓ |
Pairs well with:
- Rockford Fosgate T400-4 or T600-4 4-channel amplifiers
- Dedicated subwoofer system for bass below 100Hz
Weight
1.45 kg per pair (shipping weight).
Frequently Asked Questions
What positions can the P142 be installed in?
The P142 works in standard 4" round speaker positions, and with the included adapter plates, can also be installed in 4"×6" and 6"×8" oval positions. This makes the P142 one of the more versatile Punch series speakers in terms of vehicle compatibility from a single kit.
What does CEA-2031 compliant mean for the power rating?
CEA-2031 is the Consumer Electronics Association's standard for measuring amplifier and speaker power handling. A CEA-2031 compliant RMS figure means the 30W rating is measured under standardised, sustained conditions — not a brief peak figure. This makes the P142's 30W RMS directly comparable to other CEA-2031 rated products.
How does the P142 compare to the P132?
The P142 steps up from the 3.5" P132 with a 4" cone, 30W RMS (vs 20W), 86.5dB sensitivity (vs 85dB), 100Hz lower frequency limit (vs 120Hz), and dual oval adapter plates (4"×6" and 6"×8") versus the P132's single OEM adapter. Both share the same FlexFit basket, PEI dome tweeter, ICC crossover, mineral-filled cone, and butyl rubber surround construction.
Why does the frequency response start at 100Hz?
A 4" cone has physical limits on how efficiently it reproduces very low frequencies. Below 100Hz, a dedicated woofer or subwoofer is required. The P142 works well as a midrange and treble driver in a system that pairs it with a subwoofer for low-frequency extension.
Are grilles included with the P142?
No — grilles are not included. The kit contains two speakers, two adapter plates (4"×6" and 6"×8"), and mounting hardware only.
