Description
5"×7" Oval 2-Way Coaxial 60W RMS, 89dB, 75Hz–22kHz, CEA-2031. Fits 5"×7" and 6"×8" Positions. No Grilles.
Product Overview

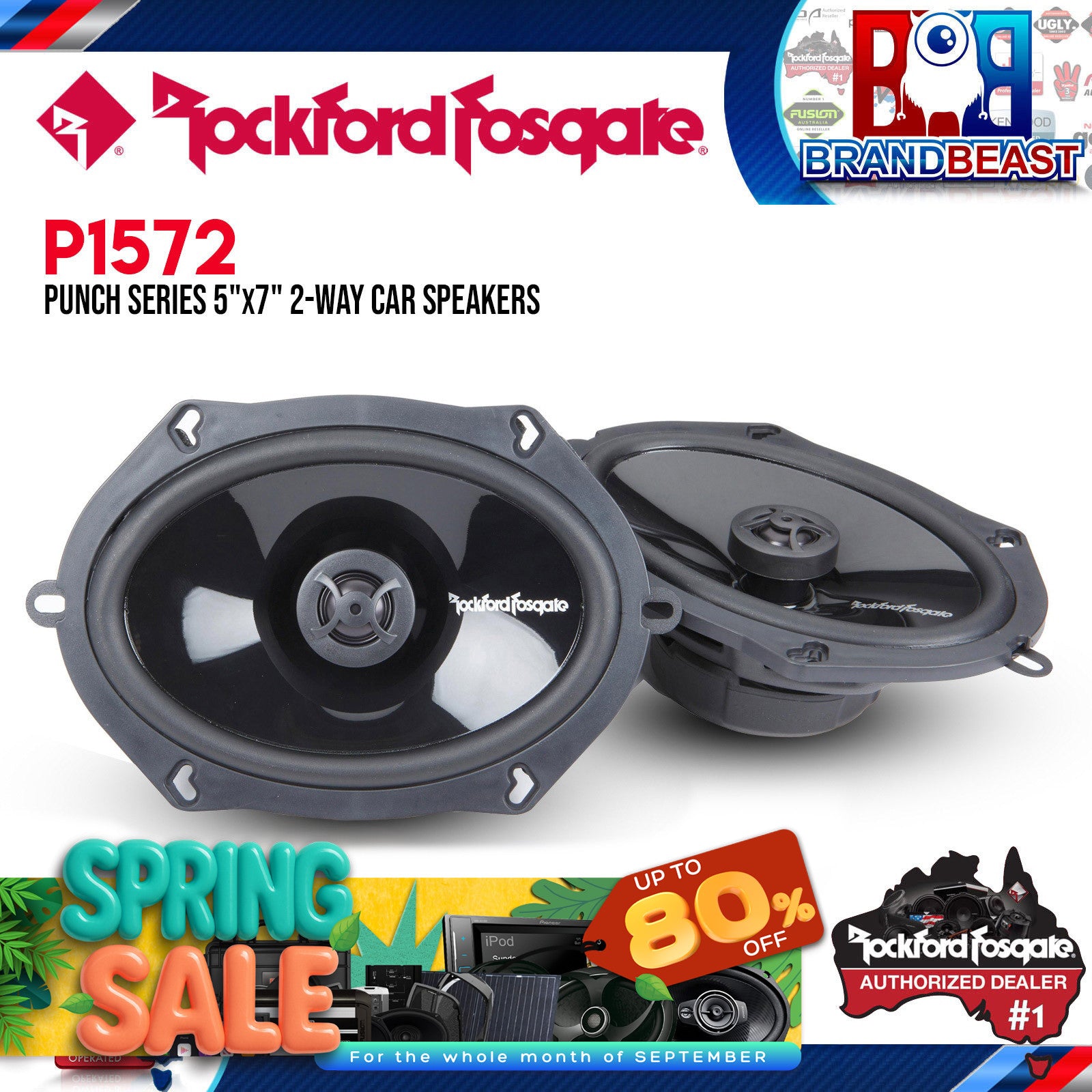

The Rockford Fosgate Punch P1572 is a pair of 5"×7" oval 2-way coaxial speakers rated at 60W RMS (120W peak) one of the most spec-complete Punch series oval models, with confirmed 4Ω impedance, 89dB sensitivity, 75Hz to 22kHz frequency response, 56mm (2.20") mounting depth, CEA-2031 compliant power rating, and shipping weight. At 89dB, the P1572 is the highest-confirmed-sensitivity speaker in the Punch series coaxial range.
The included 6"×8" adapter plate extends the P1572's fitment to 6"×8" oval positions as well as standard 5"×7" locations a dual-format kit from a single purchase. Grilles are explicitly not included. FlexFit basket, PEI dome tweeter with ICC, mineral-filled polypropylene cone, and butyl rubber surround are consistent with the Punch series platform.
Key Specifications
- Speaker size: 5"×7" (oval)
- Configuration: 2-way coaxial
- Power handling (RMS): 60W per speaker (CEA-2031 compliant)
- Power handling (peak): 120W per speaker
- Impedance: 4Ω
- Sensitivity: 89dB @ 1W/1M
- Frequency response: 75Hz – 22kHz
- Mounting depth: 2.20" (56mm)
- Tweeter: PEI dome (size not specified — confirm with Rockford Fosgate)
- Crossover: Built-in tweeter crossover (ICC)
- Cone: Injection-moulded mineral-filled polypropylene
- Surround: Butyl rubber
- Basket: FlexFit
- OEM adapter plate: 6"×8" (included)
- Mounting hardware: Included
- Grilles: Not included ✓
- Sold as: Pair (2 speakers confirmed)
- CEA-2031 compliant: Yes
- Shipping weight: 5.6 lbs (2.54 kg) per pair
- Cutout dimensions: Not specified — confirm with Rockford Fosgate
- Warranty: Not specified — confirm with Rockford Fosgate
Features & Benefits
-
Dual-Format Fitment — 5"×7" and 6"×8" — The included 6"×8" adapter plate allows the P1572 to be installed in 6"×8" oval positions as well as standard 5"×7" locations — covering two of the most common oval speaker formats in Australian Ford, Mazda, and other vehicles from a single kit.
-
89dB Sensitivity — Highest in the Punch Coaxial Range — At 89dB, the P1572 is the most efficient confirmed speaker across the Punch series coaxials in this catalogue — 1dB above the P16 (88dB) and 4dB above the P132 (85dB). Higher sensitivity translates directly to more output per watt — producing noticeably more volume from the same head unit or amplifier power.
-
60W RMS CEA-2031 — Equal to the P1675 (6.75" 3-way round) and confirmed CEA-2031 compliant — a sustained industry-standard measurement, not a peak figure. 120W peak provides headroom for dynamic transients.
-
75Hz – 22kHz Frequency Response — Extends to 75Hz — providing usable upper bass from the oval driver and reducing the listener's dependence on a subwoofer at moderate listening levels.
-
56mm Mounting Depth — The P1572's 56mm (2.20") mounting depth is the deepest confirmed in the Punch series oval range. Confirm cavity clearance before purchasing — particularly in vehicles where door panel construction limits depth behind the mounting surface.
-
FlexFit Basket with 6"×8" Adapter Plate — Non-standard basket geometry for OEM cavity compatibility, with the 6"×8" adapter plate included as the primary additional fitment option.
-
PEI Dome Tweeter with ICC — Polyetherimide dome tweeter with Integrated Concealed Crossover built into the tweeter assembly — no external crossover component, no black box.
-
Butyl Rubber Surround — UV and heat-resistant synthetic rubber for long-term reliability — superior to foam surrounds in Australian vehicle environments.
Technical Specs
| Specification |
Detail |
| Brand |
Rockford Fosgate |
| Part Number |
P1572 |
| Series |
Punch |
| Speaker Size |
5"×7" (oval) |
| Configuration |
2-Way Coaxial |
| Power Handling (RMS) |
60W per speaker ✓ (CEA-2031) |
| Power Handling (Peak) |
120W per speaker ✓ |
| Impedance |
4Ω ✓ |
| Sensitivity |
89dB @ 1W/1M ✓ |
| Frequency Response |
75Hz – 22kHz ✓ |
| Mounting Depth |
2.20" (56mm) ✓ |
| Tweeter |
PEI Dome (size not specified) |
| Crossover |
Built-in (ICC, in tweeter) ✓ |
| Cone |
Injection-Moulded Mineral-Filled Polypropylene |
| Surround |
Butyl Rubber |
| Basket |
FlexFit |
| CEA-2031 Compliant |
Yes ✓ |
| OEM Adapter Plate |
6"×8" (included) ✓ |
| Mounting Hardware |
Included ✓ |
| Grilles |
Not Included ✓ |
| Sold As |
Pair (2 speakers) ✓ |
| Shipping Weight |
5.6 lbs / 2.54 kg per pair ✓ |
| Cutout Dimensions |
Not specified — confirm with Rockford Fosgate |
| Warranty |
Not specified — confirm with Rockford Fosgate |
Compatible With / Goes Well With
Suitable installation positions:
- Standard 5"×7" oval factory speaker positions
- 6"×8" oval positions (adapter plate included)
Punch series oval format comparison:
| Model |
Size |
Config |
RMS |
Sensitivity |
Freq. Response |
Depth |
Grilles |
| P1462 |
4"×6" |
2-Way |
35W ✓ |
TBC |
TBC |
TBC |
TBC |
| P1572 |
5"×7" |
2-Way |
60W ✓ |
89dB ✓ |
75Hz–22kHz ✓ |
56mm ✓ |
No ✓ |
Pairs well with:
- Rockford Fosgate T400-4, T600-4, or T1000-4AD 4-channel amplifiers
- Dedicated subwoofer system for bass below 75Hz
Weight
2.54 kg per pair (shipping weight).
Frequently Asked Questions
What positions can the P1572 be installed in?
The P1572 fits standard 5"×7" oval speaker positions. The included 6"×8" adapter plate also allows installation in 6"×8" oval positions — covering two of the most common oval formats in Ford, Mazda, and other vehicles from a single kit.
Are grilles included with the P1572?
No — grilles are explicitly not included. The kit contains two speakers, one 6"×8" adapter plate pair, and mounting hardware only.
Why is the P1572 the most efficient Punch series speaker?
At 89dB sensitivity, the P1572 produces more sound pressure per watt than any other confirmed Punch series speaker. The larger oval cone area of the 5"×7" format, combined with Rockford Fosgate's tuning, achieves higher sensitivity than the smaller round Punch drivers. In practical terms, the P1572 will sound noticeably louder than a P132 (85dB) from the same power source.
Is the 56mm mounting depth a concern?
At 56mm (2.20"), the P1572 is the deepest confirmed Punch speaker in this catalogue. Many OEM door panels have limited depth clearance behind the speaker mounting surface. Confirm the available cavity depth in your vehicle before purchasing — insufficient depth can result in speaker contact with the inner door structure.
How does the P1572 compare to the P1462 (4"×6")?
The P1572 is larger (5"×7" vs 4"×6"), more powerful (60W vs 35W RMS), and has more confirmed specifications — 89dB sensitivity, 75Hz–22kHz response, and 56mm mounting depth. The P1462 fits vehicles with 4"×6" oval positions; the P1572 fits 5"×7" and 6"×8" positions. Select based on your vehicle's speaker format.
