Description
Ditch the factory noise. Upgrade to sound that earns its keep.
Product Overview

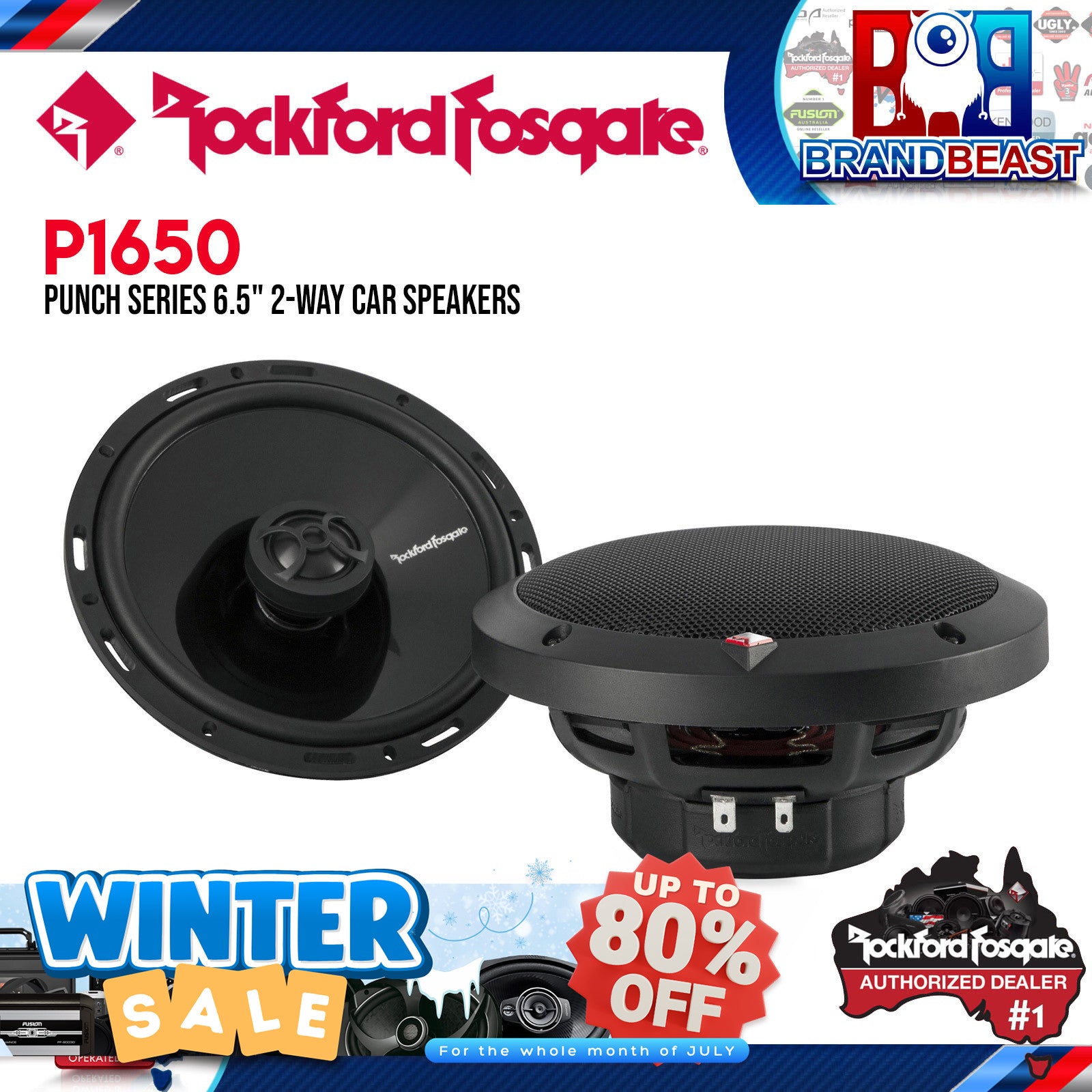

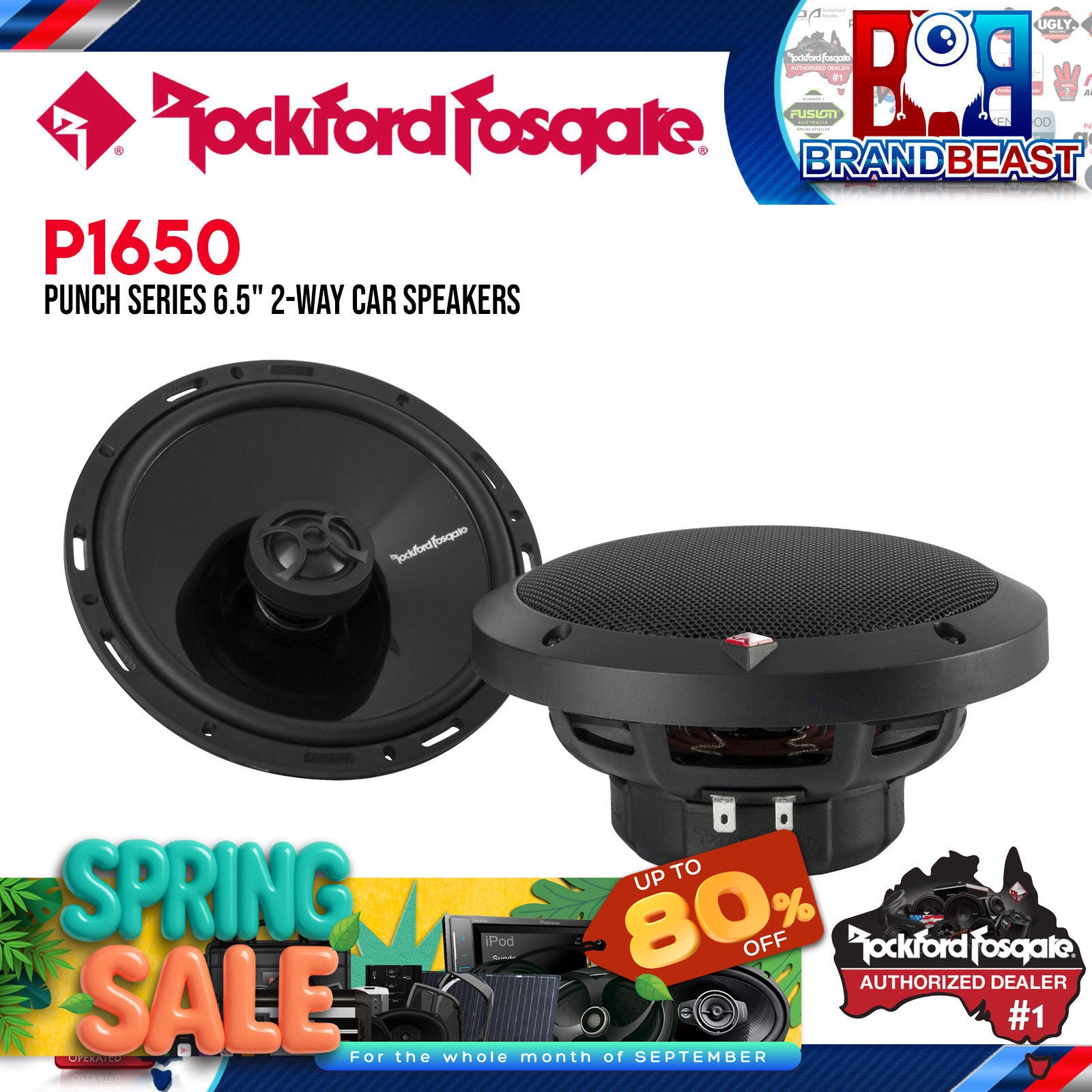

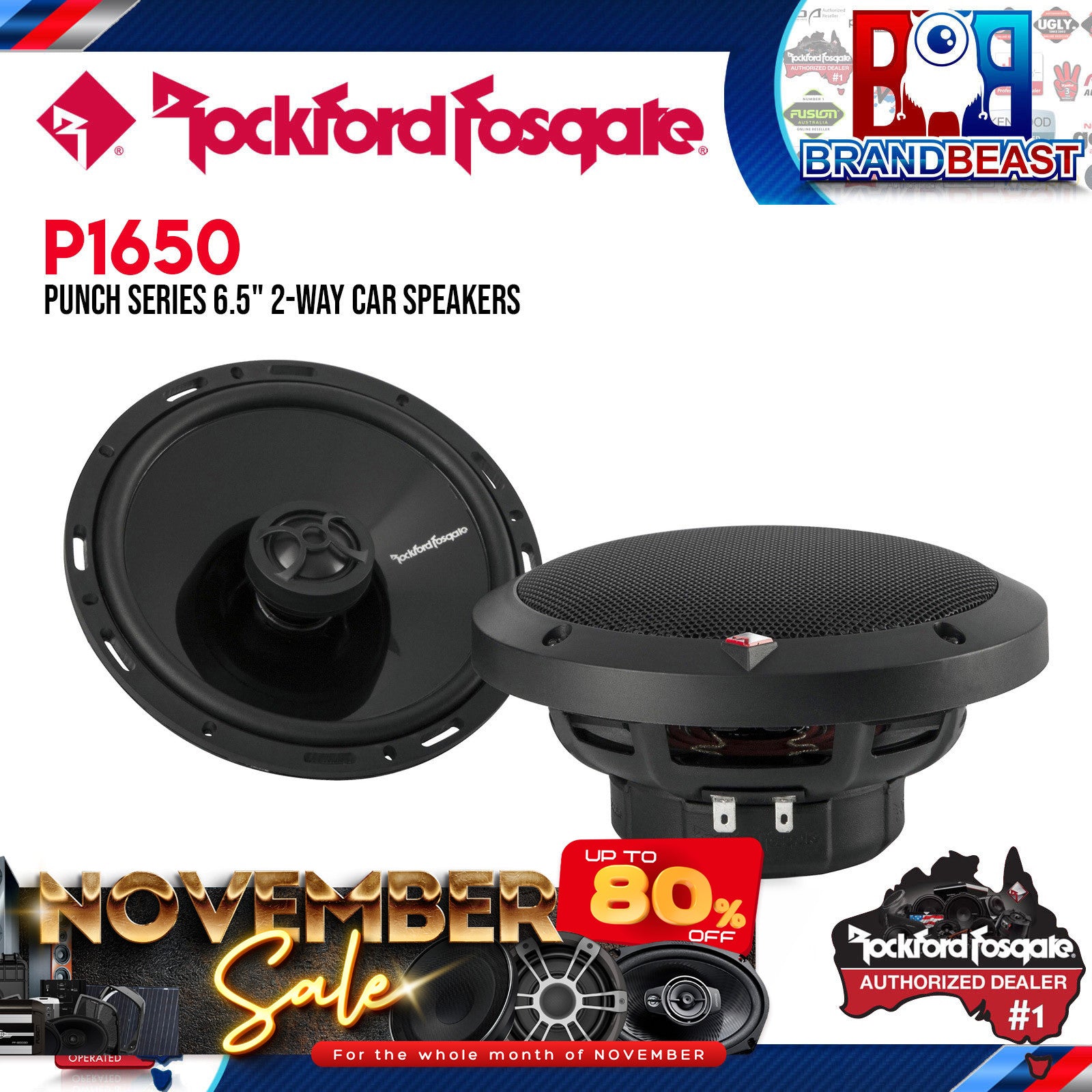

The Rockford Fosgate P1650 is a full-range, 2-way coaxial speaker from the Punch P1 series built for car audio enthusiasts who refuse to put up with underwhelming factory sound. Designed to suit a broad range of vehicles including U.S., European, and import models, it pairs a true 6.5" mineral-filled polypropylene cone midrange with a 0.75" (20mm) PEI dome tweeter in a clean coaxial configuration.
Rated at 55W RMS (110W max) and built on a 4-ohm impedance platform, the P1650 works with most factory head units straight out of the box and scales up well when paired with a dedicated amplifier. The Integrated Concealed Crossover (ICC) operates at 12dB/octave and is built directly into the driver eliminating external crossover boxes entirely. The FlexFit 2™ stamp-cast aluminium basket broadens the fitment range considerably, with specific support for European vehicles including VW, Citroën, and Vauxhall. CEA-2031 compliance ensures the 55W RMS rating is a verified, real-world specification.
Key Specifications
- Speaker type: 2-way coaxial (midrange + tweeter)
- Midrange nominal diameter: 6.5" (165mm)
- Midrange mounting depth: 57mm (2.24")
- Power handling: 55W RMS / 110W maximum
- Nominal impedance: 4 ohms
- Sensitivity: 88dB @ 1W/1M
- Frequency response: 45Hz – 20kHz
- Tweeter diameter: 0.75" (20mm) — treated PEI dome
- Crossover: Integrated concealed 12dB/octave (ICC) — no external box required
- Compliance: CEA-2031 certified
- Grilles and mounting hardware: Included
Features & Benefits
- FlexFit 2™ Basket Design — The stamp-cast aluminium frame uses FlexFit 2 geometry to accommodate a wider range of vehicle speaker locations — including European models — without adaptor rings in many applications. Particularly well-suited to VW, Citroën, and Vauxhall installations where standard aftermarket baskets often fall short.
- Integrated Concealed Crossover (ICC) — The 12dB/octave crossover is engineered directly into the speaker itself. There are no external boxes to mount, no extra wiring runs, and no guesswork on placement. Ideal for tight door cavities or anyone wanting a clean, professional install.
- Treated PEI Dome Tweeter — The 0.75" (20mm) treated PEI dome delivers extended high-frequency clarity without the listening fatigue that untreated tweeters can cause over long highway runs. Well-suited to Aussie touring and road trip listening sessions.
- Injection-Moulded Mineral-Filled Polypropylene Cone — Moisture and heat-resistant by nature, the mineral-filled polypropylene cone handles the temperature extremes that Australian cabin environments regularly produce without the warping or stiffening issues common to paper cones.
- Santoprene Rubber Surround with VAST — Vertical Attach Surround Technique (VAST) expands the effective cone radiating area, improving low-frequency output without requiring a physically larger driver. Santoprene rubber outlasts foam surrounds and holds up well in harsh climates.
- Linear High-Excursion Motor Design — Matched motor magnetics and a precision suspension design work together to keep output linear at higher excursion levels, reducing distortion when pushed hard — whether off a factory deck or a Punch-series amplifier.
- CEA-2031 Compliant Power Ratings — All power figures are measured to the CEA-2031 industry standard. The 55W RMS rating is a genuine, repeatable specification — not an inflated peak number used for marketing.
Technical Specs
| Specification |
Detail |
| Speaker type |
2-way coaxial |
| Midrange nominal diameter |
6.5" / 165mm |
| Midrange mounting depth |
57mm |
| Power handling (RMS) |
55W |
| Power handling (maximum) |
110W |
| Nominal impedance |
4 ohms |
| Sensitivity |
88dB @ 1W/1M |
| Frequency response |
45Hz – 20kHz |
| Tweeter type |
Treated PEI dome |
| Tweeter diameter |
20mm (0.75") |
| Crossover type |
Integrated concealed, 12dB/octave (ICC) |
| Cone material |
Injection-moulded mineral-filled polypropylene |
| Surround material |
Santoprene rubber |
| Frame material |
Stamp-cast aluminium |
| Surround technique |
VAST (Vertical Attach Surround Technique) |
| Compliance |
CEA-2031 |
| Grilles included |
Yes |
| Mounting hardware included |
Yes |
Compatible With / Goes Well With
The P1650 is engineered for standard 6.5" speaker locations. The FlexFit 2 basket provides documented fitment support for:
- Volkswagen (VW) models with standard 6.5" Euro speaker locations
- Citroën models requiring Euro-fit basket geometry
- Vauxhall models requiring Euro-fit basket geometry
- U.S. and import vehicles with standard 6.5" speaker cutouts
Goes well with:
- Rockford Fosgate Punch series 2-channel amplifiers
- Aftermarket head units with RCA preamp outputs
- Subwoofer systems for a full-range audio upgrade
Frequently Asked Questions
Will the P1650 fit my European vehicle?
The P1650 uses a FlexFit 2 basket with documented support for VW, Citroën, and Vauxhall applications. Always confirm your vehicle's cutout dimensions and minimum mounting depth of 57mm before fitting.
Does this speaker require an external crossover?
No. The P1650 includes a built-in Integrated Concealed Crossover (ICC) operating at 12dB/octave. It connects directly to your head unit or amplifier speaker outputs — no external box required.
Can I run the P1650 off a factory head unit?
Yes. At 4 ohms and 88dB sensitivity, the P1650 is compatible with most factory and aftermarket head units. For fuller volume and improved dynamics, pairing with a dedicated amplifier is recommended but not required.
What does CEA-2031 compliant mean for this speaker?
CEA-2031 is an industry-standard method for measuring speaker power ratings under real-world conditions. The 55W RMS figure is a verified, reproducible specification — not a peak or inflated marketing number.
What's included in the box?
Each P1650 unit includes the speaker, grilles, and all required mounting hardware. Vehicle-specific adaptors are not included — confirm fitment compatibility for your make and model before purchase.
