Description
10" 2-Ohm DVC Punch P2 Subwoofer 300W RMS, Kevlar Cone, VAST, Dual Spider, Diamond-Cut Cast Aluminium Trim Ring, Extended Pole Piece.
Product Overview

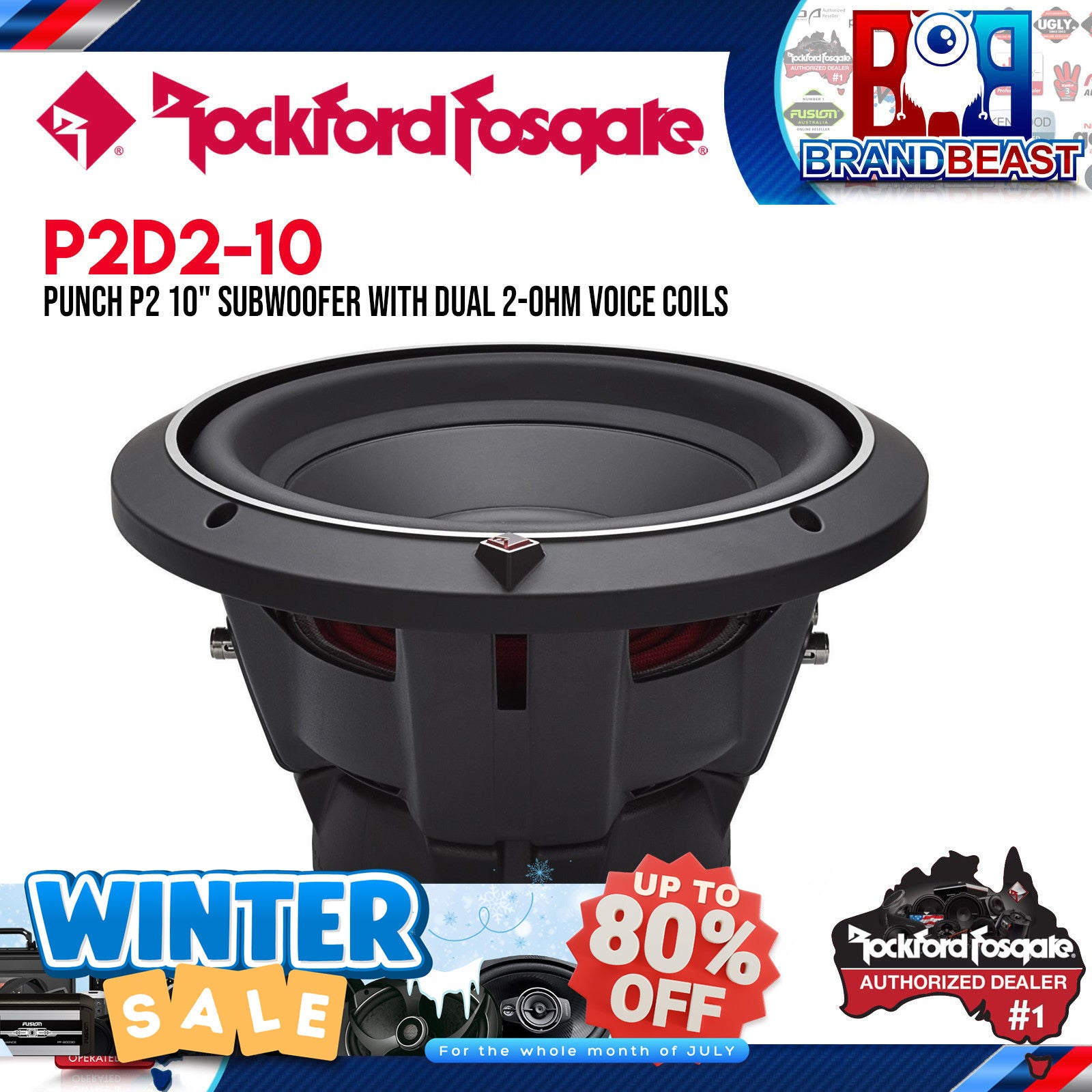

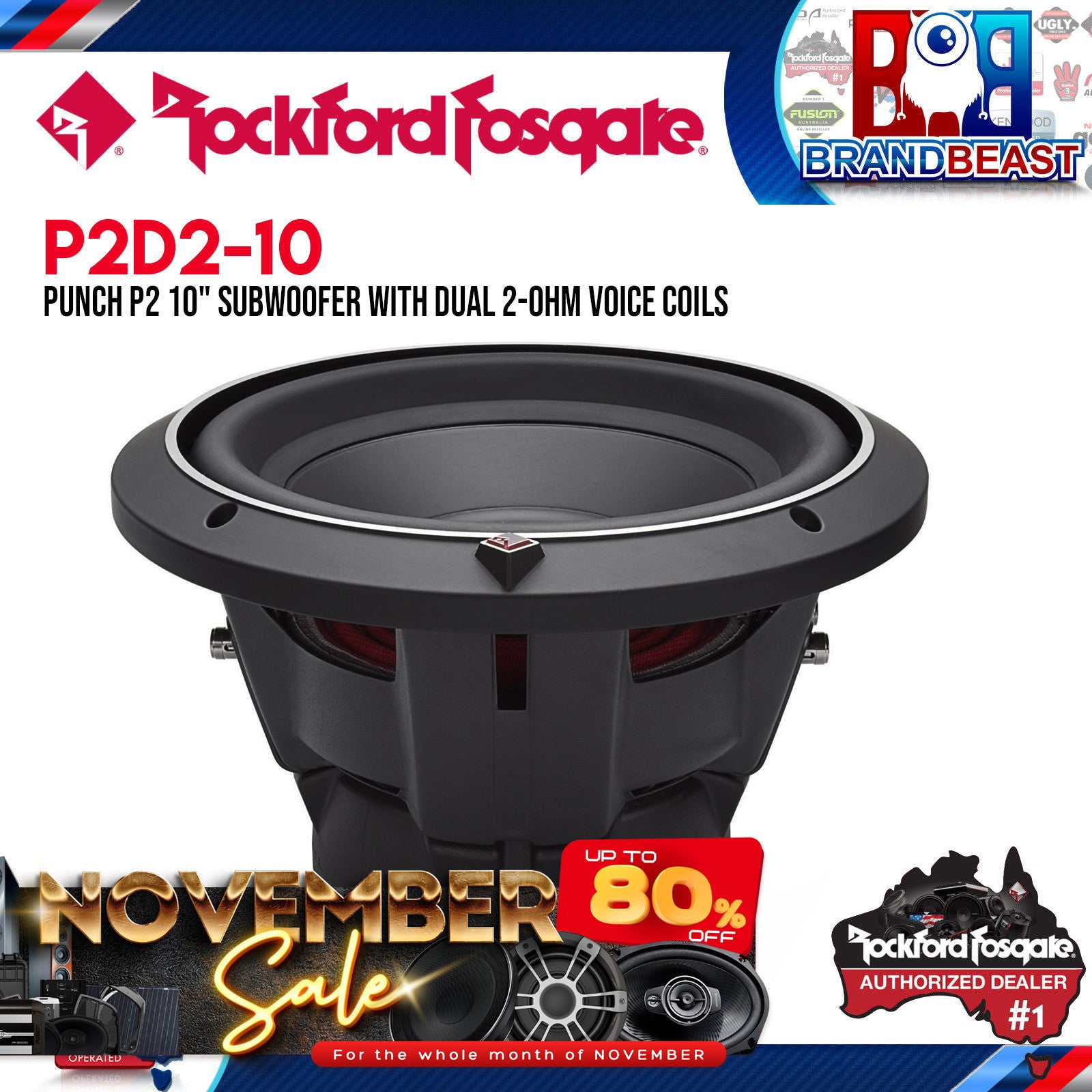

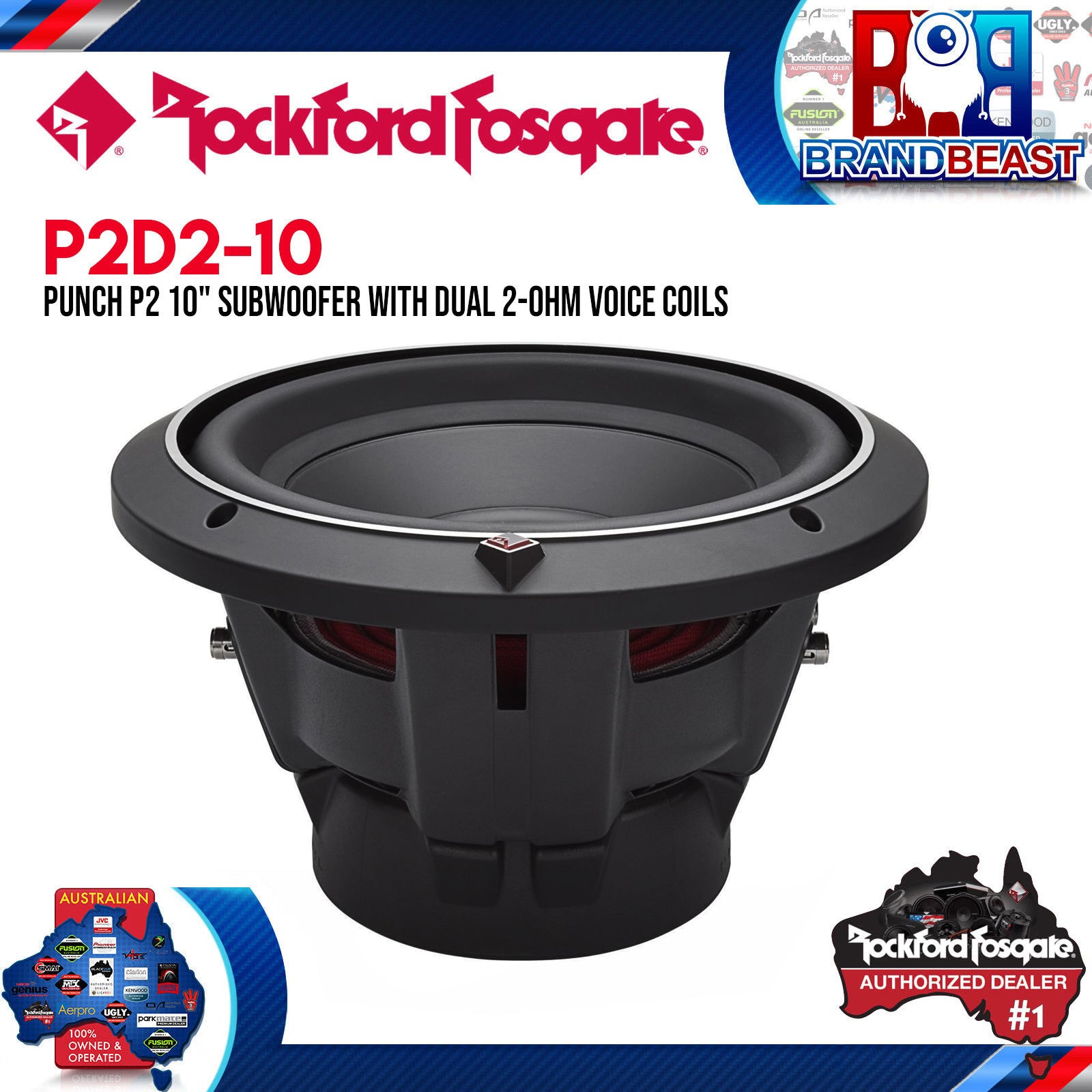

The Rockford Fosgate Punch P2D2-10 is a 10" 2-Ohm Dual Voice Coil (DVC) subwoofer rated at 300W RMS the 10" 2-Ohm variant of the Punch P2 series. The 300W RMS rating is a step up from the 250W RMS of the P2 8" models, reflecting the larger cone's increased power capacity. The 2-Ohm DVC provides wiring options of 1-Ohm (parallel), 4-Ohm (series), or 2-Ohm per coil for bi-amplification. Optimised for sealed and vented enclosures. Sold as an individual unit.
All confirmed Punch P2 construction applies: Kevlar fibre-reinforced paper cone, VAST surround (up to 25% increased cone area), high-temperature voice coil with spun-laced Nomex® reinforcement collar, dual linear spider with embedded 16 AWG tinsel leads, extended pole piece with bumped vented backplate, StampCast basket with integrated spider venting, 10-AWG nickel-plated push terminals, diamond-cut cast aluminium trim ring with grille insert provision, and protective PVC textured magnet cover.
Key Specifications
- Subwoofer size: 10 inch
- Voice coil configuration: Dual Voice Coil (DVC)
- Impedance: 2-Ohm per coil (1-Ohm parallel / 4-Ohm series / 2-Ohm biamp)
- Power handling (RMS): 300W (confirmed)
- Peak power: Not specified — confirm with Rockford Fosgate
- Surround technique: VAST (up to 25% increased cone area)
- Sensitivity: Not specified — confirm with Rockford Fosgate
- Frequency response: Not specified — confirm with Rockford Fosgate
- Xmax: Not specified — confirm with Rockford Fosgate
- Voice coil: High-temp, Nomex® reinforcement collar
- Cone: Kevlar fibre-reinforced paper
- Spider: Dual linear with embedded 16 AWG tinsel leads
- Basket: StampCast with integrated spider venting
- Pole piece: Extended
- Backplate: Bumped and vented
- Input terminals: 10-AWG nickel-plated push terminals
- Trim ring: Diamond-cut cast aluminium (grille insert compatible)
- Magnet cover: Protective PVC textured
- Enclosure compatibility: Sealed and vented ✓
- Mounting depth: Not specified — confirm with Rockford Fosgate
- Cutout diameter: Not specified — confirm with Rockford Fosgate
- Sold as: Individual unit
- Weight: Not specified — confirm with Rockford Fosgate
- Warranty: Not specified — confirm with Rockford Fosgate
Features & Benefits
-
300W RMS Power Handling — 300W RMS confirmed — a 50W step up from the P2 8" models and from all R-series and P1-series subwoofers in this catalogue. Provides substantial headroom for high-output sealed or vented 10" installations.
-
10" Cone — The 10" format moves more air than the P2D2-8, producing greater bass output and lower frequency extension in equivalent enclosures.
-
2-Ohm DVC — Three Wiring Configurations:
-
1-Ohm (parallel): Both coils in parallel — confirm amplifier stable at 1-Ohm before use
-
4-Ohm (series): Both coils in series — broad amplifier compatibility
-
2-Ohm per coil (biamp): Each coil to a separate amplifier channel
-
Diamond-Cut Cast Aluminium Trim Ring — Premium machined aluminium finish with diamond-cut pattern — rigid, corrosion-resistant, and visually distinctive.
-
Dual Linear Spider — Improved suspension compliance and cone control at high excursion versus a single spider design.
-
Kevlar Fibre-Reinforced Paper Cone — Kevlar reinforcement for improved stiffness and breakup resistance, paper's natural damping retained.
-
VAST — Up to 25% increased effective cone area.
-
Nomex® Voice Coil Collar — Thermal and mechanical reinforcement at the voice coil junction.
-
Extended Pole Piece and Bumped Vented Backplate — Increased Xmax; air spring prevention at high excursion.
-
10-AWG Nickel-Plated Push Terminals — Heavier gauge for 300W operation.
-
StampCast Basket with Integrated Spider Venting — Motor cooling during sustained use.
Technical Specs
| Specification |
Detail |
| Brand |
Rockford Fosgate |
| Part Number |
P2D2-10 |
| Series |
Punch P2 |
| Subwoofer Size |
10 inch |
| Voice Coil |
Dual Voice Coil (DVC) |
| Impedance per Coil |
2-Ohm ✓ |
| Wiring Options |
1-Ohm (parallel) / 4-Ohm (series) / 2-Ohm biamp ✓ |
| Power Handling (RMS) |
300W ✓ |
| Peak Power |
Not specified |
| Surround Technique |
VAST (up to 25% increased cone area) ✓ |
| Sensitivity |
Not specified |
| Frequency Response |
Not specified |
| Xmax |
Not specified |
| Voice Coil |
High-Temp, Nomex® Collar ✓ |
| Cone |
Kevlar Fibre-Reinforced Paper ✓ |
| Spider |
Dual Linear, Embedded 16 AWG Tinsel Leads ✓ |
| Basket |
StampCast with Integrated Spider Venting |
| Pole Piece |
Extended ✓ |
| Backplate |
Bumped and Vented ✓ |
| Input Terminals |
10-AWG Nickel-Plated Push Terminals ✓ |
| Trim Ring |
Diamond-Cut Cast Aluminium (Grille Compatible) ✓ |
| Magnet Cover |
Protective PVC Textured ✓ |
| Enclosure Type |
Sealed and Vented ✓ |
| Mounting Depth |
Not specified |
| Cutout Diameter |
Not specified |
| Sold As |
Individual Unit |
| Weight |
Not specified |
| Warranty |
Not specified — confirm with Rockford Fosgate |
Compatible With / Goes Well With
Suitable enclosure types:
- Sealed — tight, accurate bass
- Vented — higher efficiency output
Wiring:
- 1-Ohm → parallel (confirm amplifier stability)
- 4-Ohm → series
- 2-Ohm per coil → biamp
Pairs well with:
- Rockford Fosgate T1000-1BDCP, T1500-1BDCP, or T2500-1BDCP mono amplifiers — confirm RMS output at selected impedance is matched to 300W
Frequently Asked Questions
What is the power handling of the P2D2-10?
300W RMS — confirmed in the product description. This is 50W higher than the P2 8" models (250W RMS) and all P1 and R-series subwoofers in this catalogue.
What are the wiring options for the 2-Ohm DVC?
1-Ohm (parallel — requires amplifier rated stable at 1-Ohm), 4-Ohm (series — broadly compatible), and 2-Ohm per coil for bi-amplification.
What enclosure volume is recommended?
Not confirmed in the supplier data. Pull the official Rockford Fosgate P2D2-10 datasheet for sealed and vented volume recommendations.
Is a grille available?
The diamond-cut cast aluminium trim ring accommodates an optional grille insert. Confirm the compatible grille SKU with Rockford Fosgate.
What amplifier should I use with the P2D2-10?
A mono amplifier rated at 300W RMS at the selected wiring impedance (1-Ohm parallel, 4-Ohm series, or 2-Ohm per coil). Confirm the amplifier's stable impedance rating and RMS output at the intended load before purchasing.
