Description
12" 2-Ohm DVC Punch P2 Subwoofer 400W RMS, Kevlar Cone, VAST, Dual Spider, Diamond-Cut Cast Aluminium Trim Ring, Extended Pole Piece.
Product Overview

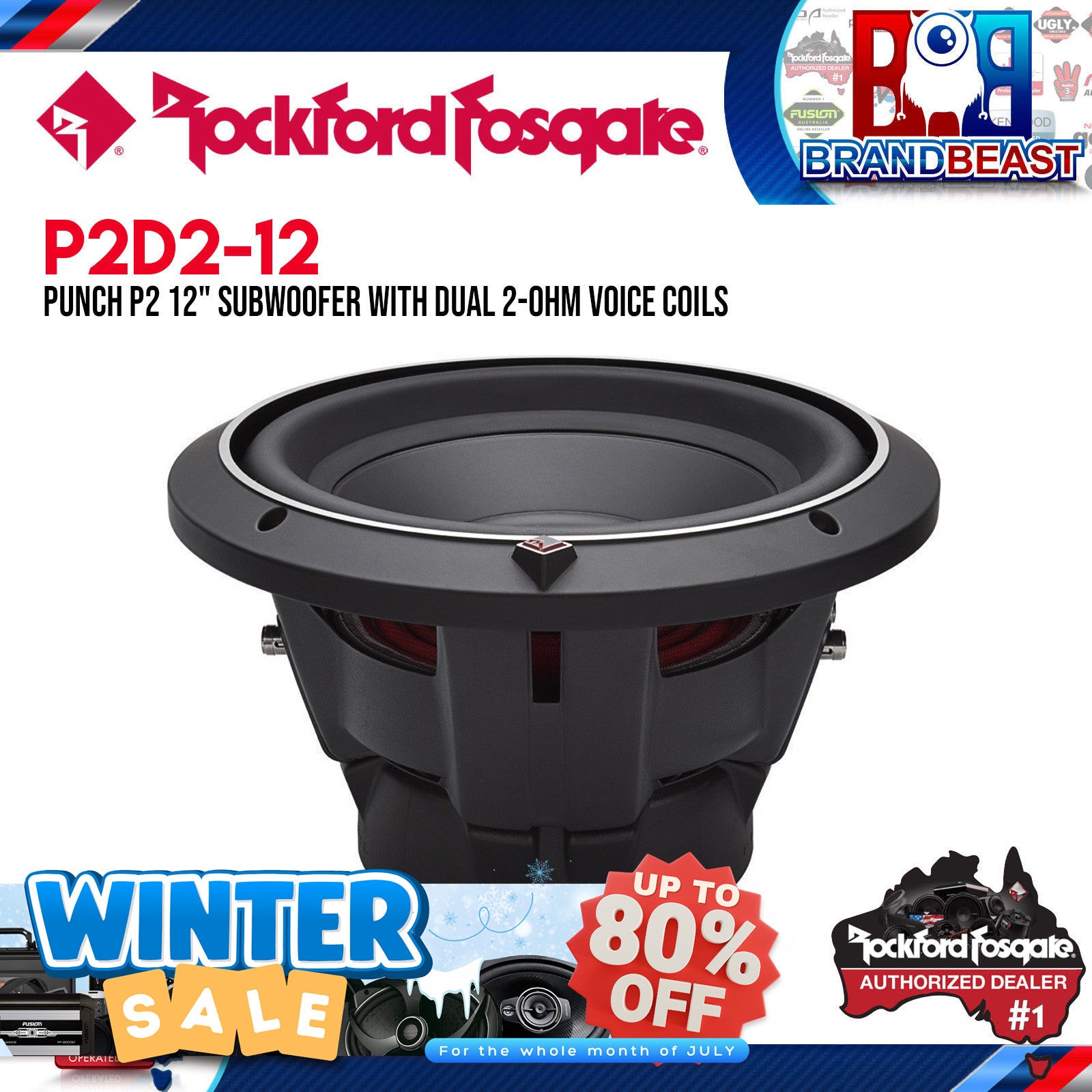

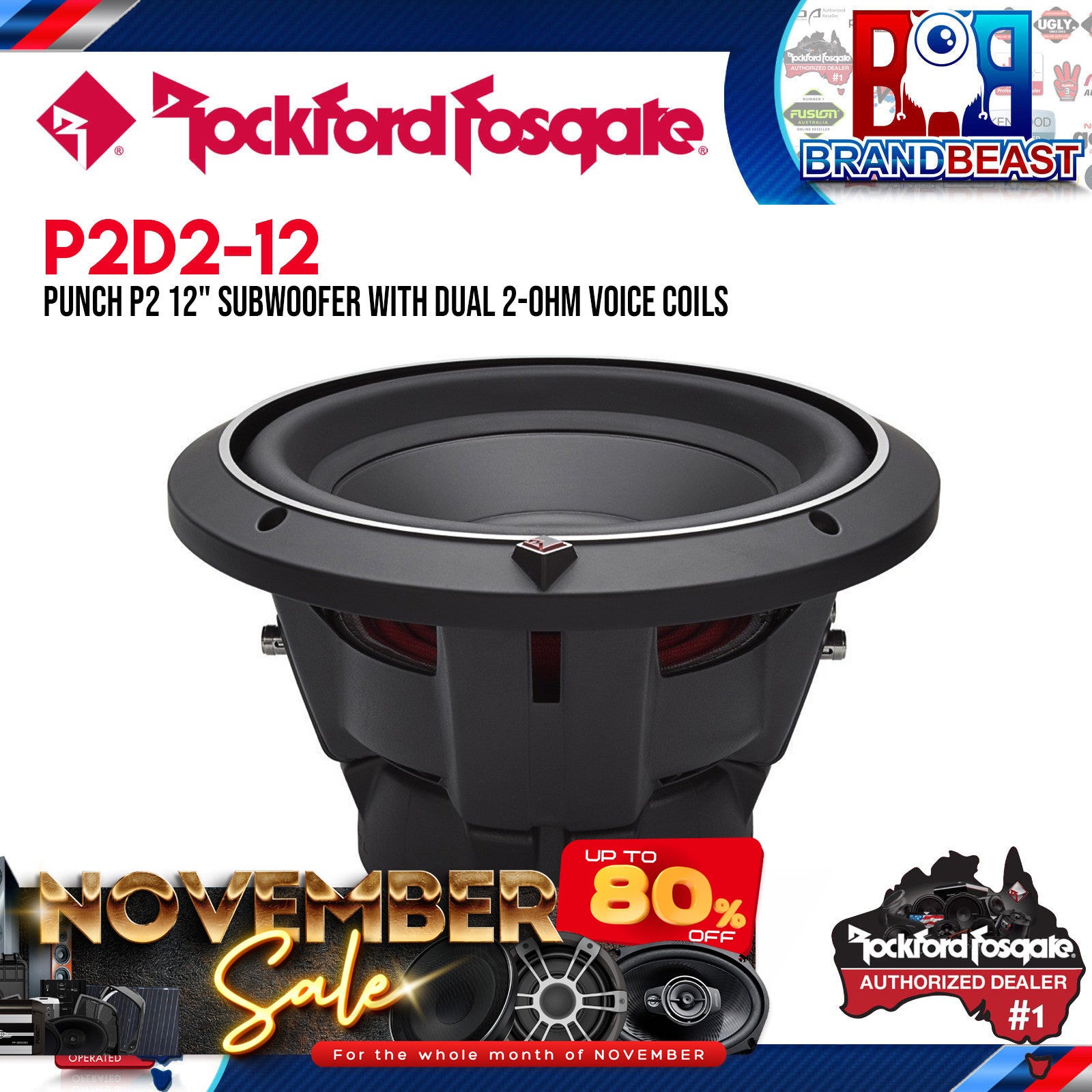

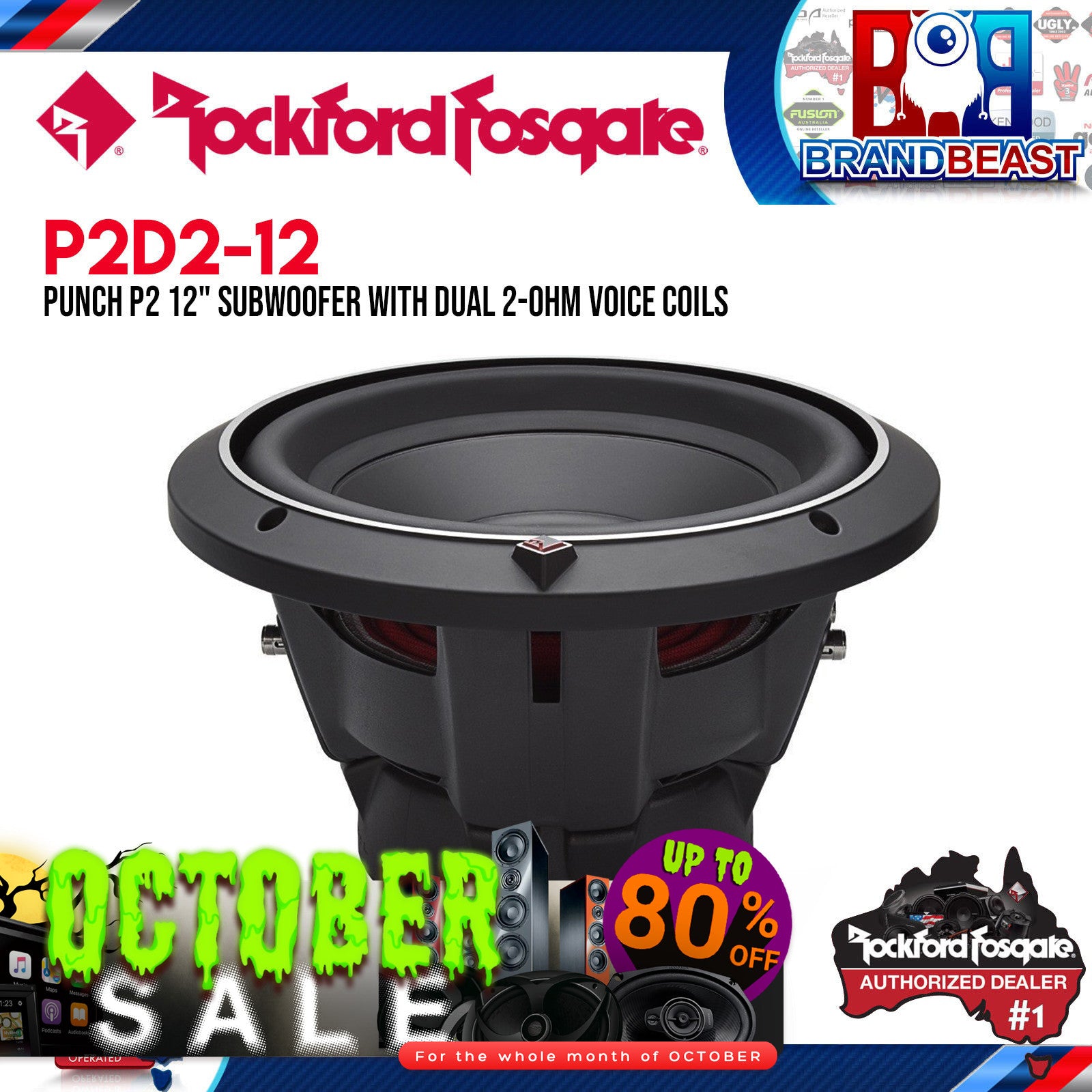

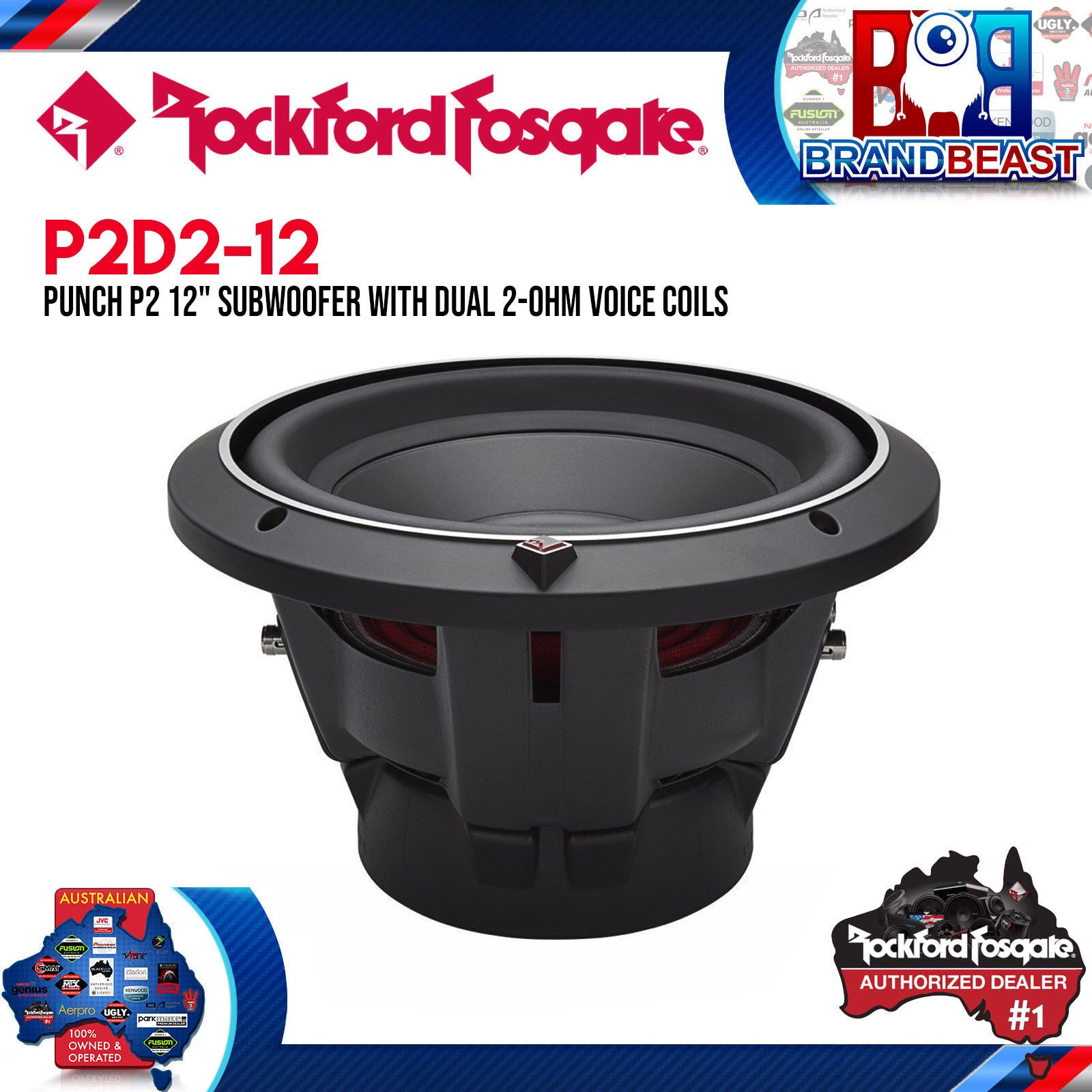

The Rockford Fosgate Punch P2D2-12 is a 12" 2-Ohm Dual Voice Coil (DVC) subwoofer rated at 400W RMS the highest confirmed power rating in the Punch P2 series to this point in the catalogue, and a 100W step up from the P2 10" models. The larger 12" cone moves more air than the 10" format for greater bass output and lower frequency extension. The 2-Ohm DVC provides wiring options of 1-Ohm (parallel), 4-Ohm (series), or 2-Ohm per coil for bi-amplification. Optimised for sealed and vented enclosures. Sold as an individual unit.
All confirmed Punch P2 construction applies: Kevlar fibre-reinforced paper cone, VAST surround (up to 25% increased cone area), high-temperature voice coil with spun-laced Nomex® reinforcement collar, dual linear spider with embedded 16 AWG tinsel leads, extended pole piece with bumped vented backplate, StampCast basket with integrated spider venting, diamond-cut cast aluminium trim ring with grille insert provision, and protective PVC textured magnet cover.
Key Specifications
- Subwoofer size: 12 inch
- Voice coil configuration: Dual Voice Coil (DVC)
- Impedance: 2-Ohm per coil (1-Ohm parallel / 4-Ohm series / 2-Ohm biamp)
- Power handling (RMS): 400W (confirmed)
- Peak power: Not specified — confirm with Rockford Fosgate
- Surround technique: VAST (up to 25% increased cone area)
- Sensitivity: Not specified — confirm with Rockford Fosgate
- Frequency response: Not specified — confirm with Rockford Fosgate
- Xmax: Not specified — confirm with Rockford Fosgate
- Cutout diameter: Not specified — confirm with Rockford Fosgate
- Mounting depth: Not specified — confirm with Rockford Fosgate
- Voice coil: High-temp, Nomex® reinforcement collar
- Cone: Kevlar fibre-reinforced paper
- Spider: Dual linear with embedded 16 AWG tinsel leads
- Basket: StampCast with integrated spider venting
- Pole piece: Extended
- Backplate: Bumped and vented
- Input terminals: Features: push — confirm vs compression with Rockford Fosgate
- Trim ring: Diamond-cut cast aluminium (grille insert compatible)
- Magnet cover: Protective PVC textured
- Enclosure compatibility: Sealed and vented ✓
- Sold as: Individual unit
- Weight: Not specified — confirm with Rockford Fosgate
- Warranty: Not specified — confirm with Rockford Fosgate
Features & Benefits
-
400W RMS — 400W RMS is the highest confirmed power handling in the P2 series and among all subwoofers in this catalogue to date. Requires an amplifier rated at 400W RMS at the selected impedance configuration.
-
12" Cone — Greater Air Movement — More air movement and lower frequency extension than the 10" P2D2-10 in comparable enclosures.
-
2-Ohm DVC — Three Wiring Options:
-
1-Ohm (parallel): Confirm amplifier rated stable at 1-Ohm before use
-
4-Ohm (series): Broad amplifier compatibility
-
2-Ohm per coil (biamp): Separate amplifier channels
-
Dual Linear Spider — Two spiders for improved compliance linearity and cone control at high excursion.
-
Kevlar Fibre-Reinforced Paper Cone with VAST — Stiffened paper cone plus up to 25% increased effective radiating area.
-
Nomex® Voice Coil Reinforcement Collar — Thermal and mechanical durability at 400W sustained.
-
Extended Pole Piece and Bumped Vented Backplate — Increased linear excursion; air spring prevention.
-
Diamond-Cut Cast Aluminium Trim Ring — Premium machined aluminium finish with grille insert provision.
-
StampCast Basket with Integrated Spider Venting — Motor cooling.
Technical Specs
| Specification |
Detail |
| Brand |
Rockford Fosgate |
| Part Number |
P2D2-12 |
| Series |
Punch P2 |
| Subwoofer Size |
12 inch |
| Voice Coil |
Dual Voice Coil (DVC) |
| Impedance per Coil |
2-Ohm ✓ |
| Wiring Options |
1-Ohm (parallel) / 4-Ohm (series) / 2-Ohm biamp ✓ |
| Power Handling (RMS) |
400W ✓ |
| Peak Power |
Not specified — confirm with Rockford Fosgate |
| Sensitivity |
Not specified — confirm with Rockford Fosgate |
| Fs / Xmax / Qts |
Not specified — confirm with Rockford Fosgate |
| Cutout Diameter |
Not specified — confirm with Rockford Fosgate |
| Mounting Depth |
Not specified — confirm with Rockford Fosgate |
| Surround Technique |
VAST ✓ |
| Voice Coil |
High-Temp, Nomex® Collar ✓ |
| Cone |
Kevlar Fibre-Reinforced Paper ✓ |
| Spider |
Dual Linear, Embedded 16 AWG Tinsel Leads ✓ |
| Basket |
StampCast with Integrated Spider Venting |
| Pole Piece |
Extended ✓ |
| Backplate |
Bumped and Vented ✓ |
| Input Terminals |
Features: push — confirm vs compression with Rockford Fosgate |
| Trim Ring |
Diamond-Cut Cast Aluminium (Grille Compatible) ✓ |
| Magnet Cover |
Protective PVC Textured ✓ |
| Enclosure Type |
Sealed and Vented ✓ |
| CEA-2031 Compliant |
Not confirmed — confirm with Rockford Fosgate |
| Sold As |
Individual Unit |
| Weight |
Not specified |
| Warranty |
Not specified — confirm with Rockford Fosgate |
Compatible With / Goes Well With
Suitable enclosure types:
- Sealed and vented — both confirmed
Fitment caution: Cutout diameter, mounting depth, and enclosure volumes not confirmed. Pull from the official Rockford Fosgate P2D2-12 datasheet before building or selecting an enclosure.
1-Ohm wiring caution: Confirm amplifier stability at 1-Ohm before using the parallel configuration.
Amplifier note: 400W RMS requires an amplifier rated at 400W RMS at the selected impedance. This is above the 300W rating of the T1000-1BDCP at 2-Ohm — confirm specific amplifier output at the intended load.
Pairs well with:
- Rockford Fosgate T1500-1BDCP or T2500-1BDCP mono amplifiers — confirm RMS output matches 400W at the selected impedance
Frequently Asked Questions
What amplifier power does the P2D2-12 require?
400W RMS at the selected wiring impedance. This is 100W higher than the P2 10" models. Confirm your amplifier's CEA-2031 rated RMS output at 1-Ohm, 4-Ohm, or 2-Ohm (per coil) before purchasing.
What enclosure volume is recommended?
Enclosure volumes are not confirmed in the supplier data. Pull the official Rockford Fosgate P2D2-12 datasheet for sealed and vented recommendations.
What are the wiring options?
1-Ohm (parallel — confirm amplifier stability), 4-Ohm (series), or 2-Ohm per coil for bi-amplification.
Is a grille available?
The diamond-cut cast aluminium trim ring accommodates an optional grille insert. Confirm the compatible SKU with Rockford Fosgate.
What is the terminal type on the P2D2-12?
The features list states "nickel plated push terminals." The P2D4-10 spec table reveals "compression terminals" — a conflict across the P2 range. Confirm the correct terminal type with Rockford Fosgate, as this applies to all P2 subwoofer models simultaneously.
