Description

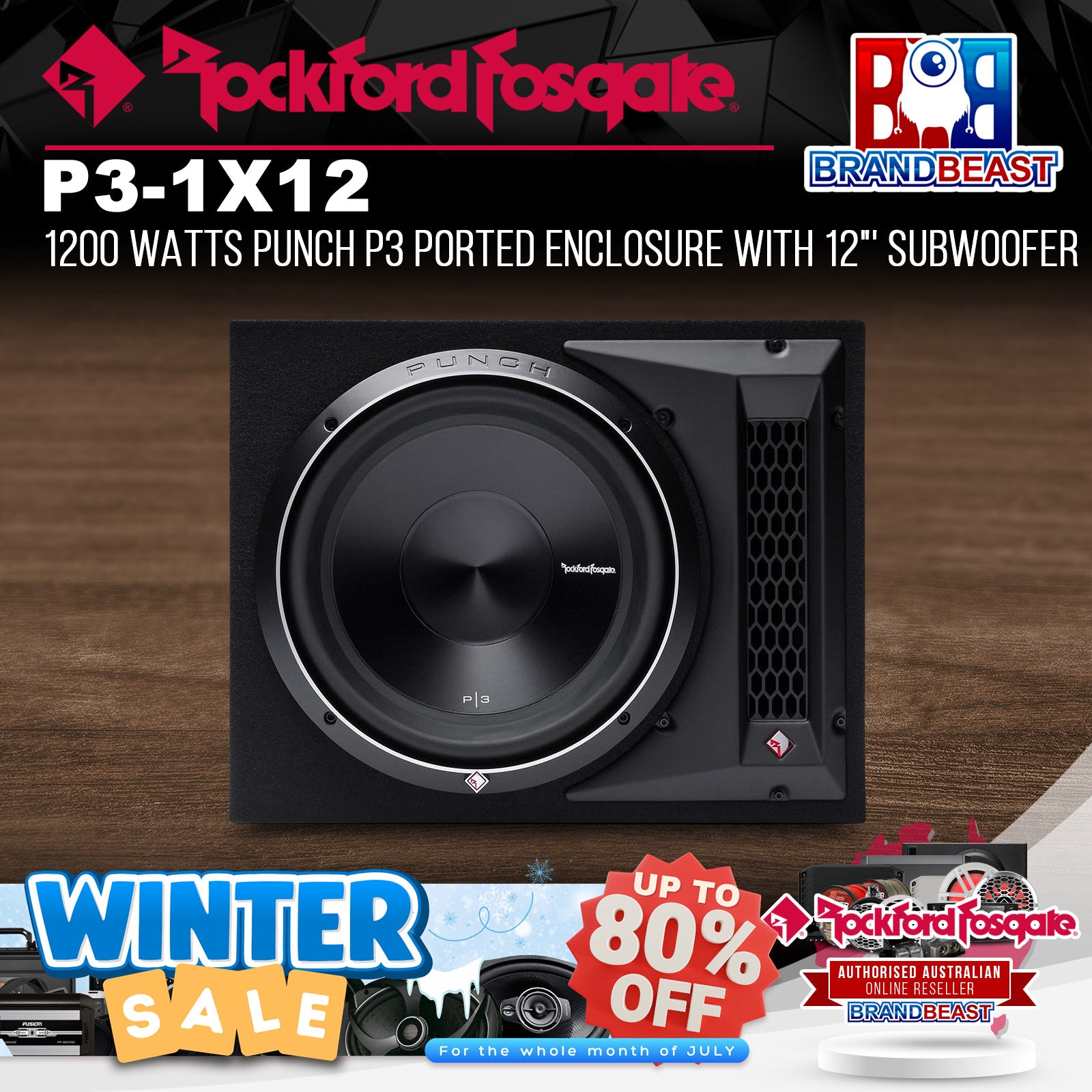

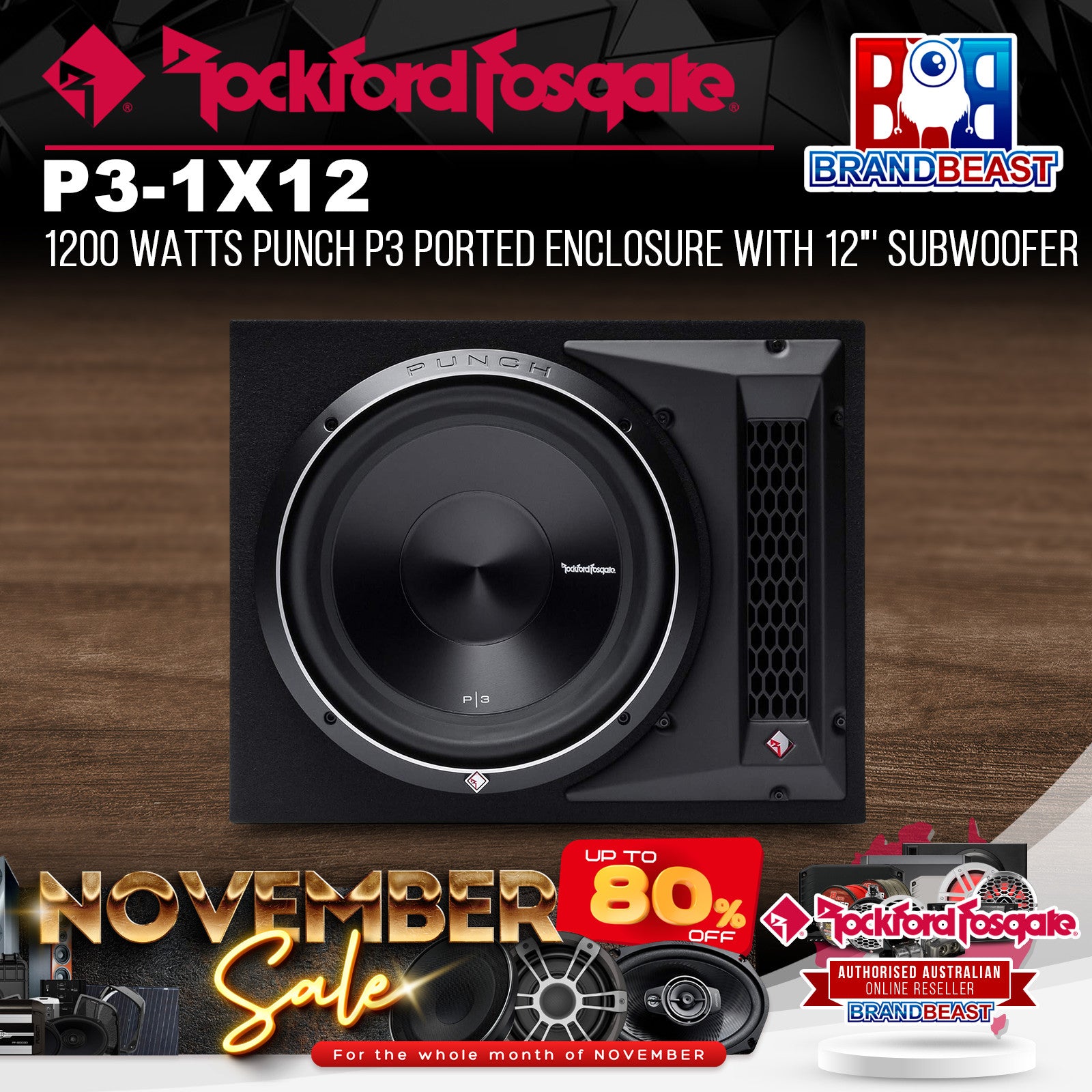

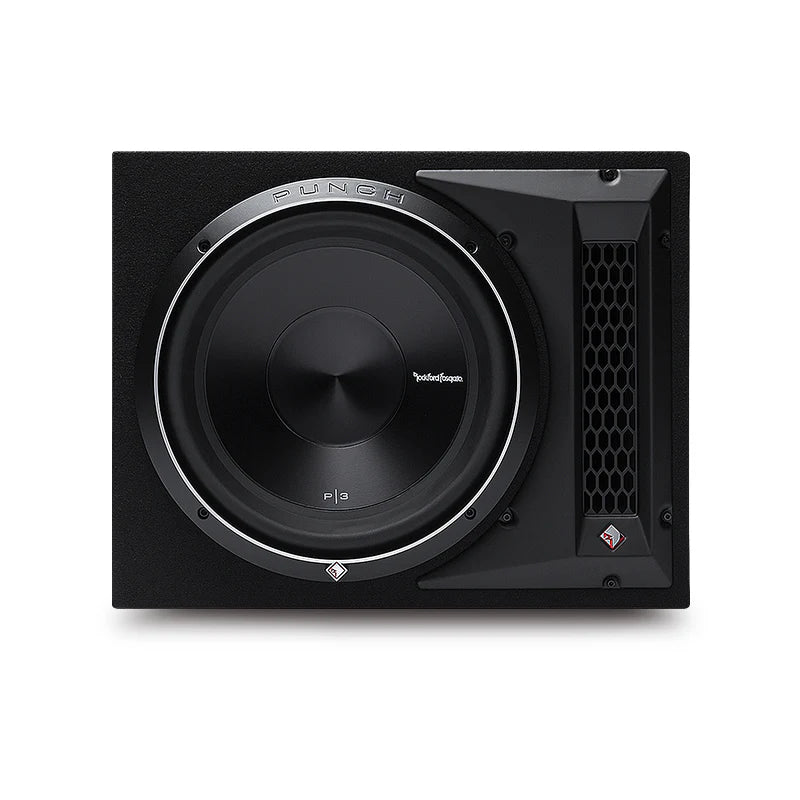

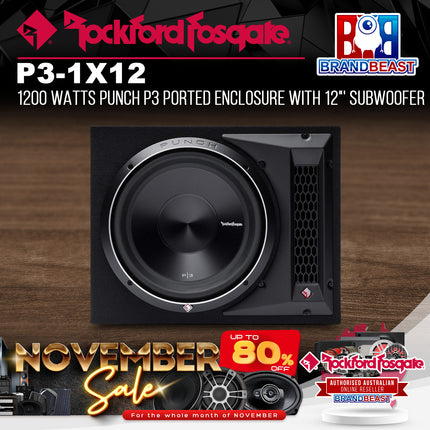

Rockford Fosgate P3-1X12 Punch Single P3 12" Vented Loaded Enclosure Genuine P3 Bass, Ready to Drop In
Product Overview
The Rockford Fosgate P3-1X12 is a single 12" vented loaded enclosure housing a genuine Punch P3 subwoofer (P3D2-12), rated at 600 Watts RMS and 1200 Watts peak. Internally pre-wired to a 1-ohm load, it is built to be paired with a compatible high-output mono amplifier delivering the same P3 tonal performance as a custom driver-and-box build in a factory-tuned, ready-to-install package.
The P3-1X12 is the single-driver counterpart to the dual 12" P3-2X12, offering the same vented enclosure design, proprietary high-flow low-noise port, and computer-aided design tuning at half the driver count and a more manageable 25.8 kg shipping weight. Constructed from 5/8" MDF with high-density carpet and high-current 10 AWG compression binding posts, the P3-1X12 suits Australian vehicles where a single high-output 12" vented enclosure delivers the right balance of bass impact and boot space efficiency.
Key Specifications
- Subwoofer: Single 12" Rockford Fosgate Punch P3 (P3D2-12)
- Woofer quantity: 1
- Power handling: 600W RMS / 1200W peak
- Pre-wired impedance: 1 ohm (internally wired)
- Enclosure type: Vented
- Construction: 5/8" MDF
- Finish: High-density carpet
- Port: Proprietary high-flow, low-noise
- Input terminals: Up to 10 AWG high-current compression binding posts
- Dimensions (H x W x D): 38.4 x 48.6 x 40.0 cm
- Shipping weight: 25.8 kg
- CEA-2031 compliant
Features & Benefits
-
Single 12" Punch P3 driver (P3D2-12): The same genuine P3D2-12 woofer available as a standalone driver, factory-loaded and tuned in a single vented enclosure. Identical P3 tonal performance to a custom build without the cost and time of sourcing components separately.
-
600W RMS / 1200W peak power handling: Built for serious amplifier output. Pre-wired to 1 ohm, the P3-1X12 is ready to handle the full output of a compatible high-power mono amplifier, delivering impactful bass performance suited to larger vehicle boot spaces in Australian sedans, SUVs, and utes.
-
Vented enclosure for high-output bass: The vented design produces higher output at the tuning frequency than a sealed enclosure, delivering the loud, impactful bass response preferred for high-output single 12" systems where maximum volume and low-frequency extension are the priority.
-
Proprietary high-flow, low-noise port: Purpose-engineered for this specific enclosure to minimise air turbulence and port chuffing at high excursion levels. Maintains clean, articulate bass output at or near rated power a clear advantage over budget vented enclosures at sustained high-volume use.
-
Computer-aided design tuning: Enclosure volume and port dimensions are calculated specifically for the P3D2-12 driver, ensuring the vented alignment is optimised for maximum output and accuracy at the intended tuning frequency.
-
Pre-wired to 1 ohm: Factory internal wiring presents a 1-ohm load to the amplifier. Maximises power delivery from compatible 1-ohm stable mono amplifiers with no internal wiring configuration required.
-
More manageable than the P3-2X12: At 25.8 kg and 38.4 x 48.6 x 40.0 cm, the P3-1X12 is significantly lighter and narrower than the dual 12" P3-2X12 (40.66 kg, 86.0 cm wide), making it a practical choice for vehicles where dual 12" width or weight is a constraint.
-
CEA-2031 compliant: Power handling figures comply with the CEA-2031 standard for loaded subwoofer enclosures, providing a verified and comparable specification.
-
5/8" MDF construction: Rigid enclosure walls minimise panel flex, resonance, and vibration at sustained 600W RMS input levels essential for accurate, tight bass reproduction at the output levels this enclosure is designed to handle.
-
High-density carpet finish: Durable, professional appearance suited to daily boot and cargo area use in Australian vehicles.
-
High-current 10 AWG compression binding posts: Appropriate for the current demands of a 600W RMS, 1-ohm system. Secure, reliable connections at the wattage and current levels this enclosure operates at.
Technical Specs
| Specification |
Detail |
| SKU |
P3-1X12 |
| Brand |
Rockford Fosgate |
| Subwoofer Driver |
12" Rockford Fosgate Punch P3 (P3D2-12) |
| Woofer Quantity |
1 |
| Power Handling |
600W RMS / 1200W peak |
| Pre-Wired Impedance |
1 ohm (internally wired) |
| Enclosure Type |
Vented |
| Port Type |
Proprietary high-flow, low-noise |
| Construction Material |
5/8" MDF |
| Finish |
High-density carpet |
| Input Terminals |
Up to 10 AWG high-current compression binding posts |
| Enclosure Design |
Computer-aided design tuned |
| CEA-2031 Compliant |
Yes |
| Dimensions (H x W x D) |
38.4 x 48.6 x 40.0 cm |
| Shipping Weight |
25.8 kg |
| Warranty |
Confirm with supplier |
Compatible With
- High-output mono amplifiers stable at 1 ohm, rated at or near 600W RMS
- Rockford Fosgate Power and Punch series high-output mono amplifiers
- Sedans, SUVs, wagons, and utes with boot or cargo area space suitable for a 38.4 x 48.6 x 40.0 cm enclosure
- Vehicles where the dual 12" P3-2X12 width or weight is impractical but single 12" P3 performance is the target
- Rockford Fosgate wiring kits rated for high-current 1-ohm mono amplifier installation
- Rockford Fosgate RCA cables and signal accessories
Frequently Asked Questions
What amplifier does the P3-1X12 require? The P3-1X12 is pre-wired to 1 ohm and handles 600W RMS. A mono amplifier stable at 1 ohm and rated at or near 600W RMS is recommended such as a compatible Rockford Fosgate Power or Punch mono amplifier. Do not exceed 1200W peak input.
What is the difference between the P3-1X12 and P3-2X12? The P3-1X12 houses a single P3D2-12 driver rated at 600W RMS in a narrower enclosure (48.6 cm wide, 25.8 kg), while the P3-2X12 houses dual P3D4-12 drivers rated at 1200W RMS in a wider enclosure (86.0 cm wide, 40.66 kg). Choose the P3-1X12 when single 12" output is sufficient or dual 12" width and weight is impractical.
Are the drivers in the P3-1X12 the same as the standalone P3 subwoofers? Yes. The P3-1X12 is loaded with a genuine Rockford Fosgate P3D2-12 driver the same woofer available separately in the Punch P3 range factory-loaded and tuned in a computer-optimised vented enclosure.
Why choose the P3-1X12 vented enclosure over a sealed P3 enclosure? A vented enclosure produces higher output at the tuning frequency than a sealed enclosure, making it the preferred choice for maximum bass impact and volume. A sealed P3 enclosure offers tighter, more accurate bass at lower output levels. Choose vented for maximum impact; choose sealed for accuracy and control.
Is the P3-1X12 suitable for daily boot use in an Australian vehicle? Yes, provided your vehicle has sufficient boot space (38.4 x 48.6 x 40.0 cm minimum clearance) and your electrical system supports a high-output 1-ohm mono amplifier. The 25.8 kg weight is manageable for a single-person install but care should be taken when lifting and positioning.
