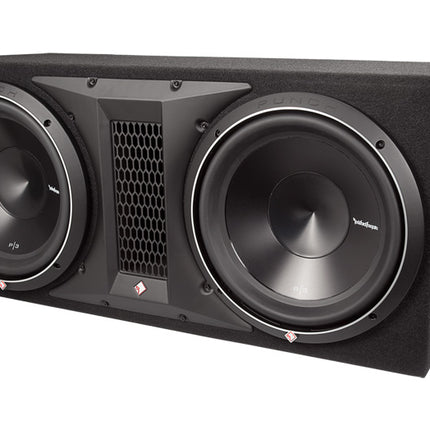

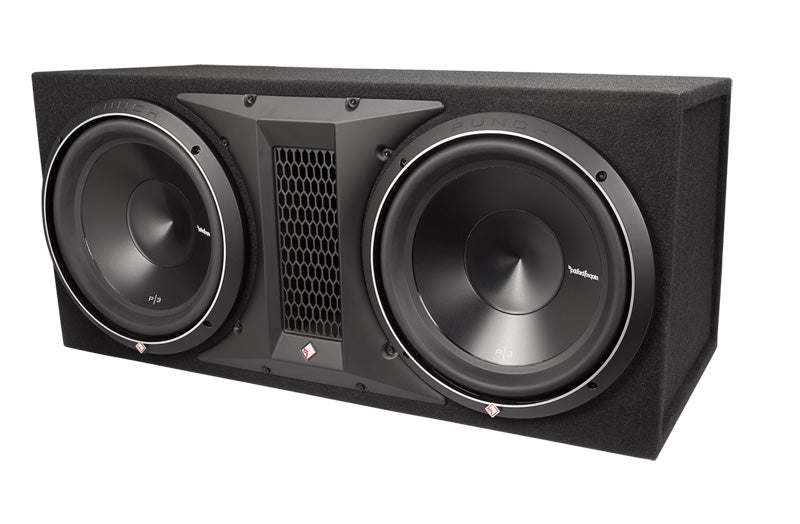

Rockford Fosgate P3-2X12 Punch Dual P3 12" Vented Loaded Enclosure 1200 Watts of Genuine Punch Bass
Product Overview
The Rockford Fosgate P3-2X12 is a dual 12" vented loaded enclosure housing two genuine Punch P3 subwoofers (P3D4-12), delivering a combined 1200 Watts RMS and 2400 Watts peak power handling in a single factory-built, computer-tuned enclosure. Pre-wired internally to a 1-ohm load, it is designed to be driven hard by a compatible high-output mono amplifier making it the most direct path to serious, high-output Punch bass performance without building a custom enclosure or sourcing drivers and boxes separately.
The P3-2X12 uses the same P3D4-12 drivers sold individually in the Rockford Fosgate range, housed in a vented enclosure tuned via computer-aided design software for optimised low-frequency output and port efficiency. The proprietary high-flow, low-noise port minimises port turbulence and chuffing at high output levels a common weakness in cheaper dual 12" vented enclosures. Constructed from 5/8" MDF with high-density carpet finish and high-current binding posts up to 10 AWG, the P3-2X12 is built for serious daily use in Australian vehicles where boot space and amplifier output are not a constraint.
Key Specifications
- Subwoofers: Dual 12" Rockford Fosgate Punch P3 (P3D4-12)
- Woofer quantity: 2
- Power handling: 1200W RMS / 2400W peak
- Pre-wired impedance: 1 ohm (internally wired)
- Enclosure type: Vented
- Construction: 5/8" MDF
- Finish: High-density carpet
- Port: Proprietary high-flow, low-noise
- Input terminals: Up to 10 AWG high-current compression binding posts
- Dimensions (H x W x D): 38.4 x 86.0 x 40.0 cm
- Shipping weight: 40.66 kg
- CEA-2031 compliant
Features & Benefits
-
Dual 12" Punch P3 drivers (P3D4-12): The same genuine P3D4-12 woofers available as standalone drivers, factory-loaded and tuned as a matched pair in a single enclosure. No compromise on driver quality identical P3 tonal performance to a custom build, straight out of the box.
-
1200W RMS / 2400W peak combined power handling: Built for serious amplifier output. Pre-wired to 1 ohm, the P3-2X12 is ready to handle the output of a high-power mono amplifier delivering the kind of bass output level that commands attention in any Australian vehicle.
-
Vented enclosure for maximum low-frequency output: The vented (ported) design produces higher output at the tuning frequency compared to a sealed enclosure, delivering the loud, impactful bass preferred for high-output systems in larger vehicle boot spaces.
-
Proprietary high-flow, low-noise port: Engineered specifically for this enclosure to minimise port turbulence and chuffing at high output levels. At 1200W RMS combined input, port noise is a real issue in budget dual 12" enclosures the P3-2X12's proprietary port design addresses this directly.
-
Computer-aided design tuning: Enclosure volume, port dimensions, and geometry are calculated specifically for the P3D4-12 driver pair, ensuring the vented alignment is optimised for maximum output and accuracy at the intended tuning frequency rather than approximated.
-
Pre-wired to 1 ohm: Factory internal wiring presents a 1-ohm load to the amplifier, maximising power delivery from compatible mono amplifiers. No internal wiring configuration required connect your amplifier and go.
-
CEA-2031 compliant: Power handling figures comply with the CEA-2031 standard for loaded subwoofer enclosures, providing a verified and comparable specification.
-
5/8" MDF construction: Rigid enclosure walls minimise panel flex, resonance, and vibration at the sustained high output levels this enclosure is designed for. Essential for accurate, tight bass reproduction at 1200W RMS combined input.
-
High-density carpet finish: Durable, professional appearance that integrates cleanly into vehicle boot and cargo area environments for daily use.
-
High-current 10 AWG compression binding posts: Appropriate for the significant current demands of a 1200W RMS, 1-ohm system. Secure, reliable connections at the wattage and current levels this enclosure operates at.
Technical Specs
| Specification |
Detail |
| SKU |
P3-2X12 |
| Brand |
Rockford Fosgate |
| Subwoofer Drivers |
2 x 12" Rockford Fosgate Punch P3 (P3D4-12) |
| Woofer Quantity |
2 |
| Power Handling |
1200W RMS / 2400W peak |
| Pre-Wired Impedance |
1 ohm (internally wired) |
| Enclosure Type |
Vented |
| Port Type |
Proprietary high-flow, low-noise |
| Construction Material |
5/8" MDF |
| Finish |
High-density carpet |
| Input Terminals |
Up to 10 AWG high-current compression binding posts |
| Enclosure Design |
Computer-aided design tuned |
| CEA-2031 Compliant |
Yes |
| Dimensions (H x W x D) |
38.4 x 86.0 x 40.0 cm |
| Shipping Weight |
40.66 kg |
| Warranty |
Confirm with supplier |
Compatible With
- High-output mono amplifiers stable at 1 ohm, rated at or near 1200W RMS
- Rockford Fosgate Power and Punch series high-output mono amplifiers
- Sedans, SUVs, wagons, and utes with full boot or cargo area space available
- Vehicles with upgraded electrical systems to support sustained high-current amplifier draw
- Rockford Fosgate wiring kits rated for high-current 1-ohm mono amplifier installation
- Rockford Fosgate RCA cables and signal accessories
Frequently Asked Questions
What amplifier does the P3-2X12 require? The P3-2X12 is pre-wired to 1 ohm and handles 1200W RMS combined. A high-output mono amplifier stable at 1 ohm and rated at or near 1200W RMS is required such as a compatible Rockford Fosgate Power series mono amplifier. Do not exceed 2400W peak input.
Are the drivers in the P3-2X12 the same as the standalone P3 subwoofers? Yes. The P3-2X12 is loaded with genuine Rockford Fosgate P3D4-12 drivers the same woofers available separately in the Punch P3 range. Factory loading provides the same tonal performance as a custom build using individual P3D4-12 drivers in a computer-tuned vented enclosure.
Why choose a vented enclosure over a sealed enclosure? A vented enclosure produces higher output at the tuning frequency compared to a sealed enclosure of equivalent driver and amplifier power, making it the preferred choice for maximum bass impact and volume in larger vehicle boot spaces. Sealed enclosures offer tighter, more accurate bass but at lower output levels.
How does the proprietary port reduce noise at high output? The proprietary high-flow, low-noise port is designed with optimised geometry to minimise air turbulence as it passes through the port at high excursion levels. This reduces the chuffing and port noise common in budget vented enclosures when driven at or near rated power maintaining clean bass output at high volumes.
Is the P3-2X12 suitable for daily use in an Australian vehicle? Yes, provided your vehicle has sufficient boot space (38.4 x 86.0 x 40.0 cm minimum clearance) and your electrical system is upgraded to support a high-output 1-ohm mono amplifier. At 40.66 kg, professional installation is recommended for safe handling and secure mounting.
