Description

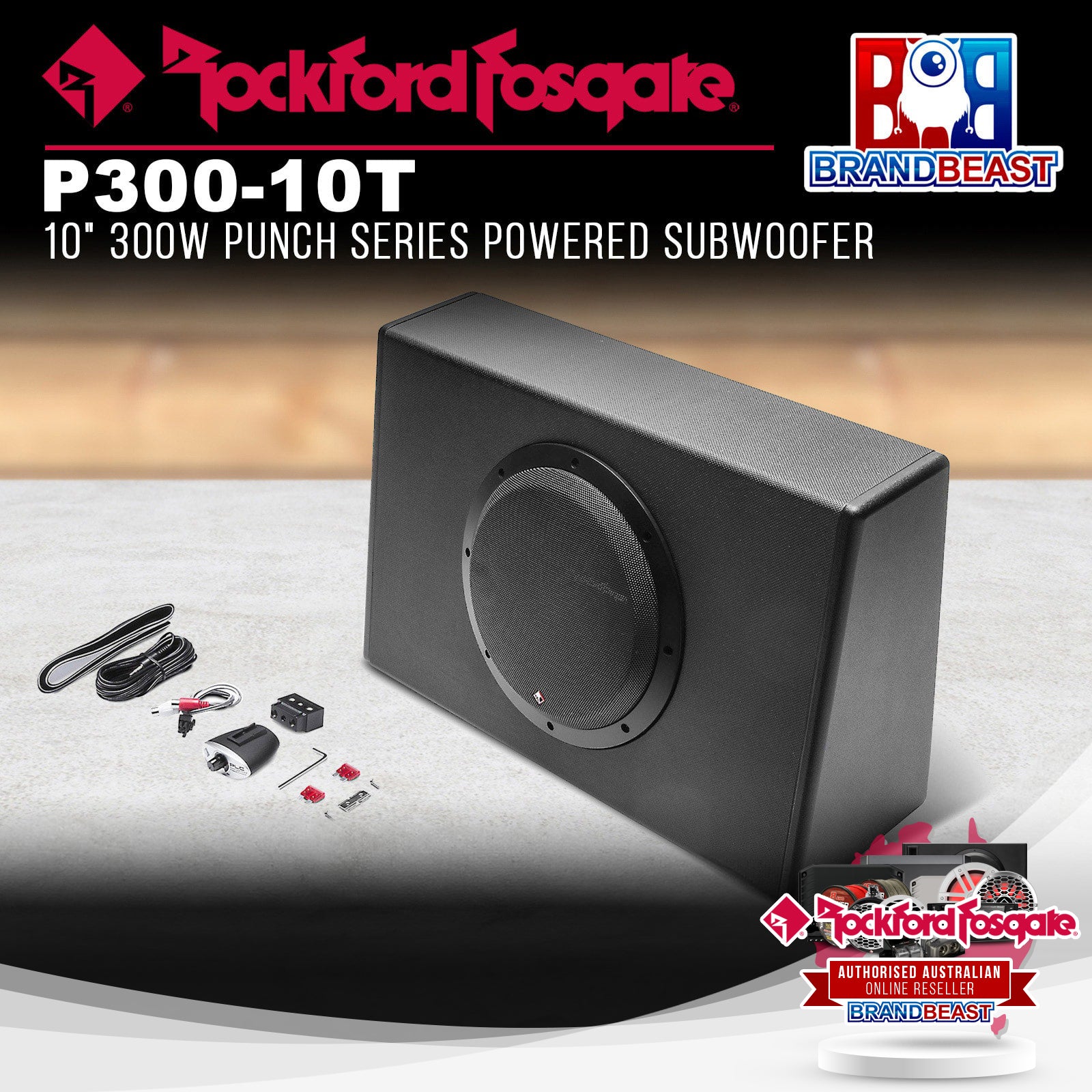

Rockford Fosgate P300-10T Punch 10" 300 Watt Powered Truck Enclosure
When your truck needs real bass in a compact, self-contained package, the P300-10T fits a high-output 10" woofer and 300-watt Class D amplifier into a slim sealed enclosure built for universal truck applications.
Product Overview
The P300-10T is Rockford Fosgate's all-in-one powered subwoofer enclosure designed for the dimensional constraints of truck under-seat and behind-seat installations. The slim wedge profile enclosure is precision constructed from 5/8" MDF and houses a 10" proprietary woofer impedance-optimised for the integrated 300-watt Class D amplifier in a closed-loop design, ensuring the driver and amplifier work together as a matched system from the factory. The sealed enclosure delivers tight, controlled bass with a 35-200 Hz frequency response suited to the acoustic environment of a truck cabin. An onboard variable Low-Pass crossover (50-200 Hz), Bass EQ with 0 to +12 dB of boost, and a 0-180 degree phase switch are accessible on the amplifier plate, while the included Punch Level Control remote handles bass adjustment from the driver's seat. An intelligent auto turn-on/off circuit with three selectable modes (Remote Trigger, DC Offset Sense, and Audio Sense) eliminates the need for a dedicated remote turn-on wire in OEM installations. Separate RCA and high-level speaker inputs make it compatible with both aftermarket and factory head units. Quick-release input connectors allow the enclosure to be removed quickly when cargo space is needed. The heat-activated vinyl finish resists marks in daily use. CEA-2006 (amplifier) and CEA-2031 (woofer) compliant, Klippel verified, with a 1-year warranty.
Features & Benefits
300-Watt Class D Amplifier with Closed-Loop Design: The integrated amplifier is an impedance-matched, closed-loop Class D design tuned specifically for the P300-10T's proprietary 10" woofer, ensuring maximum efficiency and precise driver control at all output levels within the slim enclosure footprint.
High-Efficiency, Low Current Amplifier Design: The Class D amplifier topology keeps current consumption low relative to output, making the P300-10T compatible with stock electrical systems in trucks where alternator capacity is not upgraded.
Slim Wedge Enclosure for Truck Applications: The low-profile wedge enclosure is dimensioned to fit under or behind seats in truck applications where vertical clearance is limited, delivering a genuine 10" subwoofer performance footprint without consuming the full usable cab space.
Klippel Verified Woofer: The 10" proprietary woofer has been verified through the Klippel certification programme, which measures and corrects non-linear distortion parameters to deliver the best possible transient accuracy and low-frequency output from an optimised, impedance-matched driver.
Sealed Enclosure for Tight, Accurate Bass: The sealed MDF enclosure provides controlled, accurate bass reproduction suited to the enclosed acoustic space of a truck cab, with tighter low-frequency transients than a ported design and a frequency response extending down to 35 Hz.
Intelligent Auto Turn-On/Off: Three selectable turn-on modes (Remote Trigger, DC Offset Sense, and Audio Sense) allow the P300-10T to power on automatically in any installation scenario, including factory head units without a dedicated remote output.
Variable Low-Pass Crossover: Continuously variable from 50 to 200 Hz at 12 dB/octave Butterworth, the onboard crossover integrates cleanly with full-range speakers across virtually any crossover point set by the main system amplifier or head unit.
Onboard Bass EQ: 0 to +12 dB of onboard bass boost corrects for acoustic deficiencies in the vehicle interior and adds presence to the low-frequency output without an external equaliser.
Phase Switch: A 0 to 180 degree phase control allows the subwoofer to be time-aligned with the main speakers acoustically, compensating for physical placement differences in the truck cab for a coherent, integrated bass response.
Included Punch Level Control Remote: The Punch Level Control is included in the box, allowing bass output to be adjusted from the driver's seat in real time without accessing the amplifier plate directly.
Quick-Release Input Connections: Input connections use quick-disconnect fittings, allowing the enclosure to be removed from the vehicle quickly when cargo space is needed, without tools or cable work.
High and Low-Level Inputs: Separate RCA (low-level, 150mV-6V) and speaker-level (high-level, 300mV-12V) inputs via a single RCA pair summed L/R support both aftermarket and OEM head unit installations from the same unit.
Thermal and Over/Under Voltage Protection: Onboard protection monitors both operating temperature and supply voltage, shutting the amplifier down safely before damage occurs under fault conditions.
Precision MDF Enclosure with Vinyl Finish: Constructed from 5/8" Medium Density Fiberboard for optimal acoustic properties, covered with a heat-activated vinyl finish that resists marks and scuffs in daily truck use.
CEA-2006 and CEA-2031 Compliant: Amplifier power ratings conform to CEA-2006 industry standards at 14.4V with 1% or less THD. Woofer power handling conforms to CEA-2031, confirming both ratings are real, tested figures.
Technical Specs
| Specification |
Detail |
| SKU |
P300-10T |
| Series |
Punch |
| Woofer Size |
10" |
| Woofer Quantity |
1 |
| Woofer Series |
Proprietary |
| Power Handling |
300W RMS |
| Integrated Amplifier |
300W RMS |
| Amplifier Class |
Class D |
| Enclosure Type |
Sealed |
| Enclosure Material |
5/8" MDF |
| Enclosure Finish |
Heat-Activated Vinyl |
| Frequency Response |
35 Hz - 200 Hz |
| Low-Pass Crossover |
Variable 50-200 Hz @ 12 dB/octave Butterworth |
| Bass EQ |
0 to +12 dB |
| Phase Control |
0 to 180 degrees |
| Input Switch |
High-Level (Speaker) / Low-Level (RCA) |
| Signal Input |
1 x RCA Pair (L/R Summed) |
| Input Sensitivity (Low-Level) |
150 mV - 6V |
| Input Sensitivity (High-Level) |
300 mV - 12V |
| Input Impedance |
20k Ohms |
| Auto Turn-On Selector |
Remote Trigger / DC Offset Sense / Audio Sense |
| Remote Control |
Punch Level Control (included) |
| Visual Indicators |
POWER / PROTECT LED |
| Heatsink Type |
Extruded Aluminium |
| Cooling |
Convection |
| Power Wire Gauge |
8 AWG (B+/GND), 18 AWG (Remote) |
| Power Input Connector |
Quick Disconnect |
| Fuses |
20A total (2 x 10A ATO) |
| Compliance |
CEA-2006 (amplifier), CEA-2031 (woofer), Klippel Verified |
| Dimensions (H x W x D1 x D2) |
13.3" x 21.7" x 4.8" x 7.9" (338 mm x 552 mm x 122 mm x 201 mm) |
| Shipping Weight |
25 lbs (11.3 kg) |
| Warranty |
1 Year |
Goes Well With
The P300-10T is a standalone bass solution requiring no separate subwoofer amplifier or enclosure. For factory head unit installations, the high-level speaker inputs and Audio Sense auto turn-on allow direct connection without additional interface hardware. For aftermarket head unit installations, the RCA input connects directly from the head unit's subwoofer pre-out. To complement the P300-10T with front and rear speaker amplification, the PBR400X4D or R2-300X4 pair naturally via a standard RCA pre-out from the head unit. For installations requiring a larger 12" driver in the same truck enclosure format, the P300-12T is the direct step-up option. An 8-gauge power and ground cable run to the battery is required, along with the 2 x 10A ATO fuses included in the box.
Frequently Asked Questions
How does the P300-10T differ from the P300-12T?
Both the P300-10T and P300-12T are 300-watt powered truck enclosures sharing the same amplifier specification, feature set, enclosure material, and installation approach. The primary difference is driver size: the P300-10T uses a 10" woofer in a smaller enclosure (13.3" x 21.7"), while the P300-12T uses a 12" woofer in a larger enclosure (15" x 25.8"). The 10" option suits trucks with tighter under-seat clearance, while the 12" option is preferred where space allows and maximum low-frequency output is the priority.
Can the P300-10T be connected directly to a factory head unit?
Yes. The high-level speaker inputs accept signal from the factory head unit's speaker outputs directly, and the Audio Sense or DC Offset Sense auto turn-on modes allow the enclosure to power on without a dedicated remote turn-on wire. This makes the P300-10T a straightforward plug-in bass upgrade for OEM truck systems without requiring head unit replacement.
What are the three auto turn-on modes, and which should I use?
Remote Trigger mode powers the amplifier on when a 12V signal is received at the remote input terminal, requiring a remote turn-on wire from the head unit. DC Offset Sense mode detects a DC voltage change on the high-level speaker input to trigger turn-on, suitable for OEM systems where the speaker output changes state when the head unit powers on. Audio Sense mode detects an incoming audio signal and triggers turn-on automatically, making it the most universal option for both OEM and aftermarket installations without a dedicated remote output.
Does the quick-release connector system allow me to remove the enclosure without rewiring?
Yes. The quick-release input and power connectors allow the P300-10T to be disconnected and removed from the vehicle without tools or disturbing the permanent wiring. This is particularly practical in truck applications where the under-seat or behind-seat space is frequently needed for passengers or cargo, allowing the subwoofer to be reinstalled just as quickly.
What is Klippel Verification, and why does it matter for a powered enclosure?
Klippel is an independent speaker measurement and certification programme that identifies and corrects non-linear distortion parameters in speaker drivers, including suspension non-linearities and motor force variation across the cone's travel range. In a sealed powered enclosure where the driver and amplifier are a matched system, Klippel verification confirms that the woofer's performance envelope has been accurately measured and optimised to deliver clean, low-distortion bass at the rated 300 watts across its full operating range.
