Description

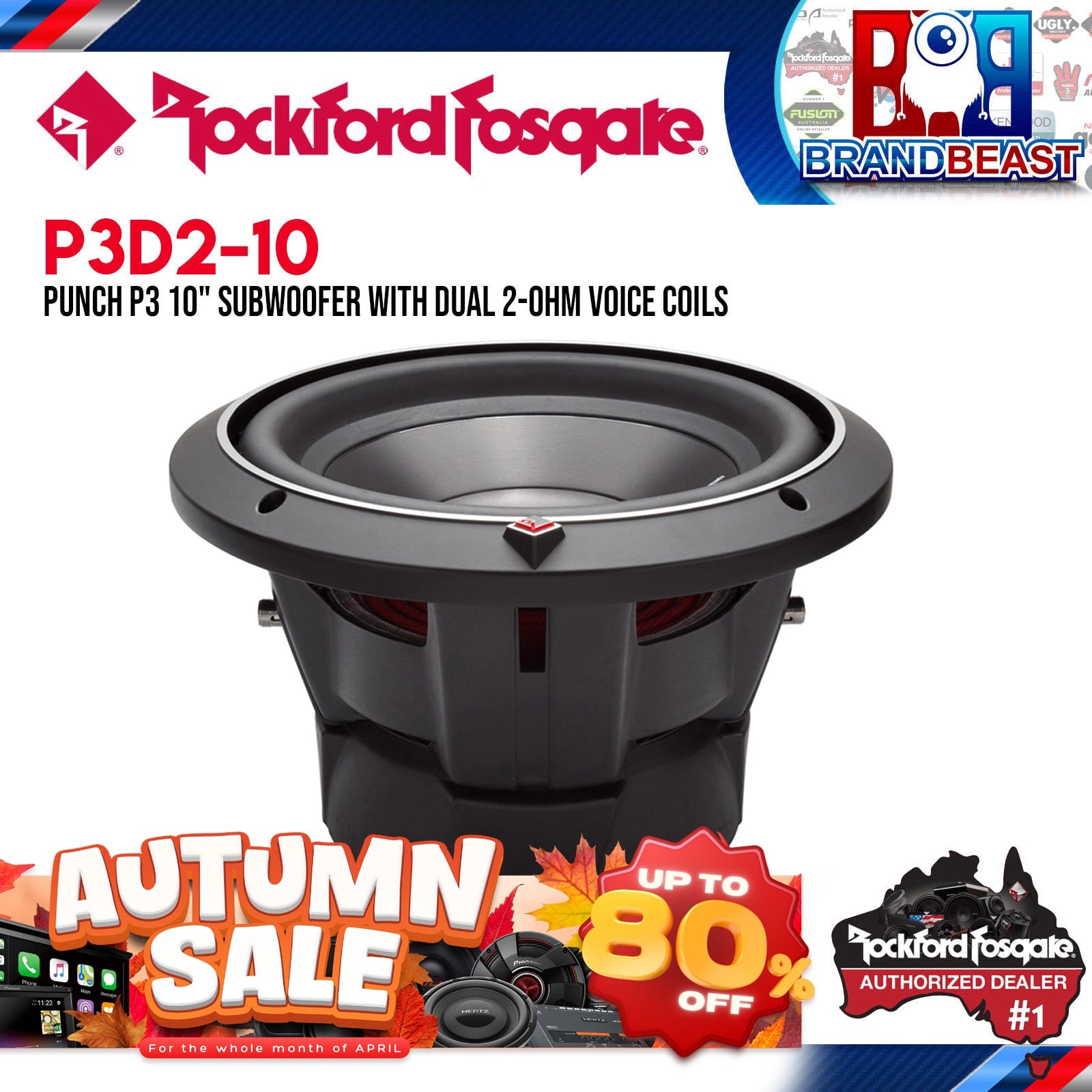

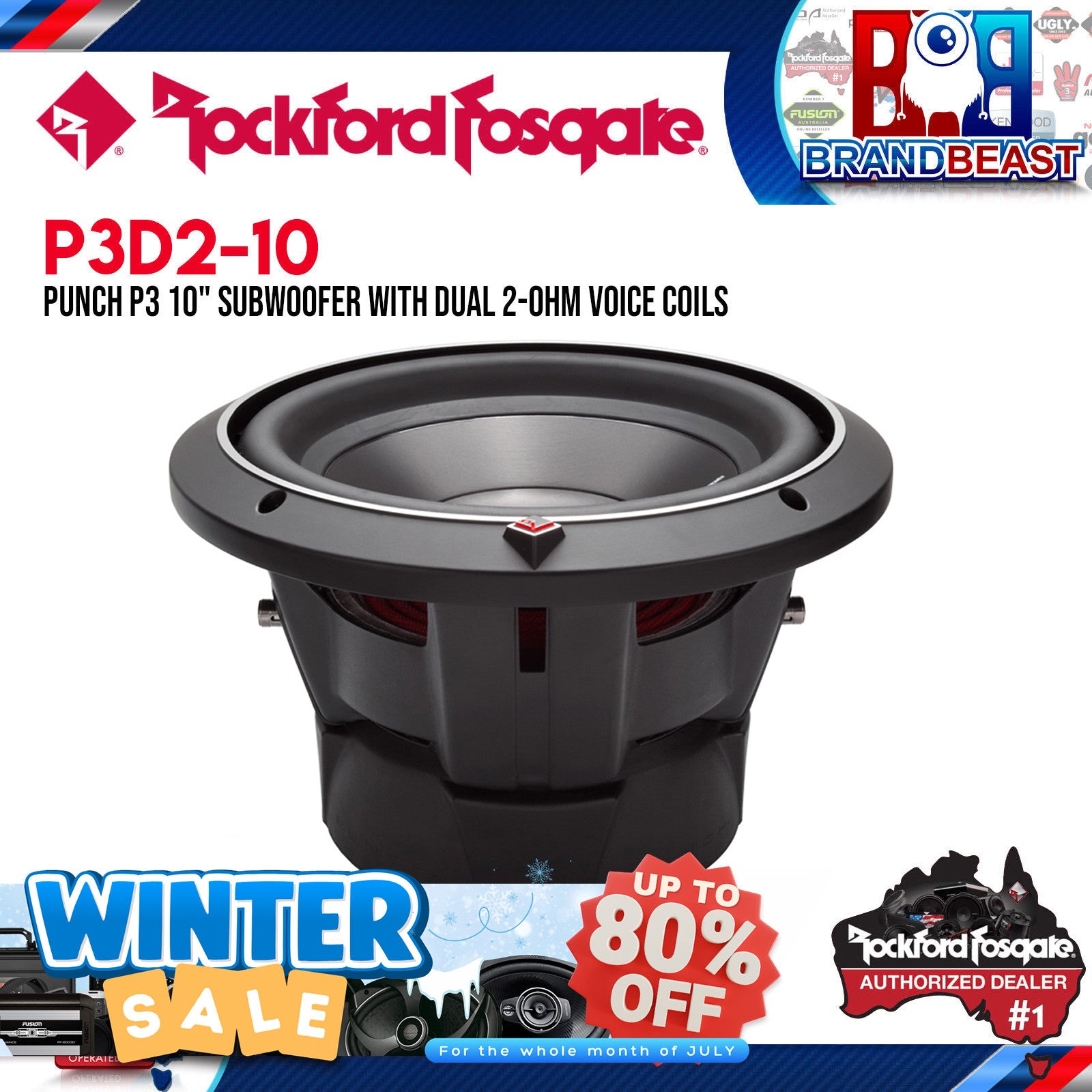

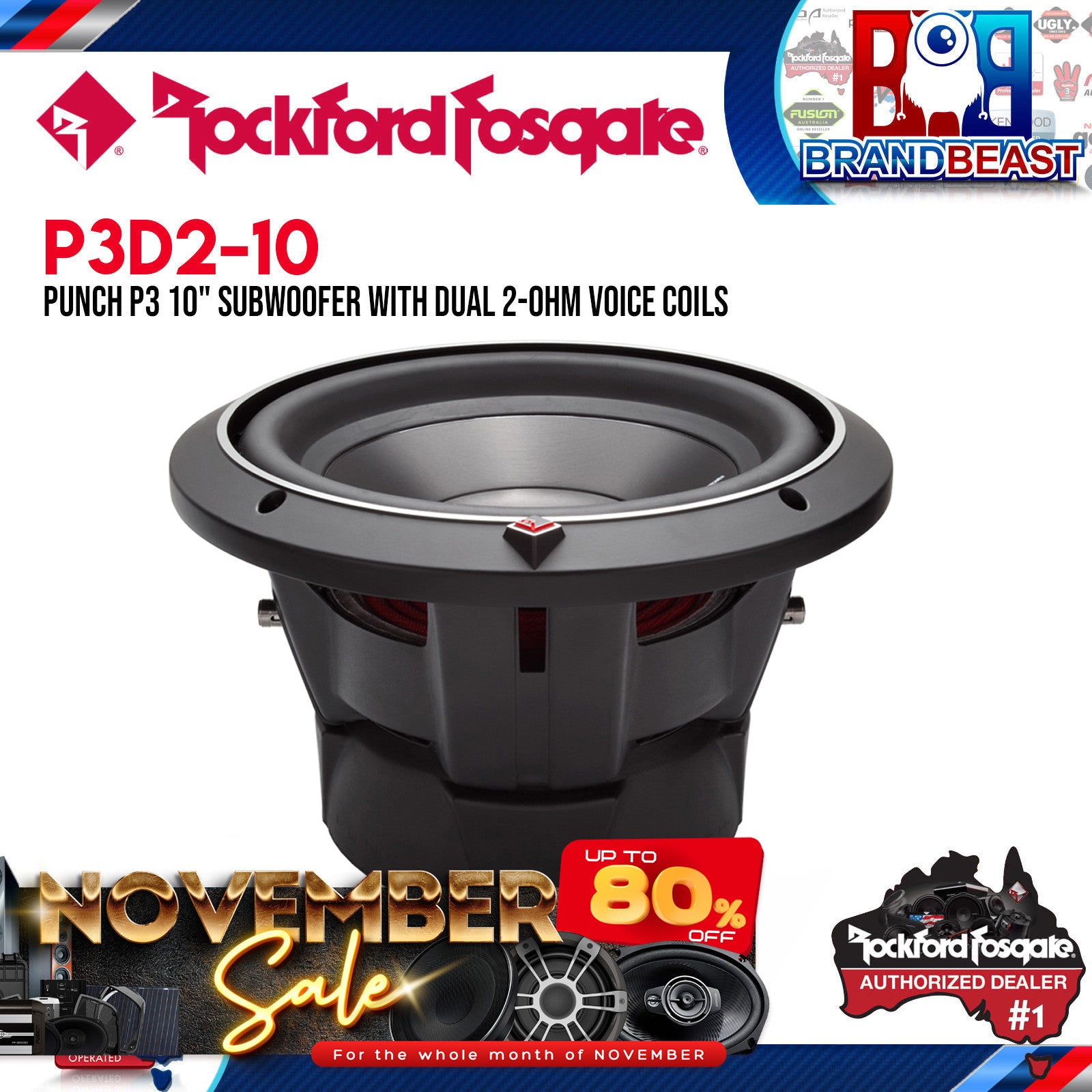

The Best Performing Rockford Fosgate Punch Series Subwoofer
The P3D2-10 is the best performing Rockford Fosgate Punch series subwoofer. The P3 10” features Dual 2-Ohm voice coils, 500 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring. The P3D2-10 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.
Features: - Custom 10-AWG nickel plated push terminals
- Rubberized over-mold for greater grip
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Anodized aluminum cone and dustcap
- Protective PVC textured magnet cover
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
Specifications: - Nominal Impedance Dual 2-Ohm
- Power Handling (Watts RMS) 500 Watts RMS, 1000 Watts Max
- Voice Coil Diameter 2.5" (65.5 mm)
- Mounting Depth 6.18 in. (156.8 mm)
- Fs (Hz) 26.6
- Qes 0.54
- Qms 6.00
- Vas (Liters) 27.0
- Woofer Displacement 0.070 cu. ft. (2.0 Liters)
- Sd (cm2) 360
- Size 10"
- Speaker Connector Dual 10 AWG compression
- Shipping Weight 17.3 lbs. (7.8 kg)
- SPL (dB @ 1w/1m) 82
- Qts 0.49
- Cutout Diameter9 .13 in. (232 mm)
- Re (Ohms) 3.20
- Le (mH) 4.5
- Magnet Weight (oz) 81 oz. (2.30 kg.)
- CEA-2031 Compliant
- Xmax (mm) 15.2
- Subwoofer Type Standard
- Voice Coil Type Dual Voice Coil
- Sealed Box Volume (Vb) 0.59 cu. ft. (16.7 Liters)
- Vented Box Volume (Vb) 1.4 cu. ft. (39.6 Liters)
