Description

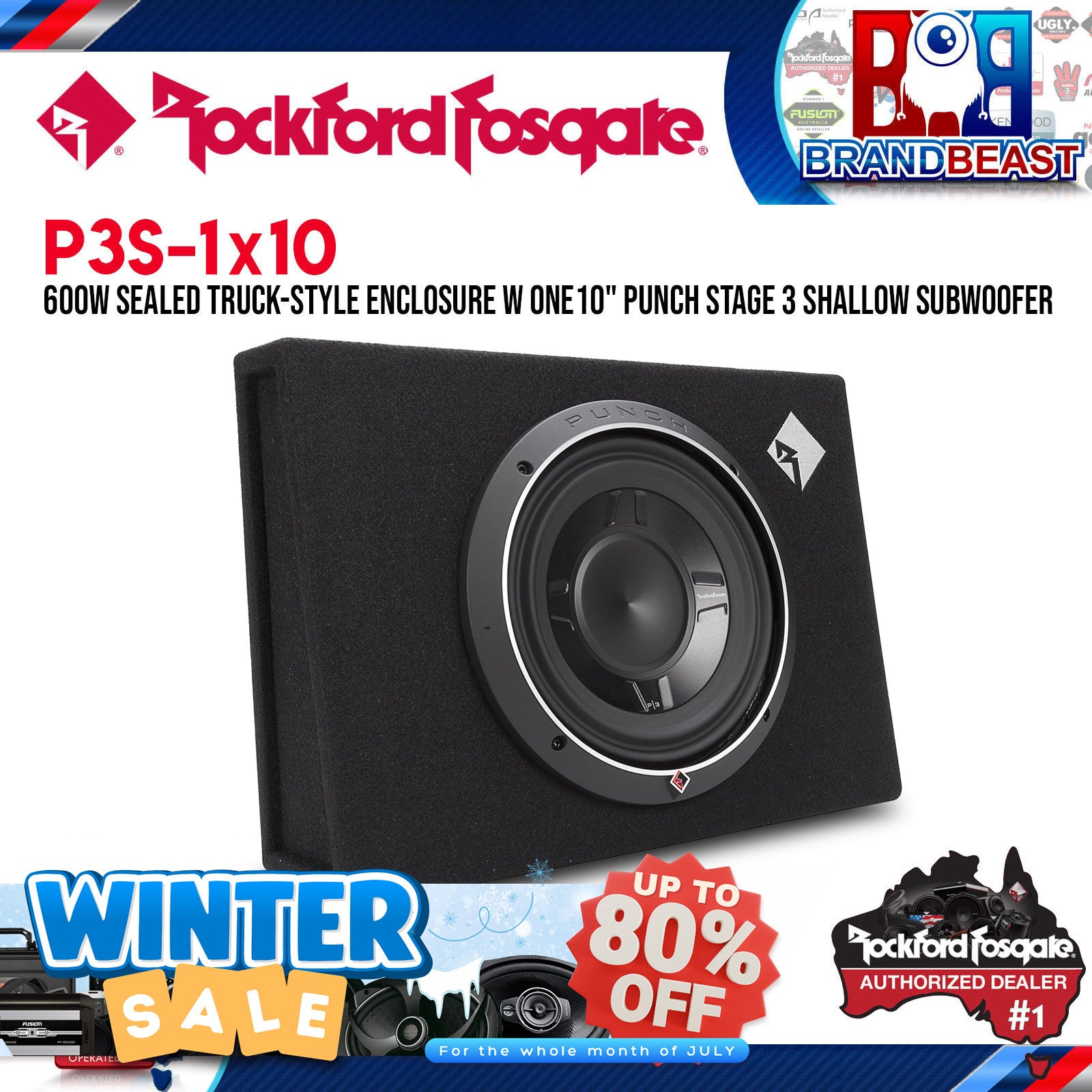

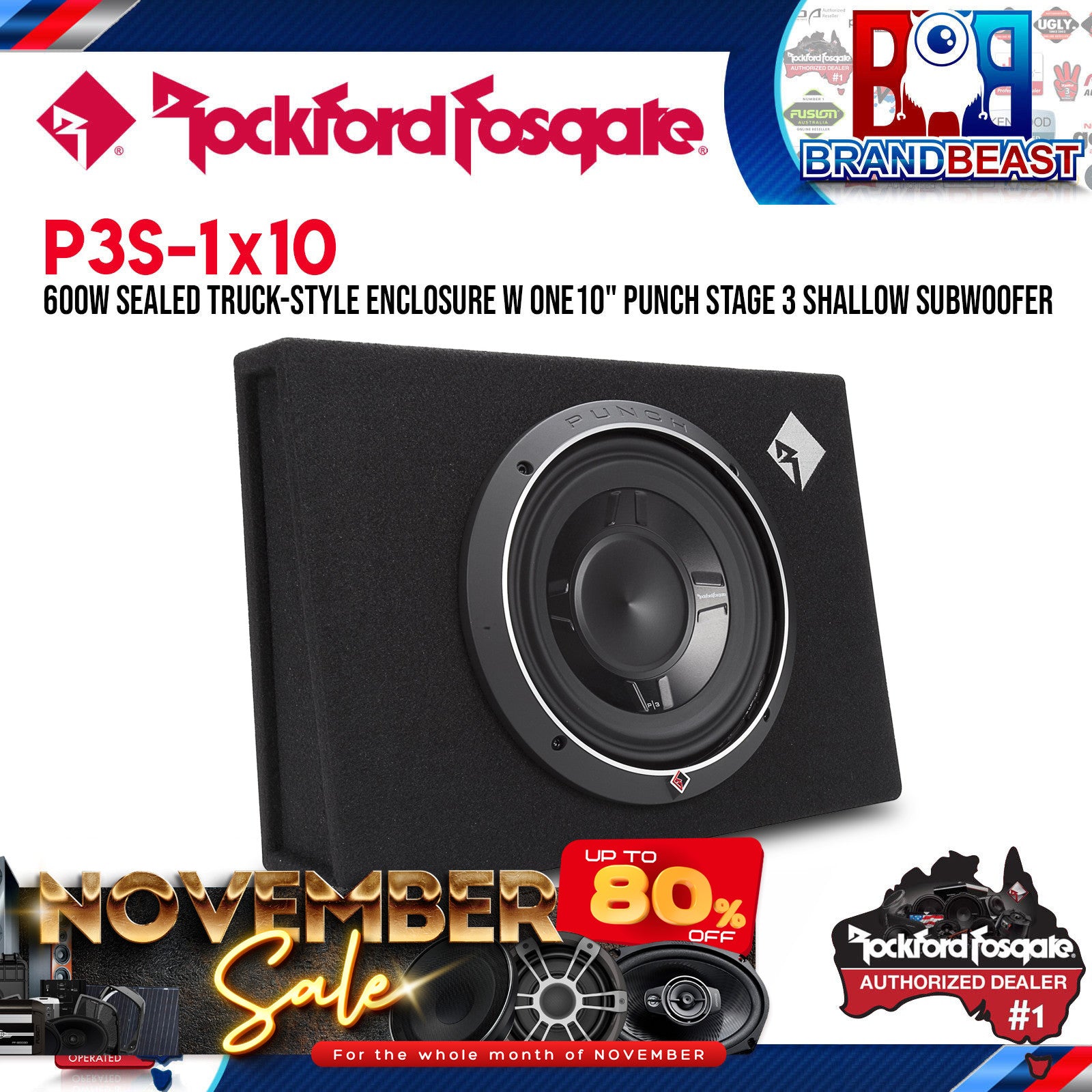

Rockford Fosgate P3S-1X10 Punch P3 Shallow 10" Sealed Loaded Enclosure Compact Fit, P3 Performance
Product Overview
The Rockford Fosgate P3S-1X10 is a factory-loaded sealed enclosure housing a single Punch P3S shallow 10" subwoofer (P3SD2-10) rated at 300 Watts RMS and 600 Watts peak. Internally pre-wired to a 1-ohm load, it is designed to be paired with a compatible high-output mono amplifier delivering genuine Punch P3 bass performance from a slim-line wedge enclosure purpose-built for behind-seat and under-seat installations in utes, trucks, and space-restricted vehicles.
The P3S-1X10 is the more compact sibling of the P3S-1X12, offering the same P3S shallow driver pedigree, computer-optimised sealed enclosure design, and premium build quality in a narrower 48.26 cm wide footprint the choice when the 12" version's width won't clear the available space. Constructed from 5/8" MDF with high-density carpet, a stitched Diamond-R logo, Rockford Fosgate internal speaker cable, and 10 AWG quick-release compression terminals, the P3S-1X10 arrives ready to install with a trim ring included for optional stamped mesh grille fitment.
Key Specifications
- Subwoofer: Single 10" Rockford Fosgate Punch P3S shallow (P3SD2-10)
- Power handling: 300W RMS / 600W peak
- Pre-wired impedance: 1 ohm (internally wired)
- Enclosure type: Sealed shallow wedge
- Construction: 5/8" MDF
- Finish: High-density carpet with stitched Diamond-R logo
- Internal wiring: Rockford Fosgate speaker cable
- Input terminals: 10 AWG quick-release compression
- Trim ring: Included (accepts optional stamped mesh grille insert)
- Dimensions (H x W x D1 x D2): 34.29 x 48.26 x 13.46 x 8.38 cm (wedge)
- Shipping weight: 10.06 kg
Features & Benefits
-
300W RMS / 600W peak power handling: The P3S-1X10 is built for genuine high-output amplifier pairing. Pre-wired to 1 ohm, it extracts maximum power from a compatible mono amplifier, delivering P3-level bass performance well beyond entry-level slim enclosure solutions available at this size.
-
Punch P3S shallow 10" driver (P3SD2-10): The P3S shallow driver series is specifically engineered for reduced mounting depth without the performance compromises of fitting a standard driver into an undersized box. Tighter, deeper bass from a slim profile than a generic shallow woofer achieves.
-
Pre-wired to 1 ohm: Factory internal wiring to 1 ohm maximises power delivery from compatible mono amplifiers. No internal wiring configuration required connect your amplifier to the 10 AWG input terminals and the system is ready.
-
Computer-optimised sealed enclosure design: Enclosure volume and geometry are calculated specifically for the P3S 10" shallow driver, ensuring the sealed alignment produces accurate, punchy bass response matched to the driver's parameters not a generic approximation.
-
Narrower footprint than the P3S-1X12: At 48.26 cm wide versus 69.59 cm for the P3S-1X12, the P3S-1X10 fits in behind-seat and under-seat spaces where the 12" enclosure width is too great. Same shallow wedge depth profile, more compact width.
-
Slim-line wedge profile: The wedge shape (D1: 13.46 cm / D2: 8.38 cm) maximises internal volume within minimum height, fitting behind and under seats in utes, trucks, and dual-cab vehicles where standard enclosure depth is unavailable.
-
5/8" MDF construction: Rigid enclosure walls minimise flex, resonance, and panel vibration at the output levels the P3S-1X10 is designed to handle essential for accurate bass reproduction at sustained 300W RMS input.
-
High-density carpet with stitched Diamond-R logo: Premium factory finish that integrates cleanly into vehicle interiors. More durable and wear-resistant than standard carpet finishes for daily ute and truck cab use.
-
Rockford Fosgate speaker cable internal wiring: Factory-installed Rockford Fosgate cable ensures signal integrity from the input terminals to the driver at the high-current 1-ohm load this enclosure is designed to operate at.
-
10 AWG quick-release compression input terminals: Appropriate for the higher current demands of a 300W RMS, 1-ohm system. Tool-free quick-release operation for clean installation and removal.
-
Included trim ring with optional grille compatibility: The trim ring ships in the box and accepts a separately available stamped mesh grille insert for a factory-finished, professional appearance once installed.
Technical Specs
| Specification |
Detail |
| SKU |
P3S-1X10 |
| Brand |
Rockford Fosgate |
| Subwoofer Driver |
10" Rockford Fosgate Punch P3S shallow (P3SD2-10) |
| Woofer Quantity |
1 |
| Power Handling |
300W RMS / 600W peak |
| Pre-Wired Impedance |
1 ohm (internally wired) |
| Enclosure Type |
Sealed shallow wedge |
| Construction Material |
5/8" MDF |
| Finish |
High-density carpet; stitched Diamond-R logo |
| Internal Wiring |
Rockford Fosgate speaker cable |
| Input Terminals |
10 AWG quick-release compression |
| Trim Ring |
Included (accepts optional stamped mesh grille) |
| Grille |
Optional stamped mesh grille insert (sold separately) |
| Enclosure Design |
Computer-optimised |
| Dimensions (H x W x D1 x D2) |
34.29 x 48.26 x 13.46 x 8.38 cm (wedge) |
| Shipping Weight |
10.06 kg |
| Warranty |
Confirm with supplier |
Compatible With
- Mono amplifiers stable at 1 ohm, rated at up to 300W RMS for optimal performance
- Utes, trucks, and dual-cab vehicles with behind-seat or under-seat storage space where the P3S-1X12 width does not fit
- SUVs, hatchbacks, and wagons requiring a slim sealed subwoofer solution with a compact width
- Rockford Fosgate Power and Punch series mono amplifiers
- Optional Rockford Fosgate stamped mesh grille insert (sold separately confirm part number with supplier)
- Rockford Fosgate wiring kits and RCA cables for amplifier integration
Frequently Asked Questions
What is the difference between the P3S-1X10 and P3S-1X12? The P3S-1X10 uses a 10" P3S shallow driver in a narrower enclosure (48.26 cm wide) rated at 300W RMS, while the P3S-1X12 uses a 12" driver in a wider enclosure (69.59 cm wide) rated at 400W RMS. Both share the same wedge depth profile. Choose the P3S-1X10 when the 12" width won't fit your available space.
What amplifier does the P3S-1X10 require? The P3S-1X10 is pre-wired to 1 ohm and handles 300W RMS. A mono amplifier stable at 1 ohm and rated at or near 300W RMS is recommended such as a compatible Rockford Fosgate Power or Punch mono amplifier. Do not exceed 600W peak input.
Will the P3S-1X10 fit behind the seat of my ute or dual-cab? The P3S-1X10 measures 34.29 cm high, 48.26 cm wide, and 13.46 to 8.38 cm deep (wedge). Measure your available space carefully against these dimensions before purchase, as behind-seat clearance varies between vehicle models.
Is a grille included with the P3S-1X10? A trim ring is included in the box, ready to accept an optional stamped mesh grille insert. The grille itself is sold separately confirm the compatible part number with your supplier before purchasing.
What does the 1-ohm pre-wired impedance mean for amplifier selection? It means the enclosure's internal wiring combines the driver's voice coils to present a 1-ohm load to the amplifier. This allows a compatible 1-ohm stable mono amplifier to deliver its maximum rated power output directly to the enclosure no additional wiring configuration required. Confirm your amplifier is 1-ohm stable before connecting.
