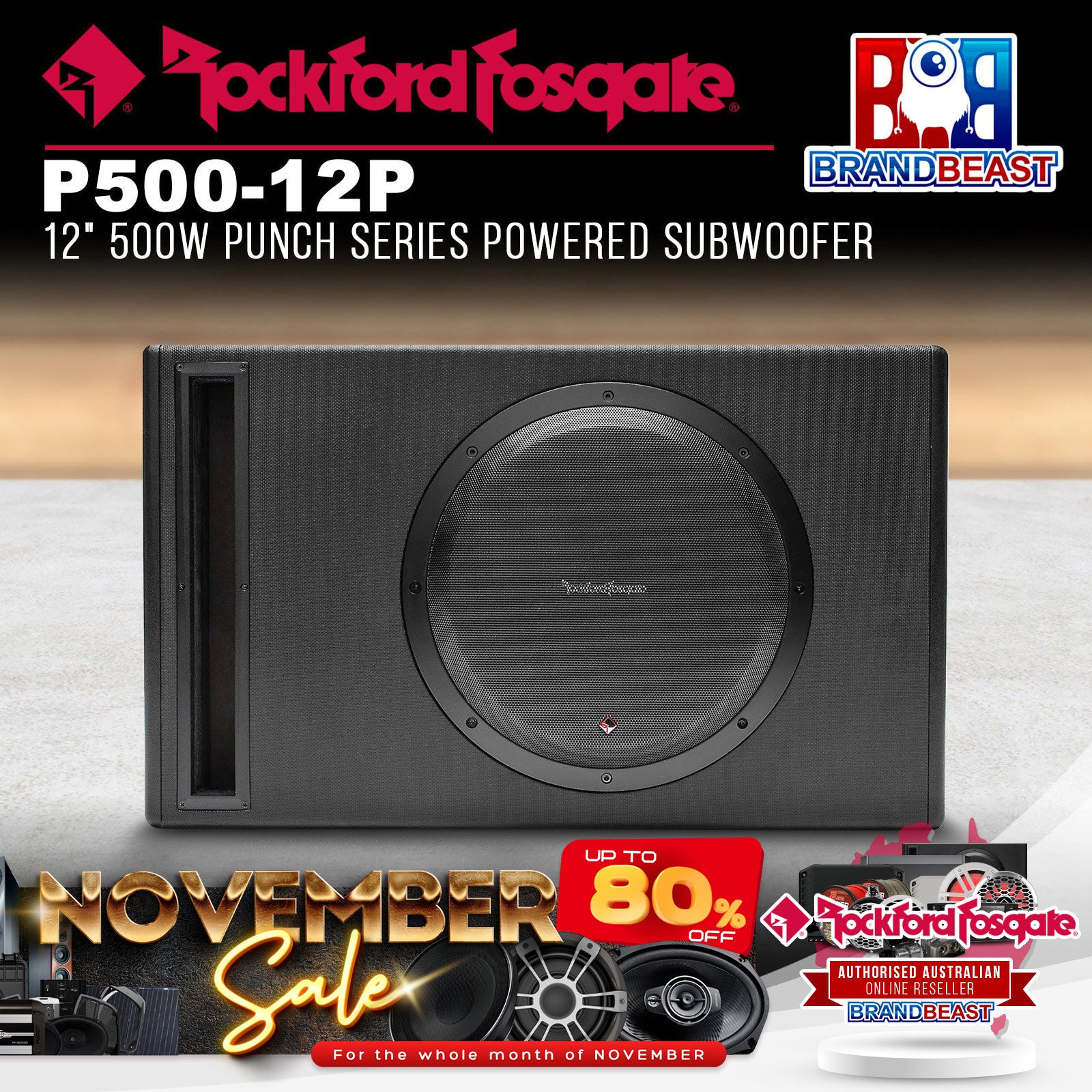

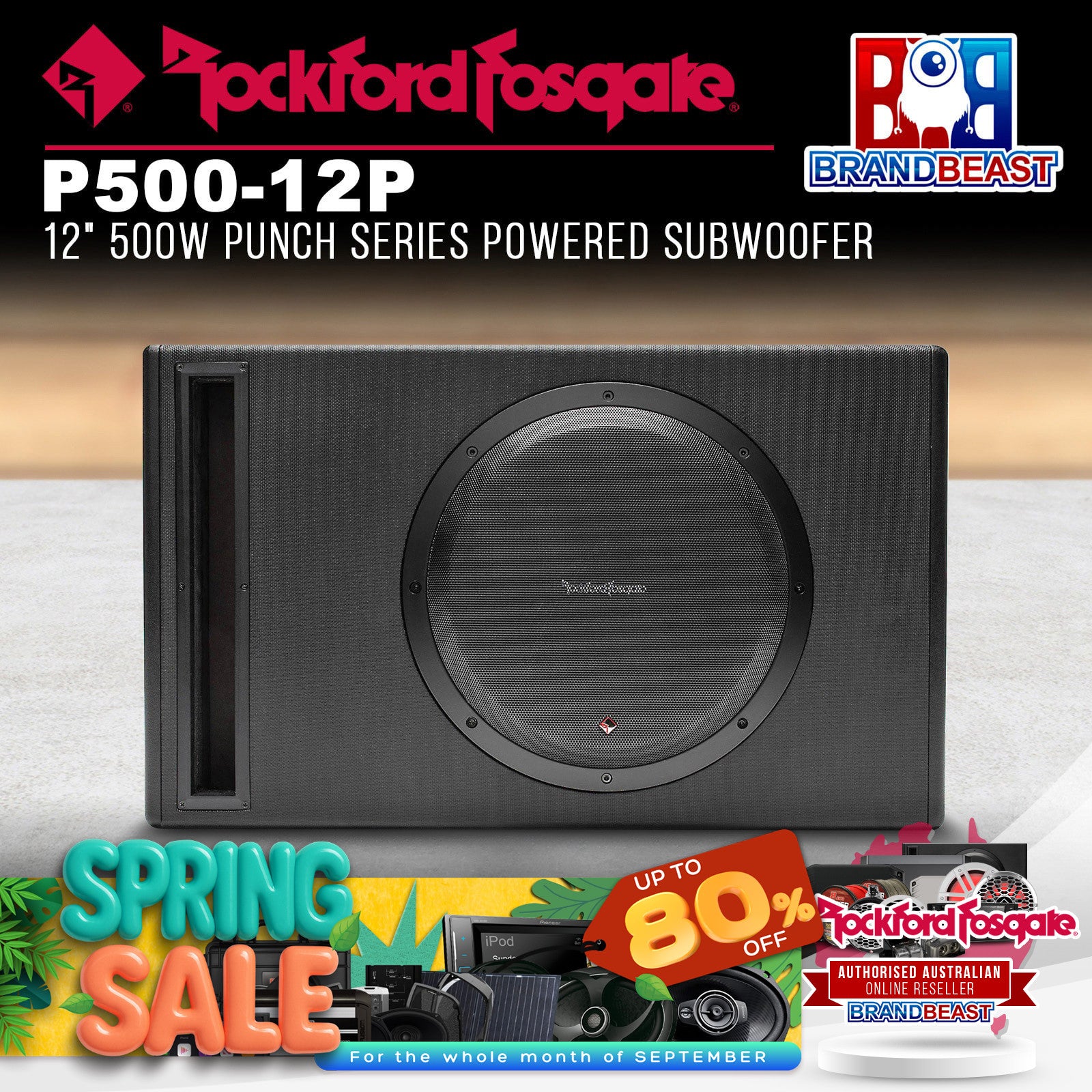

Rockford Fosgate P500-12P Punch 12" 500-Watt Powered Enclosure

Description

"All-in-One" Solution for Adding Serious Bass to Hatchbacks, Sedans, and SUVs

The Punch P500-12P is an "all in one" solution for adding serious bass to Hatchbacks, Sedans, and SUVs. This model features a 12" high output woofer with a 500-watt internal amplifier and a high output vented enclosure that's great for sedan and hatchback applications. The enclosure features quick-release input and power connectors for easy removal when extra space is required. The Punch 500-12P is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12" high output subwoofer is impedance optimized for the built in 500-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. You can change the amount of bass on the fly with the included remote level control. The slot port provides powerful output at lower frequencies for enhanced bass reproduction. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-of/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks. The enclosure also features a quick-release connectors for easy removal when you need extra cargo space.

Features:
  • Optimized 12" Low Impedance Woofer
  • 500 Watt Class-D Amplifier with Optimized "Closed Loop" Design
  • Adjustable 12db/Octave low pass crossover
  • On Board Phase Switch
  • Intelligent auto turn on/off function
  • Robust Power/Ground connections
  • Quick Input Connections for Easy Removal
  • On Board Adjustable Bass EQ
  • Remote bass level control included
  • Separate low level and speaker level inputs
  • Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
  • Thermal and over/under voltage protection
  • Designed For Hatchback, Sedan, and SUV Applications
Specifications:
  • CEA-2031 Compliant
  • Frequency Response 20 Hz to 200 Hz
  • Woofer Quantity 1
  • Woofer Size 12"
  • Woofer Series Proprietary
  • Power Handling (Watts RMS) 500 Watts RMS
  • Enclosure Type Ported
  • Enclosure Material 5/8" MDF (Medium Density Fiberboard)
  • CEA-2006 Compliant
  • Integrated Amplifier 500 Watts RMS
  • Crossover Controls Variable 50 Hz to 200 Hz, 12dB/Octave Butterworth
  • Tone Controls Bass Boost 0 dB to +12 dB
  • Phase Control 0¬∞ to 180¬∞
  • Remote Control Punch Level Control (Included) / Replacement Part: 1510-57864-01
  • Auto Turn-On Selector Remote Trigger, DC Offset Sense, Audio Sense
  • Input Switch High-Level (Speaker Line), Low-Level (RCA)
  • Signal Input Low/High-Level: 1 RCA Pair (L/R Summed) / Replacement Part: 1560-57865-01
  • Input Sensitivity Low-Level: 150 mV to 6 V, High-Level: 300 mV to 12 V
  • Input Impedance 20k Ohms
  • Power Input Connector Quick Disconnect / Replacement Part: 1040-57860-01
  • Power Wire Gauge B+/GND: 8 AWG, REM: 18 AWG
  • Heatsink Type Extruded Aluminum
  • Circuit Topology Class Class-D
  • Cooling Convection
  • Visual Indicators Power/Protect LED
  • Fuses 30 Amp (2 x 15 Amp ATO Fuse)
Dimensions:
  • Box H x W x D 15.00‚Äù x 24.76‚Äù x 10.91 x 7.71‚Äù
  • Wedge H x W x D1 x D2 (38.1 cm x 62.9 cm x 27.7 cm x 18.92 cm)
