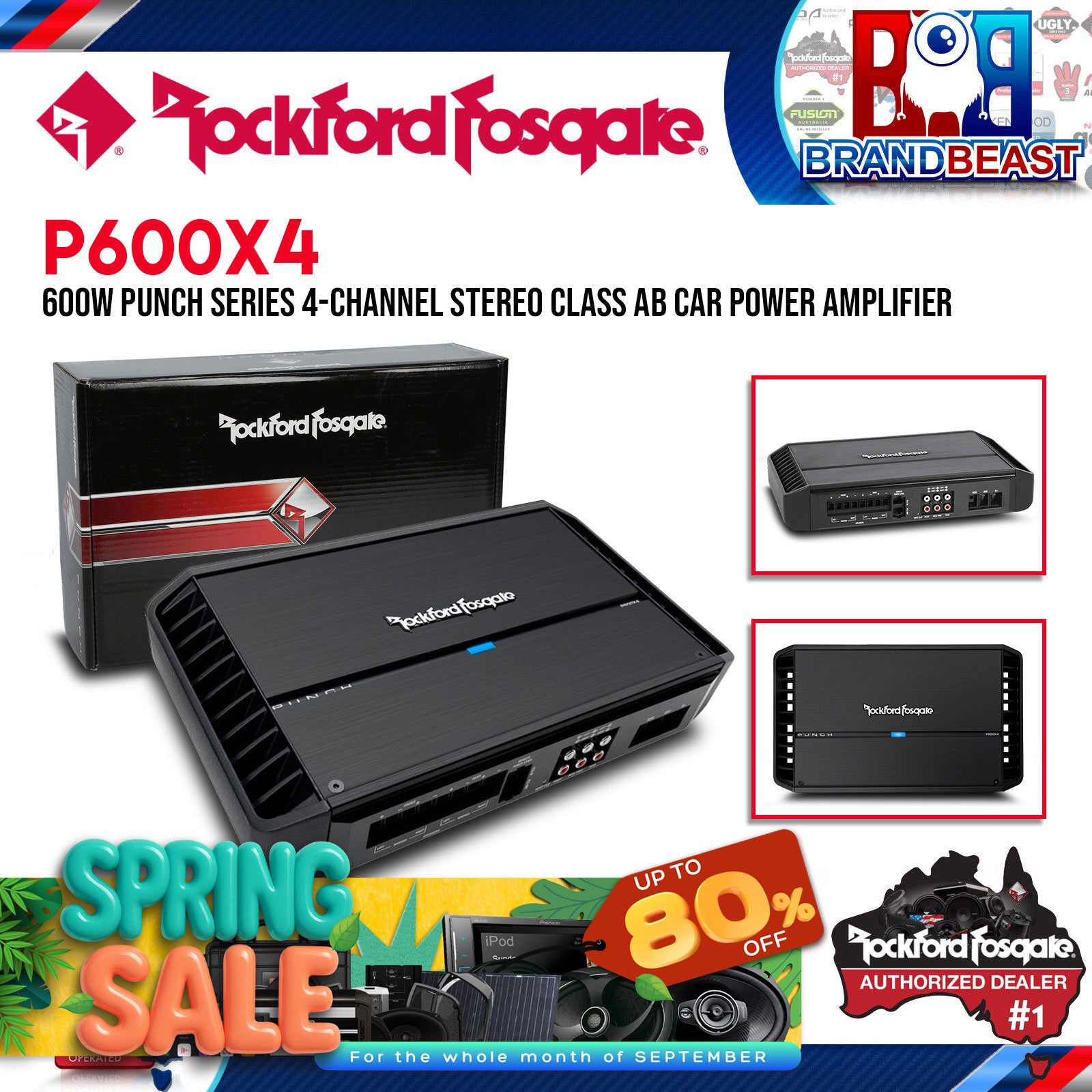

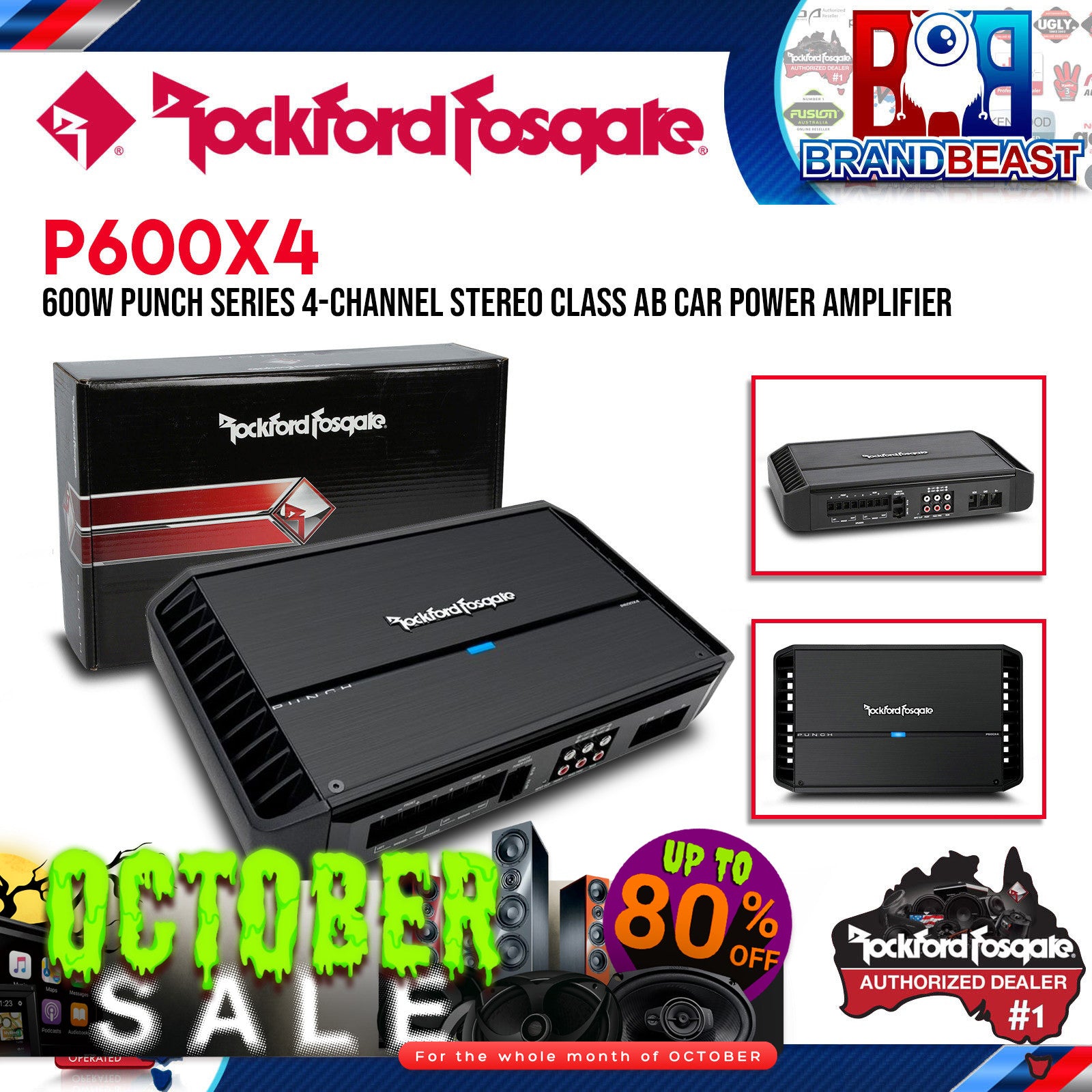

Rockford Fosgate P600X4 600 Watts, Four Channels, Built for Any System You Throw at It
Product Overview
The Rockford Fosgate P600X4 is a Punch Series 4-channel amplifier rated at 150 watts RMS per channel at 2 ohms 600 watts total engineered to adapt to virtually any car audio system layout. Run it in full 4-channel stereo for front and rear speakers, bridge both channel pairs into a high-power 2-channel configuration, or operate it in 3-channel mode with stereo speakers up front and a subwoofer on the bridged rear channels. The P600X4 handles all three without compromise.
What sets the P600X4 apart from entry-level 4-channel options is its expanded feature set. RCA pass-thru outputs let you chain additional amplifiers as your system grows without resorting to Y-adapters that degrade signal quality. The optional PLC2 remote Punch Level Control adds a dash-mounted bass adjustment knob with a real-time clip indicator, and the variable HP/LP Butterworth crossover gives you precise per-channel tuning for speakers and subwoofers alike. For Australian builds dealing with heat, corrugations, and long-distance touring, the cast aluminium heatsink and onboard protection circuits keep everything running cleanly.
Key Specifications
- Total RMS Output: 600 watts
- Per-Channel Output: 150W x 4 at 2 ohms
- Channels: 4 (stereo, 3-channel, or bridged 2-channel)
- Bridgeable: Yes — bridge both channel pairs for high-power 2-channel operation
- Crossover: Variable HP/LP, 12dB/octave Butterworth
- Onboard EQ: Punch EQ — +18dB boost at 45Hz
- Inputs: High-level (speaker-level) and RCA
- RCA Pass-Thru Outputs: Yes
- Auto Turn-On: Yes — via high-level input detection
- Remote Control: Optional PLC2 Punch Level Control (with input clip indicator)
- Turn-On Behaviour: Muted (no thump on startup)
- Heatsink: Cast aluminium
- Control Panel Position: Stealth top-mounted
- Protection: Short circuit and over-current
Features & Benefits
- High-Level Input with Auto Turn-On — Connects directly to factory head unit speaker outputs with no RCA cables required. The Auto Turn-On circuit fires the amp when it detects a signal, eliminating the need for a dedicated remote turn-on wire. Ideal for OEM upgrades across any vehicle.
- RCA Pass-Thru Outputs — Extend your system by daisy-chaining a subwoofer amplifier or additional channels without Y-adapters. Keeps signal integrity intact and your wiring clean as your build evolves.
- C.L.E.A.N. Setup (Clip Level Elimination Audio Notify) — Rockford Fosgate's onboard gain-calibration system takes the guesswork out of setup. Dial in maximum clean output without a multimeter or test tone — useful for installers and enthusiasts alike.
- Optional PLC2 Remote Punch Level Control — Adds a dash-mountable knob for real-time bass level adjustment. The input clip indicator lights up before distortion sets in — live feedback that protects your speakers and keeps your tune dialled in on the road.
- Variable HP/LP 12dB/Octave Butterworth Crossover — Independently configure each channel pair for high-pass (speakers) or low-pass (subwoofers) operation. The variable crossover point gives you precision tuning without an external processor.
- Onboard Punch EQ (+18dB @ 45Hz) — Adds controlled sub-bass punch directly from the amp. No separate bass EQ or processor required for most builds — tune to taste from the top-mounted control panel.
- 3-Channel Operating Mode — Run full-range or component speakers on the front two channels and bridge the rear pair for a subwoofer — one amp, complete system. Particularly useful in utes and wagons where boot space is at a premium.
- Muted Turn-On — No startup thump, no tweeter stress, no giveaway of a poorly executed install. Keeps your system sounding professional from the moment the ignition fires.
- Stealth Top-Mounted Control Panel — All gain, crossover, and EQ controls are accessible on the top face of the amp for easy tuning during setup, without cluttering the amp's profile once mounted.
- Cast Aluminium Heatsink — Handles extended thermal loads during long listening sessions. In Australian conditions — outback runs, summer road trips, confined boot spaces — heat management is a real-world spec that matters.
- Short Circuit & Over-Current Protection — Onboard protection circuits guard the amplifier and your speakers against wiring faults and impedance mismatches.
Technical Specs
| Specification |
Detail |
| Total RMS Power |
600W |
| Per-Channel RMS (2Ω) |
150W x 4 |
| Number of Channels |
4 |
| Operating Modes |
4-channel stereo, 3-channel, bridged 2-channel |
| Bridgeable |
Yes (both channel pairs) |
| Crossover Type |
Variable HP/LP Butterworth |
| Crossover Slope |
12dB/octave |
| Onboard EQ |
+18dB boost at 45Hz |
| Input Type |
High-level (speaker-level) + RCA |
| RCA Pass-Thru |
Yes |
| Auto Turn-On |
Yes (via high-level input) |
| Remote Punch Level Control |
Optional (PLC2, sold separately) |
| Input Clip Indicator |
Yes (via PLC2) |
| Turn-On Mode |
Muted |
| Heatsink Material |
Cast aluminium |
| Control Panel Location |
Top-mounted (stealth) |
| Short Circuit Protection |
Yes |
| Over-Current Protection |
Yes |
| Dimensions |
Not specified |
| Signal-to-Noise Ratio |
Not specified |
| THD |
Not specified |
| Frequency Response |
Not specified |
| Input Sensitivity |
Not specified |
Compatible With / Goes Well With
System Configurations:
- 4-way full-range speaker system (front + rear, 4-channel stereo)
- 3-channel mode — stereo component speakers (front) + bridged subwoofer (rear)
- Bridged 2-channel mode — high-power output for two subwoofers or speaker pairs
- Front-stage only (component speakers, 2 channels active)
Head Unit Compatibility:
- Factory/OEM head units (via high-level input with Auto Turn-On)
- Aftermarket head units with RCA pre-outs
Accessories:
- Rockford Fosgate PLC2 Remote Punch Level Control (optional, sold separately)
- Recommended: use manufacturer-specified power and speaker cables to optimise power delivery (cable spec not provided — confirm with supplier)
Frequently Asked Questions
Can the P600X4 run speakers and a subwoofer at the same time?
Yes. In 3-channel mode, the front two channels power stereo speakers while the rear channels are bridged to drive a subwoofer — a complete system from a single amplifier.
What is the RCA pass-thru and why does it matter?
The RCA pass-thru outputs let you connect an additional amplifier downstream — such as a dedicated subwoofer amp — without using signal-splitting Y-adapters, preserving audio quality as your system grows.
Does the P600X4 work with a factory head unit?
Yes. The high-level input accepts speaker-level signals from any OEM head unit, and the Auto Turn-On circuit activates the amplifier automatically — no remote turn-on wire required.
Is the PLC2 remote punch level control included in the box?
No. The PLC2 is an optional accessory sold separately. It adds a dash-mountable remote bass control knob and a real-time input clip indicator to help you tune on the go without touching the amp.
What does C.L.E.A.N. setup mean and do I need extra tools?
C.L.E.A.N. (Clip Level Elimination Audio Notify) is Rockford Fosgate's built-in gain-setting system. No multimeter or external tools are needed — it guides you to the optimal gain level to maximise output while keeping distortion out of your signal chain.
