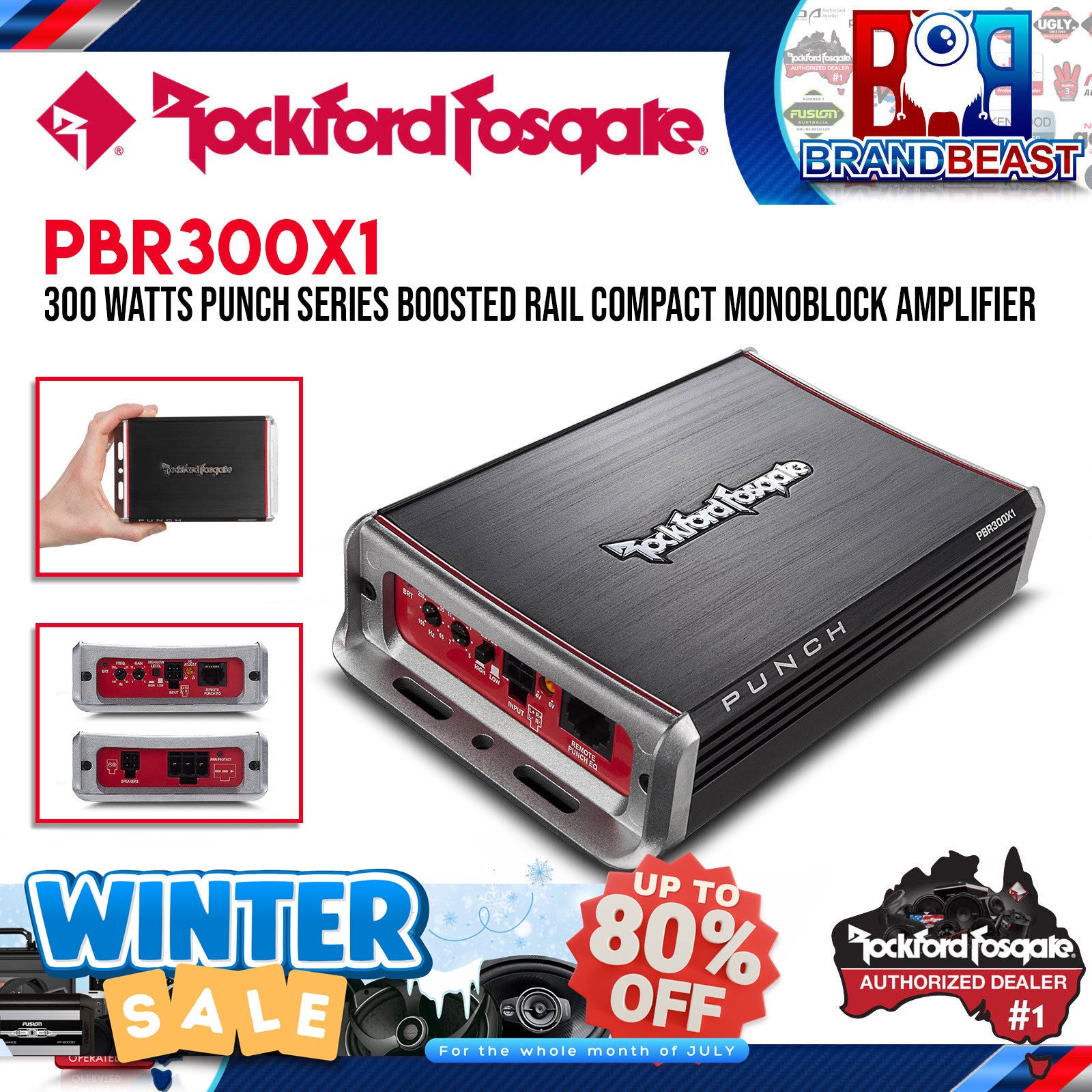

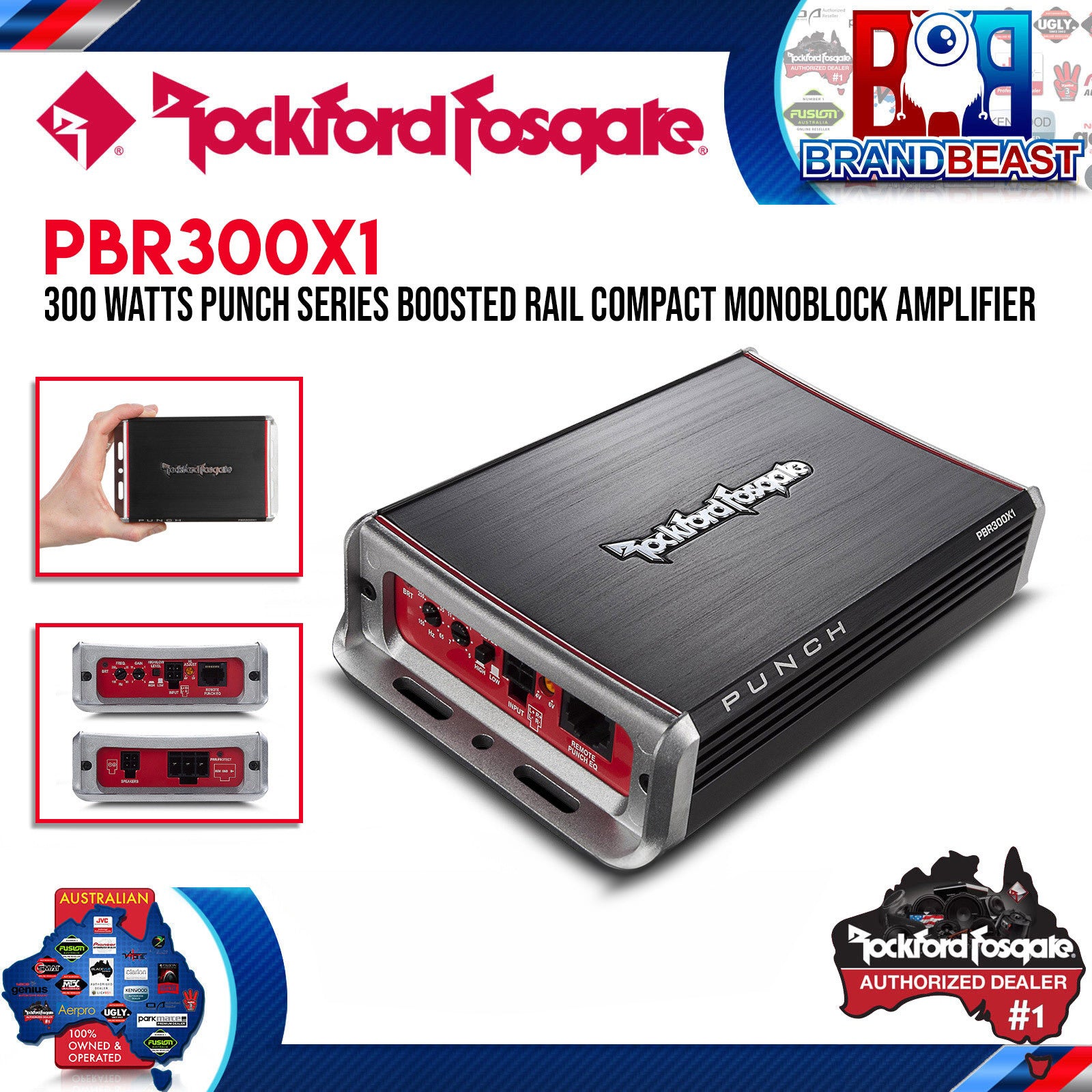

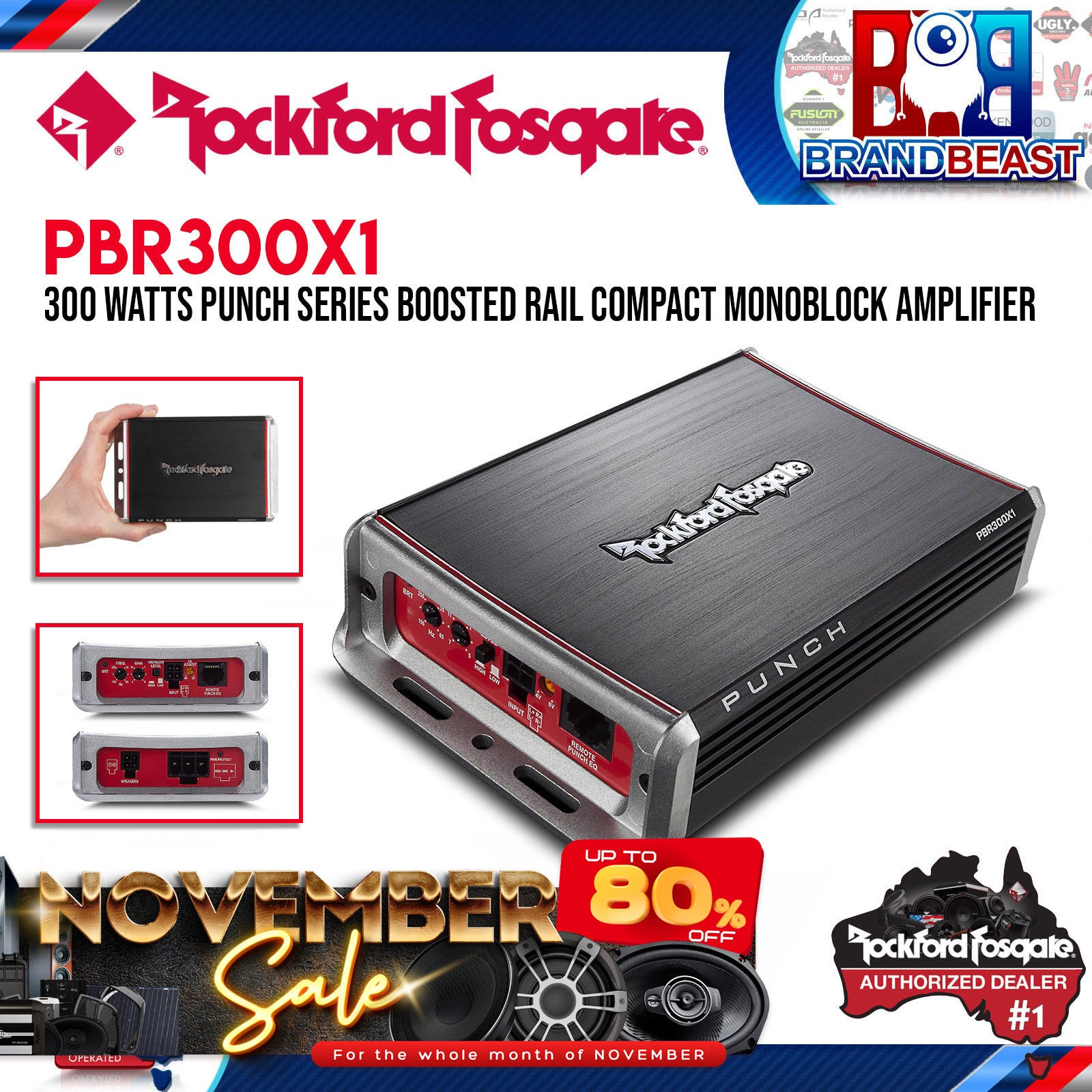

Rockford Fosgate PBR300X1 Punch 300 Watt Mono Amplifier

Description

Designed for a Subwoofer System That Requires Little Space

The Punch PBR300X1 is a 300 Watt mono amplifier designed for compact subwoofer systems. This efficient amp packs a Punch in motorcycles, ATVs and hybrid-electric vehicles without sucking a lot of juice from your electrical system. The PBR300X1 is a mono amplifier designed for a subwoofer system that requires little space. The BRT (Boosted Rail Technology) is an ultra efficient design that doesn't even use a switching power supply to generate its 300 Watts of power! The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. Great for motorcycles and recreational vehicles. Features:
  • MOSFET output stage
  • 12dB/octave Butterworth crossover
  • High level inputs
  • Ultra compact chassis
  • Variable 4-6 volt hi level DC offset voltage input turn-on control
Specifications:
  • CEA-2006 Compliant
  • Number of Channels 1
  • Total Power (Sum of Rated Power) 300 Watts
  • Rated Power (RMS Continuous Power) 75 Watts x 1 @ 4-Ohm, 150 Watts x 1 @ 2-Ohm, 300 Watts x 1 @ 1-Ohm
  • Dynamic Power (PVC/PowerCube¬Æ) 96 Watts x 1 @ 4-Ohm, 189 Watts x 1 @ 2-Ohm, 326 Watts x 1 @ 1-Ohm
  • Bridgeable No
  • Frequency Response 20Hz - 250Hz +/-3dB
  • Input Sensitivity Low-Level: 150 mV - 4 V, High-Level: 400 mV - 11 V, Circuit Topology ClassClass BR
  • Efficiency (average) 75% @ 4-Ohm, 75% @ 2-Ohm, 75% @ 1-Ohm
  • Total Harmonic Distortion (THD+Noise) 4-Ohm: <1.0%, 2-Ohm: <1.0%
  • Signal Input High/Low Input Switch, High/Low Level Input: 4-Pin harness, Hi-Level Sensitivity: Variable DC offset sensitivity
  • Tone Controls External via Optional Punch EQ
  • Crossover Controls Low-Pass: 35Hz - 250Hz @ 12dB/Octave Butterworth
  • Remote Controls Optional PEQ provides 0dB to +18dB @ 45Hz
  • Visual Indicators Power/Protect, BRT (Boost)
  • Power Wire Gauge 10 AWG
  • Power Input Connector Detachable Compression Terminal
  • Speaker Wire Gauge 16 AWG
  • Speaker Output Connector 4-Pin Harness, Wiring Convenience: 2 Negative Terminals (-), 2 Positive Terminals (+)
  • Cooling Convection
  • Operating Voltage 9 - 16 VDC
  • Recommended Fuse (not included) 30 A
  • Average Current Draw (13.8V Music) 15 A
  • Max. Current Draw (13.8V Sinewave) 30 A
  • Suggested Alternator 75 A
  • Dimensions (H x W x D) 1.53 x 4.25 x 6.75 (in.) 3.90 x 10.8 x 17.2 (cm)
  • Shipping Weight 2.76 lbs. (1.25 Kg.)

Legendary Products & Support From Authorized Dealers

When you choose Rockford Fosgate, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Rockford Fosgate dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Rockford Fosgate's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Rockford Fosgate dealer today!
