Description

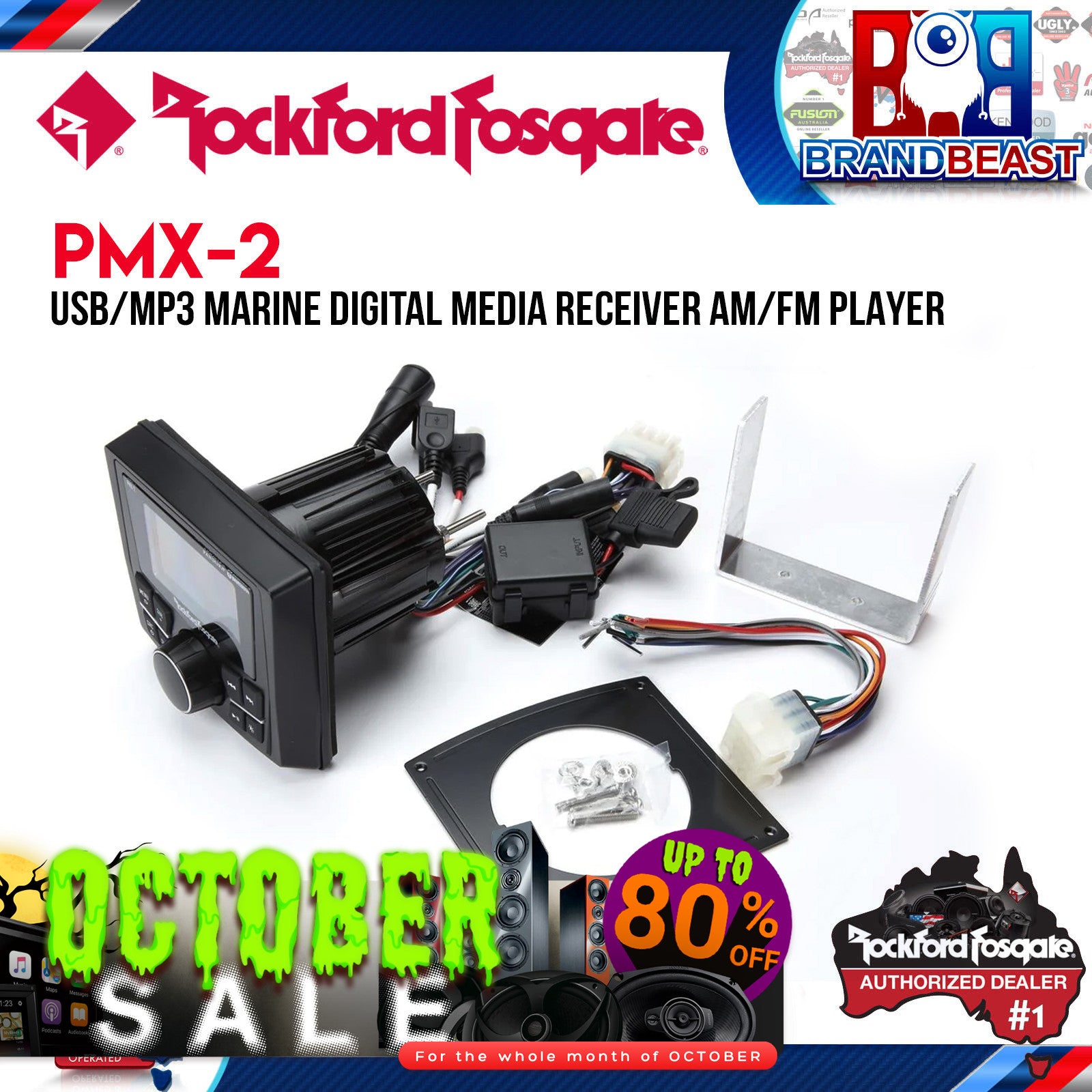

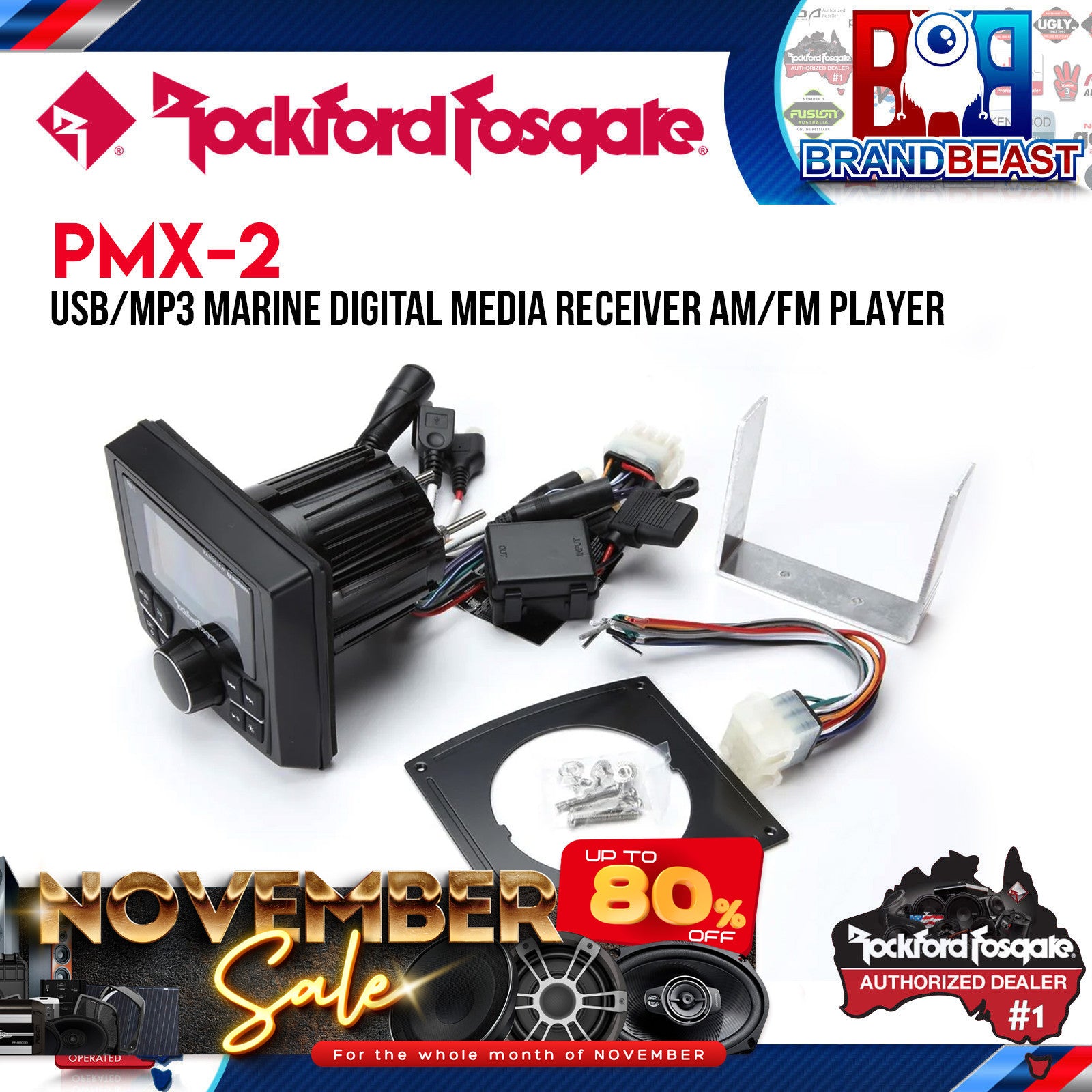

Rockford Fosgate PMX-2 Punch Marine Compact Digital Media Receiver Full Control, Built Marine Tough
Product Overview
The Rockford Fosgate PMX-2 is a compact AM/FM/WB digital media receiver purpose-built for marine and motorsport applications. Featuring a 2.7" full-colour TFT display optically wet bonded to eliminate dust and moisture penetration it delivers clear, readable visuals even under direct Australian sun. IPX6 rated and ISO8846/SAE J1171 ignition protection certified, the PMX-2 is engineered to handle the spray, heat, and vibration demands of open water and off-road environments without compromise.
At its core, the PMX-2 is a fully featured command centre for any marine or powersport audio system. A 4 x 50W internal amplifier at 2 ohms handles smaller speaker setups directly, while front, rear, and subwoofer RCA preamp outputs allow seamless expansion with aftermarket amplifiers. Bluetooth audio streaming with A2DP and AVRCP support, Pandora internet radio, USB and AUX inputs, a 7-band graphic EQ, on-board Punch EQ control, and selectable crossovers with variable slope give you complete audio management in a single compact unit. Wired remote expansion via optional PMX-series cables makes it adaptable to virtually any vessel layout.
Key Specifications
- Display: 2.7" full-colour TFT with auto-dimming backlight; optically wet bonded
- IPX6 marine grade rated
- ISO8846 / SAE J1171 ignition protection certified
- Internal amplifier: 4 x 50W @ 2 ohms
- Tuner: AM / FM / WB (Weather Band); multi-region radio frequencies
- Bluetooth: A2DP and AVRCP wireless streaming with album art support
- Inputs: USB (with charging), AUX
- Outputs: Front RCA, Rear RCA, Subwoofer RCA
- Crossover: Selectable HP / LP / AP with selectable slope 12 / 24 dB/octave
- EQ: 7-band graphic EQ + on-board Punch EQ control
- Certifications: FCC, CE, IC, C-Tick
- Zone control: 1 zone / 1 source (F/R or Sub)
Features & Benefits
-
IPX6 marine grade rating: Protected against powerful water jets from any direction. Suitable for open boats, jet skis, and powersport applications where spray and rain are unavoidable on Australian waterways.
-
2.7" optically wet bonded full-colour TFT display: The wet bonding process eliminates the air gap between the display layers, preventing fogging, dust infiltration, and moisture ingress. Auto-dimming backlight ensures readability from direct sun to night running.
-
ISO8846 / SAE J1171 ignition protection certified: Meets internationally recognised marine ignition protection standards, reducing the risk of ignition in fuel-vapour environments critical for petrol-powered vessels.
-
4 x 50W internal amplifier @ 2 ohms: Enough output to drive a set of marine speakers directly without an external amplifier. When more power is needed, front, rear, and subwoofer RCA outputs allow straightforward amplifier integration.
-
Bluetooth A2DP and AVRCP streaming with album art: Stream audio wirelessly from smartphones and compatible devices with full playback control and album art display. Ideal for helm-mounted use where keeping a phone out of spray is preferred.
-
Pandora internet radio and iPod playback: Broad source compatibility for Australian users, supporting popular streaming and device playback with on-screen display controls.
-
7-band graphic EQ and on-board Punch EQ: Precise audio tuning without an external processor. Dial in the right sound for open-air marine environments where acoustics differ significantly from enclosed vehicle cabins.
-
Selectable HP / LP / AP crossovers with 12 / 24 dB/octave slope: Flexible crossover control for full-range, mid, and subwoofer speaker management from a single head unit. Reduces the need for additional signal processors.
-
Independent subwoofer level control: Adjust bass output separately from the main volume without diving into menus convenient at the helm during use.
-
Water-resistant rotary encoder knob with white LED illumination: Tactile, reliable volume and control operation in wet conditions, with clear visibility for night use on the water.
-
USB input with charging: Charge devices while playing audio. Keeps phones and navigation devices topped up during longer runs.
-
Wired remote expansion capability: Compatible with optional PMX-series extension cables and remotes (PMX-1R, PMX-0R) for mounting secondary controls at a second helm station or convenient location on the vessel.
-
EEPROM memory system: Retains settings and station presets even after power is disconnected useful on vessels where battery isolation is standard practice.
-
Custom GUI interface: User-configurable display interface for a personalised look and easier day-to-day operation.
-
Low voltage warning alert: Notifies you when system voltage drops below safe operating levels, protecting your vessel's battery and electronics during extended use.
-
Multi-region radio frequencies: Supports radio frequency ranges across multiple regions, making the PMX-2 suitable for Australian-market use out of the box.
Technical Specs
| Specification |
Detail |
| SKU |
PMX-2 |
| Brand |
Rockford Fosgate |
| Display |
2.7" full-colour TFT; optically wet bonded; auto-dimming backlight |
| IPX Rating |
IPX6 |
| Ignition Protection |
ISO8846 / SAE J1171 certified |
| Internal Amplifier |
4 x 50W @ 2 ohms |
| Tuner |
AM / FM / WB (Weather Band) |
| Radio Frequencies |
Multi-region |
| Bluetooth |
A2DP + AVRCP (album art support) |
| Pandora |
Yes |
| iPod Playback |
Yes (on-screen display) |
| Inputs |
USB (with charging), AUX |
| Signal Outputs |
Front RCA, Rear RCA, Subwoofer RCA |
| Crossover |
Selectable HP / LP / AP; 12 / 24 dB/octave slope |
| EQ |
7-band graphic EQ + on-board Punch EQ |
| Subwoofer Level Control |
Independent; front-mounted |
| Zone Control |
1 zone / 1 source (F/R or Sub) |
| Control Knob |
Water-resistant rotary encoder; white LED illumination |
| Memory |
EEPROM |
| GUI |
Custom interface |
| Low Voltage Warning |
Yes |
| Remote Expansion |
Yes compatible with PMX-series remotes and extension cables |
| Antenna |
Not included |
| Certifications |
FCC, CE, IC, C-Tick, ISO8846, SAE J1171 |
| Dimensions |
Confirm with supplier |
| Shipping Weight |
Confirm with supplier |
| Warranty |
Confirm with supplier |
Compatible With
- Rockford Fosgate PMX-1R Punch Marine wired remote
- Rockford Fosgate PMX-0R Punch Marine remote
- Rockford Fosgate PMX10C, PMX16C, PMX25C extension cables
- Rockford Fosgate Punch and Prime marine amplifiers (via RCA preamp outputs)
- Rockford Fosgate marine subwoofers and full-range marine speakers
- Marine vessels: bow riders, pontoons, centre console fishing boats, ski boats, and tinnies
- Powersport applications: UTVs, side-by-sides, dune buggies, and off-road 4WDs
- Smartphones and Bluetooth-enabled devices (A2DP/AVRCP streaming)
- iPod and compatible Apple devices (via USB)
Frequently Asked Questions
Is the PMX-2 suitable for open-water marine use in Australia? Yes. The PMX-2 is IPX6 rated and ISO8846/SAE J1171 ignition protection certified, making it suitable for open boats, jet skis, and powersport applications exposed to spray, rain, and marine fuel-vapour environments.
Does the PMX-2 have enough power to run speakers without an external amplifier? Yes. The built-in 4 x 50W amplifier at 2 ohms can drive marine speakers directly. For higher output or subwoofer integration, front, rear, and subwoofer RCA outputs allow connection to aftermarket amplifiers.
Can I control the PMX-2 from a second location on my vessel? Yes. The PMX-2 supports wired remote expansion via optional PMX-series remotes (PMX-1R, PMX-0R) and extension cables (PMX10C, PMX16C, PMX25C), allowing secondary control from a second helm station or convenient mounting point.
Does the PMX-2 support Bluetooth streaming from a smartphone? Yes. The PMX-2 features A2DP and AVRCP Bluetooth, supporting wireless audio streaming with full playback control and album art display from compatible smartphones and devices.
Is an antenna included with the PMX-2? No. A compatible marine AM/FM/WB antenna is required for tuner functionality and must be purchased separately. Confirm antenna compatibility with your supplier or installer prior to purchase.
