Description

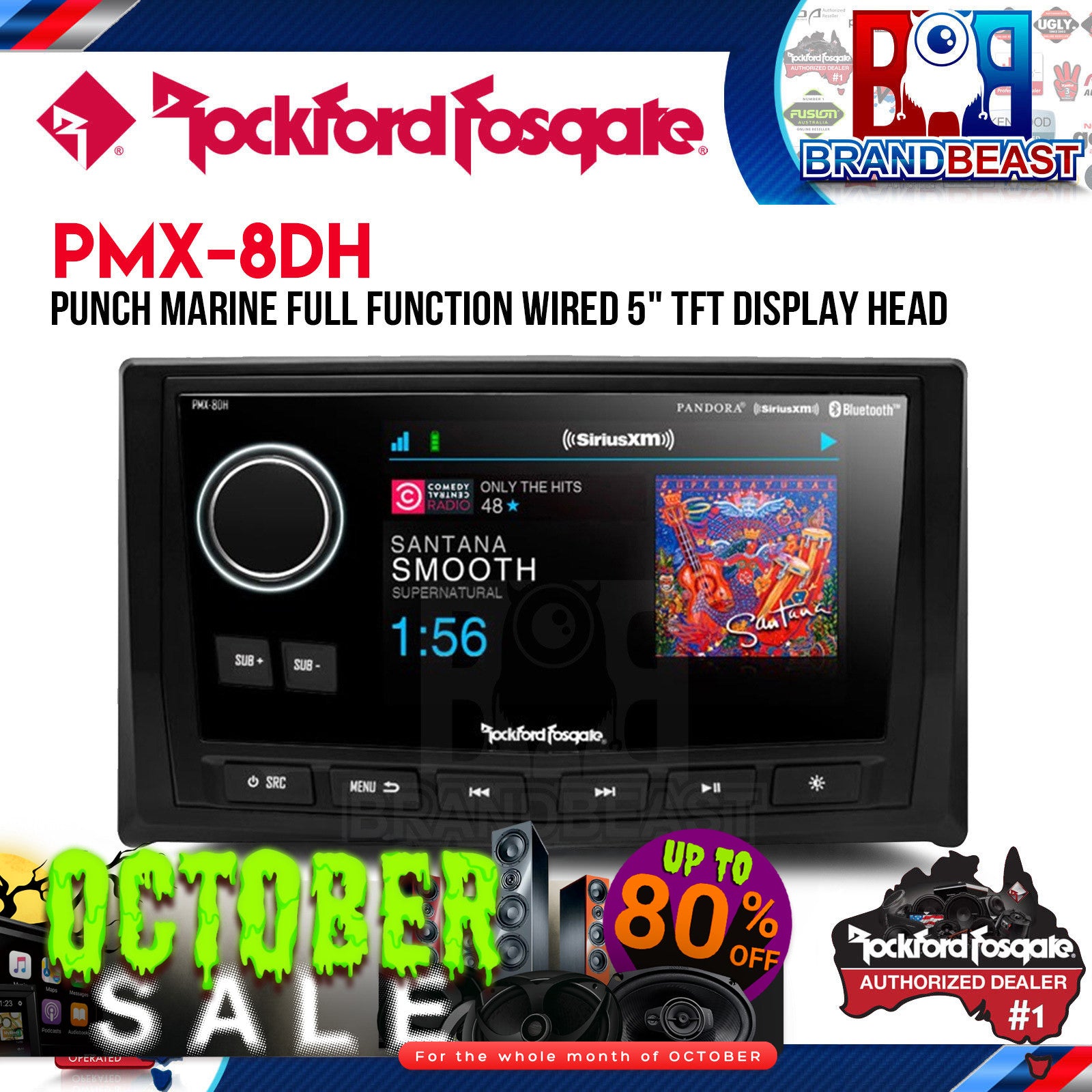

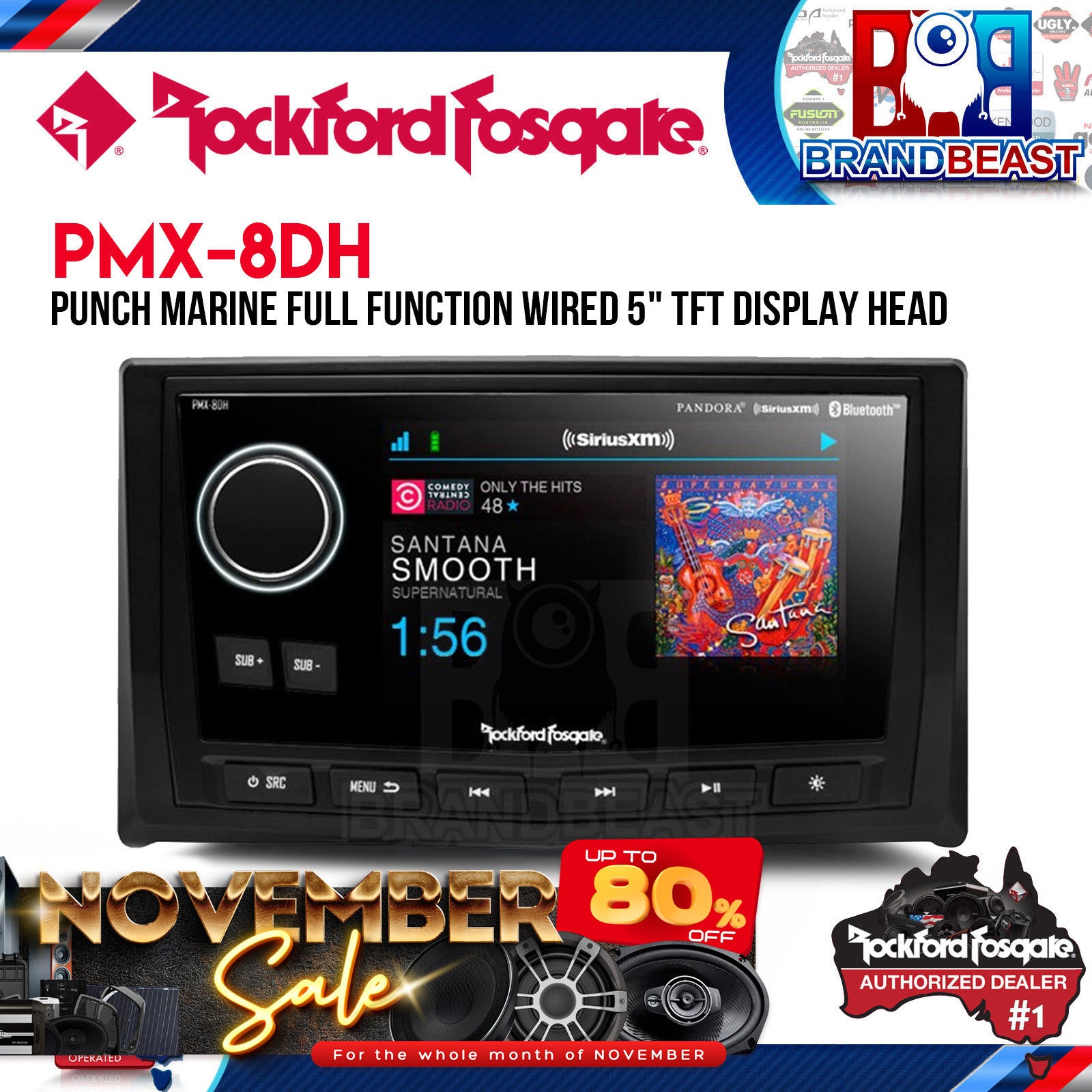

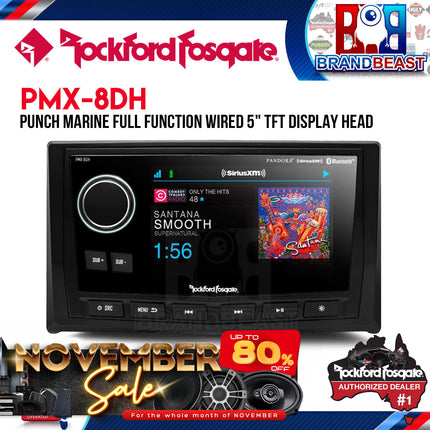

Rockford Fosgate PMX-8DH Punch Marine 5" TFT Wired Display Head Crystal Clear Control in Any Condition
Product Overview
The Rockford Fosgate PMX-8DH is a full-function wired display head controller designed exclusively for use with the PMX-8BB hide-away digital media receiver. Featuring a 5" ultra-bright full-colour TFT display optically wet bonded to the bezel to eliminate the air gap between display and cover glass it delivers exceptional visual clarity even under direct Australian sun, while actively preventing dust and moisture penetration that would otherwise compromise the screen over time.
IPX6 rated for water spray intrusion and validated through 500 hours of ASTM B117 salt fog and D4329 UV exposure testing, the PMX-8DH is engineered to endure years of daily use in the harshest marine and powersport environments. A water-resistant rotary encoder knob, white LED backlit buttons, front panel subwoofer level control, composite video input for camera or video system integration, and a conformal coated PCB complete a display head built to be the permanent command centre of any serious Punch Marine audio installation.
Key Specifications
- Display: 5" ultra-bright full-colour TFT; optically wet bonded to bezel
- IPX6 water intrusion rated
- ASTM B117 salt fog tested (500 hours)
- ASTM D4329 UV exposure tested (500 hours)
- Conformal coated PCB for elemental protection
- Water-resistant rotary encoder volume control
- White LED backlit button illumination
- Front panel subwoofer level control
- Front panel illumination control
- Composite video input (camera or video system)
- Multi-pin DIN connector for PMX-8BB interconnection
- Two-piece mounting system
- Designed for use with: PMX-8BB (sold separately)
Features & Benefits
-
5" ultra-bright full-colour TFT display: Significantly larger than the 2.7" PMX-1R remote, the PMX-8DH delivers a genuinely helm-grade viewing experience. Full-colour detail for source information, track data, settings, and video input is clearly readable even in intense direct sunlight a common challenge on open Australian waterways.
-
Optically wet bonded faceplate: An epoxy layer between the display and cover glass eliminates the air gap, improving visual clarity by reducing internal reflections, and physically sealing the display against dust infiltration and moisture ingress. The result is a screen that stays clean, clear, and sharp over years of exposure.
-
IPX6 water intrusion rating: Protected against powerful water jets from any direction with no harmful effect on electronics. Suitable for open helm mounting on boats, jet skis, and powersport vehicles without requiring additional weather protection.
-
500 hours ASTM B117 salt fog testing: Validated against the American Society for Testing and Materials salt fog standard one of the most recognised corrosion resistance benchmarks for marine electronics. Confirms long-term durability in saltwater environments common across Australian coastal use.
-
500 hours ASTM D4329 UV exposure testing: Validated for UV resistance under the ASTM plastics UV exposure standard. Critical for Australian installations where UV intensity is significantly higher than most international test conditions.
-
Conformal coated PCB: Circuit board electronics are sealed with a protective epoxy coating, providing an additional layer of defence against moisture, condensation, and salt-laden air that can corrode unprotected marine electronics.
-
Water-resistant rotary encoder volume knob: Precise, tactile volume and navigation control that maintains reliable operation in wet, salt-spray conditions. Practical for helm use when hands are wet or in rough conditions.
-
White LED backlit button illumination: Clear, consistent button visibility for night operation and low-light conditions essential for safe helm control after dark on Australian waterways.
-
Front panel subwoofer level control: Independent bass adjustment directly from the display head without navigating menus. Convenient for quick tuning adjustments underway.
-
Front panel illumination control: Manage display and button brightness from the panel itself, keeping the helm appropriately lit for day and night running.
-
Composite video input: Connect a reversing camera, action camera, or video system directly to the display head. Turns the PMX-8DH into a dual-purpose helm display for both audio control and video monitoring.
-
Multi-pin DIN connector: Clean, secure single-connector interconnection to the PMX-8BB hide-away unit. Simplifies installation and reduces cable clutter at the helm.
-
Two-piece mounting system: Secure, professional panel mounting that integrates cleanly into helm dashboards and marine dash panels without the need for specialised brackets.
-
Custom GUI interface: User-configurable display interface via the PMX-8BB for a personalised, functional helm display layout.
Technical Specs
| Specification |
Detail |
| SKU |
PMX-8DH |
| Brand |
Rockford Fosgate |
| Display |
5" ultra-bright full-colour TFT |
| Display Bonding |
Optically wet bonded to bezel (epoxy layer) |
| IPX Rating |
IPX6 |
| Salt Fog Testing |
ASTM B117 500 hours |
| UV Exposure Testing |
ASTM D4329 500 hours |
| Circuit Board Protection |
Conformal epoxy coated PCB |
| Volume Control |
Water-resistant rotary encoder knob |
| Button Illumination |
White LED backlit |
| Subwoofer Control |
Front panel independent level control |
| Illumination Control |
Front panel |
| Video Input |
Composite video input |
| Connector |
Multi-pin DIN (to PMX-8BB) |
| Mounting System |
Two-piece panel mounting system |
| Compatible Source Unit |
PMX-8BB (sold separately) |
| Extension Cable Compatible |
PMX10C / PMX16C / PMX25C (sold separately) |
| Dimensions |
Confirm with supplier |
| Shipping Weight |
Confirm with supplier |
| Warranty |
Confirm with supplier |
Compatible With
- Rockford Fosgate PMX-8BB Punch Marine hide-away digital media receiver (required sold separately)
- Rockford Fosgate PMX10C 10-foot extension cable (sold separately)
- Rockford Fosgate PMX16C 16-foot extension cable (sold separately)
- Rockford Fosgate PMX25C 25-foot extension cable (sold separately)
- Reversing cameras and composite video systems (via composite video input)
- Marine vessels with helm dash panel mounting: bow riders, centre console fishing boats, pontoons, ski boats, and cruisers
- Powersport applications requiring a dedicated display head: UTVs, side-by-sides, and off-road 4WDs with dash panel space
Frequently Asked Questions
Is the PMX-8DH compatible with PMX source units other than the PMX-8BB? No. The PMX-8DH is designed exclusively for use with the Rockford Fosgate PMX-8BB hide-away digital media receiver. It is not compatible with the PMX-2, PMX-3, or PMX-5 as a display head use the PMX-1R remote for those units instead.
How does the wet bonded display improve visibility in direct sunlight? The epoxy layer between the display and cover glass eliminates the internal air gap, which significantly reduces internal reflections and light scatter. The result is a sharper, brighter image that remains clearly readable even under intense direct sunlight on open Australian waterways.
What testing standards has the PMX-8DH been validated against? The PMX-8DH has been tested for 500 hours each under ASTM B117 salt fog and ASTM D4329 UV exposure standards two of the most recognised durability benchmarks for marine electronics, covering corrosion and UV degradation resistance.
Can the PMX-8DH be used to display a reversing or action camera feed? Yes. The PMX-8DH features a composite video input that accepts a direct camera or video system connection, turning the display head into a dual-purpose helm screen for audio control and video monitoring.
Does the PMX-8DH require an extension cable for installation? It depends on your installation. If the PMX-8BB hide-away unit is mounted close to the helm, the standard connector may be sufficient. For longer runs, the PMX10C (approx. 3.0 m), PMX16C (approx. 4.9 m), or PMX25C (approx. 7.6 m) extension cables are available separately.
