Description

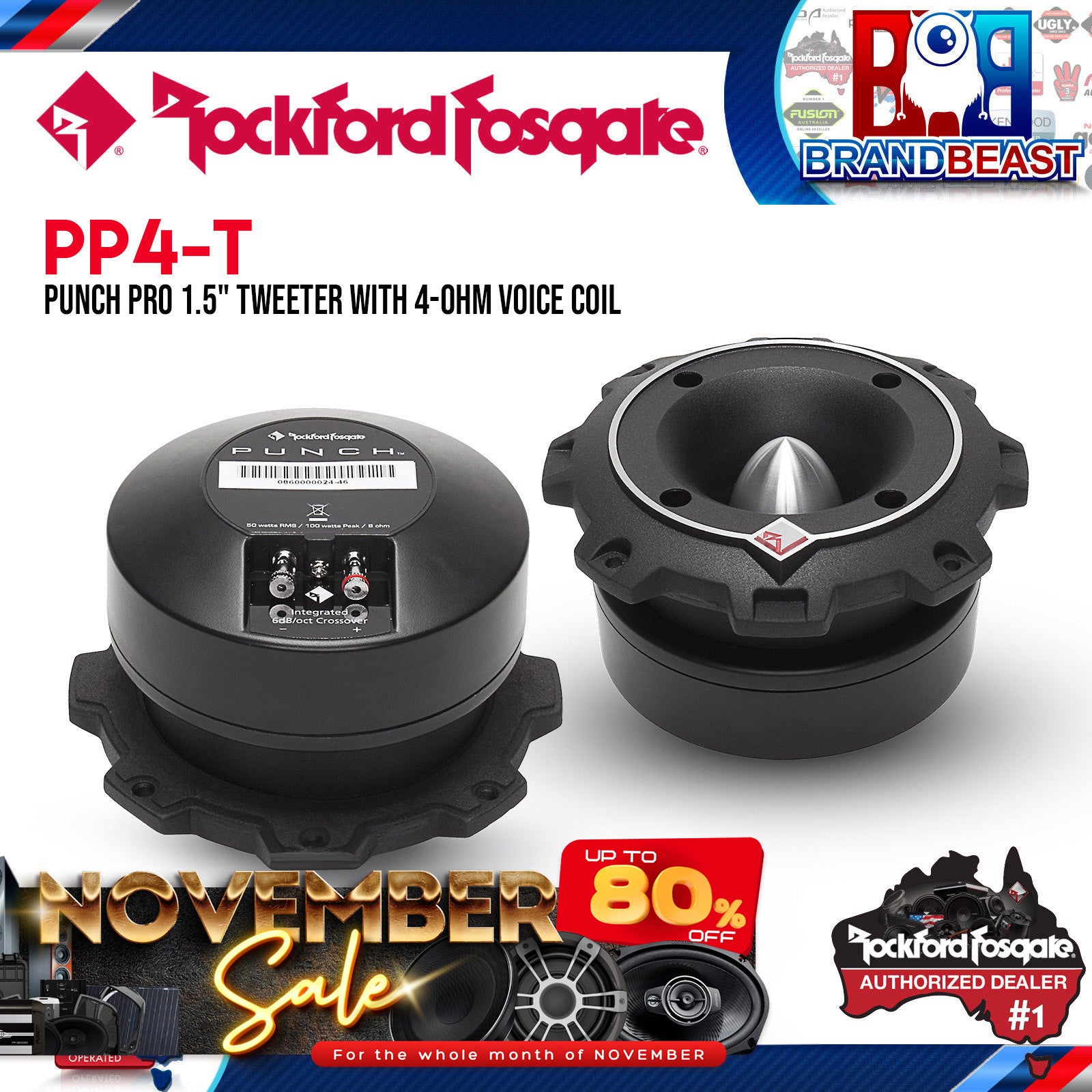

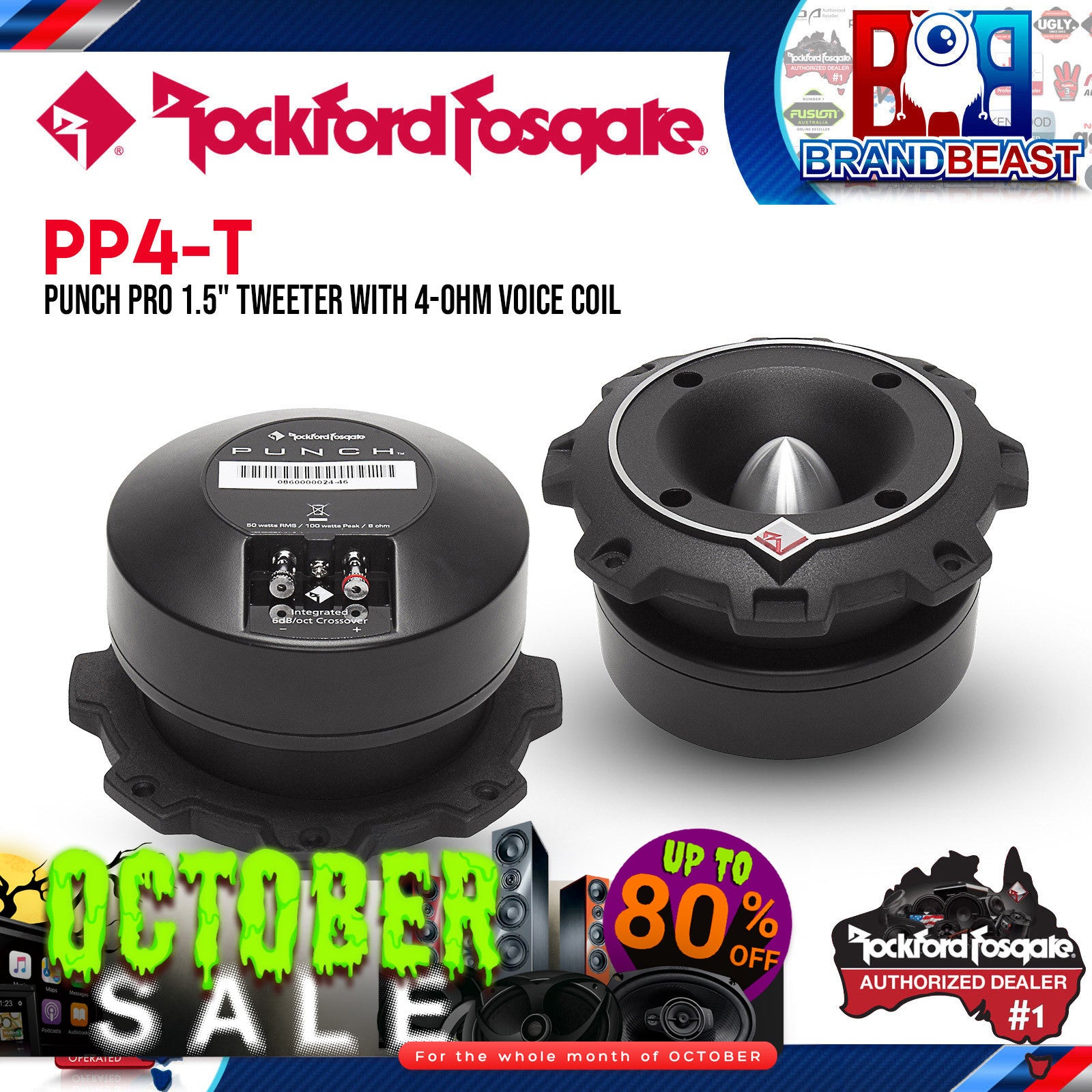

1.5" Punch Pro SPL Tweeter Aluminium Diaphragm, Billet Machined Phase Plug, Die-Cast Aluminium Housing, Built-In 6dB/Octave Crossover. Sold Individually.
Product Overview
The Rockford Fosgate Punch Pro PP4-T is a 1.5" 4-Ohm tweeter engineered specifically for high SPL (Sound Pressure Level) applications competition car audio builds, high-output SPL-oriented systems, and any installation where tweeter sensitivity, power handling, and mechanical robustness take priority. It is sold as an individual unit, not a pair.
The PP4-T uses an aluminium diaphragm rather than the PEI or fabric dome materials used in standard Punch and Prime series tweeters producing a stiffer, lighter diaphragm with high sensitivity. A billet machined aluminium phase plug controls high-frequency dispersion from the diaphragm face, and a die-cast aluminium housing provides structural rigidity that pressed steel cannot match. A High Temp Kapton voice coil former is engineered to withstand the sustained high temperatures generated during high-SPL operation. A built-in 6dB/octave high-pass crossover is integrated into the unit.
Key Specifications
- Tweeter size: 1.5 inch
- Impedance: 4-Ohm
- Power handling (RMS): 50W (confirmed in description)
- Diaphragm material: Aluminium
- Phase plug: Billet machined aluminium
- Voice coil former: High Temp Kapton
- Housing: Die-cast aluminium
- Input terminals: All-metal spring terminal
- Crossover: Built-in 6dB/octave high-pass
- Crossover point: Not specified — confirm with Rockford Fosgate
- Application: High SPL
- Mounting hardware: Included
- Sold as: Individual unit (not a pair)
- Sensitivity: Not specified — confirm with Rockford Fosgate
- Frequency response: Not specified — confirm with Rockford Fosgate
- Mounting depth: Not specified — confirm with Rockford Fosgate
- Weight: Not specified — confirm with Rockford Fosgate
- Warranty: Not specified — confirm with Rockford Fosgate
Features & Benefits
-
Aluminium Diaphragm — The aluminium dome diaphragm is lighter and stiffer than soft dome or PEI materials — producing high sensitivity and a very fast, controlled high-frequency response suited to high SPL conditions where the tweeter must keep pace with high-output woofers and amplifiers. Aluminium domes produce a bright, forward, detailed treble character.
-
Billet Machined Aluminium Phase Plug — The phase plug is machined from solid billet aluminium rather than cast or stamped — sitting at the centre of the diaphragm to control the dispersion pattern of high-frequency output and reduce distortion caused by uncontrolled centre-cavity resonance. Billet machining produces a tighter dimensional tolerance than casting.
-
Die-Cast Aluminium Housing — The housing is die-cast aluminium rather than pressed steel or injection-moulded plastic — providing the structural rigidity and heat dissipation characteristics appropriate for a high-power, high-SPL tweeter operating in sustained competition conditions.
-
High Temp Kapton Voice Coil Former — Kapton (polyimide film) is the industry-standard high-temperature voice coil former material, chosen for its ability to maintain dimensional stability and mechanical integrity at the elevated temperatures produced by sustained high-power operation — a critical reliability requirement for SPL-oriented applications.
-
Built-In 6dB/Octave High-Pass Crossover — An integrated 6dB/octave high-pass crossover is built into the tweeter unit — filtering low-frequency content that could damage the 1.5" diaphragm. Crossover point (Hz) is not confirmed in the supplier data — pull from the official Rockford Fosgate PP4-T datasheet.
-
All-Metal Input Spring Terminal — Metal spring terminals provide a secure, vibration-resistant connection that does not corrode or loosen under the mechanical stress of high-SPL operation.
-
Oversized Motor Structure — An oversized motor provides greater magnetic flux for the voice coil — contributing to the high sensitivity and power handling characteristics of the PP4-T.
-
Sold Individually — The PP4-T is sold as a single unit. Two units must be purchased for a stereo left/right tweeter installation.
Technical Specs
| Specification |
Detail |
| Brand |
Rockford Fosgate |
| Part Number |
PP4-T |
| Series |
Punch Pro |
| Tweeter Size |
1.5 inch |
| Impedance |
4-Ohm ✓ |
| Power Handling (RMS) |
50W ✓ (description) |
| Diaphragm |
Aluminium |
| Phase Plug |
Billet Machined Aluminium |
| Voice Coil Former |
High Temp Kapton |
| Housing |
Die-Cast Aluminium |
| Input Terminals |
All-Metal Spring Terminal |
| Crossover |
Built-in 6dB/Octave HP |
| Crossover Point |
Not specified — confirm with Rockford Fosgate |
| Application |
High SPL |
| Mounting Hardware |
Included |
| Sold As |
Individual unit (not a pair) ✓ |
| Sensitivity |
Not specified — confirm with Rockford Fosgate |
| Frequency Response |
Not specified — confirm with Rockford Fosgate |
| Mounting Depth |
Not specified — confirm with Rockford Fosgate |
| Weight |
Not specified — confirm with Rockford Fosgate |
| Warranty |
Not specified — confirm with Rockford Fosgate |
Compatible With / Goes Well With
Suitable applications:
- High SPL and competition car audio builds requiring a robust, high-power tweeter
- Front stage systems paired with high-output amplifiers and woofers
- Installations where tweeter sensitivity and sustained power handling are the priority
Pairs well with:
- High-output 4-channel amplifiers for front stage (T400-4, T600-4, or T1000-4AD)
- High SPL woofers matched to the tweeter's operating range
Frequently Asked Questions
Is the PP4-T sold as a pair?
No — the PP4-T is explicitly sold as an individual unit. Two units must be purchased separately for a stereo left/right installation.
What is an aluminium diaphragm tweeter and how does it differ from a PEI or soft dome?
An aluminium dome diaphragm is stiffer and lighter than PEI (rigid thermoplastic) or soft dome (fabric/silk) materials. This produces high sensitivity and fast, precise high-frequency response — well-suited to high SPL conditions where maximum output and impact are priorities. Aluminium domes typically have a bright, forward treble character that suits SPL and competition applications.
What is the confirmed power handling for the PP4-T?
The product description confirms 50W RMS. The product title states 100W, which most likely represents the peak power rating. The 50W RMS figure has been used throughout this listing as the confirmed sustained power rating. Confirm the full 50W RMS / 100W peak interpretation with Rockford Fosgate before publishing.
What does the billet machined aluminium phase plug do?
The phase plug sits at the centre of the tweeter diaphragm and controls the dispersion of high-frequency output — preventing uncontrolled resonance in the cavity behind the dome and improving the evenness of the tweeter's off-axis frequency response. Billet machining produces tighter dimensional tolerances than casting, contributing to more consistent acoustic performance.
What is a Kapton voice coil former?
Kapton is a polyimide film from DuPont, widely used as a voice coil former material in high-power speaker drivers. It maintains dimensional stability and mechanical integrity at the elevated temperatures generated during sustained high-power operation — important for a tweeter designed for high SPL applications where heat build-up can be significant.
