Description
8" Punch Pro Midrange/Midbass 125W RMS, 4-Ohm, Stamp-Cast Aluminium Frame, Fibre-Reinforced Paper Cone. Engineered for High SPL. Sold Individually.
Product Overview

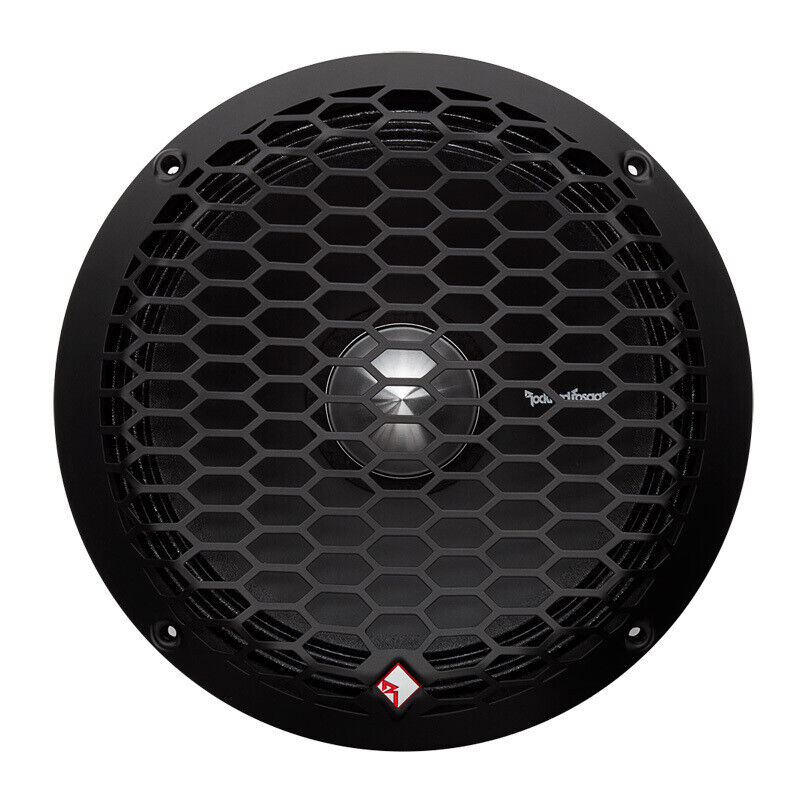

The Rockford Fosgate Punch Pro PPS4-8 is an 8" 4-Ohm midrange and midbass loudspeaker rated at 125W RMS engineered specifically for high SPL (Sound Pressure Level) conditions in front stage car audio installations. It is sold as an individual unit, not a pair.
Construction throughout is built to sustain the demands of high-output, high-temperature operation: a stamp-cast aluminium frame, billet machined aluminium phase plug, high-temperature aluminium voice coil, fibre-reinforced high-strength paper cone with a corrugated treated cloth surround in a "W" profile, fatigue-resistant poly cotton spider, periodic-stitched fatigue-resistant lead wire, and all-metal spring input terminals. Protective grilles and mounting hardware are confirmed included.
Technical specifications sensitivity, frequency response, mounting depth, and crossover requirements are not provided in the supplier data. Pull the official Rockford Fosgate PPS4-8 datasheet before publishing.
Key Specifications
- Speaker size: 8 inch
- Application: Midrange / Midbass
- Impedance: 4-Ohm
- Power handling (RMS): 125W (confirmed)
- Peak power: Not specified — confirm with Rockford Fosgate
- Frame: Stamp-cast aluminium
- Cone: Fibre-reinforced high-strength paper
- Surround: Corrugated treated cloth ("W" profile)
- Spider: Fatigue and tear resistant poly cotton
- Voice coil: High temp aluminium
- Lead wire: Periodic-stitched fatigue resistant
- Phase plug: Billet machined aluminium
- Input terminals: All-metal spring terminal
- Motor: Oversized
- Grilles: Included
- Mounting hardware: Included
- Sold as: Individual unit (not a pair)
- Sensitivity: Not specified — confirm with Rockford Fosgate
- Frequency response: Not specified — confirm with Rockford Fosgate
- Mounting depth: Not specified — confirm with Rockford Fosgate
- Cutout diameter: Not specified — confirm with Rockford Fosgate
- Weight: Not specified — confirm with Rockford Fosgate
- Warranty: Not specified — confirm with Rockford Fosgate
Features & Benefits
-
Engineered for High SPL — The PPS4-8 is specifically designed for high SPL conditions — sustained high output levels in competition and extreme-output car audio front stage installations. Every material and construction choice reflects this priority.
-
125W RMS Power Handling — 125W RMS is a substantial continuous power rating for an 8" midrange driver — allowing the PPS4-8 to receive the full output of a high-powered amplifier channel without exceeding safe operating limits.
-
Stamp-Cast Aluminium Frame — The stamp-cast aluminium frame is stiffer than pressed steel and provides better heat dissipation from the voice coil gap — maintaining structural integrity under the mechanical and thermal stress of sustained SPL operation.
-
Fibre-Reinforced High-Strength Paper Cone — A paper cone reinforced with high-strength fibre is lighter than polypropylene for equivalent stiffness — producing a high sensitivity, fast-responding diaphragm. The fibre reinforcement resists the flex and fatigue that plain paper cones can suffer under high excursion at high power levels.
-
Corrugated Treated Cloth Surround — "W" Profile — The corrugated cloth surround with a "W" cross-section provides a controlled compliance path for the cone edge — the corrugated profile increases the effective travel distance of the surround without increasing the cone's outer diameter, allowing greater linear excursion. The cloth treatment improves moisture and temperature resistance.
-
Billet Machined Aluminium Phase Plug — Machined from solid billet aluminium to tight dimensional tolerances, the phase plug sits at the centre of the cone to control midrange dispersion and reduce resonance in the dust cap cavity — improving the evenness of off-axis frequency response.
-
High Temp Aluminium Voice Coil — An aluminium voice coil winding (rather than copper) reduces moving mass for improved transient response and sensitivity, while aluminium's lower mass and higher resistivity compared to copper suit high-frequency midrange operation. The high-temperature former maintains dimensional stability at sustained power levels.
-
Fatigue-Resistant Poly Cotton Spider — The poly cotton spider provides consistent cone return force and mechanical damping across a wide range of excursion levels — the "fatigue and tear resistant" description reflects the sustained high-excursion demands of SPL use.
-
Periodic-Stitched Fatigue-Resistant Lead Wire — The lead wire connecting the voice coil to the input terminals uses periodic stitching to the spider to prevent fatigue fracture at the flex point — a failure mode that occurs in standard lead wire under the repeated flexing of high-excursion operation.
-
All-Metal Spring Input Terminals — Corrosion-resistant all-metal spring terminals provide a secure, vibration-resistant connection under the mechanical demands of high-SPL operation.
-
Grilles and Mounting Hardware Included — Protective grilles and all hardware for a complete installation.
-
Sold Individually — One speaker per purchase. Two units are required for a stereo left/right front stage installation.
Technical Specs
| Specification |
Detail |
| Brand |
Rockford Fosgate |
| Part Number |
PPS4-8 |
| Series |
Punch Pro |
| Speaker Size |
8 inch |
| Application |
Midrange / Midbass |
| Impedance |
4-Ohm ✓ |
| Power Handling (RMS) |
125W ✓ |
| Peak Power |
Not specified — confirm with Rockford Fosgate |
| Frame |
Stamp-Cast Aluminium |
| Cone |
Fibre-Reinforced High-Strength Paper |
| Surround |
Corrugated Treated Cloth ("W" profile) |
| Spider |
Fatigue and Tear Resistant Poly Cotton |
| Voice Coil |
High Temp Aluminium |
| Lead Wire |
Periodic-Stitched Fatigue Resistant |
| Phase Plug |
Billet Machined Aluminium |
| Input Terminals |
All-Metal Spring |
| Motor |
Oversized |
| Grilles |
Included ✓ |
| Mounting Hardware |
Included ✓ |
| Sold As |
Individual Unit (not a pair) ✓ |
| Sensitivity |
Not specified — confirm with Rockford Fosgate |
| Frequency Response |
Not specified — confirm with Rockford Fosgate |
| Mounting Depth |
Not specified — confirm with Rockford Fosgate |
| Cutout Diameter |
Not specified — confirm with Rockford Fosgate |
| Weight |
Not specified — confirm with Rockford Fosgate |
| Warranty |
Not specified — confirm with Rockford Fosgate |
Compatible With / Goes Well With
Suitable applications:
- High SPL front stage midrange and midbass installations
- Competition car audio builds requiring a dedicated 8" midrange/midbass driver
- Open-air mounting in custom door pods or door panels designed for 8" drivers
- Systems where the PPS4-8 handles the midrange and midbass range with the PP4-T (or similar) handling high frequencies
Pairs well with:
- High-output 4-channel amplifiers (T400-4, T600-4, T1000-4AD) for front stage operation
- Rockford Fosgate PP4-T Punch Pro tweeter for a matched Punch Pro front stage system
- Active or passive crossover to define the PPS4-8's operating frequency range in system context
Frequently Asked Questions
Is the PPS4-8 sold as a pair?
No — the PPS4-8 is explicitly sold as an individual unit. Two units must be purchased for a stereo left/right front stage installation.
What is the difference between a midrange and a midbass driver?
A midrange driver covers the mid frequency range, typically from around 200Hz to 5kHz — handling vocals, guitar, and most melodic instrument content. A midbass driver extends this range lower to cover upper bass frequencies, typically from around 80Hz to 3kHz. The PPS4-8 is described as both — its 8" cone size allows it to operate effectively in both the midbass and midrange regions depending on system crossover configuration.
Why does the PPS4-8 use a paper cone rather than polypropylene?
Fibre-reinforced paper is lighter than polypropylene for equivalent stiffness — producing higher sensitivity. In SPL applications, sensitivity is a primary performance metric: a more sensitive driver produces more sound pressure from the same power input. The fibre reinforcement addresses paper's traditional weakness by improving cone rigidity and fatigue resistance at high excursion levels.
What is the "W" surround profile?
The "W" profile describes the cross-sectional shape of the corrugated cloth surround — when viewed in cross-section, the surround has a "W" shape. This corrugated geometry provides more surround material at the cone edge, allowing greater cone excursion without the surround becoming excessively stretched or bottoming out — enabling the high linear excursion required for SPL operation.
What amplifier power level is appropriate for the PPS4-8?
The PPS4-8 is rated at 125W RMS. Match the amplifier channel output to no more than the speaker's RMS rating for sustained operation. For occasional peak programme material, modest headroom above RMS is acceptable, but sustained clipped amplifier output above 125W RMS risks driver failure.
