Description
6.5" 3-Way Coaxial Speaker Pair 45W RMS, 91dB Sensitivity, 52Hz–20kHz, Factory Replacement with Grilles Included.
Product Overview

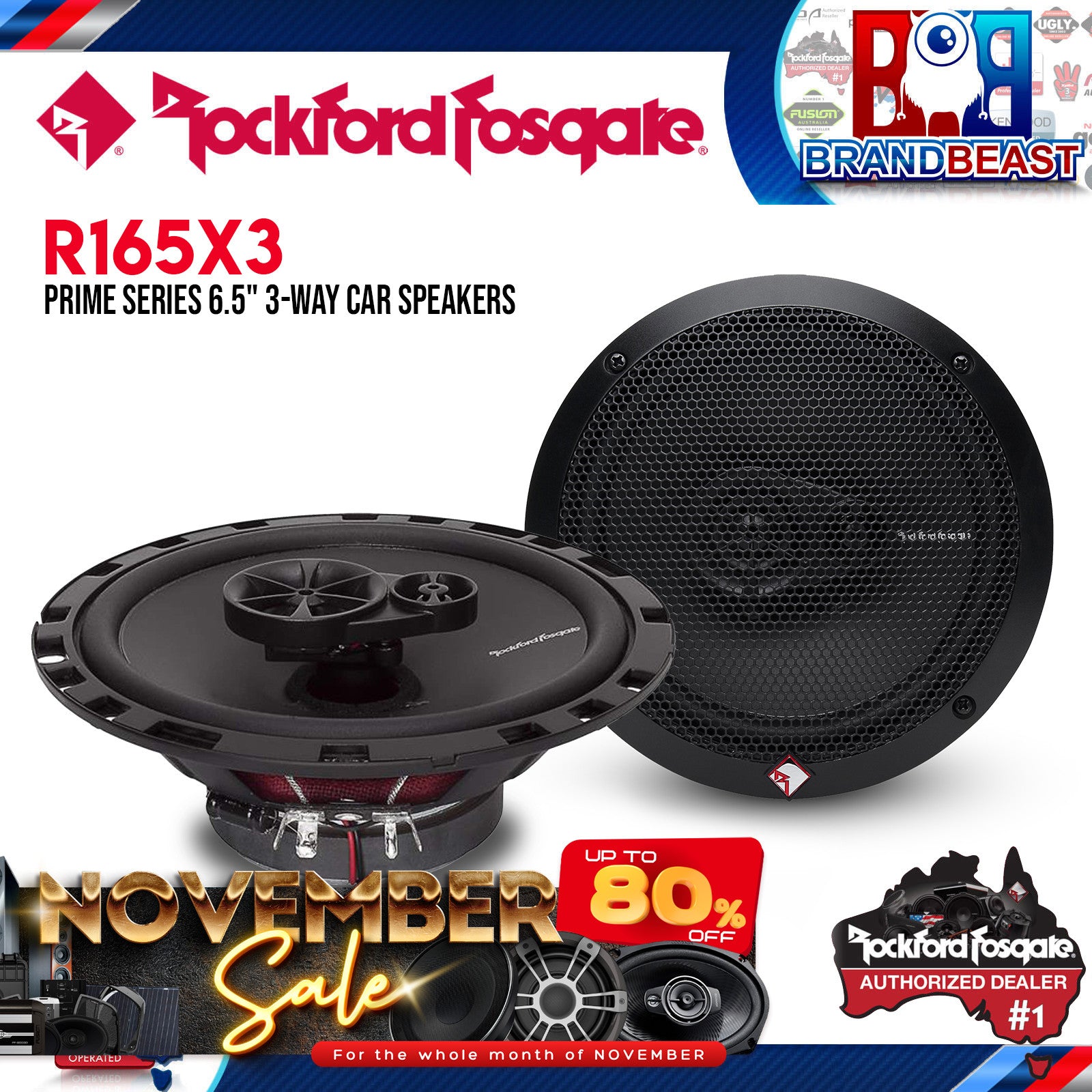

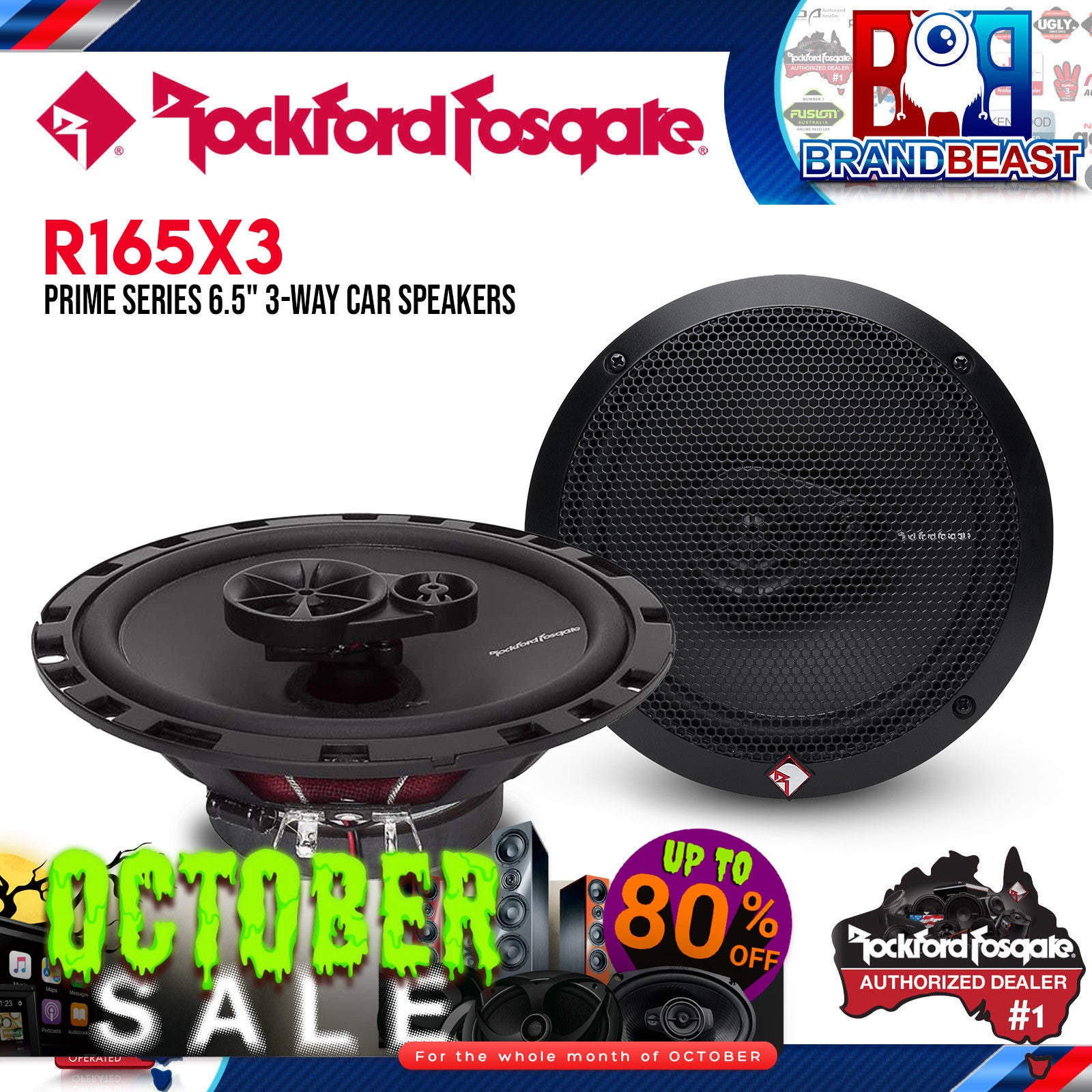

The Rockford Fosgate Prime R165X3 is a pair of 6.5" 3-way coaxial speakers rated at 45W RMS (90W peak) per speaker, delivering a frequency response of 52Hz to 20kHz with 91dB sensitivity at 1W/1M. Designed as a quality factory replacement for the most common car speaker size, the R165X3 adds a third driver element a pole-mounted Piezo tweeter and midrange over the 2-way configuration of the R14X2 and R1525X2, enabling independent handling of high, mid, and bass frequencies from a single compact coaxial assembly.
At 91dB sensitivity, the R165X3 performs well from factory head unit power levels making it suitable as a head-unit-level upgrade without requiring an amplifier. The kit includes two speakers, grilles, and all mounting hardware, and is backed by a 1-year warranty. Sold as a confirmed pair.
Note on power rating: The product title states 90W — this is the peak/maximum power rating. The confirmed RMS (continuous) rating is 45W per speaker. RMS is the relevant figure for ongoing safe use and amplifier matching.
Key Specifications
- Speaker size: 6.5 inch
- Configuration: 3-way coaxial
- Power handling (RMS): 45W per speaker
- Peak / maximum power: 90W per speaker
- Sensitivity: 91dB @ 1W/1M
- Frequency response: 52Hz – 20kHz
- Tweeter: Pole-mounted Piezo tweeter
- Mid element: Pole-mounted midrange
- Woofer: Vacuum polypropylene cone
- Surround: Rubber
- Basket: Stamped steel
- Crossover: Integrated tweeter high-pass (HP), 6dB slope
- Grilles: Included
- Mounting hardware: Included
- Sold as: Pair (2 speakers confirmed)
- Shipping weight: 4.6 lbs (2.08 kg) per pair
- Warranty: 1 year
- Impedance: Not specified — confirm with Rockford Fosgate
- Mounting depth: Not specified — confirm with Rockford Fosgate
- Cutout diameter: Not specified — confirm with Rockford Fosgate
Features & Benefits
-
3-Way Coaxial — Three Drivers per Speaker — Three-way coaxial construction adds a dedicated midrange element to the woofer and tweeter found in a 2-way design. The result is more consistent frequency band coverage — the midrange driver handles the critical vocal and instrumental range (roughly 500Hz to 5kHz) independently, allowing the woofer to focus on lower frequencies and the tweeter on the highest frequencies.
-
45W RMS / 90W Peak Power Handling — 45W RMS is the sustained continuous power rating — the relevant figure for safe, long-term operation and amplifier matching. The 90W peak rating covers transient program material. At 91dB sensitivity, this speaker produces generous output from a head unit without amplification, while accepting up to 45W RMS from an amplifier for higher output installations.
-
91dB Sensitivity @ 1W/1M — At 91dB, the R165X3 is relatively efficient. A 1dB increase in sensitivity is equivalent to doubling the amplifier power — meaning 91dB speakers will sound noticeably louder than 88dB speakers at identical power inputs. This makes the R165X3 a good match for factory head unit power levels and low-powered amplifiers alike.
-
52Hz – 20kHz Frequency Response — A frequency range extending from 52Hz provides usable bass reproduction from a 6.5" coaxial without a subwoofer in modest listening environments. The full 20kHz upper limit covers the audible range including high-frequency detail from cymbals, voice sibilance, and instrument overtones.
-
Pole-Mounted Piezo Tweeter — The Piezo tweeter is inherently capacitive and acts as a natural high-pass filter — requiring only the integrated 6dB slope crossover rather than a steeper active crossover. Note: Piezo tweeters differ in character from silk dome designs (used in the R14X2 and R1525X2) — they can sound brighter and more forward, particularly at high volumes. Buyers seeking a warmer high-frequency character should compare the Piezo-equipped R165X3 against a silk dome alternative before selecting.
-
Vacuum Polypropylene Cone, Rubber Surround — Proven moisture-resistant cone construction with a rubber surround for consistent compliance and long-term durability across Australian temperature variations.
-
Grilles and Mounting Hardware Included — Complete installation kit: two grilles and all hardware for factory speaker position replacement.
-
1-Year Warranty — Confirmed 1-year manufacturer's warranty on the pair.
Technical Specs
| Specification |
Detail |
| Brand |
Rockford Fosgate |
| Part Number |
R165X3 |
| Series |
Prime |
| Speaker Size |
6.5 inch |
| Configuration |
3-Way Coaxial |
| Power Handling (RMS) |
45W per speaker ✓ |
| Power Handling (Peak) |
90W per speaker ✓ |
| Sensitivity |
91dB @ 1W/1M ✓ |
| Frequency Response |
52Hz – 20kHz ✓ |
| Tweeter |
Pole-Mounted Piezo |
| Tweeter Crossover |
Integrated HP, 6dB slope |
| Cone Material |
Vacuum Polypropylene |
| Surround |
Rubber |
| Basket |
Stamped Steel |
| Grilles |
Included |
| Mounting Hardware |
Included |
| Sold As |
Pair (2 speakers) ✓ |
| Shipping Weight (pair) |
4.6 lbs / 2.08 kg ✓ |
| Impedance |
Not specified — confirm with Rockford Fosgate |
| Mounting Depth |
Not specified — confirm with Rockford Fosgate |
| Cutout Diameter |
Not specified — confirm with Rockford Fosgate |
| Warranty |
1 Year ✓ |
Compatible With / Goes Well With
Suitable installation positions:
- Factory 6.5" door, door card, and rear deck speaker locations
- The most common factory speaker size in Australian passenger vehicles
Fitment caution: Mounting depth and cutout diameter are not confirmed in the supplier data. Confirm these dimensions with Rockford Fosgate or a vehicle-specific fit guide before purchasing.
Rockford Fosgate Prime speaker size comparison:
| Model |
Size |
Config |
RMS |
Tweeter Type |
Pair |
| R14X2 |
4" |
2-Way |
30W ✓ |
Silk Dome |
✓ |
| R1525X2 |
5.25" |
2-Way |
TBC |
Silk Dome |
TBC |
| R165X3 |
6.5" |
3-Way |
45W ✓ |
Piezo |
✓ |
Pairs well with:
- Rockford Fosgate T400-4, T600-4, or T1000-4AD 4-channel amplifiers for amplified operation
- Speaker baffles or spacers for clearance management behind door panels
Weight
Shipping weight: 4.6 lbs (2.08 kg)
Frequently Asked Questions
What is the difference between the 45W RMS and 90W peak ratings?
RMS (Root Mean Square) is the sustained continuous power the speaker can handle safely over time — 45W RMS is the relevant figure for ongoing operation and amplifier matching. Peak or maximum power (90W) is the transient power the speaker can briefly handle during dynamic peaks in music. Always match amplifier output to the RMS rating, not the peak figure.
What is a Piezo tweeter and how does it compare to a silk dome tweeter?
A Piezo tweeter uses piezoelectric crystal elements to produce high-frequency sound. It is inherently capacitive, acting as a natural high-pass filter without requiring a dedicated capacitor in the crossover. Piezo tweeters can sound bright and forward, particularly at higher volumes. Silk dome tweeters (used in the R14X2 and R1525X2) generally produce a softer, warmer high-frequency character. Buyers with sensitivity to bright or forward highs may prefer a silk dome-equipped speaker for extended listening.
Is this speaker suitable for use without an amplifier, straight from a factory head unit?
Yes. At 91dB sensitivity, the R165X3 produces good output from typical factory head unit power (10W–25W per channel). An amplifier will improve dynamics and headroom but is not required for satisfying listening levels at normal volumes.
Is the R165X3 sold as a single speaker or a pair?
Confirmed pair — two speakers per kit, as stated in both the product description ("Sold in pairs (2 each)") and the features list.
What does 52Hz–20kHz frequency response mean in practice?
52Hz is the lowest frequency the speaker is rated to reproduce — covering most bass content in music from kick drums and bass guitar downward. In modest listening environments at lower volumes, this range covers enough bass for satisfying full-range listening from the 6.5" drivers alone. A dedicated subwoofer extends bass reproduction below 52Hz for those wanting deeper output at higher listening levels.
