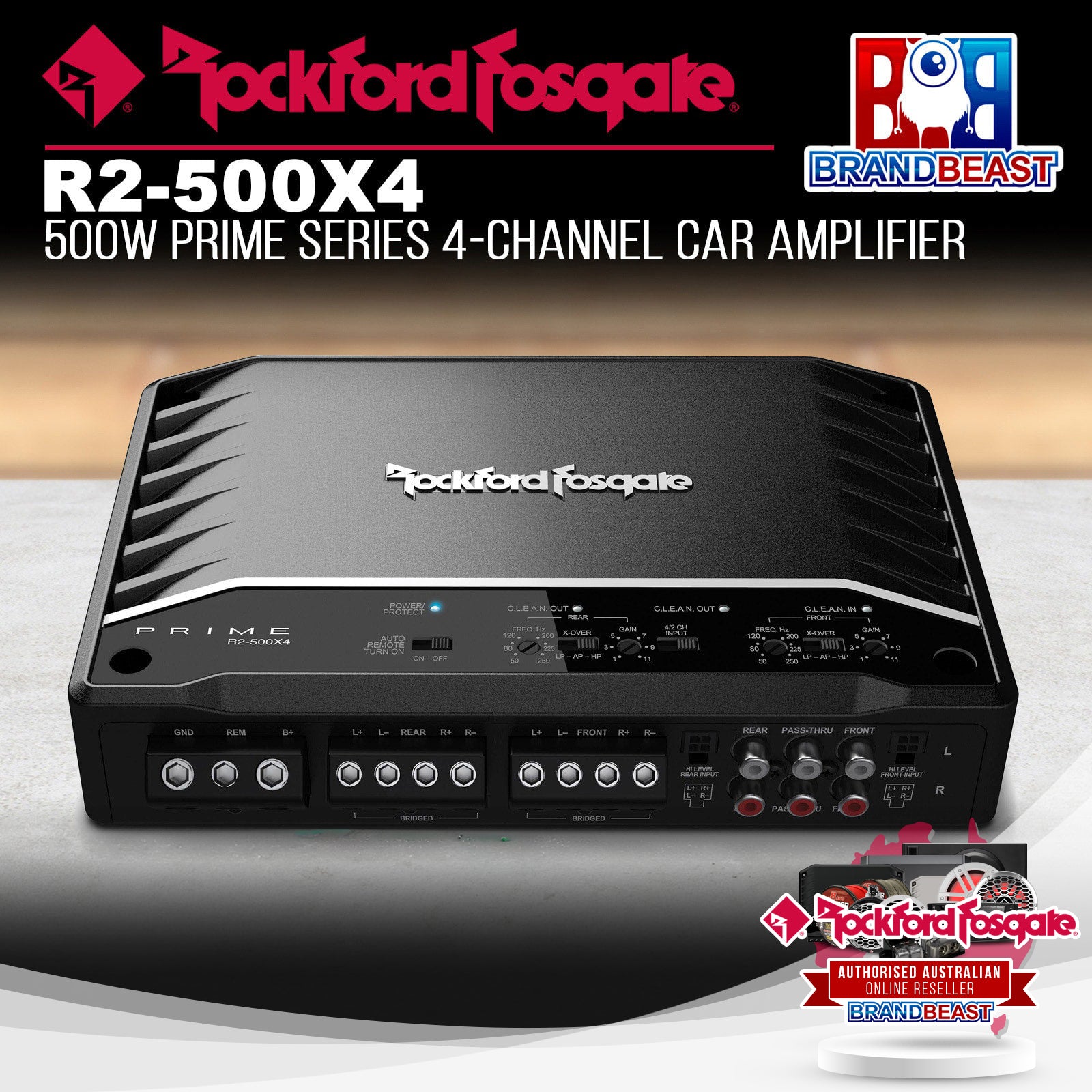

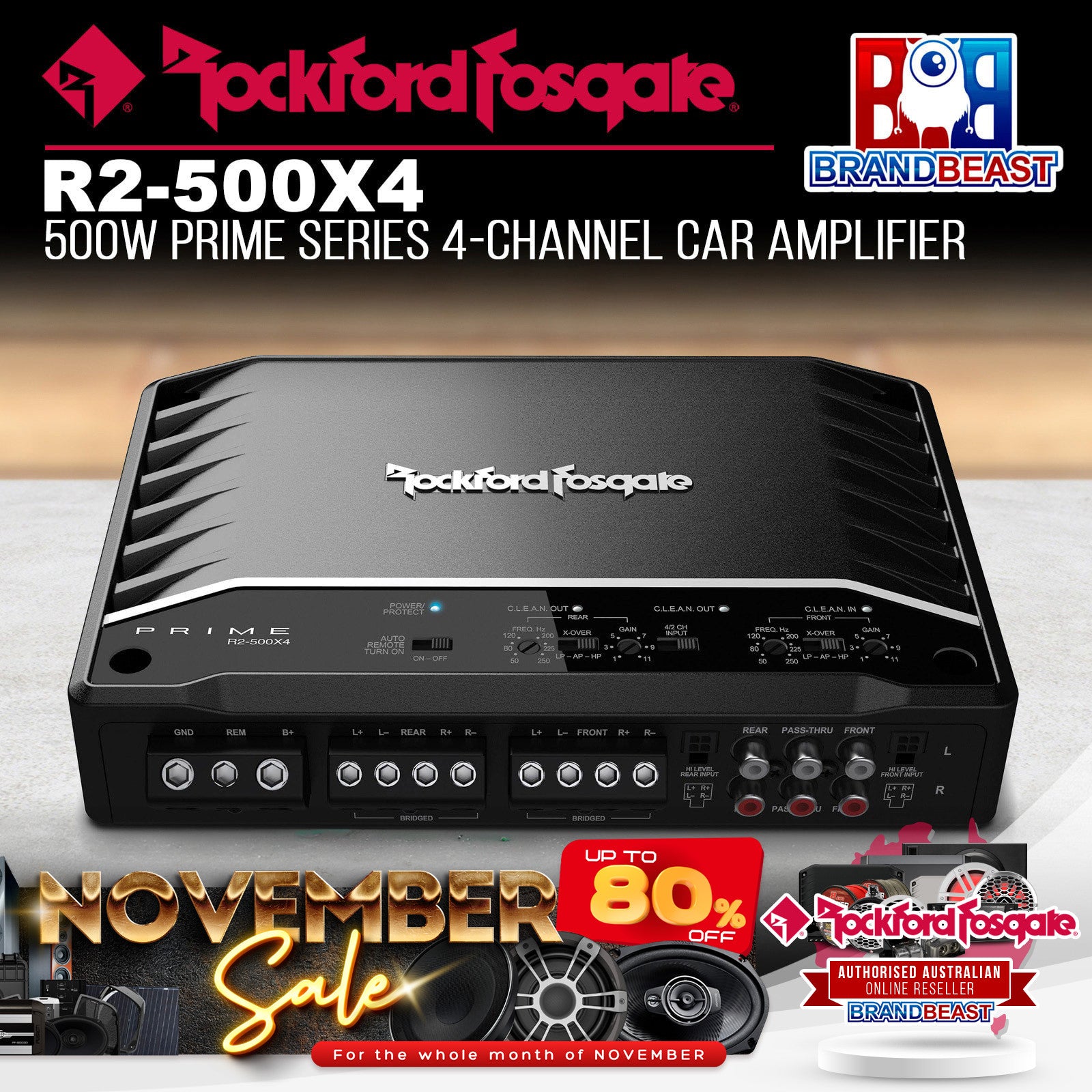

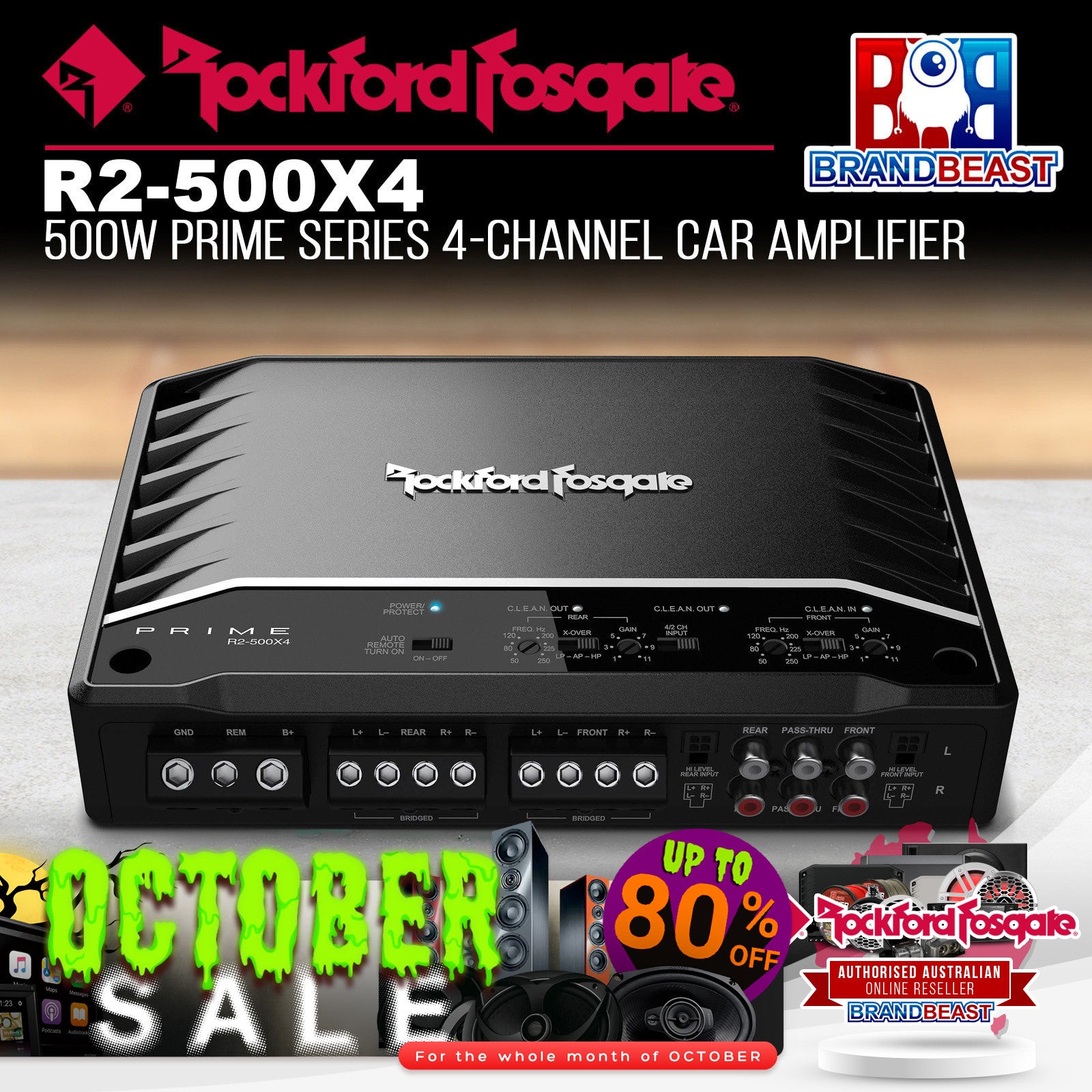

Rockford Fosgate R2-500X4 Prime 500 Watt 4-Channel Amplifier

Description

Rockford Fosgate Prime 500 Watt 4-Channel Amplifier: Primed for Performance

The R2-500X4 4-Channel Amplifier is a 500 watt, full-range class-D, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. The Prime Series were developed for car audio fanatics that want a reliable amplifier Рwith all the power and performance you've come to expect from Rockford Fosgate Рat an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems. Rockford Fosgate R2-500X4 Prime Features:
  • Balanced Differential Inputs with RCA Pass Through Outputs
  • High Level Input Capable
  • Defeat able Auto Turn On Circuit
  • Features C.L.E.A.N. Set-up
  • 2/4 Channel Input Selection Switch
  • Front and Rear Variable Input Gain adjustment level
  • Continuously Variable On Board Punch EQ
  • Top Mounted Control Panel
  • Short Circuit & Over Current Protection
  • CEA-2006 Compliant & CE Compliant
  • Cast aluminum heat sink
  • Full Range Class D
  • Rollback Protection
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
Rockford Fosgate R2-500X4 Prime Specifications:
  • CEA-2006 Compliant
  • CEA-2006 Power Rating
  • 75W x 4 @ 4‚Ѷ
  • ‚â§1.0% THD+N
  • Number of Channels 4
  • Total Power (Sum of Rated Power) 500 Watts
  • Rated Power (RMS Continuous Power) 75 Watts x 4 @ 4Œ© / 125 Watts x 4 @ 2Œ© / 250 Watts x 2 @ 4Œ© Bridged/Mono
  • Dynamic Power (PVC/PowerCube¬Æ) 90 Watts x 4 @ 4Œ© / 160 Watts x 4 @ 2Œ© / 300 Watts x 2 @ 4Œ© Bridged/Mono
  • Bridgeable Yes
  • Frequency Response 20 Hz - 20 kHz
  • Input Sensitivity Low-Level: 150 mV - 4 V / High-Level: 450 mV - 12 V
  • Circuit Topology Class Class D
  • Efficiency (average)
  • Total Harmonic Distortion (THD+Noise) 4Œ©: <1.0% / 2Œ©: <1.0%
  • Signal Input Front Low-Level: 4 RCA / Front High-Level: 4-Pin Molex / Rear Low-Level: 4 RCA / Rear High-Level: 4-Pin Molex
  • Signal Output Low-Level: 2 RCA
  • Tone Controls No
  • Crossover Controls Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Rear High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / All-Pass: Yes
  • Remote Controls No
  • Visual Indicators Power/Protect / C.L.E.A.N. In / C.L.E.A.N. Out (front) / C.L.E.A.N. Out (rear)
  • Power Wire Gauge 4 AWG
  • Power Input Connector Compression Terminal Block
  • Speaker Wire Gauge 8 AWG
  • Speaker Output Connector Compression Terminal Block
  • Cooling Convection
  • Operating Voltage 9 - 16 VDC
  • Recommended Fuse (not included) 80 A
  • Average Current Draw (13.8V Music)
  • Max. Current Draw (13.8V Sinewave) 59 A
  • Dimensions (H x W x D) 1.9" x 6.8" x 10.1" (4.9 cm x 17.3 cm x 25.5 cm)
